SQUEEZER 63 is a manual tool.

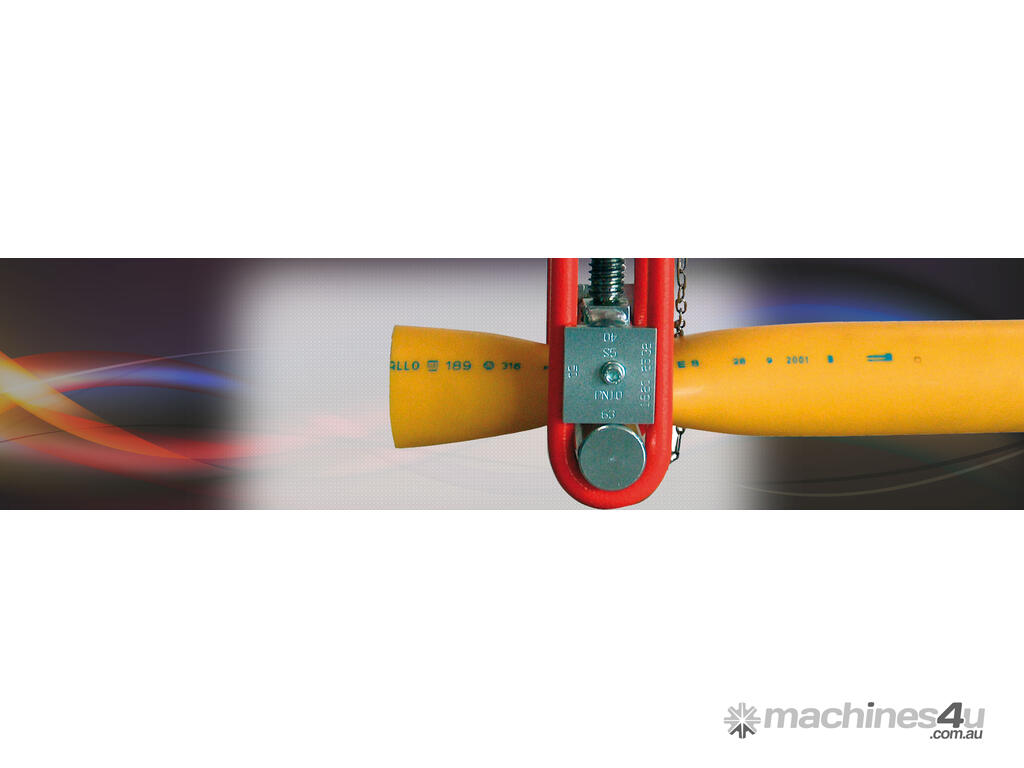

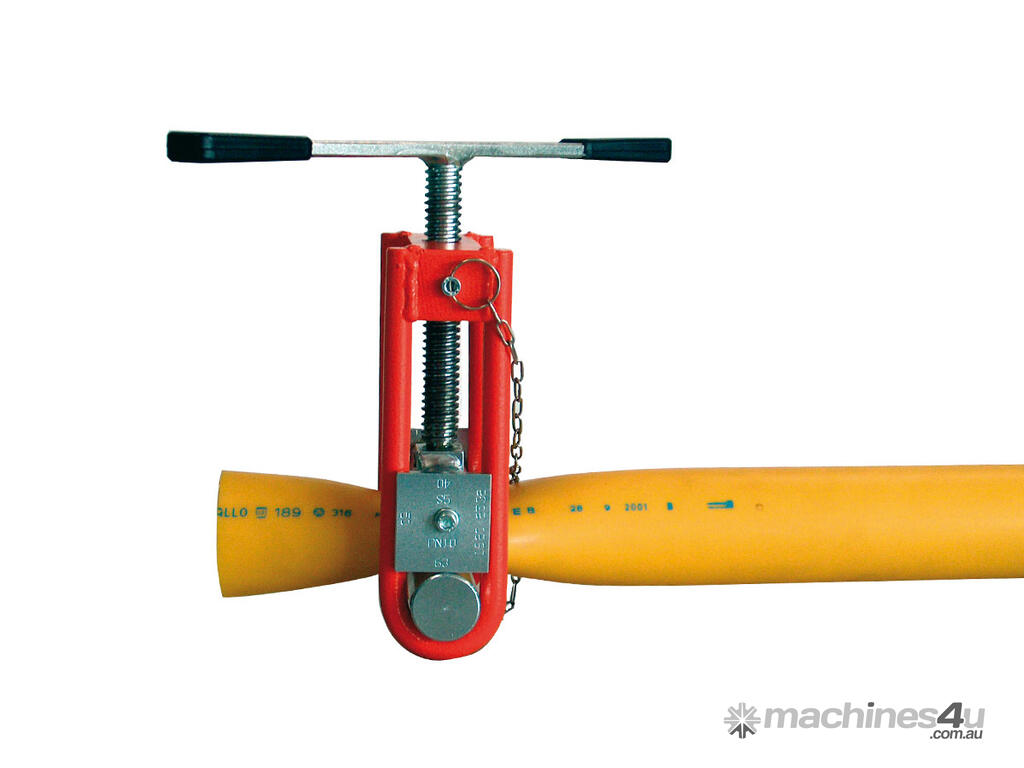

The squeezing action runs by a movable cylindric bar and by an opposite one. The second bar can be removed to permit the pipe insertion. Two special stop templates with 4 positions (on the movable bar sides) assure a safe pipe squeeze on all working range diameters.
Easy and fast to apply, the SQUEEZER is useful in the worksite to stop the gas or water flow in the Polyethylene pipelines from Ø 16 to 63 mm / SDR 11; SDR 17.
Working range
Ø 16 ÷ 63 mm SDR 11 ÷ SDR 17
Dimensions
325 x 70 x 330 mm
Operation
Manual
Weight
5,3 Kg
