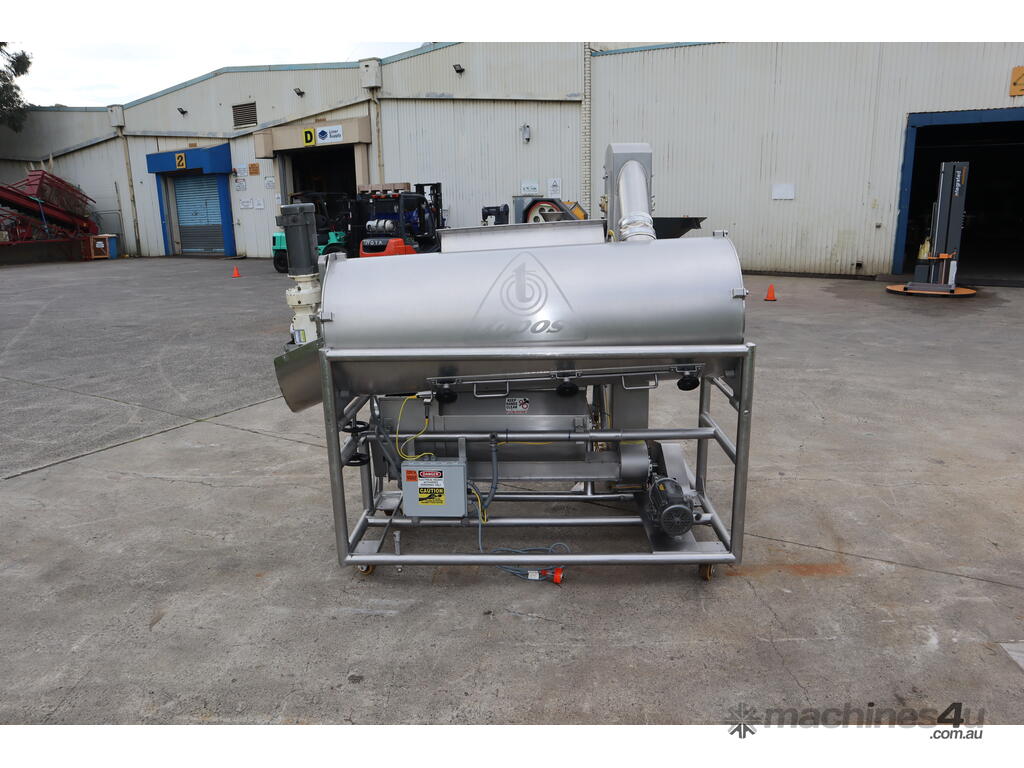

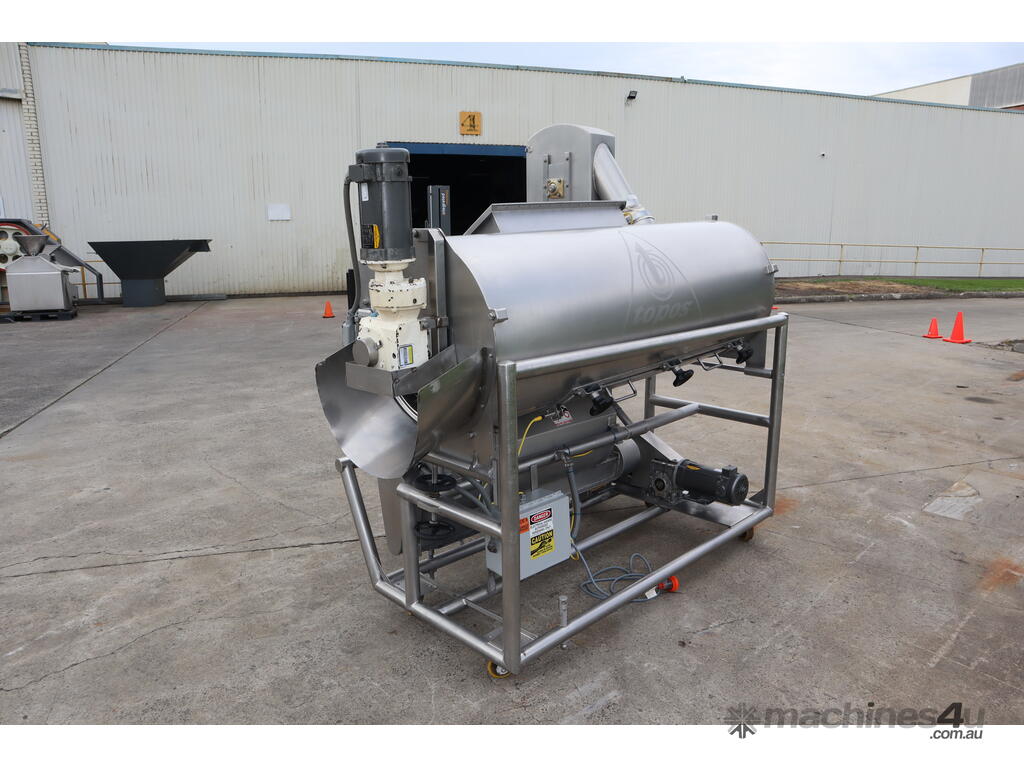

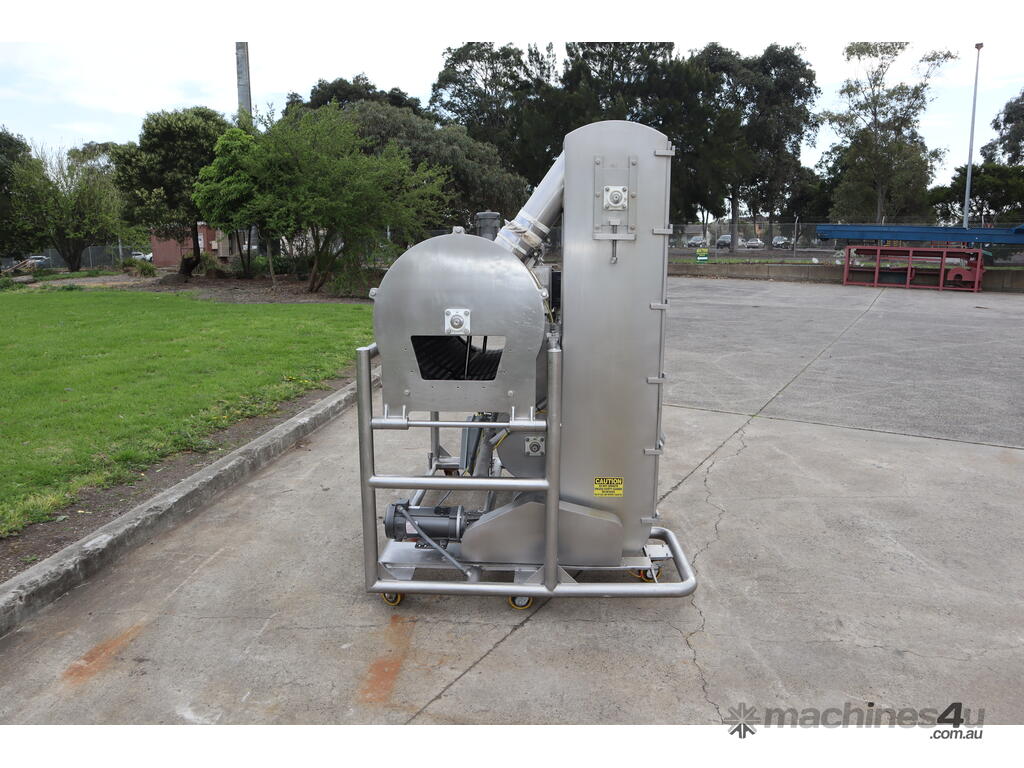

Stainless Steel Commercial Donut Sugar Coating Machine - Topos

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!


PRODUCT INFORMATION:

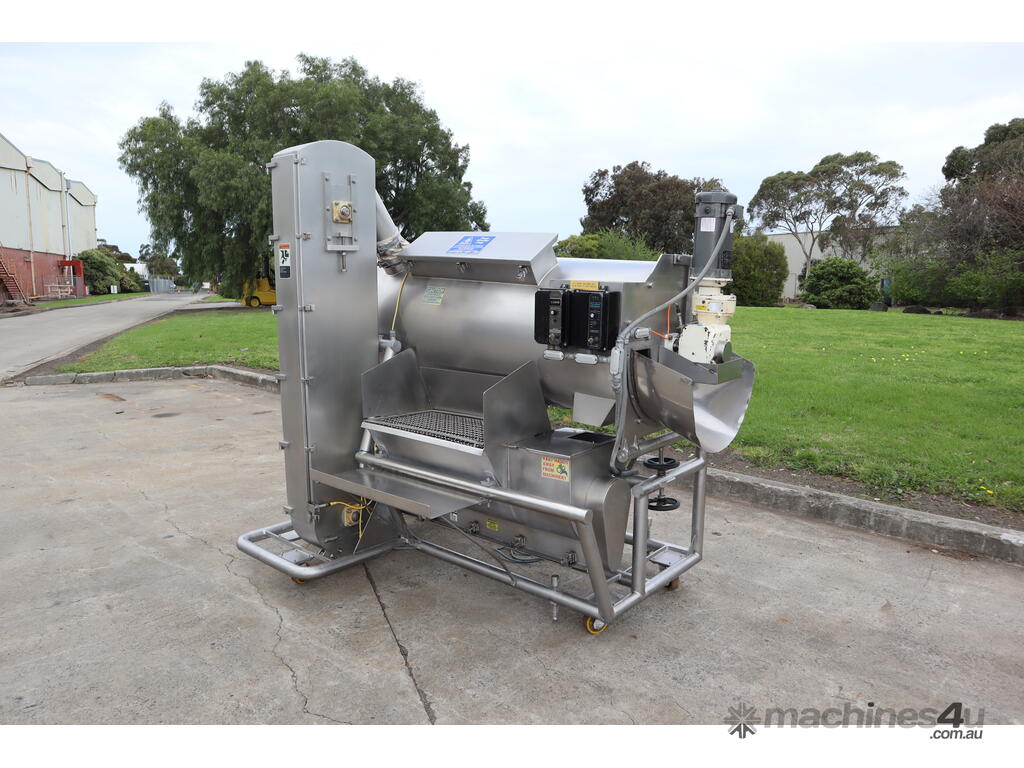

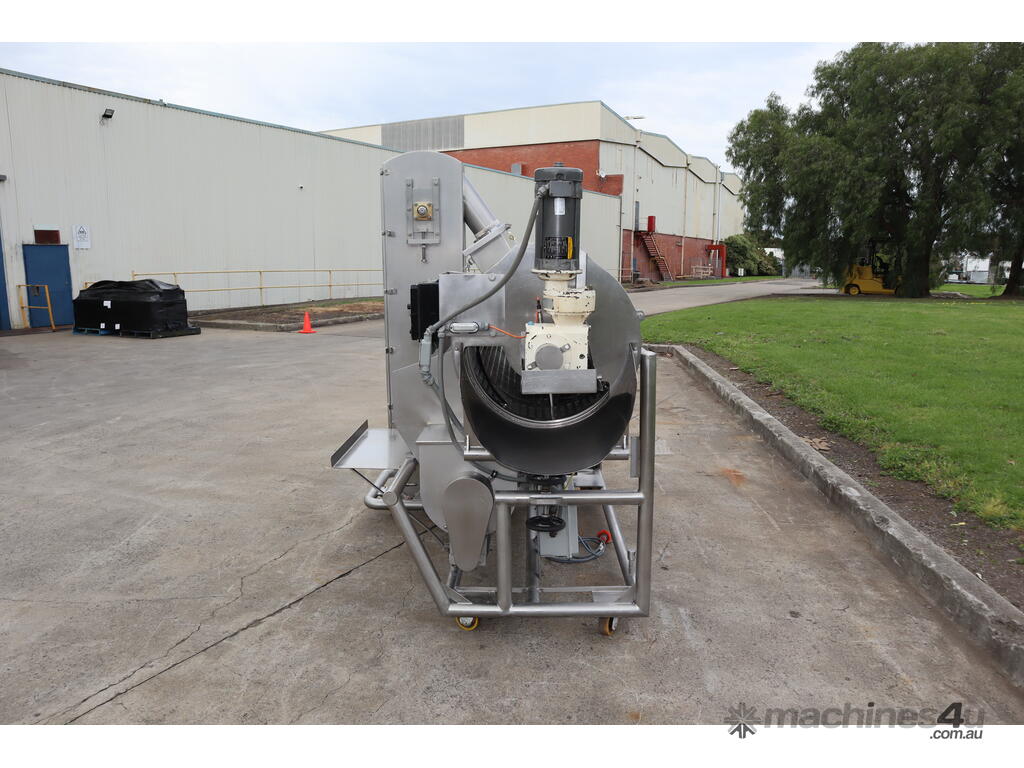

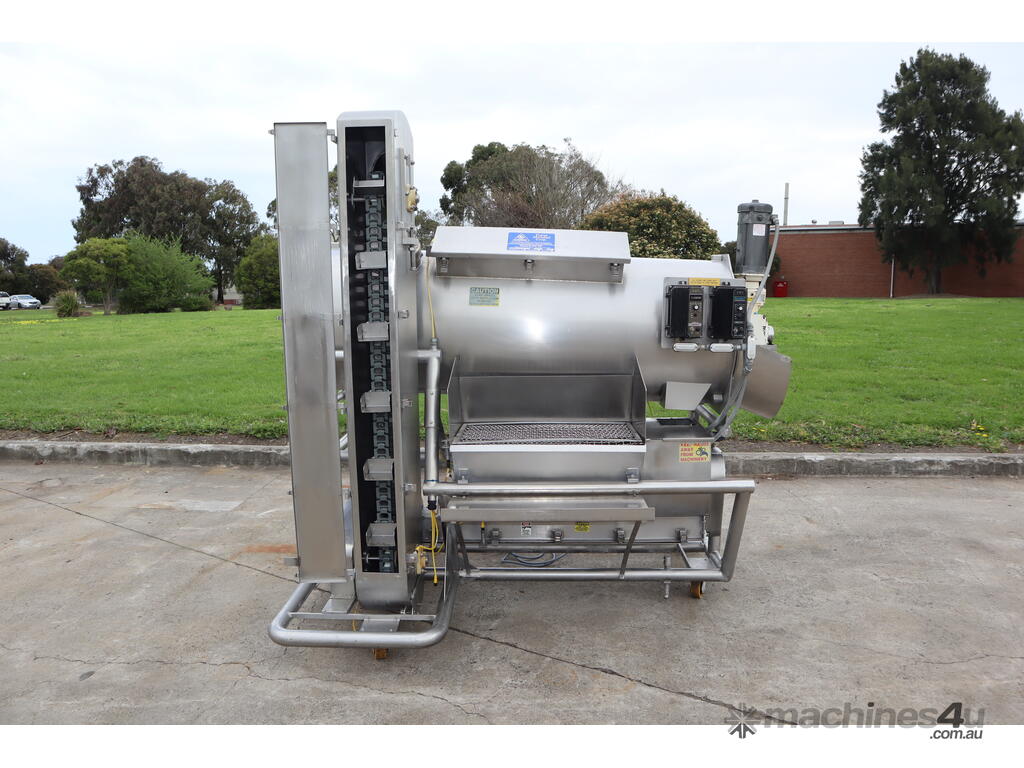

- Description: Donut Sugaring / Coating Tumbler Machine

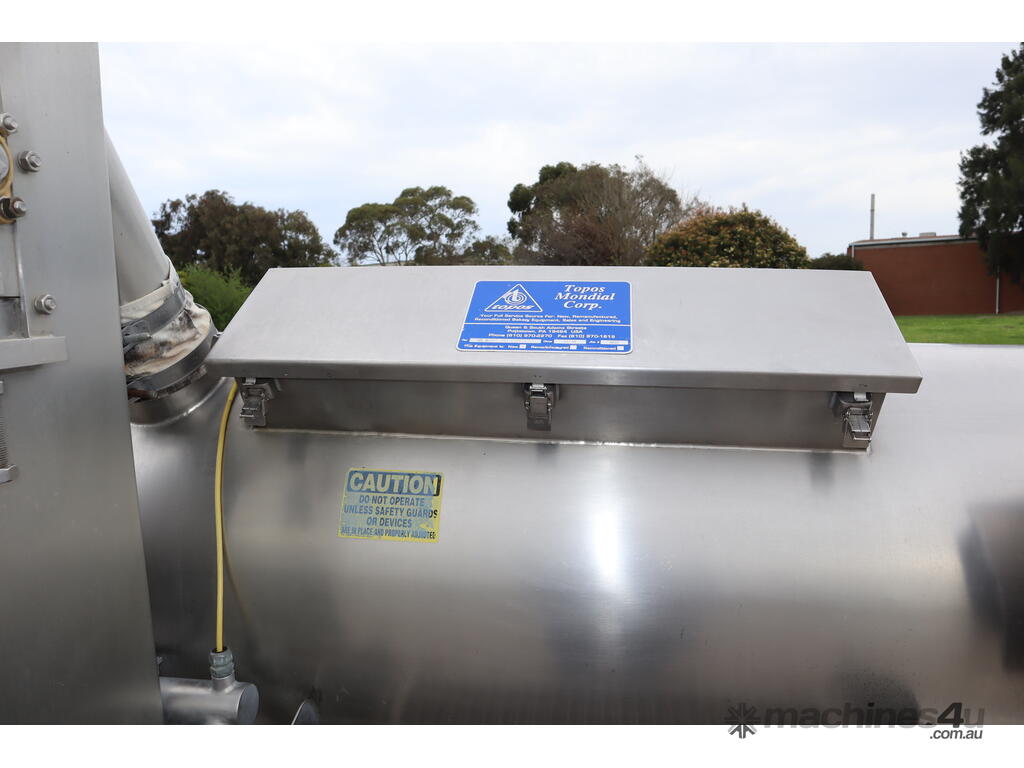

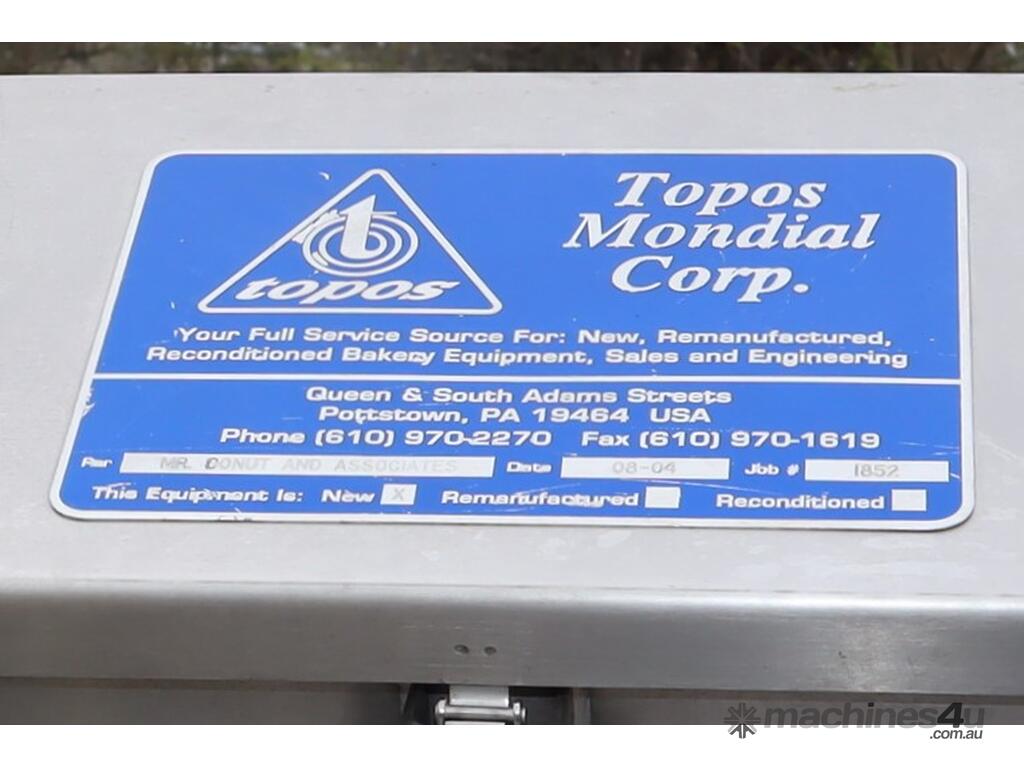

- Manufacturer: Topos Mondial Corp.
- Model: Purpose built for Mr Donut and Associates; similar to Topos T-1000
- DoM: August 2004
- Origin: USA

APPLICATION:

"This stainless steel Donut Sugar Coater Tumbler, similar to the Topos T-1000, may be ideal for confectionery processing in the food industry. It may be designed to give products a uniform, adherent coating of powdered sugars, cinnamon, or similar coatings. With an adjustable, high-capacity design, this machine may produce a consistent coating and be easy to clean, maintain, and operate. The machine may benefit businesses looking for reliable equipment that can run smoothly for three shifts a day, every day of the year, with minimal maintenance requirements. Its stainless steel construction allows for easy sanitation."

FEATURES:

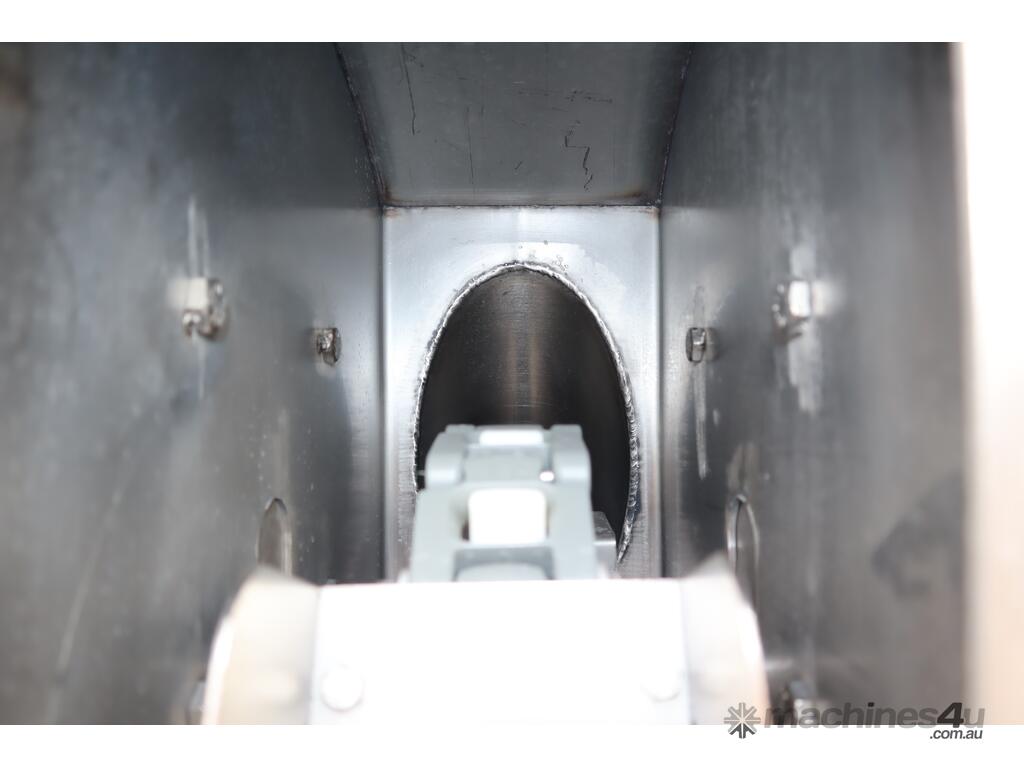

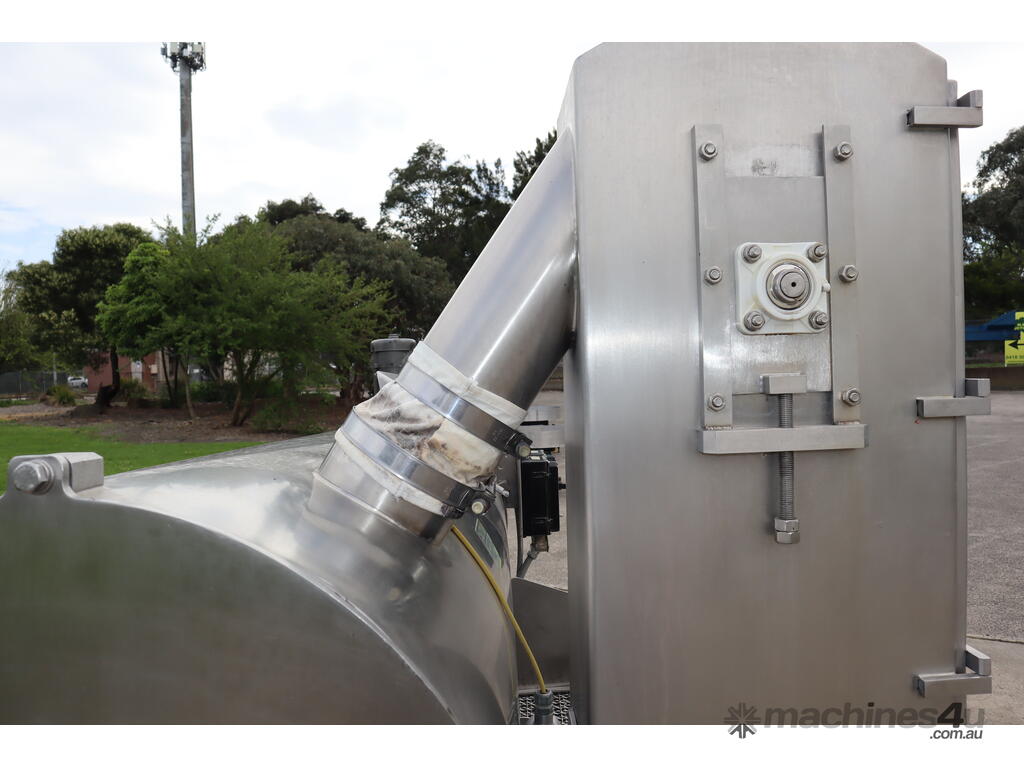

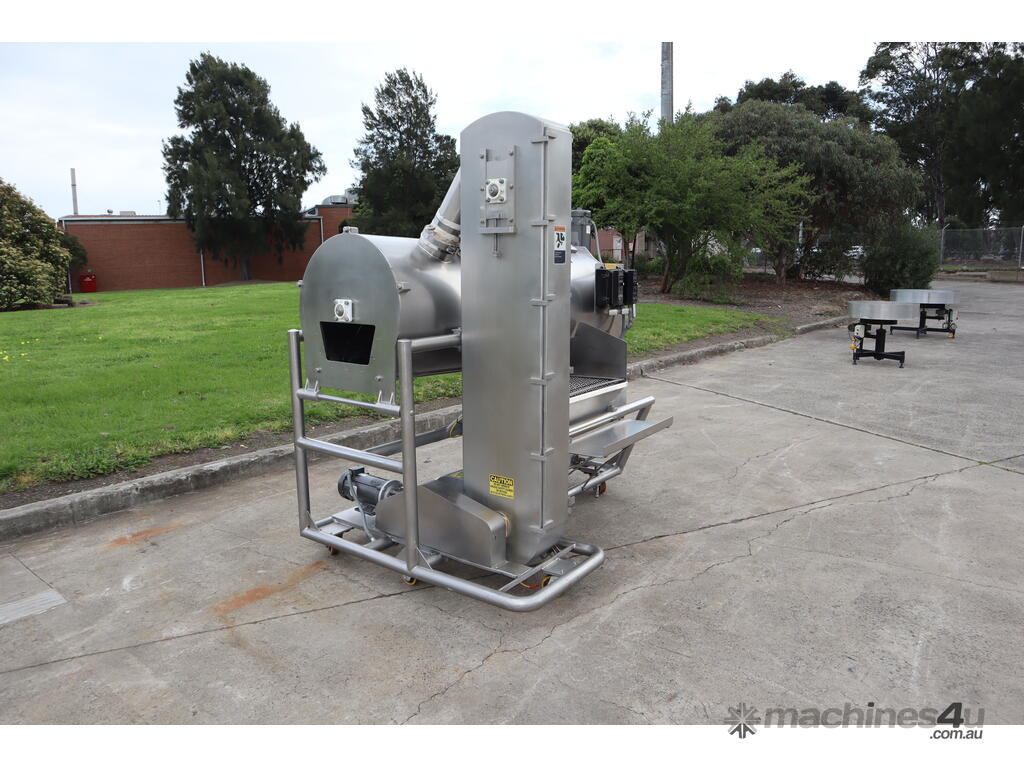

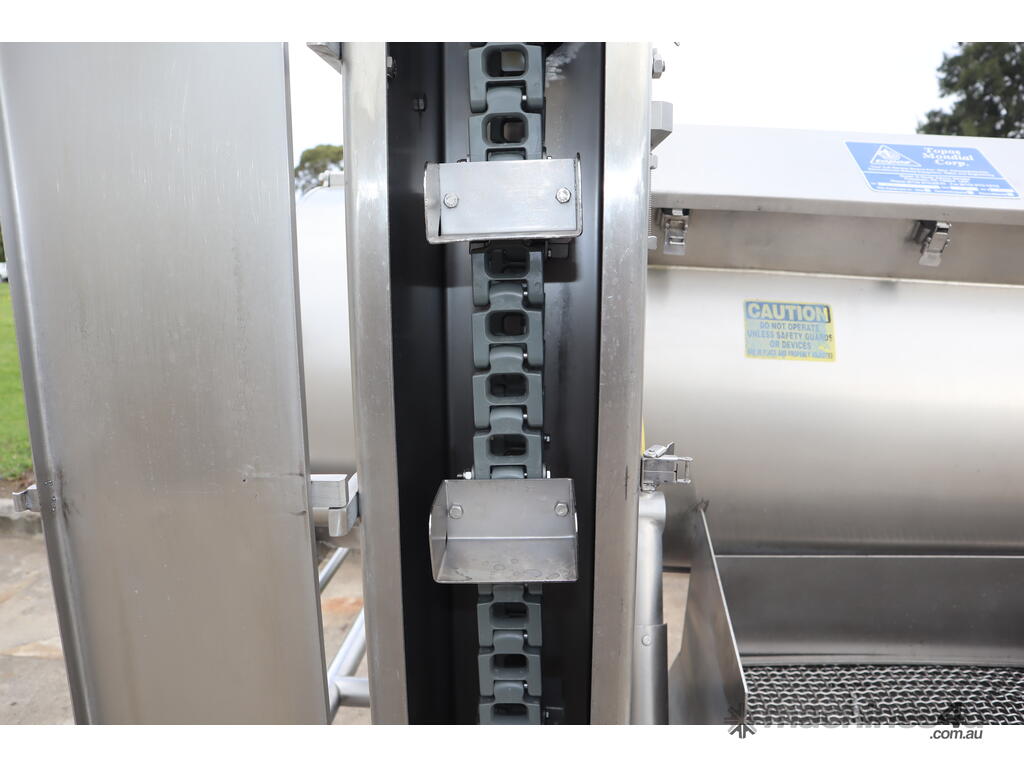

- Positive cup feeding via elevator conveyor on sanitary chain for easy wash-down in the sugar elevator
- All stainless steel construction with hinged access doors for quick, easy cleaning without the use of tools
- Full stainless steel frame for ease of cleaning and sanitation
- Drum fingers to reduce sugar build-up on the outer surface of the inner coating drum

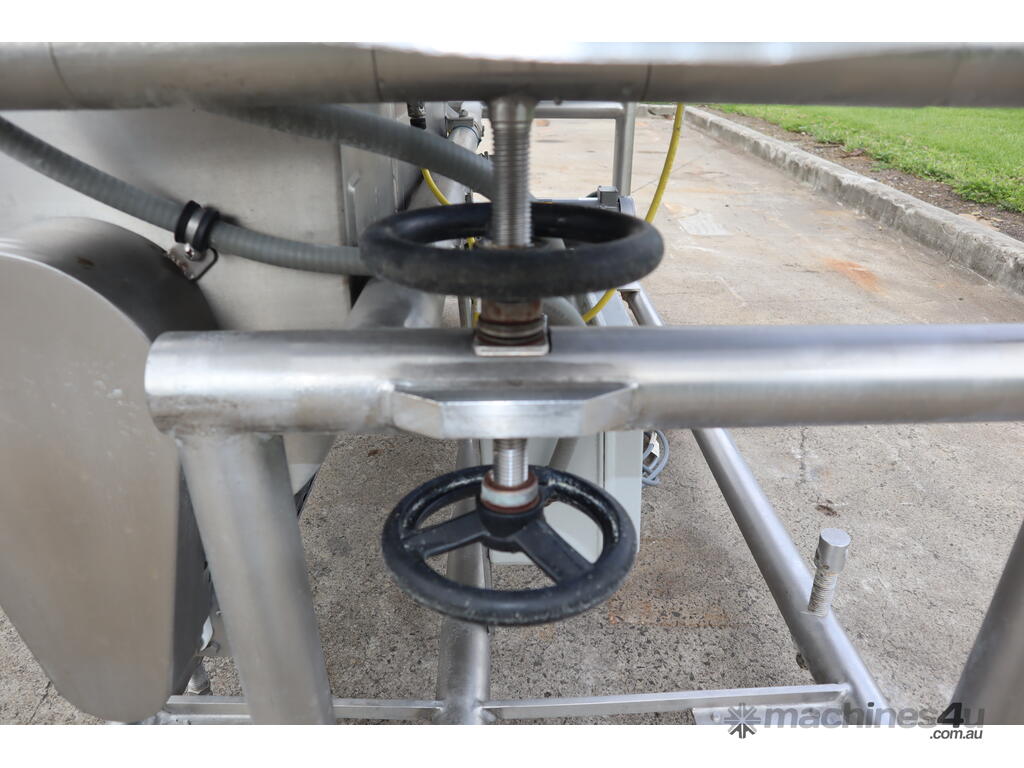

- Adjustable drum angle for product flow control, which can be adjusted by hand while running

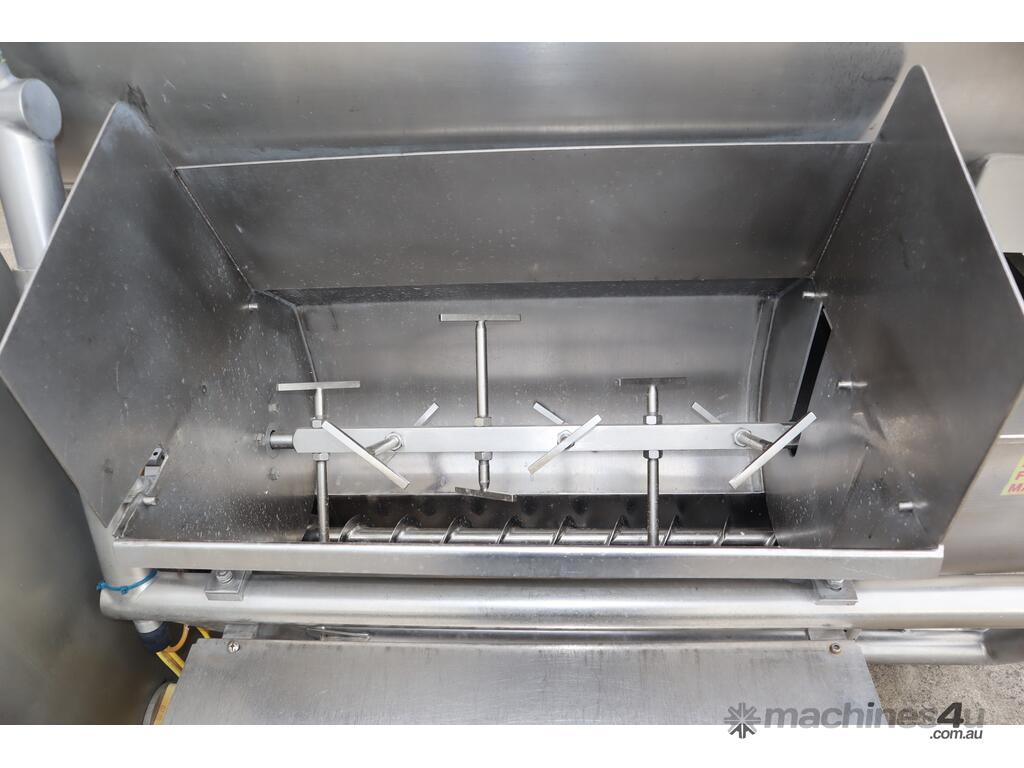

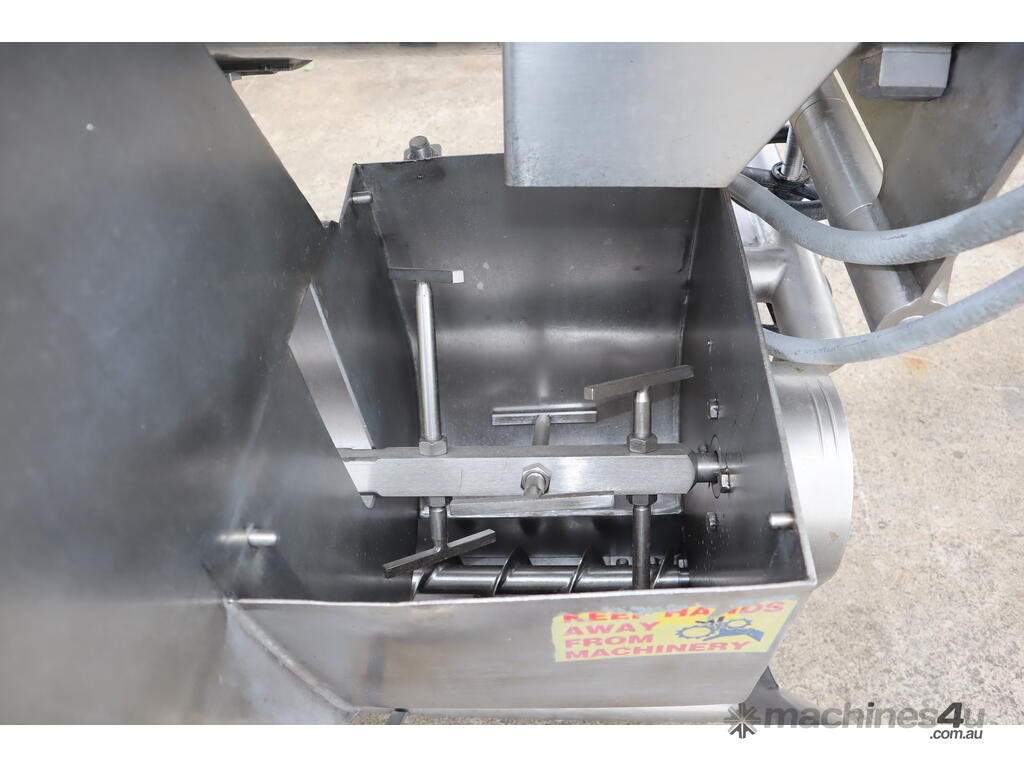

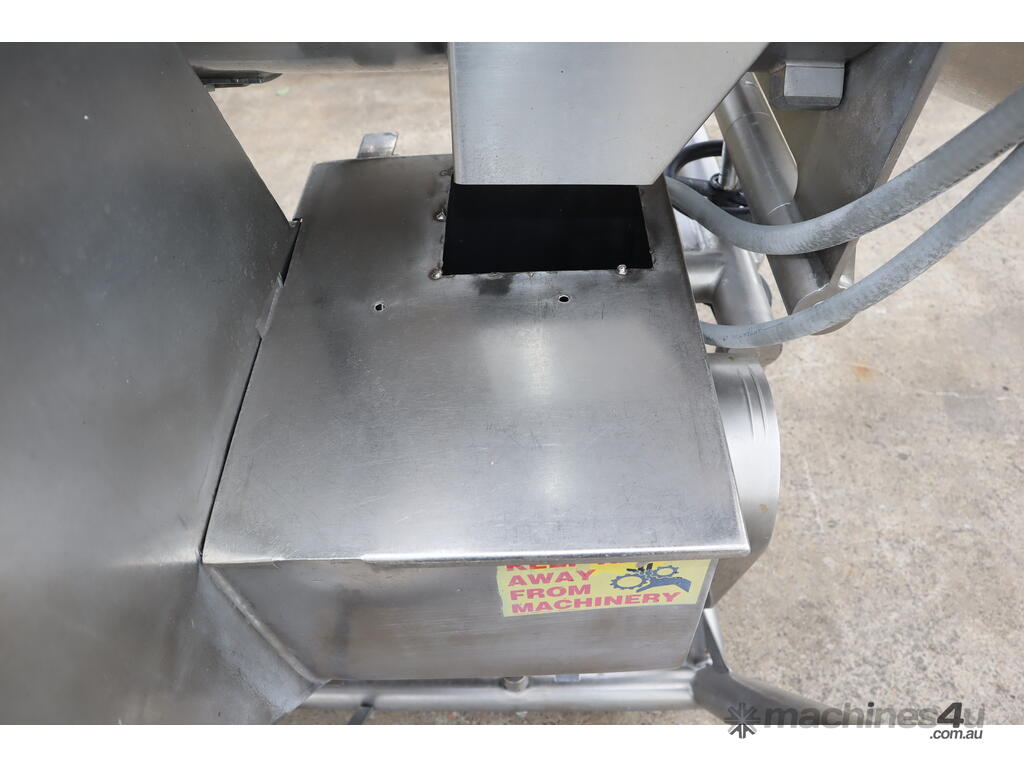

- Fully agitated sugar bin with positive auger feed

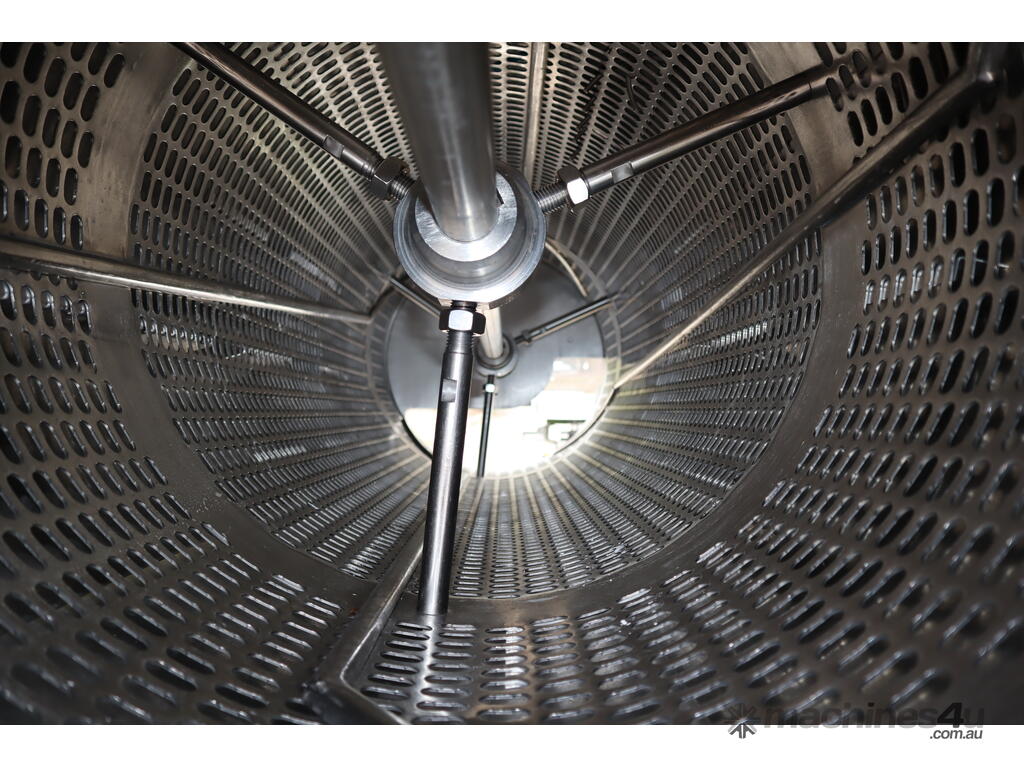

- Large tumbler barrel for high-volume sugar coating

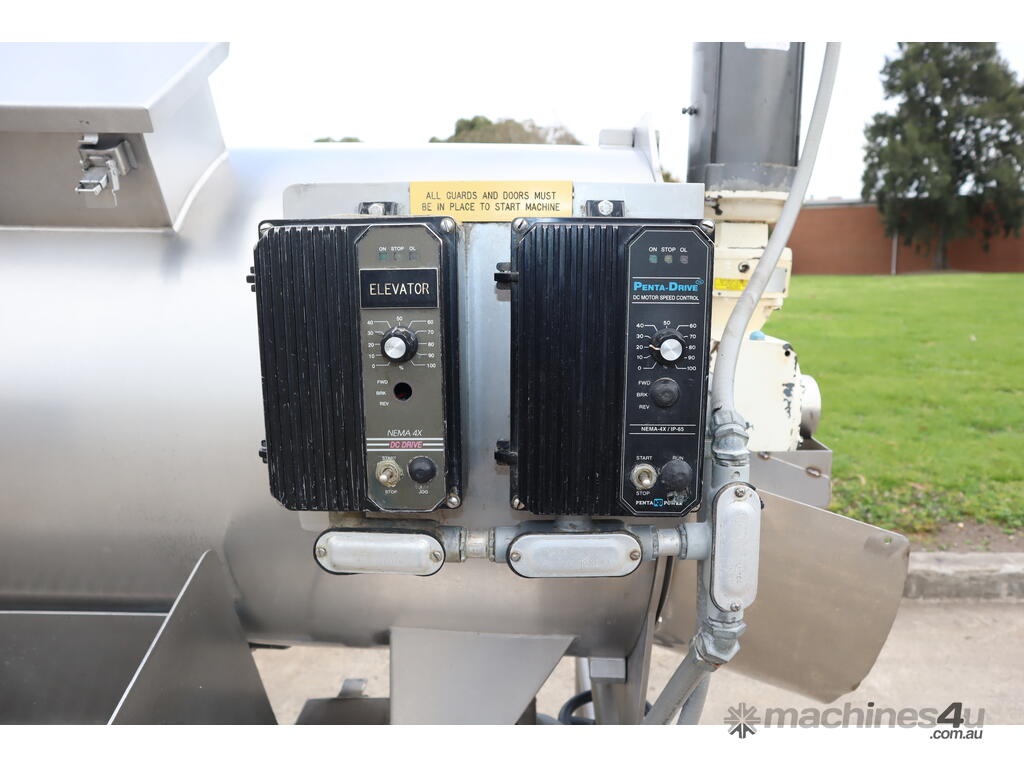

- Dual motor setup for separate functionalities

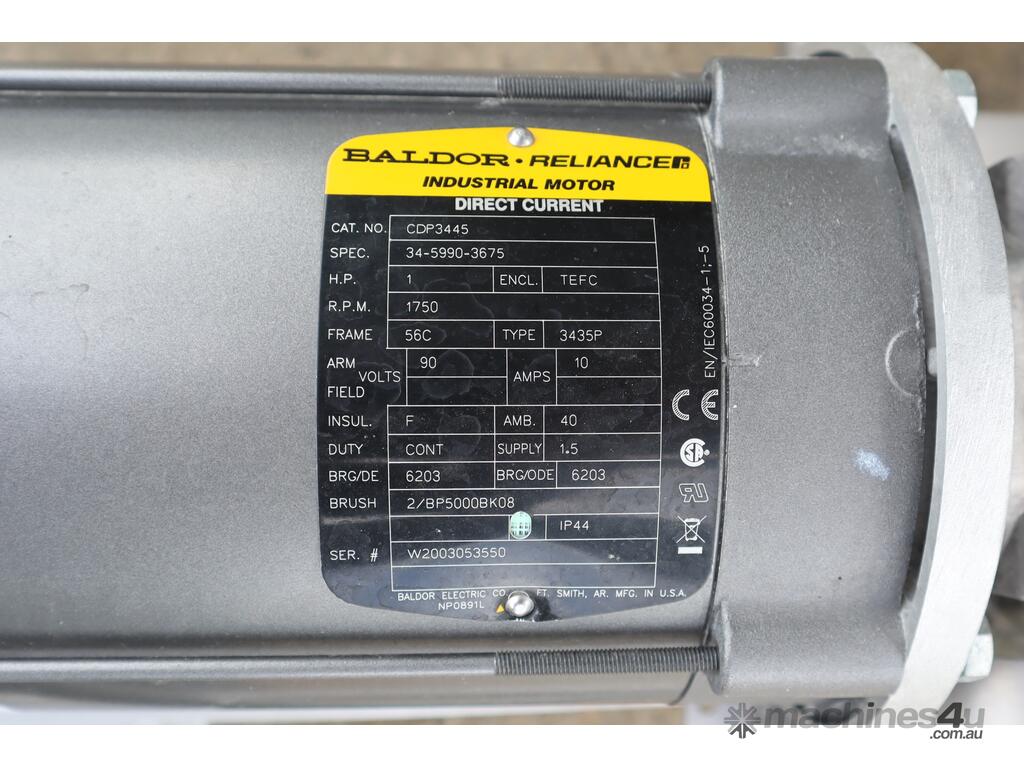

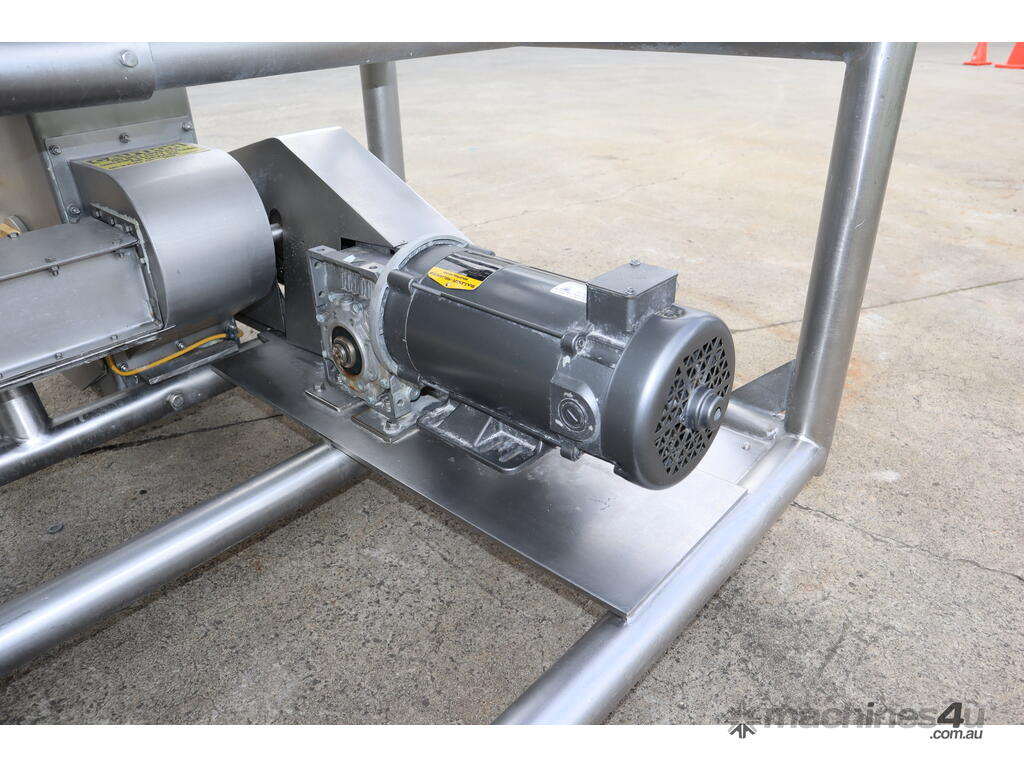

MOTOR 1:

- Type: Direct Current (DC) motor
- Make: Baldor Reliance
- Model: CDP3445
- Horsepower: 1 HP
- RPM: 1750 RPM
- Voltage: 90V
- Current: 10A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Duty: Continuous
- IP Rating: IP44
- Bearings: 6203

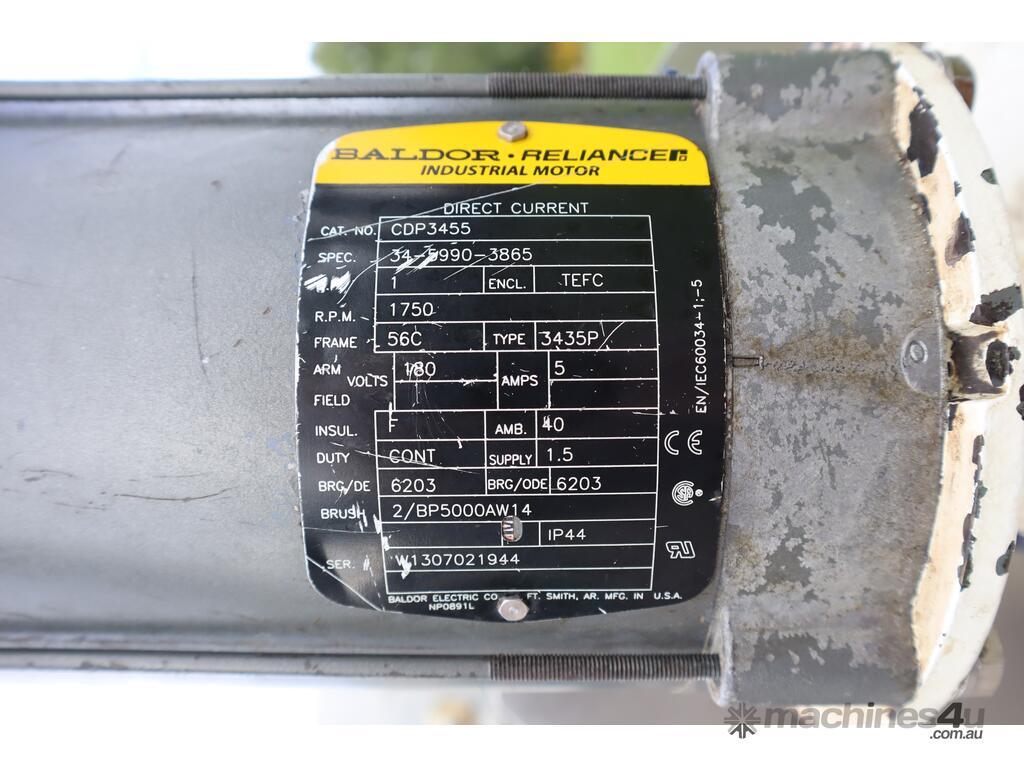

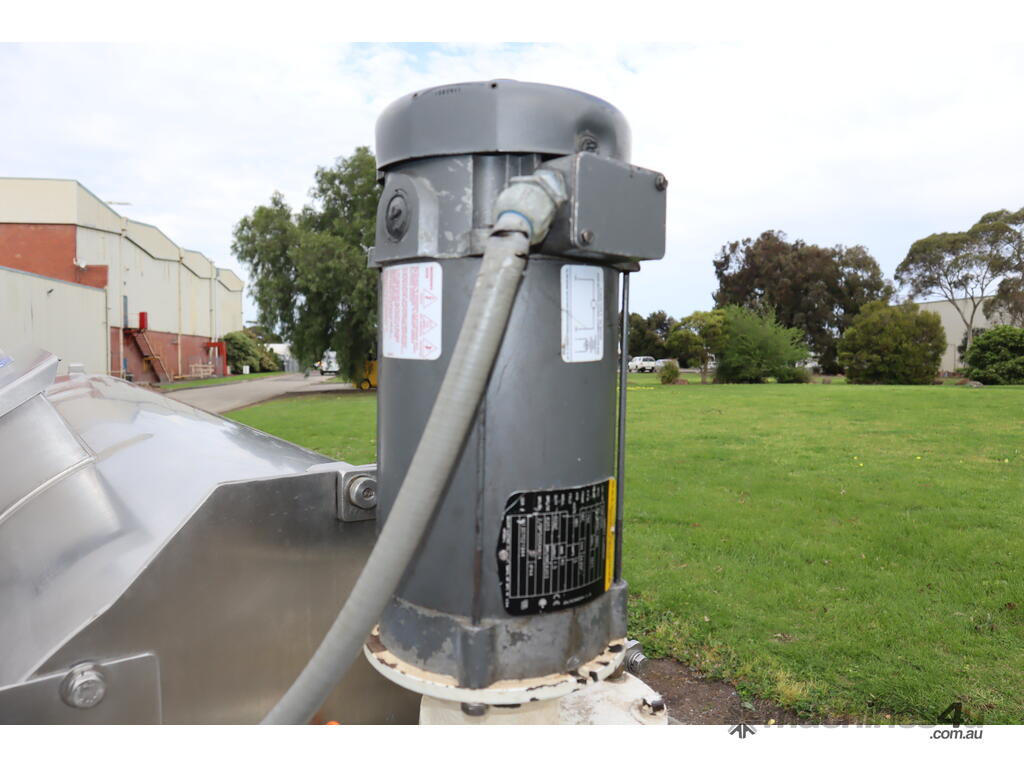

MOTOR 2:

- Type: Direct Current (DC) motor
- Make: Baldor Reliance
- Model: CDP3455
- Horsepower: 1 HP
- RPM: 1750 RPM
- Voltage: 180V
- Current: 5A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Duty: Continuous
- IP Rating: IP44
- Bearings: 6203

MEASUREMENTS:

- External Dimensions (mm): 2110 L x 1400 W x 2040 H
- Barrel Diameter: Approx. 560-570 mm

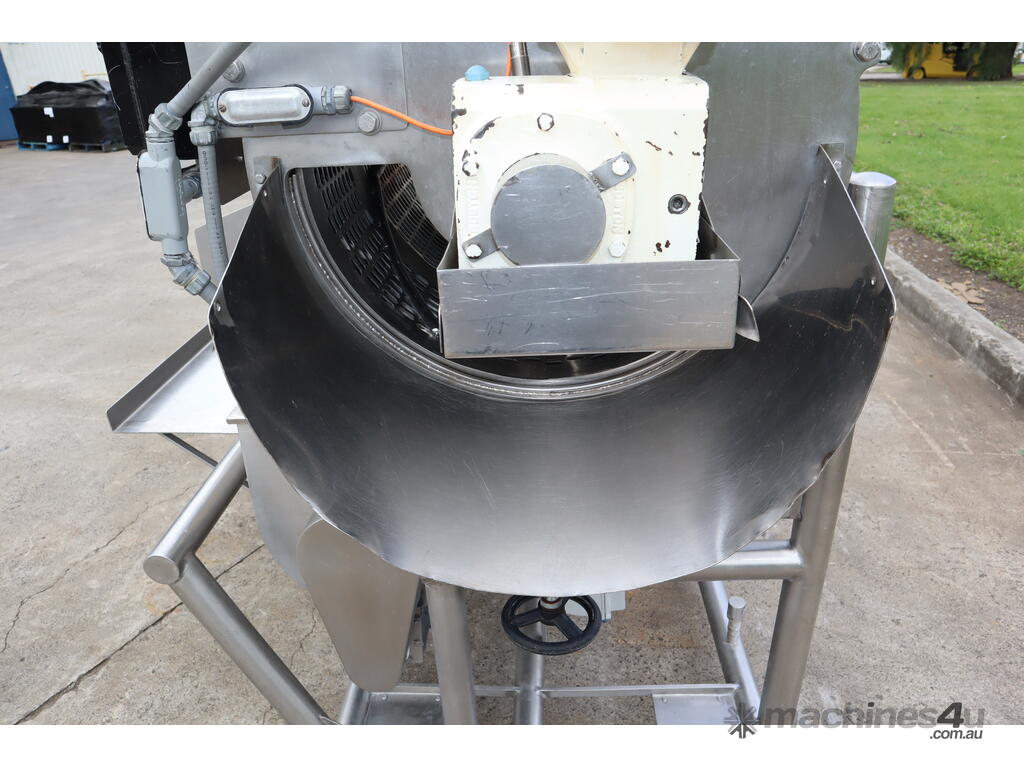

- Tumbler Entrance Opening: 180-360 mm wide x 170 mm high
- Auger Diameter: Approx. 80 mm

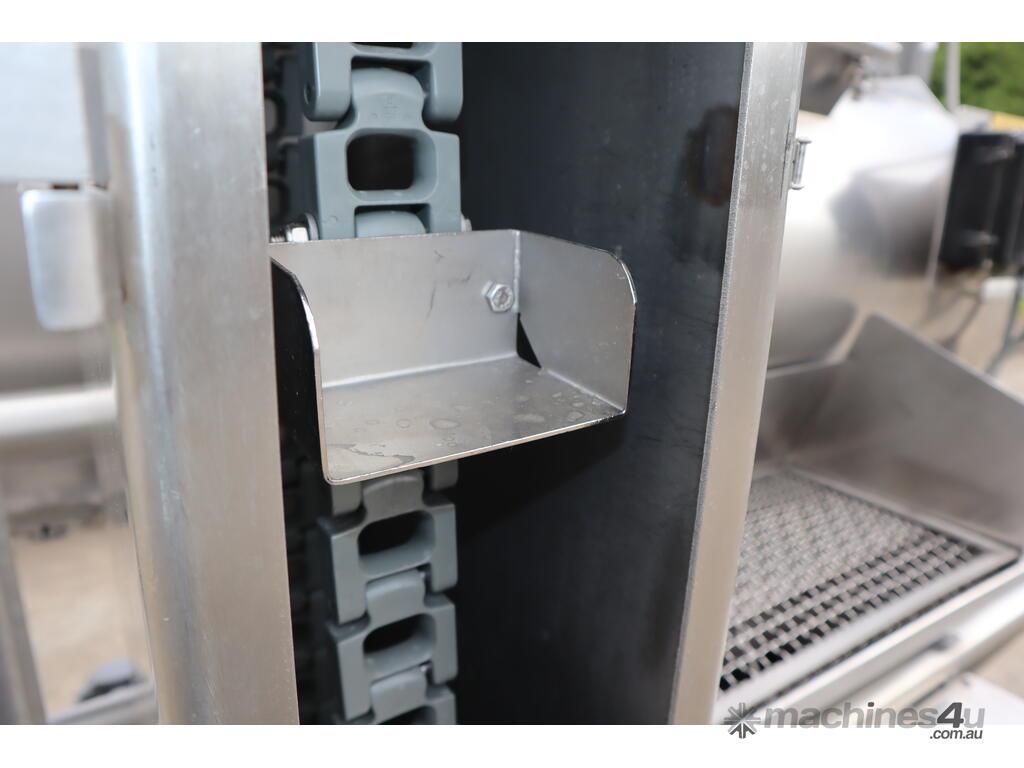

- Elevator Conveyor Bucket Size: 105 mm L x 70 mm W x 55 mm H

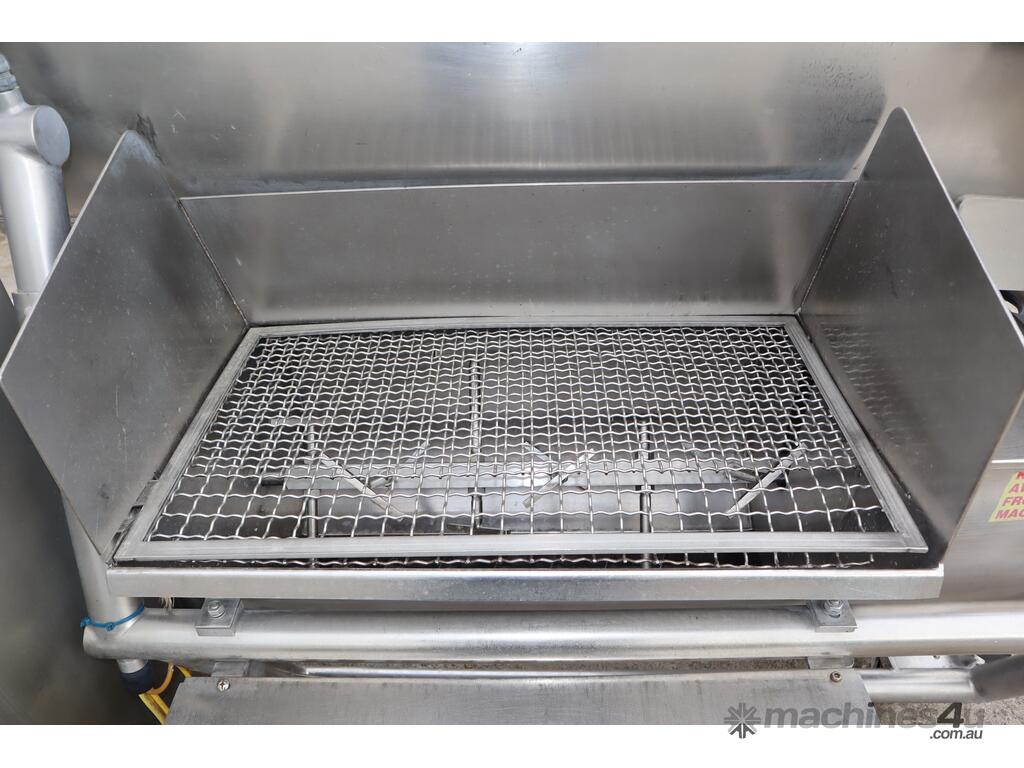

- External Mesh Tray: 730 mm L x 400 mm W
- Side Flap Opening: 360 mm H x 1150 mm W

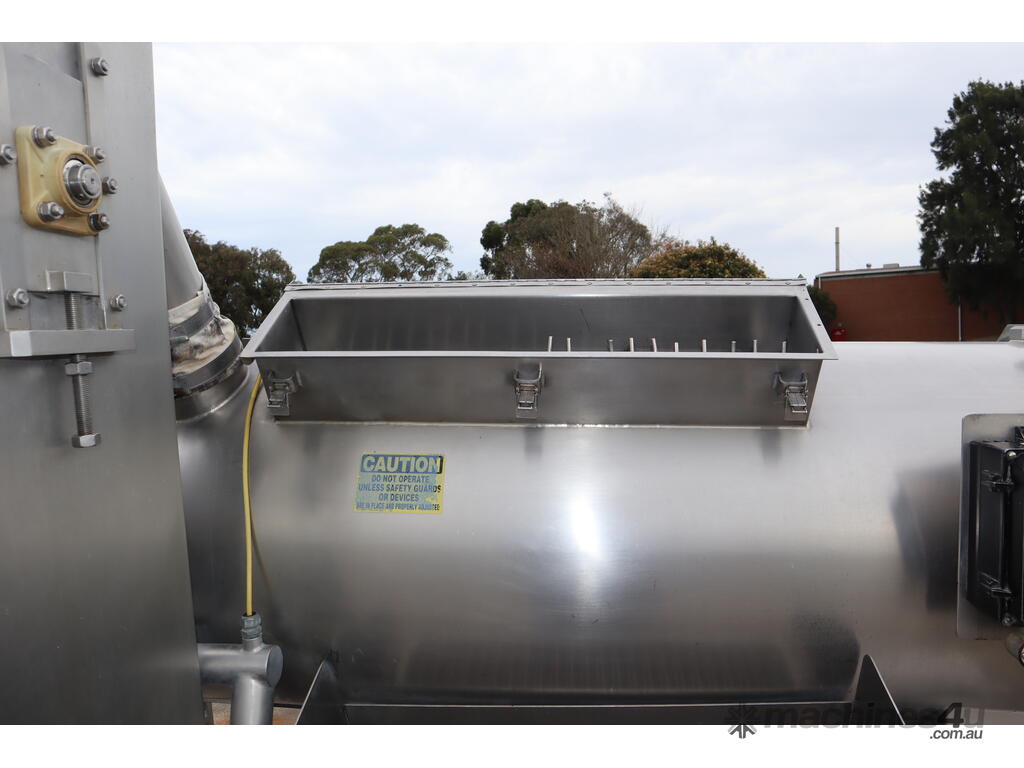

- Top Flap Door Opening: 780 mm W x 155 mm H

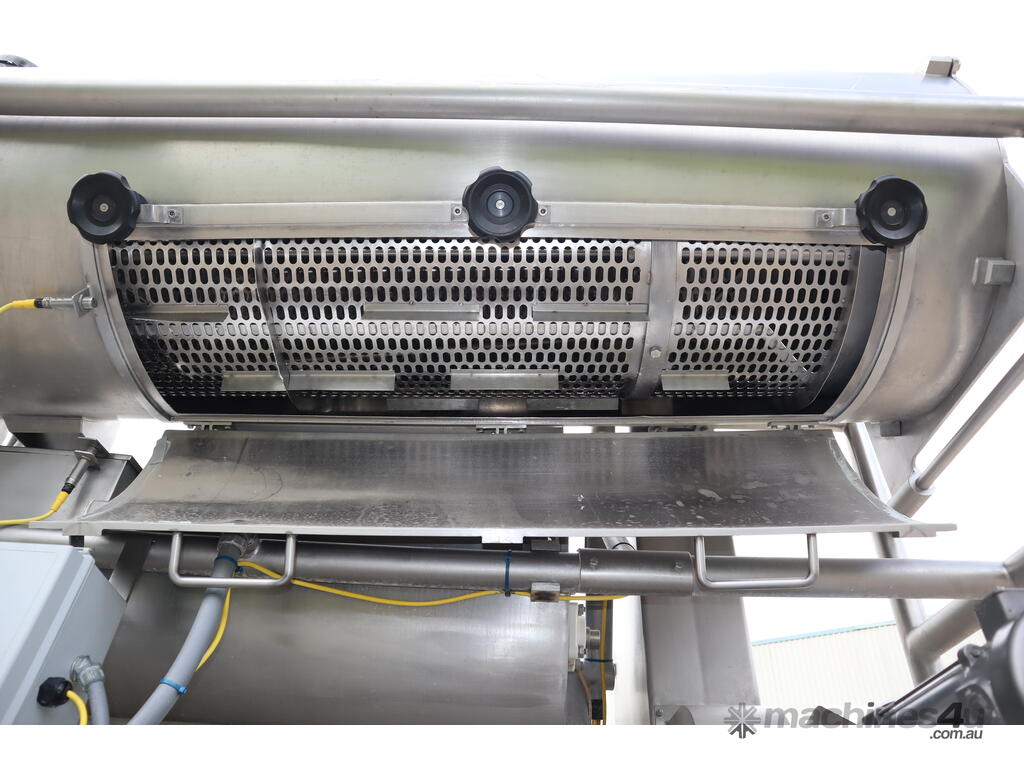

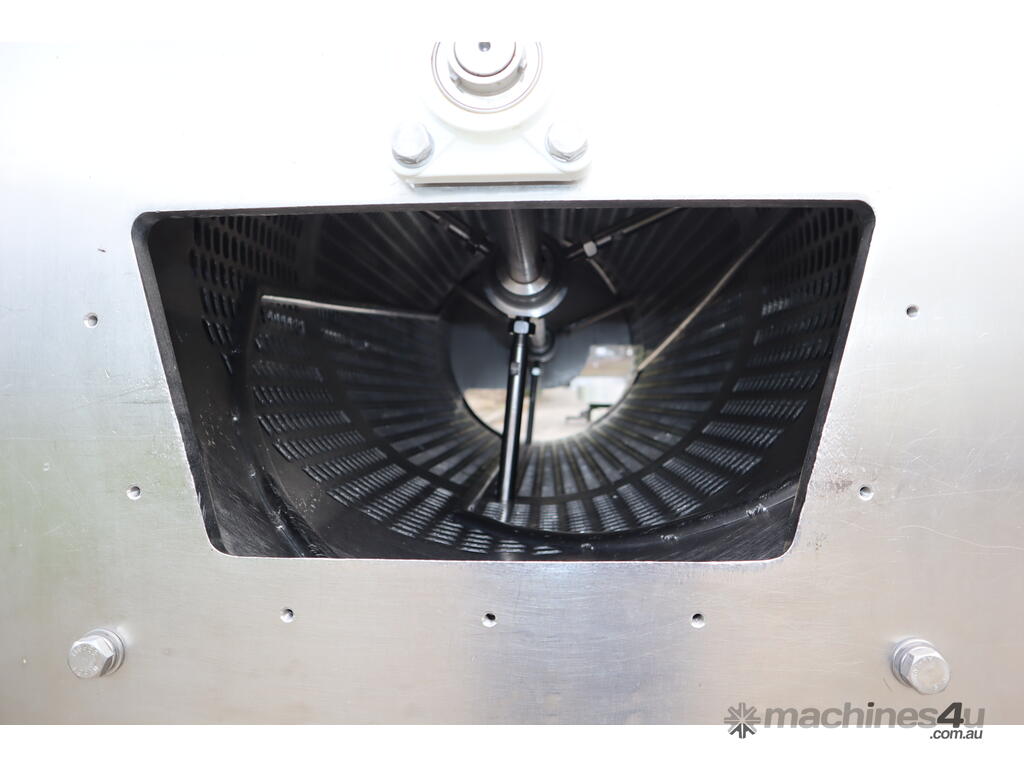

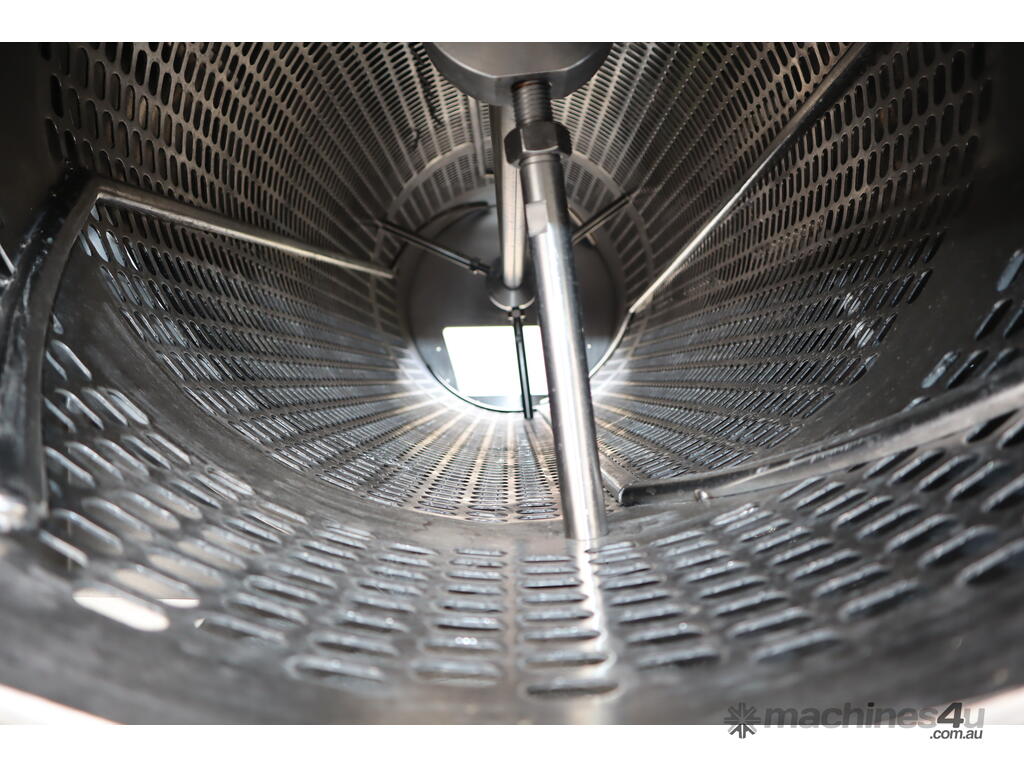

- Tumbler Grill Hole Size: 30 x 10mm


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
