Stainless Steel End Suction Centrifugal Pump - Ebara 3LS 65mm

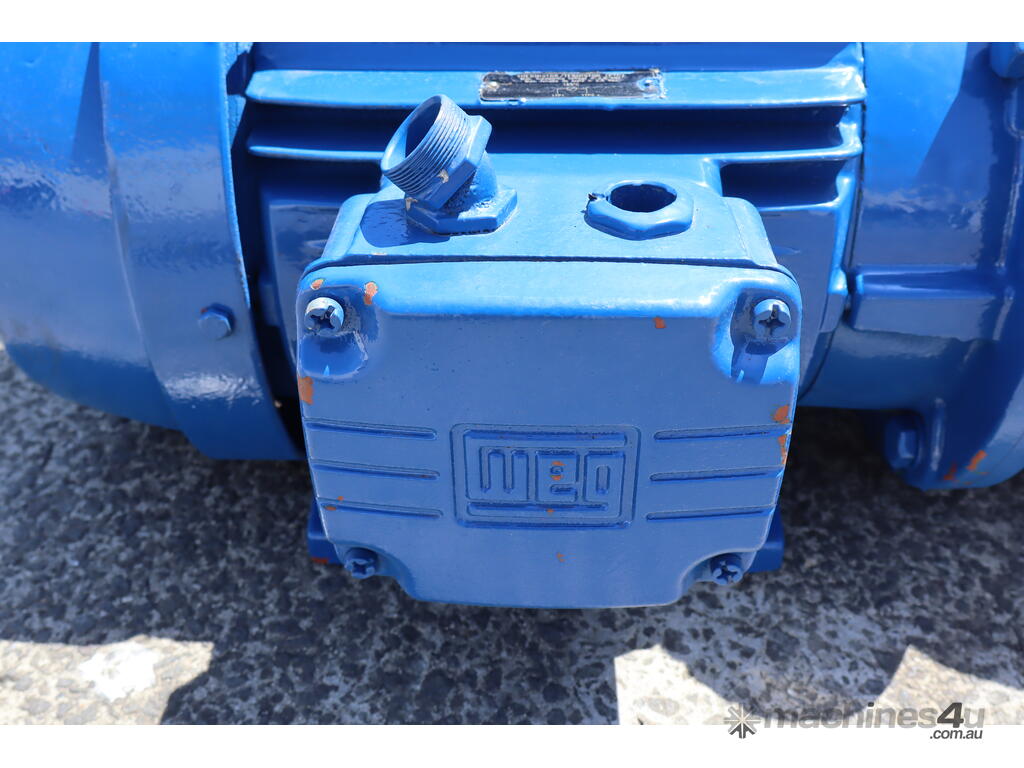

This pump is in great working condition. It is driven by a 15kW WEG motor.

Stainless steel liquid end components
maximum liquid temperature 110 C
Minimum liquid temperature -10 C
Stub shaft design
High quality; corrosion resistance.
High quality mechanical shaft seals and o-rings
Standard IEC motors used
Close coupled design
Saves space; simplifies maintenance and installation
Back pullout construction
Assembly and overhaul of the impeller and seal without disturbing suction and discharge connections
High operating efficiency
Lowers operating cost
Top centerline discharge and foot support under casing
Ensures self-venting and reduces misalignment from pipe loads

Applications

Plant services
Water supply systems
Washing plants
Cooling water
Ultrapure water systems
Air conditioning
Sprinkler/flow irrigation
OEM equipment application
Pressure boosting
Liquid transfer
Heat exchanger
Spray systems
Heating
Beverage processing
Pharmaceutical services
Water reclamation and treatment

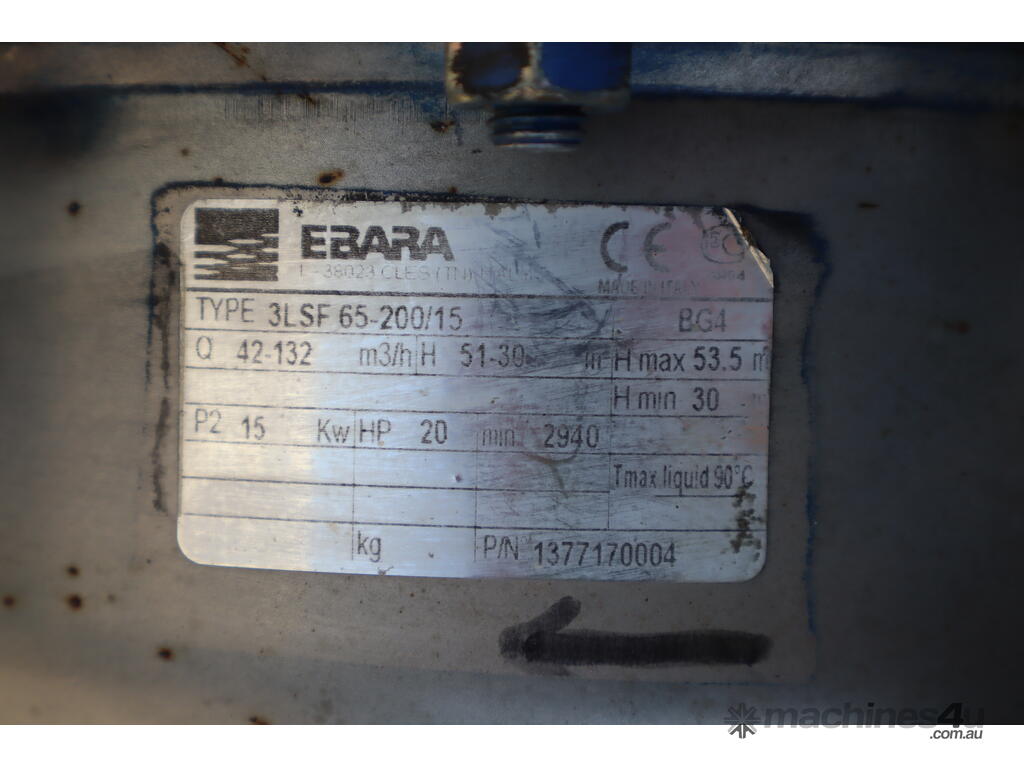

Pump Make: Ebara
Model: 3LSF 65-200/15

SPECS
Flow rate: 42 - 132m³/h
Head: 51 - 30m

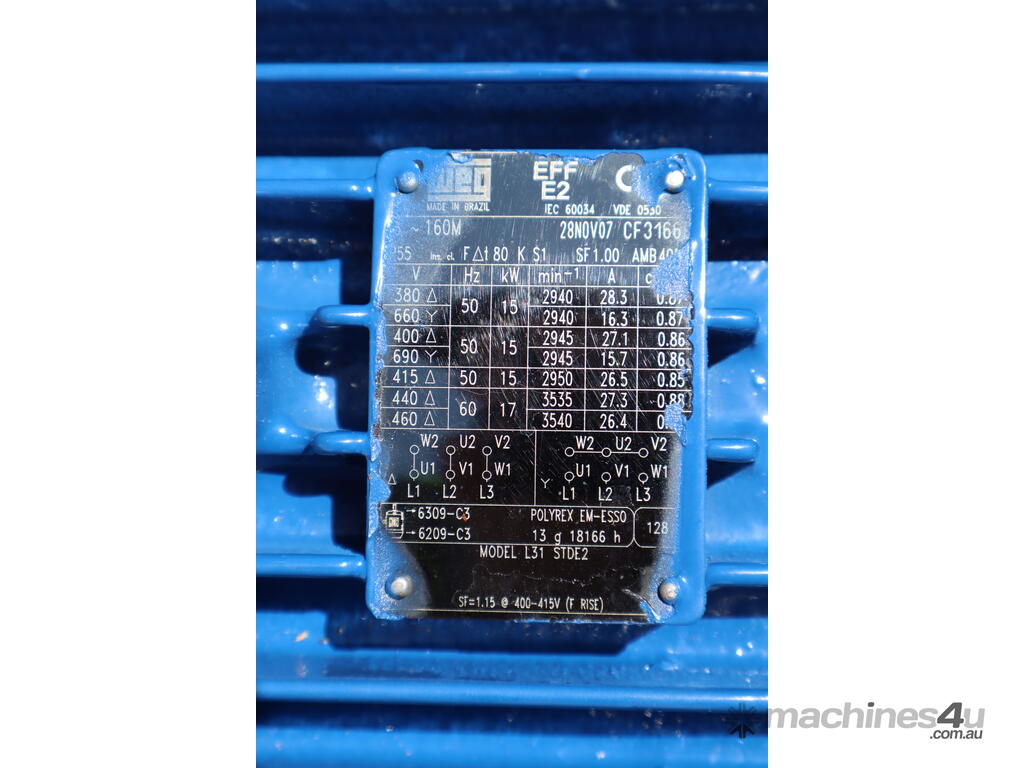

Motor: 400V 15kW 2940 RPM

MEASUREMENTS
Discharge Size: 65mm

Overall Dimensions (mm): 800 x 450 x 400 h
