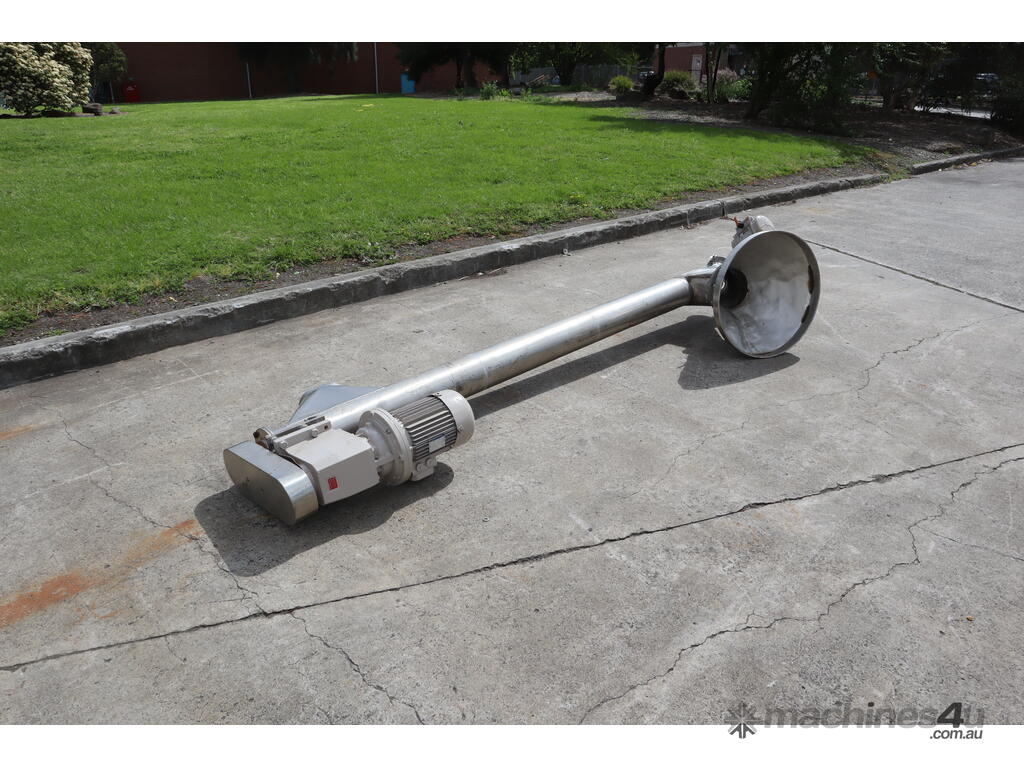

Stainless Steel Hopper Screw Auger Feeder - 2.7m Long Screw

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!


PRODUCT INFORMATION:

- Description: Stainless Steel Screw Auger Conveyor

APPLICATION:

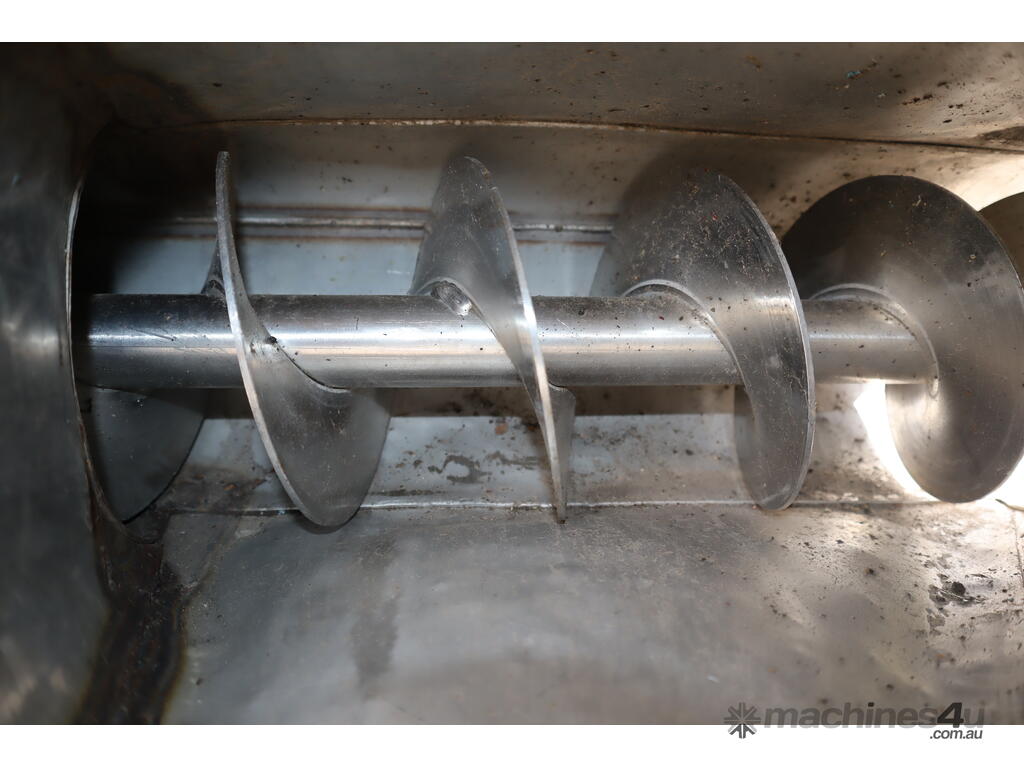

"This stainless steel screw auger conveyor may be used to transport bulk materials such as powders, granules, or pastes from one point to another. It may be ideal for industries such as food processing and chemical handling, where material transfer needs to be clean, controlled, and efficient. The integrated vibratory motor attached to the hopper may assist in freeing up materials that could otherwise get stuck on the inner walls, improving flow. This machine may benefit businesses looking to streamline material transport processes while preventing material blockages. The screw auger works by using a rotating helical blade within a tube to move material through the system, often from a hopper to a discharge point."

FEATURES:

- Stainless steel construction for durability and corrosion resistance

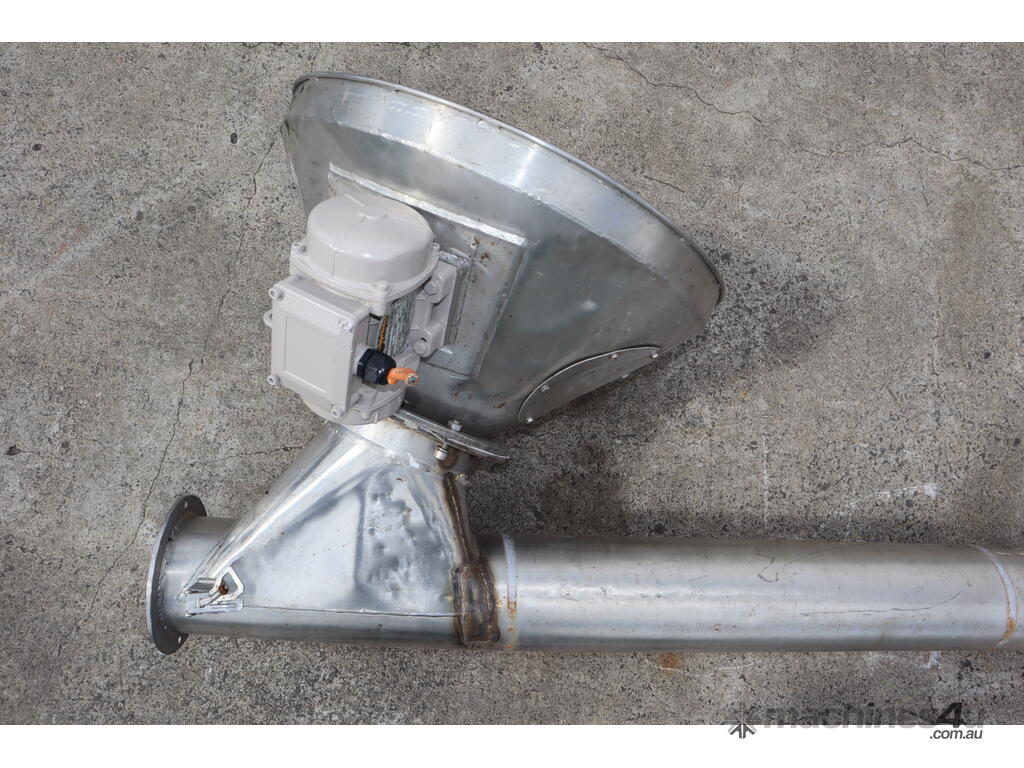

- Integrated hopper with vibratory motor to prevent material clogging
- Bonfiglioli drive motor for powerful and reliable operation
- Designed for inclined material transport

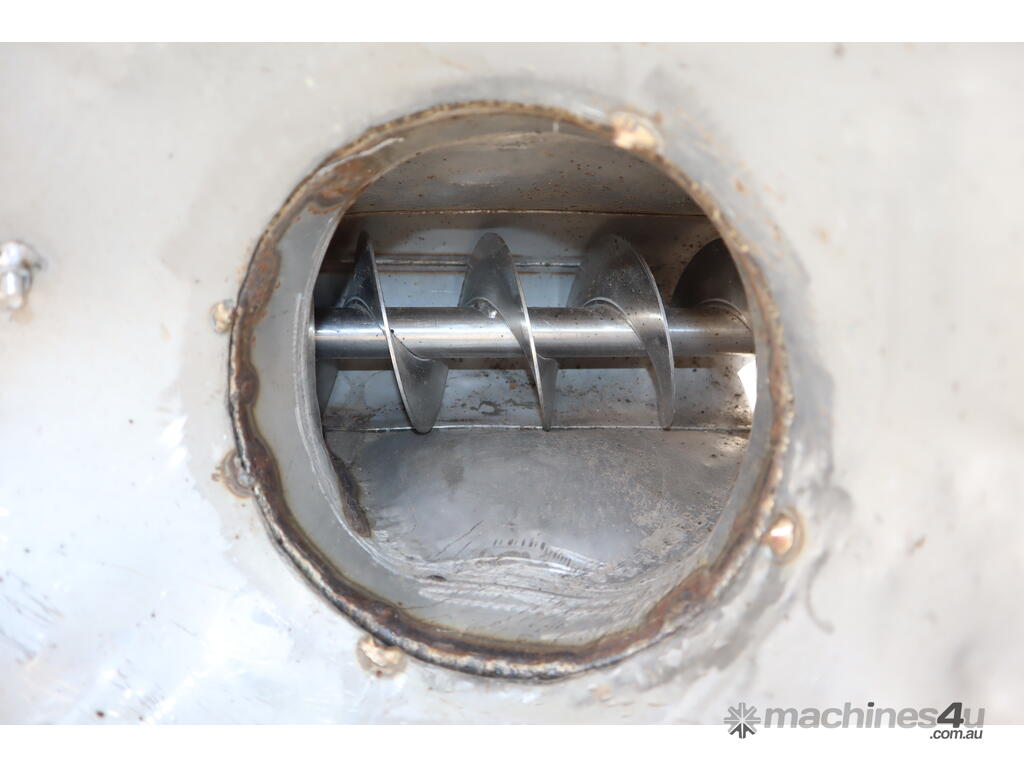

- Screw length of 2700 mm with a 130 mm screw diameter

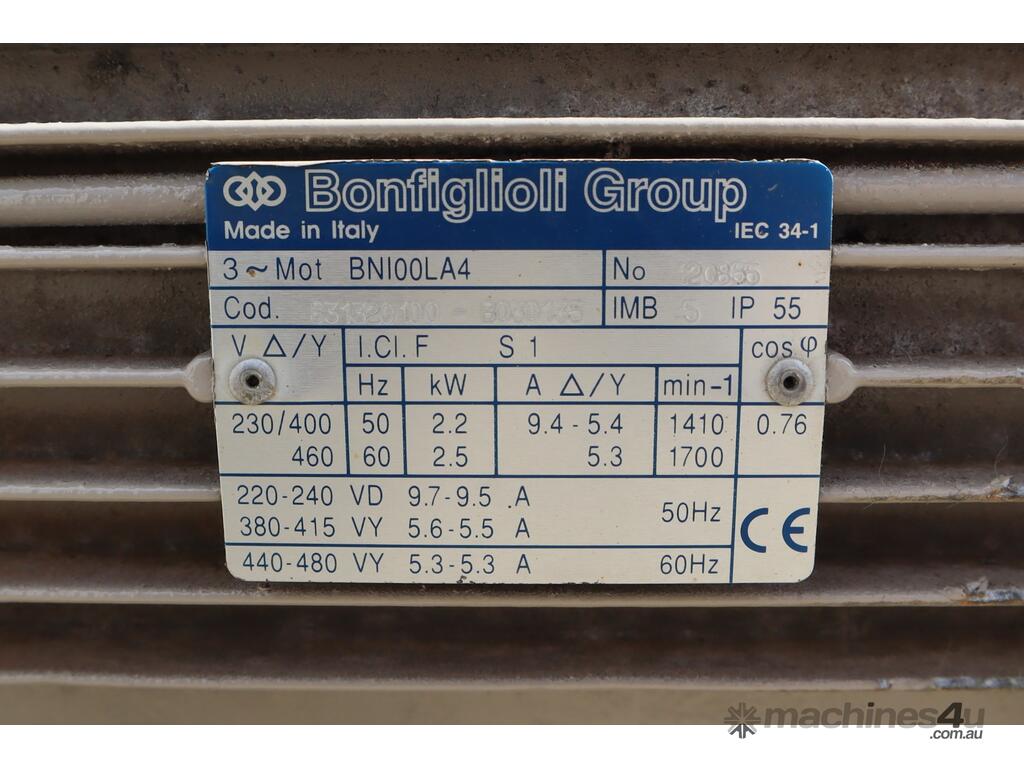

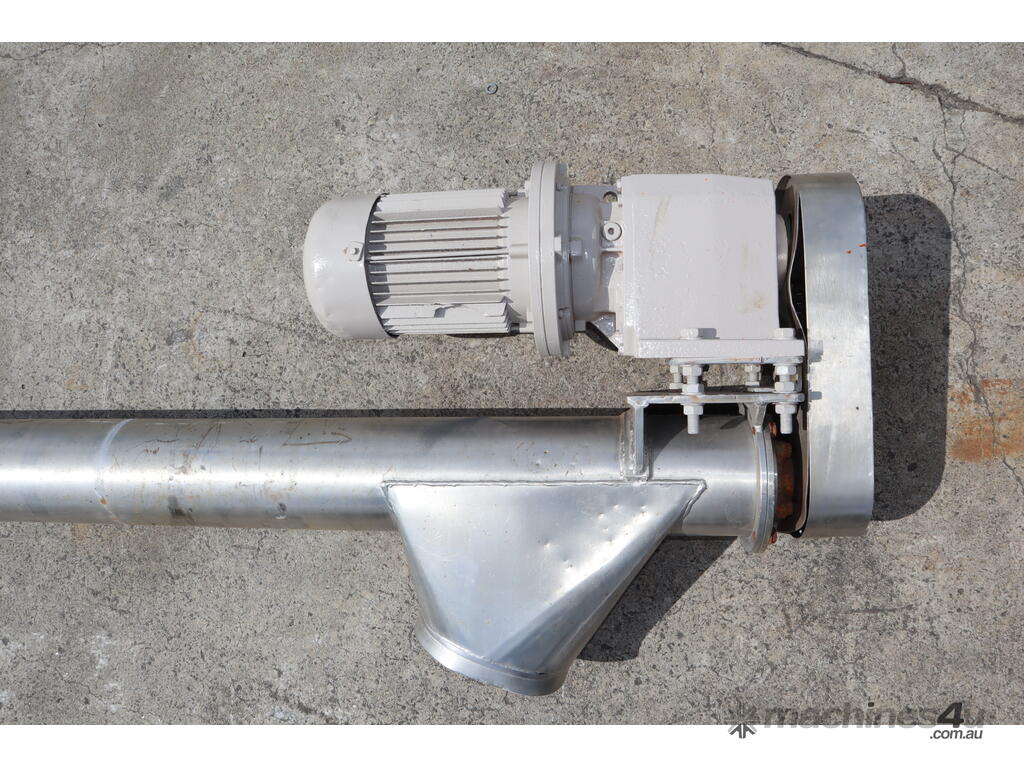

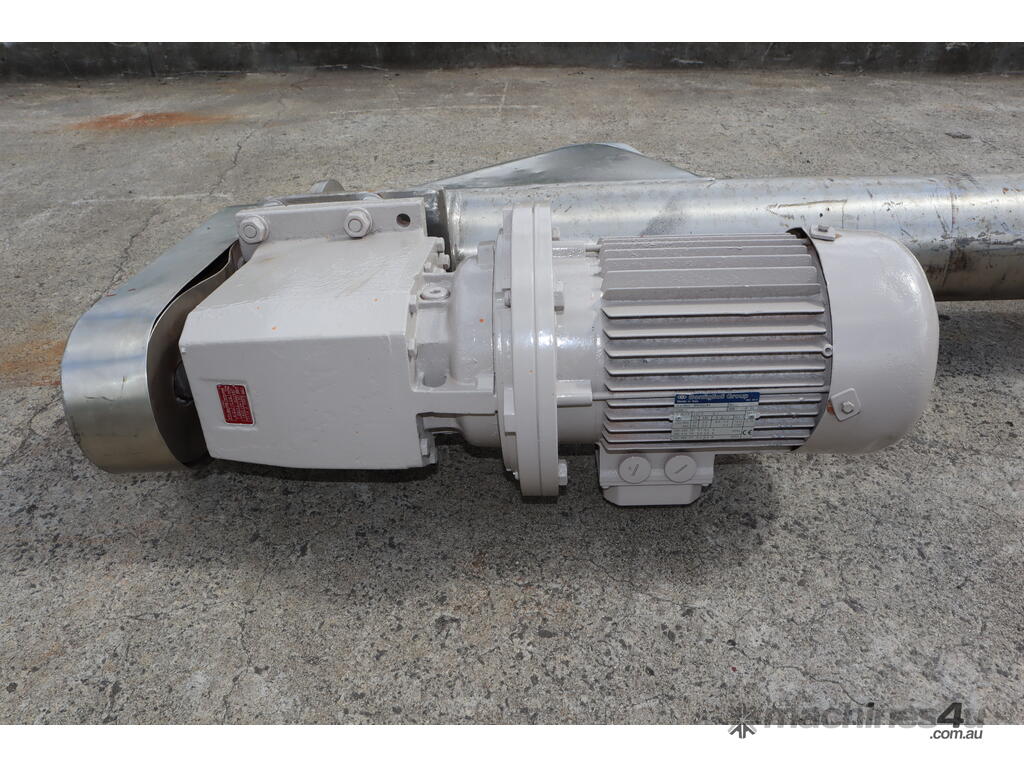

MAIN DRIVE MOTOR:

- Type: Three-phase electric motor
- Make: Bonfiglioli
- Power: 2.2 kW
- RPM: 1410 RPM
- Voltage: 400 V, 50 Hz
- Origin: Made in Italy

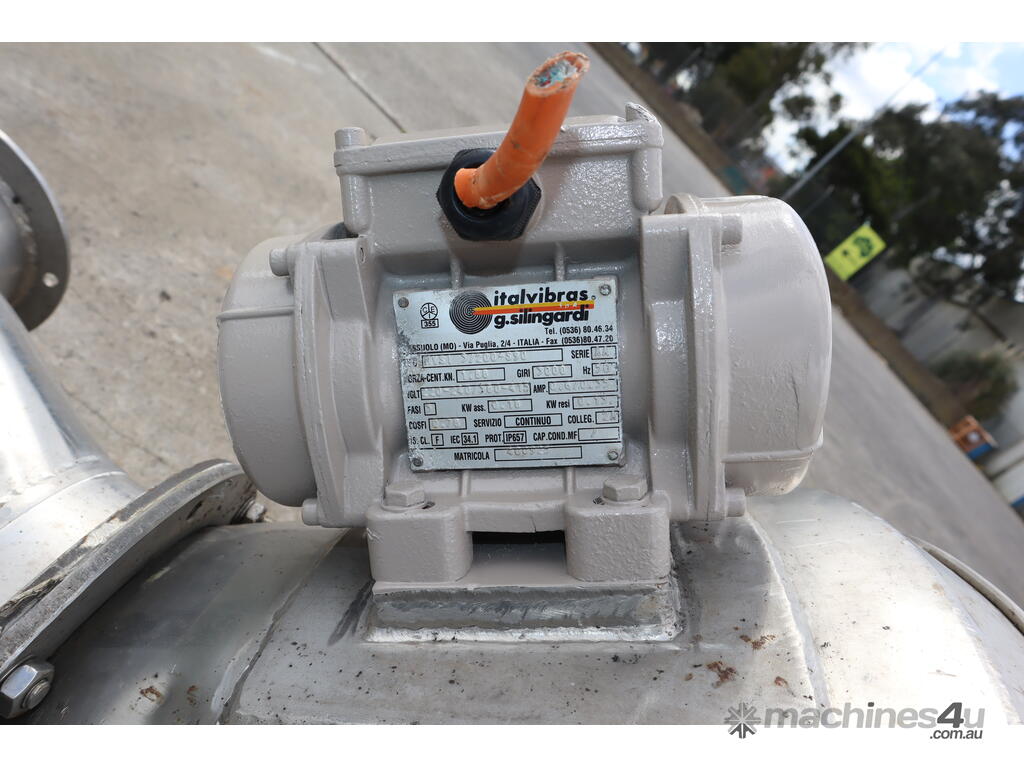

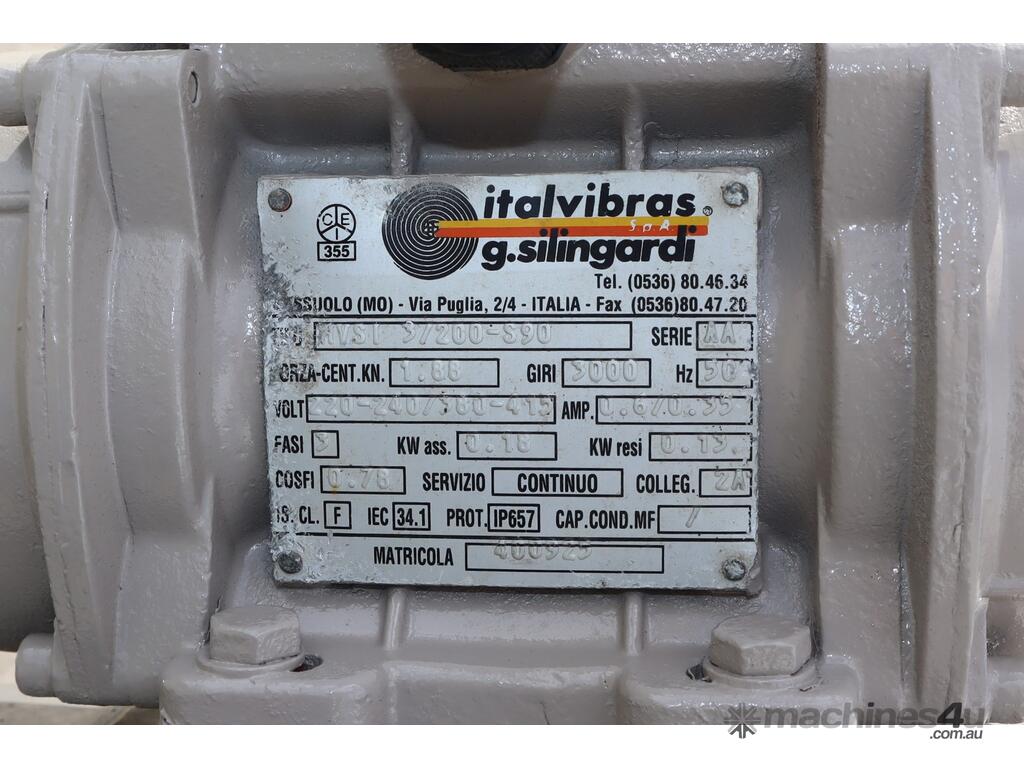

VIBRATORY MOTOR:

- Type: Vibratory motor designed to assist in material flow by agitating the hopper
- Make: Italvibras
- Model: MVSI 3/200-S90
- Power: 0.18 kW
- RPM: 3000 RPM
- Voltage: 380-415V, 50 Hz
- Centrifugal Force: 1.88 kN
- Origin: Made in Italy


MEASUREMENTS:

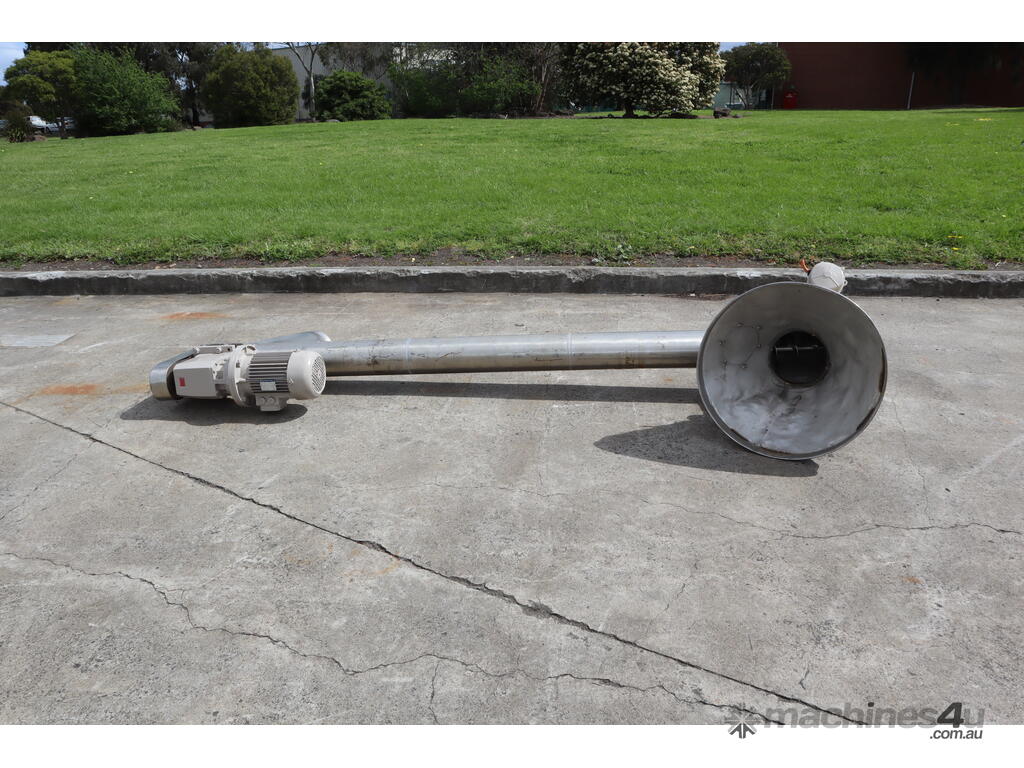

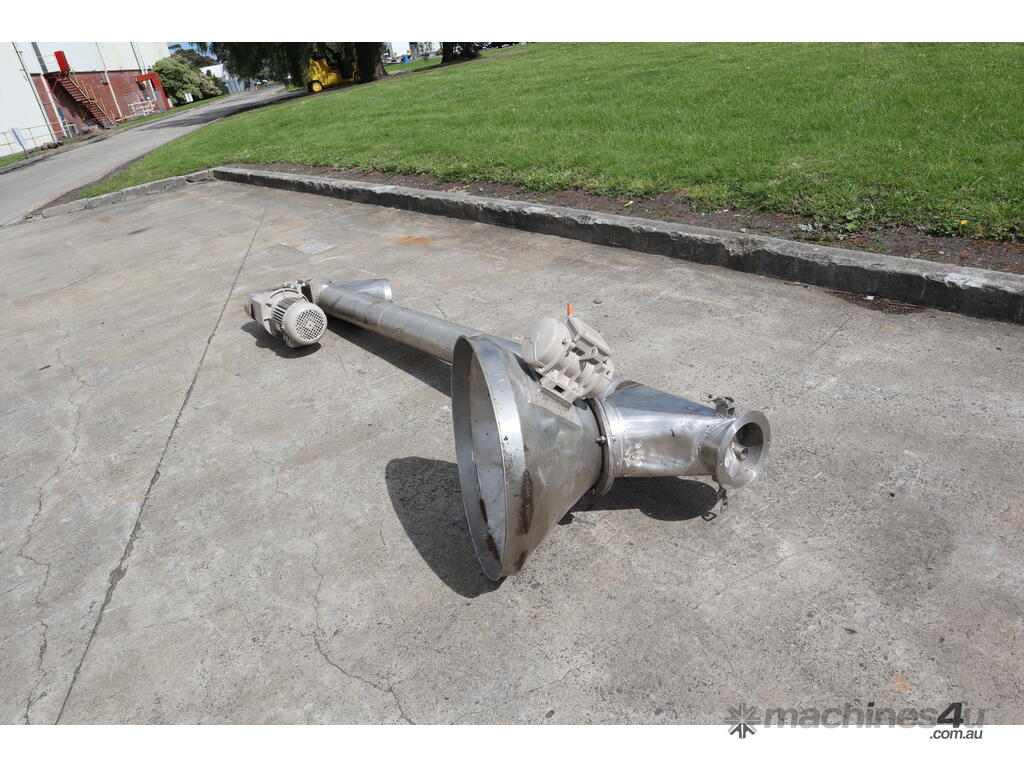

- External Dimensions (mm): 2830 L x 650 W x 950 H
- Screw Length: 2700 mm
- Screw Diameter: 130 mm
- Outer Diameter: 155 mm
- Inner Diameter: 150 mm

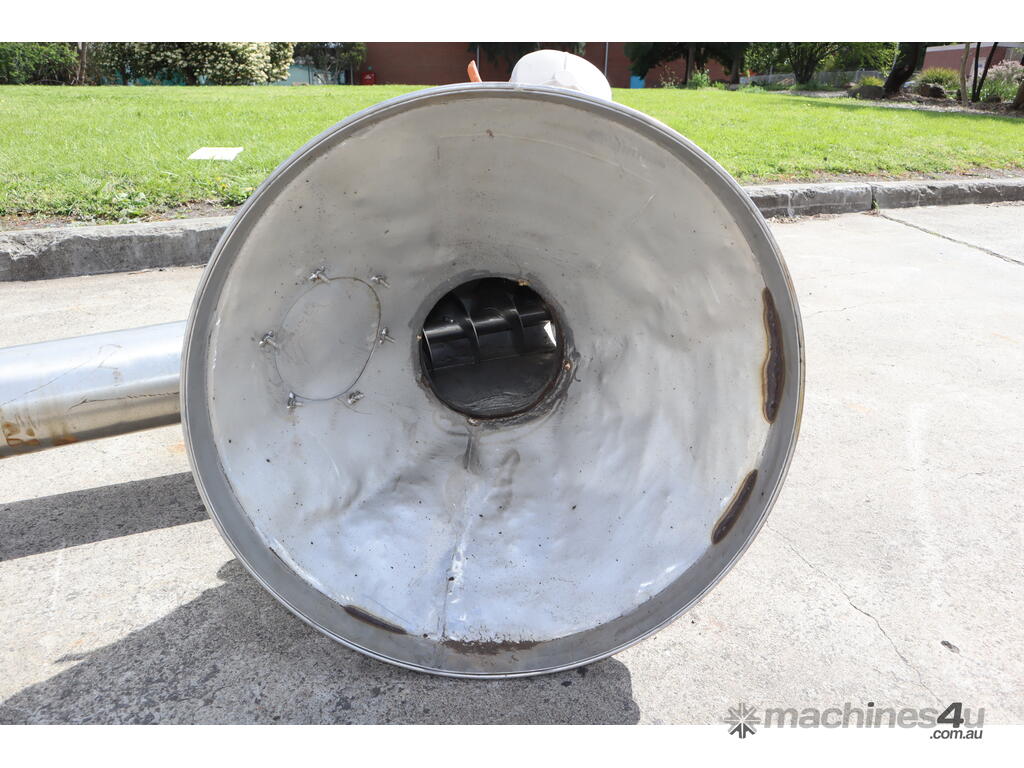

- Hopper Inlet Opening at Top: 600 mm Dia.
- Hopper height: 300 mm
- Hopper base diameter: 200 mm
- Hopper Capacity: Approx. 48 Litres

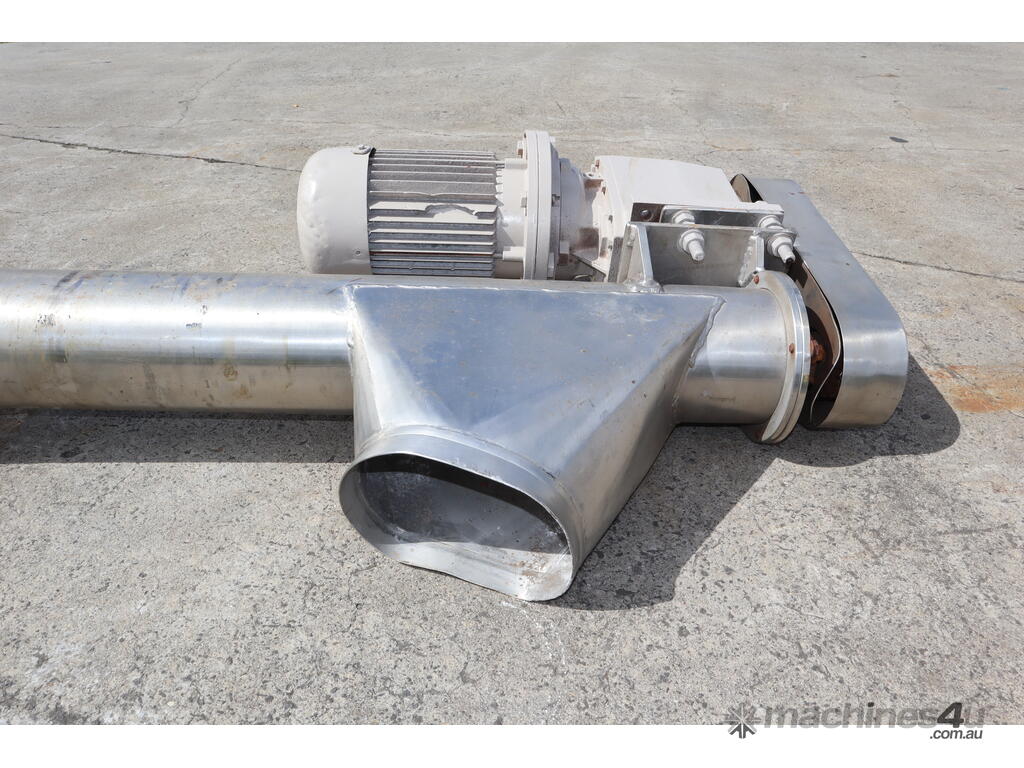

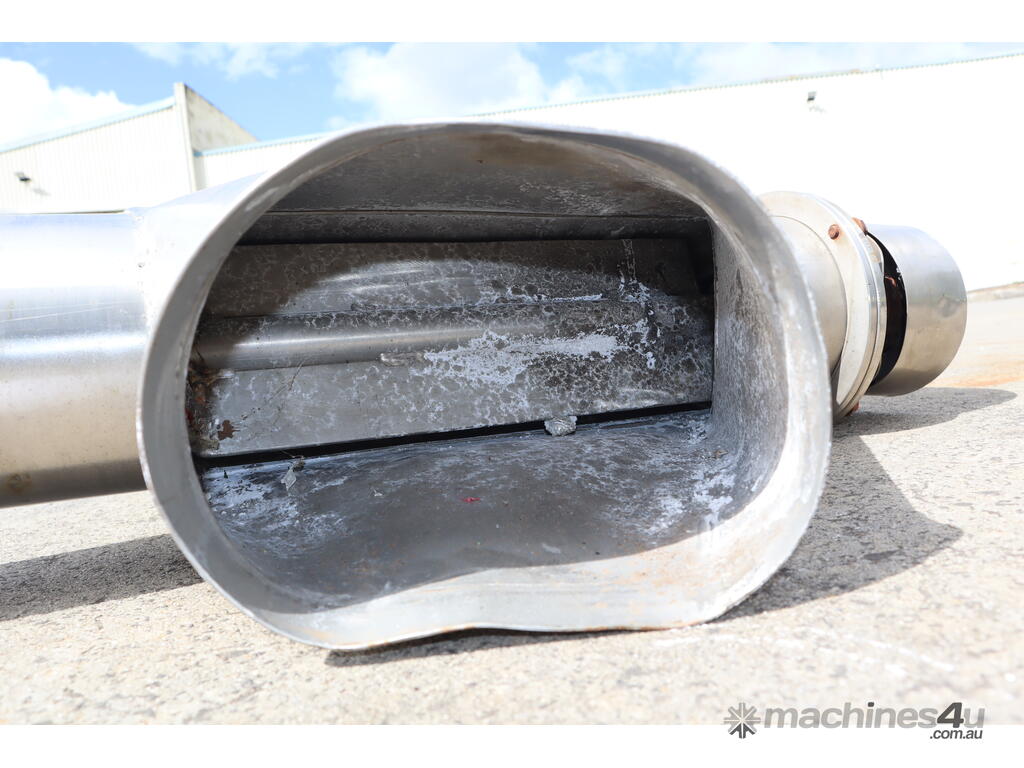

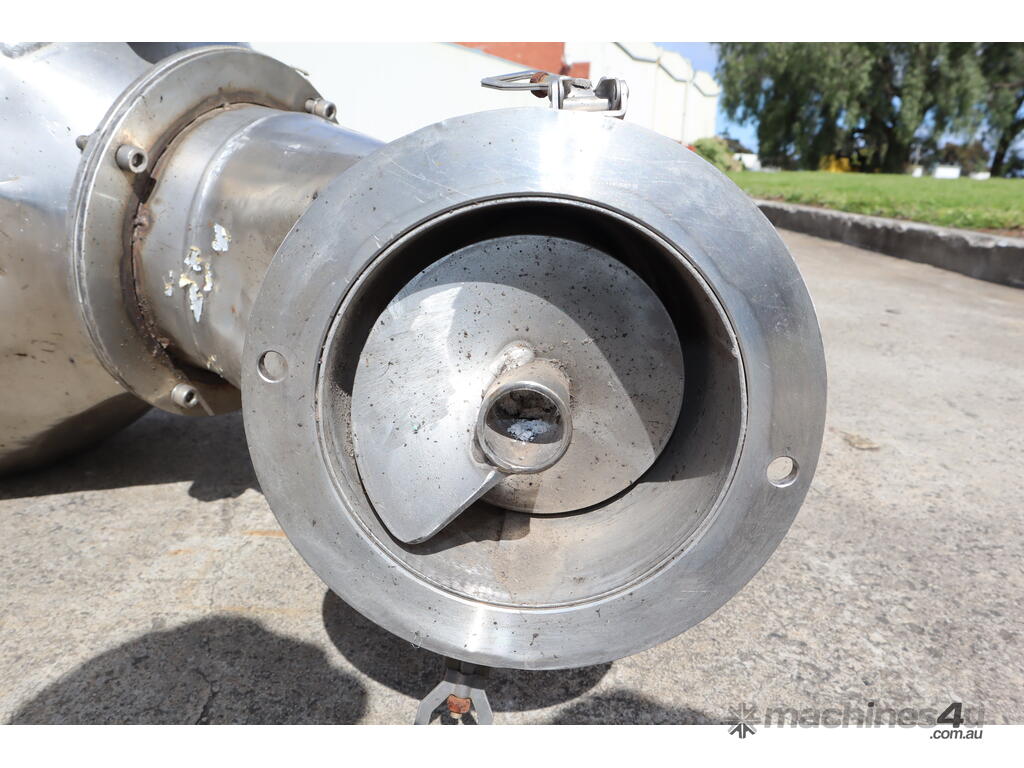

- Discharge Outlet: 160 x 210 mm


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
