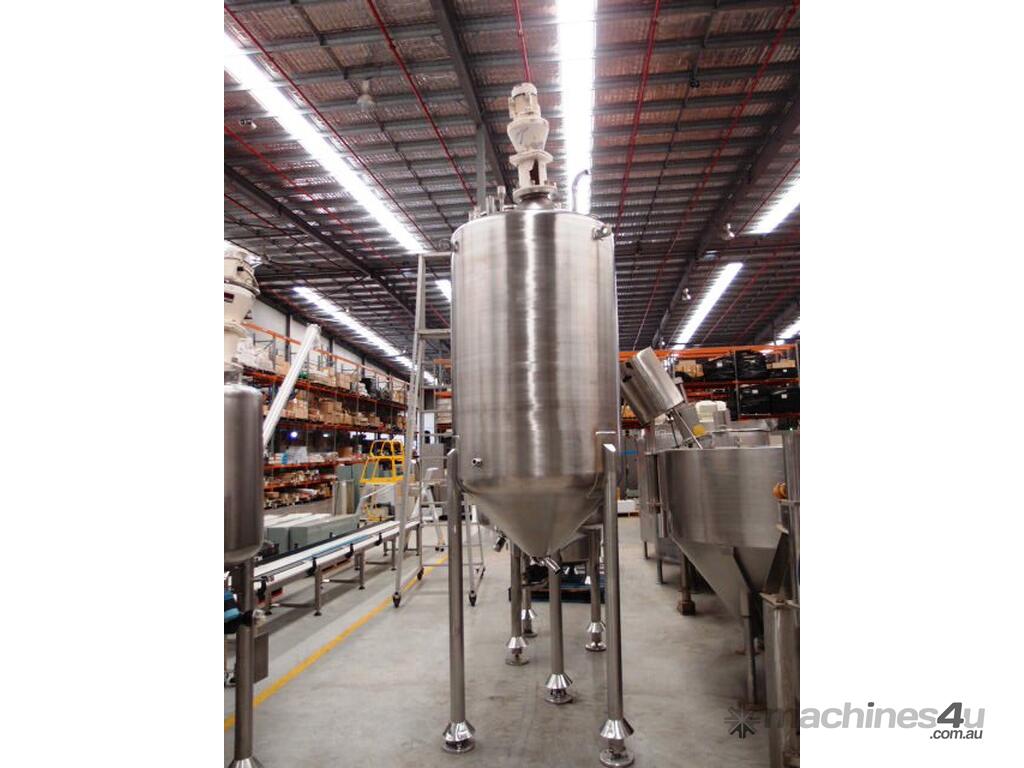

Stainless Steel Mixing Tank - Capacity 1,500 Lt.

Stainless Steel Mixing Tank (Vertical), Capacity: 1,500Lt, Dimension: 1100mm Dia x 1600mm H, Brand: NDA Protech.

Unit is a stainless steel mixing vessel and is capable of taking vacuum & slight pressure.

Vessel Working Pressure: 7 KPA.
Design Pressure: 8.4/-8.4 KPA.
Test Pressure: 13 KPA.
Working Temperature: 15-90 Deg C
Working Vacuum: -7 KPA.
Design Code: AS1210, Class 3.

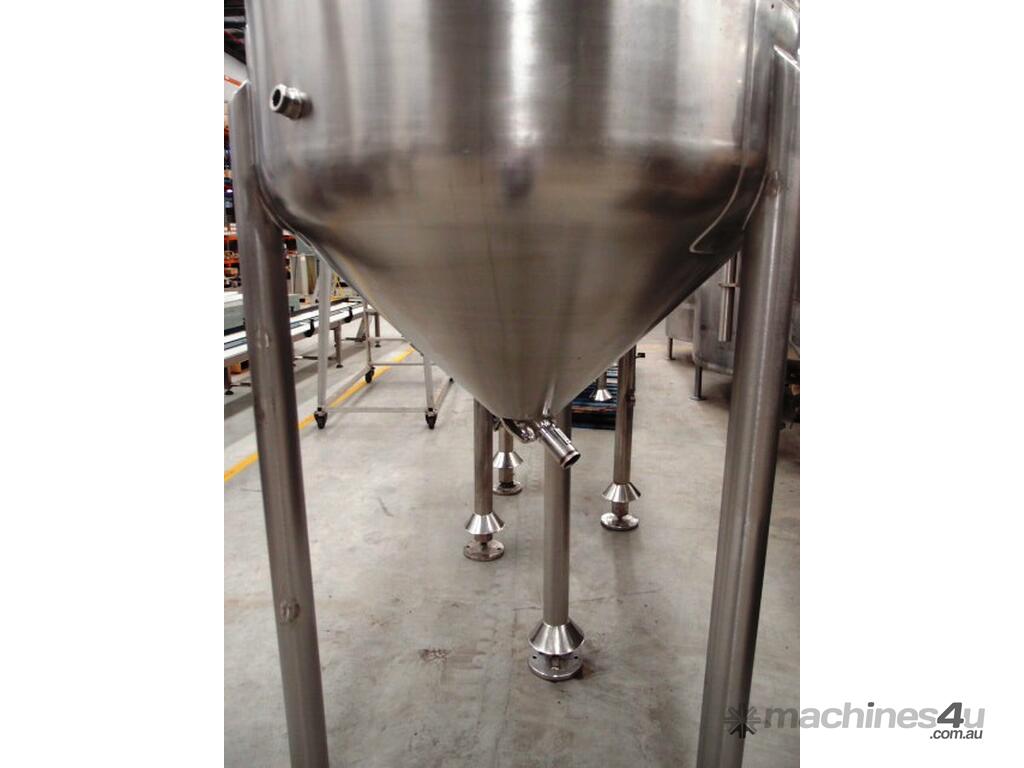

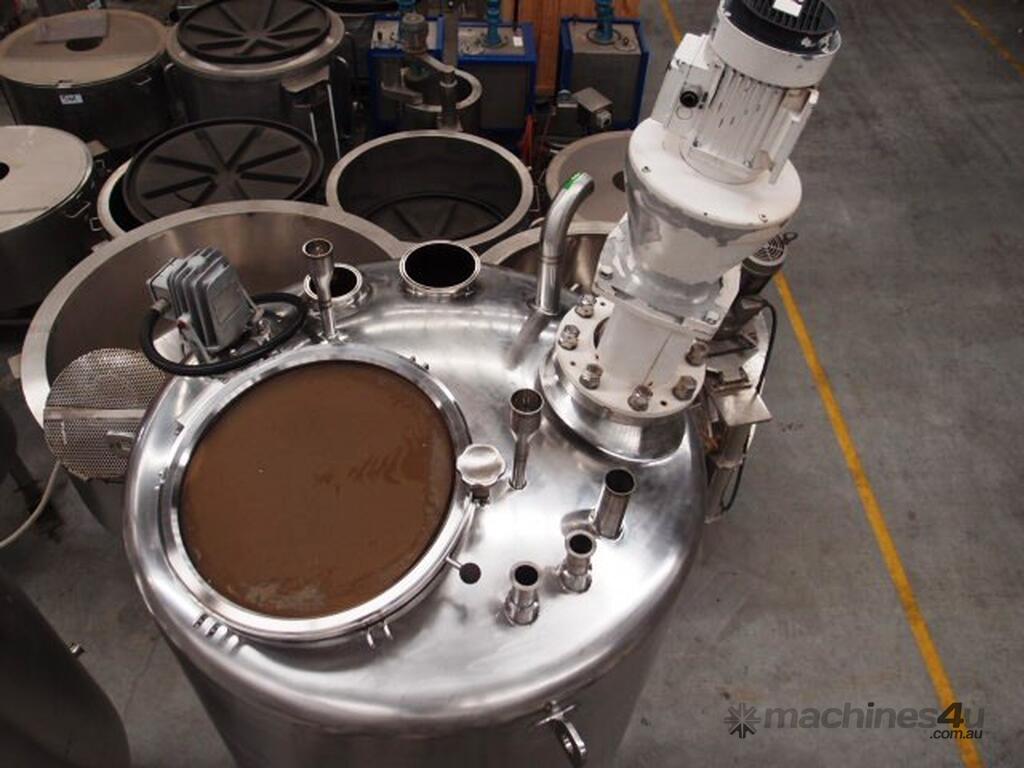

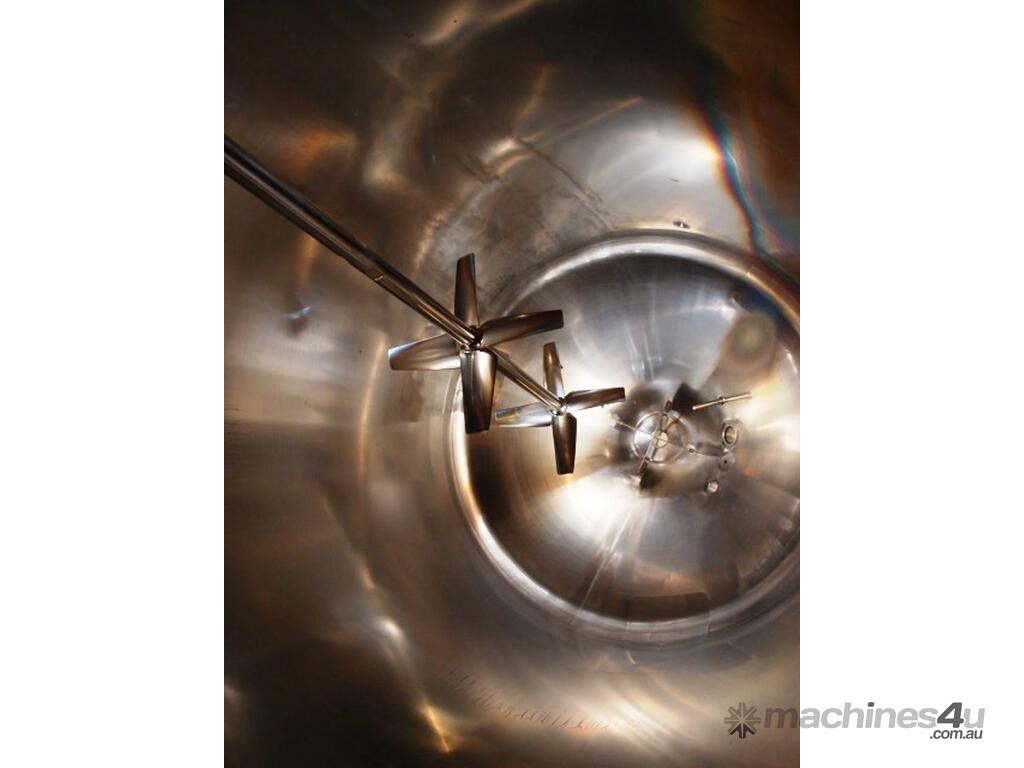

Vessel has dished top with hinged manway. Glass inspection port with lid. Top offset electric geared agitator (0.55kw, 415V). Conical bottom with 50mm dia center discharge. The vessel is internally polished and is of a pharmaceutical standard.

Overall height: 4000mm.
