Stainless Steel Storage Tank - Capacity 3,500 Lt.

Stainless Steel Storage Tank (Vertical), Capacity: 3,500Lt, Dimension: 1550mm Dia x 1750mm H, Brand: NDA Engineering

Unit is a stainless steel vertical pressure vessel.

Vessel Design Code: AS1210-1997. Class: 26.
Maximum Design Pressure: 350 KPA.
Minimum Design Pressure: -101 KPA.
Design Temperature: 150 Deg C.
Hydro Test Pressure: 543 KPA.
Stamp No. 133-U-5907.

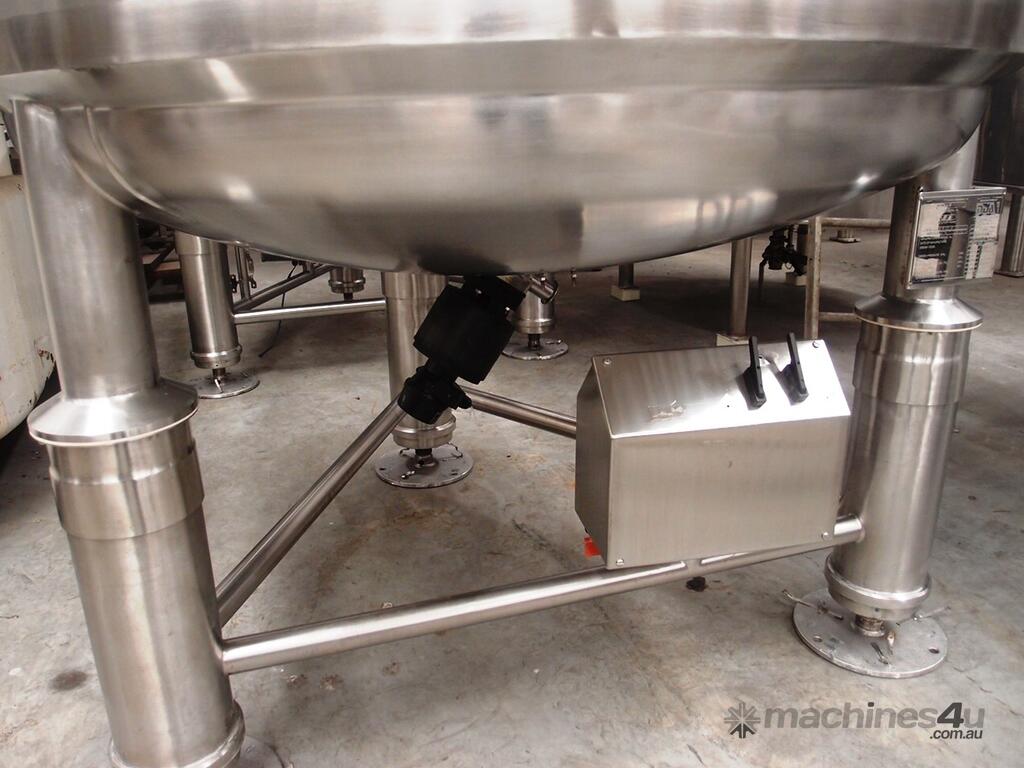

Vessel is ex-pharmaceutical and has dished top with center bolted manway. Dished bottom fitted air actuated Alfa-Laval diaphragm valve 38mm dia. Vessel has fully welded stainless steel insulation and is mounted on load cells. Vessel also fitted with hinged inspection manway and digital temperature gauge. Overall height: 3200mm.
