Stainless tank Pressure vessels 2x300L isocyanate hardener monomer polyurethane Feed storage system

Stainless Steel Pressure vessels 2x300L isocyanate hardener monomer urethane Feed


This system is designed for the handling of polyurethane isocyanate hardener monomer. The system includes double diaphragm pumps for decanting from drums, a stainless pressure vessel tank for storage under inert atmosphere, this is equipped with a capacitive level transmitter and a vibratory fork type level switch.
Discharge from this system was via 2 Graco Glutton pumps (please note one pump is missing).

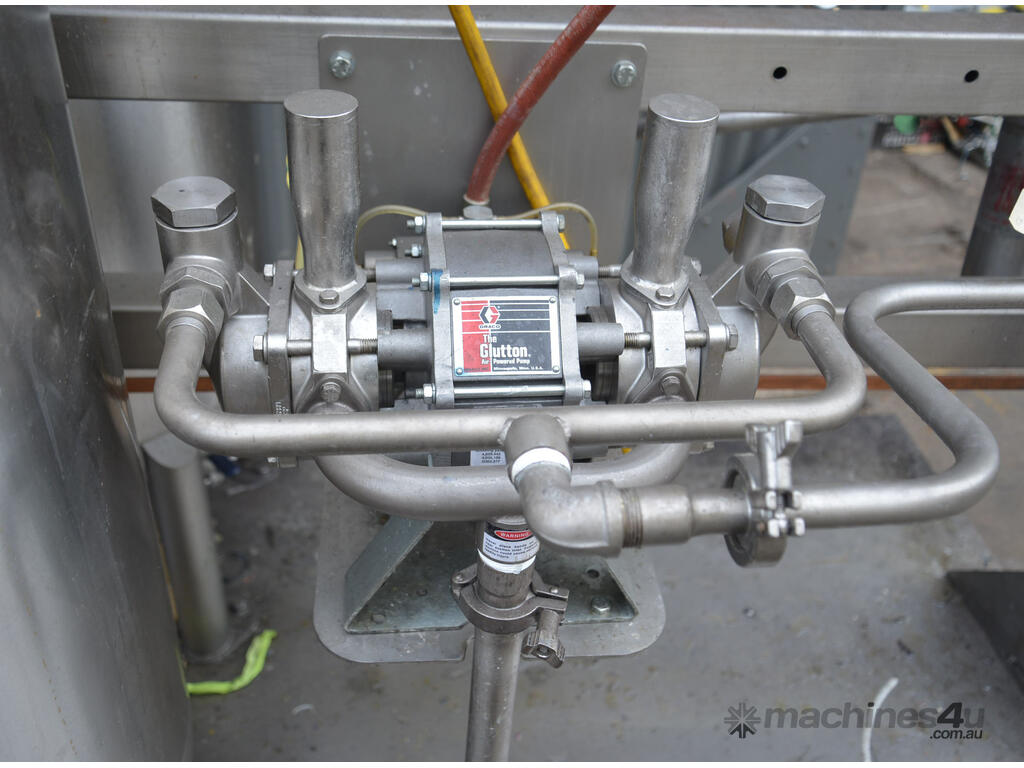

1 x Graco Glutton Air- Powered Pump 220-666 Series J03D 4:1 ratio
(there were 2 but one has been removed before we received this unit)



2 x Graco Husky 511 D51311 Series K03D pneumatic diaphragm pump

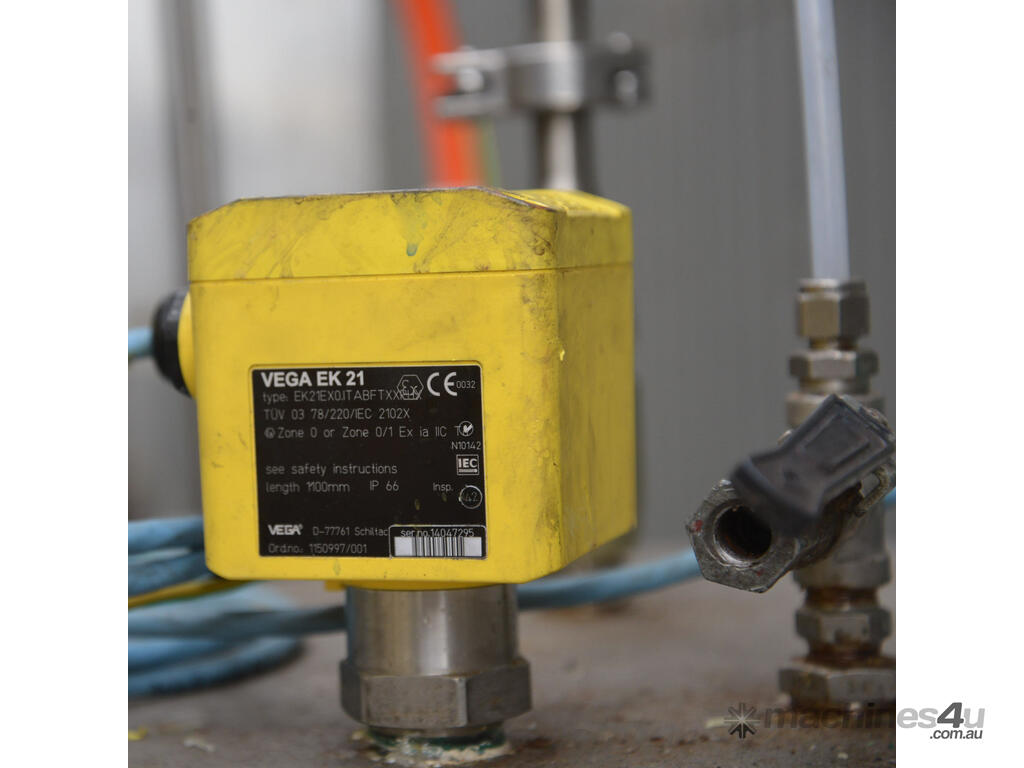

2 x Vega EK21 EK21EX0.ITABFXXPLLX capacitive level transmitter

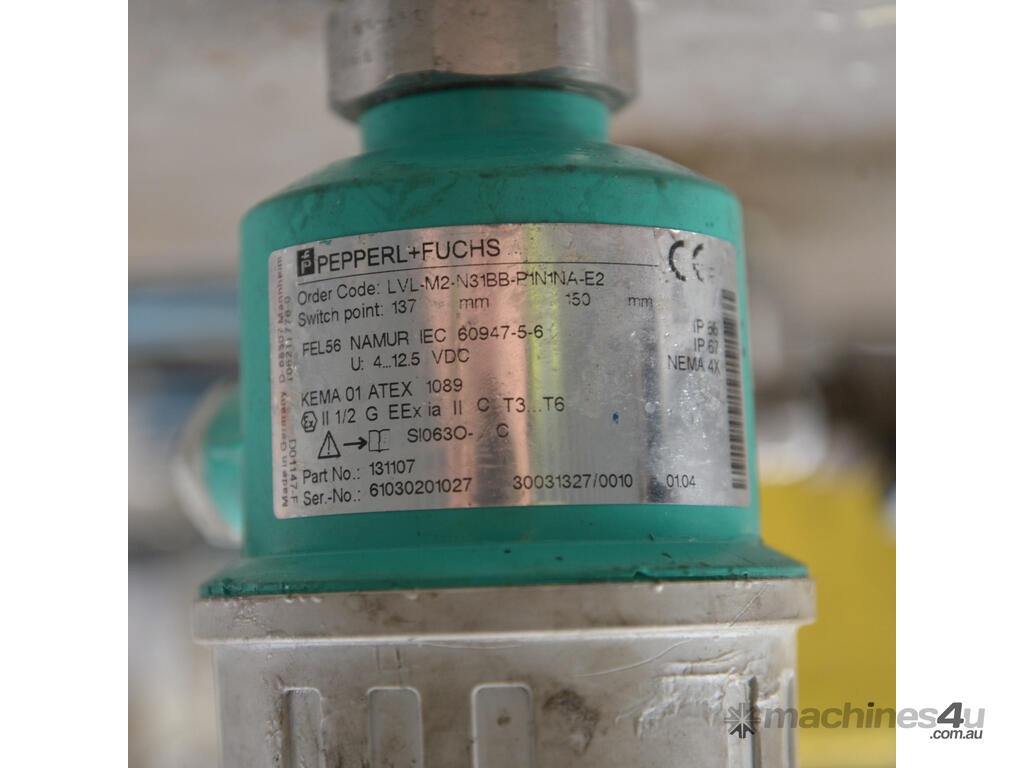

2 x PEPERL+FUCHS LVL-M2-N31BB-P1N1NA-E2 Vibration Limit Switch, high level detector - Part No. 131107

We also have the other paint kitchen systems components listed, see:

Dual 315L stainless vessel paint mixing kitchen pump station Graco president

Dual 90L stainless vessel paint mixing kitchen pump station Graco president



These are ex Holden paint shop and were installed and working when the plant shut.

2150 x 1450 x 2250mm
982kg


Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia


The item is way too heavy to post but we are happy to assist with arranging freight and have a forklift available to load your truck
