SPECIFICATIONS:

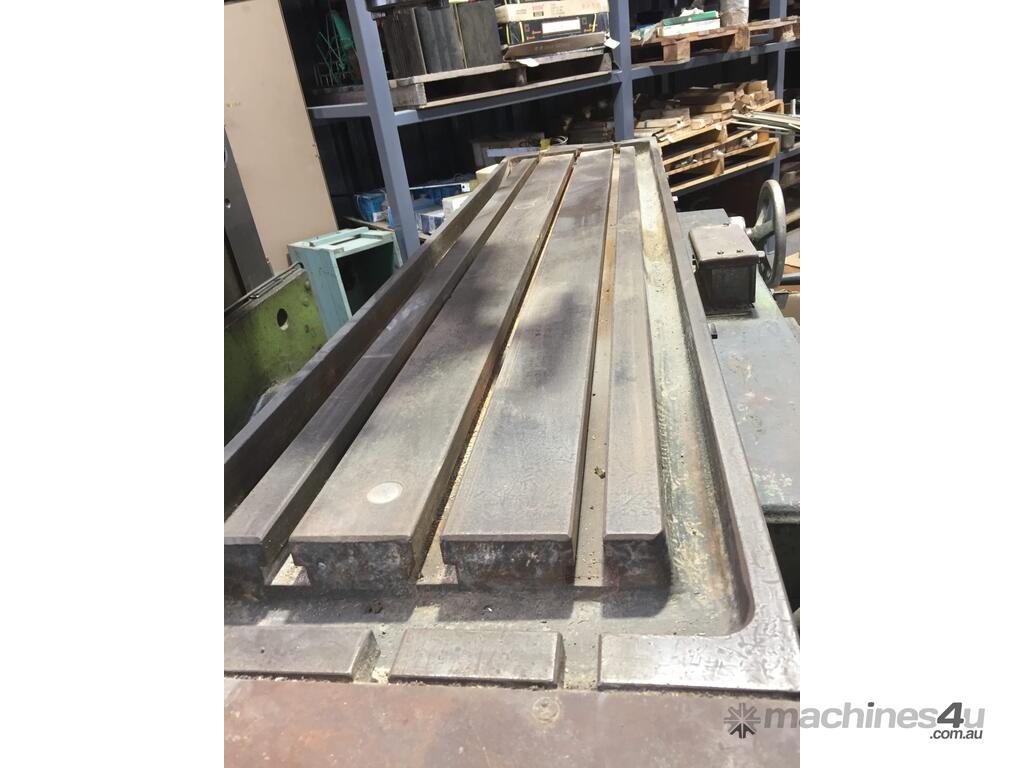

Dimensions of table working surface
- length 1600mm
- width 400mm
Maximum travel of table
- longitudinal travel 1000mm
- cross travel 400mm
- vertical travel 420mm

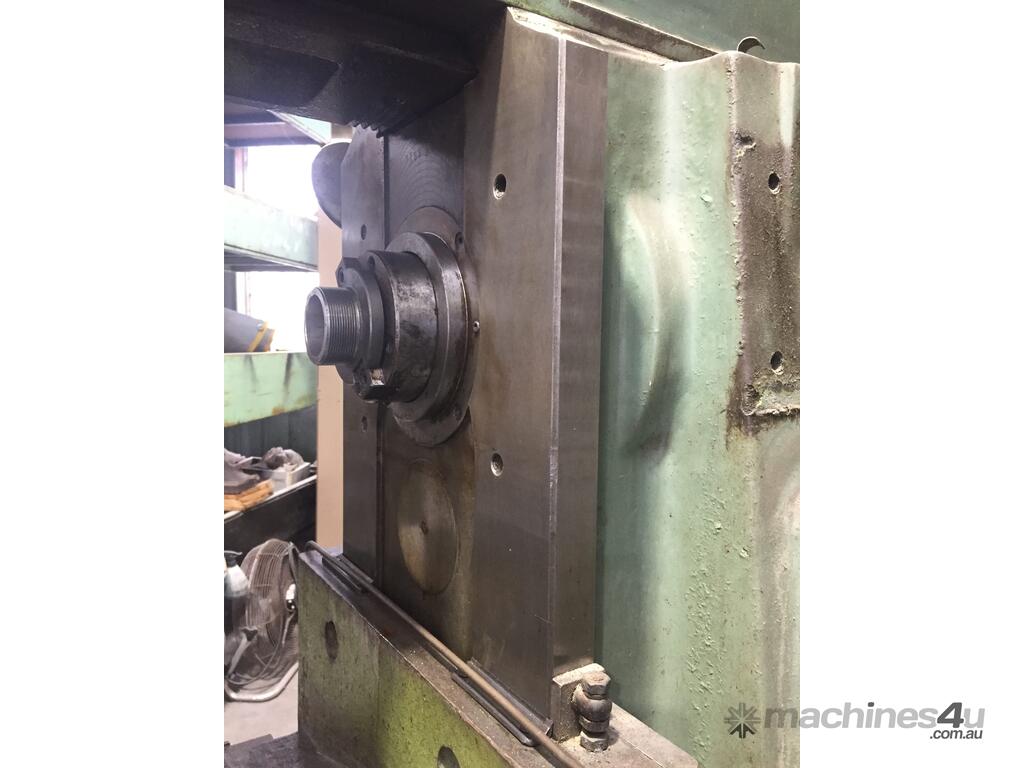

Distance from axis of horizontal
spindle to table working surface 30 450mm
Distance from axis of horizontal
spindle to overhanging arm guides 190mm
Distance from axis of swivel
head spindle to bed ways 260 900mm
Distance from swivel heads
spindle end to table (with pushed in sleeve) 160 580mm
Rotational speeds of spindles
- horizontal spindle 31.5 1600 r.p.m.
- swivel and lay on heads 50 1600 r.p.m.
Table feeds
- longitudinal and cross 12.5 1600mm/min
- vertical 4.1 530mm/min
- Proportional slow down feed ½ speed
