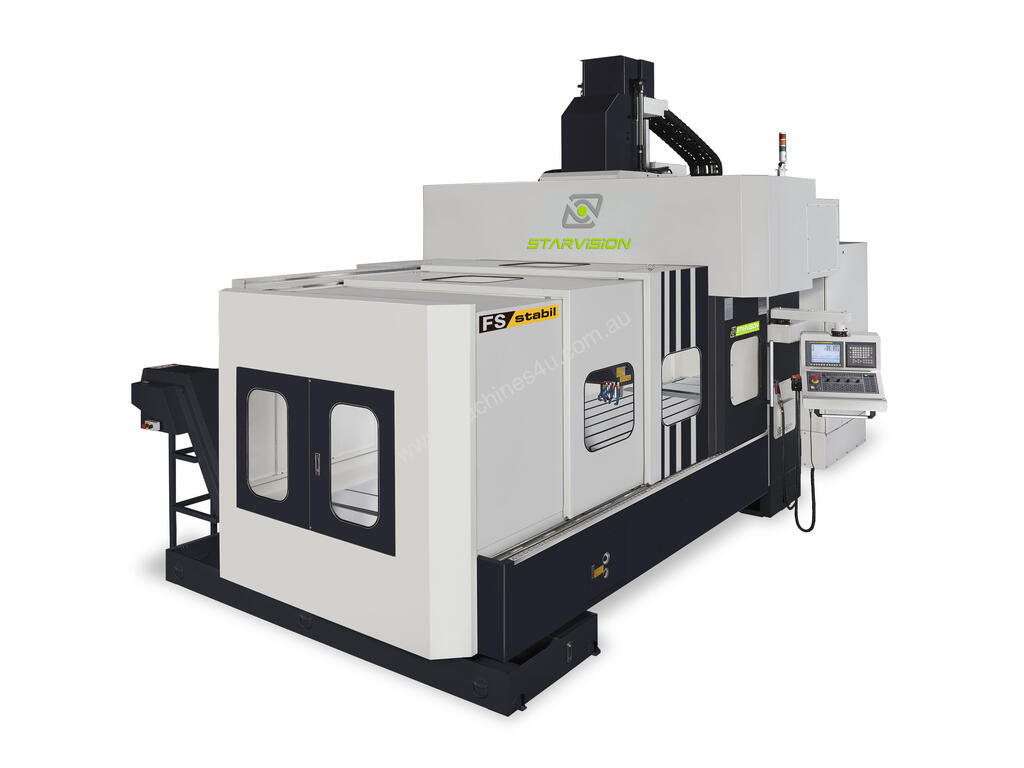

The structural design of FS series are processed by the 3D finite element analysis (FEA) which makes sure the optimum structural patterns and stable cutting rigidity. With high quality cast iron frame, three axes boxway design, and reliable Turcite B as the medium to absorb the vibration, we can ensure you to experience the best and stable cutting performance.
Travel
X axis - 2.2 to 4.2 mt Travel
Y axis - 1.6 to 2 mt Travel
Z axis - 800 mm - 1mt Travel
Distance from spindle nose to table - 150-950 mm(150-1,150-opt.)
Distance between two column 1,700 / 2,100 mm
