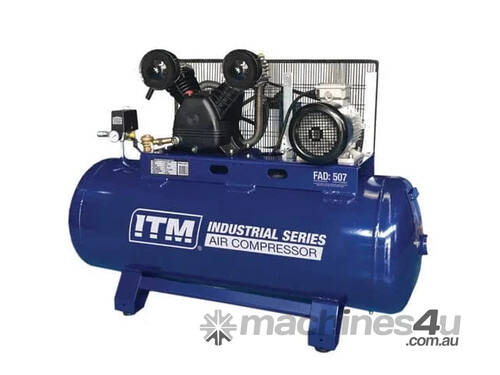

Stationary Belt Drive Air Compressor by ITM

FEATURES
Twin cast iron cylinder oil lubricated pump with aluminium head.
Powerful high efficiency induction motor.
Soft start valve for electric motor protection.
Thermal overload protection with manual reset.
Full brass non-return valve.
Certified safety valve.
Reliable Condor pressure switch.
Includes twin outlet one-touch “Nitto style” connectors.























SPECIFICATIONS 5.5hp Unit



Motor: 5.5HP - Three Phase 415V


Tank Capacity: 200 L


Max Pressure: 147 PSI (10 Bar)


Pump Displacement: 605 L/min (21.4 CFM)


Free Air Delivery: 507 L/min (17.9 CFM)


Pump RPM: 860


Package Dimensions: 146cm L x 57cm W x 124cm H


Compressor Dimensions: 138cm L x 48cm W x 103cm H


218kg







SPECIFICATIONS 7.5hp Unit



Motor: 7.5HP - Three Phase 415V


Tank Capacity: 270 L


Max Pressure: 147 PSI (10 Bar)


Pump Displacement: 909 L/min (32.1 CFM)


Free Air Delivery: 704 L/min (24.9 CFM)


Pump RPM: 1005


Package Dimensions: 161cm L x 62cm W x 131cm H


Compressor Dimensions: 155cm L x 54cm W x 112cm H


276kg











SPECIFICATIONS 10hp Unit



Motor: 10HP - Three Phase 415V


Tank Capacity: 270 L


Max Pressure: 147 PSI (10 Bar)


Pump Displacement: 1269 L/min (44.8 CFM)


Free Air Delivery: 1143 L/min (40.4 CFM)


Pump RPM: 950


Package Dimensions: 161cm L x 62cm W x 131cm H


Compressor Dimensions: 155cm L x 54cm W x 112cm H











Options



TM353-55200


TM353-75270


TM353-10270
