Steelmaster Multi 125 Hydraulic Ironworker

Steelmaster Multi 125 Hydraulic Ironworker
- As New With Tooling!
- Located Yandina, Qld.

- Specifications follow:

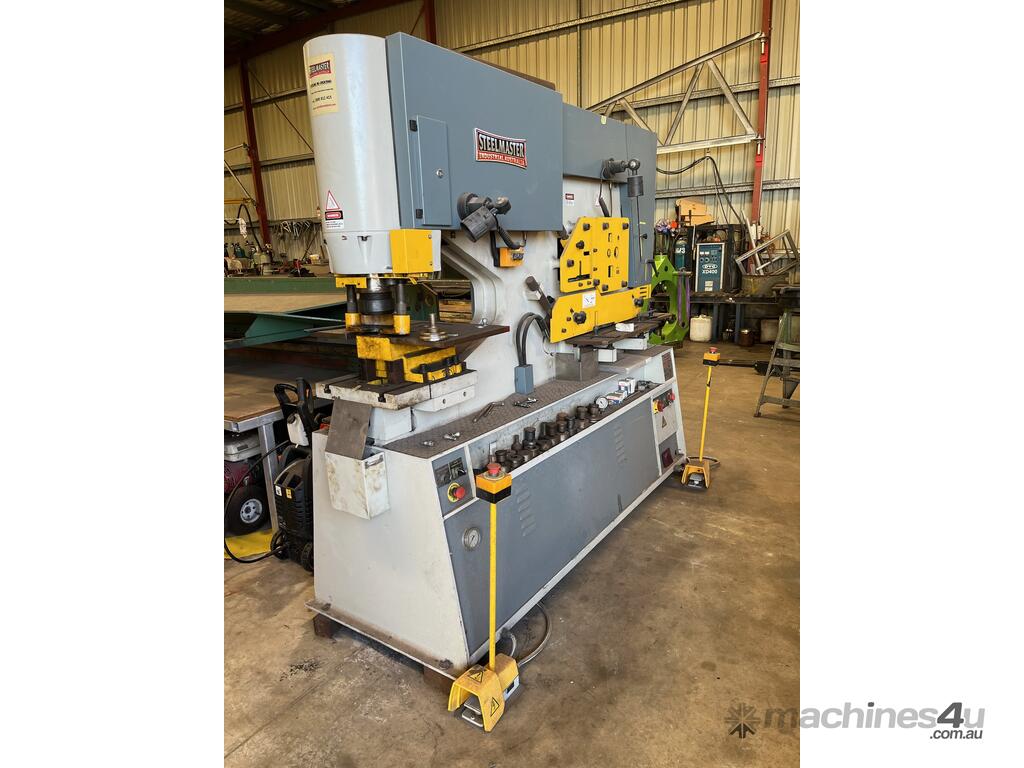

MULTI 125. Punch & Shear. Steelmaster 125Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch

This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.
With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods. A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Production tooling pack also supplied with 10 complete sets of round punch and dies along with a multi vee Pressbrake attachment for bending applications.
Now also included we have added laser punch guide for easy alignment!
Features:
- Double cylinder hydraulic punch & shear machine,
- Hydraulic flat plate shear clamping now standard,
- Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications,
- Swing-away punch-stripper unit,
- Two universal bottom die holders included,
- Hydraulic clamp assist flat plate shearing station with square & angle guides,
- Angle cropping station,
- Round and square solid cropping station,
- Rear notching station,
- 1000mm electric touch and cut feature,
- Pressbrake bending attachment supplied,
- 10 sets of standard Kingsland type punch and die tooling included,
- Low power inching and adjustable stroke at punch station,
- Overload relief on the hydraulic system,
- Centralised pressure lubrication system,
- Roving foot pedal operation,
- Emergency stops,
- Machine manual,
- Service toolkit,

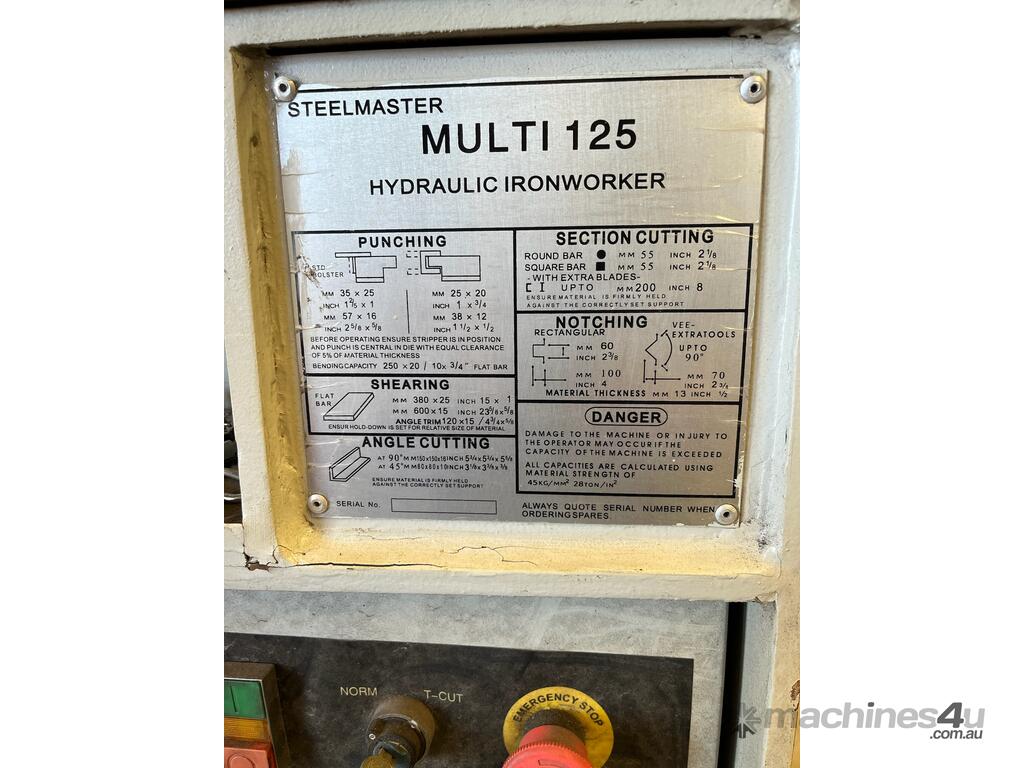

- CE compliant Technical Data Snap-Shot,
- New hydraulic clamping on shearing station,
- 35mm hole in 25mm plate (optional 57mm x 16mm),
- 80mm stroke length,
- 1056mm working height,
- 610mm deep punch throat depth – this is a must for all base plate work!
- 600mm x 15mm flat plate shear / also 380mm x 25mm,
- 150mm x 150mm x 18mm angle crop also 80mm x 10mm at 45 degrees,
- 55mm round & square cropping,
- 100mm x 60mm x 13mm rear notch,
- 700mm x pressbrake bending kit supplied,
- 200mm x 100mm section channel available – optional **-? shipping dimensions – 2000mm x 800mm x 2030mm,
- Weight – 3100Kg,
- Power – 415V 7.5Kw.

Accessories Included:

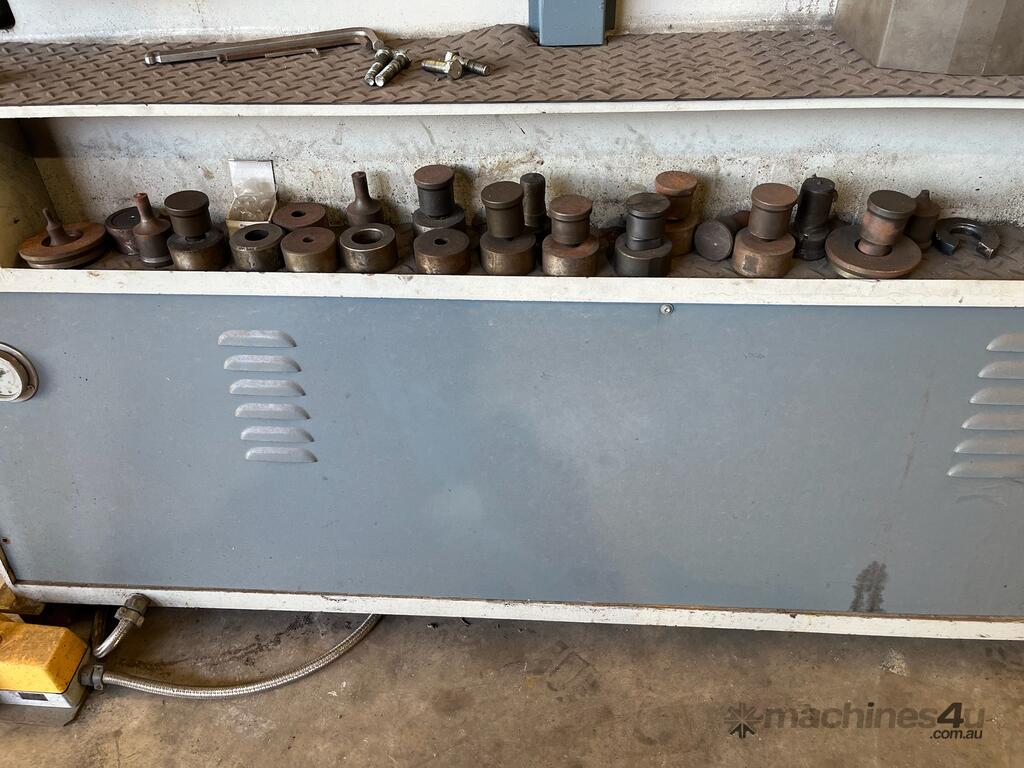

- 10 sets round punch & dies / long series punches (9006),
- Electric touch & cut feature,
- Pressbrake attachment for bending,
- Toolbox & Manual.
