Steelmaster Section Roller

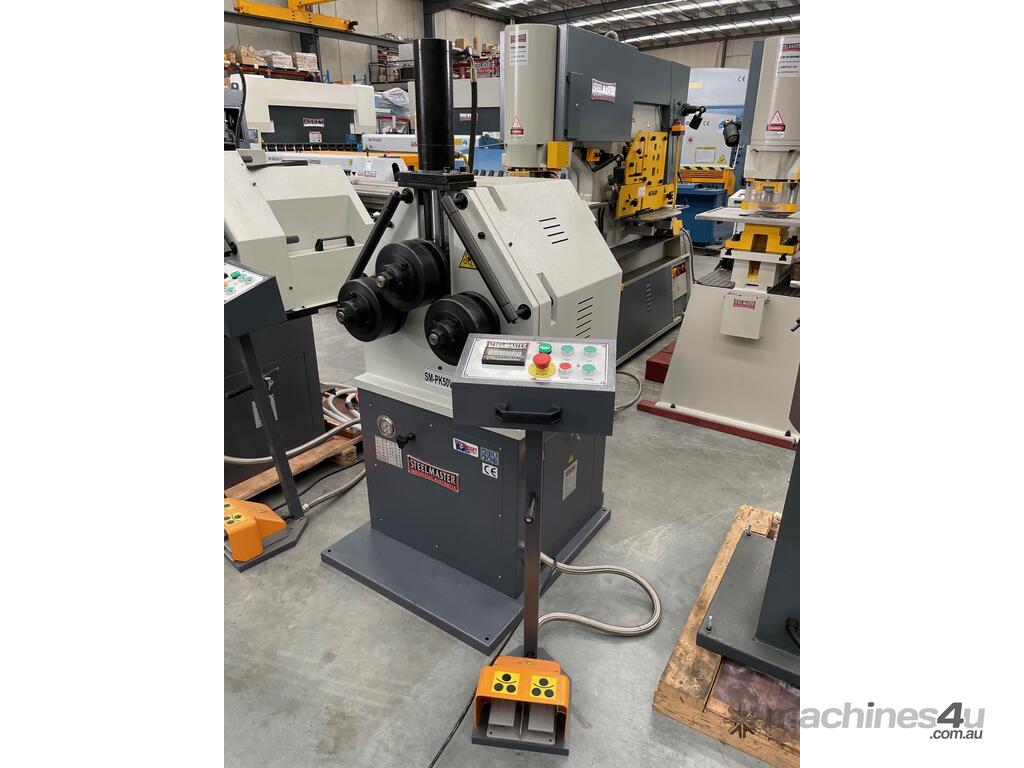

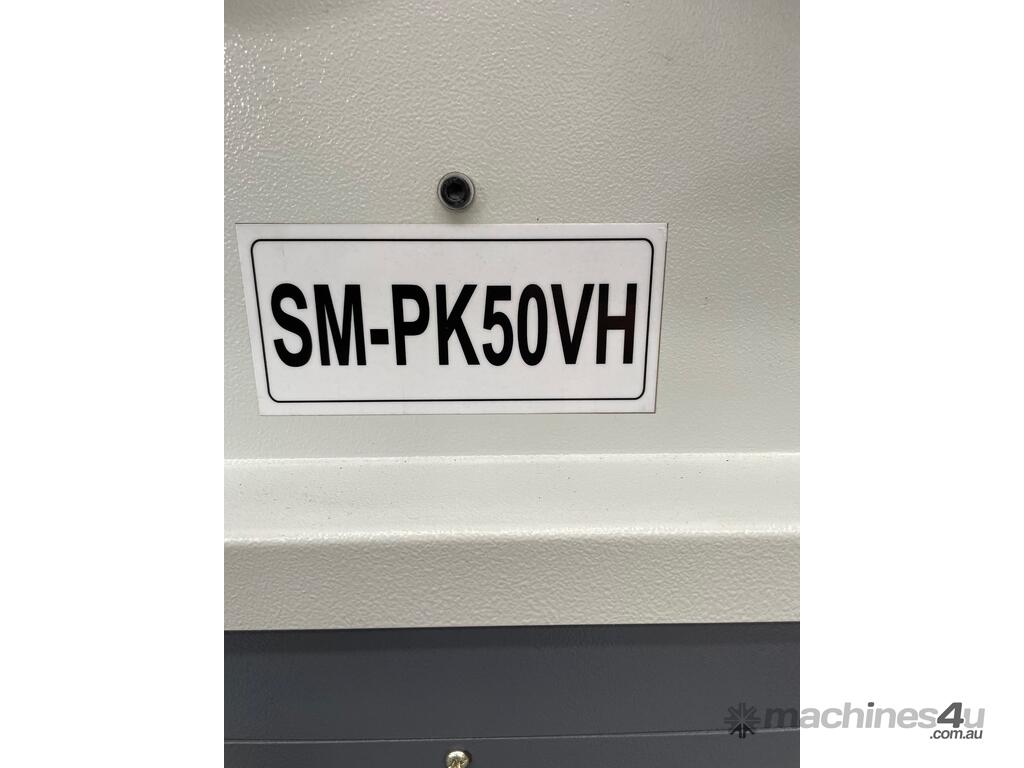

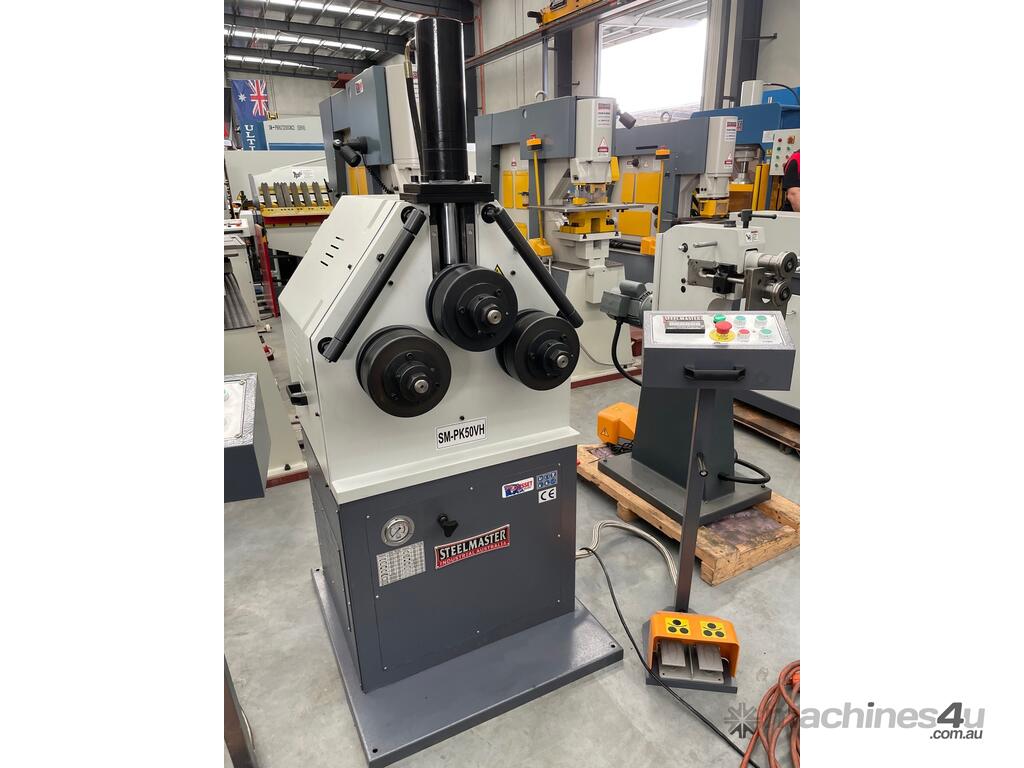

SM-PK50VH Section & Pipe Roller. Steelmaster Heavy Duty Vertical Operation. Hydraulic Top Roll, Guide
Rolls, 50mm Shaft Dia. Hardened Universal Tooling, Foot Pedal Operation & E Stops, CE, 2.2Kw, V

NEW MODEL - Our new European designed & engineered range of STEELMASTER PK series section rollers will cover your complete rolling requirements
Vertical and horizontal operation and powerful Volt drive.
All three rollers are driven for improved performance

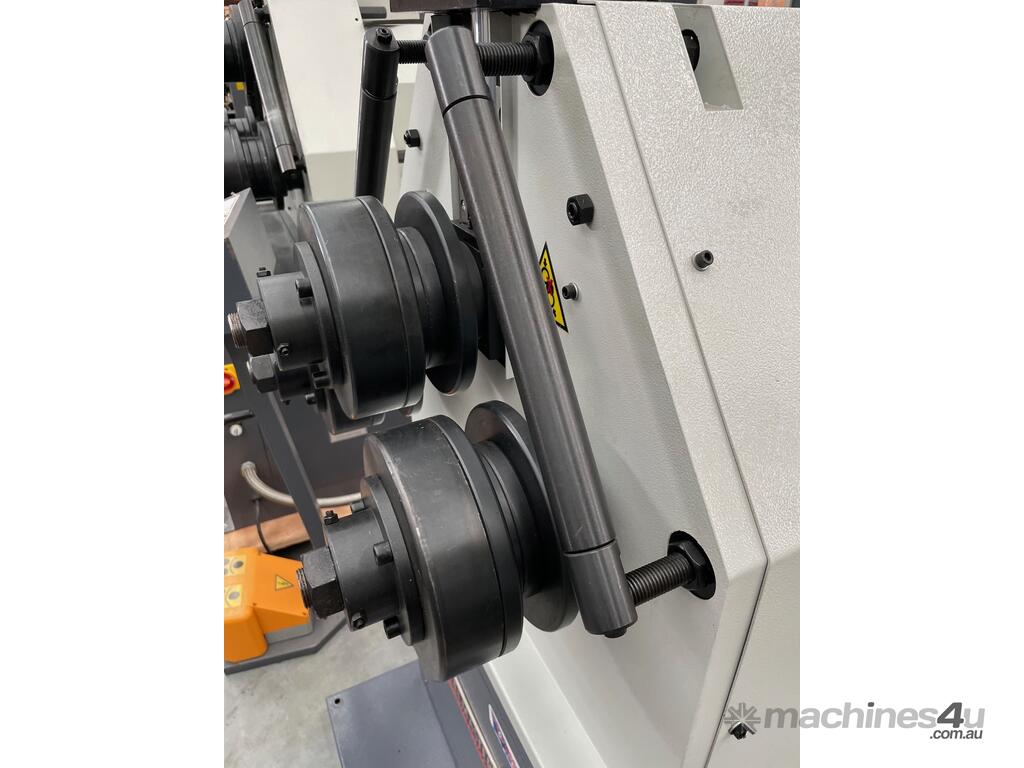

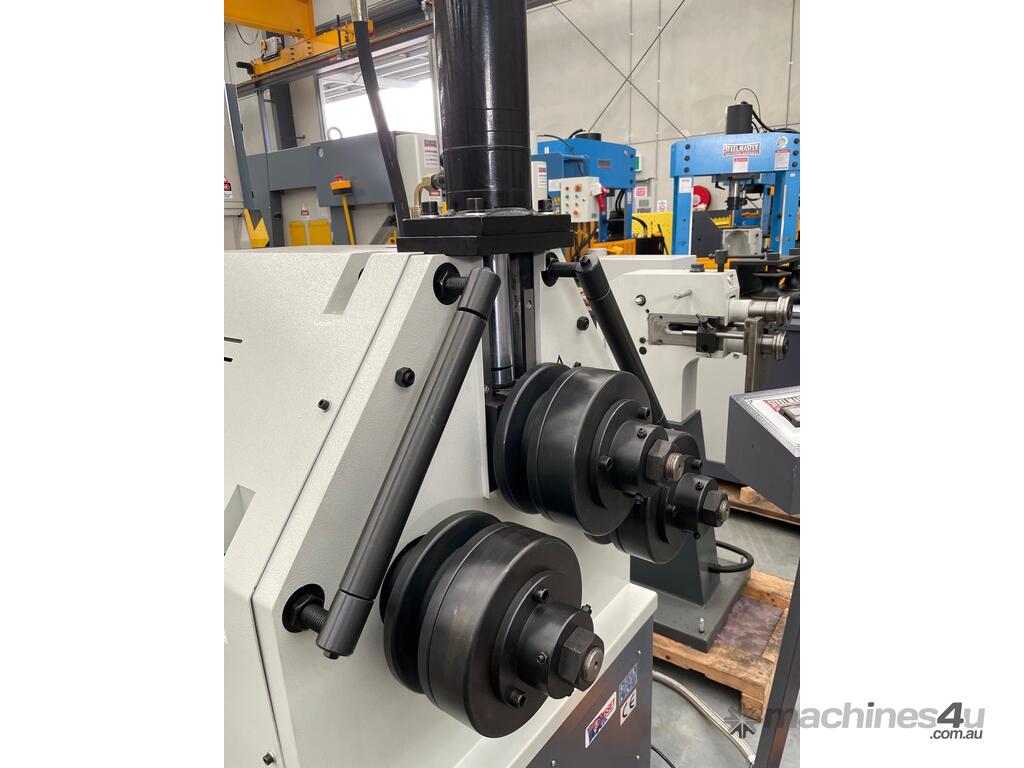

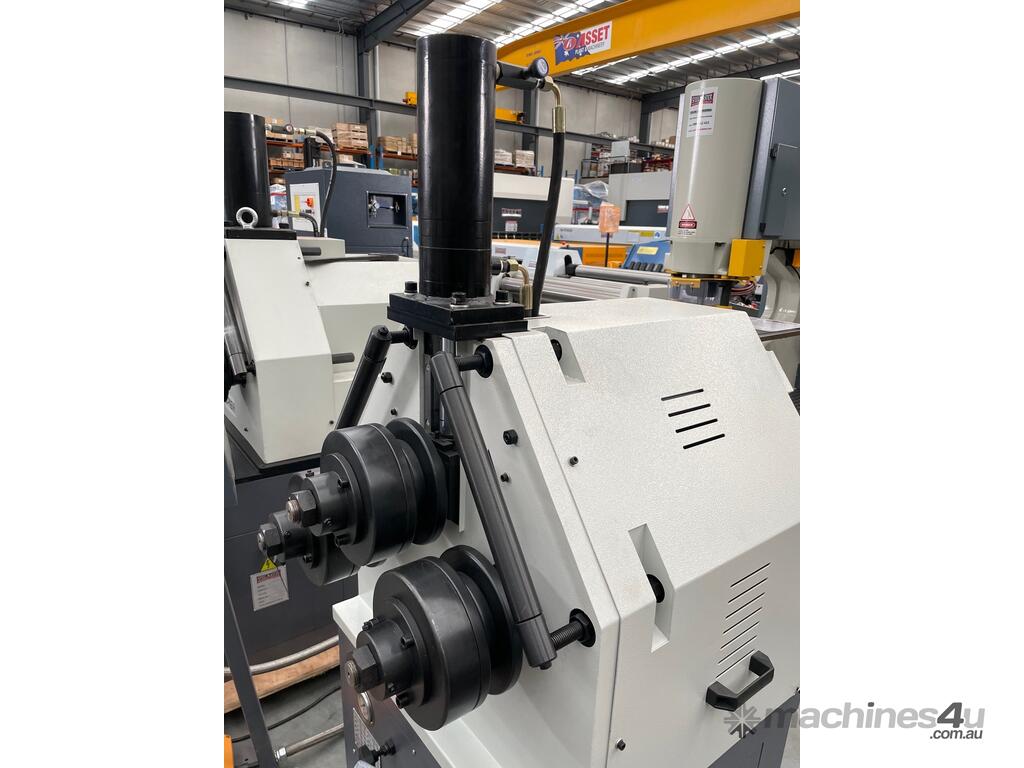

New hydraulic down feed adjustment on top roller.

Features
?vertical & horizontal operation

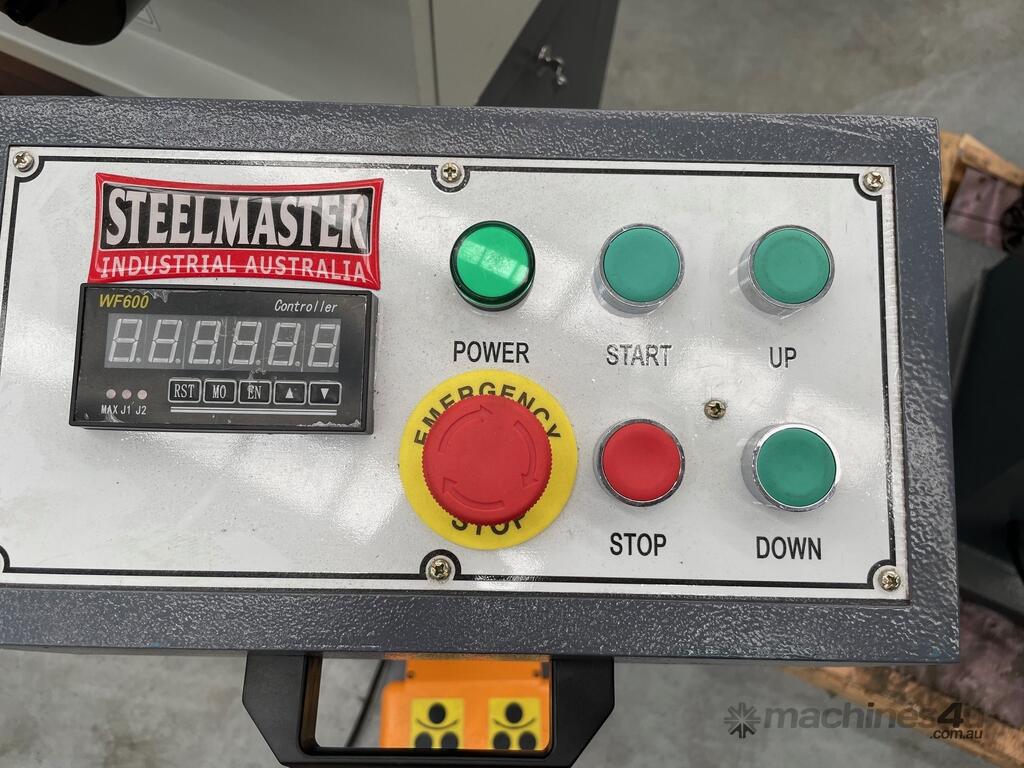

?hydraulic top roll operation with Digital Display

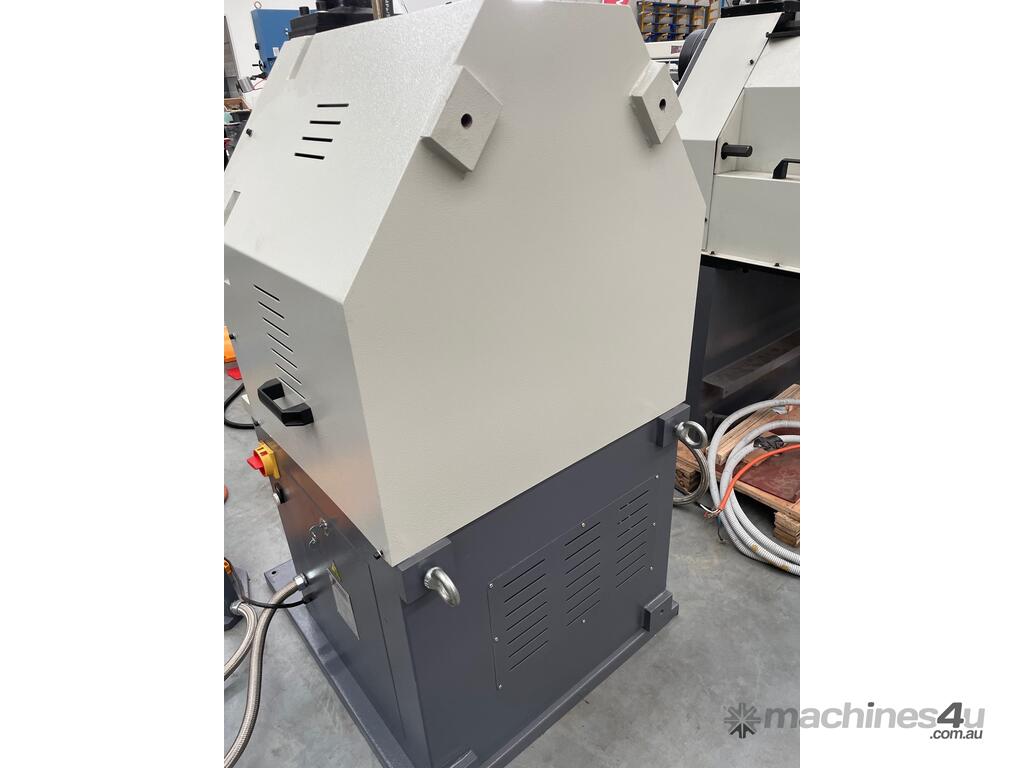

?heavy duty steel fabricated frame
?calibrated setting on top roller with measuring scale.

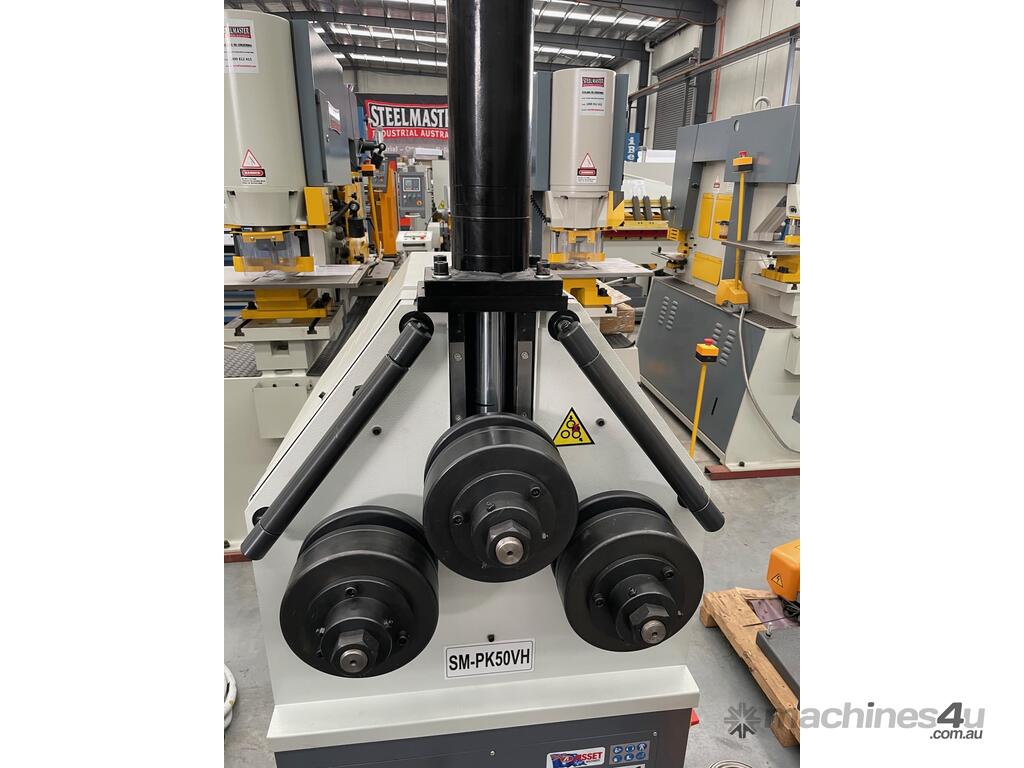

?3 x driven rollers, 1 x top, 2 x bottom
?hardened and ground drive shafts
?adjustable side support guide rolls

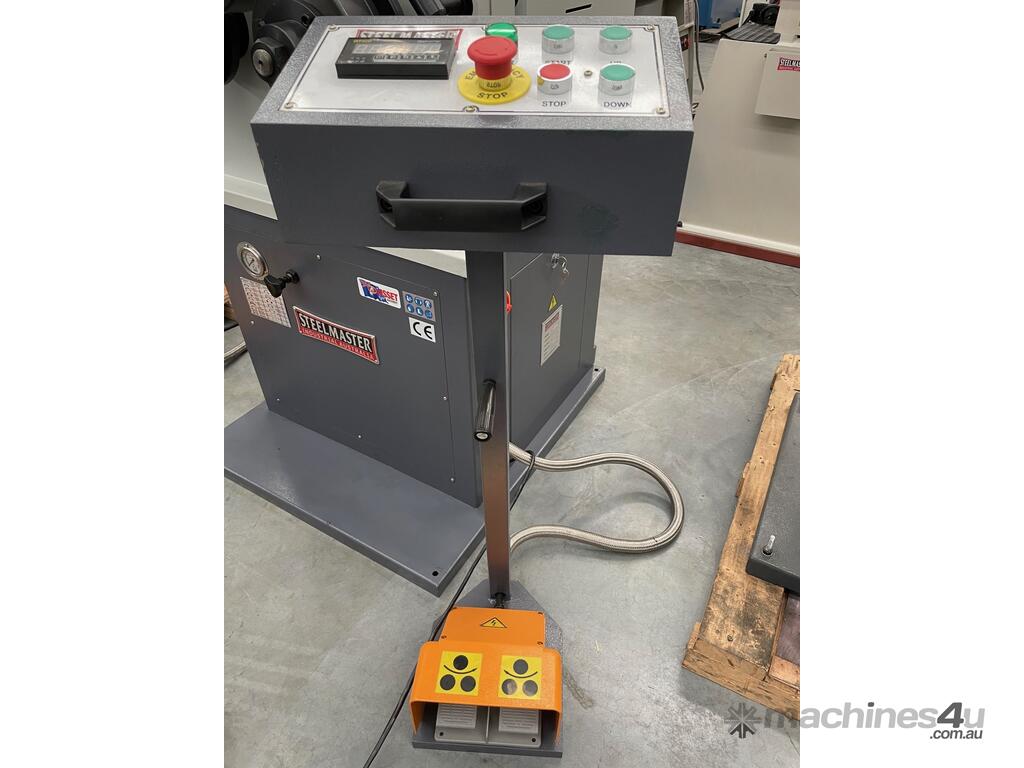

?roving foot pedal control with forward/reverse
?standard flat & angle rolls are included
?heavy 50mm drive shaft.
?CE compliant

Technical Snap Shot
?top roll diameter - 185mmA
?bottom roll diameter - 185mm
?bottom roller centre distance - 345mm
?top roll vertical travel - 135mm max
?Round Tube Capacity (Size / Min. Radius) 50 X 3mm / 700mm *(Optional Tooling Available)
?Flat Bar Capacity (Size / Min. Radius) 100 x 10mm / 950mm (Additional spacer tooling required)
?Flat Bar on Edge Capacity (Size / Min. Radius) 50 x 10mm / 500mm (Additional spacer tooling required)
?Square & *Round Bar Solid Capacity (Size / Min. Radius) 35 x 35mm / 950mm (Optional Tooling Available)
?Square Tube Capacity (Size / Min. Radius) 60 x 60 x 3mm / 700mm (Additional spacer tooling required)
?Angle Capacity (Size / Min. Radius) 60 x 60 x 5mm / 700mm (Optional Tooling Available)
?Spindle Speed - 13 r/min
?Motor Power, 2.25kW / 3hp – V
?Weight (Nett) 580kg
?Packing Size: 1000mm x 820mm x 1550mm
Note: * = Requires Additional Tooling

Optional Round Tooling
?23+0059 – 33.7mm (25NB) Round Set 3 Hardened Formers
?23+0033 – 38.1mm Round Set 3 Hardened Formers
?23+0056 – 42.3mm (32NB) Round Set 3 Hardened Formers
?23+0057 – 48.3mm (40NB) Round Set 3 Hardened Formers
?23+0034 – 51mm Round Set 3 Hardened Formers
?23+0060 – 60.3mm (50NB) Round Set 3 Hardened Formers

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
