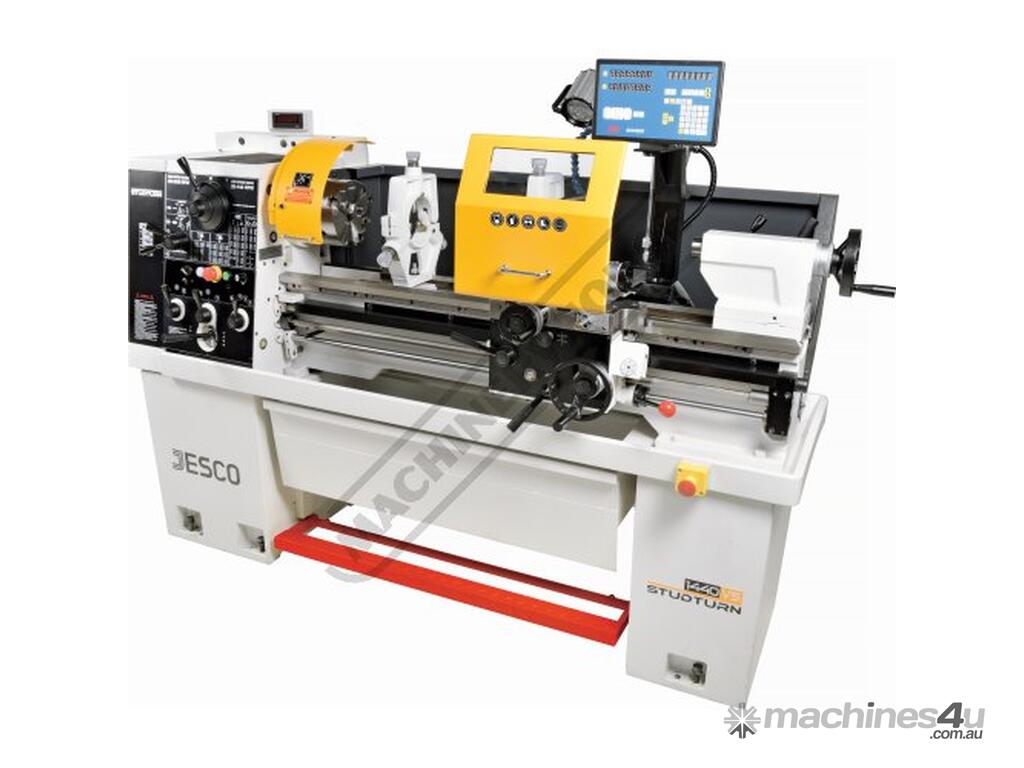

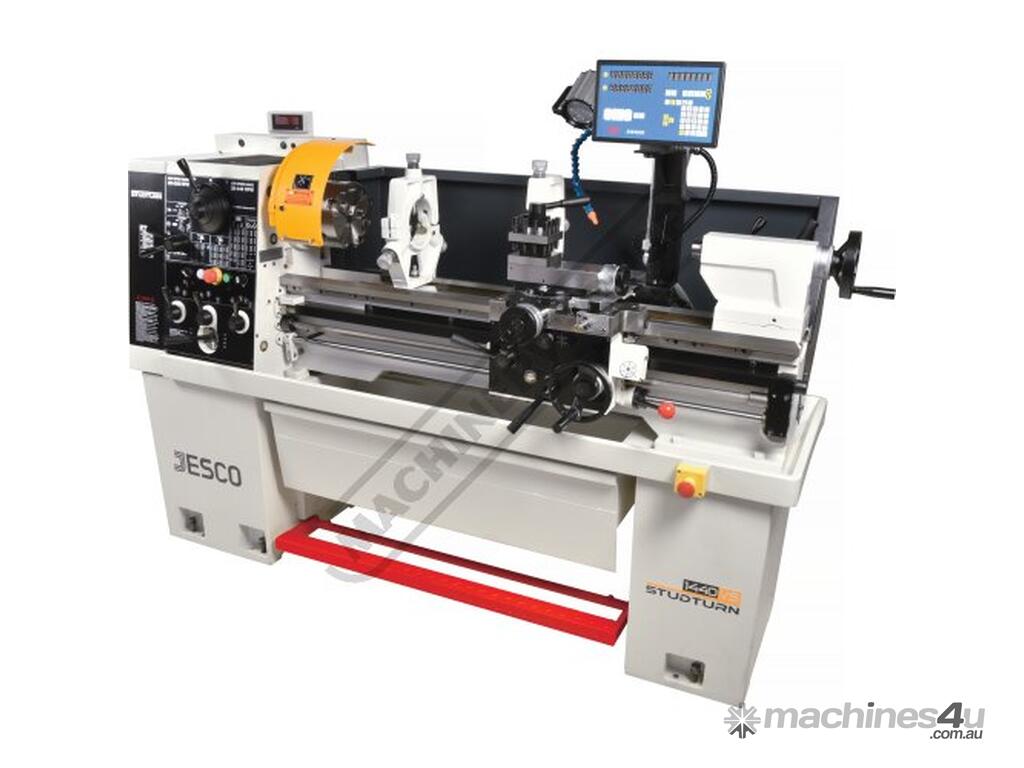

JESCO Studturn 1440VS Centre Lathe Ø360 x 1000mm Turning Capacity - Ø42mm Spindle Bore Includes Digital Readout System & Variable Spindle Speed
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L249VS

Manufactured in Taiwan, Jesco has been producing high-quality center lathes for over 30 years. As the OEM manufacturer for a prominent British lathe brand, Jesco ensures exceptional craftsmanship and reliability.

The Variable Speed Studturn boasts an impressive spindle speed of 2500rpm and features a fully enclosed universal gearbox, offering a comprehensive range of threading and feeding options. Designed with safety in mind, it includes leadscrew covers, chuck and chip guards, an additional emergency stop switch, and a convenient footbrake for enhanced operator protection.

Features:
Schneider Electric Varispeed high-performance Low-noise Inverter drive
Variable Speed 35-2500rpm with high/low speed selector

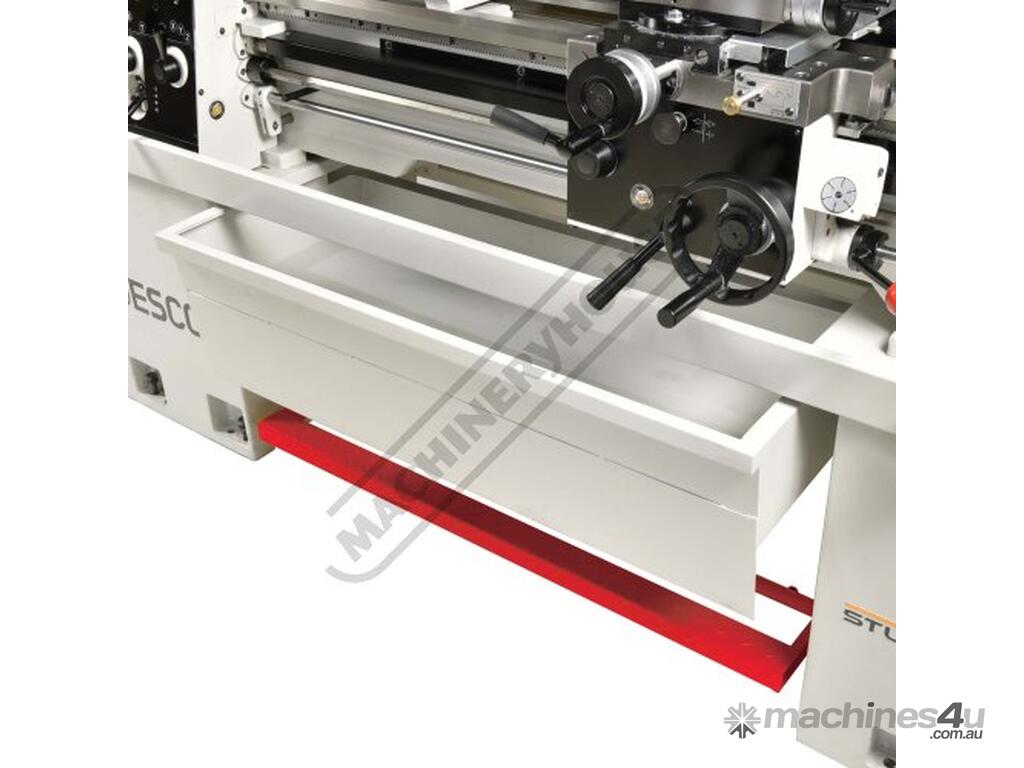

Mechanical emergency footbrake for safety
Noise levels below 80dba
Precision Taiwanese machine sold for over 34 years
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground

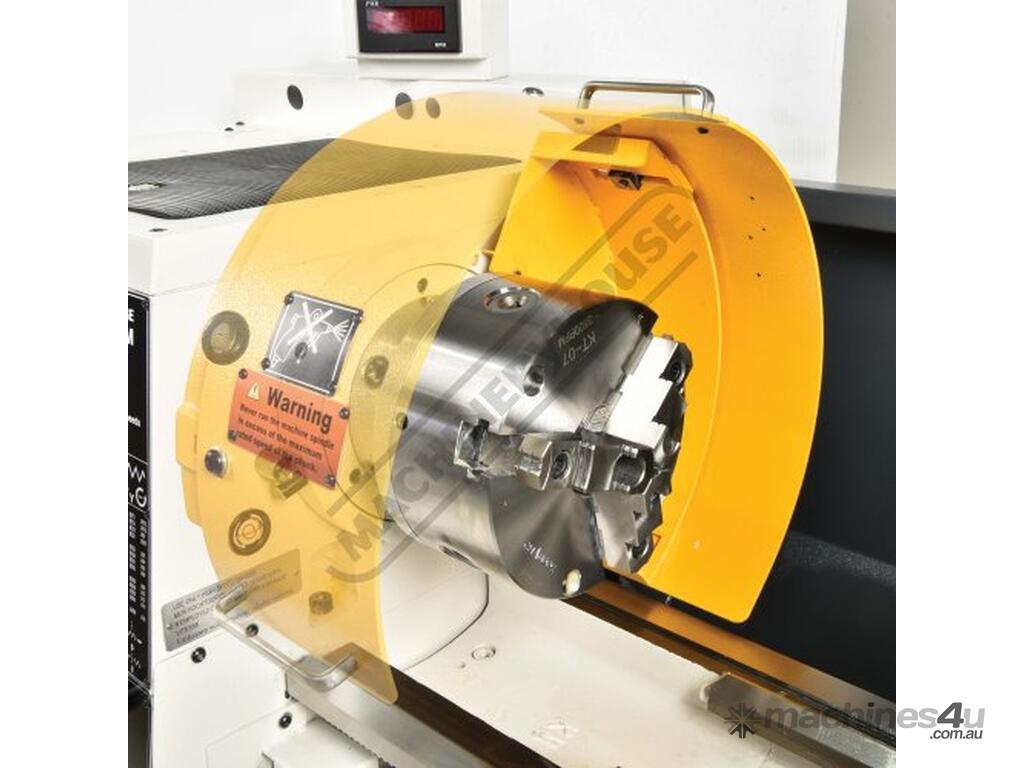

Chuck guard with safety micro switch cut out
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities

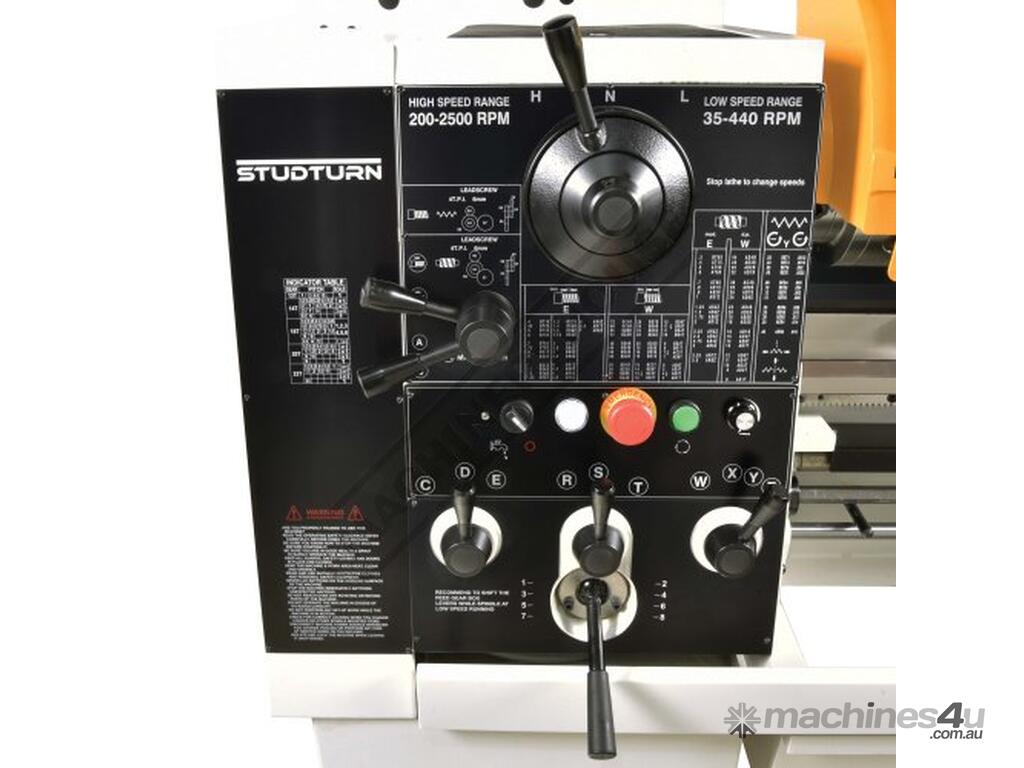

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
250mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 560mm

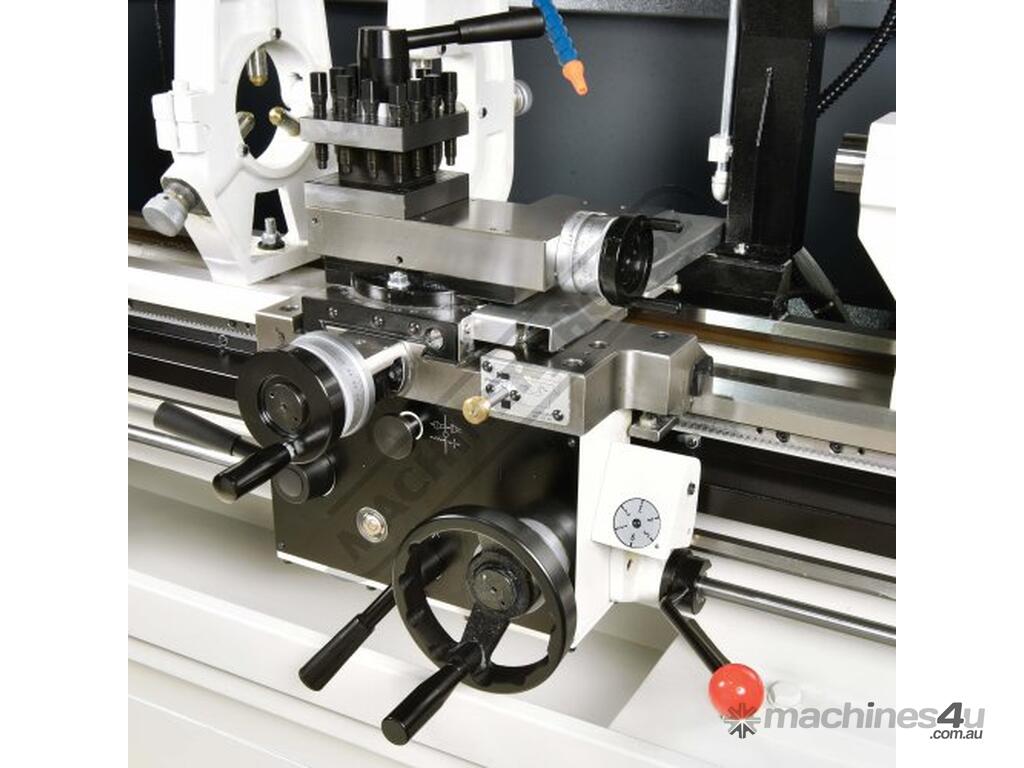

Powered longitudinal and cross feeds

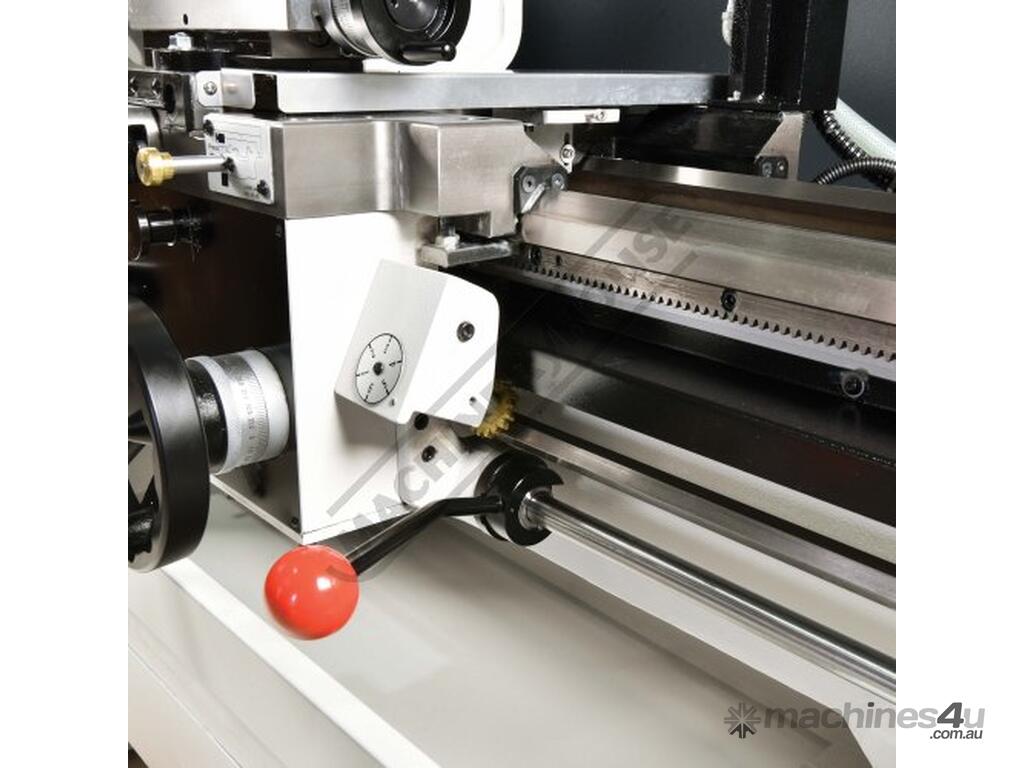

Clutch in apron enabling pressure adjustment for feeding in both axis
Metric calibrated dials with clearly marked graduations

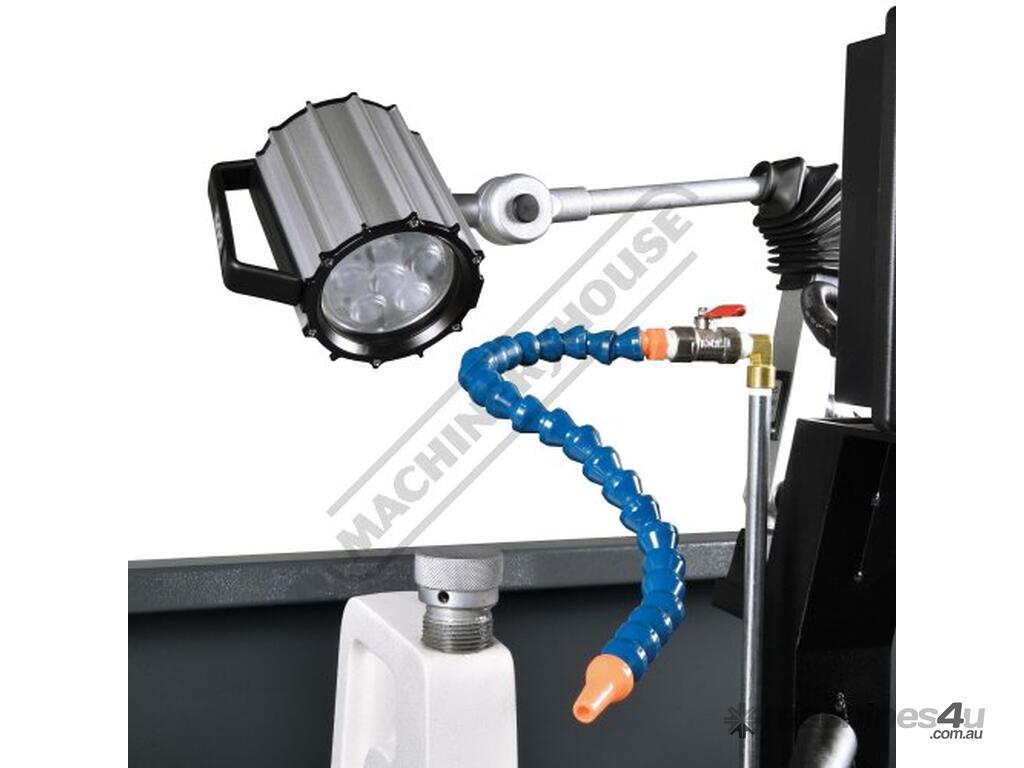

Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Change gears for metric and imperial thread cutting
D1-5 camlock spindle for quick chuck removal
42mm spindle bore
3.75kW / 5HP 415V main motor

Includes:

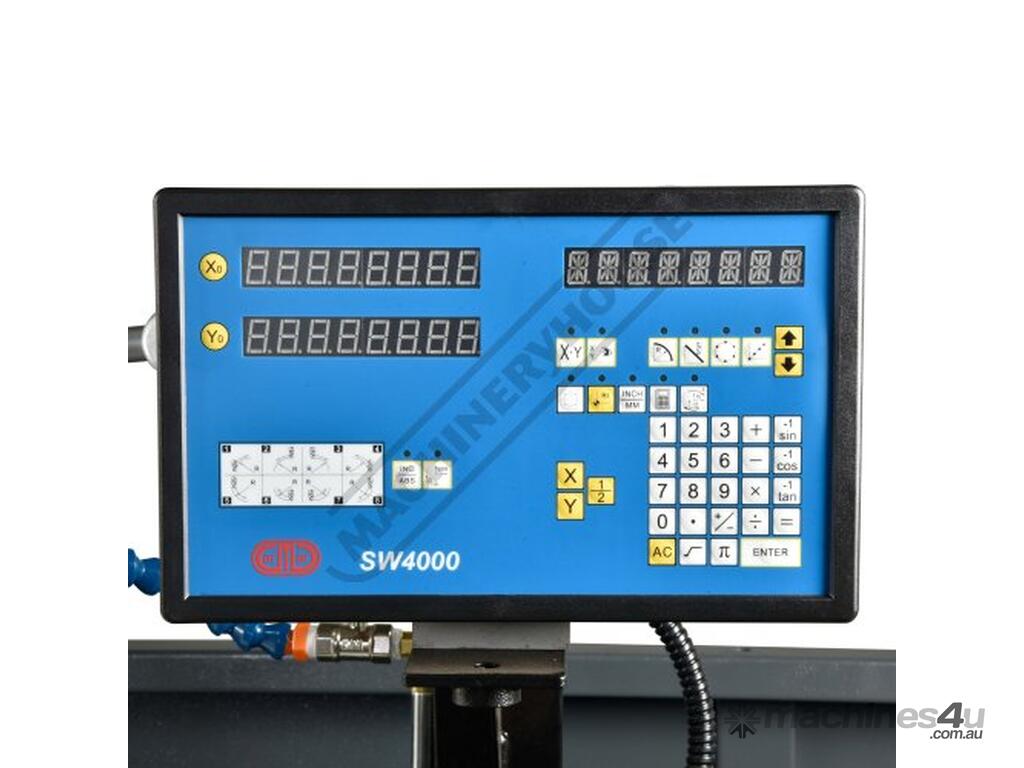

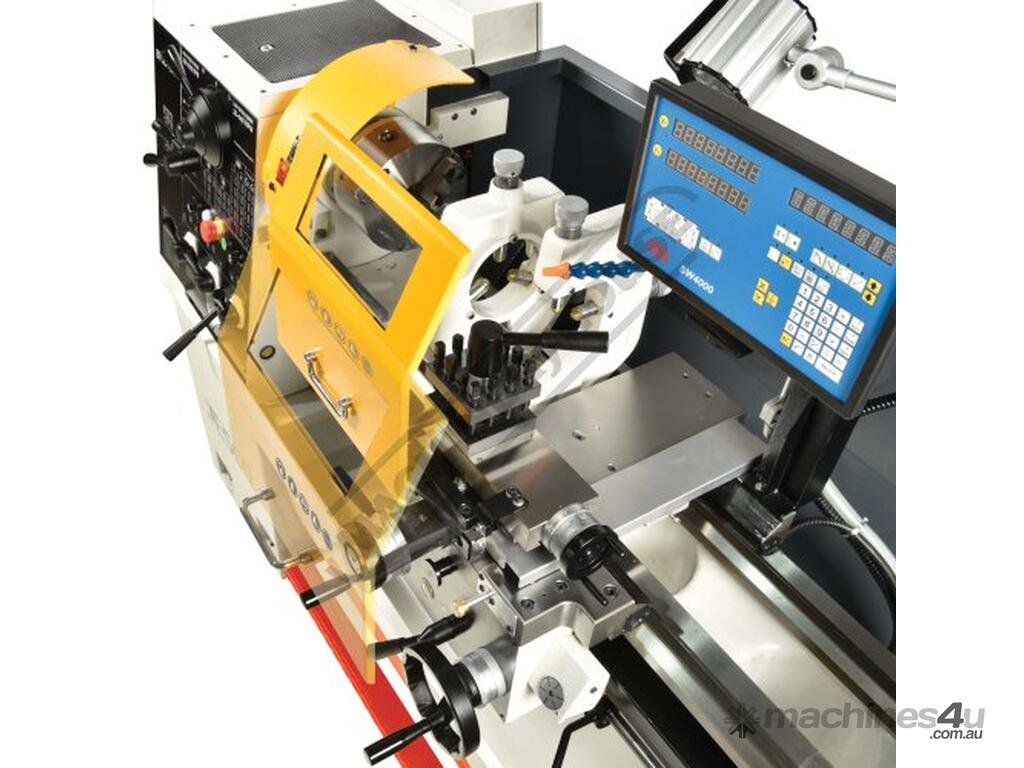

- 2 axis digital readout system
- 193mm 3-jaw chuck (steel body) with reverse jaws
- 250mm 4-jaw chuck
- Faceplate

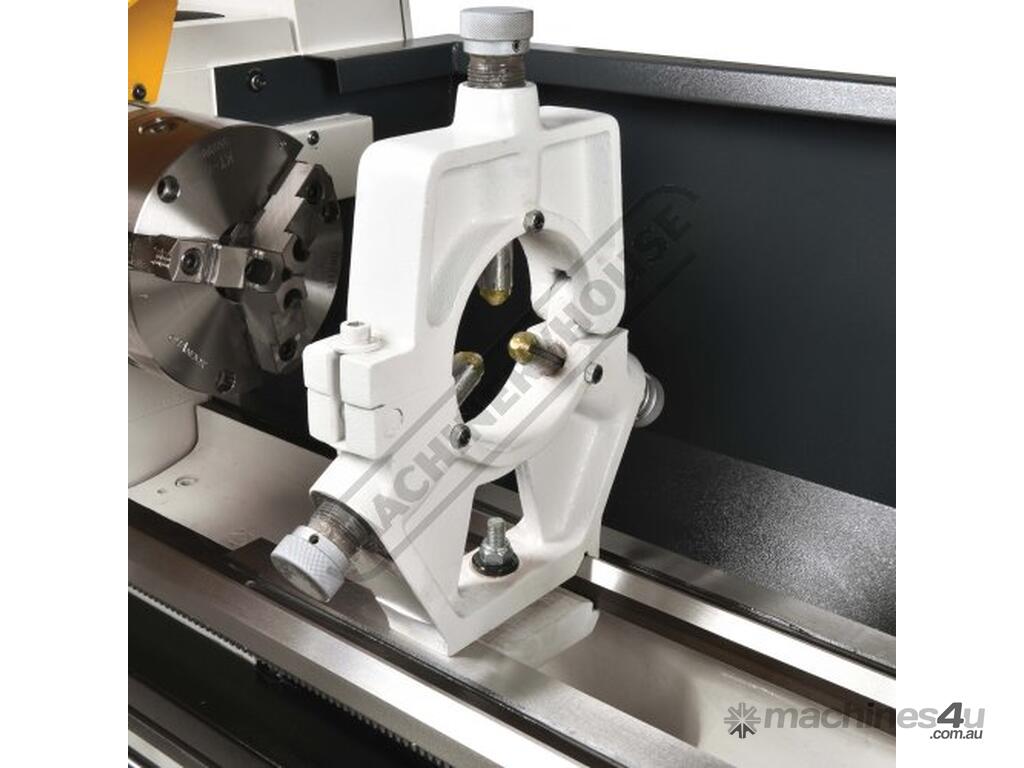

- Fixed Steady with roller bearings

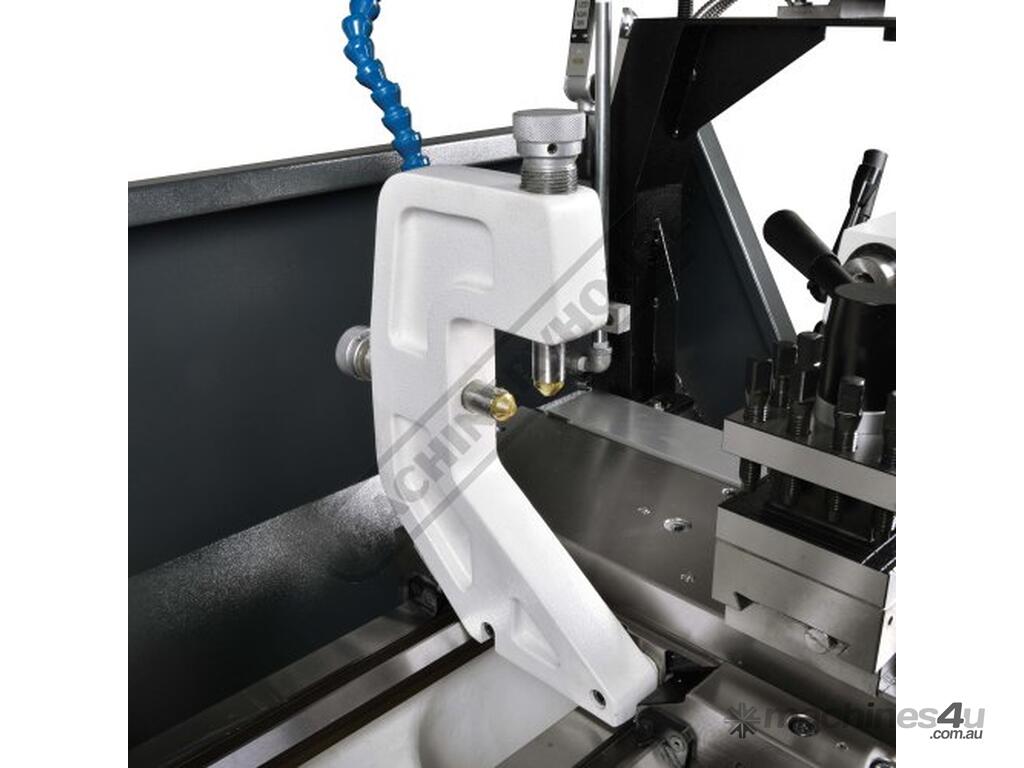

- Travelling steady with roller bearings
- Chuck guard

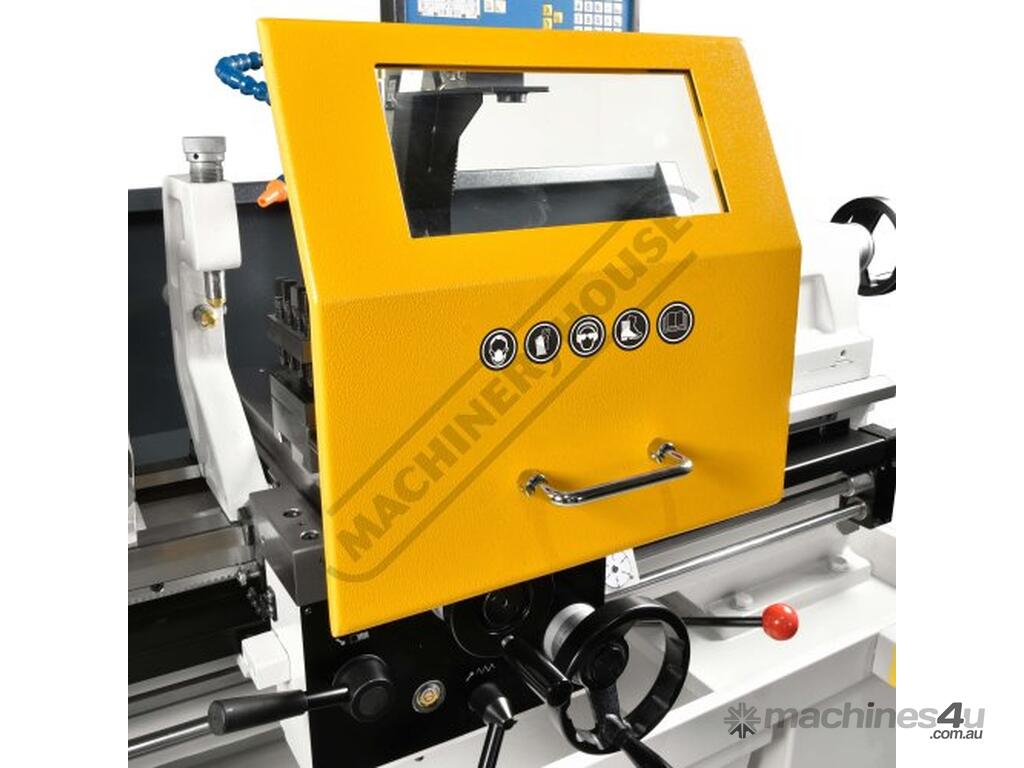

- Leadscrew cover
- Foot brake
- Coolant system
- Rear splash guard

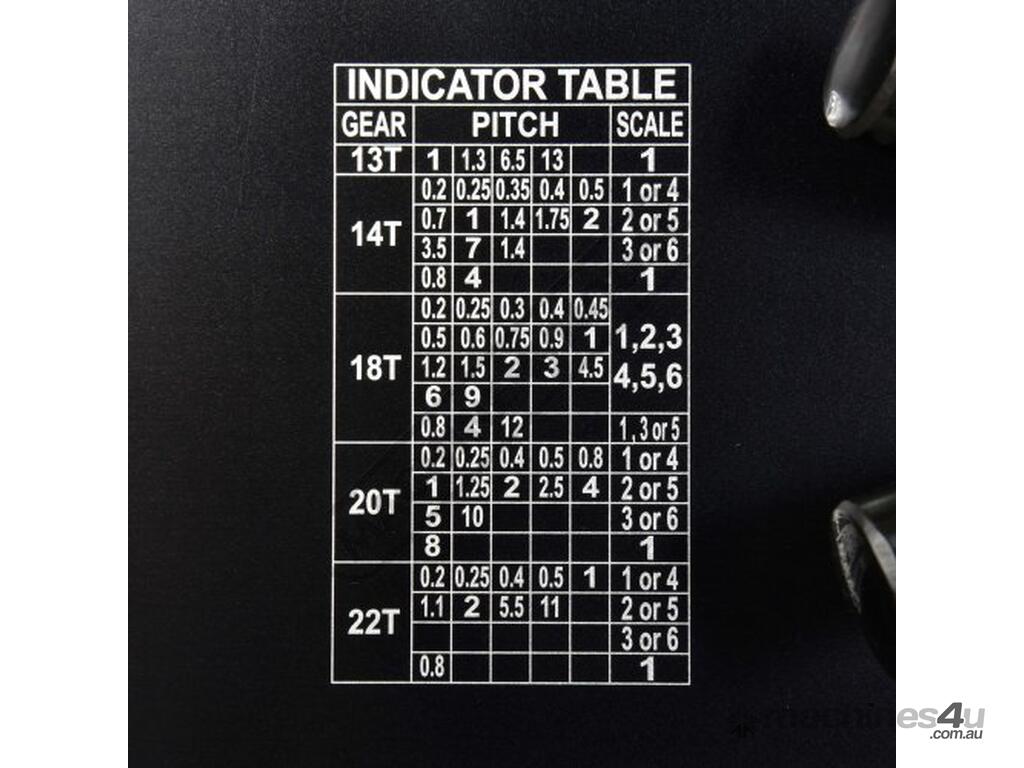

- Thread chasing dial
- Spindle reducing bush
- Dead centres
- Instruction booklet



Specifications:
ORDER CODE: L249VS
MODEL: Studturn 1440VS
Swing Over Bed (mm): 360
Distance Between Centres (mm): 1000
Spindle Bore (mm): Ø42
Swing In Gap (mm): 560
Swing Over Cross-slide (mm): 215
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 178
Spindle Nose Size or Type: D1-5 Camlock
Bed Width (mm): 250
Headstock Spindle Taper (MT): 5

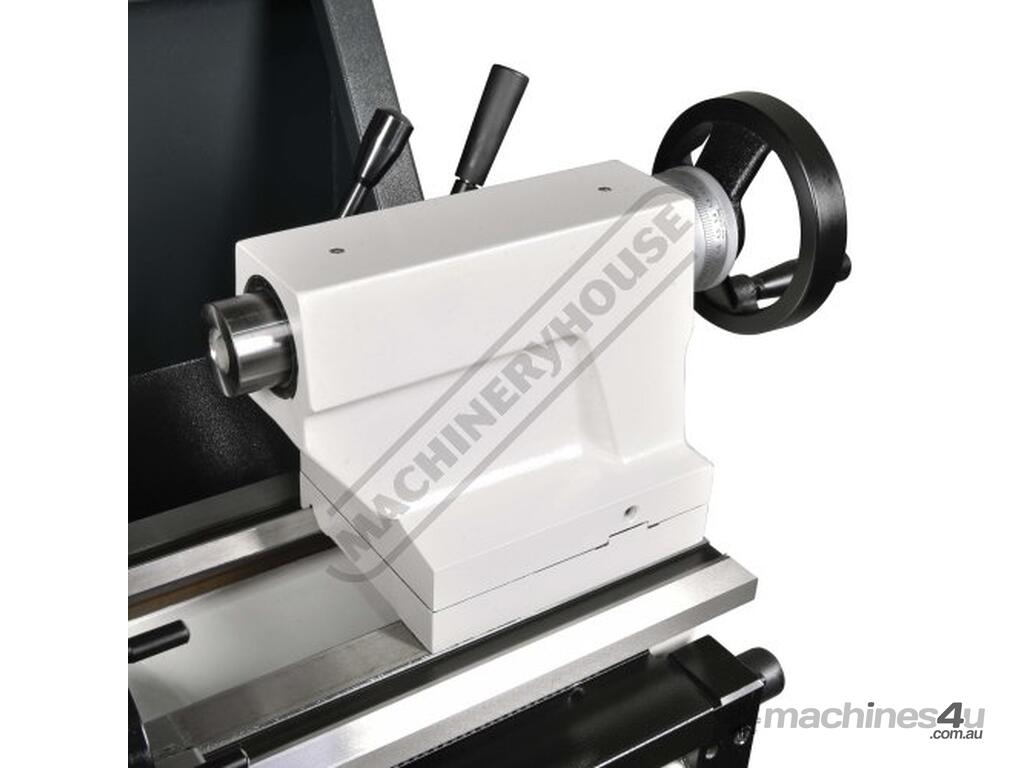

Tailstock Taper (MT): 3
Cross Slide Travel (mm): 195
Compound Slide Travel (mm): 100
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.01 - 0.13
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.03 - 0.40
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 27 (0.4 - 7)
Imperial Thread Steps & TPI (No. / TPI): 36 (4 - 72)
3 Jaw Chuck Diameter (mm): Ø193
4 Jaw Chuck Diameter (mm): Ø250
Spindle Steps / Speeds (No. / rpm): Variable (35 - 2500)
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1100
