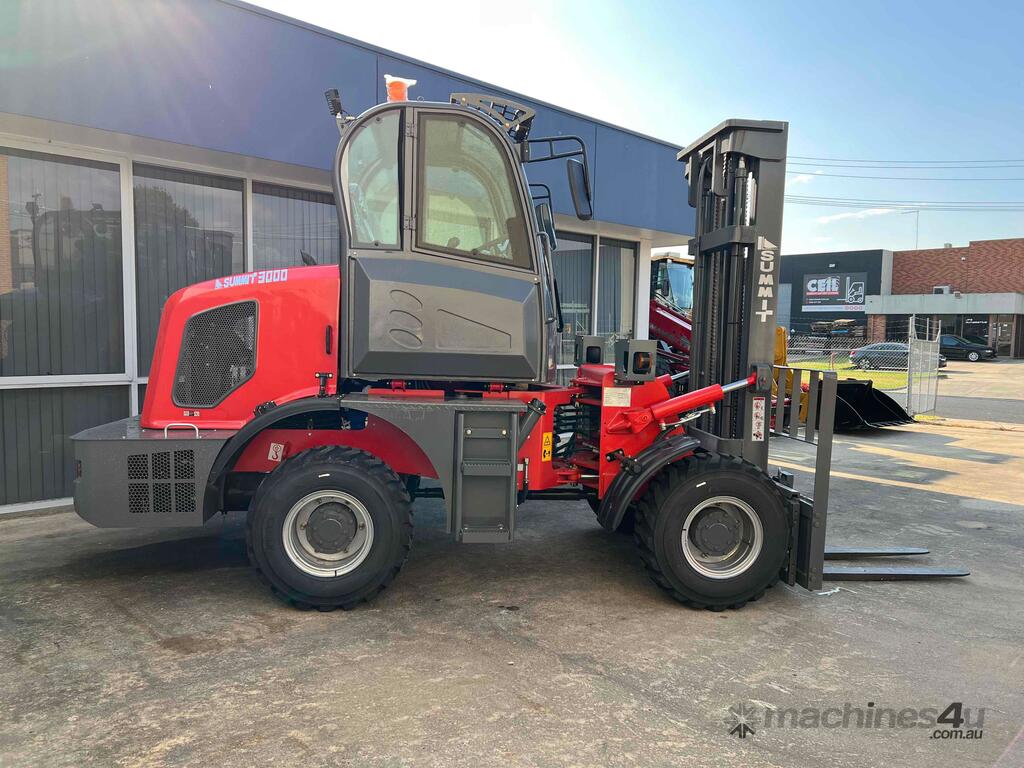

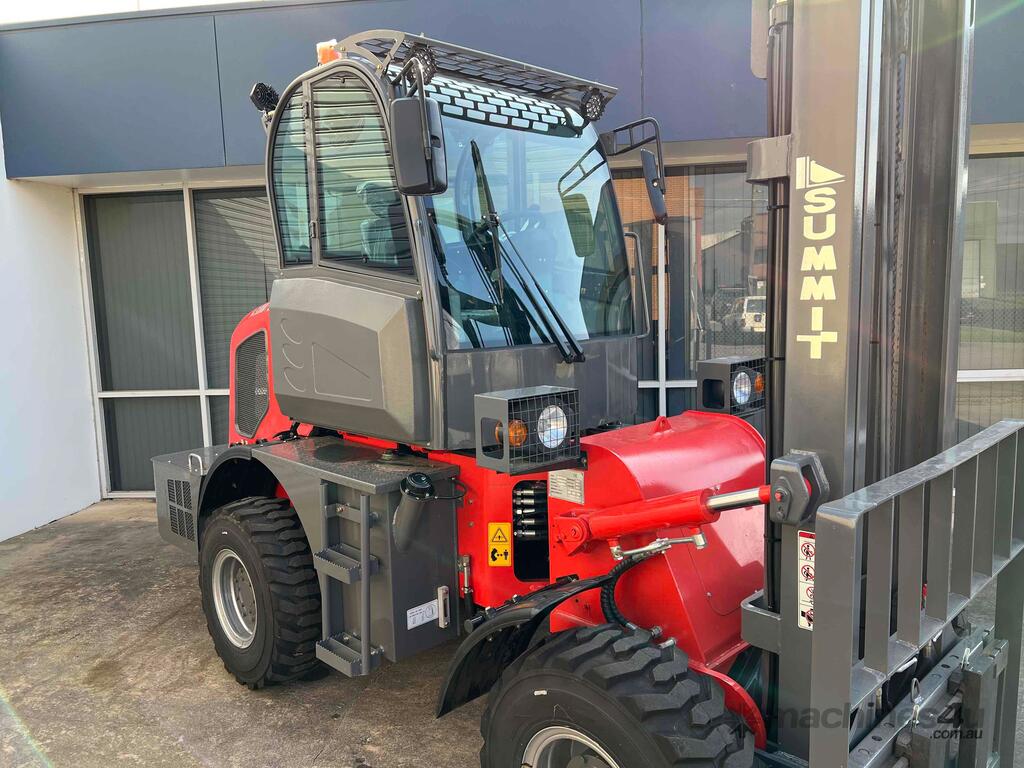

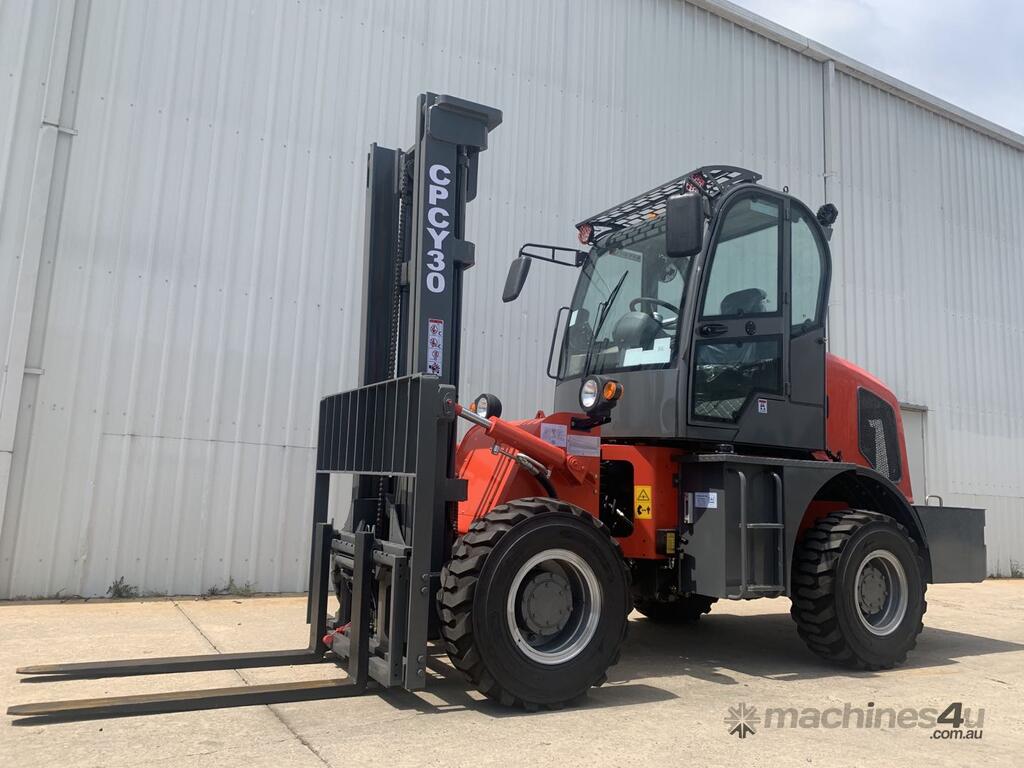

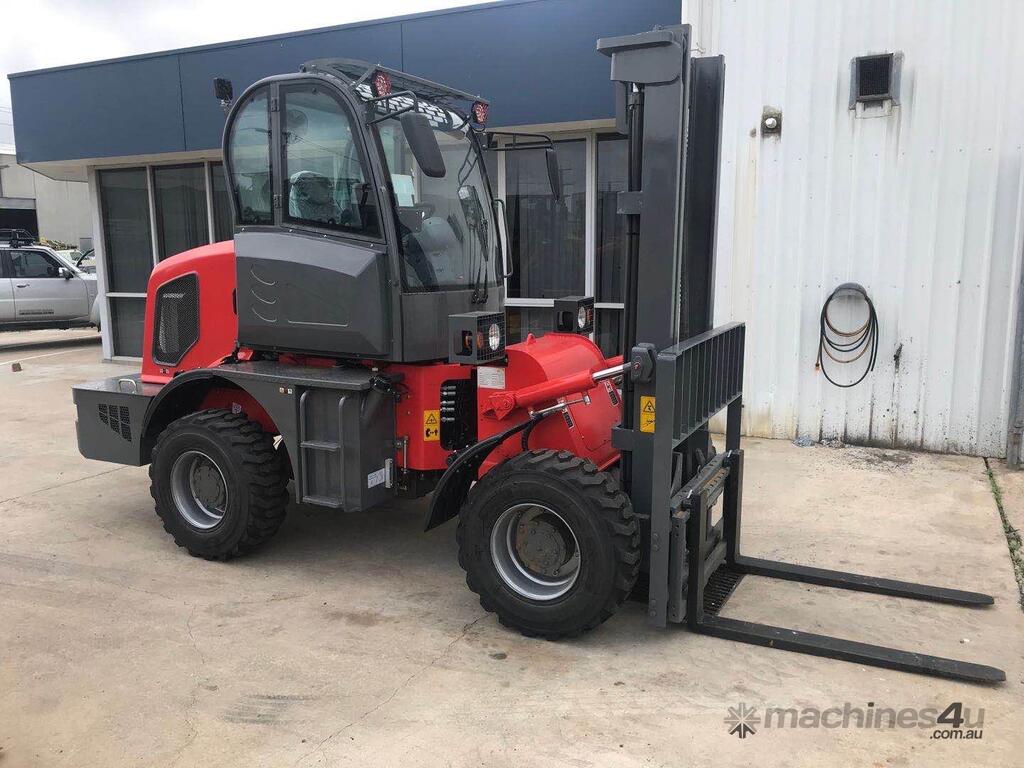

New SUMMIT ATFL30 ROUGH TERRAIN FORKLIFT
Dimensions:
No fork length (mm): 3700
With fork length(mm): 4950
Width (mm): 1700
Height(mm): 2700
Dead weight(kg): 4700
Min ground clearance(mm): 260
Wheel distance(mm): 1320

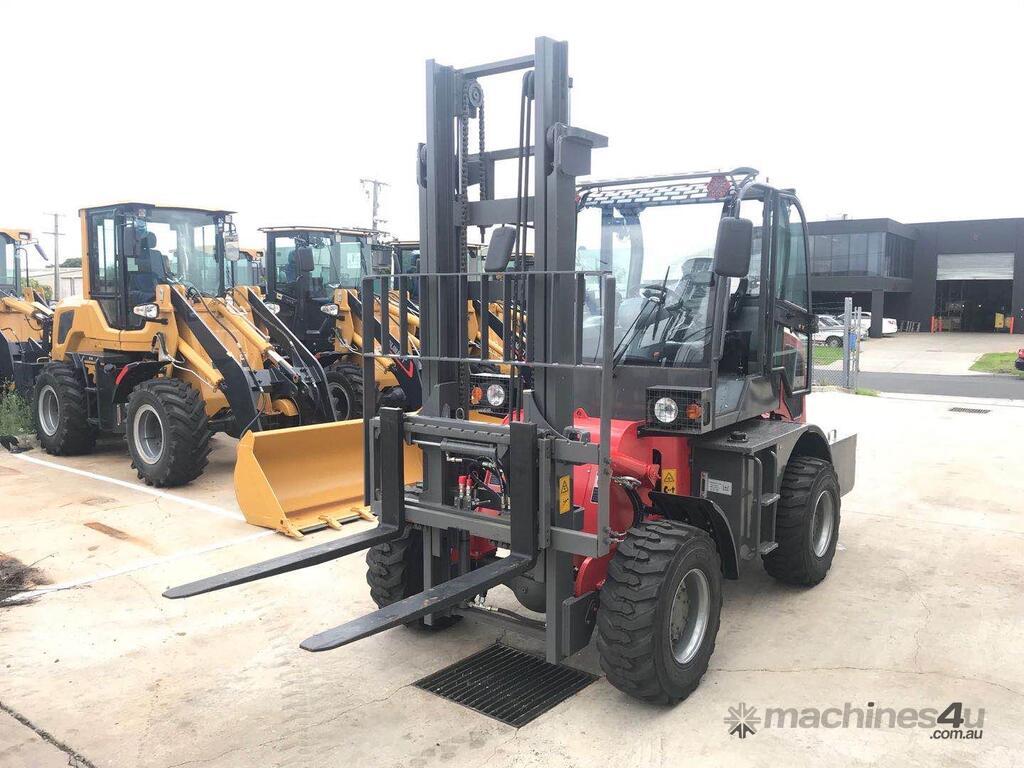

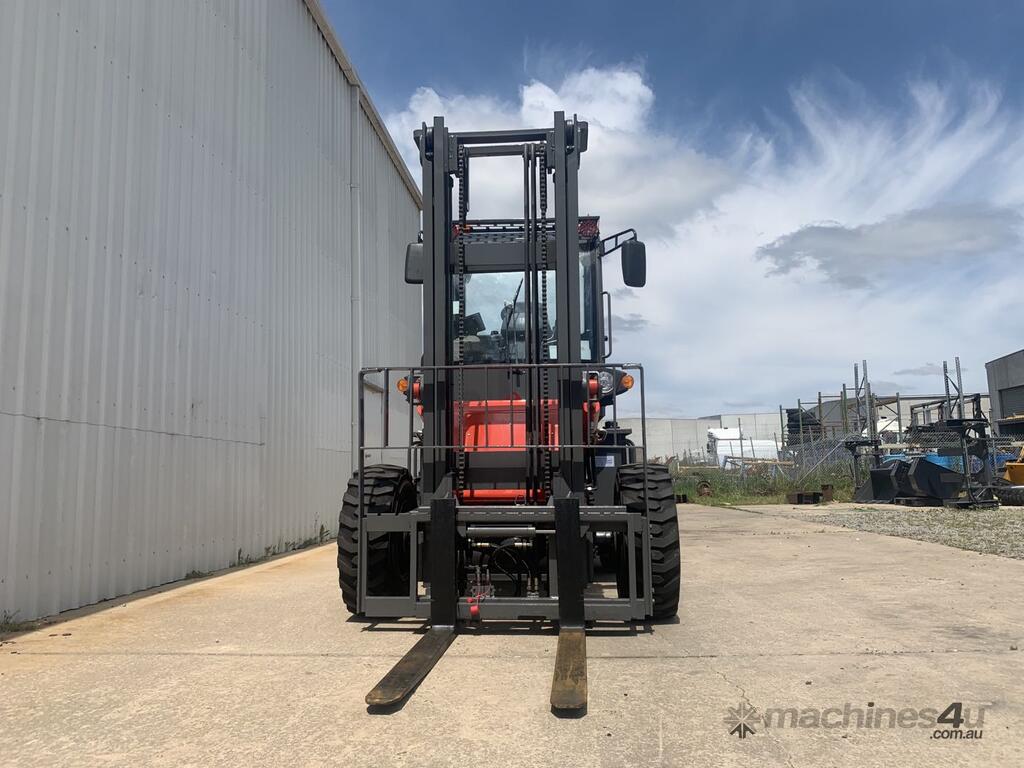

Mast type:

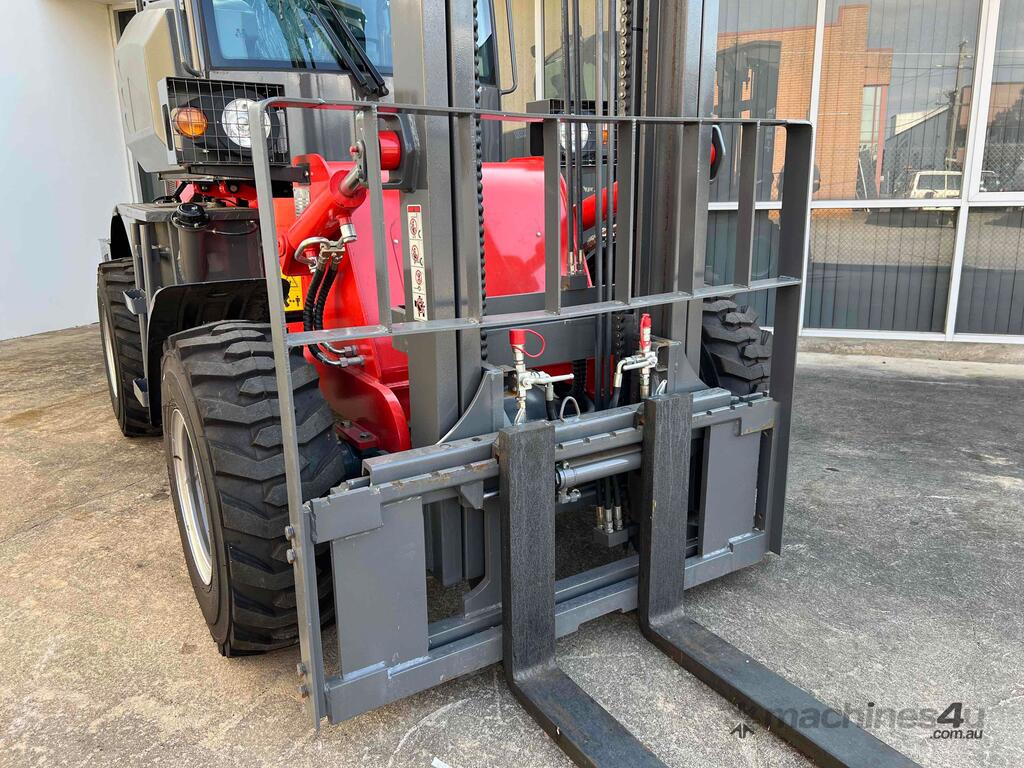

4 meter 2 stage mast with side shift
Operating load(kg): 3000
Load center distance(mm): 565
Lift height(mm): 4000
The freedom lifts the altitude(mm): 150
Max lifts the speed(full load)(mm/s): 372
Gate inclination angle (F/R)(°): 6/12
Moving velocity (idling)(km/h): 19
Max climbing power(%): 20

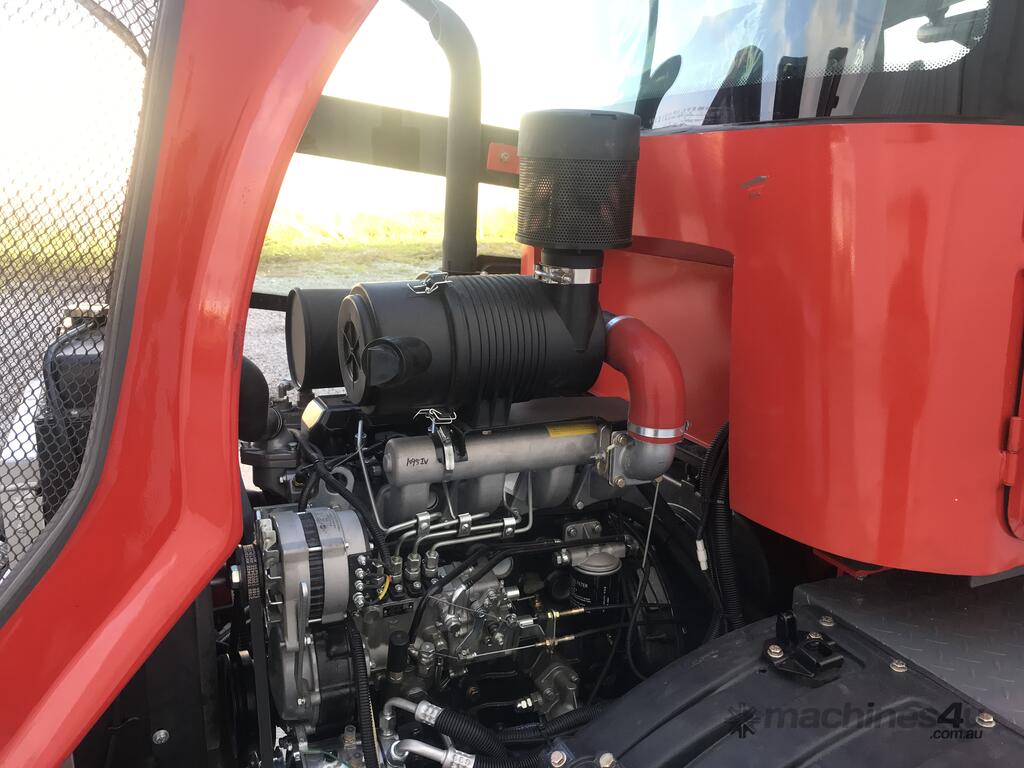

Engine Model: XINCHAI 498bt
Rated output(kW): 36.8KW
Type: In line,vertical,water-cooled,four-stroke
Number of cylinders: 4
Cylinder bore: 98
Cylinder stroke: 105
Rated speed(r/min): 2200
Method of starting: Electric
Total displacement (L): 3.168

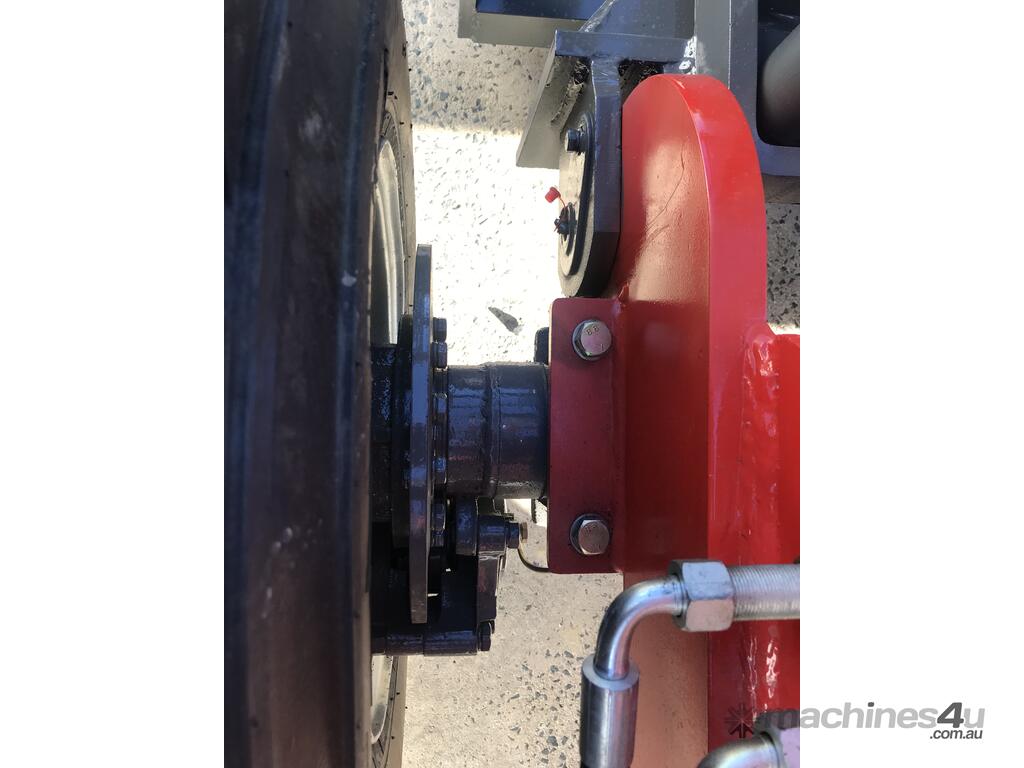

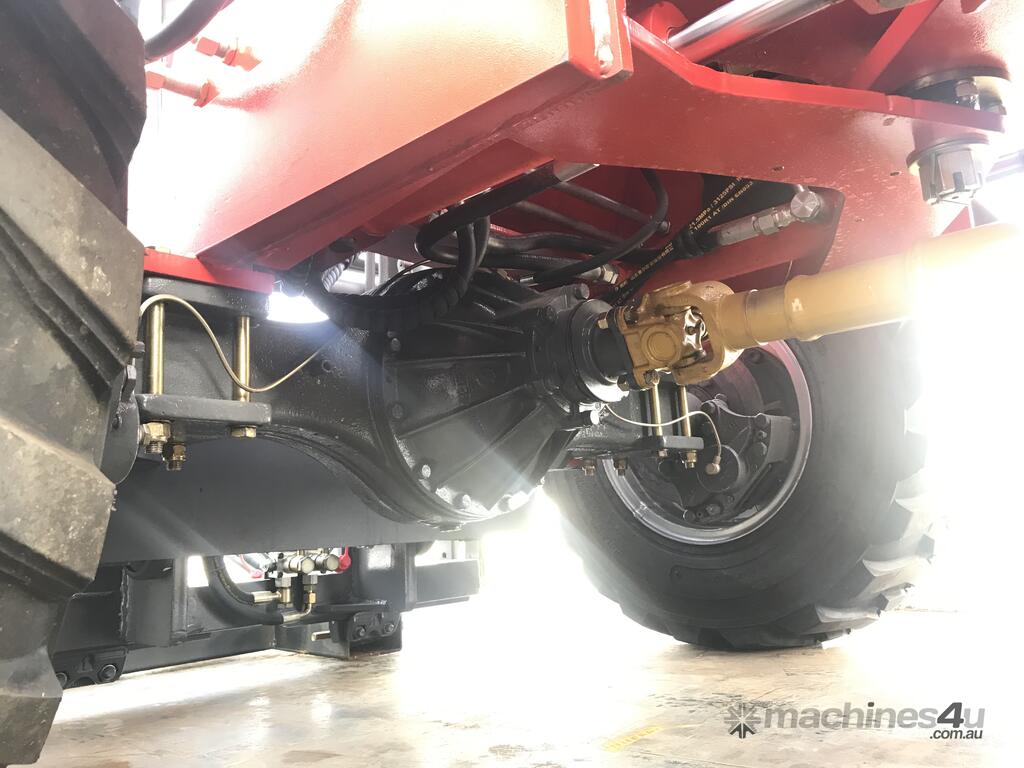

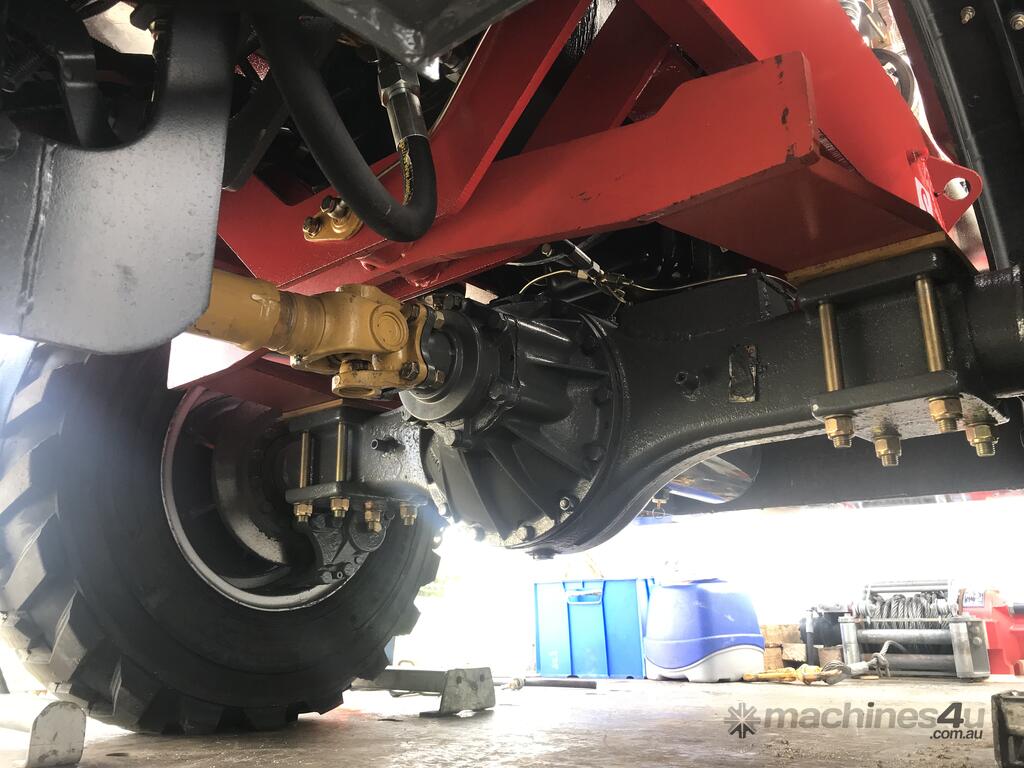

Brake: 4 wheel disc brake

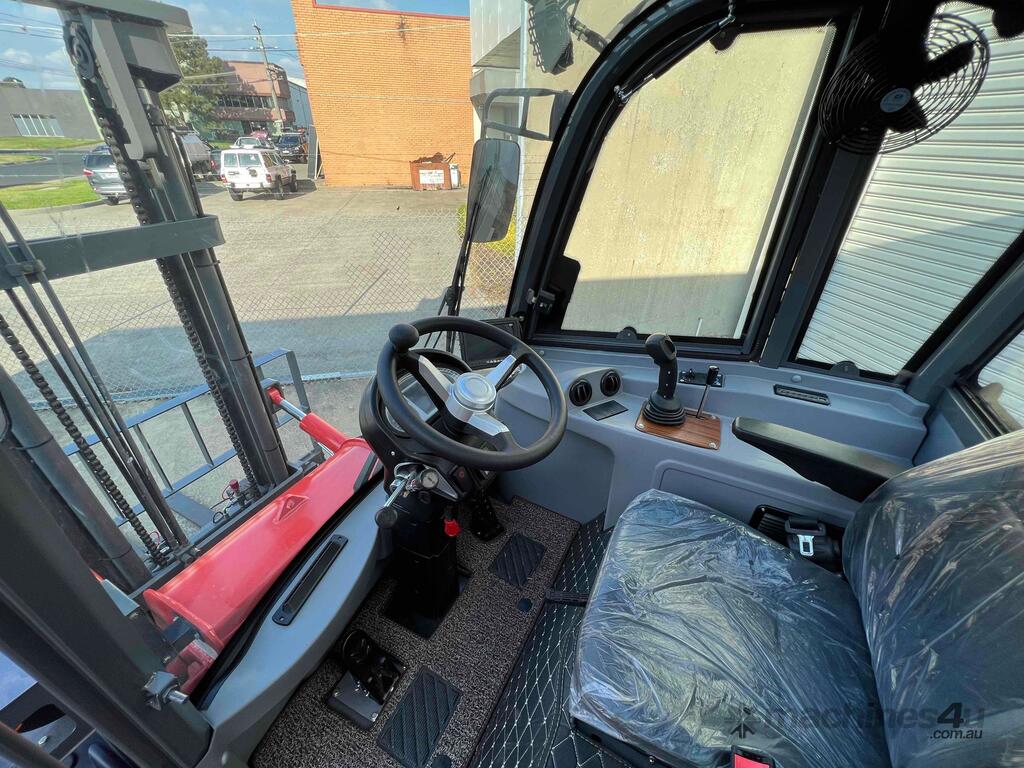

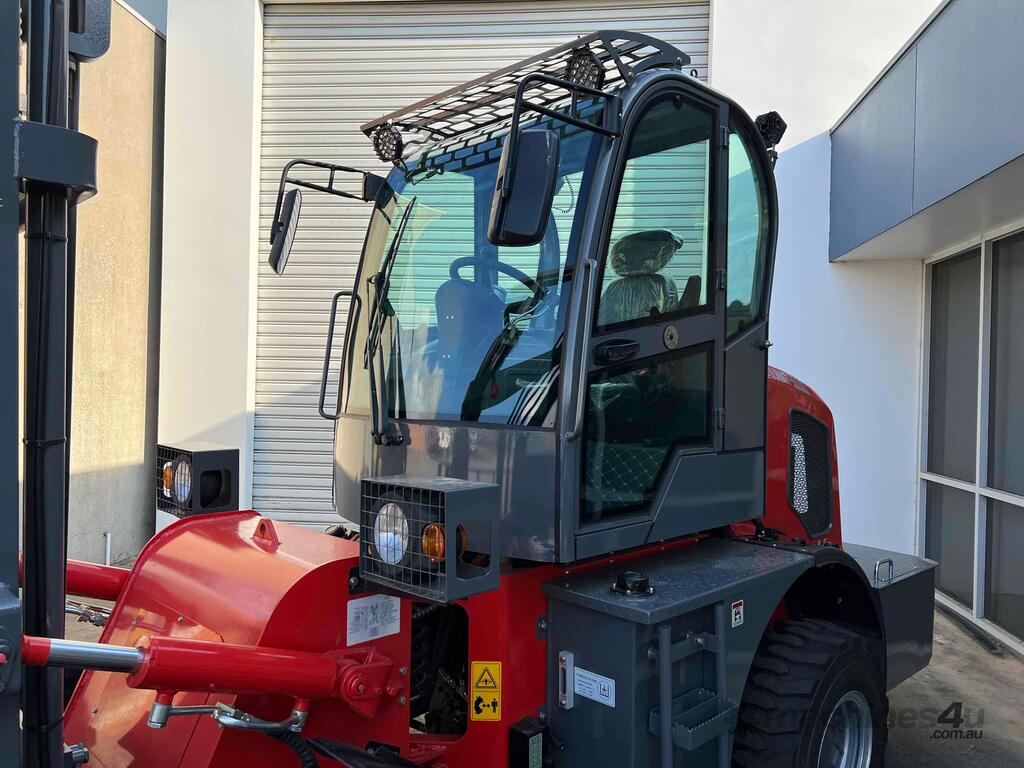

Other features included in the cabin:

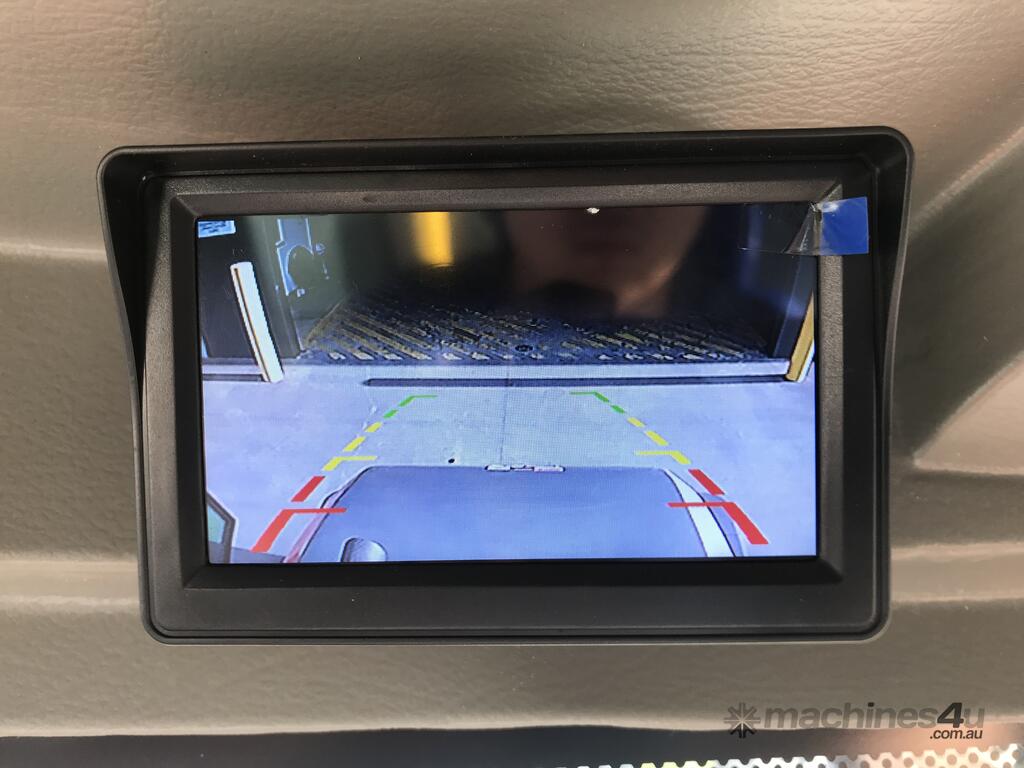

Radio, Air Conditioning, Heater, Reverse Camera
These are the best value 4wd rough terrain forklifts on the market today. We are a manufacturer owned local distributor located at VIC3175.
All of our machines come with:
12 Month / 2000-hour full parts & labour warranty
24 Month /3000-hour full parts warranty
We offer Australian wide delivery & warranty backup.
Competitive freight options and finance available.
SUMMIT Forklift, your specialist for rough terrain material handling.
