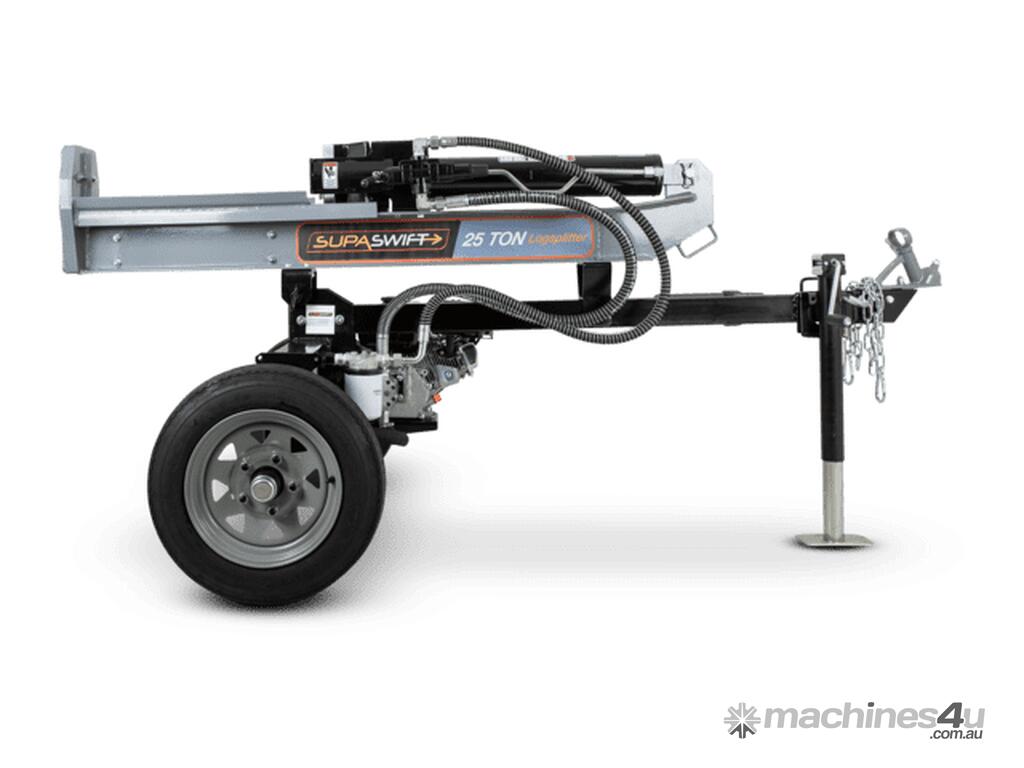

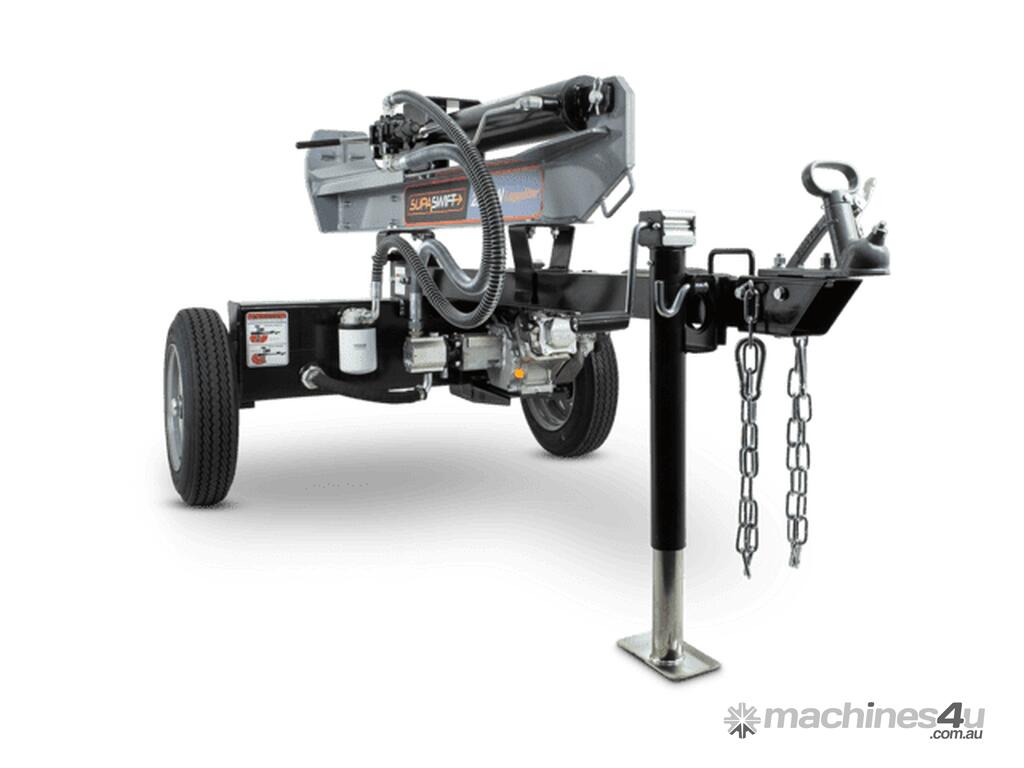

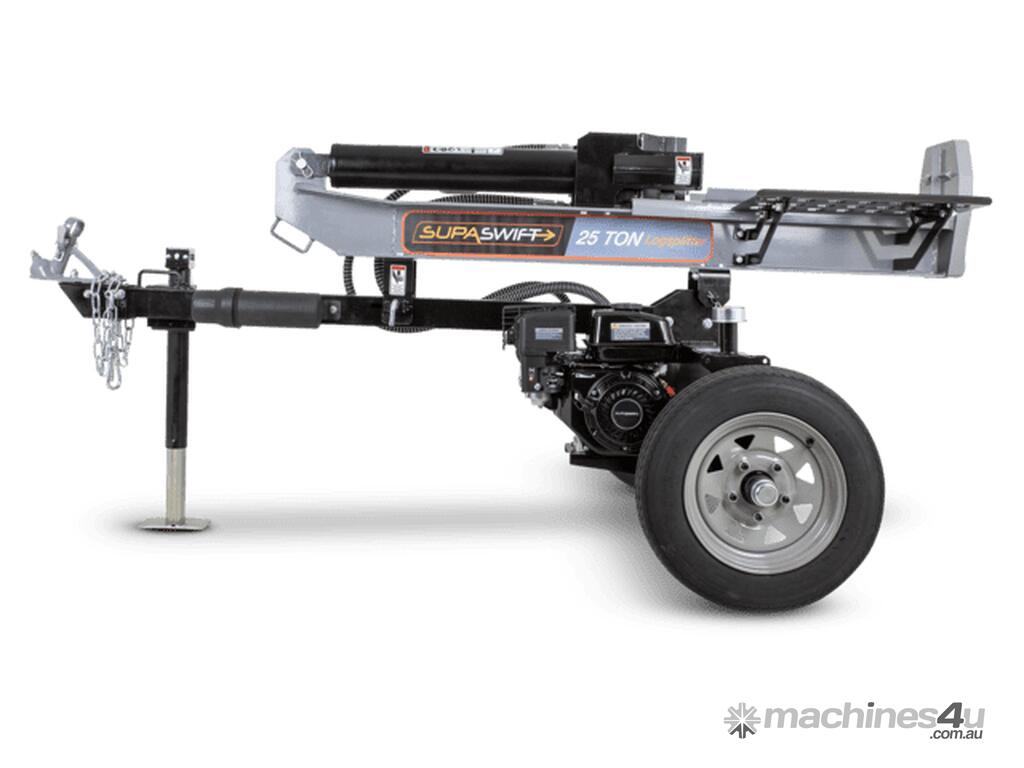

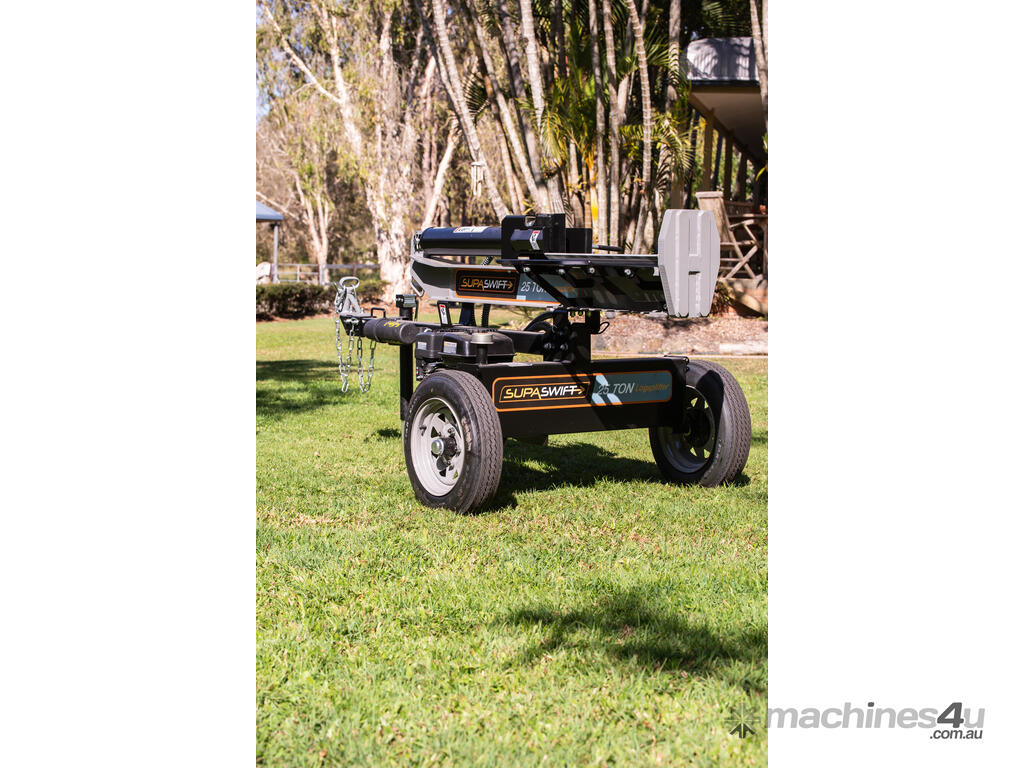

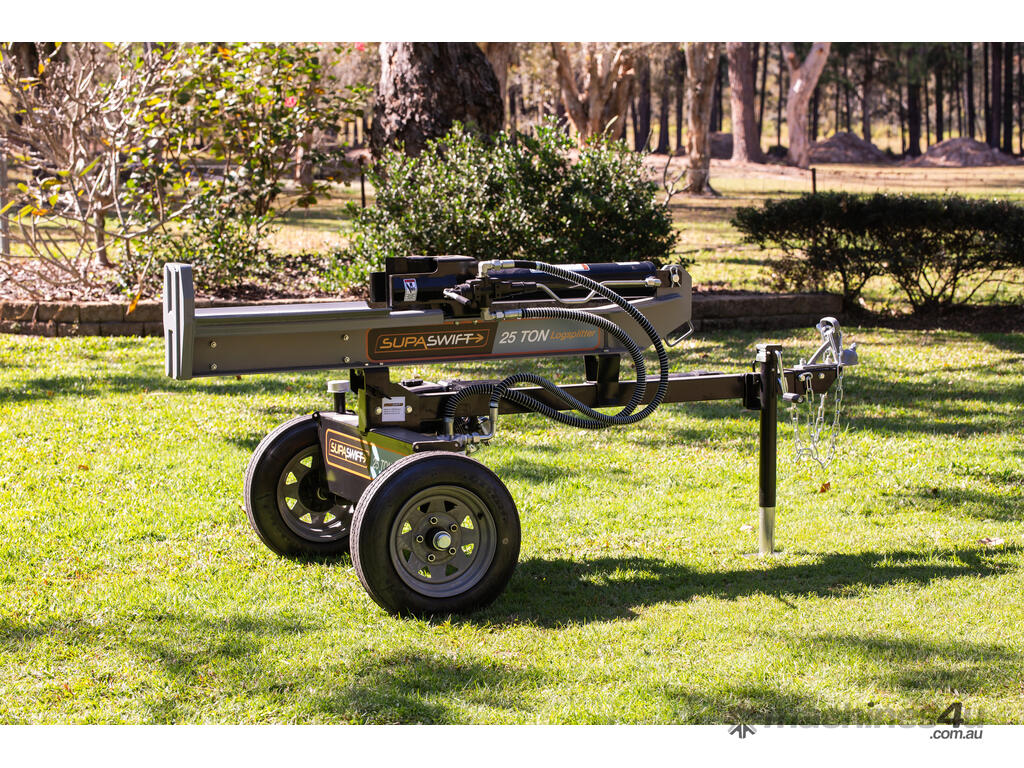

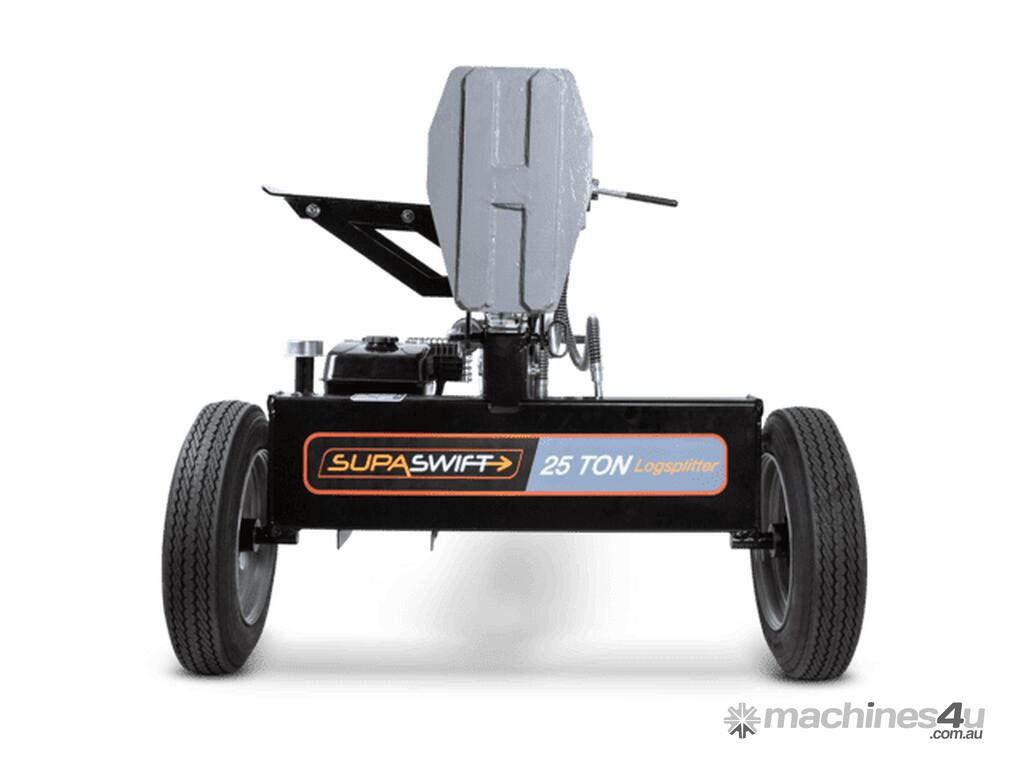

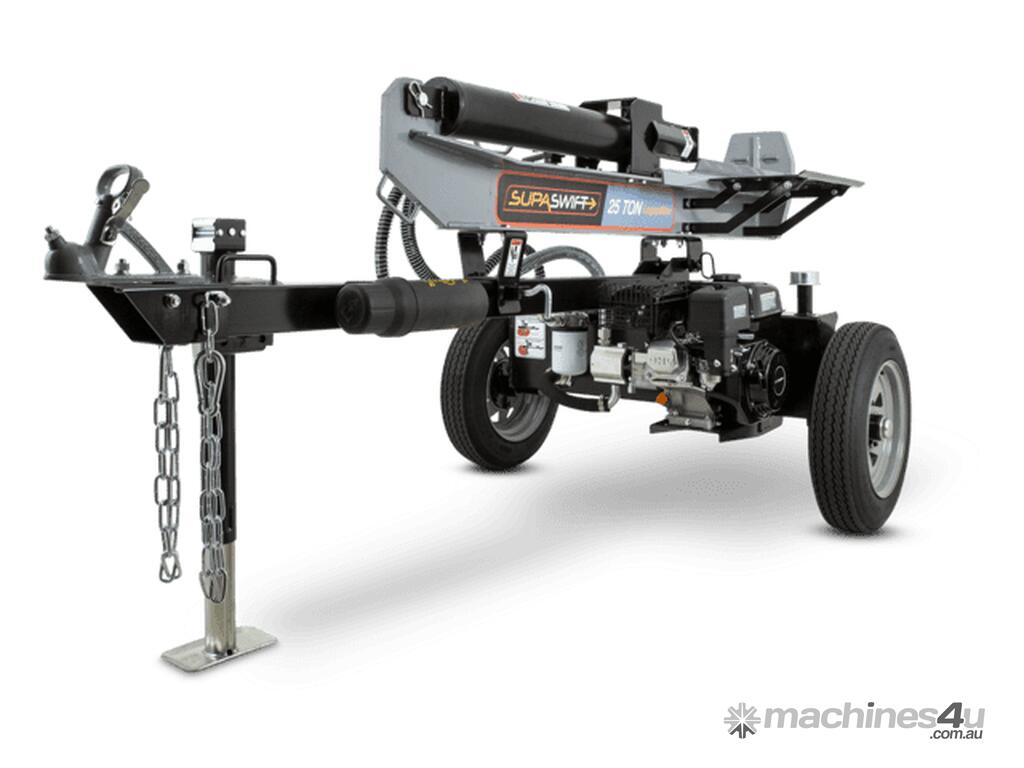

SupaSwift 525ALS 25-Ton Log Splitter

The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.


Quality Engine - SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.

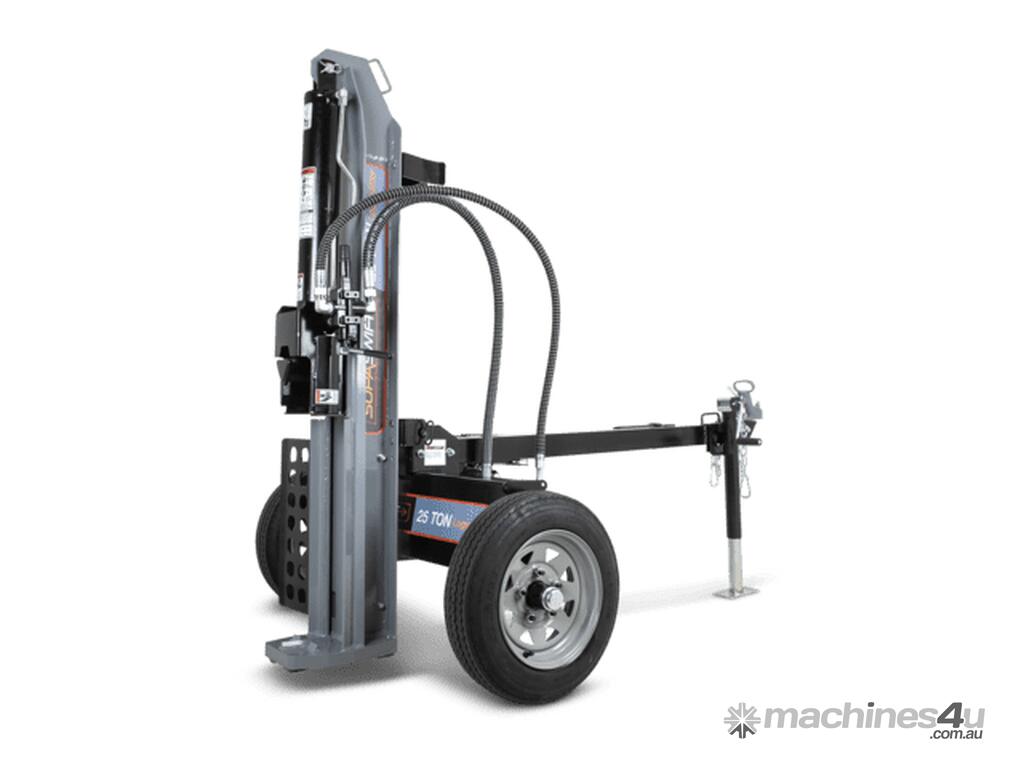

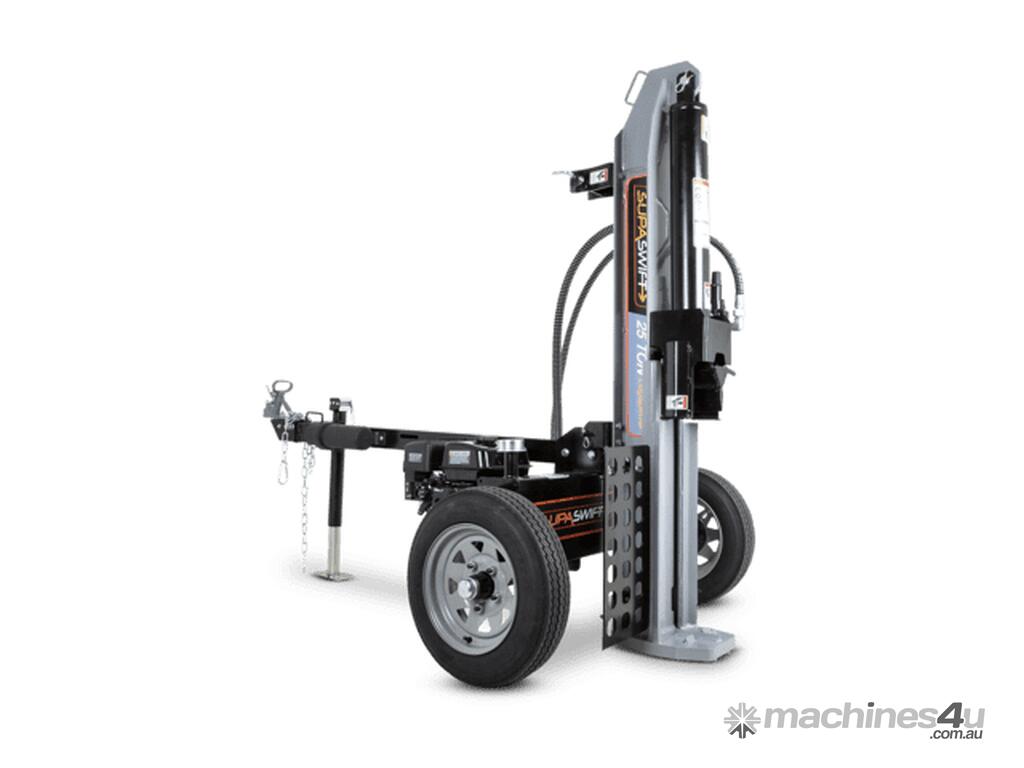

Horizontal or vertical operation.
25 Tons of splitting force.
Manually activated auto return valve.
Two stage pump 13 GPM (49.21 litres per minute).
Valve - Ergonomically positioned for operator comfort.
"Wedge: 8.5 "" (215.9 mm) High angled heat treated steel."
"Wheels / Tyres*: 4.80"" x 12"" D.O.T certified."
"Beam: 8.5"" (215.9 mm) Foot plate."

Domestic Warranty : 3 Year Domestic Warranty
Commercial Warranty : 3 Month Commercial Warranty
Hire/Rental Warranty : 3 Month Hire/Rental Warranty
Engine : SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine
Hydraulic Ram Cylinder: (mm) : Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke
Hydraulic Tank Capacity: (L) : 25.5 litres
Maximum Log Length: (mm) : 25" / 635 mm
Pump: (L) : Two stage pump 13 GPM (49.21 litres per minute)
Tow Hitch: (mm) : *2" (50 mm) ball hitch with safety chains - Aust style trailer bail hitch
Wedge: (mm) : 8.5 " (215.9 mm) High angled heat treated steel

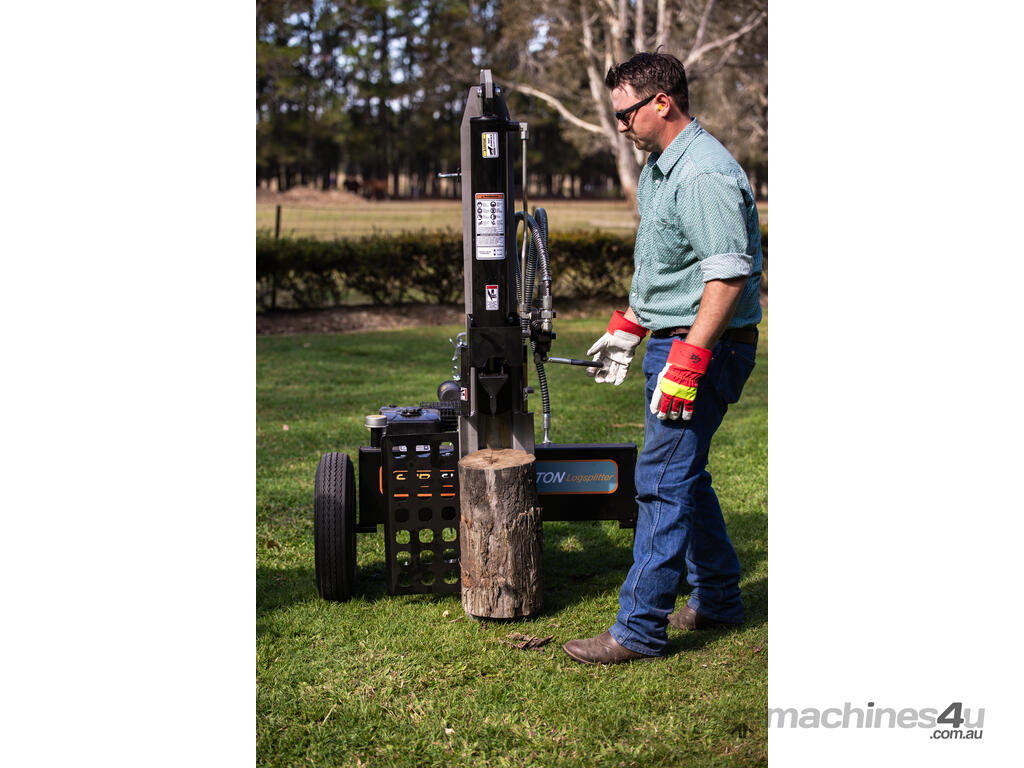

Operating Position : Horizontal or vertical operation
Capacity : 25 Tons of splitting force
Valve : Manually activated auto return valve with adjustable detent
Cycle Time : 10.9 seconds (down and back)
Wheels / Tyres : *D.O.T approved 12" x 4.80" multi lug trailer wheel
Beam (mm) : 8.5" Foot plate / 215.9 mm Foot plate
Ram Size : 1.75" (44.45 mm) Dia
