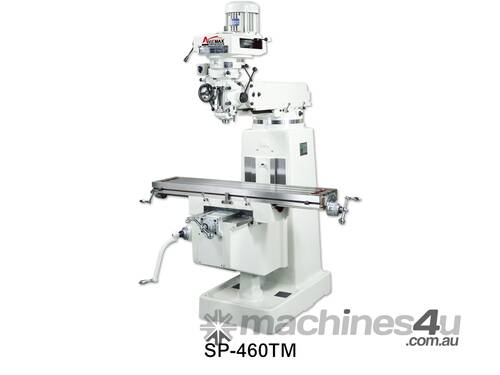

Super Precision Milling Machine - SP-460VS, Manford Avemax, Made in Taiwan

Introducing Manford Avemax Machine, a renowned brand from Taiwan, known for its exceptional quality and high sales worldwide. With over 150 satisfied customers in Australia, our milling machines have proven to be reliable and efficient. We take pride in offering ready stock availability and top-notch after-sales service to ensure customer satisfaction. Choose Manford Avemax Machine for unparalleled performance and reliability.

Last stock machine available, reach out today to secure the machine for production.

#MODEL: SP-460VS, VARIABLE SPEED MILLING
TABLE SIZE- 1270mm x 254mm, X/Y/Z AXIS- 875/395/420MM
SPINDLE- NST#30, 3PH/380V/50Hz, SPINDLE MOTOR- 3HP, QUILL TRAVEL- 127MM,
T-SLOT- 3X16MM
EASSON 3 AXIS DIGITAL READOUT

STANDARD ACCESSORIES INCLUDED WITH THE MACHINE-
1. TOOLS & BOX
2. LEVELLING SCREWS
3. AUTO LUBRICATION
4. RUBBER CHIP CONVEYOR FRONT AND REAR
5. LED WORK LIGHT
6. Machine is packed in wooden box and securely transport across Australia

Please note general machine specifications as follows:-

#Hardened and ground on X Y slideways
#Hardened and ground table with ground T-slots.
#1-1/2”(38mm) diameter lifting screw.
#Leveling screws and pads on base.
#Turcite-B on X Y ways, slidways and gibs.
#R8 (NST#30) spindle material SCM415 (SAB4115) with hardened and ground.
#Electroless nickel-phosphorus plating process on X and Y.
#Highly improved vari-speed head.
#Strict with hand scraping for high precise accuracy.

Specification SSP-460VS:-

Table size:- 254x1372 mm (10”x54”)
T-slot of table (Q’ty x size:- 3x16 mm (3x0.63”)
Longitudinal travel (X axis):- Manual 870 mm(34”) or Auto 775 mm (30.5”)
Cross travel (Y axis):- 390 mm (15.35”)
Vertical travel of knee (Z axis):- 390 mm (15.35”)
Ram travel:- 560 mm (22”)
Quill travel:- 127 mm(5”)
Spindle taper:- NST#30/R8 (Opt. NST #40)
Spindle to table nose:- 100~506 mm(4”~20”)
Spindle center to column:- 159~719 mm(6.25”~28.3”)
Over swivel on turret:- 360?
Head swivel (R&L):- +/-45 degrees
Head tilt (up & down):- +/-45 degrees
Spindle motor:- 3HP
X axis motor Option:- Power feed
Lifting motor:- Nil
Quill feed:- 0.04 ~ 0.08 ~ 0.14 mm / rpm (0.0015” ~ 0.003” ~ 0.006”)
Spindle speed:- Step head 50Hz: 66~2270rpm or 60Hz: 80~2720rpm
Variable speed head 50Hz: 50~3750rpm, 60Hz: 60~4500rpm
Overall height:- 2011mm (79”)
Overall depth:- 2087mm (82”)
Overall width:- 1840mm (72.4”)
Net weight:- 1300Kgs (3000lbs)

Power feed is available on request with an additional pricing. Please contact sales for requirement.

In the attachment some photos are for reference purpose only. Please contact for more information.

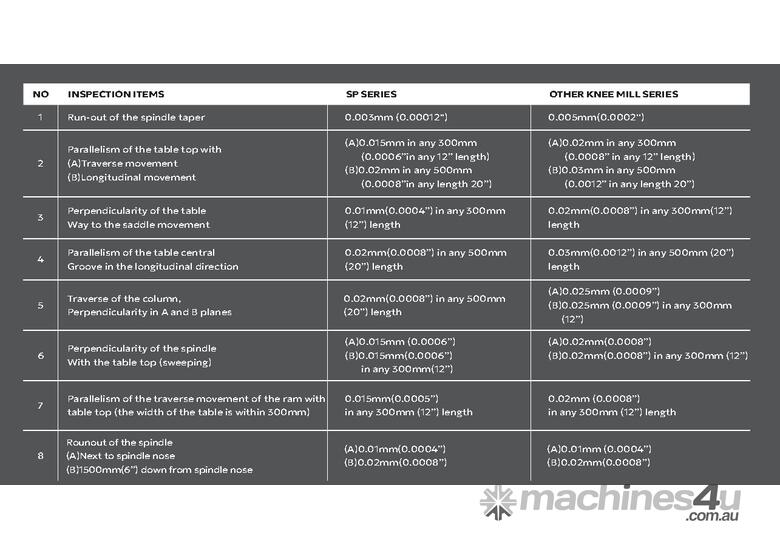

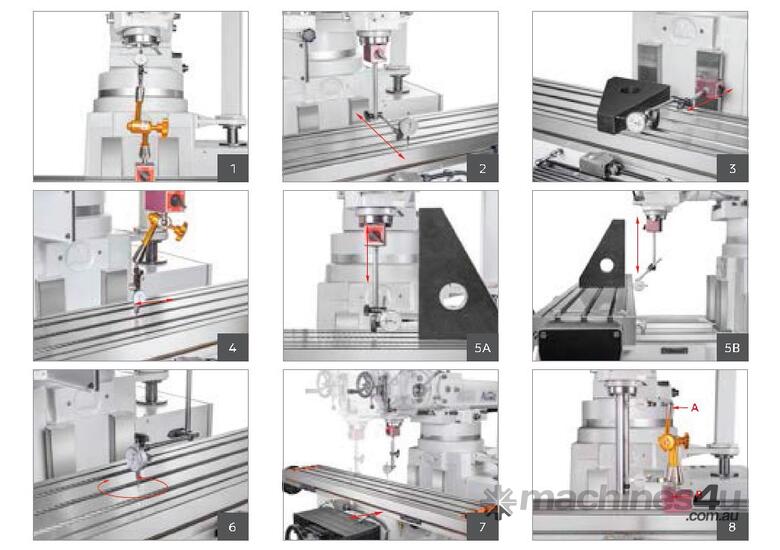

All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
