Superfici Contivert ETC

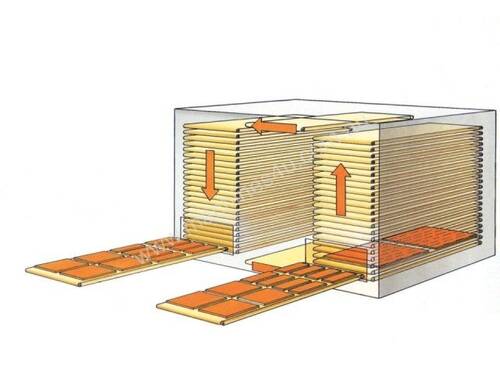

Vertical dryer with belt trays, used where it is necessary to achieve a hot air drying with quite long drying times (from 15 min. to some hours), typically therefore in case of automatic finishing lines with spraying or curtain coating applications.

Advantages:
ENERGY SAVING – thanks to the controlled ventilation system, to keep under control the air flow, so to optimize the heat recovery.

SPACE SAVING – thanks to the possibility to achieve long drying times in the dryer with limited space , as pieces are stored on trays one on top of the other , thus using the height of the building.

REDUCED DRYING TIMES – thanks to the controlled ventilation, which reduces drying times if compared with the drying in the environment and which at the same achieves optimal filtered air conditions so to reduce rejects. The dryer is typically divided in one flash off zone, two drying zones and one cooling zone.

Technical data:
VERTICAL DRYER
CONTIVERT MOD. ETC 2/2 ETC 3/2 ETC 4/2 ETC 4/4

no. of chambers 2 tray chambers 2 tray chambers 2 tray chambers 4 tray ch
& 1 distance chamber & 2 distance chambers


no. of zones 4 ventilating 4 ventilating 4 ventilating 4 ventilating
zones zones zones zones

no. of trays from 30 to 62 from 32 to 62 from 34 to 62 from 56 to 114

tray clearance mm.

tray length mm.
