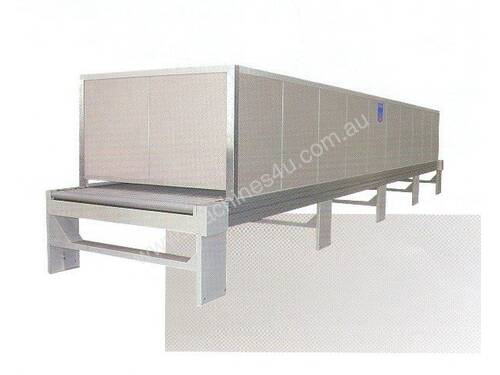

SuperficiAirblade dryer

The air blade dryer is a flat dryer working with hot air at high speed.

The heated air is conveyed into a special-design collecting hood, which feeds the air blades with the highest uniformity and the minimum losses. The air blades blow percussion air perpendicular to the work-piece surface with a uniform distribution on the whole width.

Thanks to its high efficiency, the dryer is normally used for fast flash off cycles or for the drying of water-borne lacquers or stains. The dryer can eventually also be equipped with infrared lamps placed in-between the blades to accelerate the drying process.

Advantages:
- High efficiency of the system thanks to the special design of the collecting hood, which achieves an optimized heat exchange.
- Possibility of installing the infrared lamps with different wave lengths between the air blades to achieve a combined action of irradiation/hot air.
- Uniform air distribution on the whole panel surface.
- Low energy consumption thanks to the adjustable air recycling device.
- Air speed adjustable by shutters or inverter.
- Automatic air temperature adjustment.

Technical data:
AIR BLADE DRYER
dryer length from 3000 to 6000 mm.
working width 1300 mm.
max. air temperature 70°C.
air speed at the blades approx. 12 m/sec.
IR lamps type IRM o IRS
