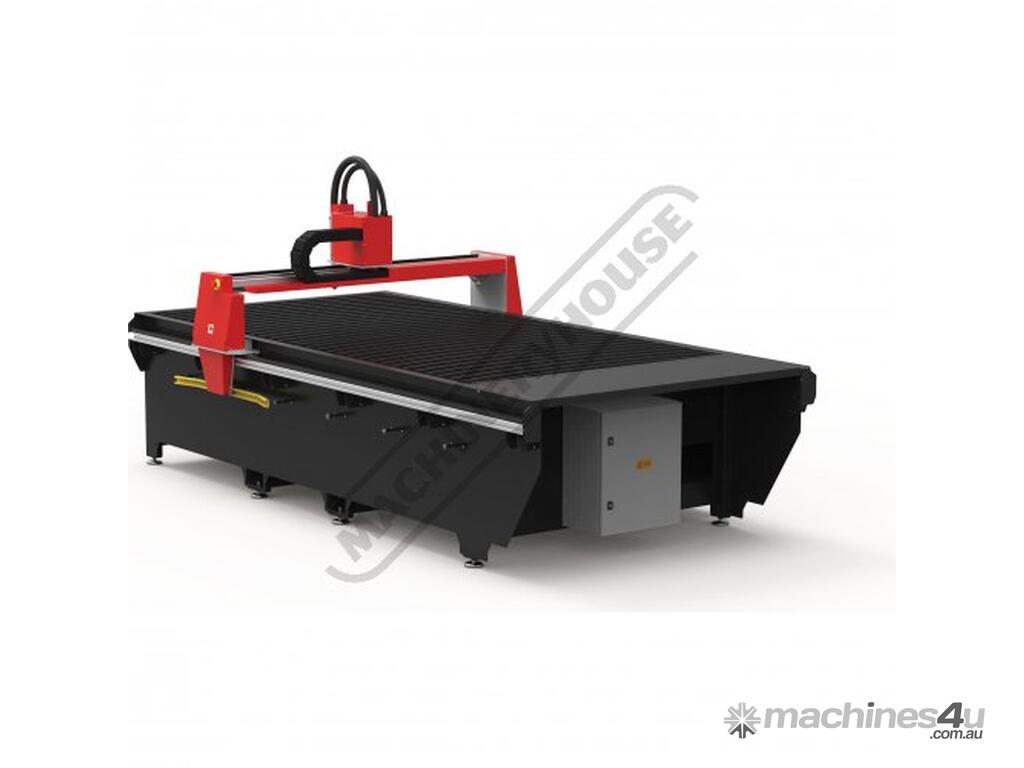

Swiftcut 3000XP CNC Plasma Cutting Table 3000 x 1500mm Downdraft Table system Hypertherm MAXPRO200 -

SWIFTCUT Swiftcut 3000XP CNC Plasma Cutting Table 3000 x 1500mm Downdraft Table system Hypertherm MAXPRO200 - Cuts up to 32mm Mild Steel Plate
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P9048

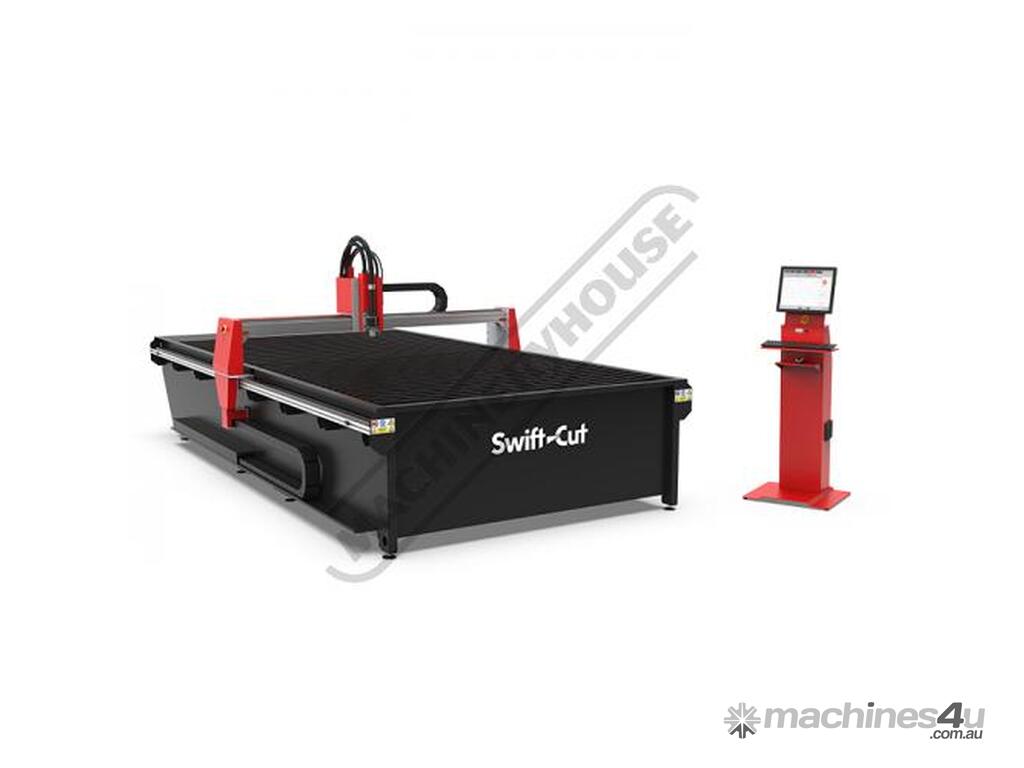

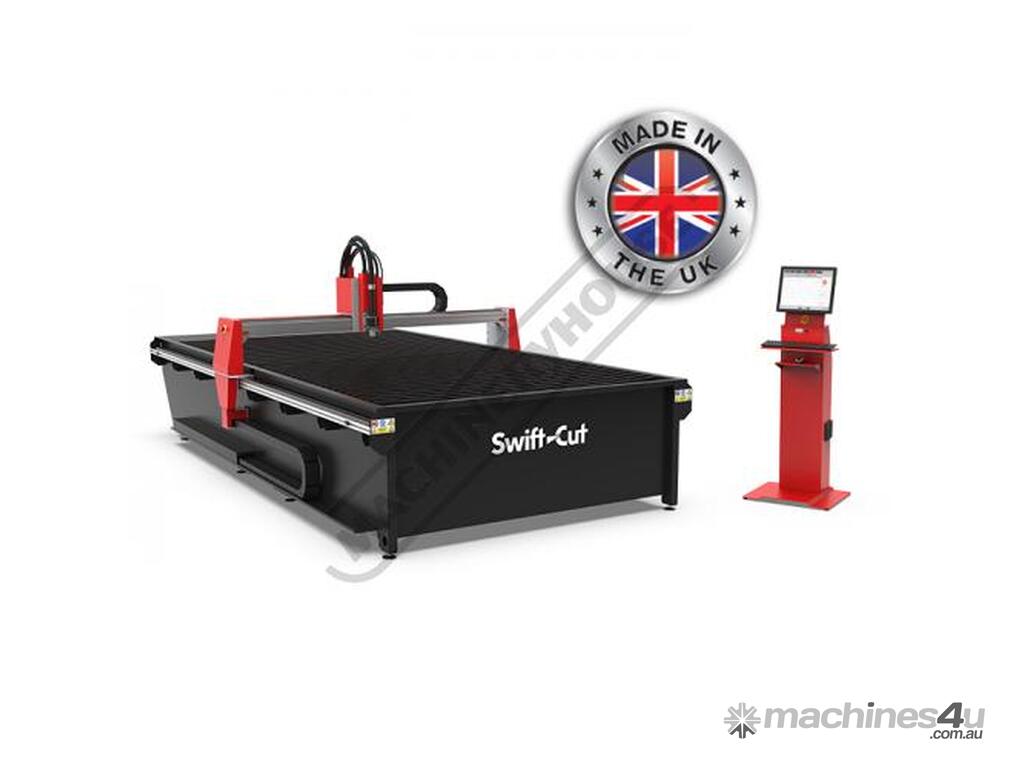

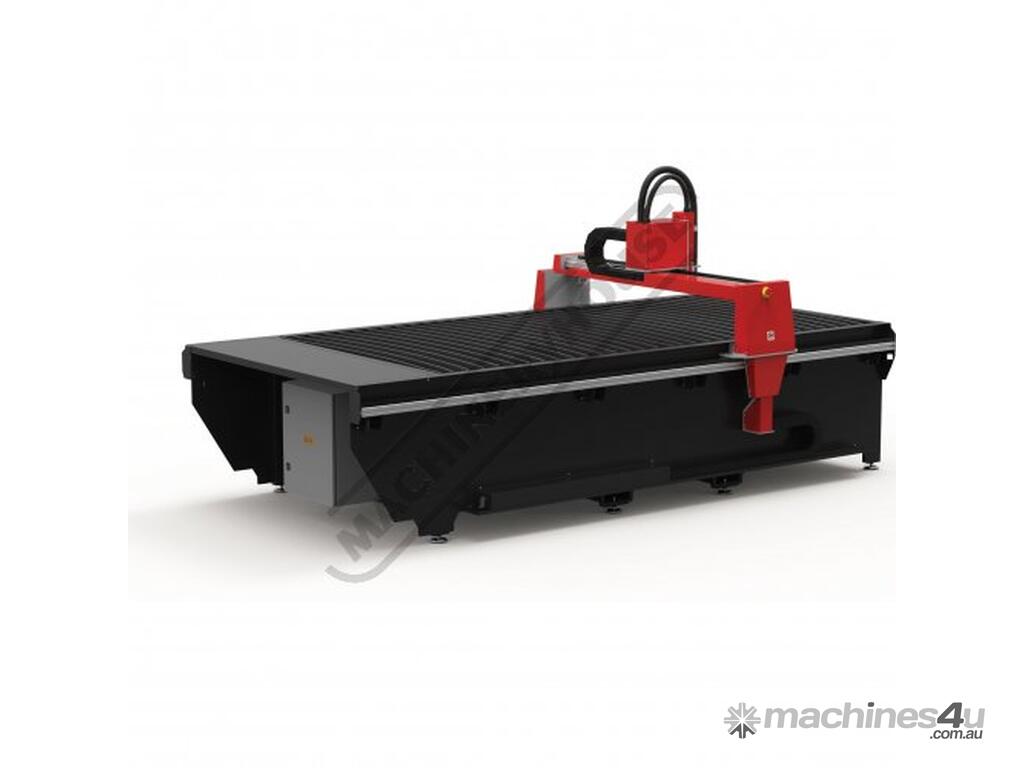

Swiftcut 3000XP – Hi Performance CNC Plasma 3000 x 1500mm Cutting Table and Hypertherm MAXPRO200 to cut up to 32mm

The 3000XP has been purpose built to achieve extremely high cutting speeds and heavy duty cutting. Our Swiftcut plasma cutting tables offer an affordable alternative to outsourcing, enabling you to take greater control of your business.

Features:
TABLE FEATURES:

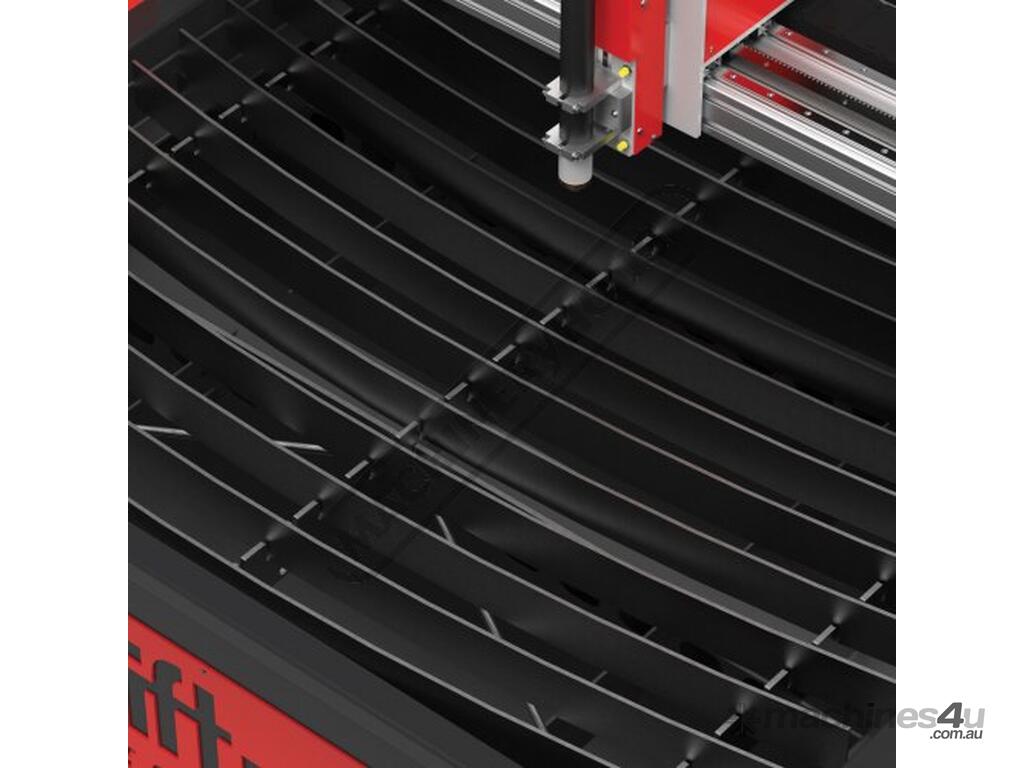

Heavy duty base and gantry to support 200amp cutting deeper dross boxes and 6mm material support slats.
Down Draft extraction table for efficient control of sparks and fumes. Requires separate extraction system not included
High precision Linear motion guideways on X &Y Axis
Omron 400W AC Servo motors
Dual drive Y-axis
Proximity sensing for reliable and robust switching

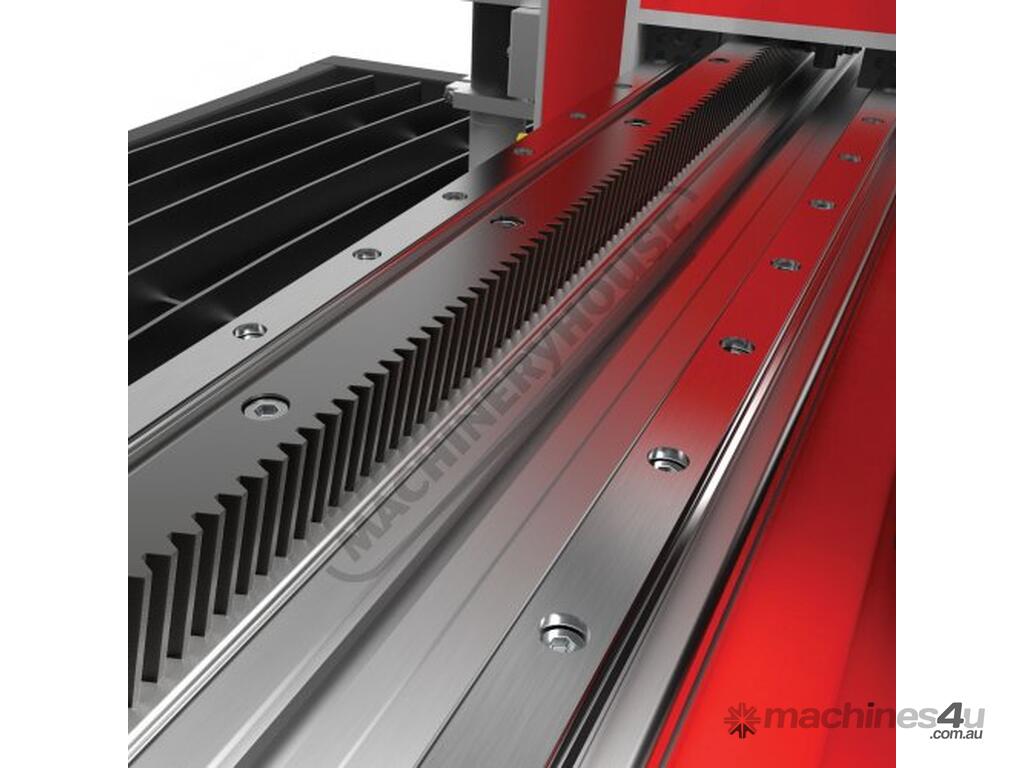

Helical Rack and pinion drive system

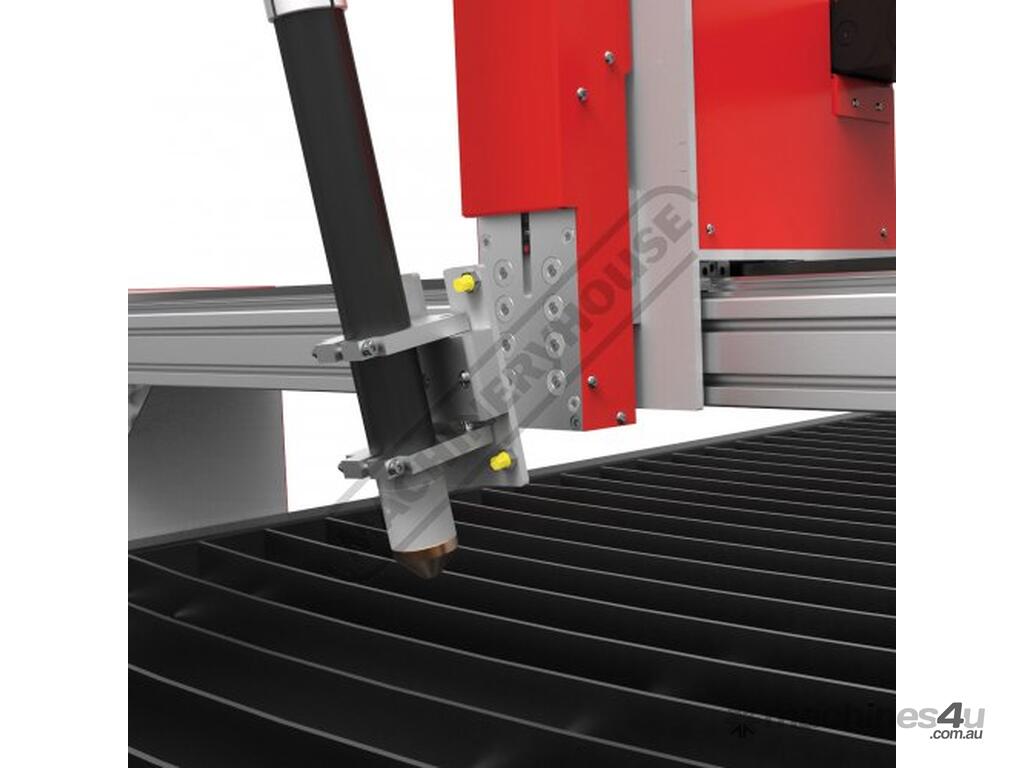

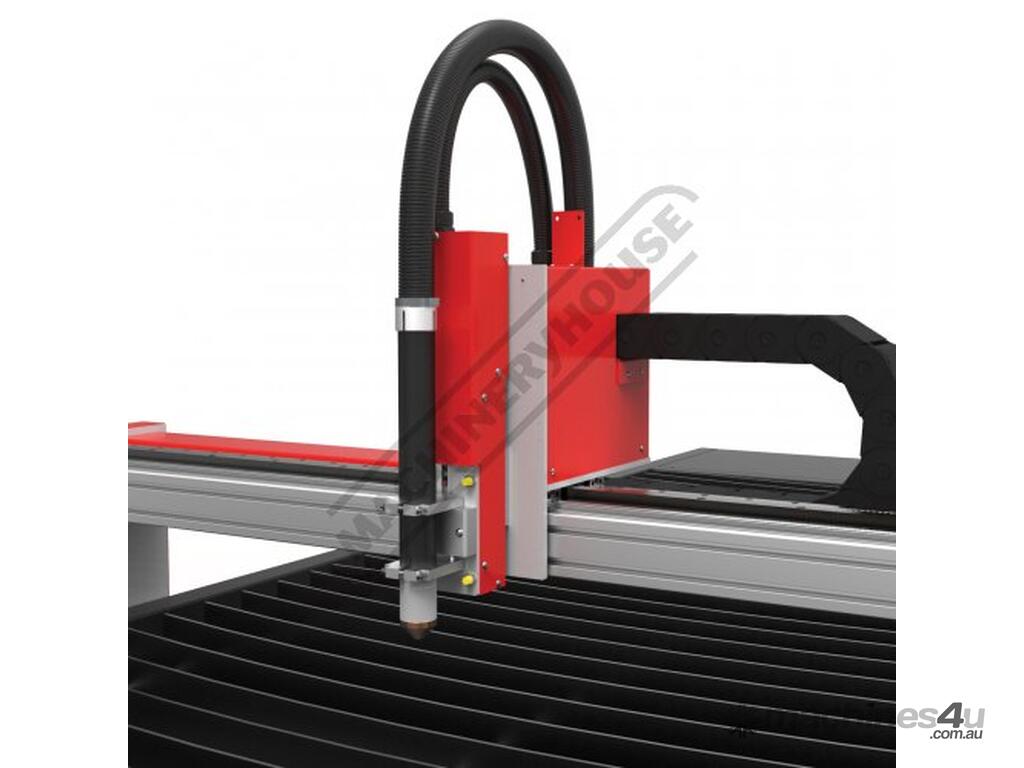

Magnetic breakaway head eliminates damage to torch and improves safety
Cut metal up to 32mm thick using a Hypertherm MAXPRO200 system
Digital Torch-Height Control (DTHC) Quick response for improved cut quantity and improved torch consumable life
Dynamic Cut Control (DCC) is available on all Swiftcut XP machines This feature enables Software control of cutting amps and air pressure Error messages air pressures and critical data from the plasma unit is displayed on Swiftcut control screen for operator convenience On the fly arc voltage air pressure and cutting speed control ensures the highest quality cut at all times. INDUSTRY 1st UNIQUE TO SWIFT-CUT

OPERATORS PANEL:
Free-Standing Operators Console
18.5" flat panel LCD touch screen
Built in controller
Wireless keyboard and mouse

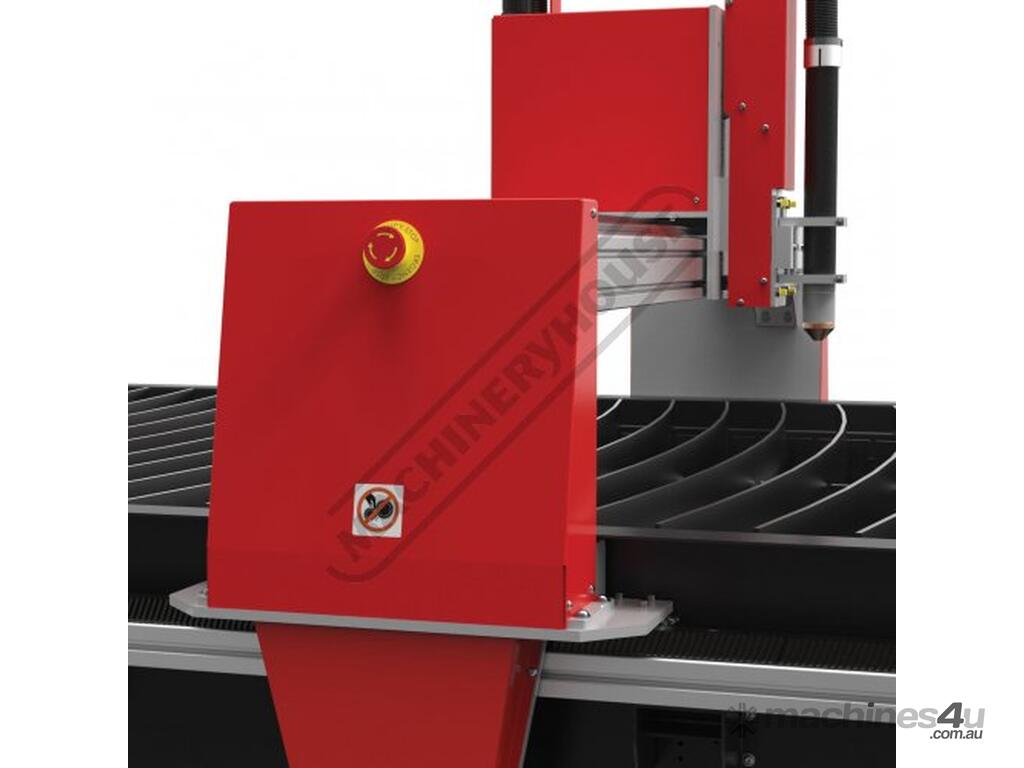

E-Stop safety button
External USB port for transfer of files
Easy access for maintenance

SOFTWARE: Standard
Auto Arc voltage capture and regulation to automatically adjust the cut settings to suit varied material characteristics
Program recovery function automates starting part way through a program
Sheet trim function to easily trim off excess skeleton
G code browser & editor for the novice operator
G code favorites - user customised
DXF DWG & JPEG photo import function
3D part viewer
Advanced importer with ability to re-export and save the filtered DXF
5 user assigned reference points for jigs and fixtures
Sheet rotation function
Automatic lead in / out of cut paths
Dry run capability for testing prior to cutting
Parametric shapes library with over 80 shapes
Automatic cutting consumable recommendations based on material and thickness
Team viewer software for remote support
Multiple simultaneous DXF import
Automatic part in part nesting for best sheet utilisation
3D cutting simulation

HYPERTHERM MAXPRO200 PLASMA SYSTEM
Advantages over Hypertherm POWERMAX series:
Mixed gas plasma process for improved cut speeds and part finish (O2/air N2/N2 Air/Air)
Long life consumables (water cooled torch) up to 3 times longer than Powermax
32mm pierce capacity
Cut speeds vs Powermax 125 are double the speed for material 15mm and above


Specifications:
ORDER CODE: P9048
MODEL: Swift-Cut 3000XP
Cutting Capacity - Mild Steel (mm): 32
Cutting Table Capacity (mm): 3000 x 1500
Plasma Cutting Unit: MAXPRO200
Current Output (amp): 32 - 200
Duty Cycle (Typical): 100% 200A
Duty Cycle (Typical): ~
Fume Management (Type): Downdraft System
Fume Management (Type): ~
Cutting Gas (Type): Air, O2, N2
Plasma Unit Input Voltage (V): 415V
Machine Input voltage: ~
Plasma Unit Input Amperage (amp): ~
Nett Weight (kg): 1500
