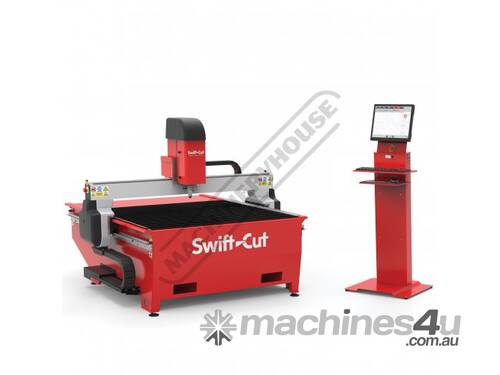

Swiftcut PRO 1250WT CNC Plasma Cutting Table 1250 x 1250mm Water Table System Hypertherm Powermax85

SWIFTCUT Swiftcut PRO 1250WT CNC Plasma Cutting Table 1250 x 1250mm Water Table System Hypertherm Powermax85 SYNC - Cuts up to 19mm Mild Steel Plate
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P9012

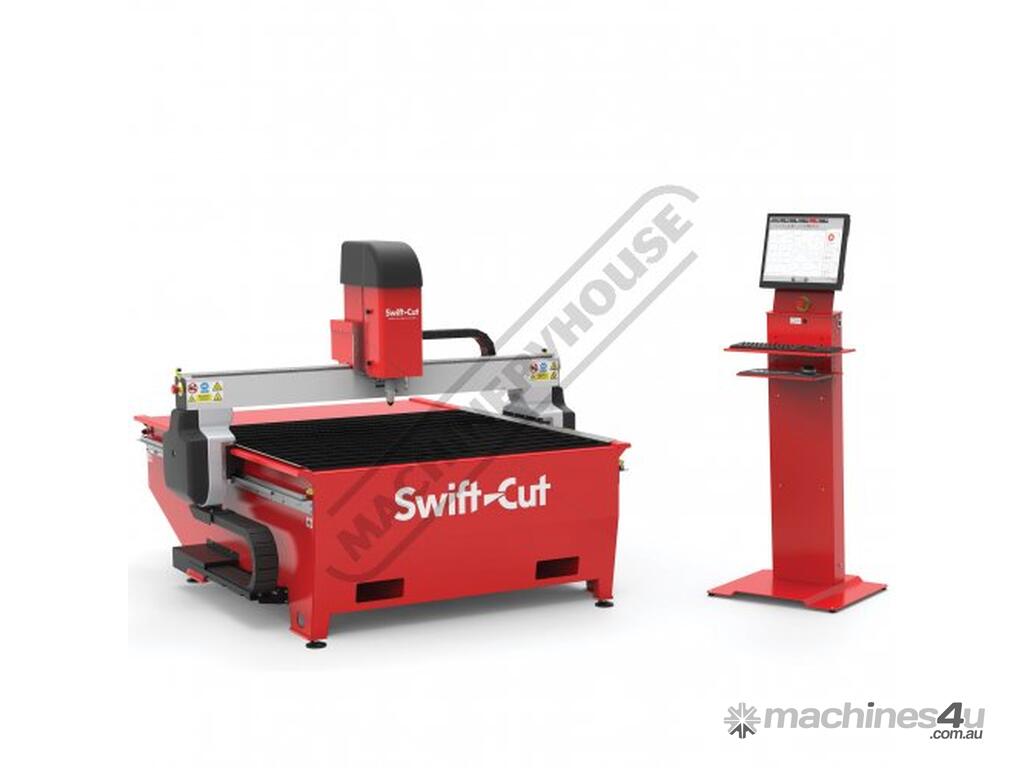

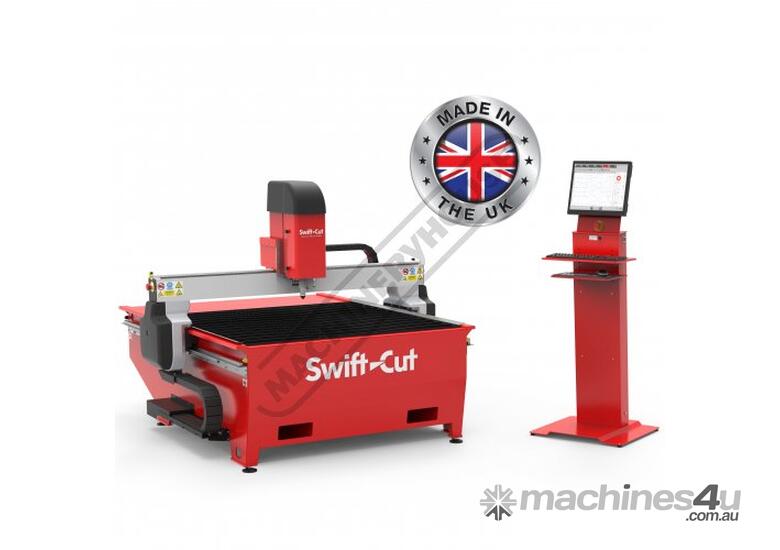

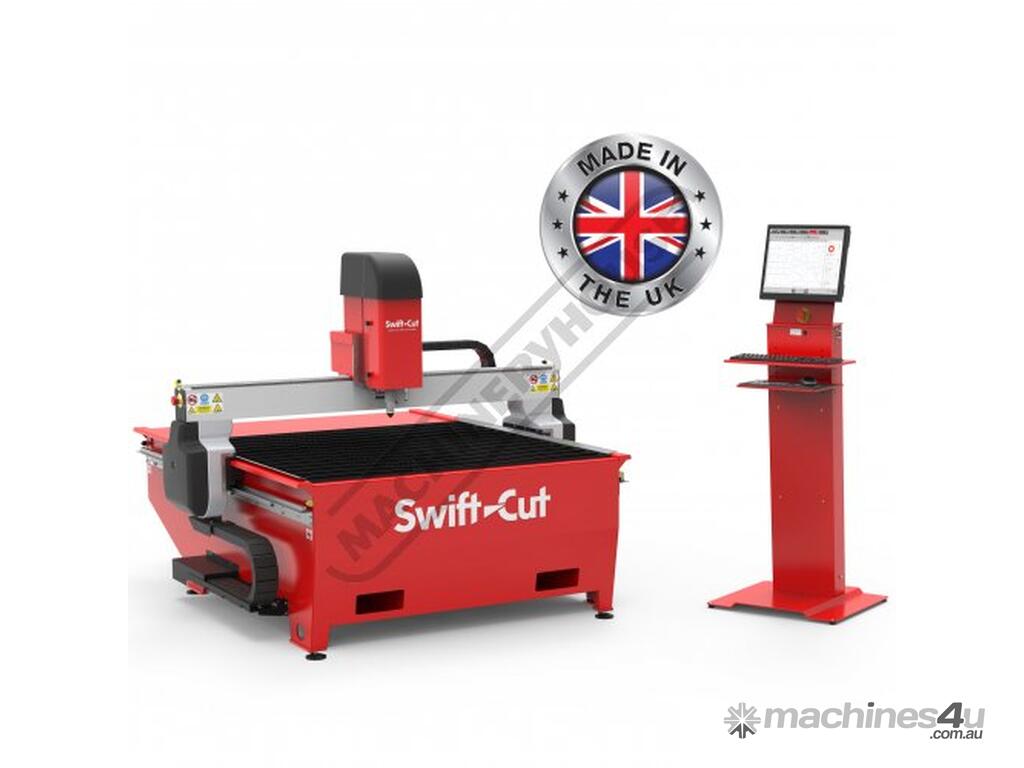

With a 1250 x 1250mm cutting area, the Swift-Cut PRO 1250 is a feature packed plasma cutting table with the ability and power to cut for as long as required. With a robust steel fully welded frame and free standing operators console, making it ideal for workshops, metal fabricators, educational establishments, designers and artists.

With gantry parking to allow a full sheet to be loaded overhead and a dropped rail for ease of loading, not to mention the simple on-going maintenance, the Swift-Cut PRO 1250 really is the answer to all your cutting needs.

SOFTWARE: Standard Version
• Auto Arc voltage capture and regulation to automatically adjust the cut settings to suit varied material characteristics
• Program recovery function automates starting part way through a program
• Sheet Trim function to easily trim off excess skeleton
• G code browser & editor for the novice operator
• G code favourites – user customised
• DXF, DWG & JPEG photo import function
• 3D part Viewer
• Advanced importer with ability to re-export and save the filtered DXF
• 5 user assigned reference points for jigs and fixtures
• Sheet rotation function
• Automatic lead in / out of cut paths
• Dry run capability for testing prior to cutting
• Parametric shapes library with over 80 shapes
• Automatic cutting consumable recommendations based on material and thickness
• Manual nesting of parts
• Team viewer software for remote support

SOFTWARE: Advanced Version (Optional Extra)
• All of the Standard version features
• Automatic nesting parts for economical sheet usage
• Automatic Part in part nesting - Nests parts in scrap areas to fully utilise sheet

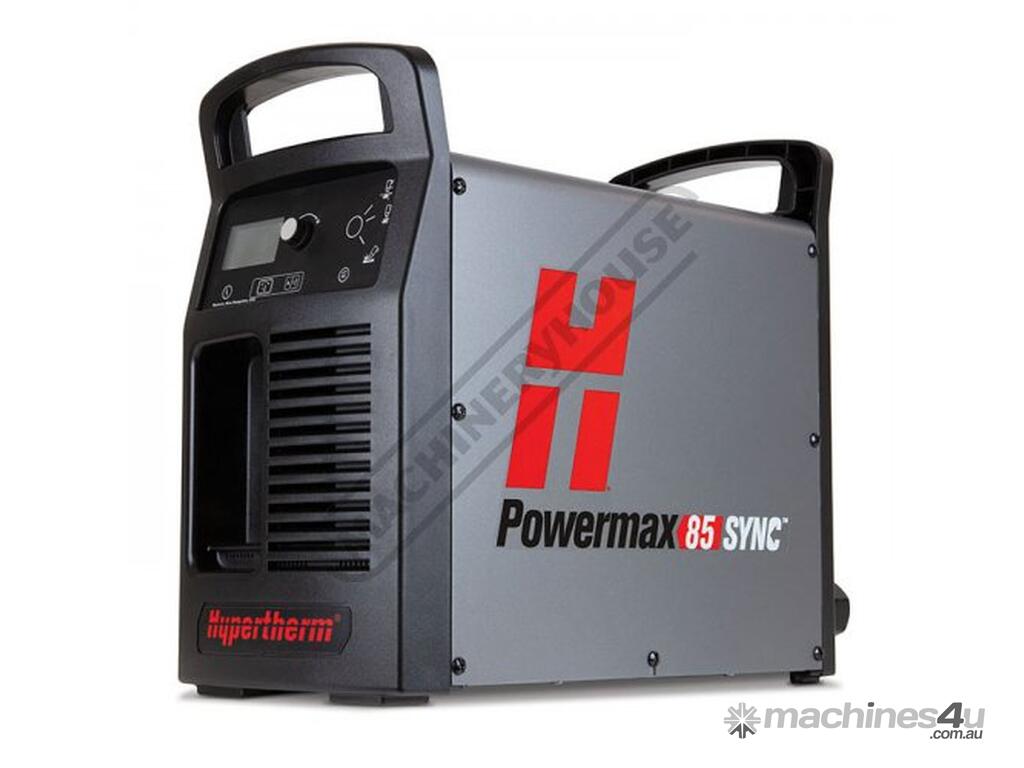

HYPERTHERM SYNC™ PLASMA:
The Powermax85 SYNC™ is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting. Features automated system process set-up via advanced RFID-enabled SmartSYNC™ torches and a revolutionary single-piece cartridge consumable that provides trackable utilisation data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimised cut quality performance and streamlined consumable inventory management.

Features:
Fully fabricated and welded steel frame

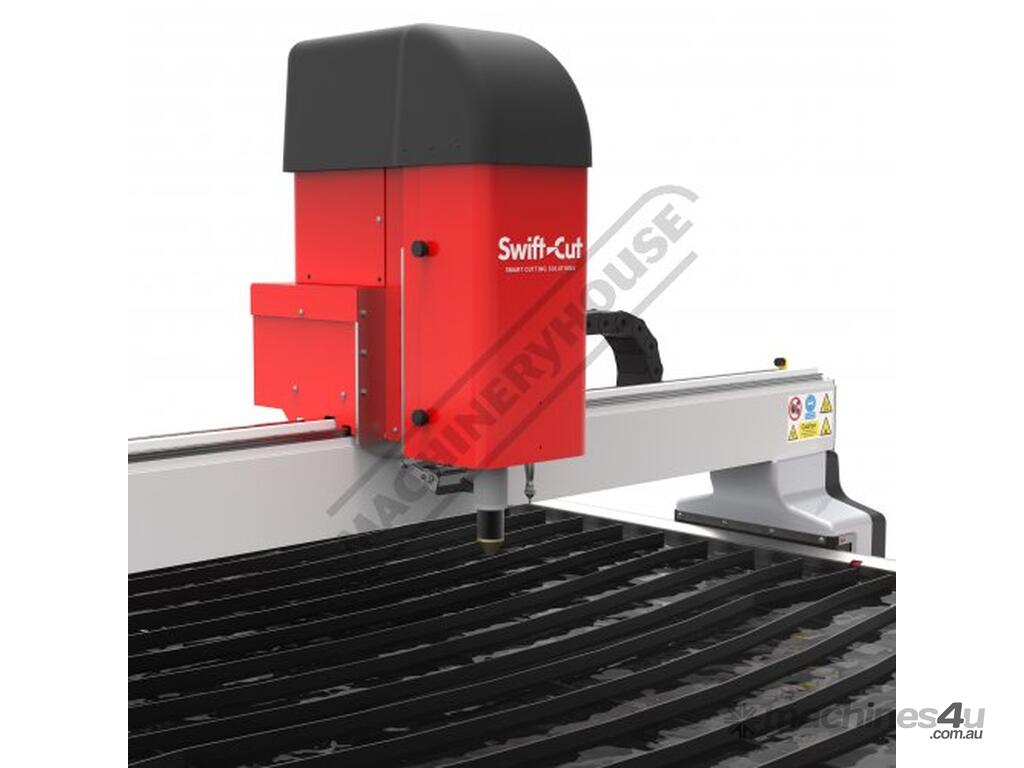

Water tray for efficient control of sparks and fumes with removable stainless steel splash guards for side rail protection
Dropped rails for ease of loading full sheets
Gantry parking to allow full sheet to be loaded overhead

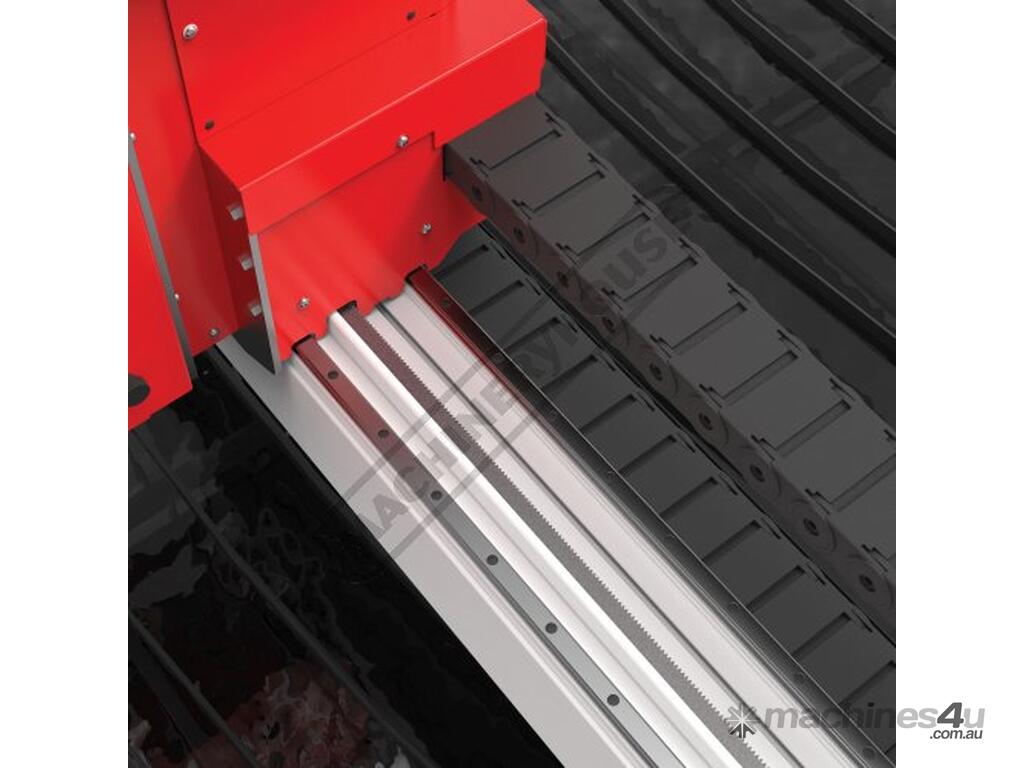

Linear guideways for fast accurate motion
High speed axis motors with closed loop feedback (encoder) for accuracy and reliability
Dual motor drive Y-axis

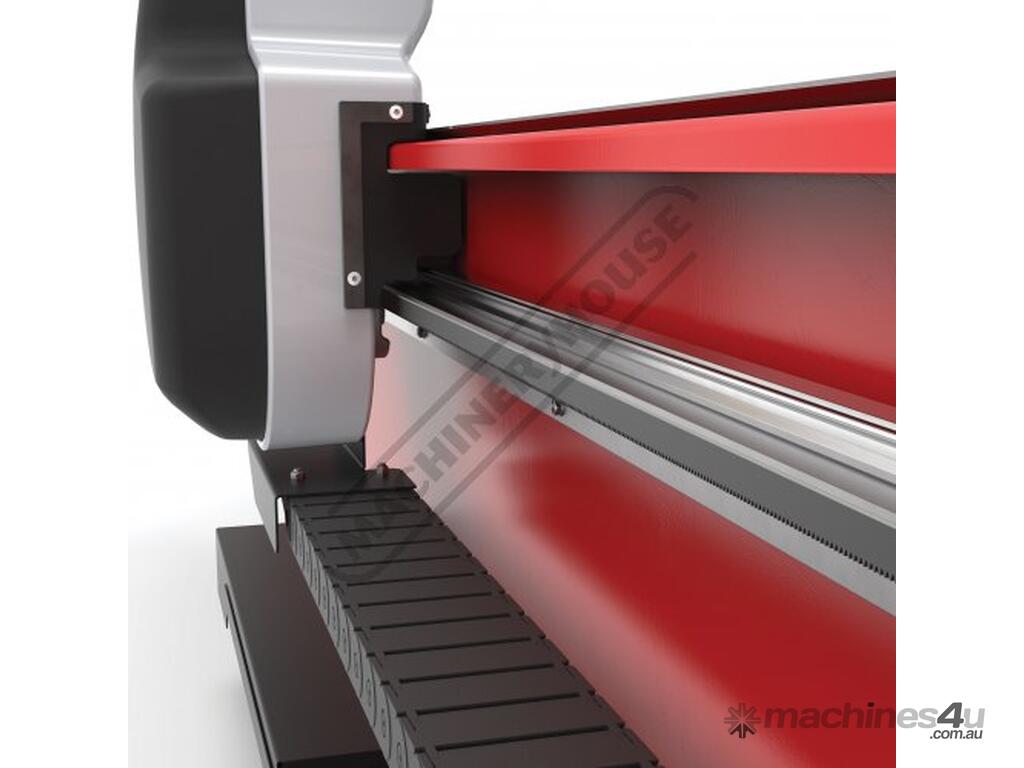

Rack and pinion drive system
360 Degree Breakaway head eliminates damage to torch and improves safety
Laser guide for easy sheet positioning

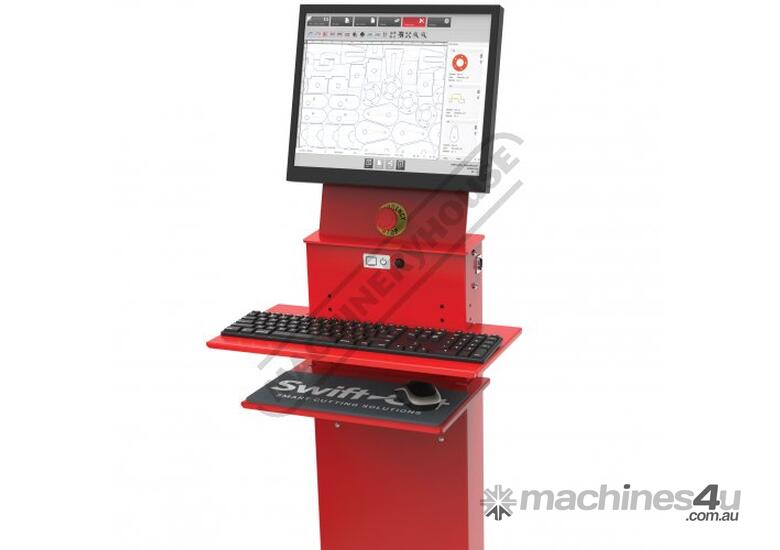

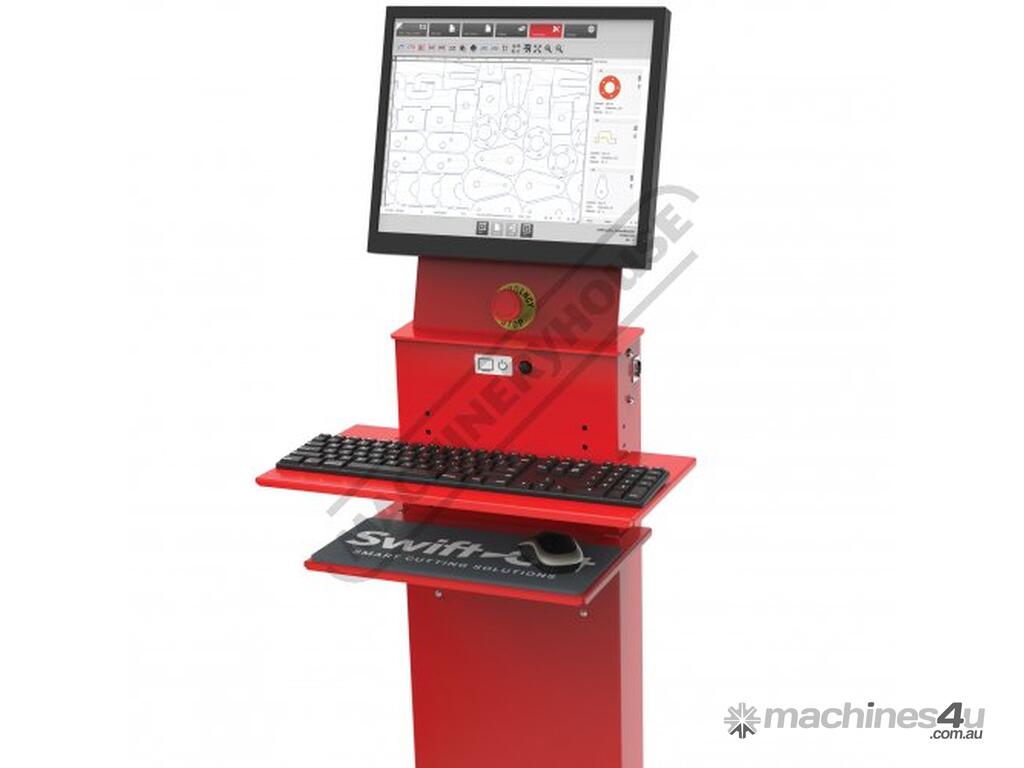

Free-Standing Operators Console with LCD TOUCHSCREEN control
Cut metal up to 25mm thick depending on the Hypertherm Powermax unit selected

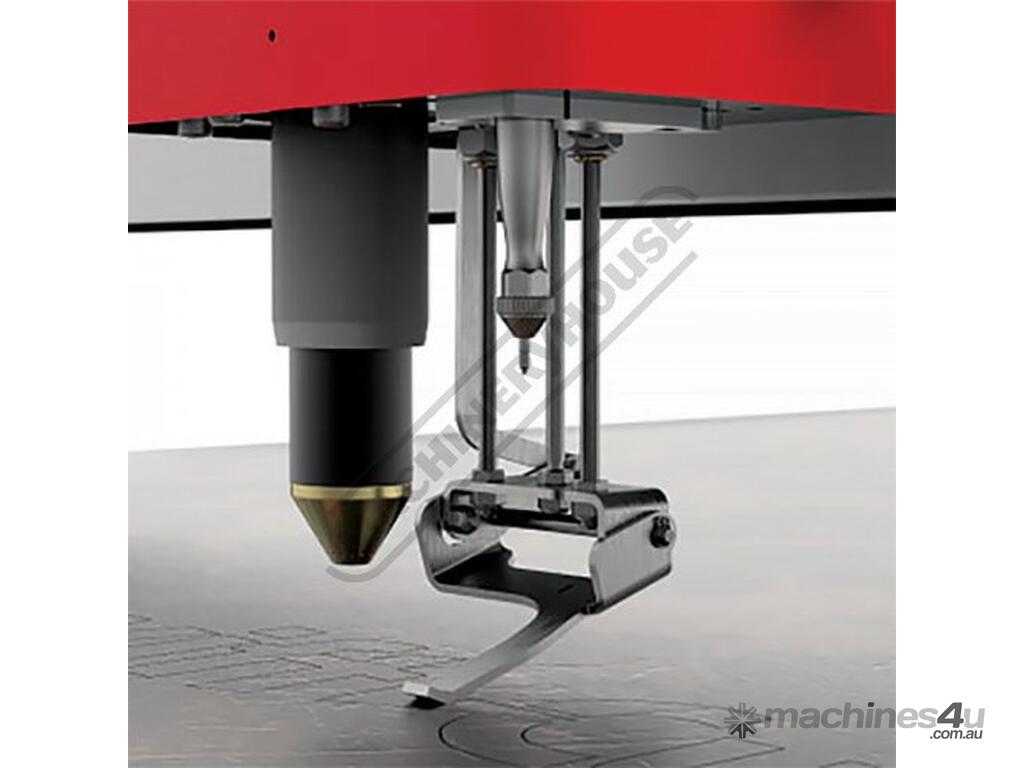

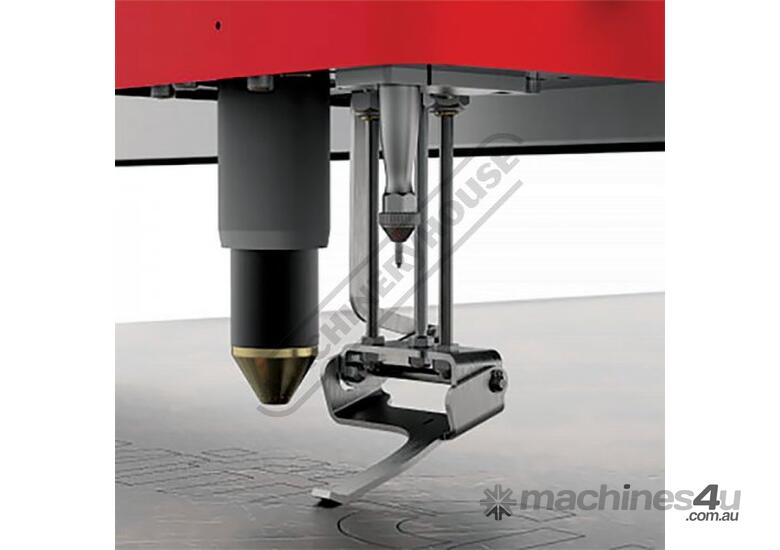

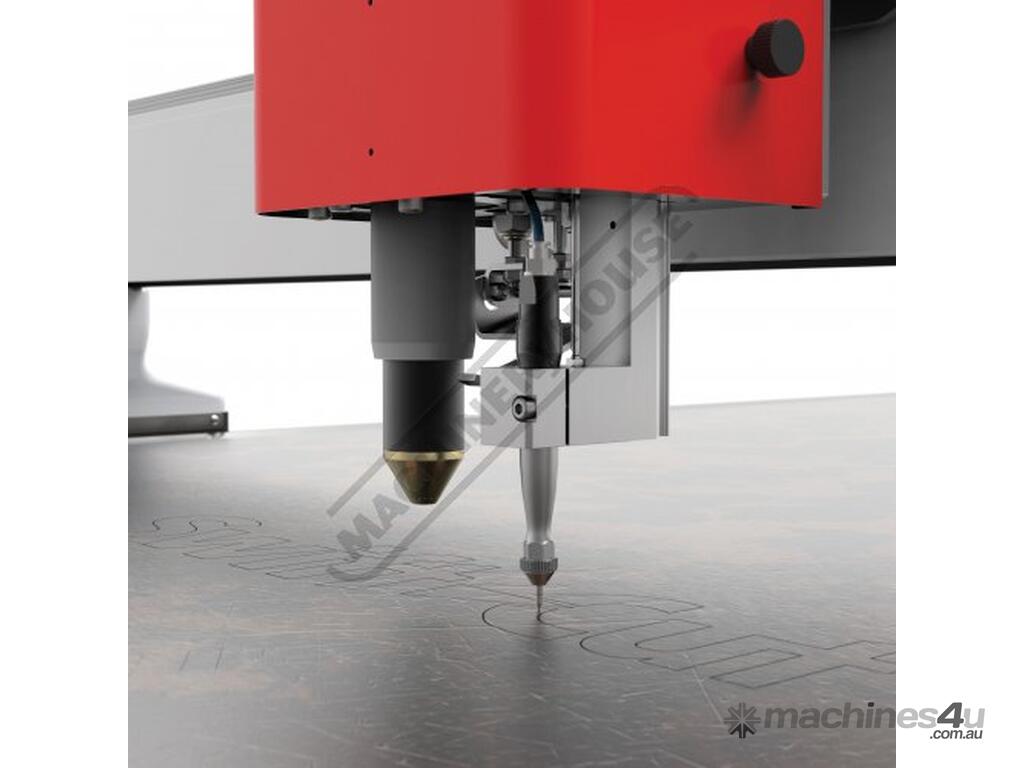

Soft sense Digital Torch-Height Control (DTHC) Quick response for improved cut quantity and improved torch consumable life. This unique touch sensing is so soft and accurate even the thinnest sheet metal will not deflect while sensing.
Dynamic Cut Control (DCC) is available on all Swiftcut PRO machines This feature enables Software control of cutting amps and air pressure Error messages air pressures and critical data from the plasma unit is displayed on Swiftcut control screen for operator convenience On the fly arc voltage air pressure and cutting speed control ensures the highest quality cut at all times. INDUSTRY 1st UNIQUE TO SWIFT-CUT


Specifications:
ORDER CODE: P9012
MODEL: Swift-Cut PRO 1250WT
Cutting Capacity - Mild Steel (mm): 19
Cutting Table Capacity (mm): 1250 x 1250
Plasma Cutting Unit: Powermax85 SYNC
Current Output (amp): 25 - 85
Duty Cycle (Typical): 60% 85A
Duty Cycle (Typical): 100% 66A
Fume Management (Type): Water Tray System
Fume Management (Type): ~
Cutting Gas (Type): Air
Plasma Unit Input Voltage (V): 415V
Machine Input voltage: ~
Plasma Unit Input Amperage (amp): 20
Nett Weight (kg): 800
