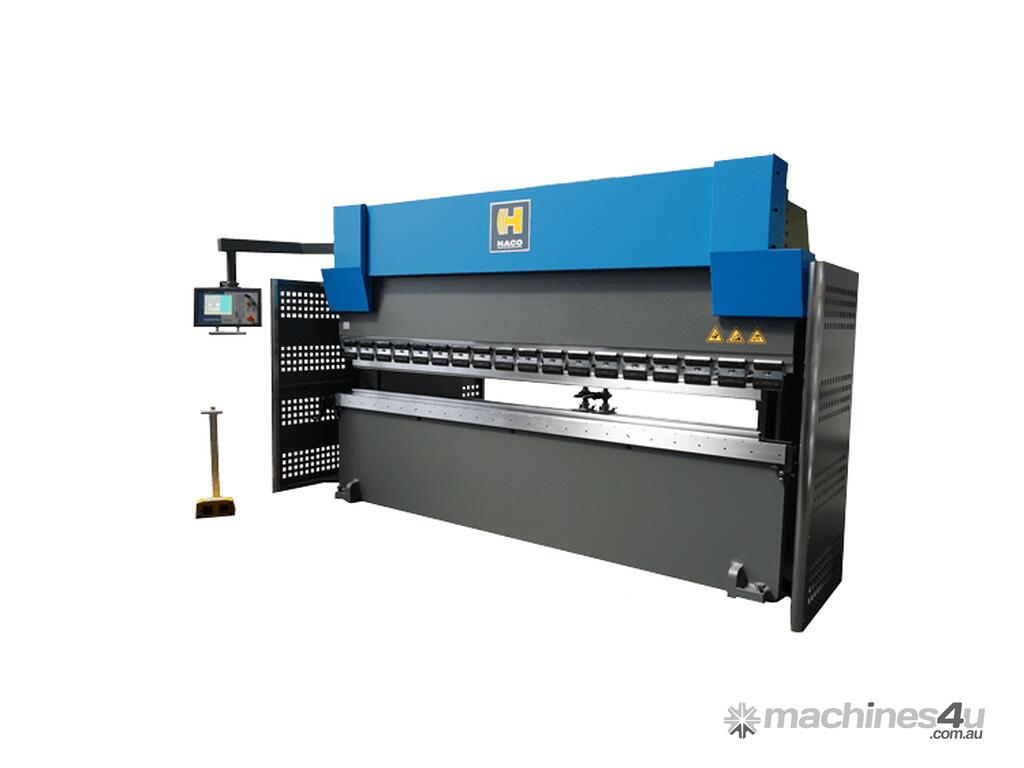

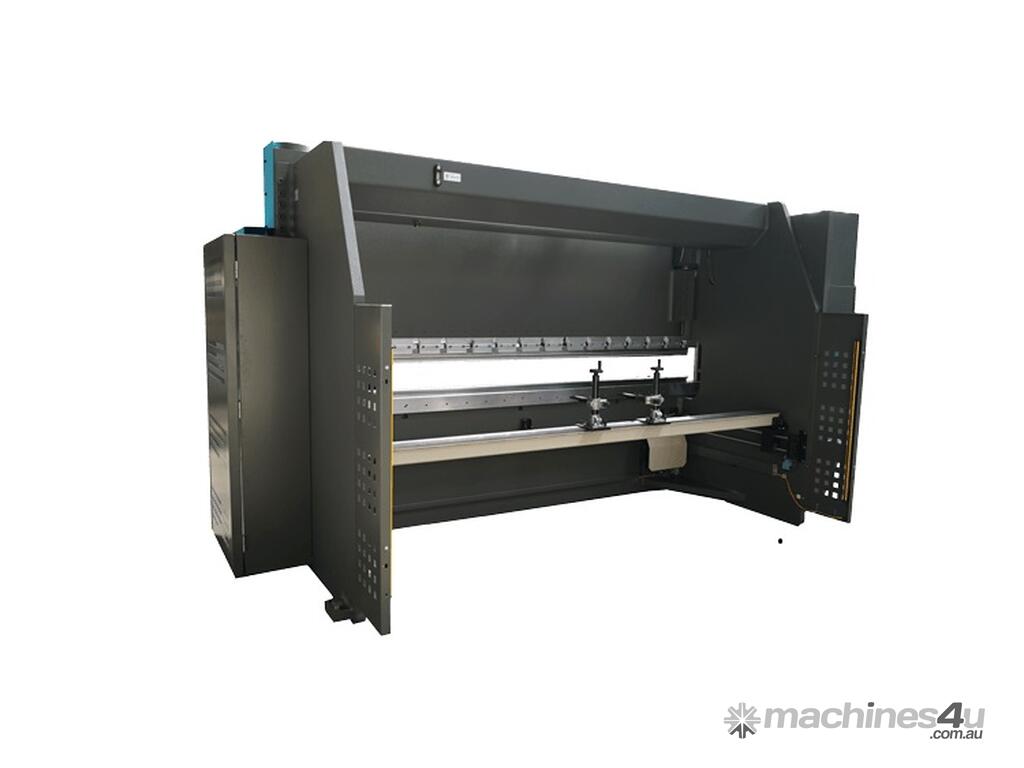

Synchromaster 40250 CNC Pressbrake

Synchromaster SRM40250 Pressbrake 4.1m x 250T

THE NEW SYNCHROMASTER SRM Pressbrakes combine:
- ACCURACY
- SPEED
- RELIABILITY
- REPEATABILITY

Equipped with our EASYBEND 2D MT operator controls, the Synchromaster SRM series machines are a combination of modern technology with high accuracy, high speed positioning, superior reliability and repeatability. The Synchromaster SRM provides outstanding performance.

Our 2D graphic CNC controls with automatic bending sequence calculation, high-speed back gauge systems, tooling choice and safety equipment make the Synchromaster SRM pressbrake the most complete offer in the market.
SPECIFICATIONS:

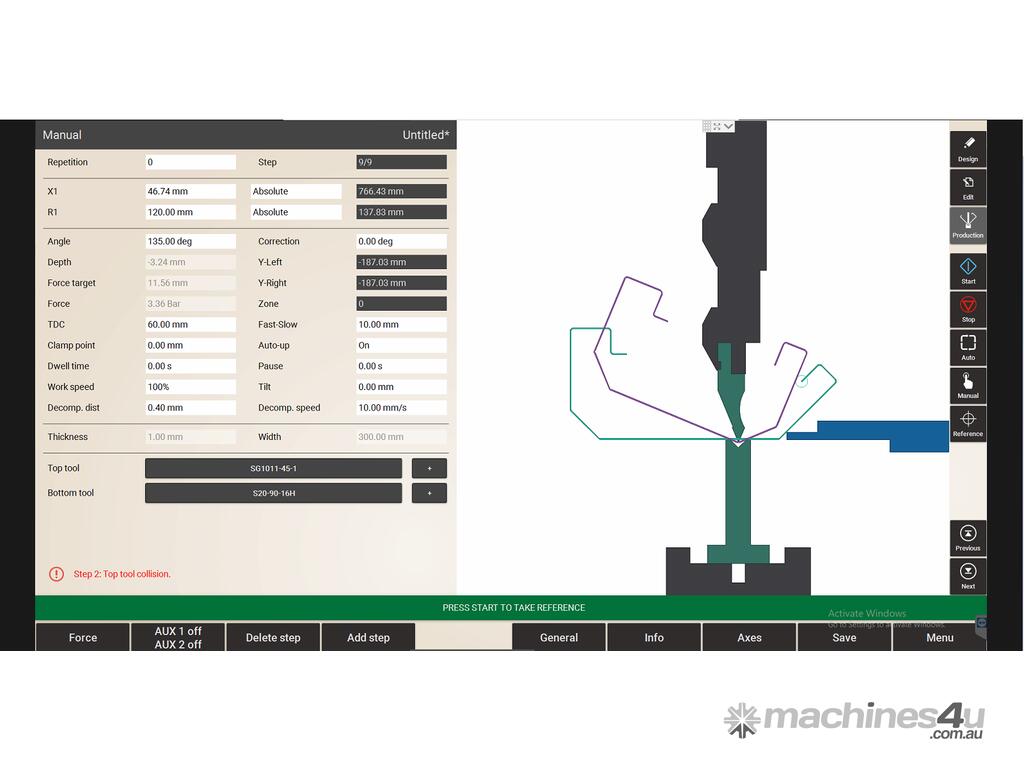

• Easybend 2D MT Graphic Control with 18.5” Touch Screen

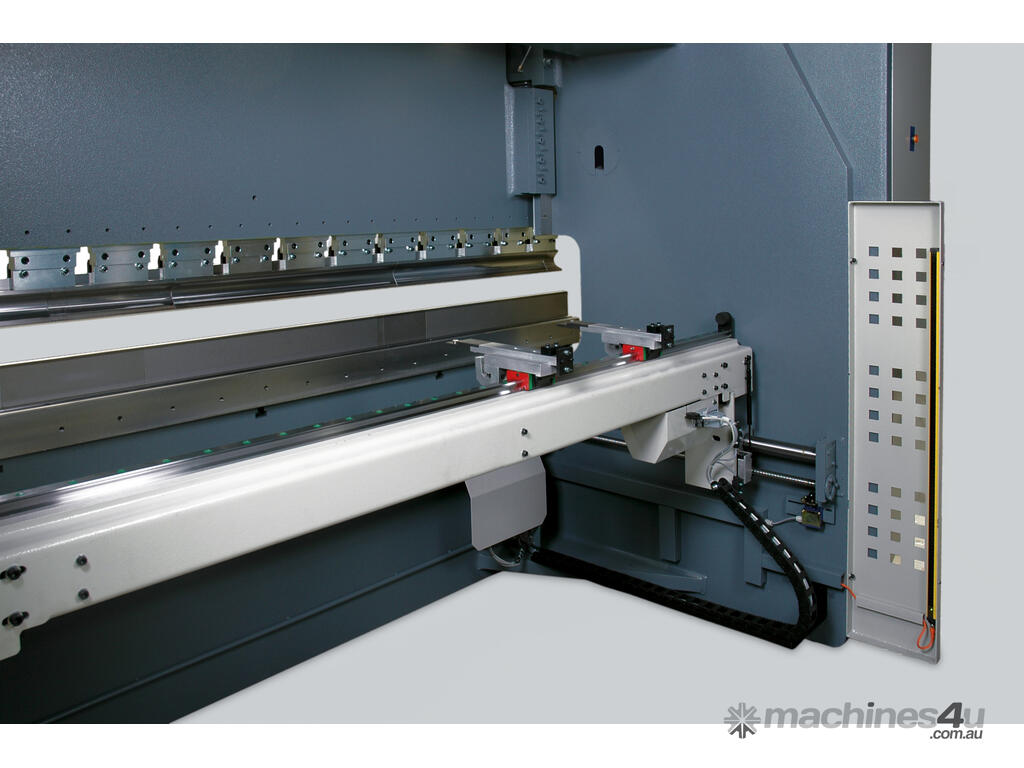

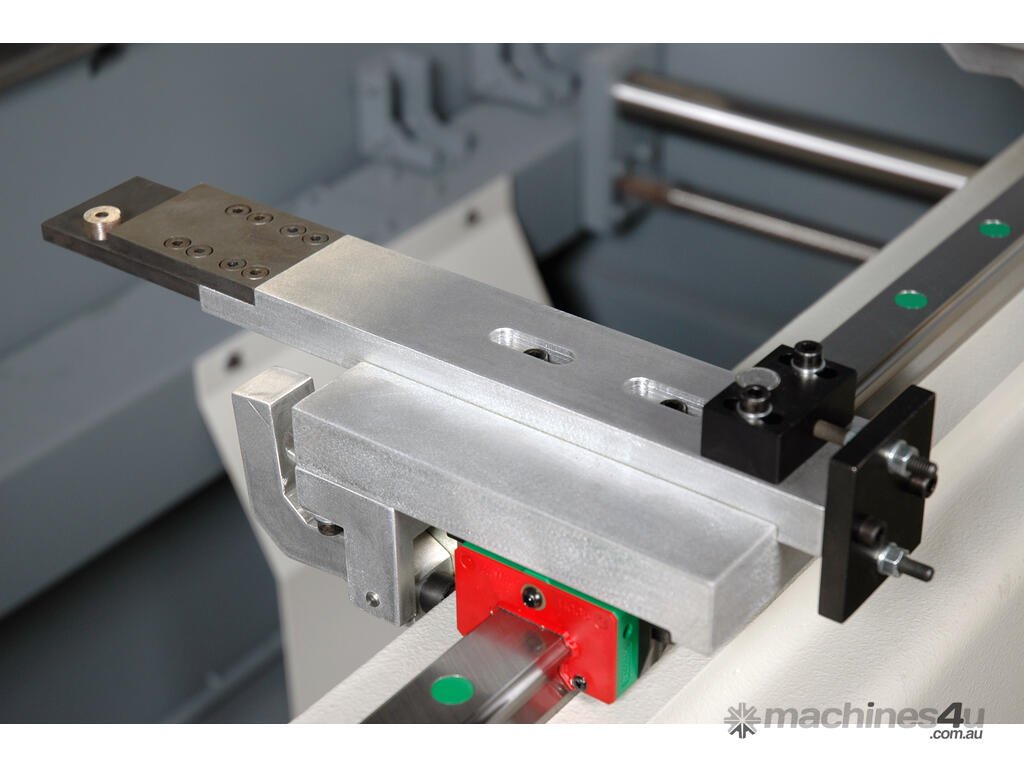

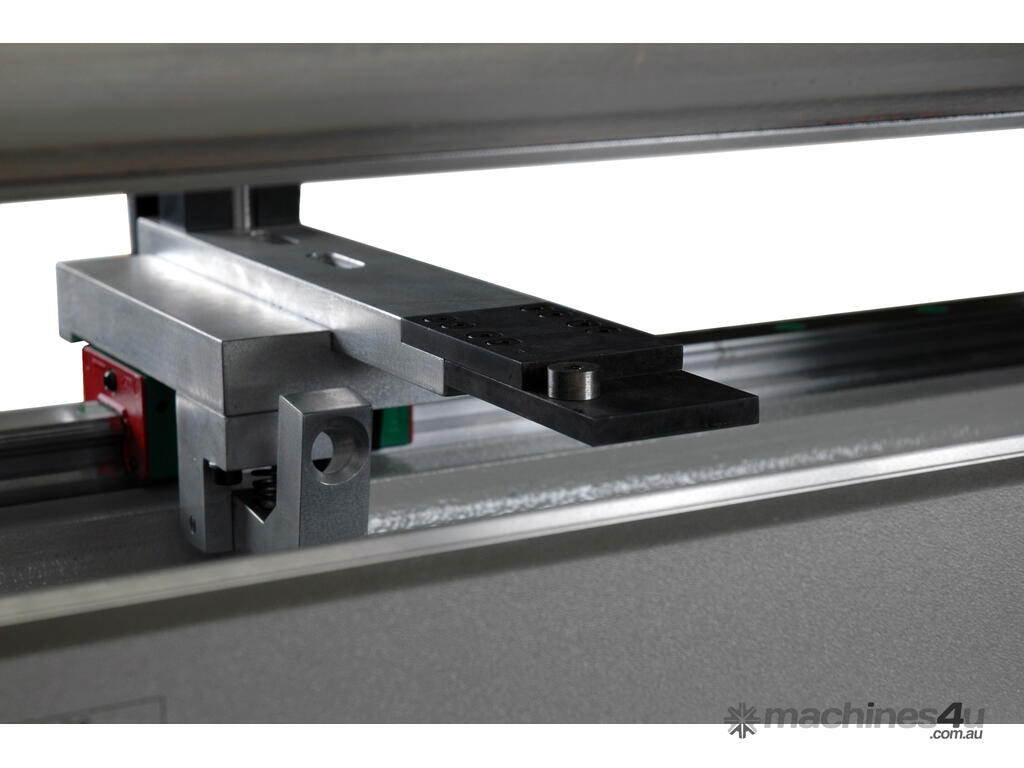

• Fast X/R 2-axis backgauge 800mm (options)
• Y1/Y2 Hydraulic SYNCHRO axis with 0.01mm positioning accuracy.
• Fast Approach Speed 150mm/s (models up to 2000kN)
• Stroke X-axis = 800mm
• Speed X-axis = 400mm/s
• Stroke R-axis = 250mm
• Speed R-axis = 100mm/sec
• Throat Gap 400mm

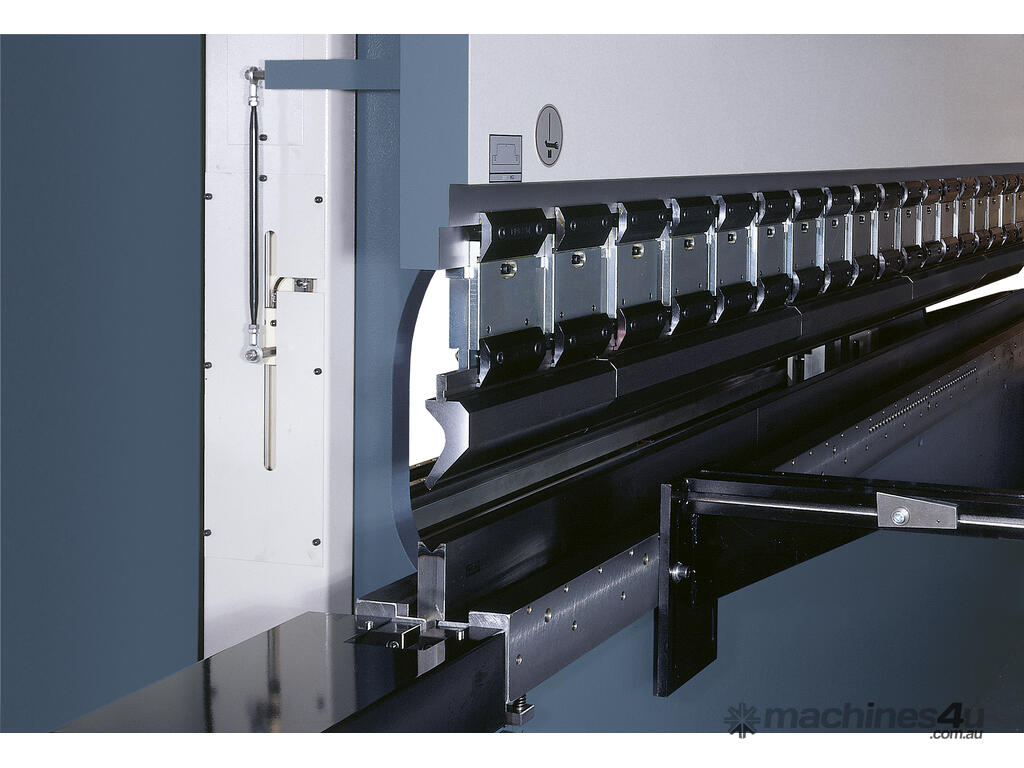

• European Standard top tooling

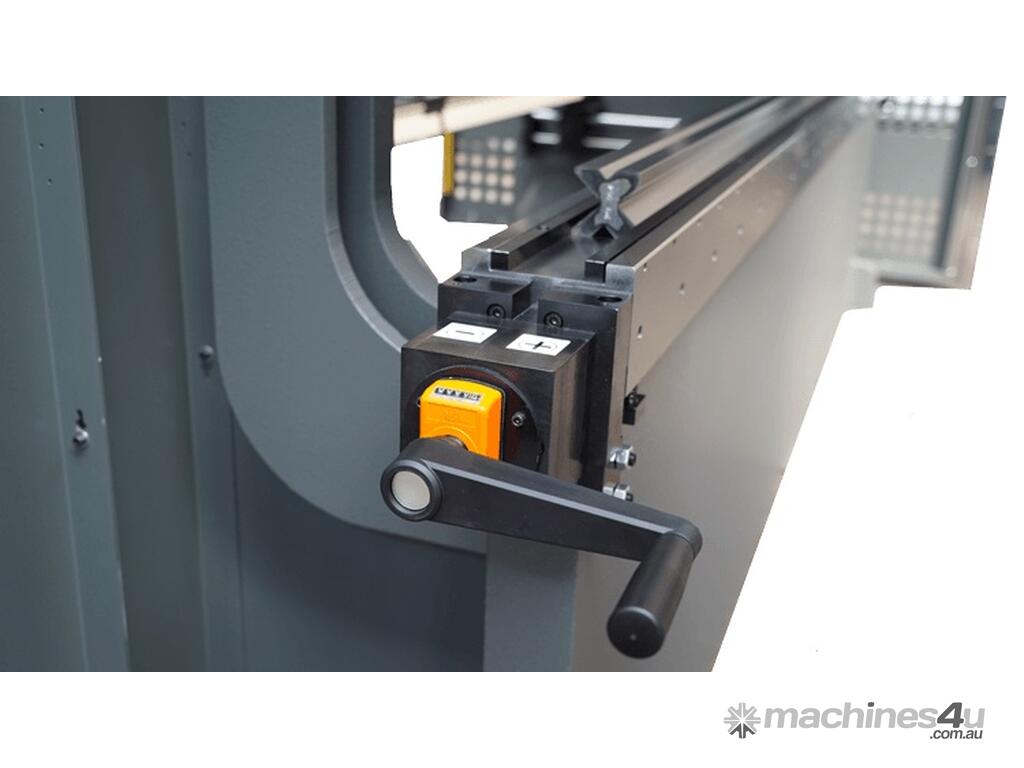

• CNC Crowning Table

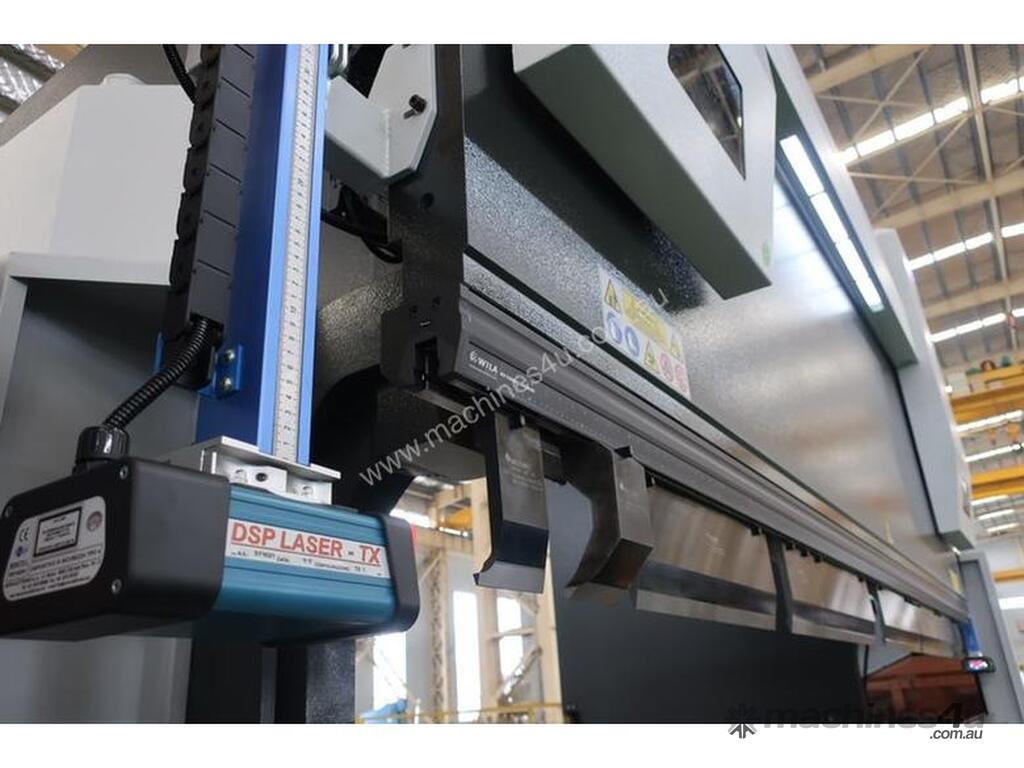

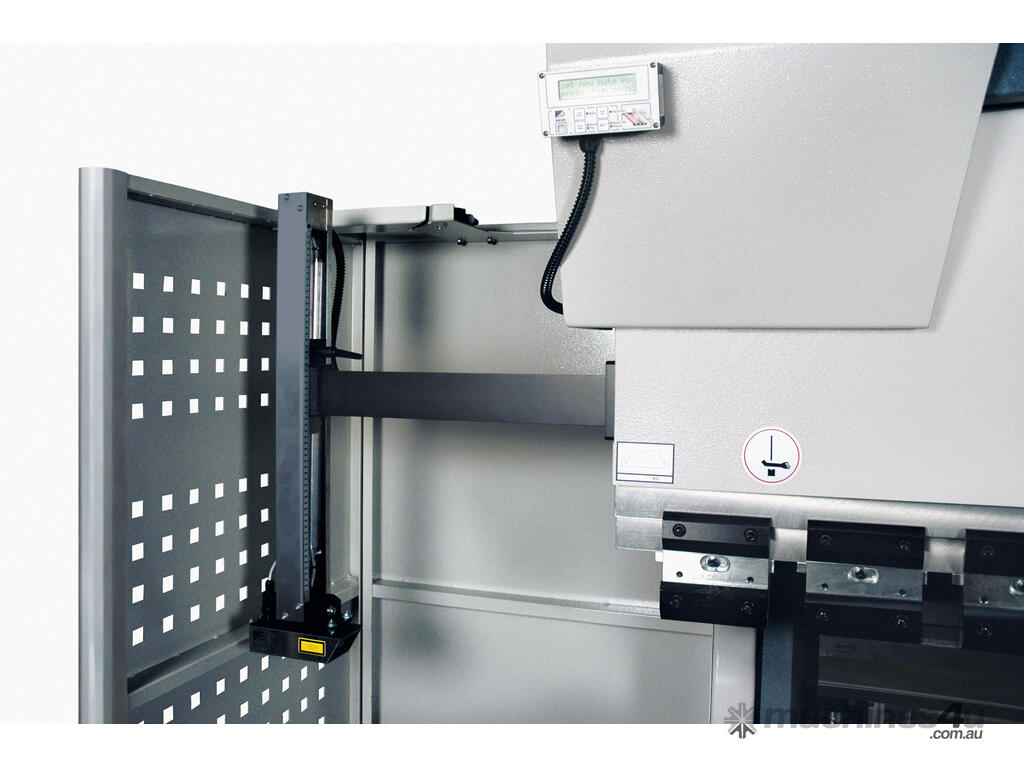

• Manufacturer supplied Laser Safety light guard with DSP
• Operation, programming and maintenance manual.
• Foot pedal control

Upgrade Options for New Orders Only
• 4 Axis Backgauge X-R-Z1/Z2
• Stroke Z1/Z2 axis = Depending on machine length
• Speed Z1/Z2 axis = 400mm/s

Available in sizes from 2000mm x 75T to 4300mm x 400T Standard
(Bigger machines available in other models)
