T-20A Thicknesser - HSS Blades 508 x 200mm (W x H) Material Capacity Includes 4 x High Speed Steel

HAFCO-WOODMASTER T-20A Thicknesser - HSS Blades 508 x 200mm (W x H) Material Capacity Includes 4 x High Speed Steel Blades
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W415A

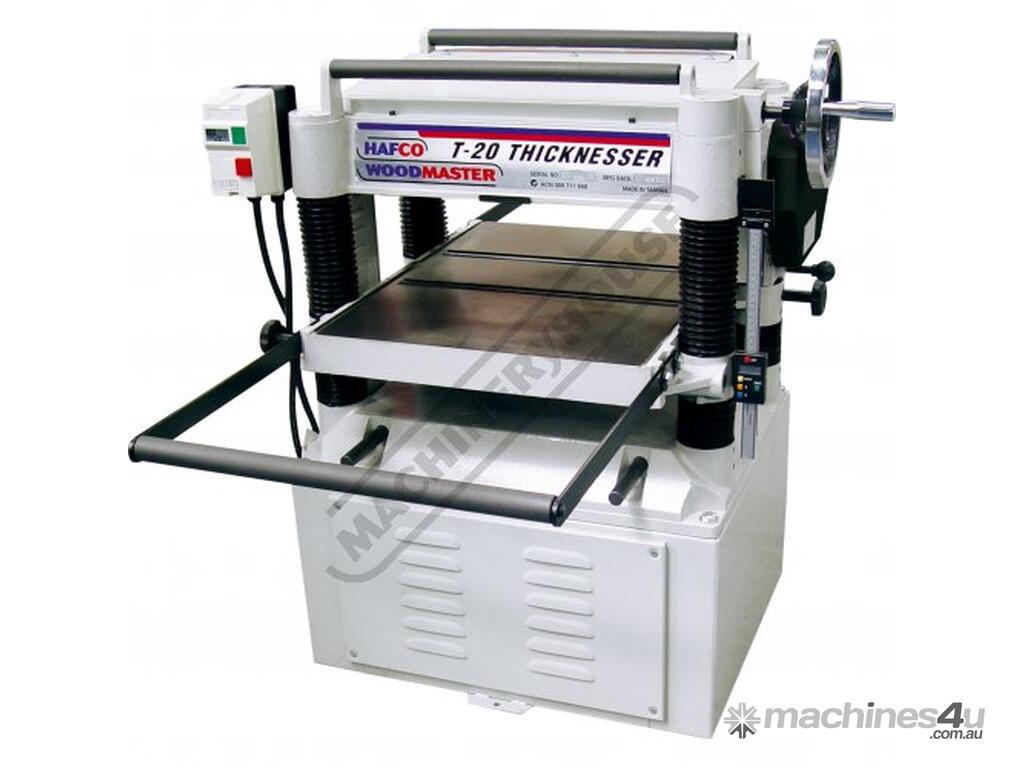

The Hafco T-20A thicknesser manufactured in Taiwan with four knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron thicknessing table which has a polished surface to help timber slide freely as well as to help reduced vibration to improved quality of cut.

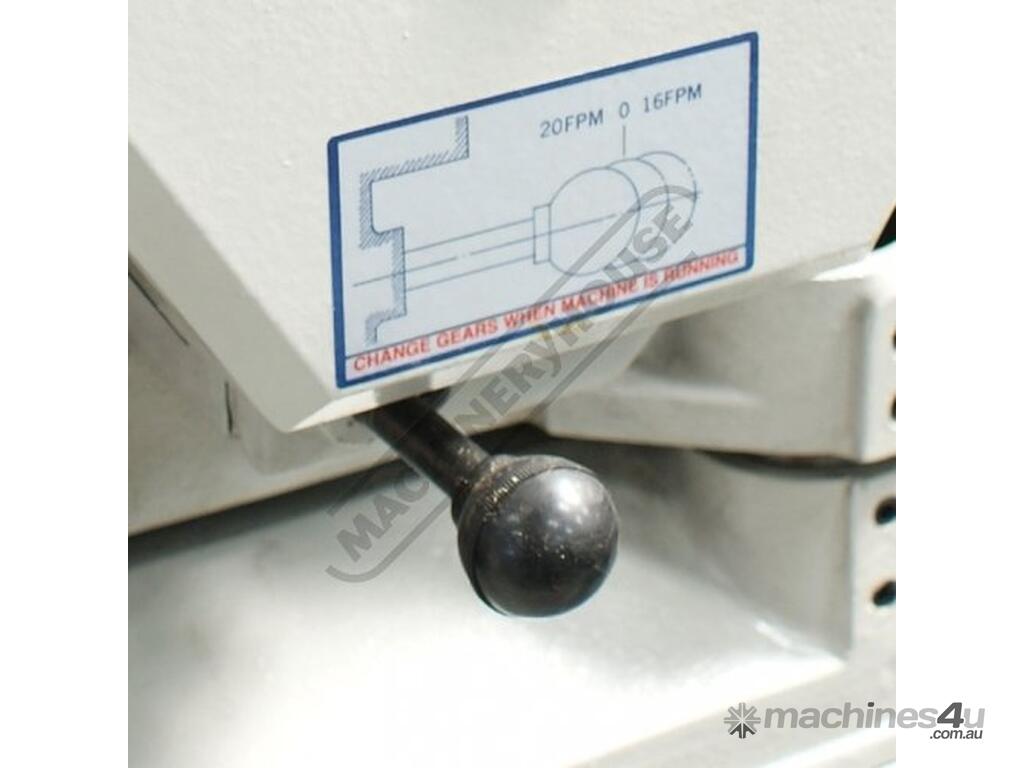

The cutter head is supported by 4 x solid pillars at each corner and the steel drive rollers have ribbing to ensure positive grip on the timber through the machine via two speed gearbox at a rate of 16 or 20fpm. The feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout.

Power is provided by a 2250 / 3hp 240V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system.

Features:
Suits professional workshop
Heavy cast iron machine
4 x HSS blades pre-set in cutter head with quick action blade change
Cutting speed 5000 rpm
2 speed feed rollers with pressure adjustment
125mm dust chute

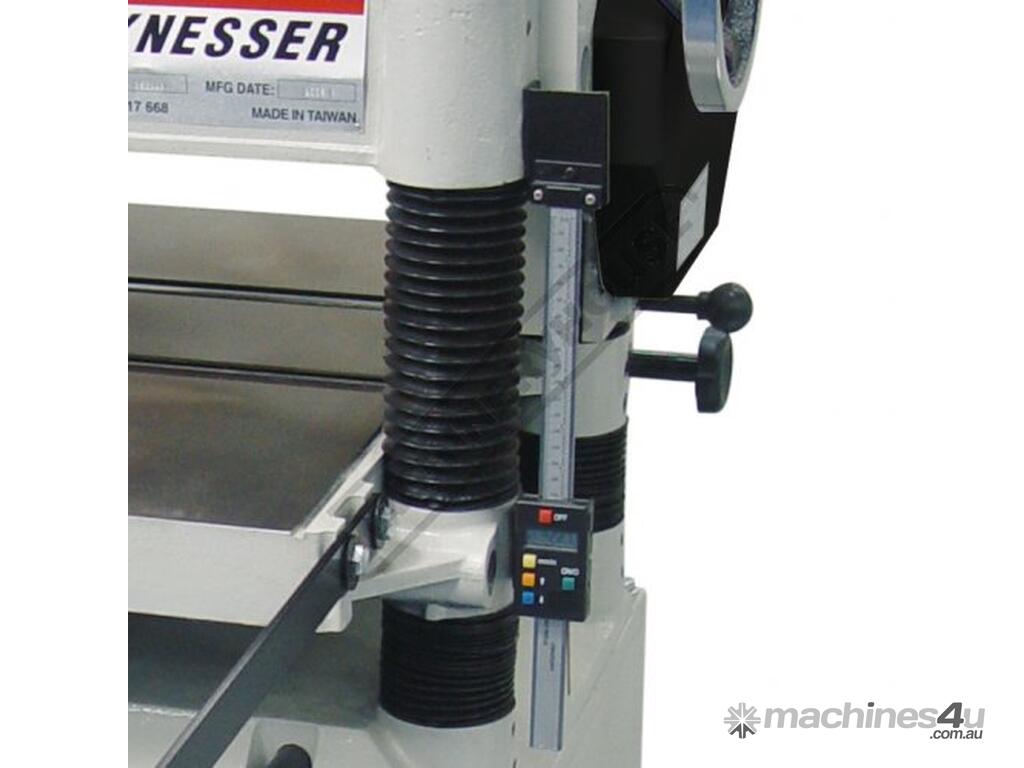

Digital Height Gauge (Includes LR44 battery)

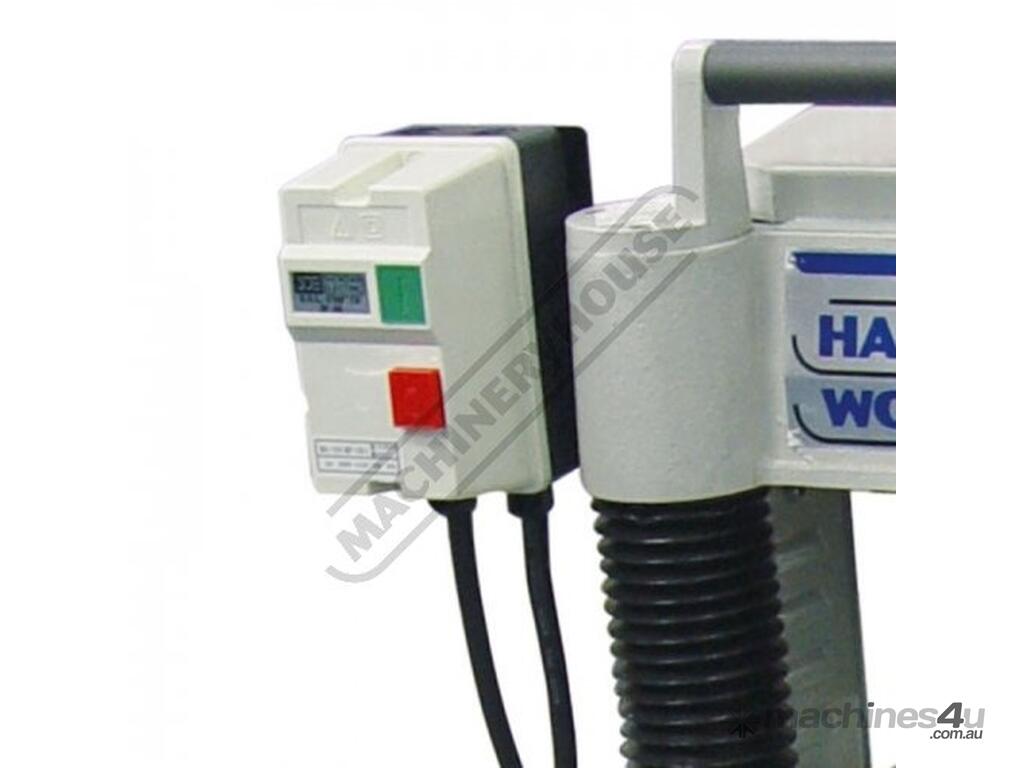

Industrial contactor switch with overload protection
Anti kick back fingers
Left & right table locking dials

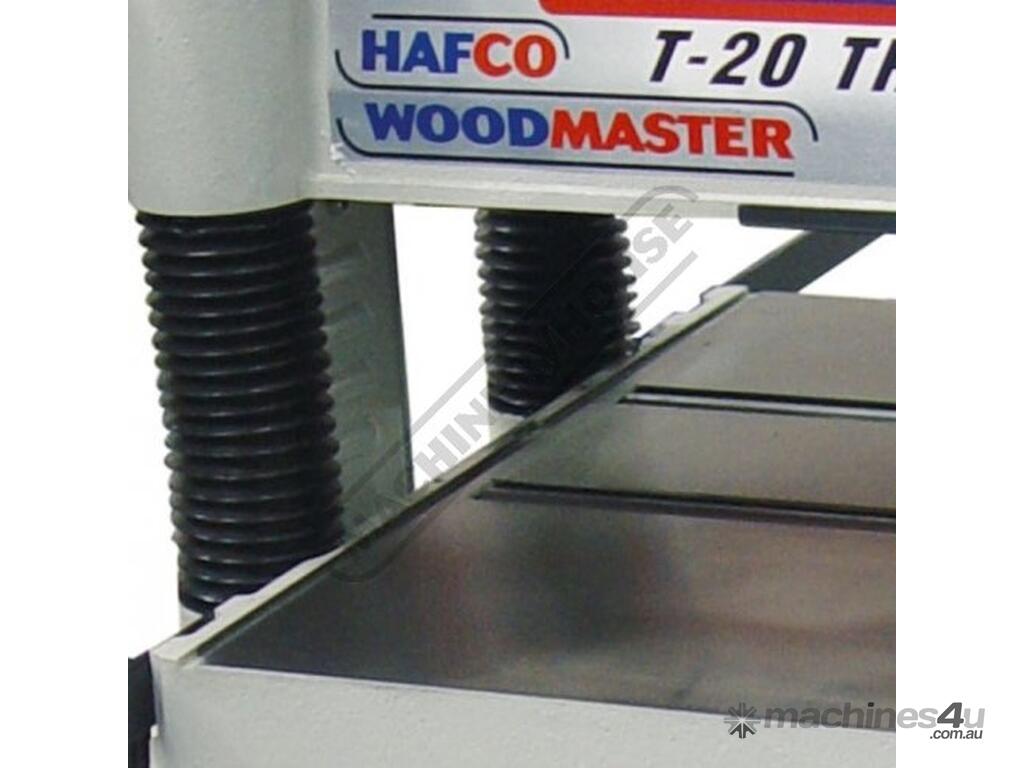

Heavy duty four post design with protective concertina covers
Same model sold for over 20 years
Quality Taiwanese Manufacture

Please Note:
This machine is not supplied with a 240 volt plug


Specifications:
ORDER CODE: W415A
MODEL: T-20A
Material Width Capacity (mm): 508
Material Height Capacity (mm): 200
Minimum Material Length (mm): 190
Maximum Depth of Cut (mm): 6mm 508mm wide
Maximum Depth of Cut (mm): ~
Cutter Type: HSS Blades - Straight
Quantity of Cutters (No. x Type): 4 x Blades
Cutter Block Diameter (mm): 80
Cutter Block Speed (rpm): 5000
Quantity of Spirals (No.): ~
Length of Table (mm): 650
Length of Table with Extensions/Rollers (mm): 1470
Feed Speed (m/min): 4.8 / 6
Dust Outlet Diameter (mm): 125
Motor Power (kW / hp): 2.25 / 3
Voltage / Amperage (V / amp): 240 / 20
Floor Space (W x D x H) (mm): 1000 x 1470 x 1030
Floor Space With Option Stand (W x D x H) (mm): ~
Nett Weight: 420
