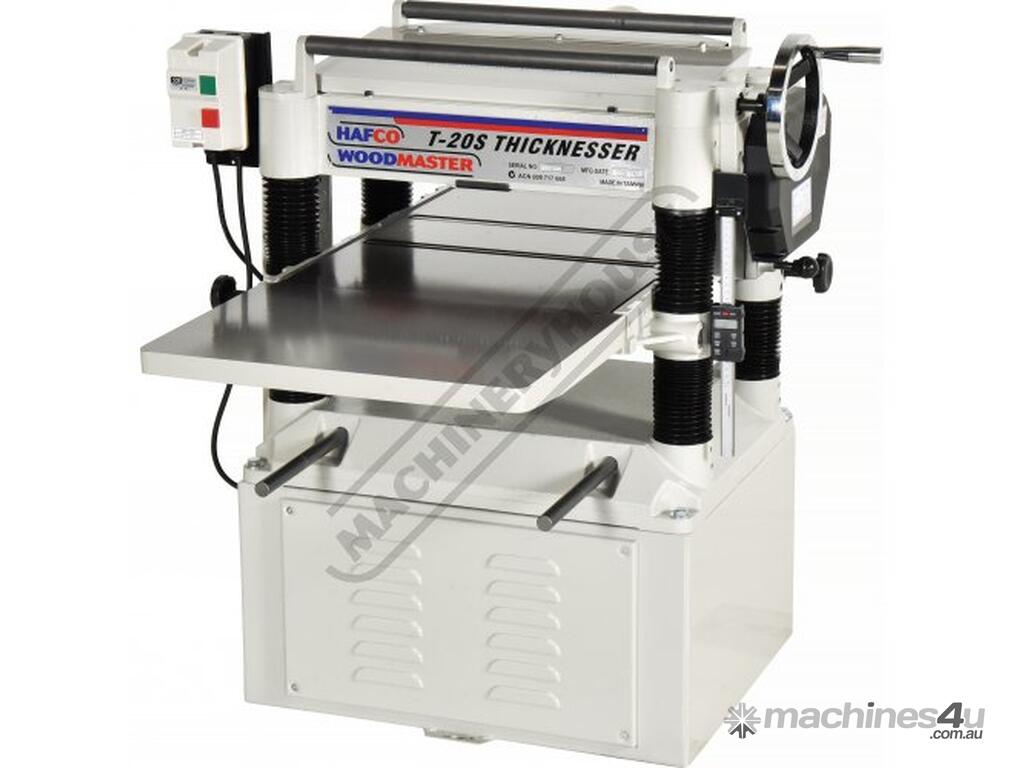

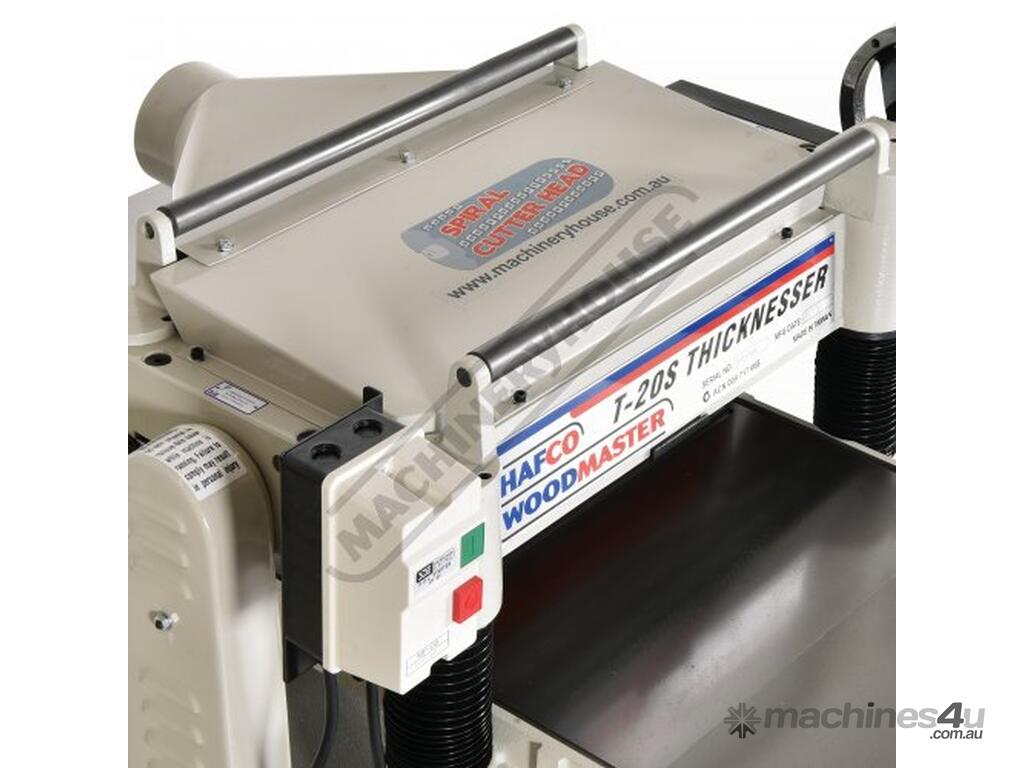

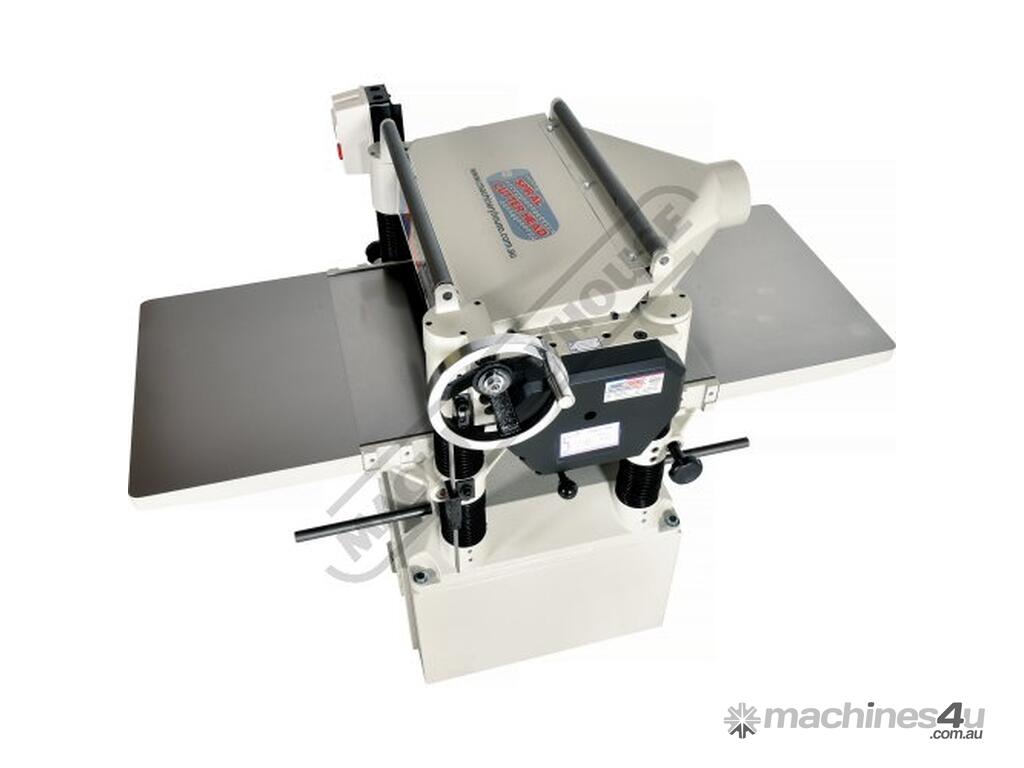

T-20S Thicknesser - Spiral Head Cutter 508 x 200mm (W x H) Material Capacity Includes Spiral Cutter

HAFCO-WOODMASTER T-20S Thicknesser - Spiral Head Cutter 508 x 200mm (W x H) Material Capacity Includes Spiral Cutter Head with Carbide Inserts
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W415S

The Hafco T-20S thicknesser manufactured in Taiwan differs from the traditional design of thicknessers because of the spiral cutter head that's now standard on this model. The important advantage of a spiral cutter head is its spiral shearing action with the workpiece. This translates into a much smoother cut with less chipping and tear out of the workpiece, as well as significantly much quieter operation compared to the very loud chopping effect produced by a traditional HSS blade cutter-head.

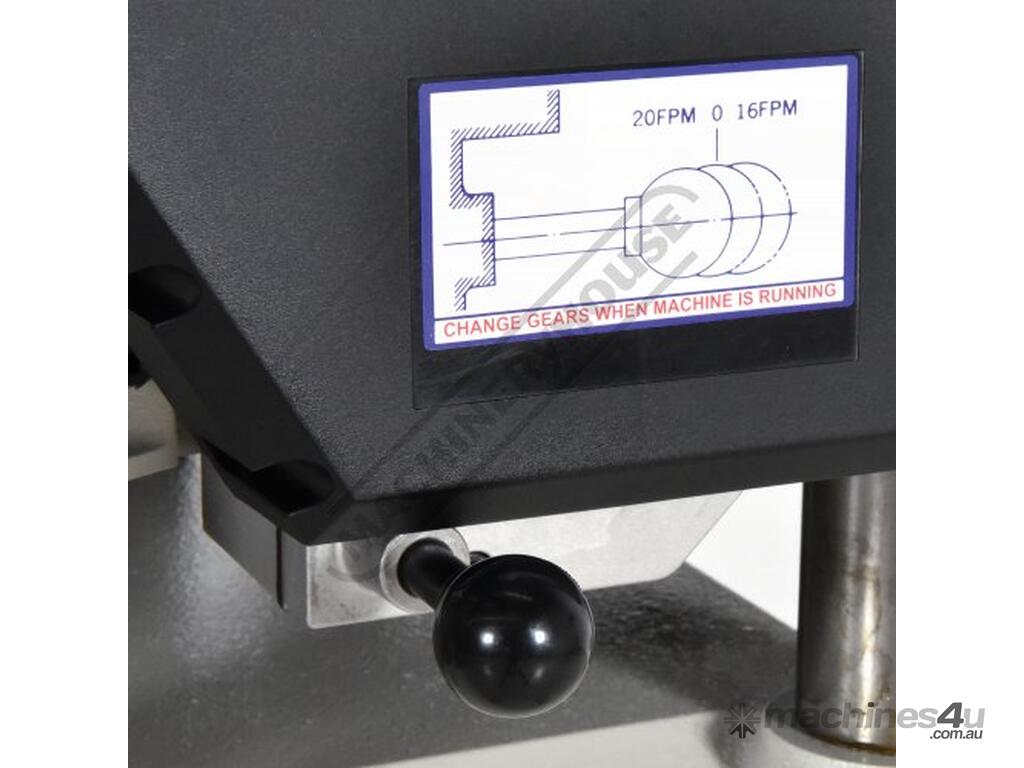

The T-20S is equipped with a spiral cutter head that includes 92 carbide inserts which are easily indexed or replaced, just simply use the tool screw key that's provided to unscrew the individual insert to be replaced as there is no fiddly height setting to be carried out. The cutter head is supported by 4 x solid pillars at each corner and the steel drive rollers have ribbing to ensure positive grip on the timber through the machine via two speed gearbox at a rate of 16 or 20fpm. The feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout.

Power is provided by a 3750W / 5hp 415V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system.

Features:
Heavy cast iron machine suits professional workshop

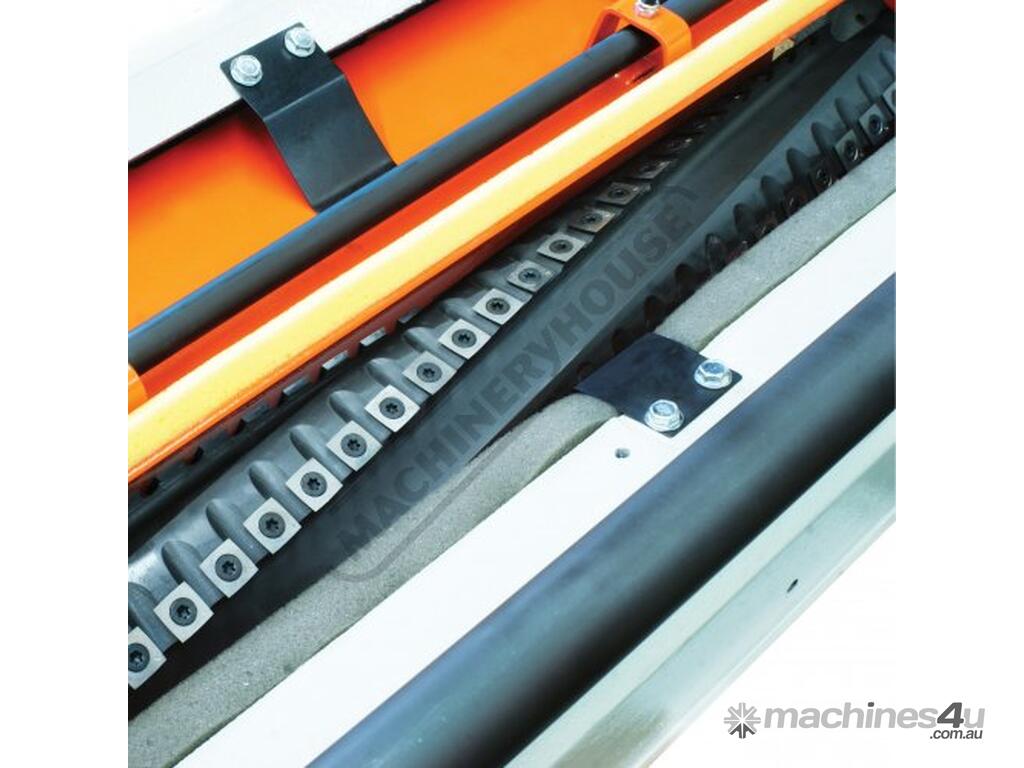

4 spirals on cutter head with 92 pre-loaded carbide inserts
Carbide inserts incorporate 4 cutting edges for reduced vibration
Dynamically balanced cutting head
Cutting speed 5000 rpm
2 speed feed rollers with pressure adjustment
125mm dust chute

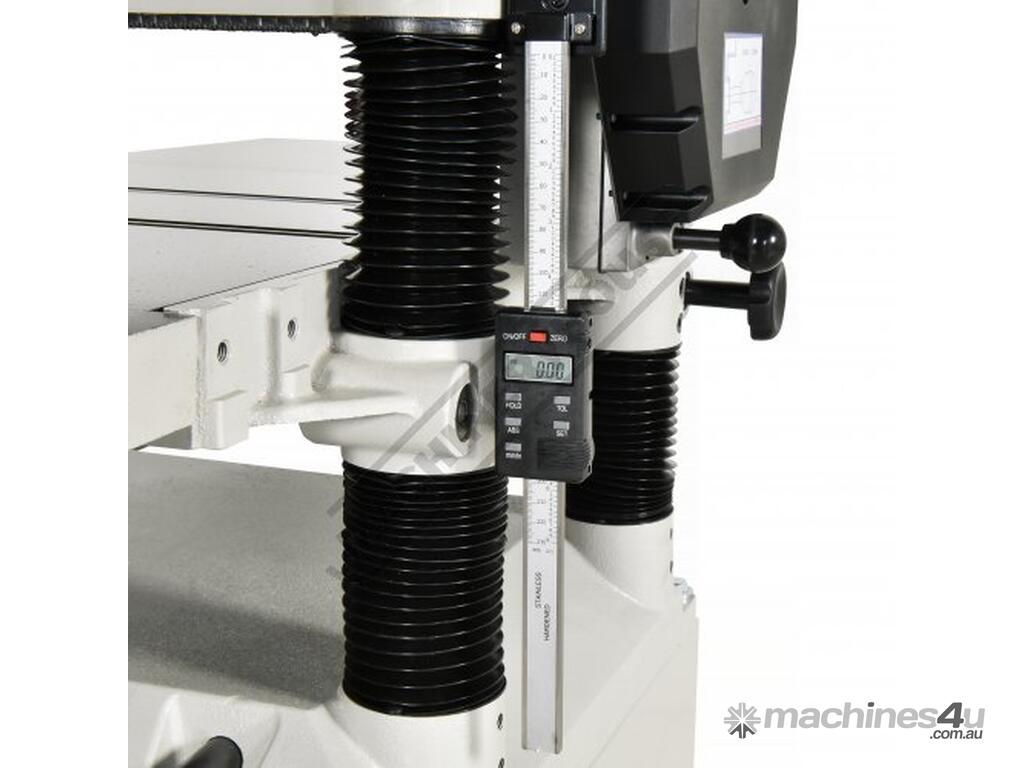

Digital Height Gauge (Includes LR44 battery)

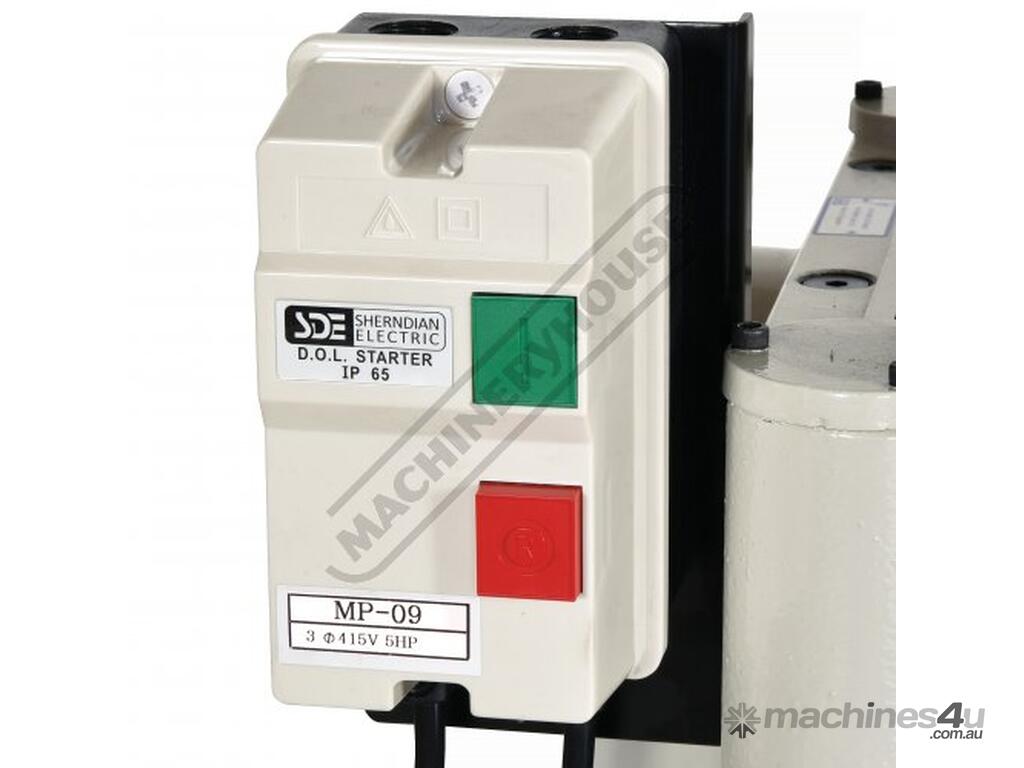

Industrial contactor switch with overload protection
Anti kick back fingers
Left & right table locking dials

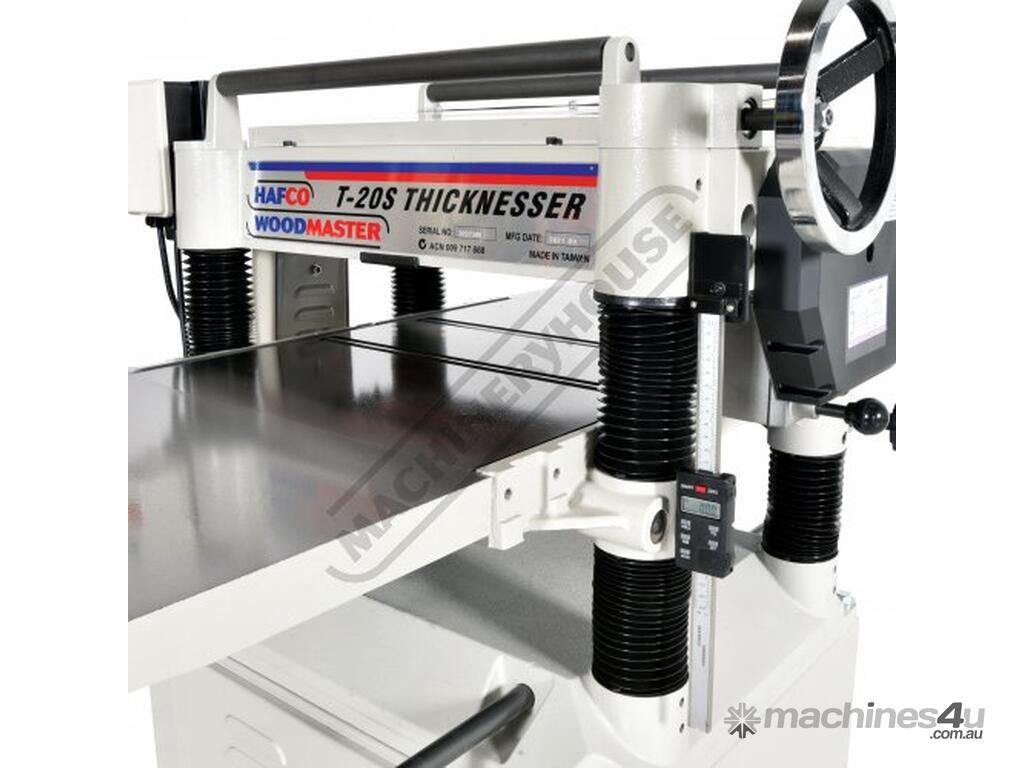

Heavy duty four post design with protective concertina covers
Same model sold for over 20 years
Quality Taiwanese Manufacture

Includes:
- Includes 92 Carbide Inserts - Dimension Shown Below.



Specifications:
ORDER CODE: W415S
MODEL: T-20S
Material Width Capacity (mm): 508
Material Height Capacity (mm): 200
Minimum Material Length (mm): 190
Maximum Depth of Cut (mm): 6mm 508mm wide
Maximum Depth of Cut (mm): ~
Cutter Type: Carbide Inserts - Spiral
Quantity of Cutters (No. x Type): 92 x Inserts
Cutter Block Diameter (mm): 80
Cutter Block Speed (rpm): 5000
Quantity of Spirals (No.): 4
Length of Table (mm): 650
Length of Table with Extensions/Rollers (mm): 1470
Feed Speed (m/min): 4.8 / 6
Dust Outlet Diameter (mm): 125
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Floor Space (W x D x H) (mm): 1000 x 1470 x 1030
Floor Space With Option Stand (W x D x H) (mm): ~
Nett Weight: 420
