T-380A Thicknesser - HSS Blades 380 x 150mm (W x H) Material Capacity Includes 3 x High Speed Steel

HAFCO-WOODMASTER T-380A Thicknesser - HSS Blades 380 x 150mm (W x H) Material Capacity Includes 3 x High Speed Steel Blades
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W414

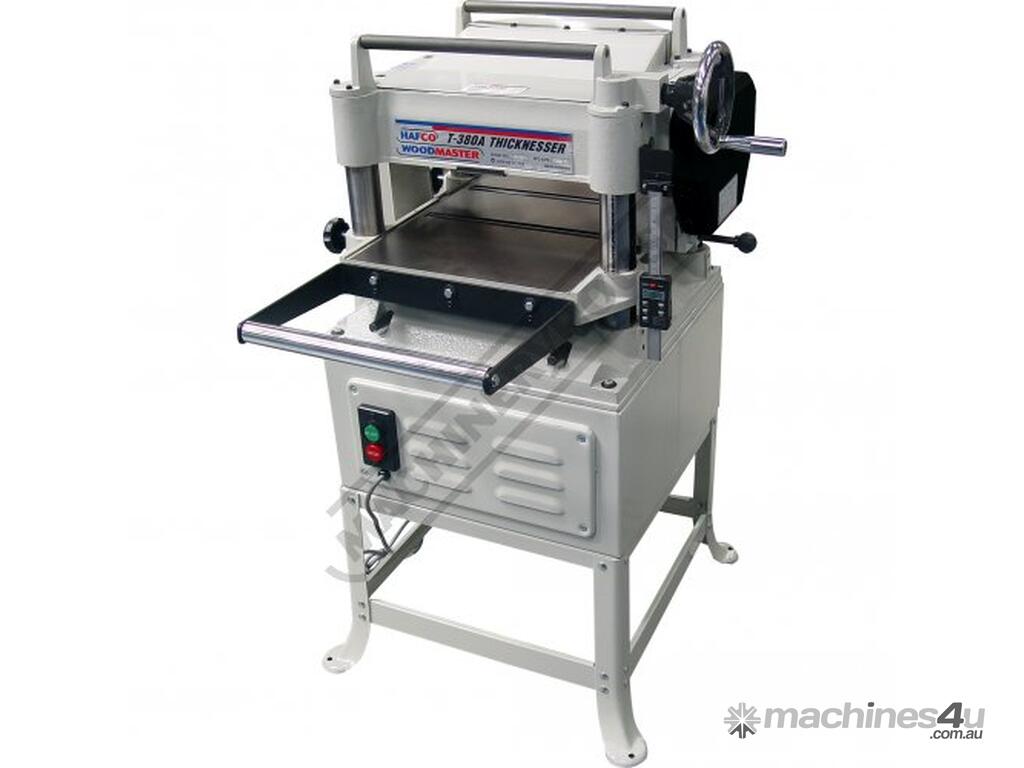

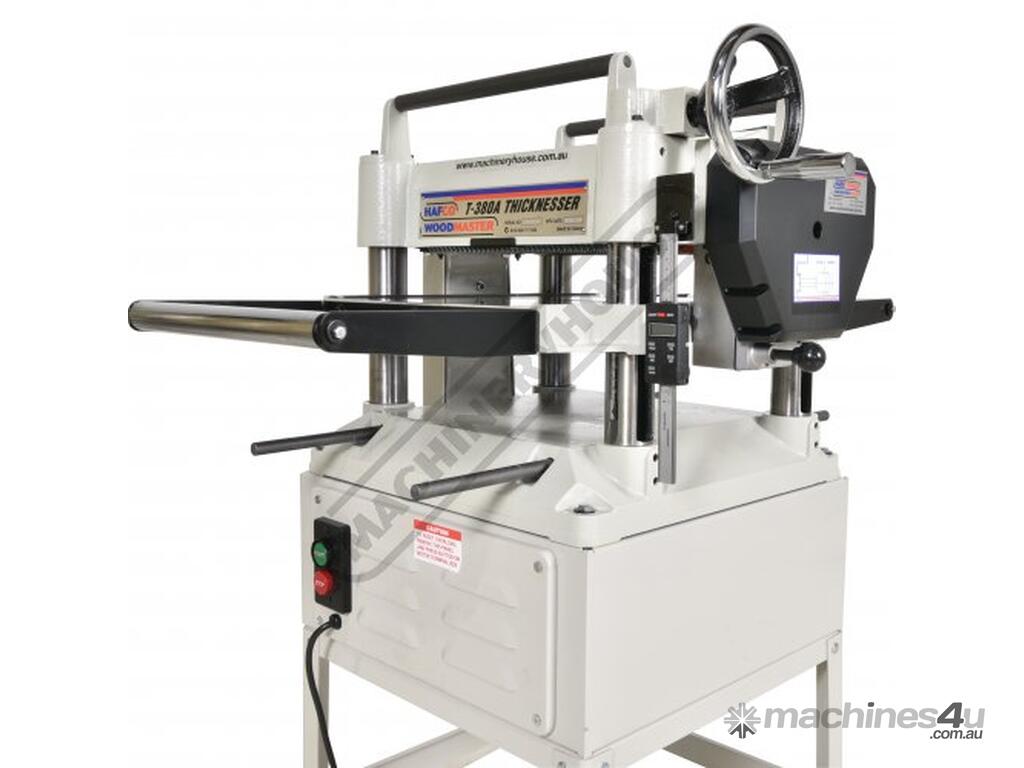

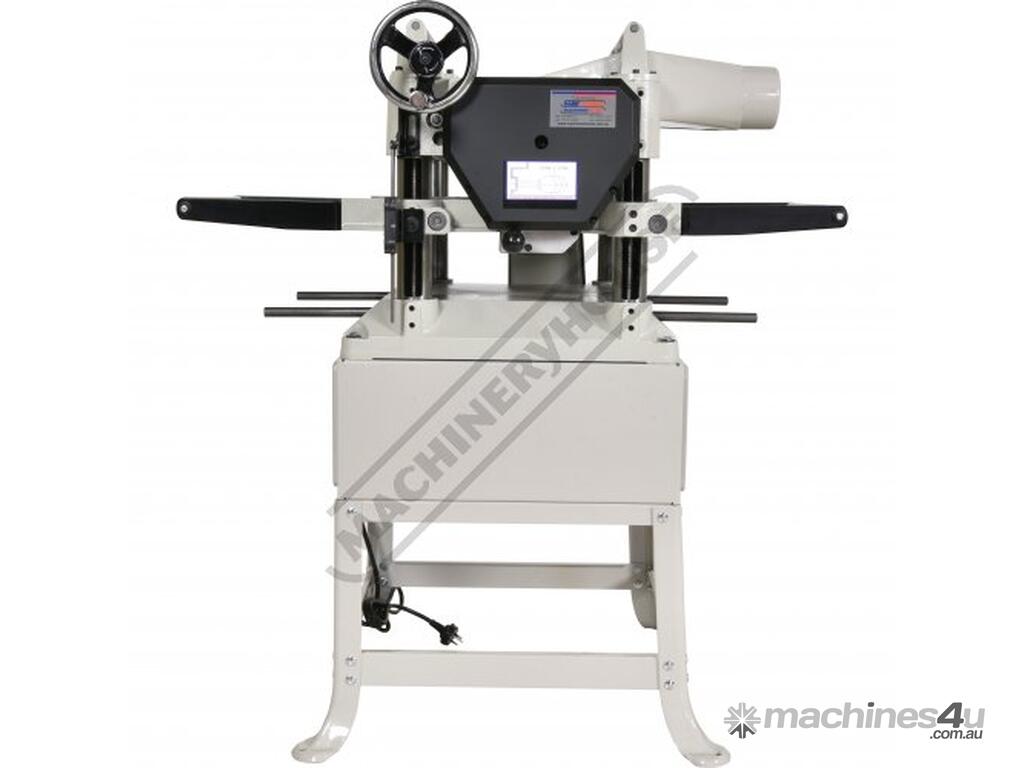

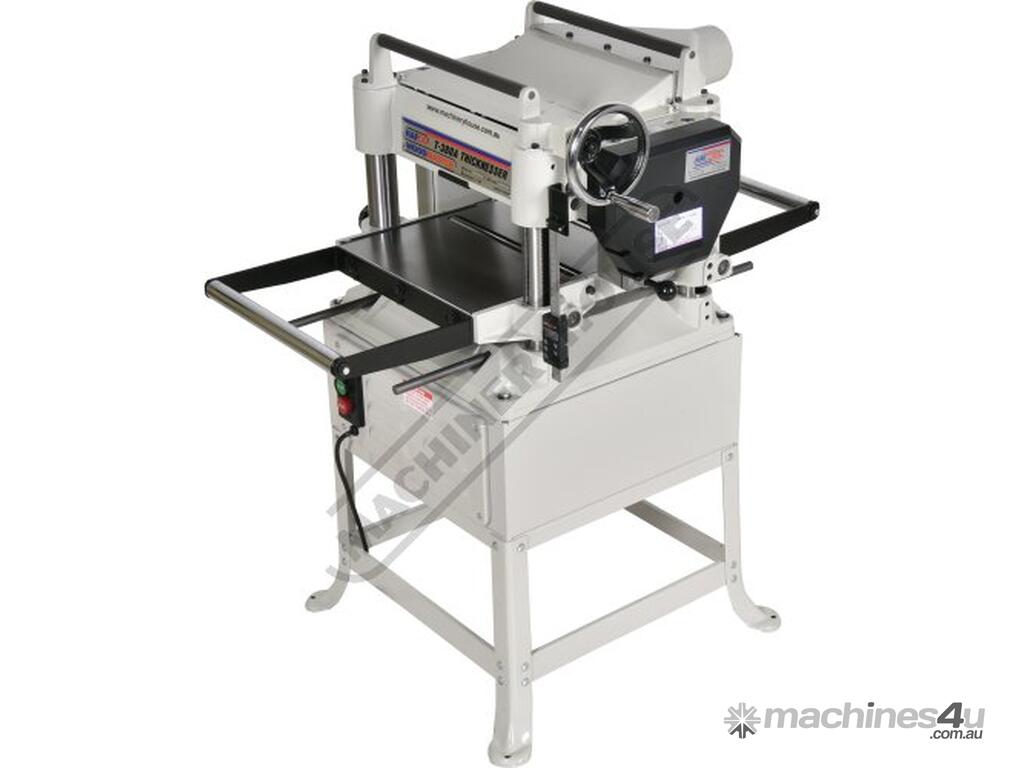

The Hafco T-380 thicknesser manufactured in Taiwan with three knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron thicknessing table which has a polished surface to help timber slide freely as well as to help reduced vibration to improved quality of cut.

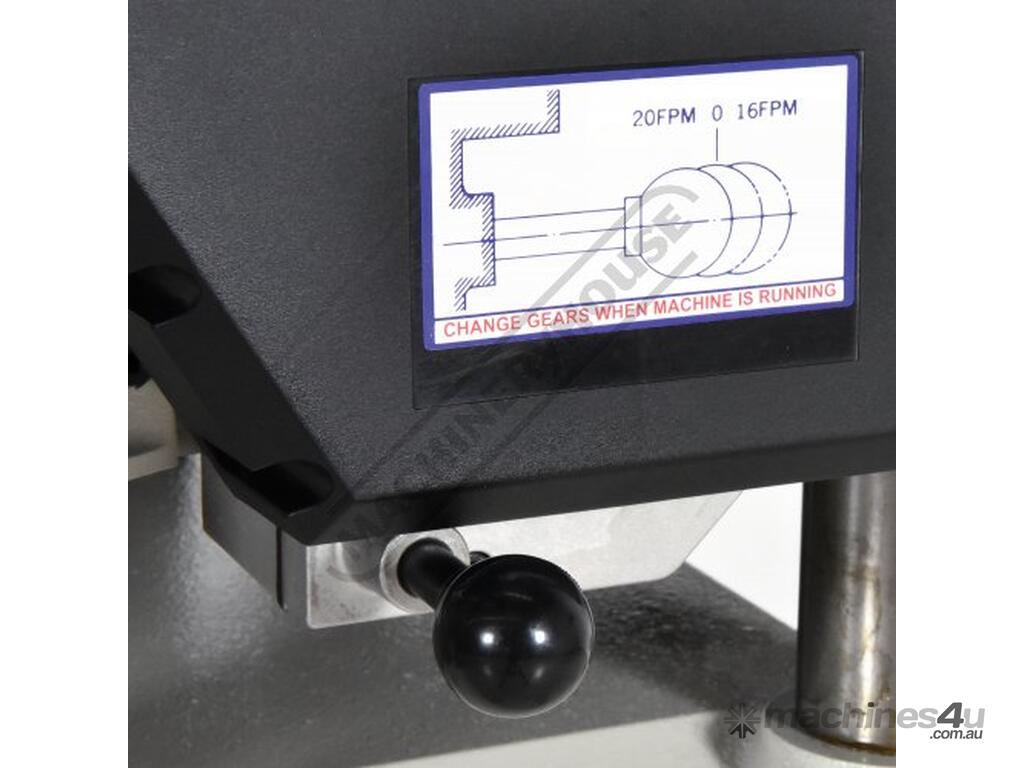

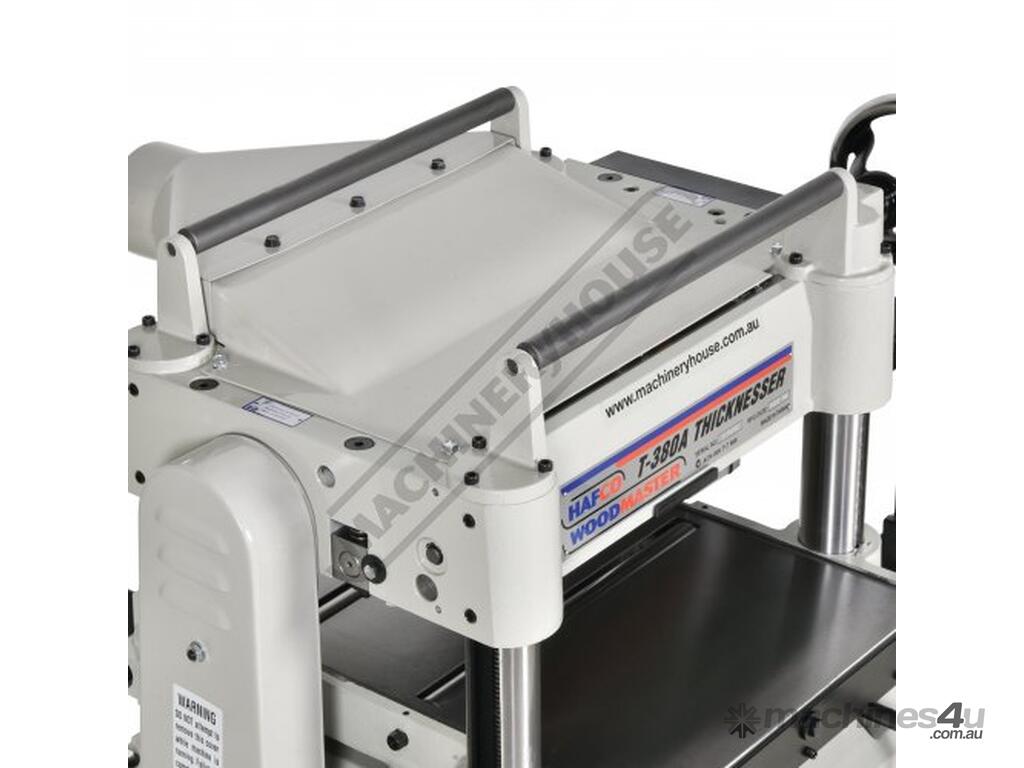

The cutter head is supported by 4 x solid pillars at each corner and the steel drive rollers have ribbing to ensure positive grip on the timber through the machine via two speed gearbox at a rate of 16 or 20fpm. The feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout.

Power is provided by a 1500W / 2hp 240V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system.

Features:
380mm wide x 150mm high timber capacity

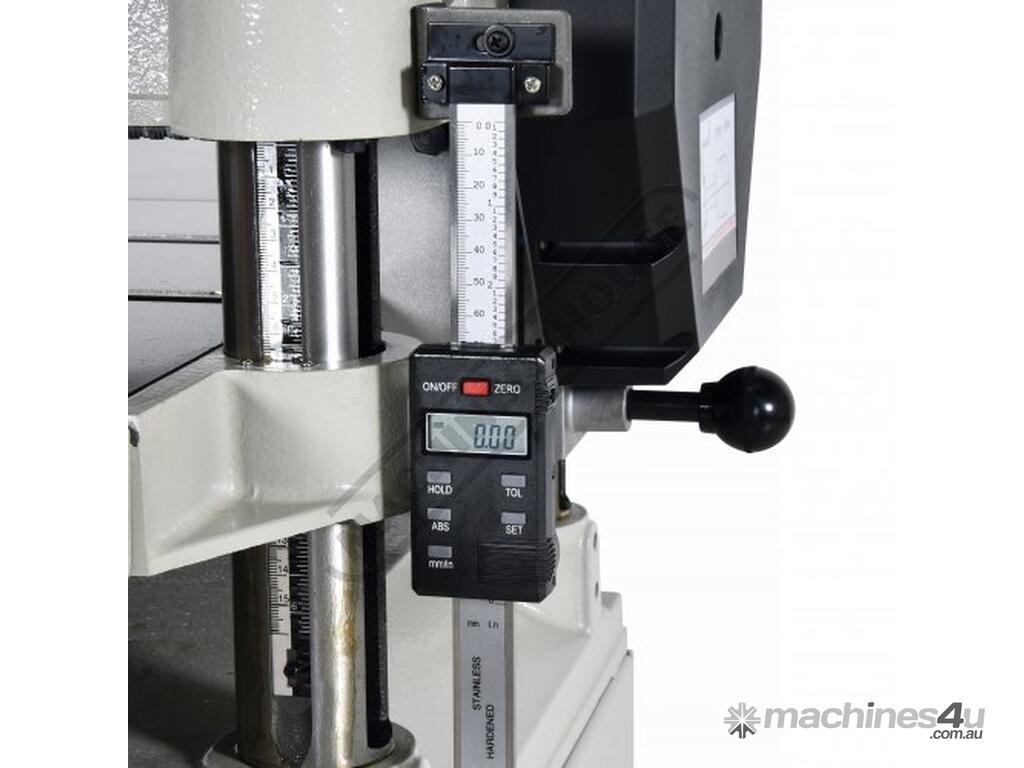

Digital Height Gauge (Includes LR44 battery)
Motor located in enclosed stand ensuring effortless rise/fall & less wear to mechanical components
Solid cast iron construction
3 x HSS blades pre-set in cutter head with quick action blade change
Left side table locking dials
2 speed gearbox
100mm dust chute
Same model sold for over 20 years
Quality Taiwanese Manufacturer


Specifications:
ORDER CODE: W414
MODEL: T-380A
Material Width Capacity (mm): 380
Material Height Capacity (mm): 150
Minimum Material Length (mm): 175
Maximum Depth of Cut (mm): 2mm 380mm wide
Maximum Depth of Cut (mm): ~
Cutter Type: HSS Blades - Straight
Quantity of Cutters (No. x Type): 3 x Blades
Cutter Block Diameter (mm): 73
Cutter Block Speed (rpm): 5000
Quantity of Spirals (No.): ~
Length of Table (mm): 520
Length of Table with Extensions/Rollers (mm): 1015
Feed Speed (m/min): 4.8 / 6
Dust Outlet Diameter (mm): 100
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 15
Floor Space (W x D x H) (mm): 770 x 1015 x 1100
Floor Space With Option Stand (W x D x H) (mm): ~
Nett Weight: 230
