T1449-3 transformer 3 phase 220V 100V 150V 75V

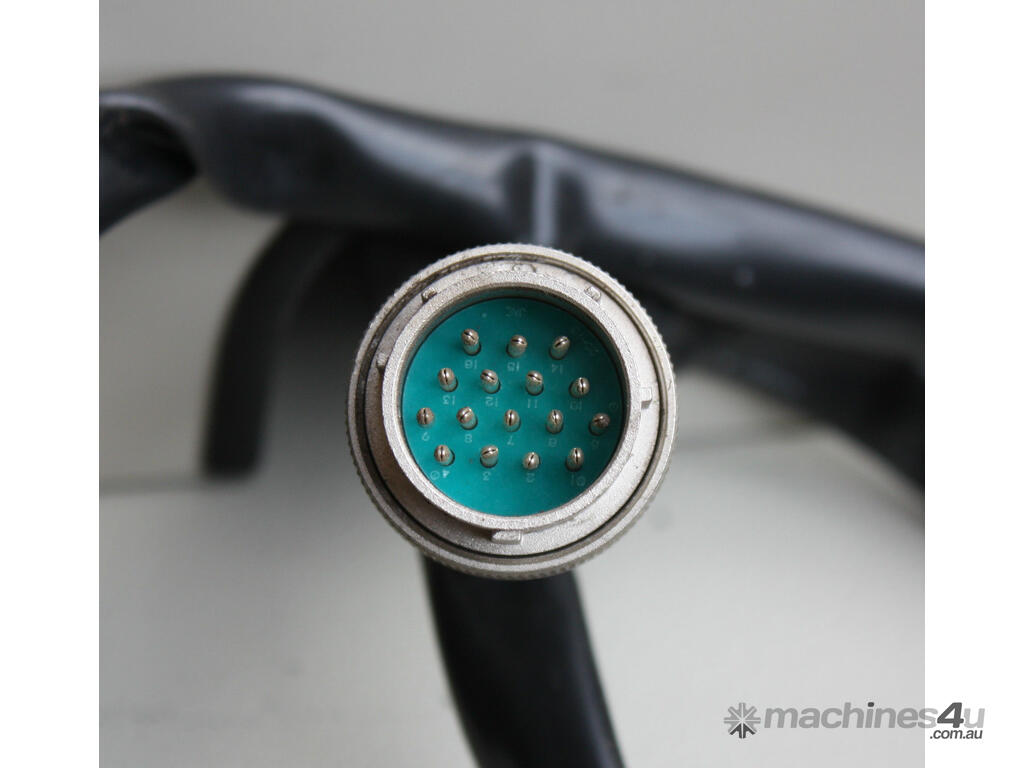

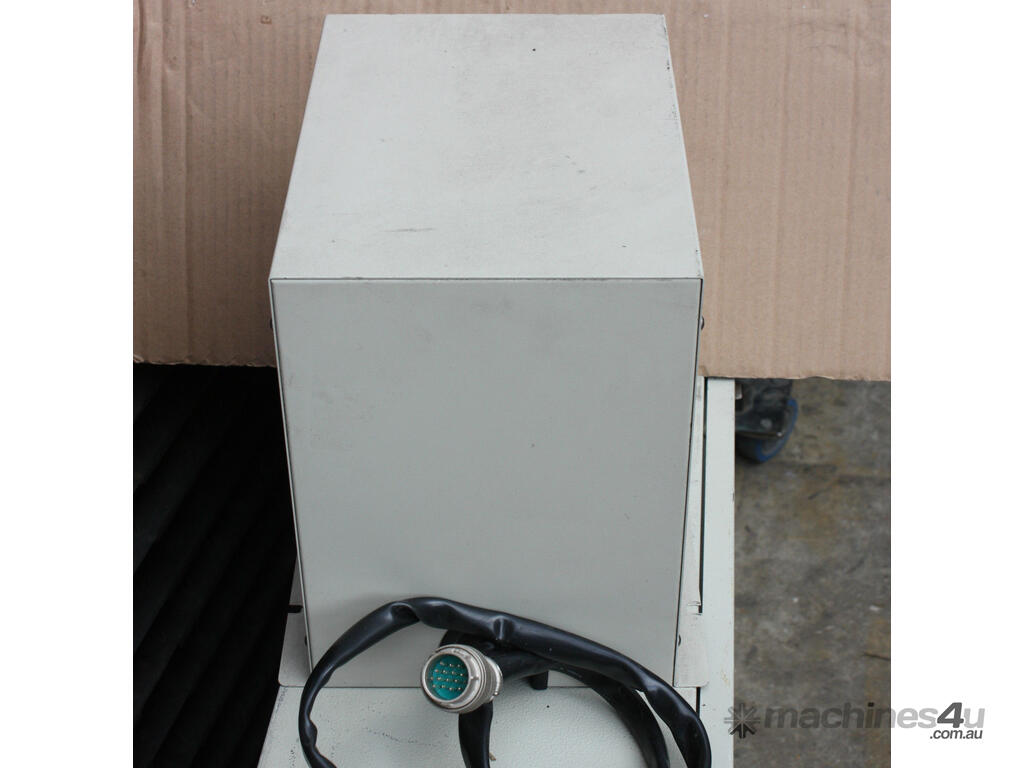

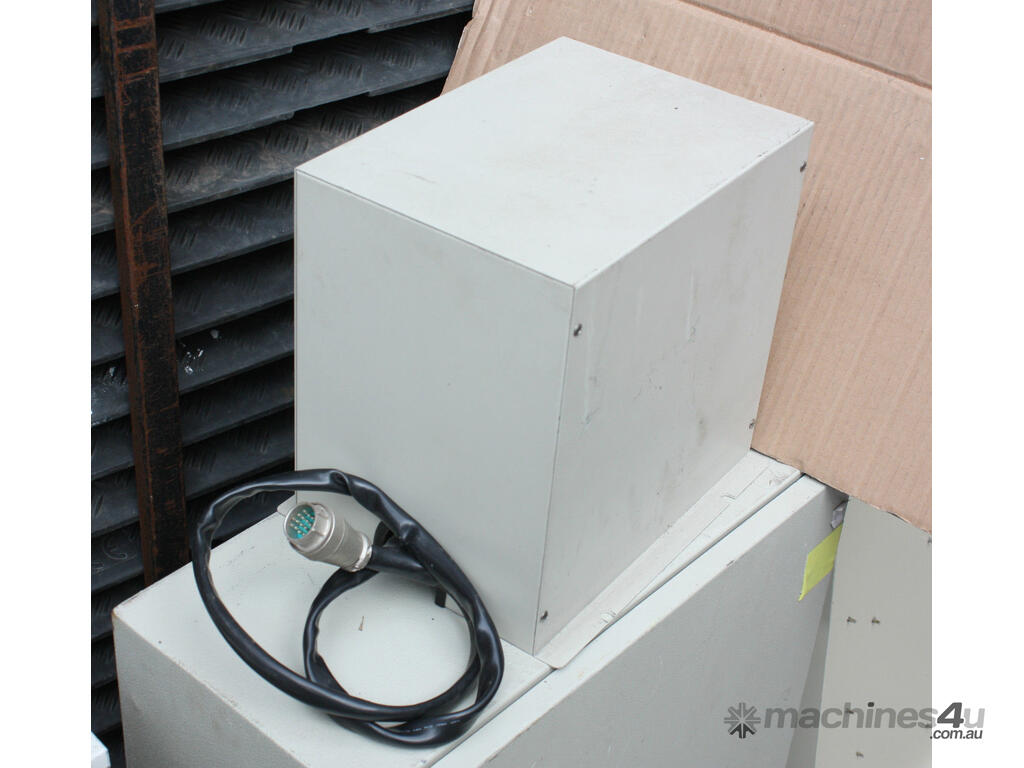

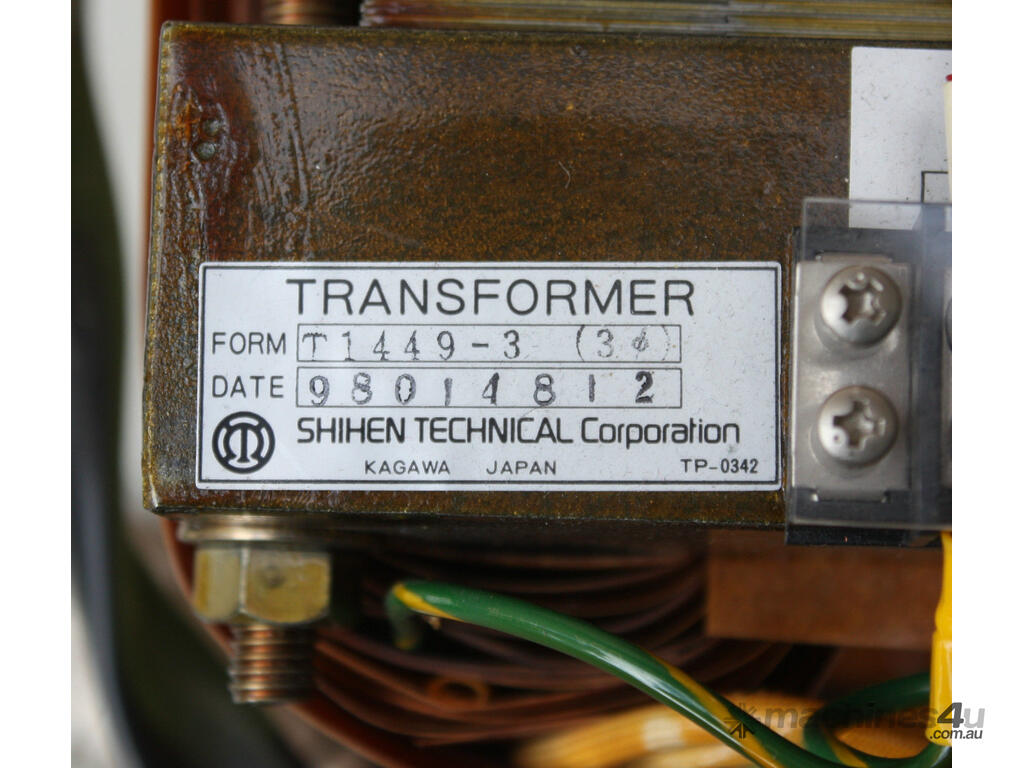

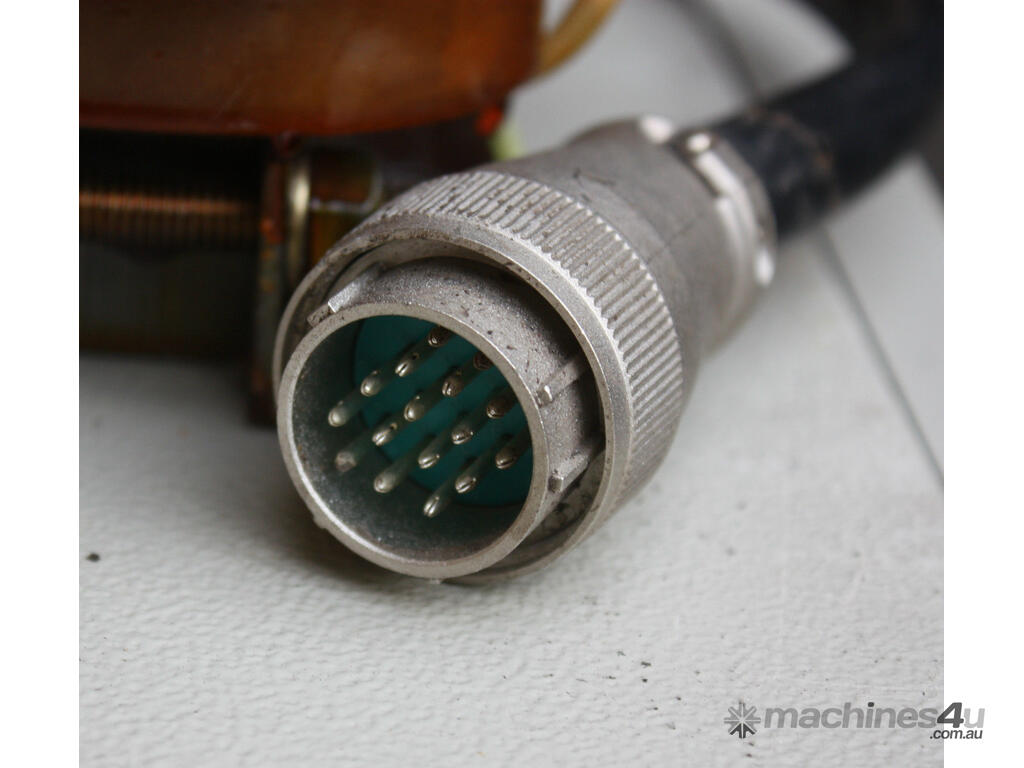

SHIHEN T1449-3 transformer 3 phase with multipin connector and bolt-down steel cover for BARUDAN Industrial Embroidery machine.

Removed from decommissioned Barudan Industrial Embroidery Machine model Bensme ZO A15. Serial No 90015379

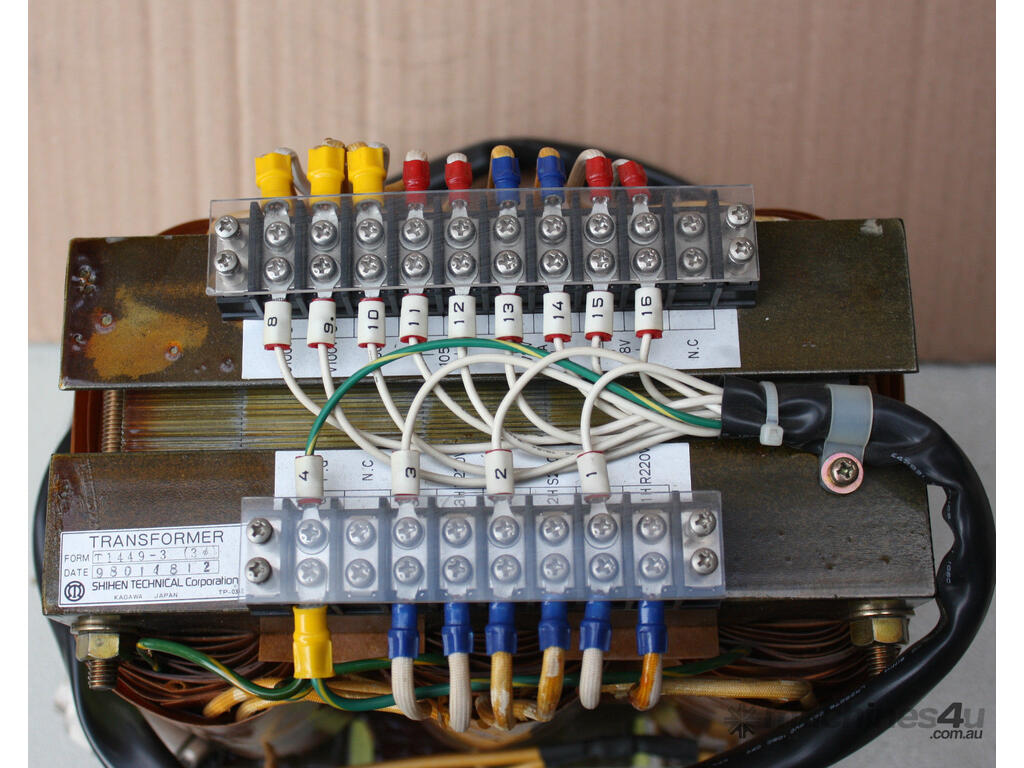

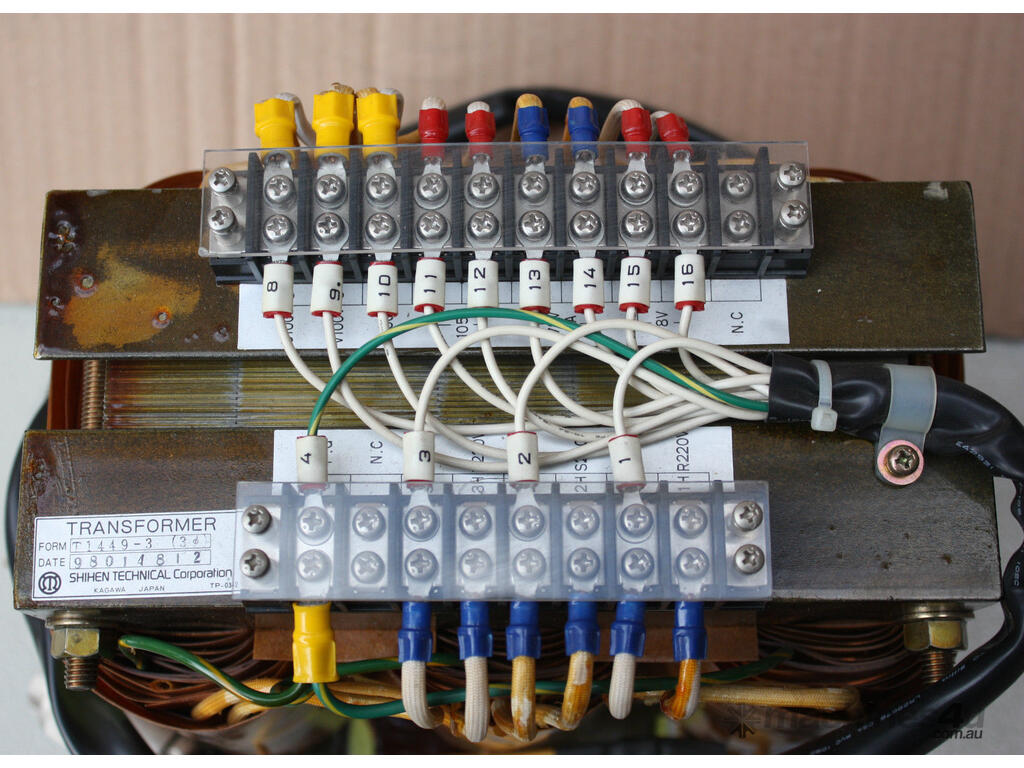

This transformer provides a number of different voltages to suit the various voltages used in the control box the primary is marked 220V this would be designed for 220V phase to phase. I think the secondaries are as follows

1 set 100V 3 phase secondary

1 x 150V single phase on one of the 3 phase bobbins

2 x 78V single phase secondaries on the other 2 bobbins

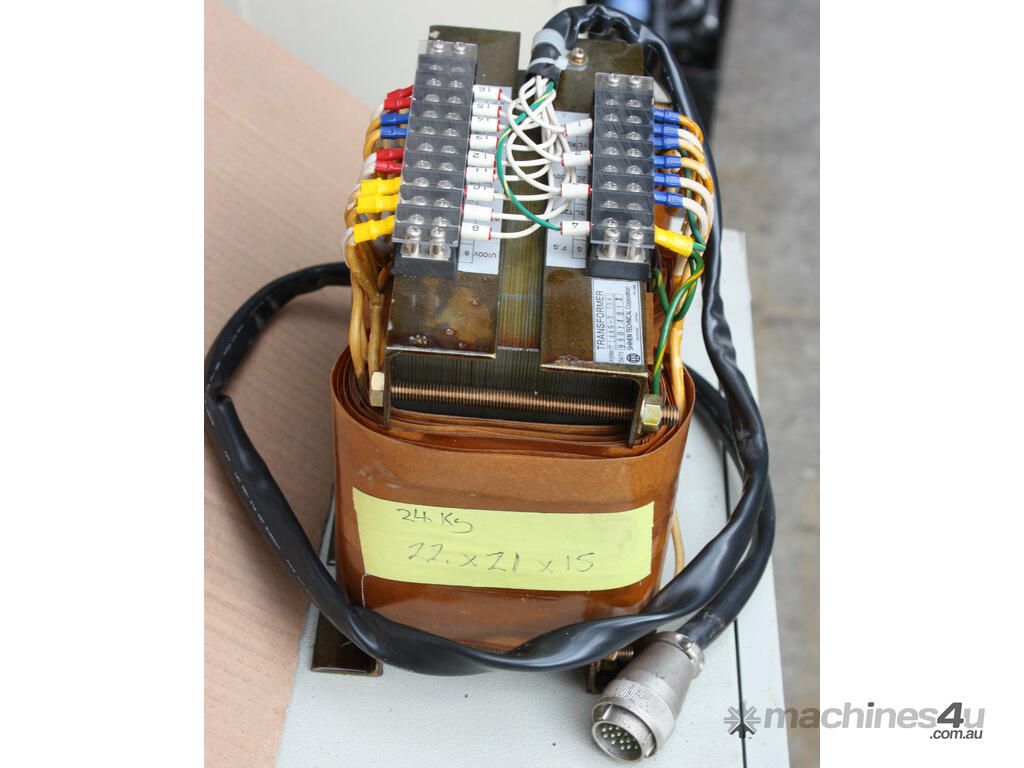

Not marked with KVA rating but its 24KG without the cover so its not tiny

Weight 25 kg before packing - approx 30 kg packed

Dimensions: Approx 30 x 30 x 20 before packing

Item is too heavy to post but we can assist with making freight arrangements. Please send your full address (needs to be a business address) and phone number if requesting a freight quote.

Please provide full address and phone number for shipping.
