TANCO TC Q200 LINKAGE SQUARE & ROUND BALE WRAPPER (1.9M)

WRAP ALL BALES SIZES & TYPES - UP TO 80 BALES PER HOUR.

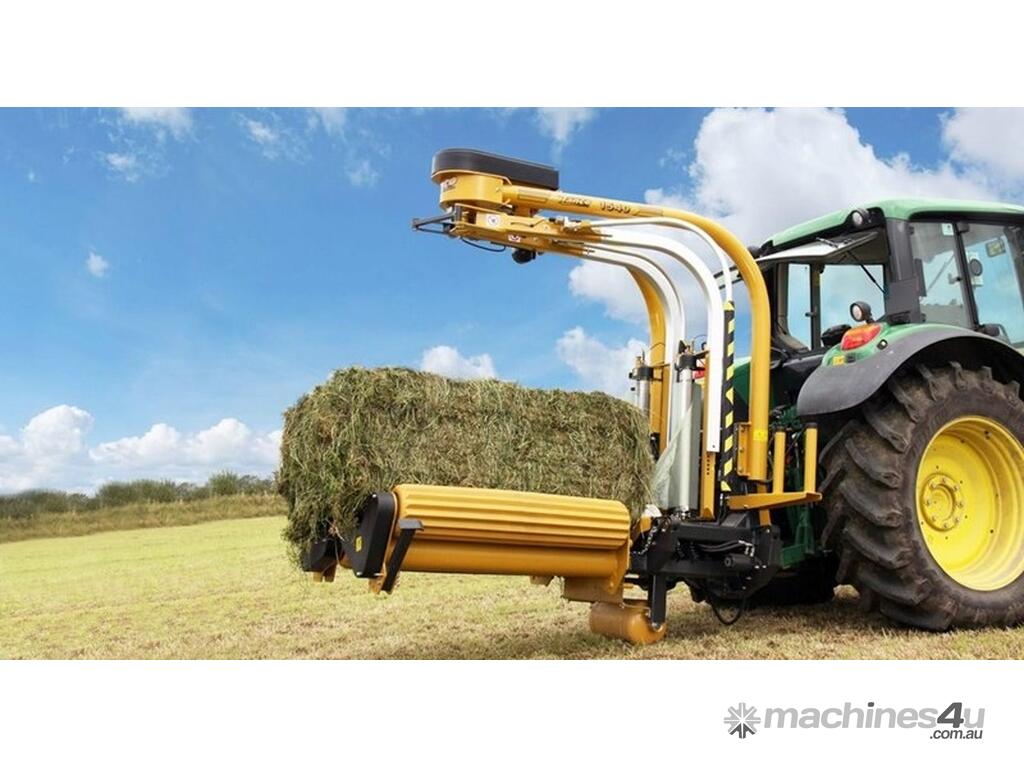

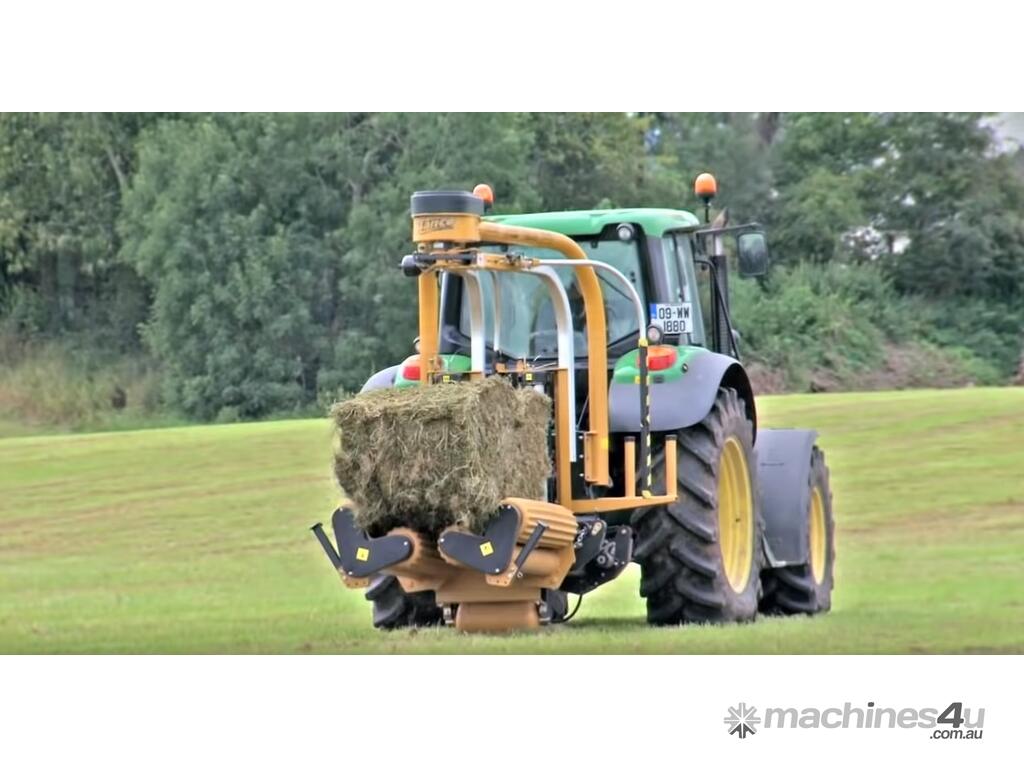

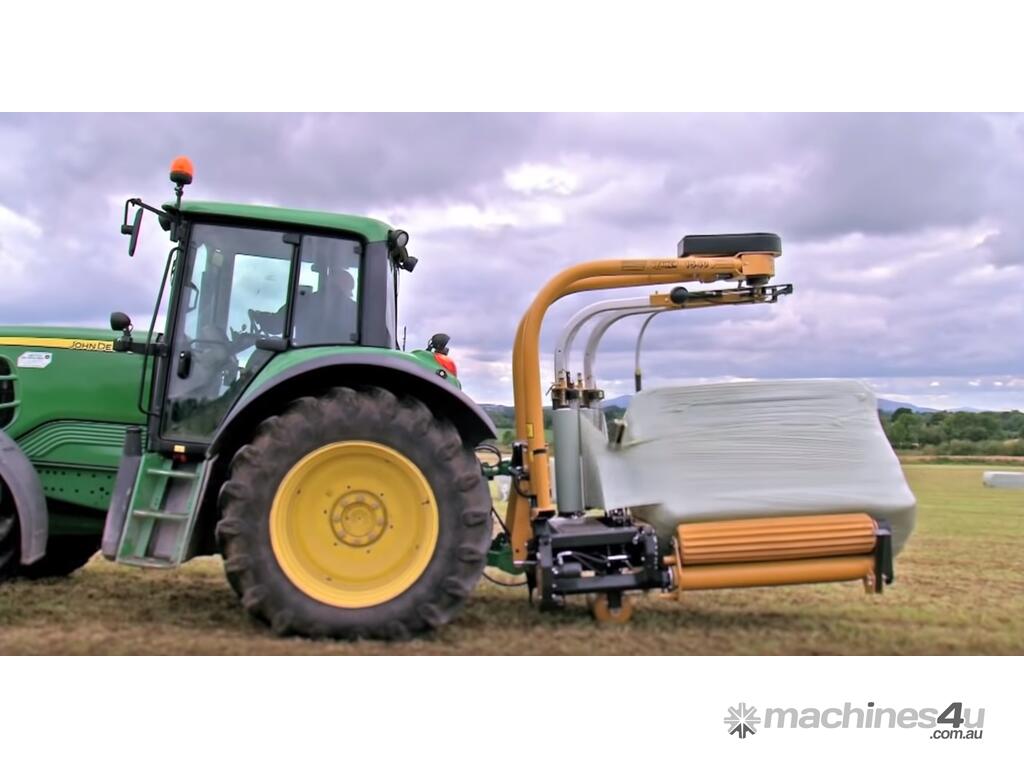

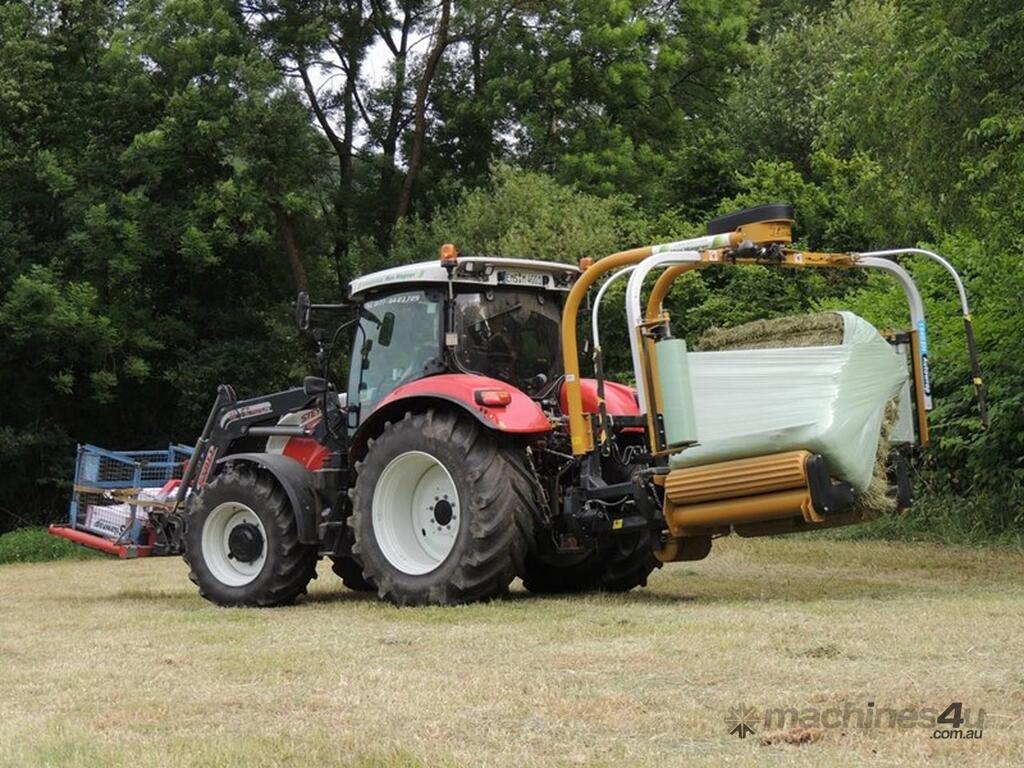

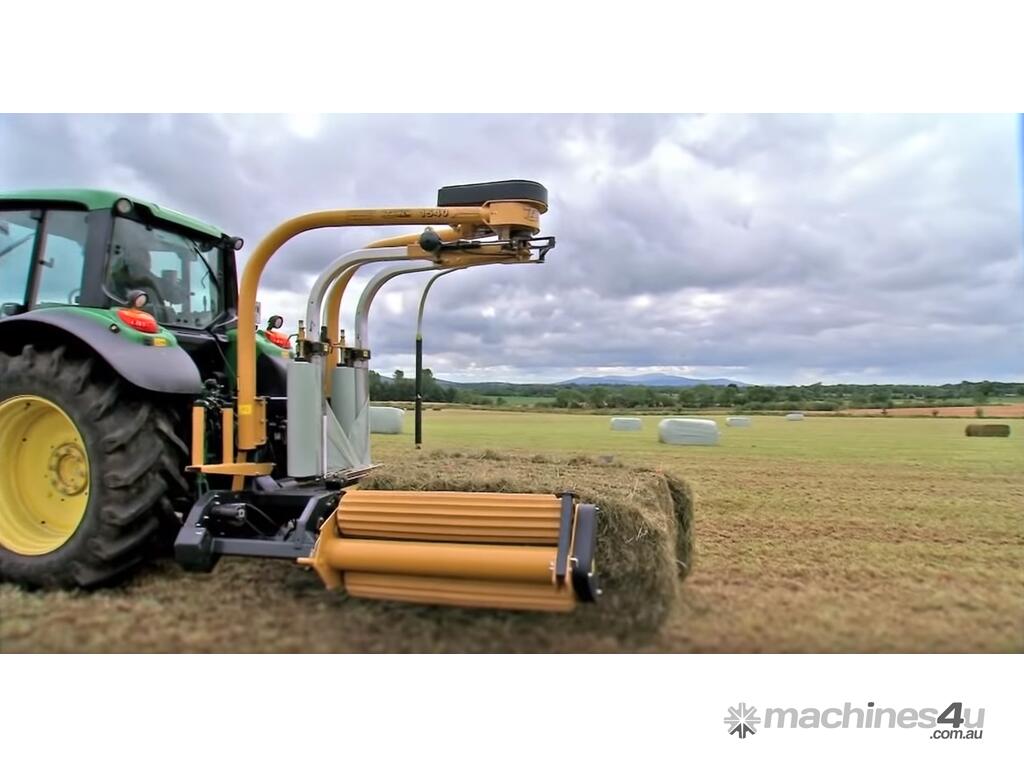

The new Q Series linkage mounted round and square bale wrapper eliminates the need for large cumbersome trailed wrappers. Compact and lightweight, the Q Series has huge capabilities for its size.

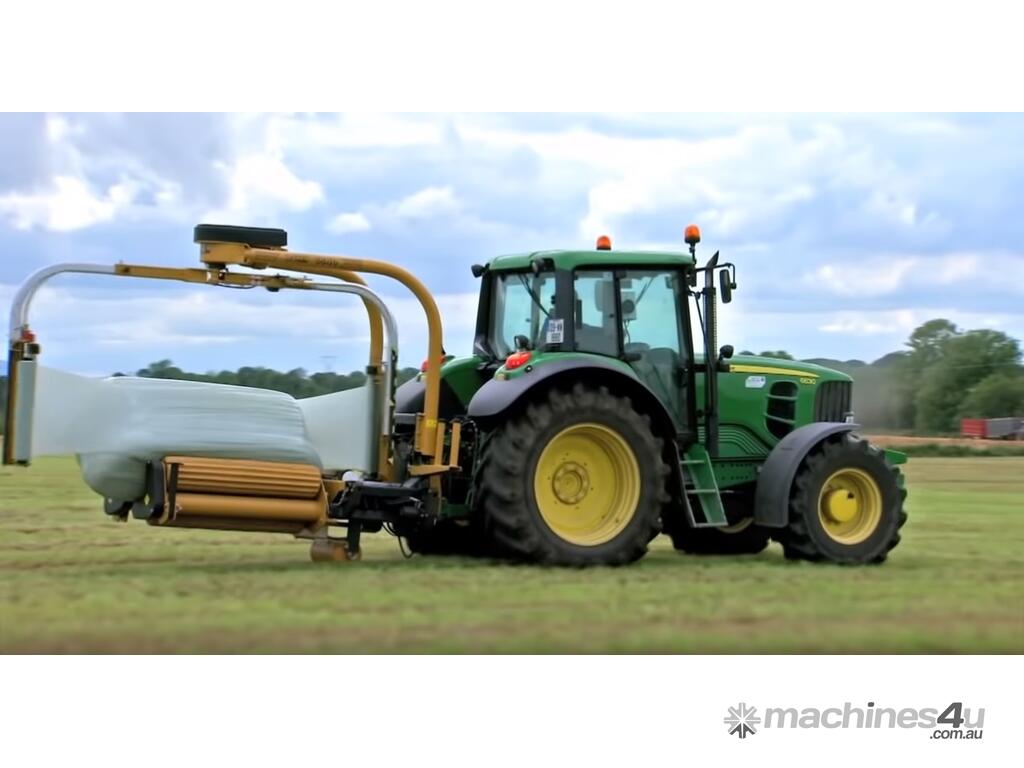

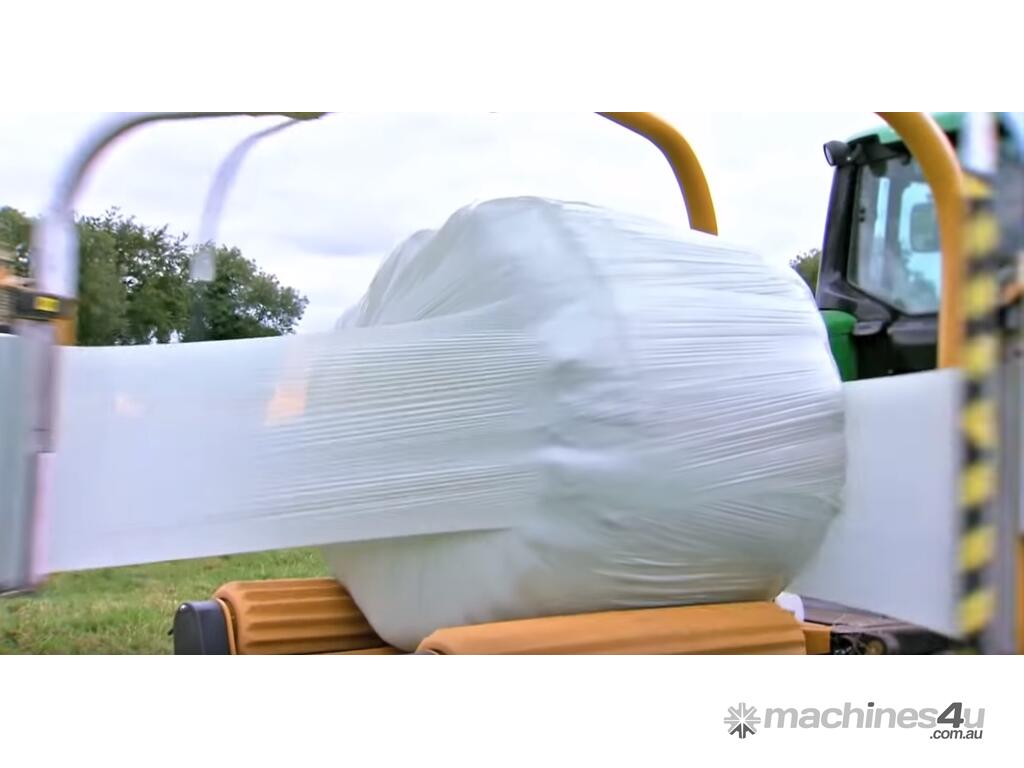

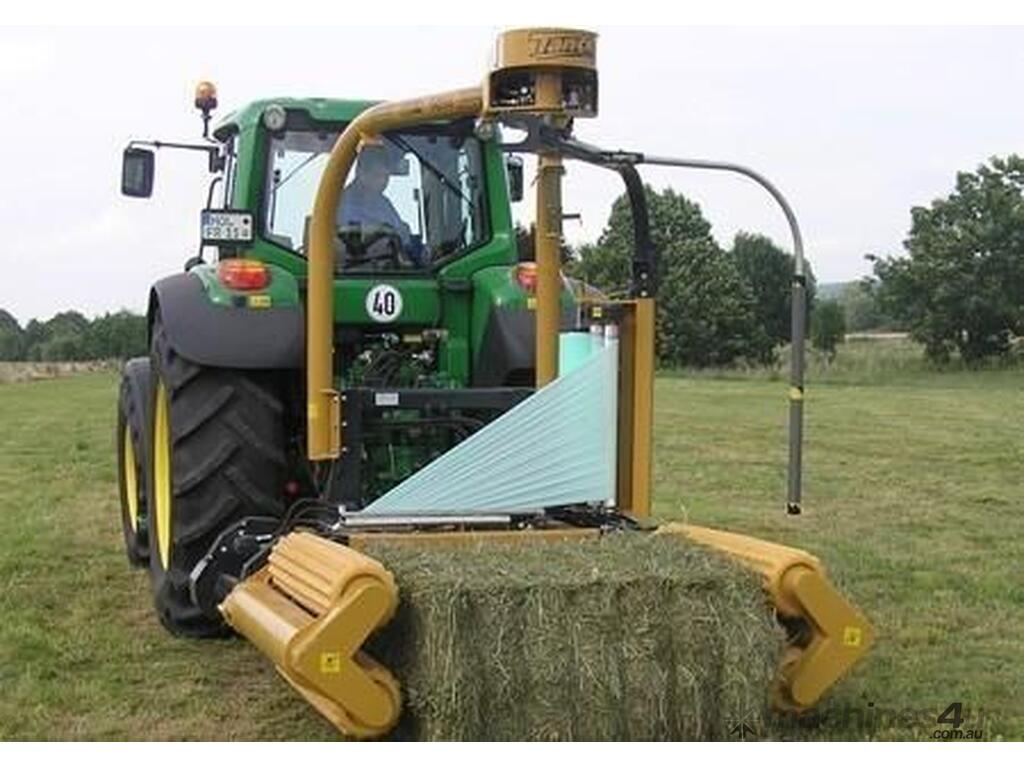

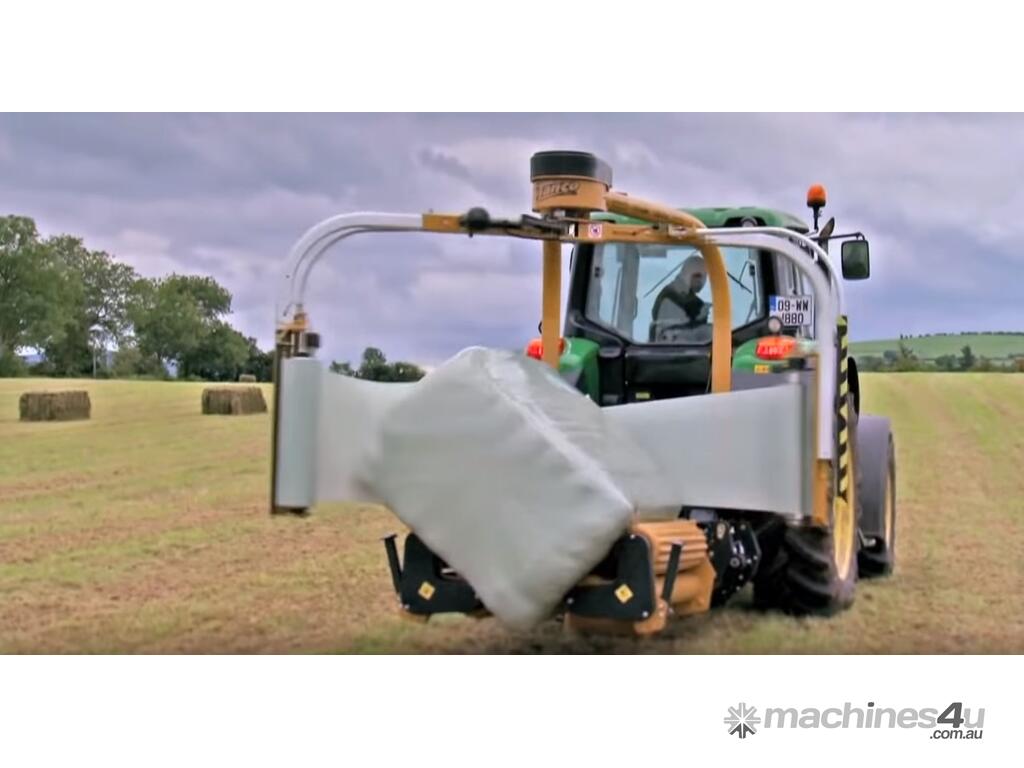

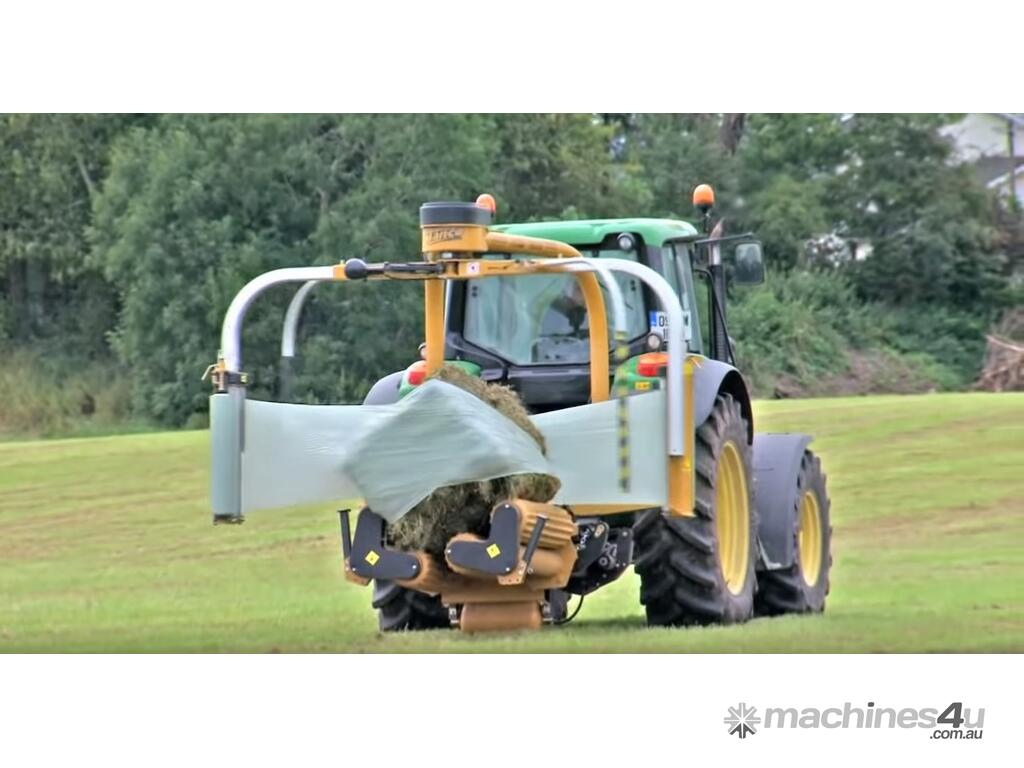

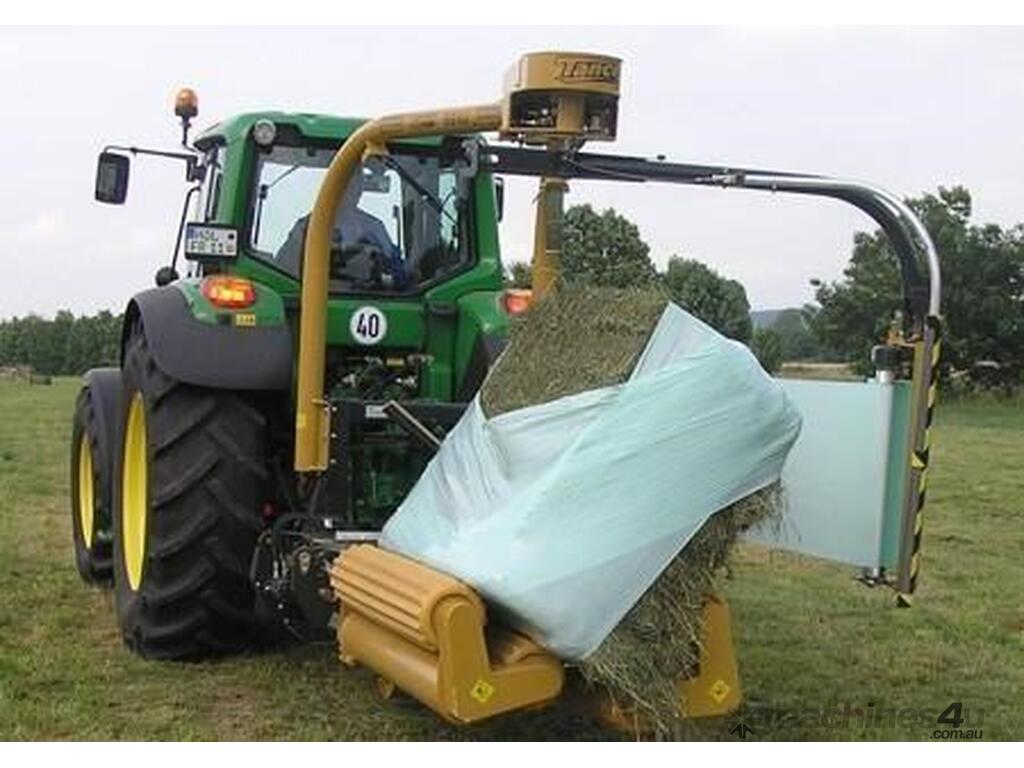

REDEFINING LARGE BALE WRAPPING: The Q200 V has twin film dispensers. The twin wrap-arms unfold at the start of the wrapping cycle leaving two opposing dispensers to apply the wrap. Opposing dispensers allow time for the film layer to adhere to the previous layer applied and avoids air being trapped and ingressing into the bale wasting nutrients.

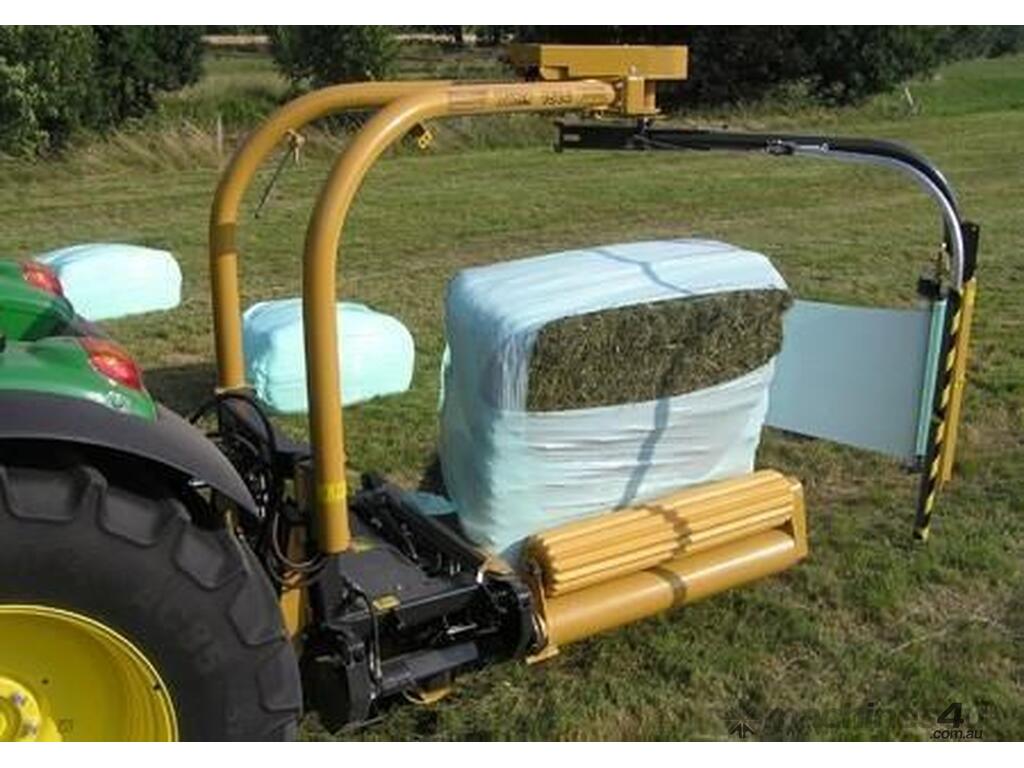

FLEXIBILITY: The Q Series wraps every bale on the market, including twin packs of 120cm x 70cm square bales (120cm x 140cm) and round bales up to 1.7 metres in diameter.

PROPORTIONAL HYDRAULICS: Proportional hydraulics allows for incremental speed adjustment, ensuring a smoother and more consistent wrapping operation, resulting in less vibration and longer machine life.

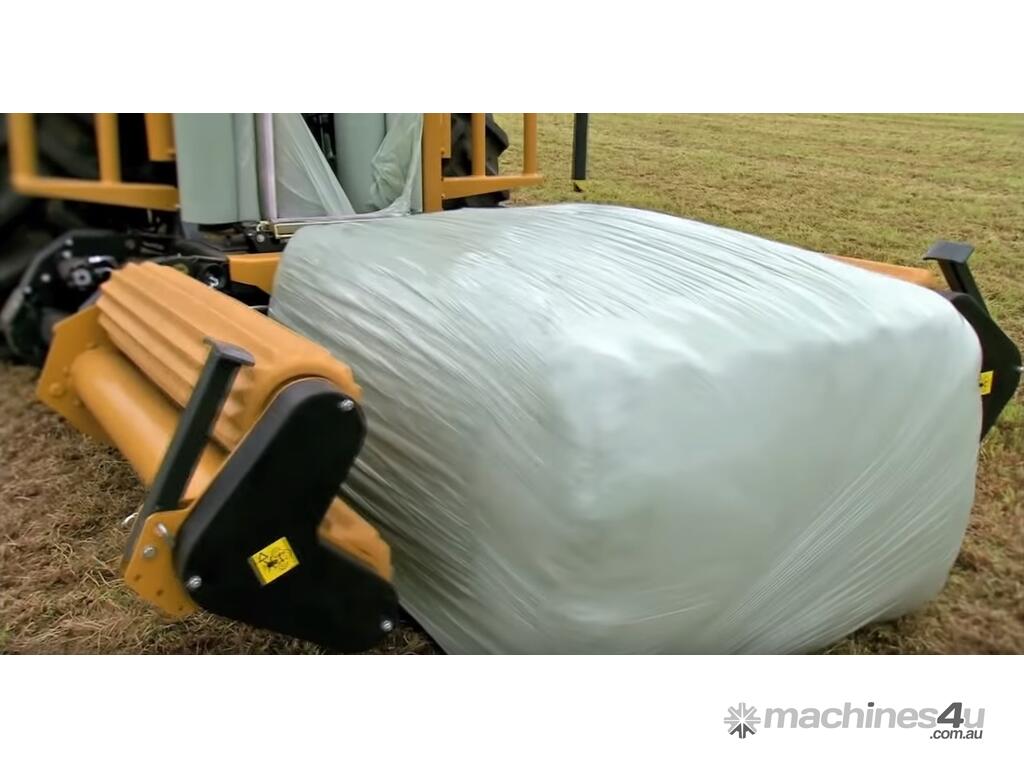

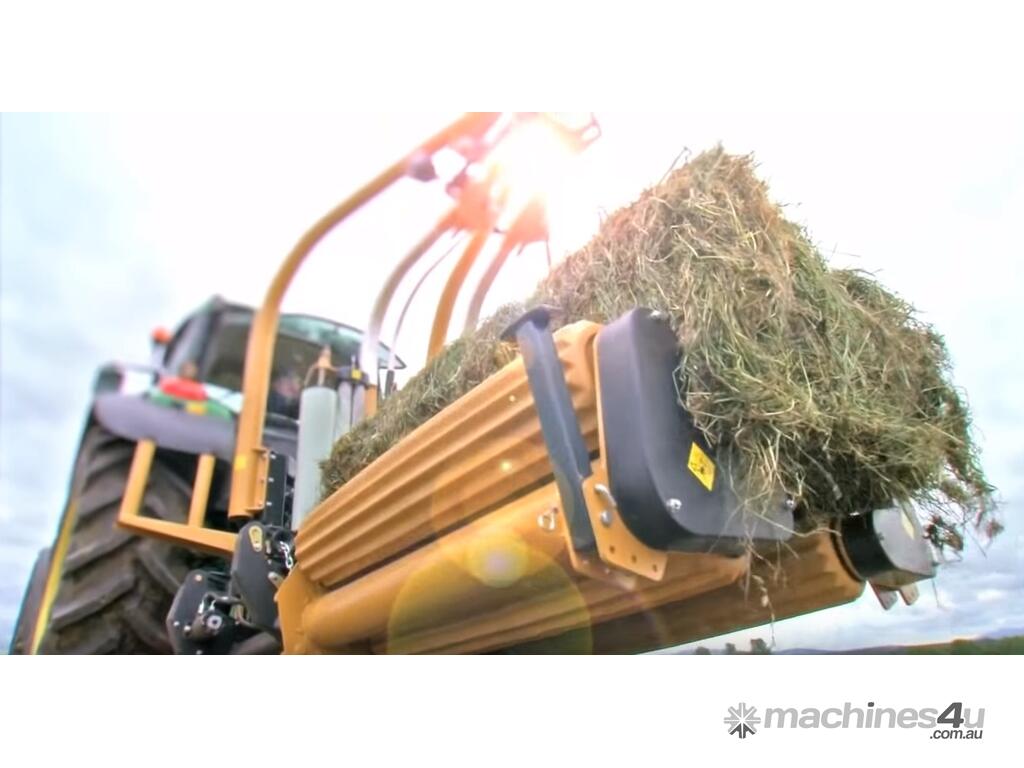

AUTO-LOAD: Bales can be placed on their flat end with the optional End-Tip The Auto-Load feature allows for continuous wrapping without operator input to the controller, furthermore bales are automatically levelled when Auto-Unloaded.

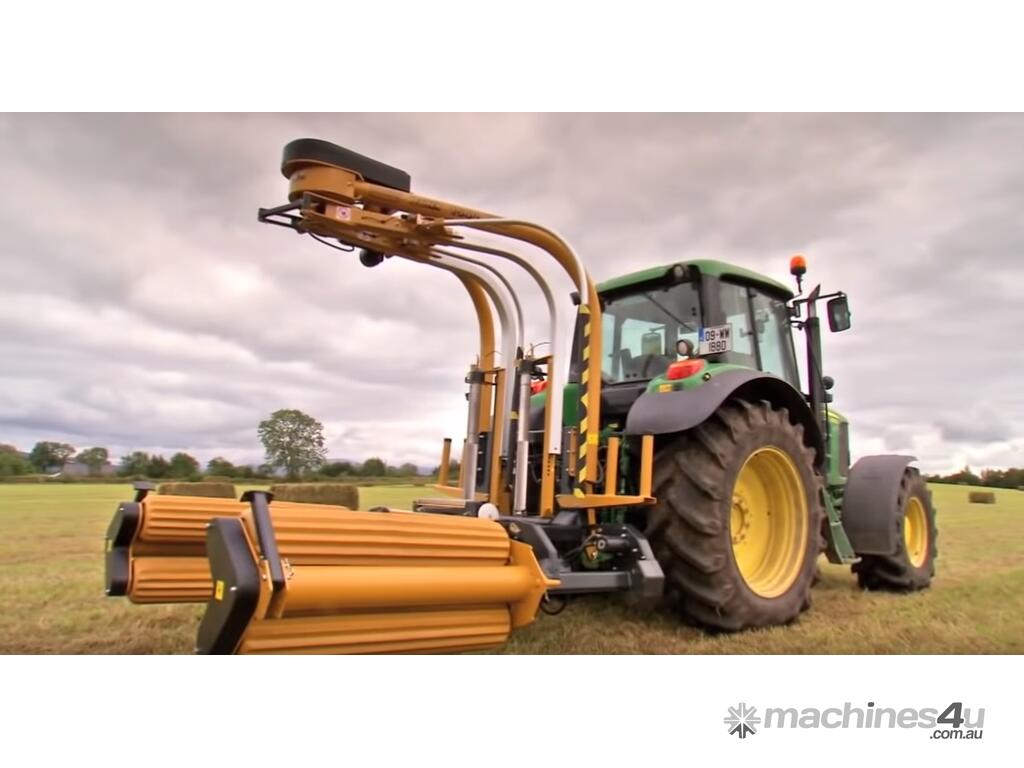

WRAP ARM UNFOLD & FOLD: Tancos patented system for unfolding and folding multiple wrap arms into a single cut and hold system has made it possible for 3 point linkage wrappers, which are lighter and more compact than their trailed counterparts, to reach the highest levels of performance and bale count.

TELESCOPIC CUT & START: A patented system, the telescopic Cut & Start extends to three times its resting state extending and then retracting to gather the film into a single strand. Once gathered and held, only then is the film cut, resulting in an ultra-reliable system you can have confidence in.

VARIABLE SPEED HYDRAULICS: The use of proportional hydraulics means hydraulic functions, such as wrap arm speed, can be variably adjusted to ramped up and down ensuring a smoother and more consistent wrapping operation, resulting in less vibration and longer machine life.

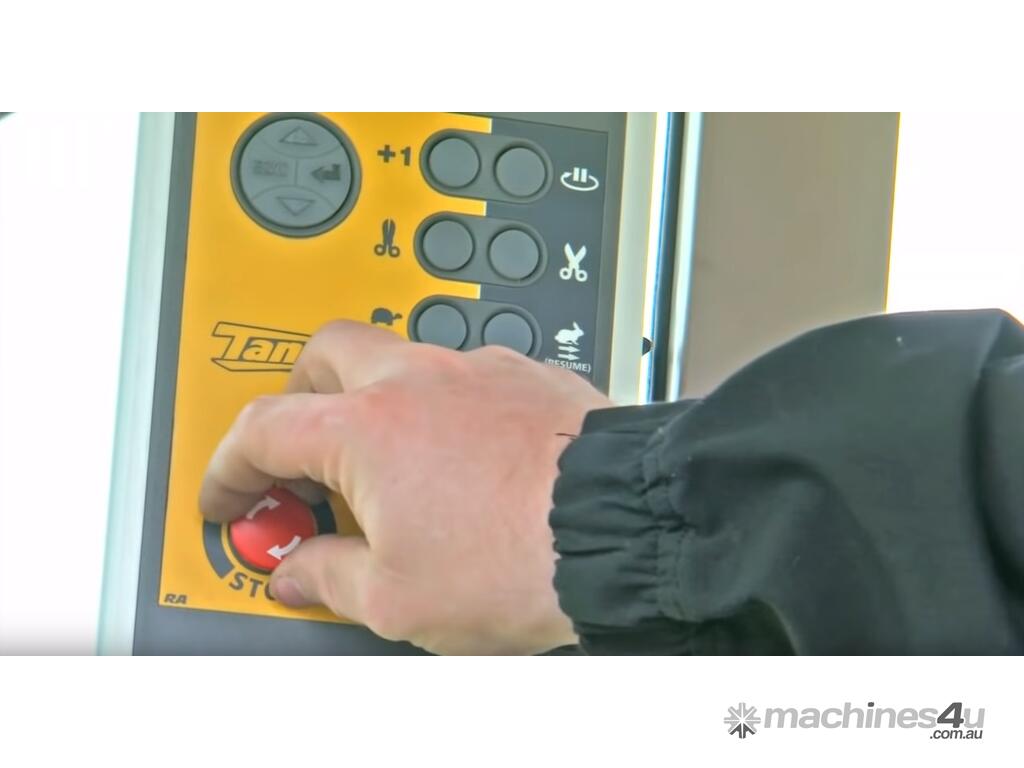

RDS EXPERT CONTROLLER: The Expert Plus controller has.a larger screen for faster data input and read-out.

STANDARD FEATURES
* RDS Expert Plus Controller
* Auto-Load automatically engages loading sequence without operator input
* Variable speed control automatically adjusts dispenser speed for more accurate plastic film coverage on all size of bales
* Automatic bale levelling and indexing
* Bales are automatically levelled for Off-Load
* Load Sensing Kit
* Telescopic Cut & Start
* Settings for various bale sizes are stored for quick adjustment when moving between bale sizes
* Tanco Dual Stretch Aluminium Dispenser with 55% & 70% stretch options built in

OPTIONAL EXTRAS
* Radio Remote Control
* 6 and 4.5 metre extension cable
* Universal Adaptor allows for wide range of brackets to be mounted for use on telehandlers

ROUND BALE SIZE
Width x (Min. - Max. Diameter): 1.5m x (0.80m - 1.70m)
US Round Bale Dimensions: Up To 5' x 5.5'
Max. Bale Weight: 1,200kg

MAX SQUARE BALE SIZE
Width x Height x Length: 1.2 x 1.4 x 1.9m
US Square Bale Dimensions: 4 x 4 x 6'

MIN SQUARE BALE SIZE
Width x Height x Length: 0.47 x 0.8m
US Square Bale Dimensions: 1.5 x 2.6'

DIMENSIONS
Transport Length: 2.87m
Transport Width: 1.54m
Height In Transport: 2.87m
Weight: 1,370kg

HYDRAULICS
Min. Oil Consumption: 30lpm
Max. Oil Consumption: 60lpm
Min. Oil Pressure: 180bar / 2600psi
Free Flow Return Required: Yes
Load Sensing Option: Yes

OPERATION
Cable Controlled Valve Bank: No
Joystick Controls: No
Programmable Computer Controls: Yes
Remote Control: Yes Optional
Automatic Hydraulic Cut & Start: Yes
Auto-Load: Yes

Machine/Equipment base price only, additional price for optional extras.
