TANCO TC S100 LINKAGE ROUND BALE WRAPPER (3PL)

WRAP ON LINKAGE, LOADER ARM OR TELEHANDLER.

The 3 point linkage wrapper was first developed by Tanco and the S series continues to lead the class with new innovative features to this day. Unique and patented options of single, twin or triple wrap arms give customers flexibility in terms of output.

Drive rollers enter under the bale, closing to raise the bale into the wrapping position. The wrapped arms unfold at the beginning of the wrapping cycle. Once the bale is wrapped the arms fold into a single telescopic Cut & Start, making the system extremely versatile and compact.

The S100 is the entry model to the renowned S series and delivers many of the great features of the series at an affordable price. With a single satellite wrap arm, the S100 is fully automatic with all the controls managed through the RDS expert controller.

COMPACT & LIGHTWEIGHT: Weighing from just 720Kg (1,587 lbs) the S Series is ideally suited for all-terrain, including mountainous conditions, as satellite wrap arms rotate around the bale, meaning bale movement is reduced to a minimum during wrapping.

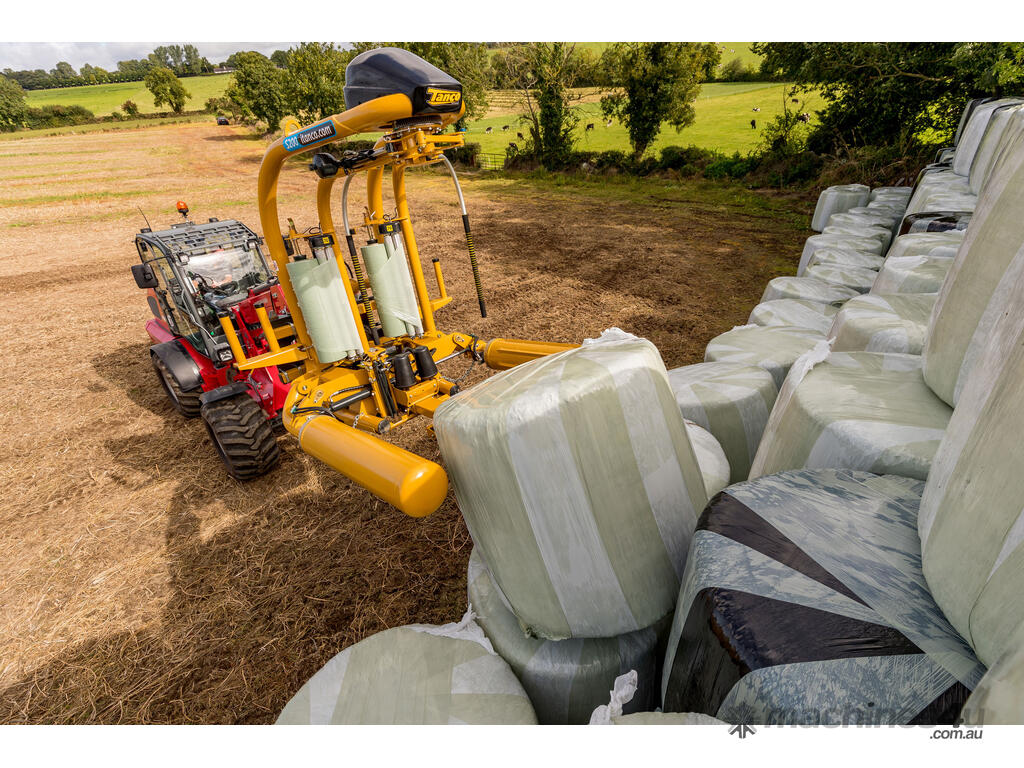

WRAP & STACK: The S Series can wrap and stack bales in a single operation, reducing labour, tractor hours. Wrapping and Stacking also reduce the number of times wrapped bales are handled, reducing the risk of damage to the bale.

END TIP KIT OPTION: Bales can be placed on their flat end with the optional End-Tip kit, where plastic concentration is greatest, reducing the risk of damage to the bale and also ensuring bales do not roll once off-loaded.

WRAP ARM UNFOLD & FOLD Tanco’s patented system for unfolding and folding multiple wrap arms into a single cut and hold system has made it possible for 3 point linkage wrappers, which are lighter and more compact than their trailed counterparts, to reach the highest levels of performance and bale count.

TELESCOPIC CUT & START: A patented system, the telescopic Cut & Start extends to three times it's resting state extending and then retracting to gather the film into a single strand. Once gathered and held, only then is the film cut, resulting in an ultra-reliable system you can have confidence in.

VARIABLE SPEED HYDRAULICS: Setting them in a class of their own, the S200 V and S300 V use proportional hydraulics, which means hydraulic functions, such as wrap arm speed, can be variably adjusted to ramp up and down ensuring a smoother and more consistent wrapping operation, resulting in less vibration and longer machine life.

STANDARD FEATURES
* Film Break Sensors
* Tanco Dual Stretch Aluminium
* Dispenser with 55% & 70% stretch options built-in.
* Individually driven pick-up rollers
* Telescopic Cut & Start
* RDS Expert Plus Controller

OPTIONAL EXTRAS
* End-Tip Kit Places bales on their end where plastic coverage is greatest and avoids bales rolling
* Ground Roller
* Takes the weight of the bale and machine in cases of lighter tractors
* Radio Remote Control

BALE WEIGHT & DIMENSIONS
Width x (Min. - Max. Diameter): 1.25m x (1.00m - 1.50m)
US Round Bale Dimensions: Up To 4'x5'
Max. Bale Weight: 1,200kg

DIMENSIONS
Transport Length: 2.30m
Transport Width: 1.40m
Height In Transport: 2.40m
Weight: 720kg

HYDRAULICS
Min. Oil Consumption: 30lpm
Max. Oil Consumption: 60lpm
Min. Oil Pressure: 180bar / 2600psi
Free Flow Return Required: Yes
Load Sensing Option: No

OPERATION
Cable Controlled Valve Bank: No
Joystick Controls: No
Programmable Computer Controls: Yes
Remote Control: Optional
Automatic Hydraulic Cut & Start: Yes
Auto-Load: No

PRE-STRETCHER
One Pre-Stretcher 750mm: Yes
Two Pre-Stretcher 750mm: No
Three Pre-Stretcher 750mm: No
Adapter for 500mm Film: Optional

Machine/Equipment base price only, additional price for optional extras.
