TANCO TC VS300 LINKAGE ROUND BALE WRAPPER

WRAP ON LINKAGE, LOADER ARM, OR TELEHANDLER. HIGH SPEED - UP TO 80 BALES PER HOUR

The 3 point linkage wrapper was first developed by Tanco and the S series continues to lead the class with new innovative features to this day. Unique and patented options of single, twin or triple wrap arms give customers flexibility in terms of output.

Drive rollers enter under the bale, closing to raise the bale into the wrapping position. The wrapped arms unfold at the beginning of the wrapping cycle. Once the bale is wrapped the arms fold into a single telescopic Cut & Start, making the system extremely versatile and compact.

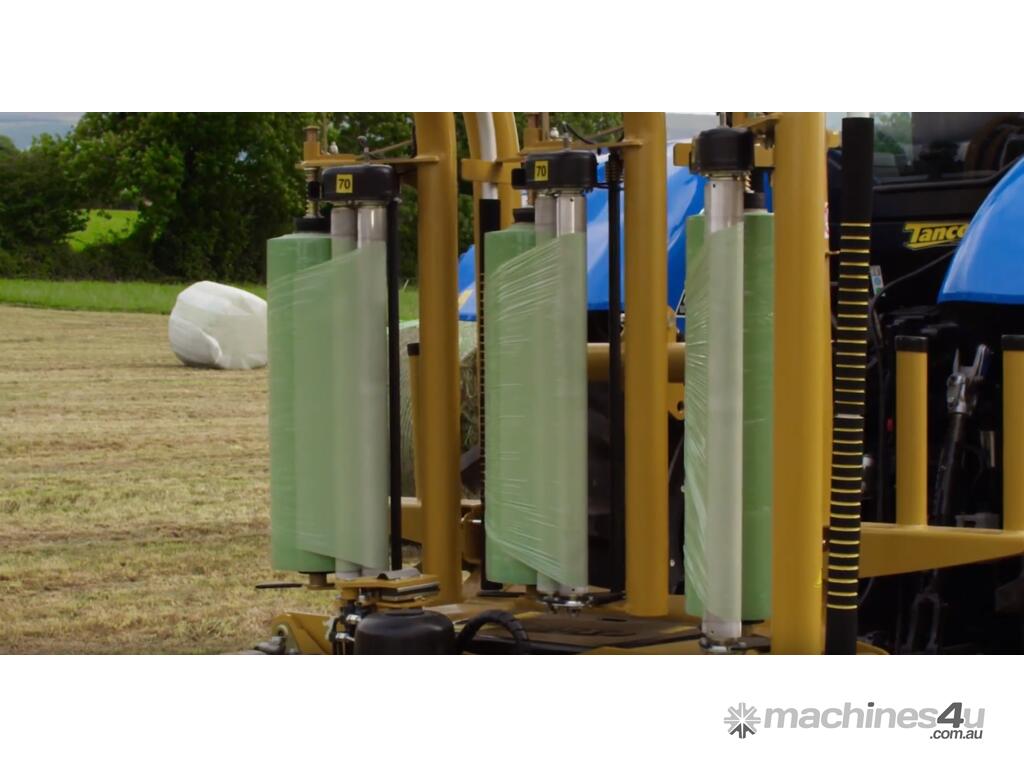

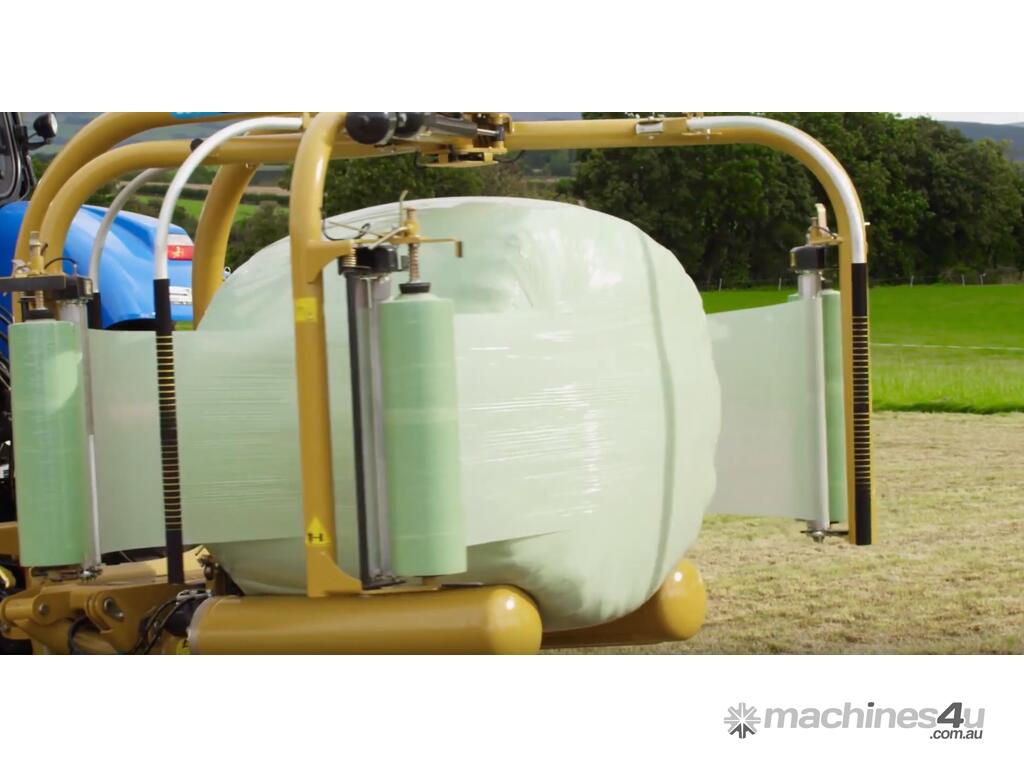

For maximum output, three dispensers unfold to apply the film. With three layers being applied simultaneously, bale output is unsurpassed. As there are three rolls of film loaded in the wrapper at any time, film rolls will be replaced 63% less often than a single disc.

COMPACT & LIGHTWEIGHT: Weighing from just 940Kg the S Series is ideally suited for all-terrain, including mountainous conditions, as satellite wrap arms rotate around the bale, meaning bale movement is reduced to a minimum during wrapping.

WRAP & STACK: The S Series can wrap and stack bales in a single operation, reducing labor, tractor hours. Wrapping and Stacking also reduce the number of times wrapped bales are handled, reducing the risk of damage to the bale.

END TIP KIT OPTION: Bales can be placed on their flat end with the optional End-Tip kit, where plastic concentration is greatest, reducing the risk of damage to the bale and also ensuring bales do not roll once off-loaded.

WRAP ARM UNFOLD & FOLD: Tancos patented system for unfolding and folding multiple wrap arms into a single cut and hold system has made it possible for 3 point linkage wrappers, which are lighter and more compact than their trailed counterparts, to reach the highest levels of performance and bale count.

TELESCOPIC CUT & START: A patented system, the telescopic Cut & Start extends to three times it is resting-state extending and then retracting to gather the film into a single strand. Once gathered and held, only then is the film cut, resulting in an ultra-reliable system you can have confidence in.

VARIABLE SPEED HYDRAULICS: Setting them in a class of their own, the S200 V and S300 V use proportional hydraulics, which means hydraulic functions, such as wrap arm speed, can be variably adjusted to ramp up and down ensuring a smoother and more consistent wrapping operation, resulting in less vibration and longer machine life.

STANDARD FEATURES
* Film Break Sensors
* Tanco Dual Stretch Aluminium
* Dispenser with 55% & 70% stretch options built-in.
* Individually driven pick-up rollers
* Telescopic Cut & Start
* RDS Expert Plus Controller

OPTIONAL EXTRAS
* End-Tip Kit Places bales on their end where plastic coverage is greatest and avoids bales rolling
* Ground Roller
* Takes the weight of the bale and machine in cases of lighter tractors
* Radio Remote Control

BALE WEIGHT & DIMENSIONS
Width x (Min. - Max. Diameter): 1.25m x (1.00m - 1.50m)
US Round Bale Dimensions: Up To 4'x5'
Max. Bale Weight: 1,200kg

DIMENSIONS
Transport Length: 2.30m
Transport Width: 1.40m
Height In Transport: 2.40m
Weight: 940kg

HYDRAULICS
Min. Oil Consumption: 30lpm
Max. Oil Consumption: 60lpm
Min. Oil Pressure: 180bar / 2600psi
Free Flow Return Required: Yes
Load Sensing Option: Yes

OPERATION
Cable Controlled Valve Bank: No
Joystick Controls: No
Programmable Computer Controls: Yes
Remote Control: Optional
Automatic Hydraulic Cut & Start: Yes
Auto-Load: Yes

PRE-STRETCHER
One Pre-Stretcher 750mm: No
Two Pre-Stretcher 750mm: No
Three Pre-Stretcher 750mm: Yes
Adapter for 500mm Film: Option

Machine/Equipment base price only, additional price for optional extras.
