TANNERTRACK - LOVOL M604 60HP 4WD Tractor inc Loader & 4in1 Bucket

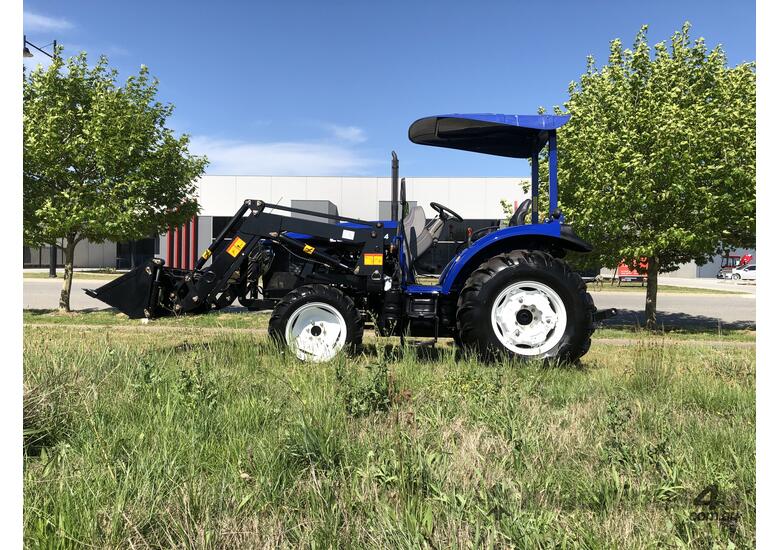

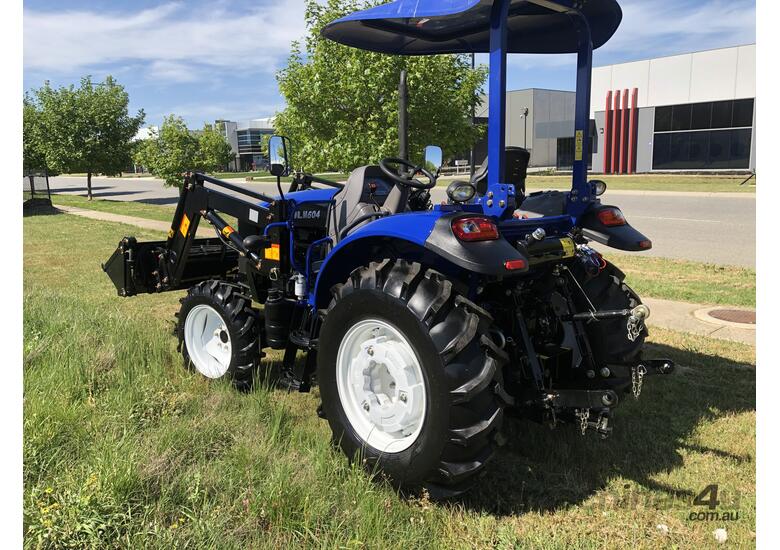

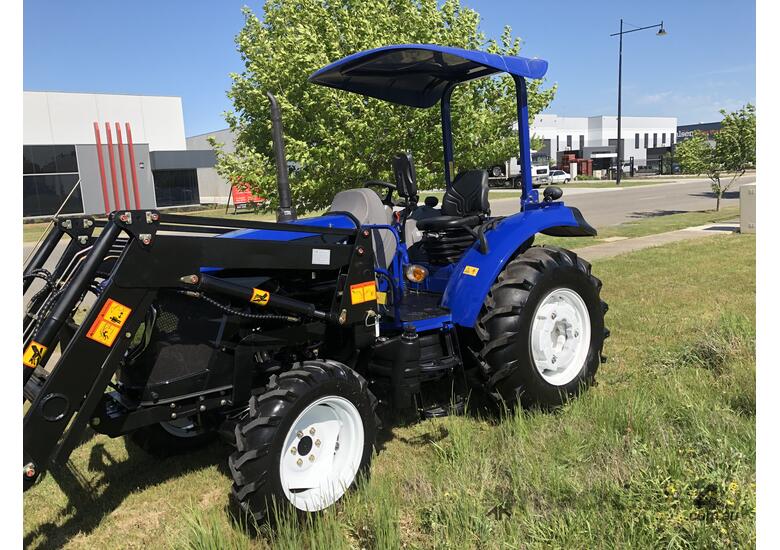

LOVOL 604 Tractor with 4in1 Front end Loader
Rop's with sunshade

This is one of our favorite LOVOL Tractors with modern day features at an afordable price all packed in with our 3 year warranty and optional combo kits available

Bigger Rams
Sealed Wiring looms
Quiet Exhaust
Insulated Gen III Cabin

Rear Remotes
Wheel Weights
Syncro Gearbox
Flat Floor Design
Grammer Adjustable Seat

Molded floor mats, joystick controlled front end loader , Top quality Gammer seat.
New Gen-3 designed cabin with its heater/Aircon and very well insulated cabin.

Proven engine with a 12 speed synchromesh gearbox, rear remotes, dual element air cleaner.
Attachments available and in stock – Backhoes – Post Hole Diggers – Augers – Rippers – Slashers – Tow Bars – Bale Spears – Pallet Forks – Wood Chippers


ENGINE
Brand Xinchai Engine type 4-cylinder Intake mode natually aspirated Number of cylinders 4 Bore 98 Stroke 105 Displacement(L) 3.168 Engine rated power kW/rpm 35.3 Rated speed 2400 Type of air cleaner Dry Dual Element Type of cooling system Forced water-cooled Max. Torque revolving speed (rpm) 1861600~1800 Specific fuel consumption rate at rated conditions (g/kW.h) 245 Fuel tank capacity (L) 65

STEERING BRAKE SYSTEM
Type of steering system Hydraulic Type of steering gear Orbit rotary valve type full-hydraulic steering gear Type of braking system wet disc mechanical control

TRANSMISSION SYSTEM
Clutch type Dry Double action Gearbox type Two-axis mechanical gearbox Gearbox shift mode gear Synchronized shift Type of central transmission Spiral bevel gear type Final transmission mode (rear) Planetary gear type

TYRES
Tyre Type AG – R1a Tyre Model (front/rear) 8.3-20/14.9-24 Rear

WORKING DEVICE
Type of linkage Three point rear linkage Linkage classes Cat. II Lift capacity(610mm point))kN 9.1 Regulating mode Draft and floating control

TYPE OF PTO SHAFT
The number of PTO shaft splines 6 splines f38 Outer diameter of PTO shaft spline ?35/?38 PTO shaft speed 540/760
Hydraulic system Hydraulic output flow (L/min) 40

Established in 2011, TannerTrack Pty Ltd is a family-owned business based in Victoria, boasting over two decades of mechanical expertise. Specializing in tractors and attachments, we cater to hobby farm enthusiasts and owners of small to large acreage lifestyle properties. Committed to excellence and with a strong emphasis on honesty and quality, our dedication to providing top-notch solutions for the diverse needs of our valued customers is our core value.

Visit the TannerTrack showroom at Machines4u to see the rest of our tractors and attachments, send TannerTrack a message about the gear you are interested in, or give TannerTrack a call - we are happy to answer any of your questions.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
