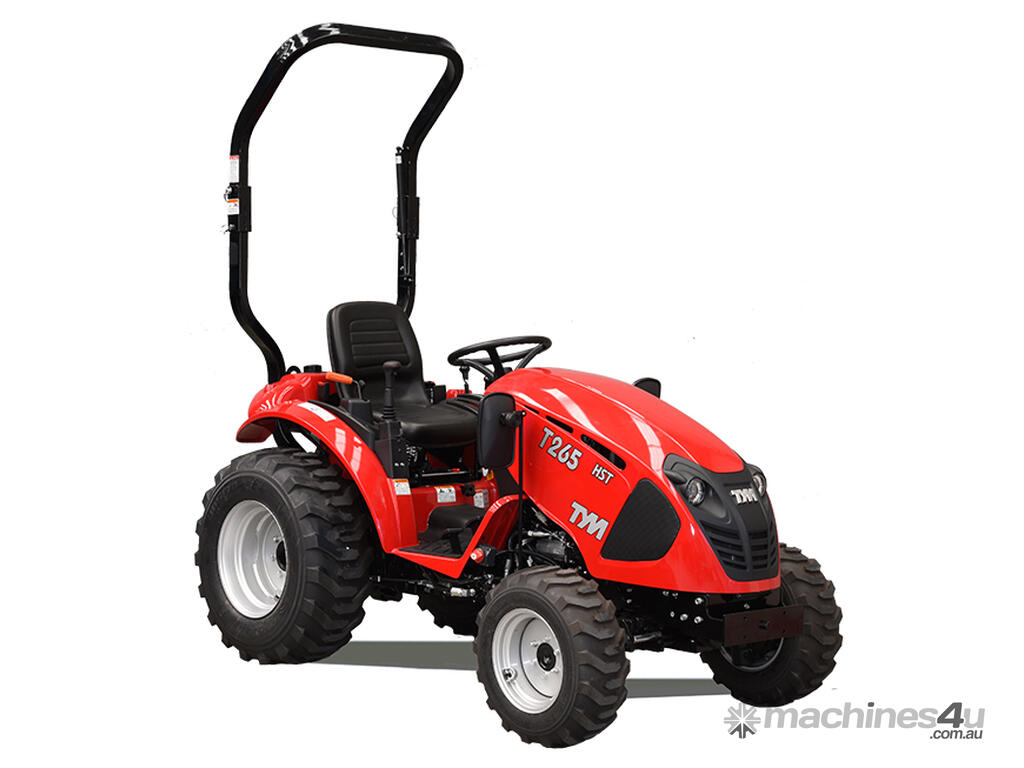

TANNERTRACK - TYM T265 25HP 4WD Tractor inc Loader & 4in1 Bucket

FEATURES OF THE TYM 'T265' TRACTOR

Now with Linked Throttle to drive pedals making the driving experience even better

ENGINE
Mitsubishi Engine
Powered by 24.5hp TYM naturally aspirated 3 cylinder water-cooled Diesel engine.
TYM Diesel engine, a Tier 4 engine producing plenty of torque at low enging RPM providing outstanding in field performance.
Engine certified to meet the stringent Tier 4 engine and noise emission standards.
Dual dry element air cleaner for Australia's dusty conditions.
A generous 25 litre fuel tank for many working hours between refueling.

DRIVELINE

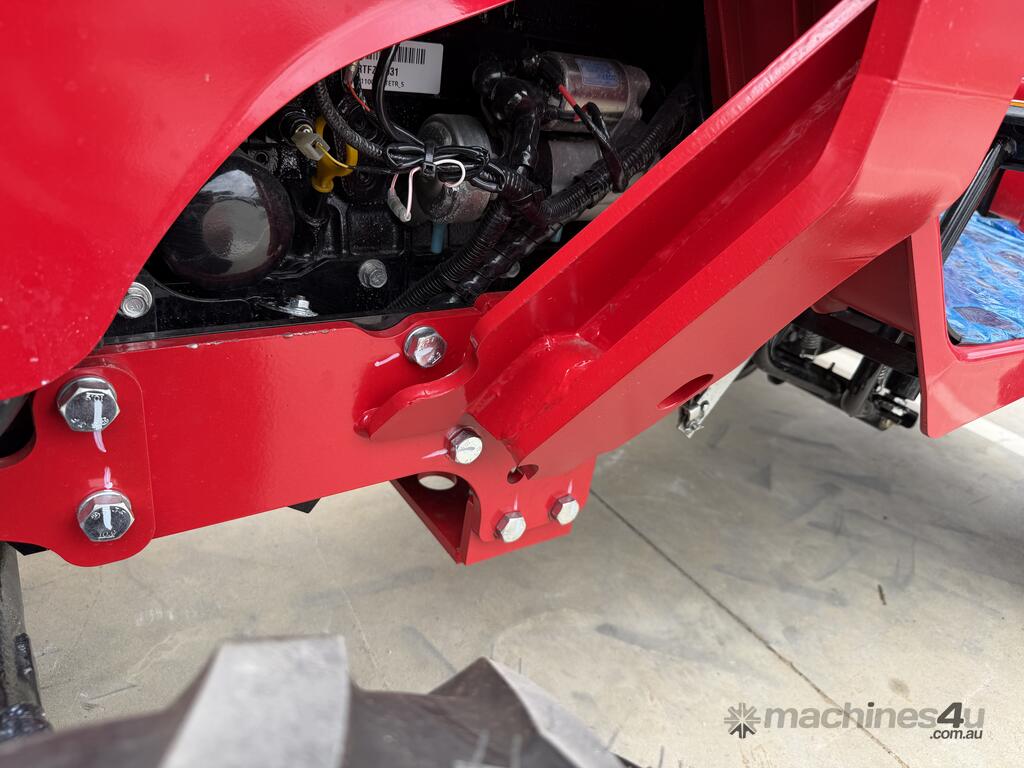

T265 Chassis
The tractor weight of 865kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
The high efficiency two range (2) hydrostatic transmission gives infinitely variable drive speed from stationary to 16km/h in the forward and reverse direction

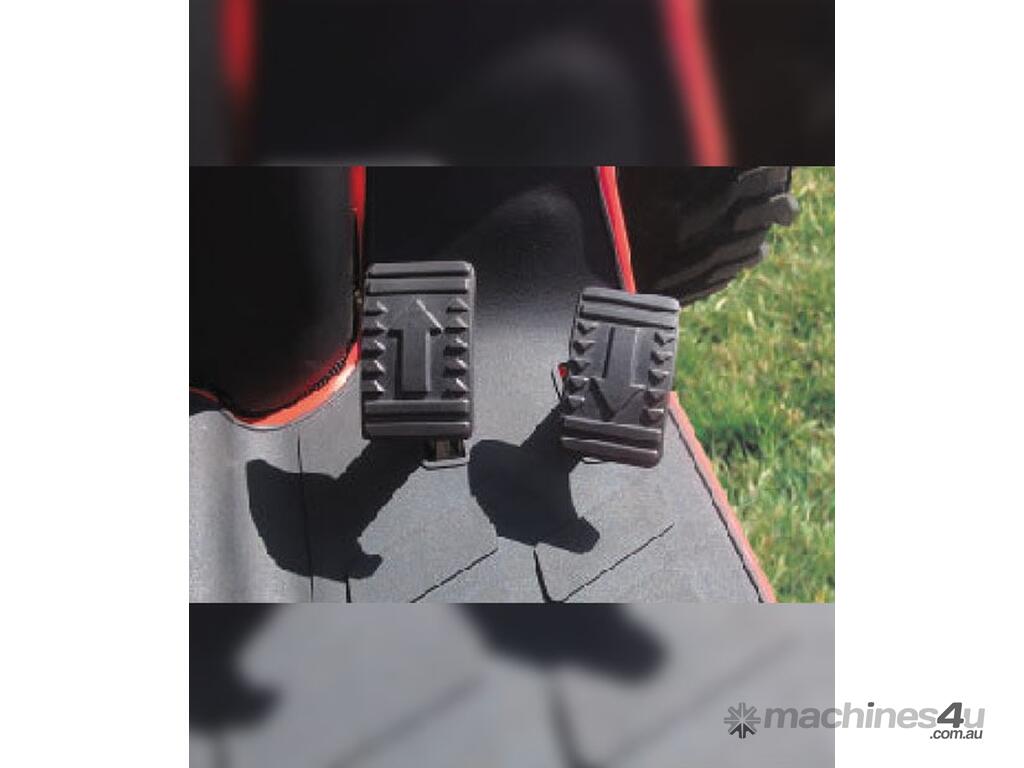

TYM T265 Foot Controls
The Hydrostatic drive controlled by side-by-side forward and reverse pedals for ease of operation.
Hydrostatic power steering lightens steering especially important with front end loaders
Cruise control for tireless driving when mowing large areas.

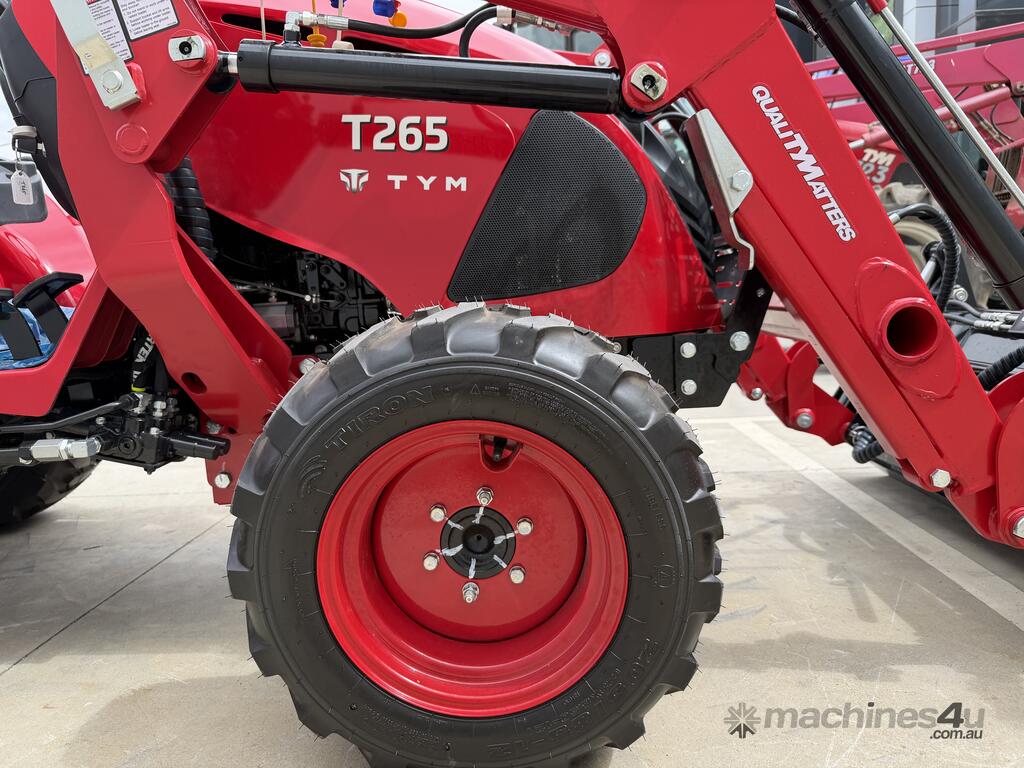

TYM T265 Rear Tyre
Industrial front and rear tyres are ideal for front-end loader applications
Large 23x8.5-12 Front tyres
Large 12-16.5 Rear tyres

TYM T265 Axle
The heavy duty front axle performs in tough working conditions and handles loads with ease
A long wheel base and wide stance increases stability in all conditions

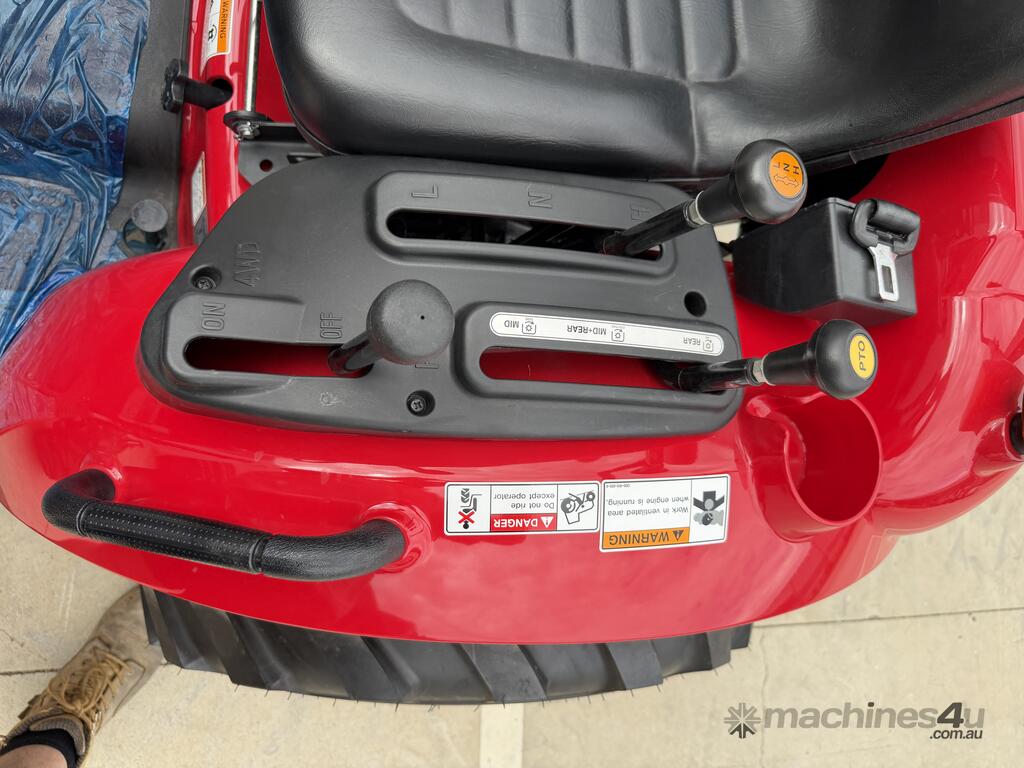

TYM T265 4WD Lever
4WD and the Diff Lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator
Rear axle with diff-lock for difficult traction situations
Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

PTO, HYDRAULICS & LINKAGE

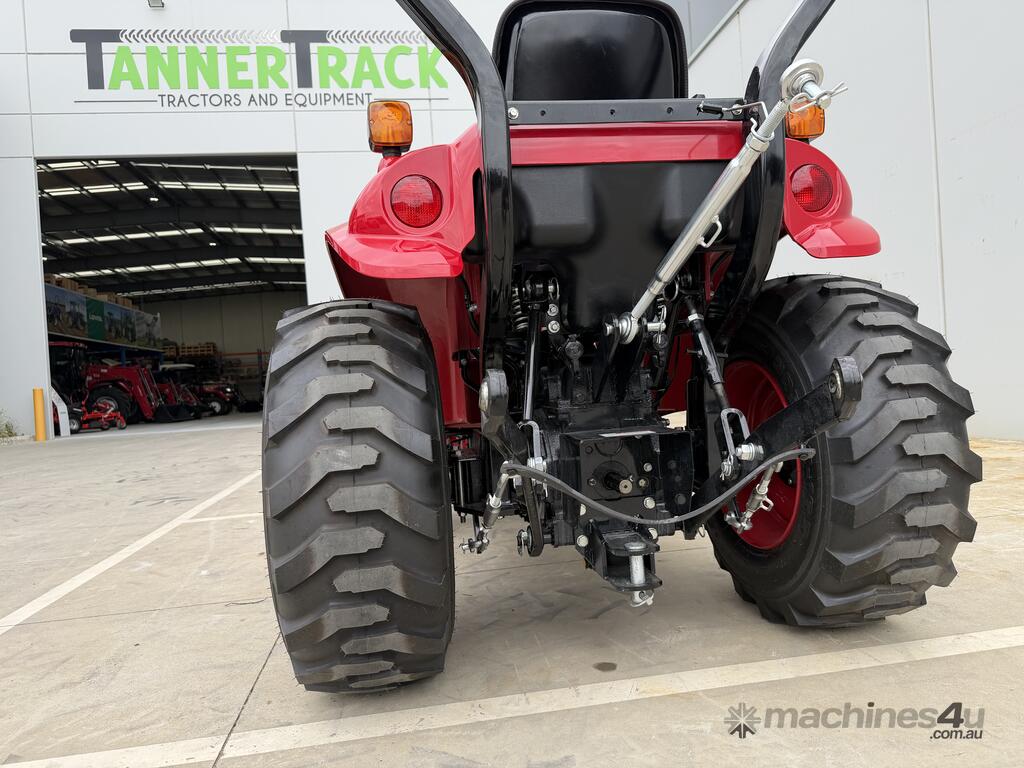

TYM T265 Rear Linkage
1 set of double-acting hydraulic remotes
Category 1, 3-point linkage with manual position controls
700kg lifting capacity gives the tractor great versatility and will handle many attachments

TYM T265 PTO
The PTO drive is a smiple and direct design for high efficiency and power
The PTO clutch is and independant oil immersed clutch pack for long life and simple operation

CONTROLS

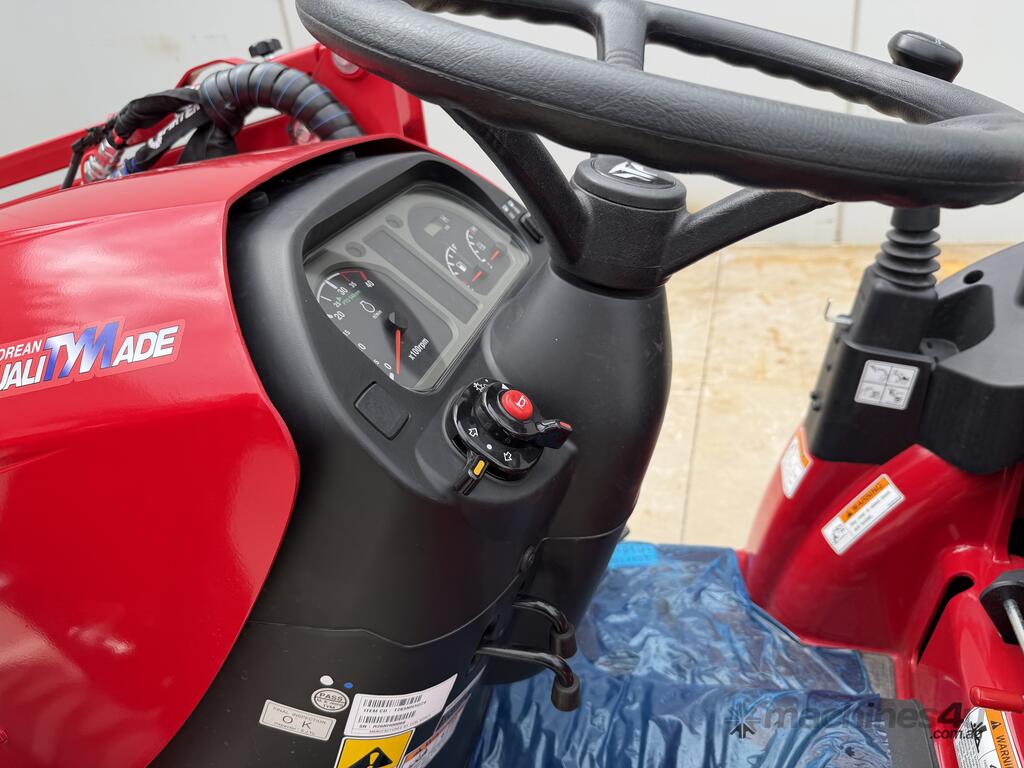

TYM T265 Dash
Ergonomic design - easy to reach controls
Easy to read instrument panel
Combination S/W
Cruise Control
Push button PTO On/Off Switch

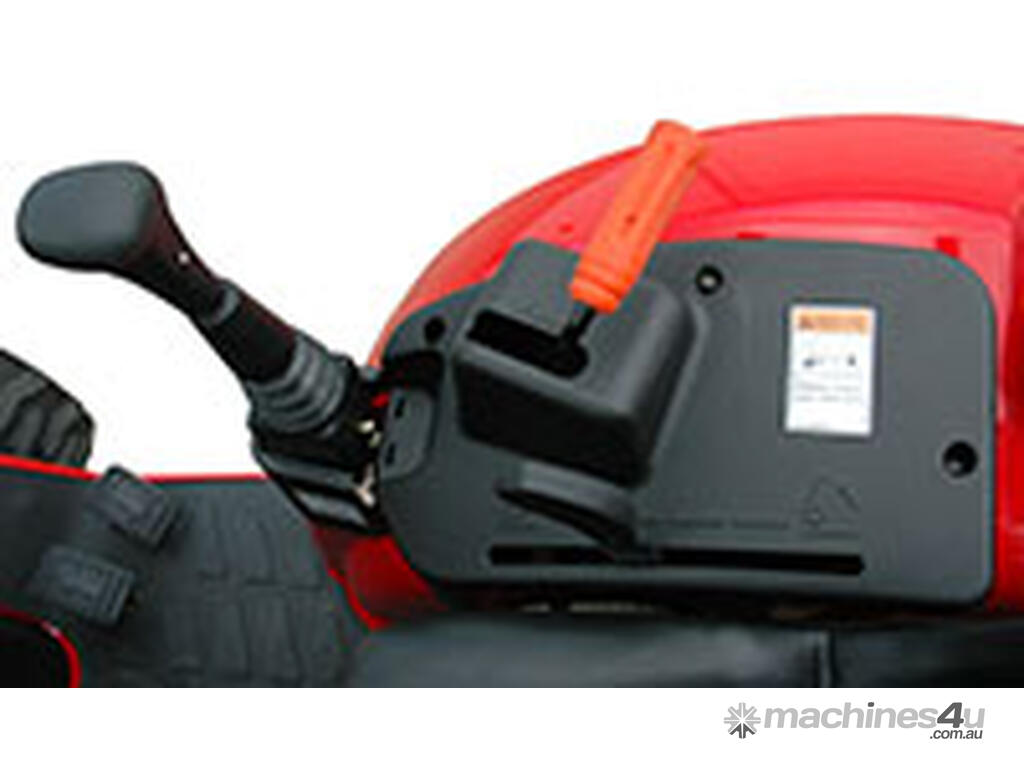

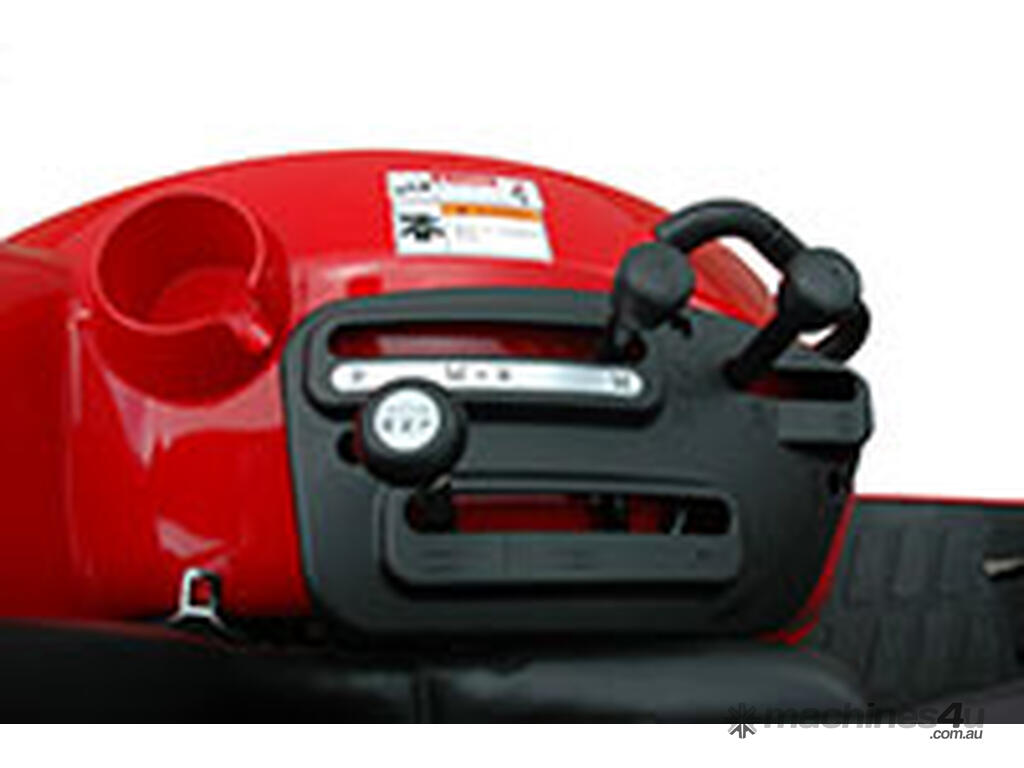

TYM T265 Joystick
Throttle lever (orange lever) is conveniently located adjacent to the steering wheel

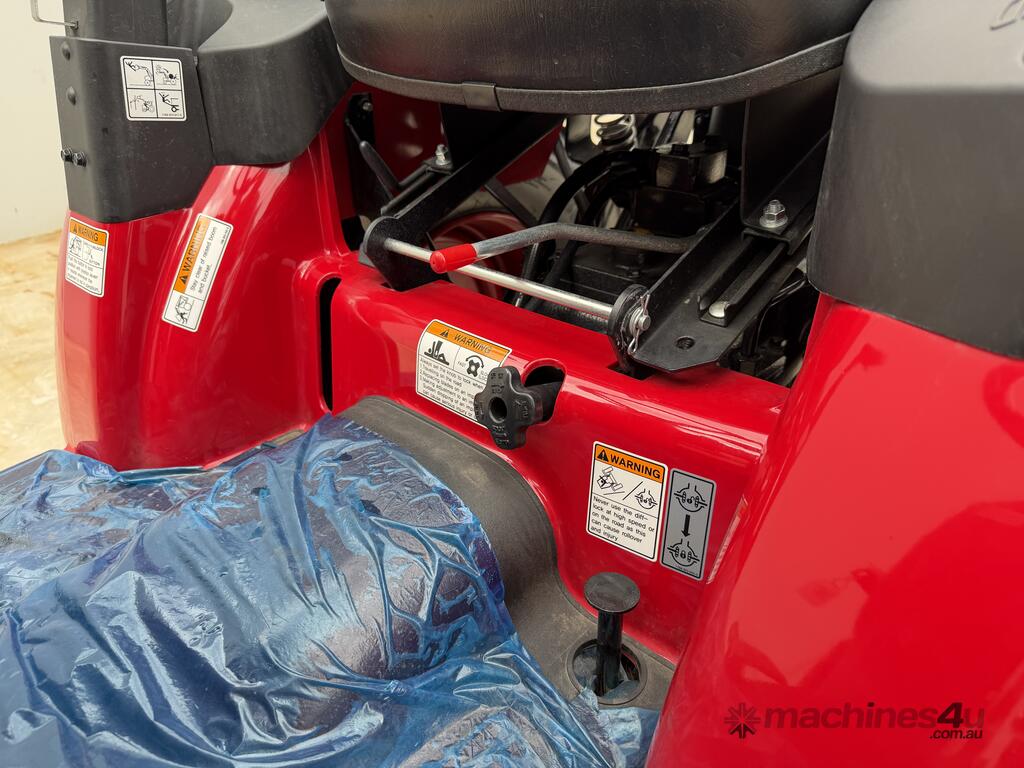

3 point linkage position lever
Fully integrated single joystick for control delivers ergonomic operation of front end loader

LAYOUT
TYM T265 Tractor Access
Clean uncluttered access

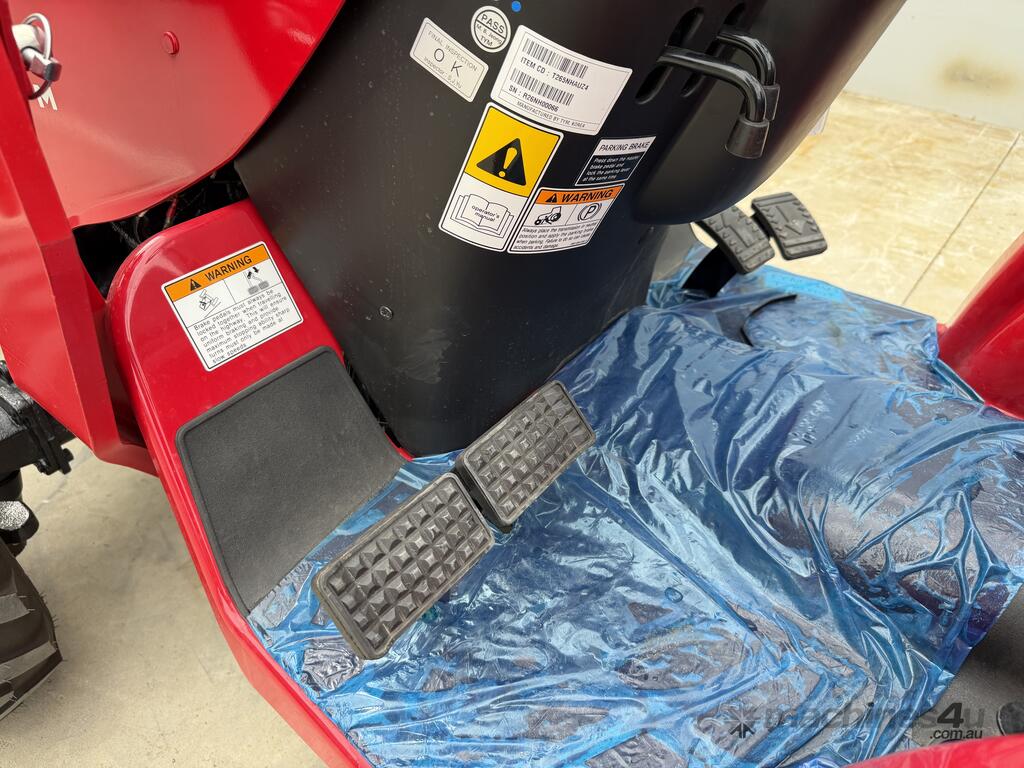

TYM T265 Brake Steer
Turning brakes located on operator's left to improve turning in confined areas.

AUXILIARY HYDRAULIC VALVE
TYM T265 Tractor Auxiliary hydraulic valve
For the operation of log splitters

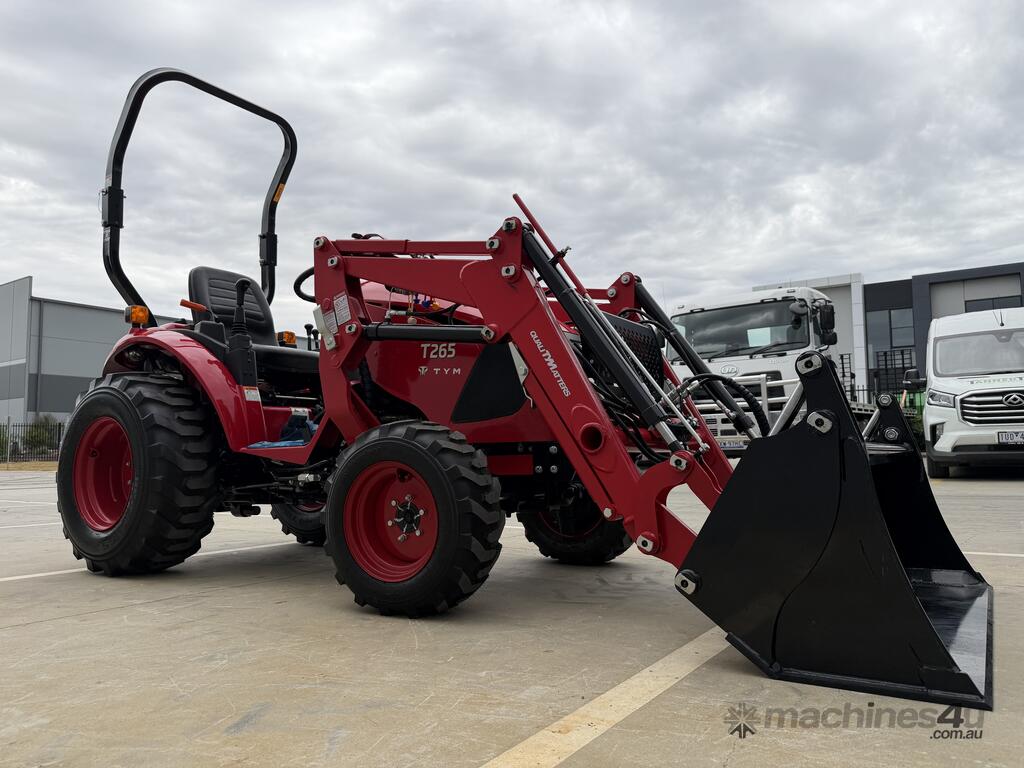

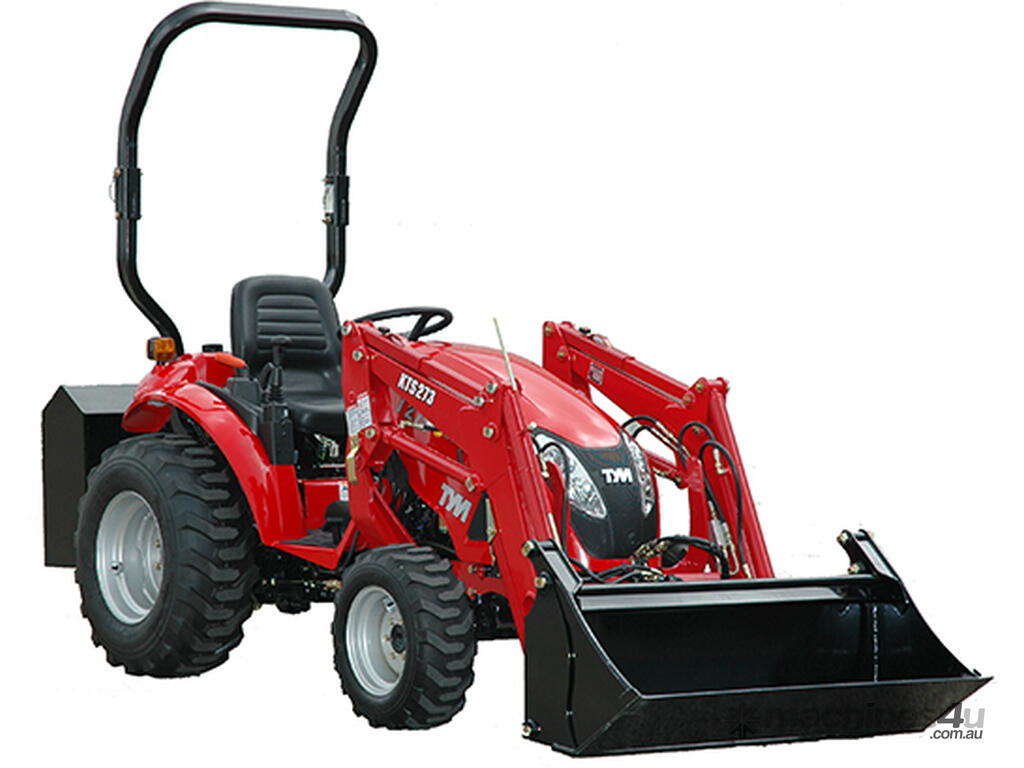

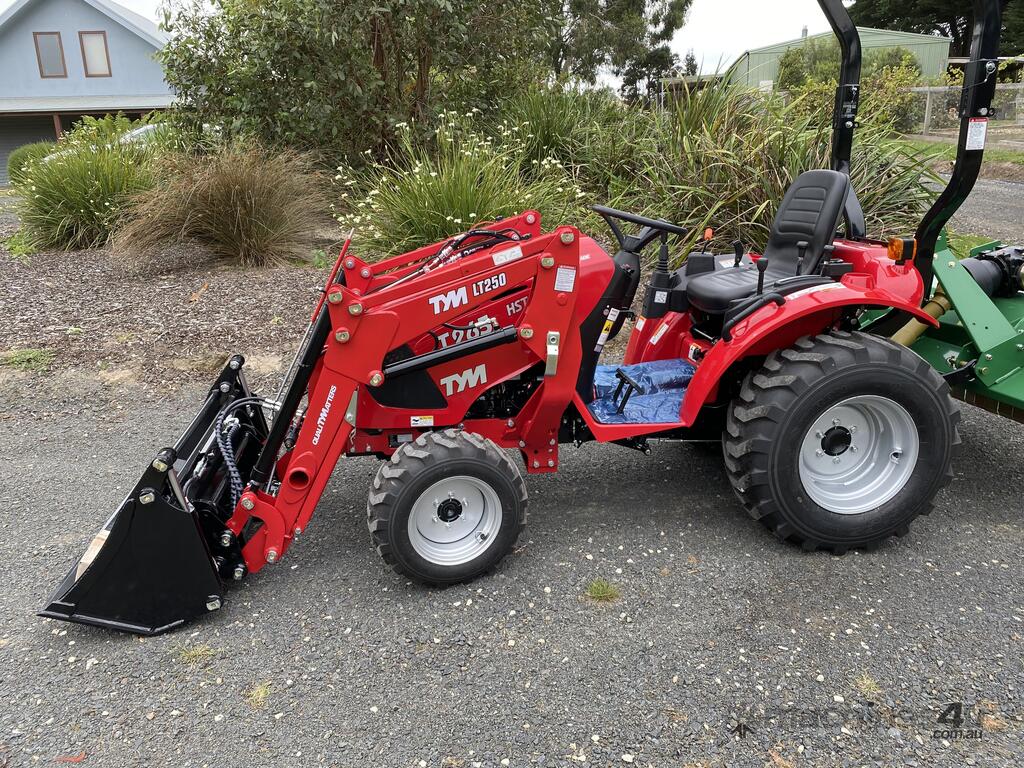

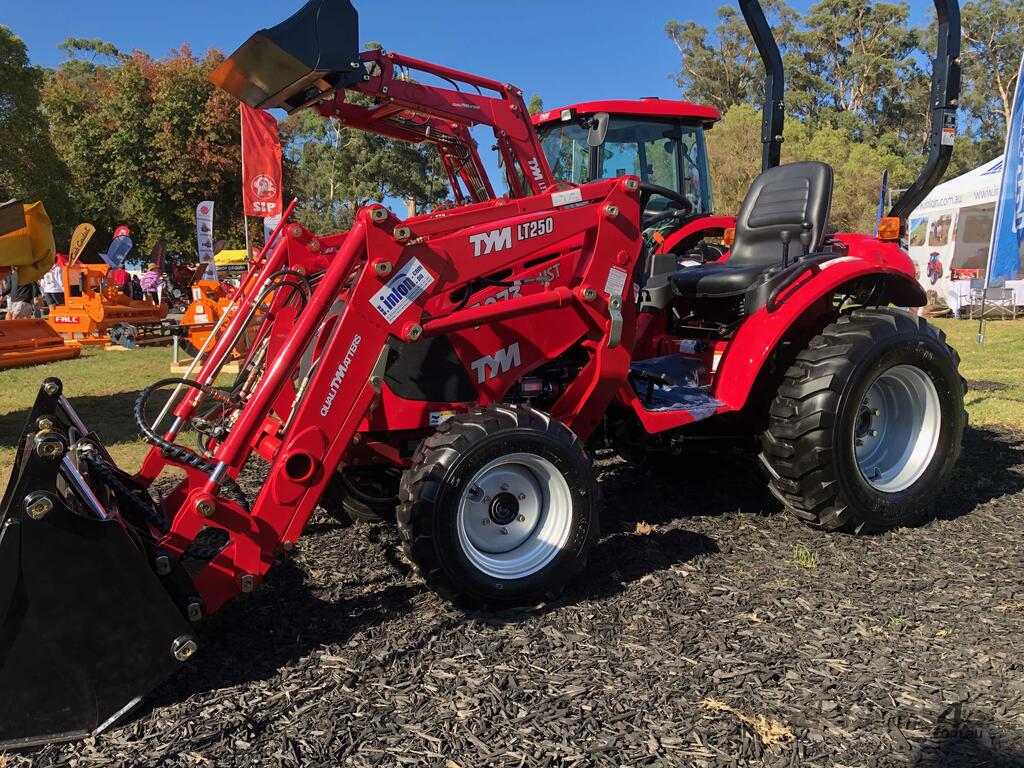

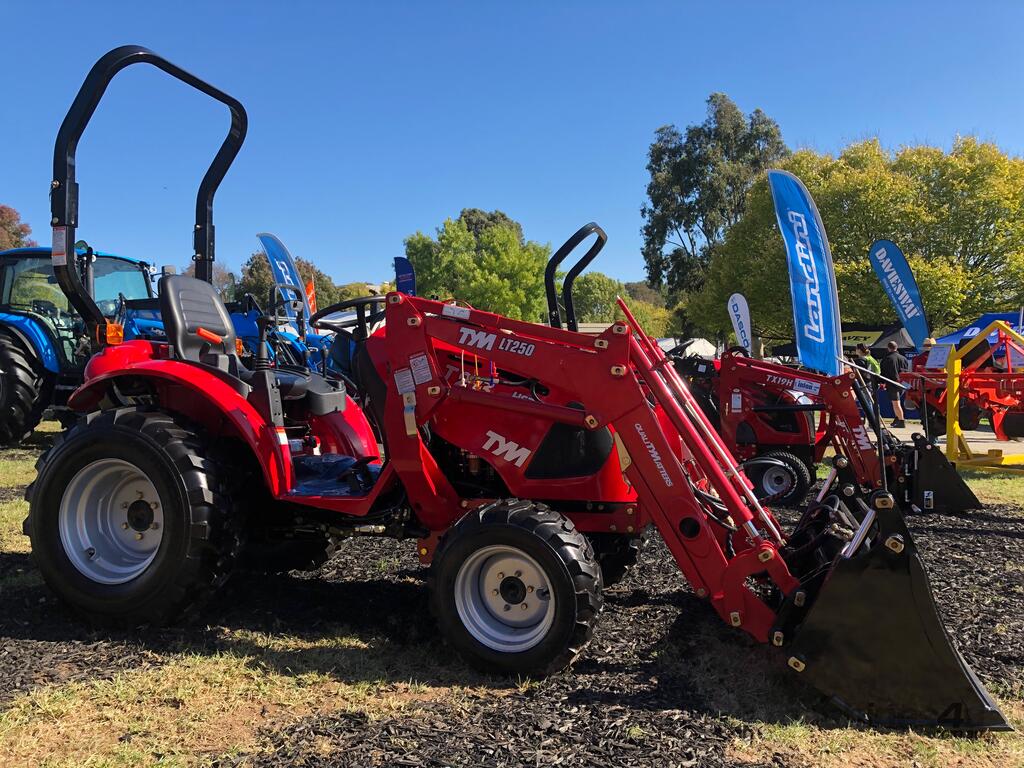

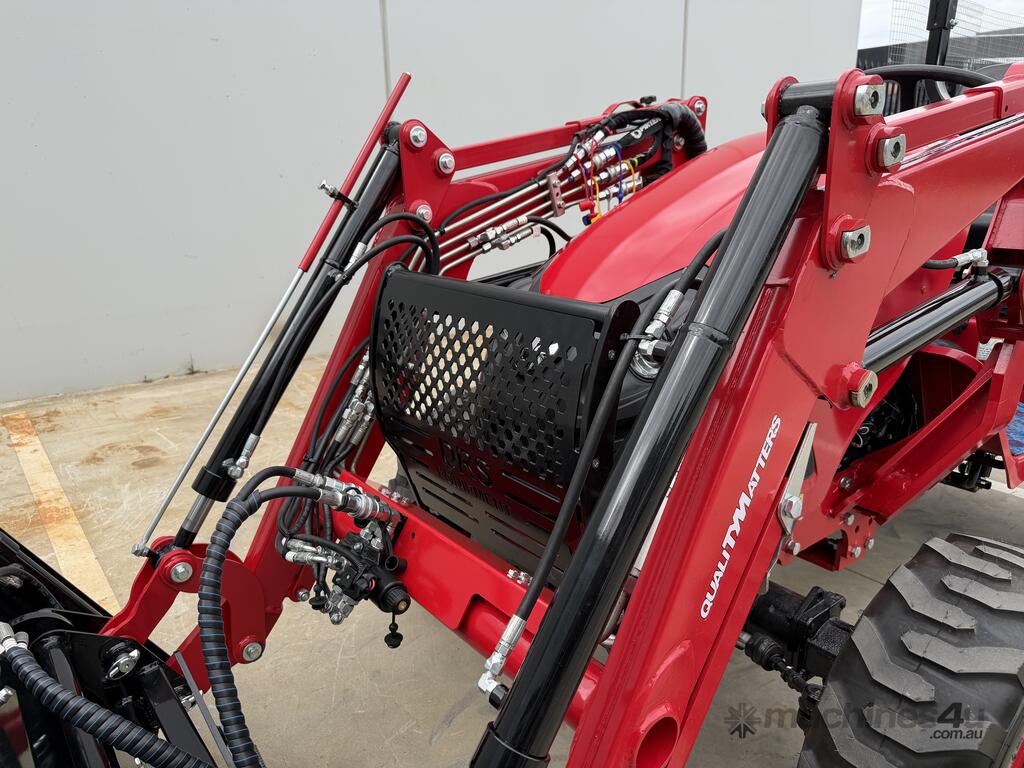

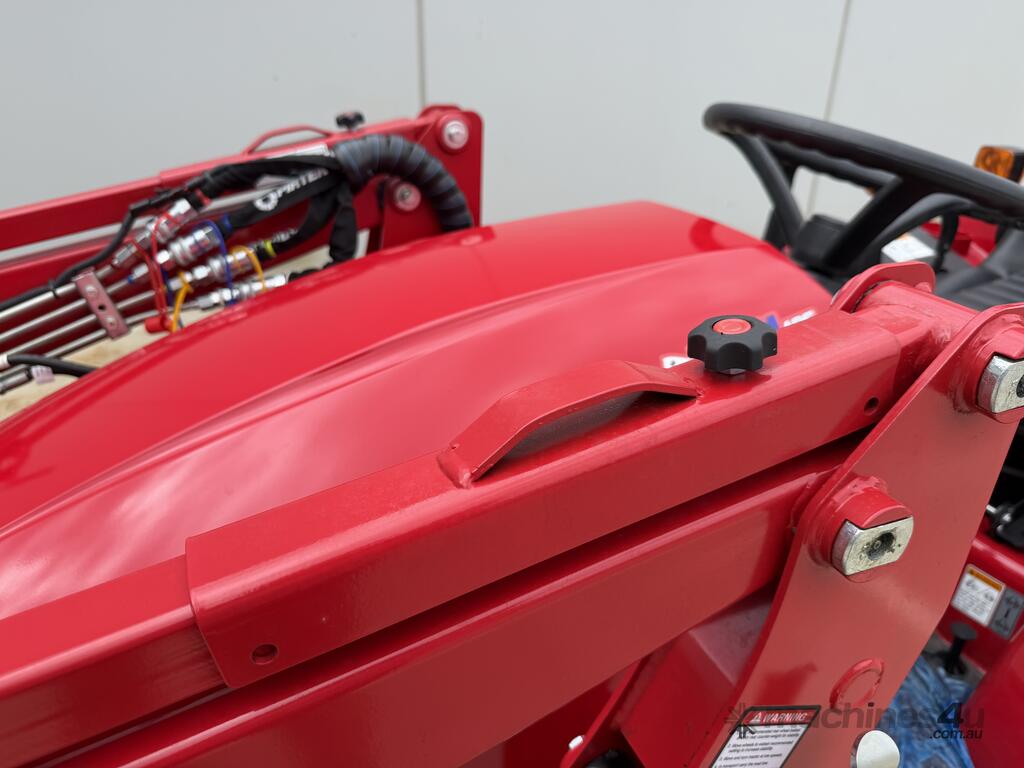

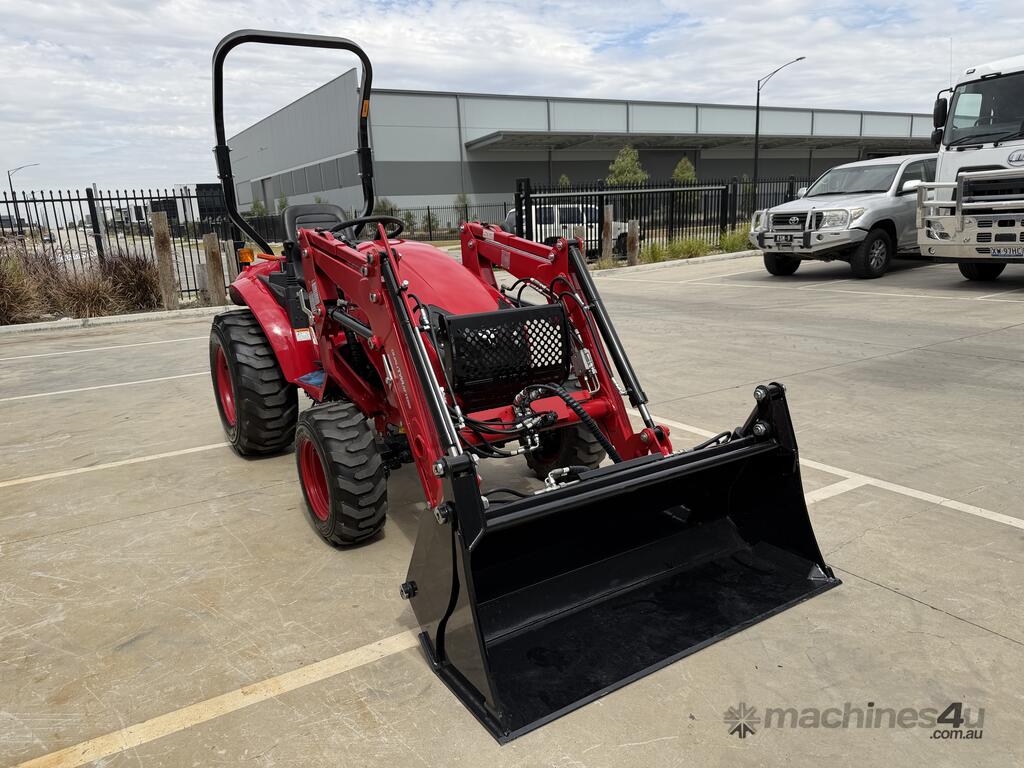

FRONT END LOADER
Options
Level lift Front-end Loader ideal for materials handling and utility work around the small farm.
Easy quick detach bucket and loader with inbuilt quick release loader parking stands

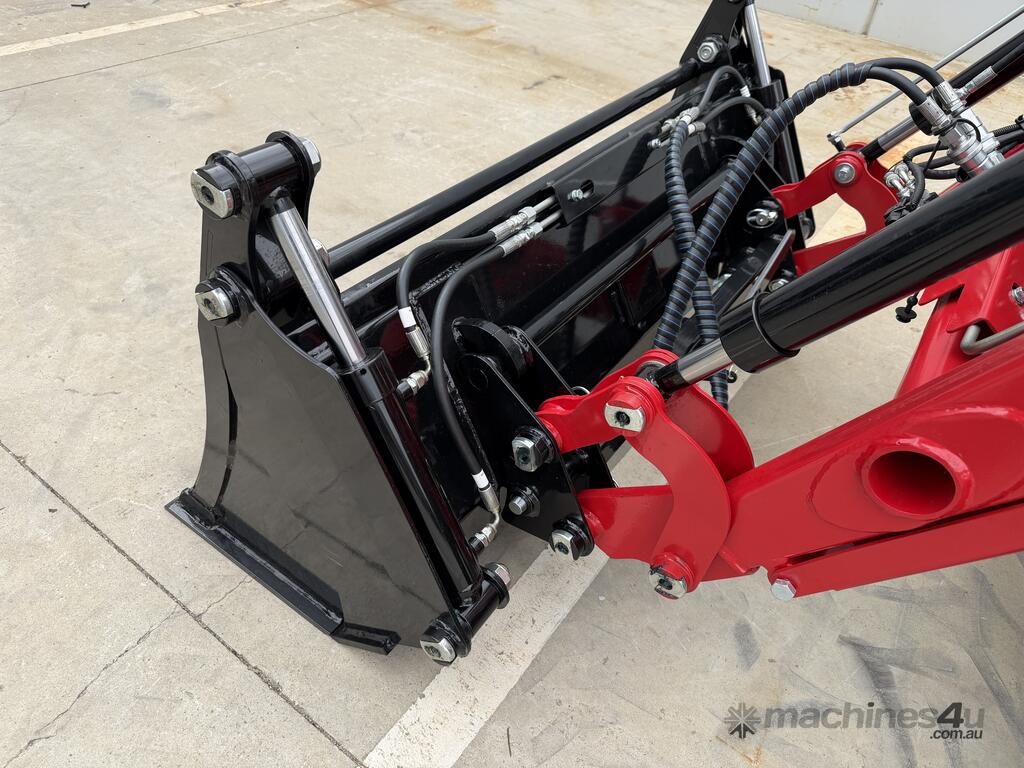

Inegrated loader joystick with ``trigger`` button control for 4-in-1 bucket
Superb visability to loader bucket
Level lift indicator
Full details & specifications on the optional front end loader

SPECIFICATIONS T265
Engine Type TYM
Engine Power (hp/kW) 24.5 / 18
Rated power engine RPM 2600
Number of Cylinders/cc 3/1175
Transmission Type Hydrostatic
Forward / Reverse Shuttle Type HST
Number Speed Ranges 2
Maximum Speed (km/h) 16
PTO Speeds (rpm) 540
Mid PTO Tick
Independent Push Button PTO engagement Tick
Steering brakes Tick
3-point Linkage Lift Capacity (kg) 700
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 865

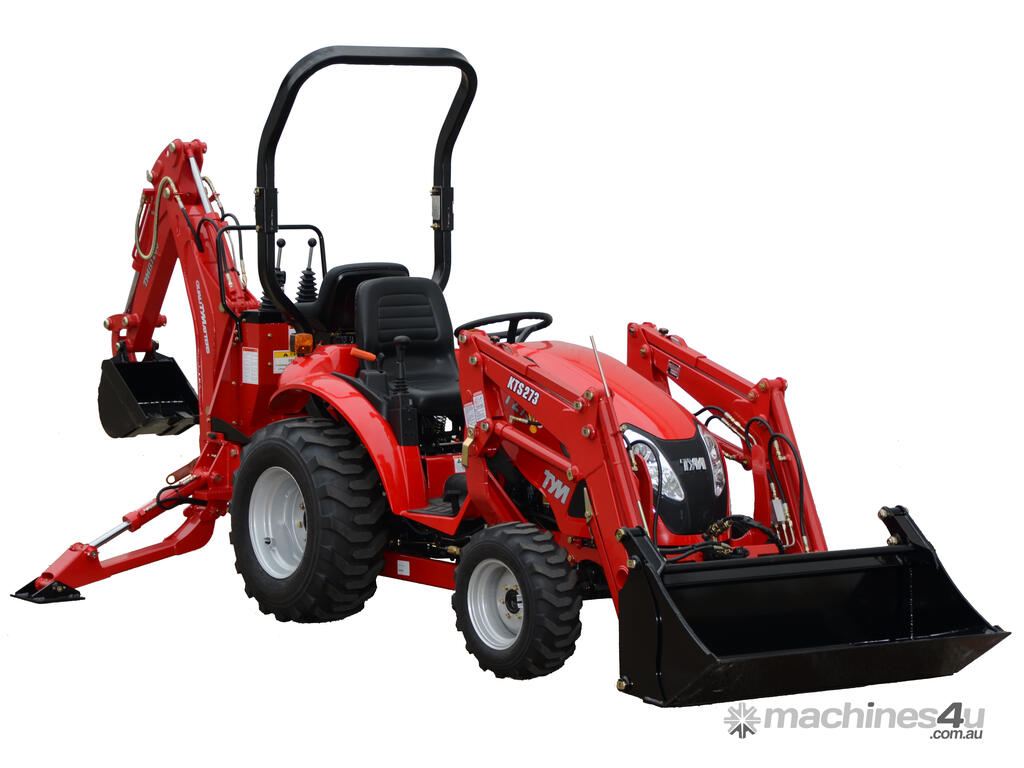

Optional Backhoe and under deck mower available.
+ Many more attachments
