TB-60 Electric Pipe & Tube Bender - Digital Control Ø1/2" - Ø1-1/4" NB Pipe Capacity, 25.4 - 51mm OD

HAFCO-METALMASTER TB-60 Electric Pipe & Tube Bender - Digital Control Ø1/2" - Ø1-1/4" NB Pipe Capacity, 25.4 - 51mm OD Round Tube Capacity Includes Ø1/2", Ø3/4", Ø1" & Ø1-1/4" NB Pipe Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T606

Manufactured in Taiwan

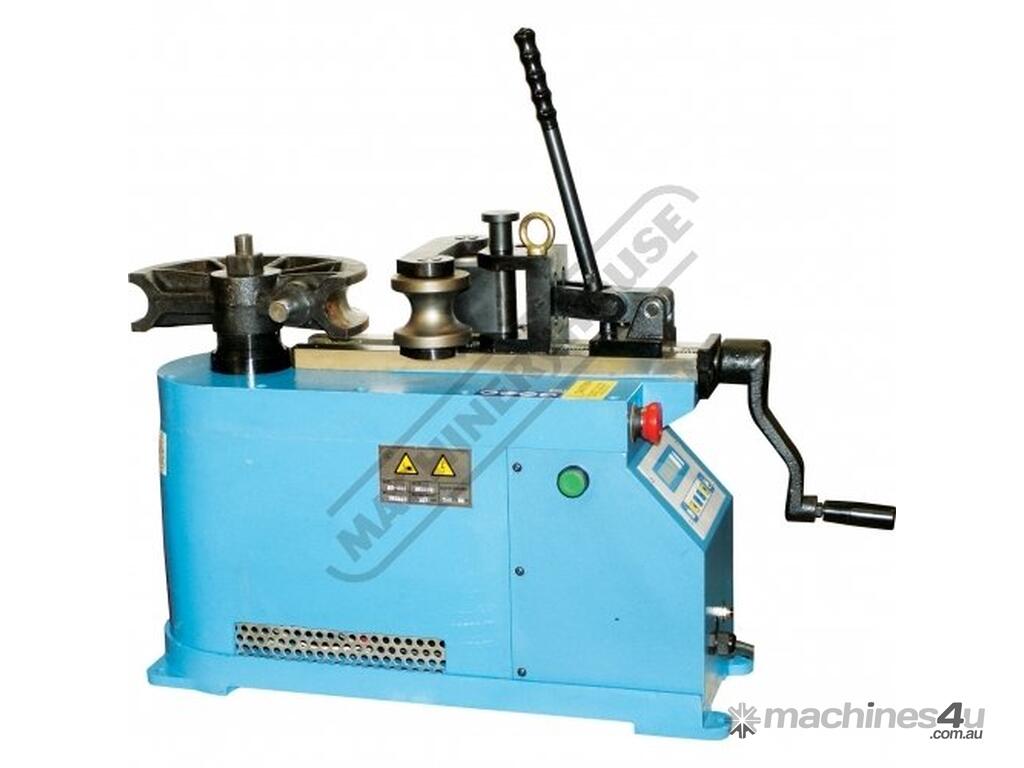

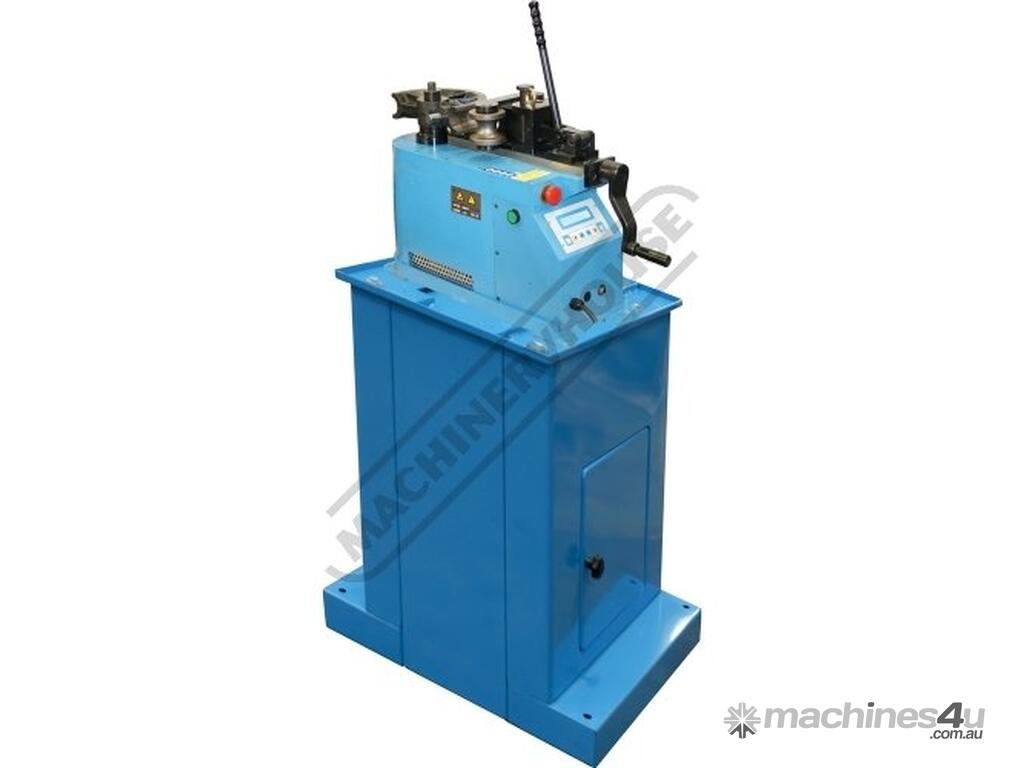

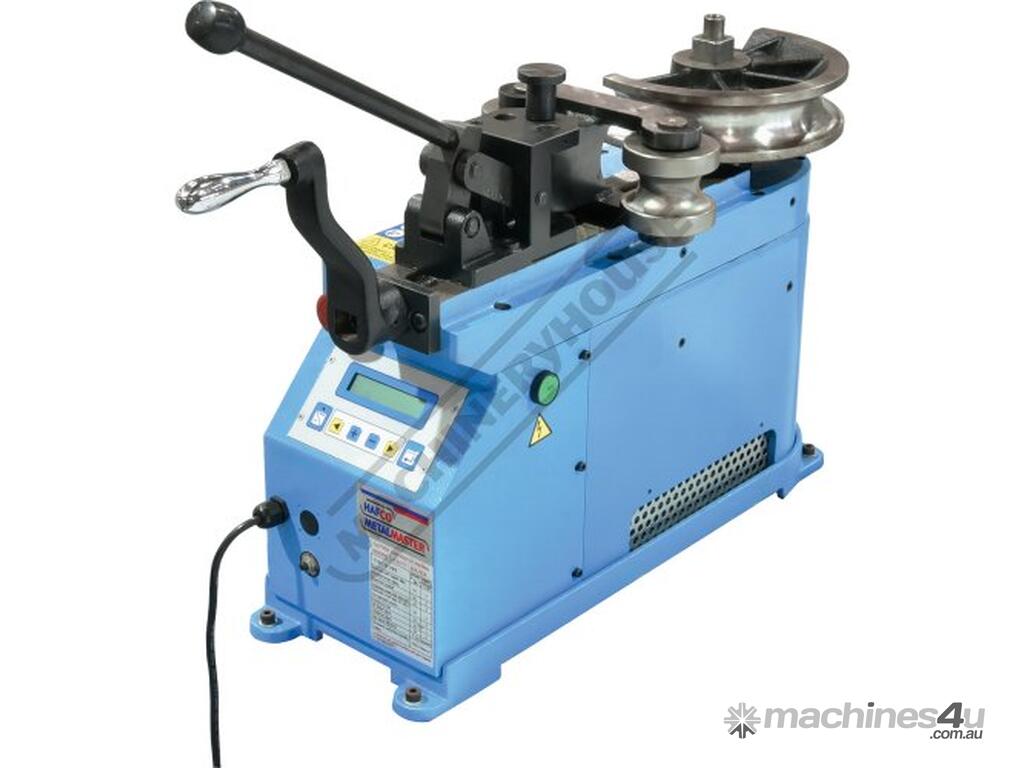

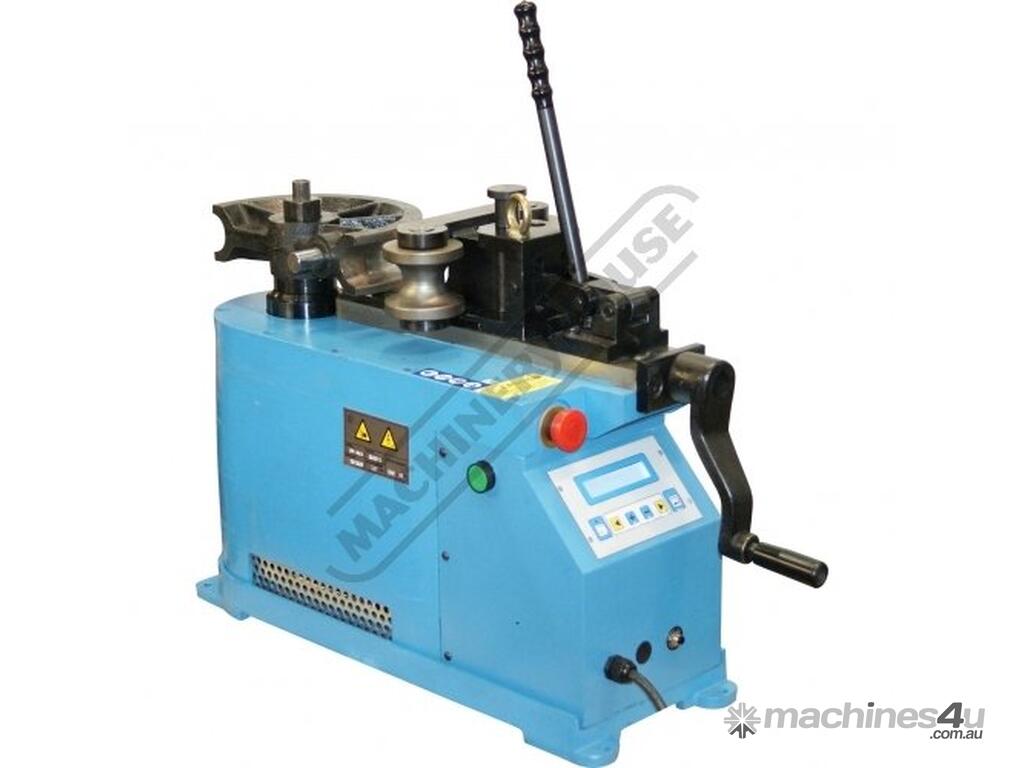

TB-60 is an accurate and powerful electric bending machine able to bend large diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.

This compact & versatile pipe and tube bending unit represents great value for a minimal investment

Features:
Cast iron body tube bender
1.1kW 240V motor

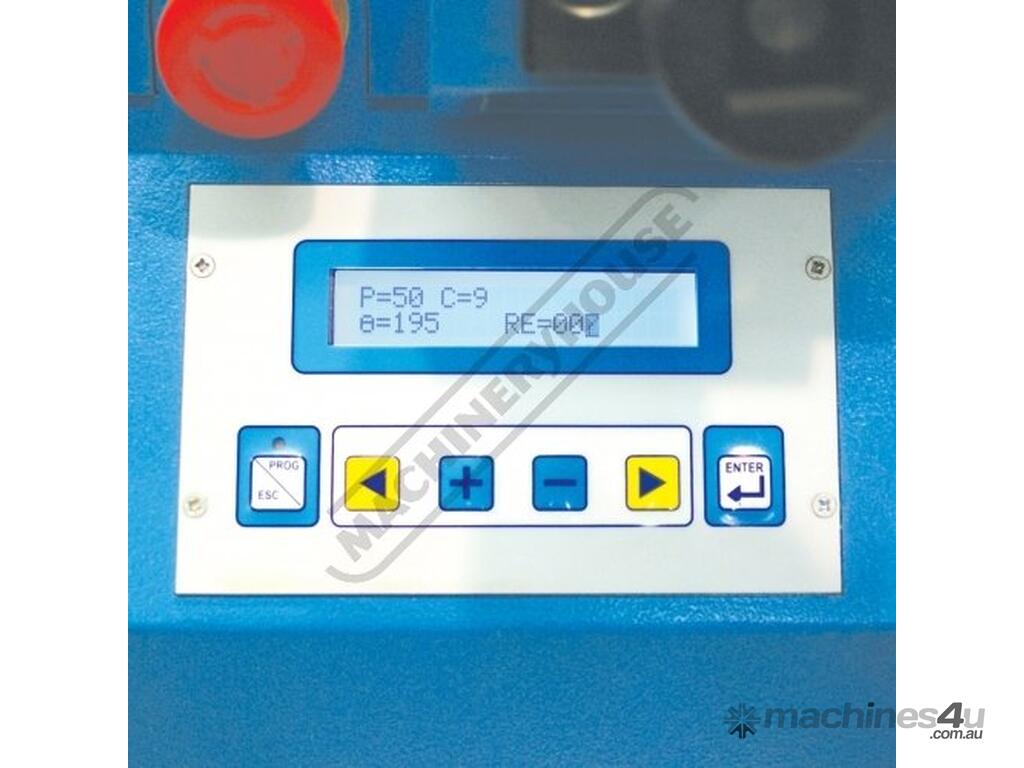

User friendly digital control panel with microprocessor allowing users to set the required bending angles.
Capable of storing 50 programs with 9 bends per program

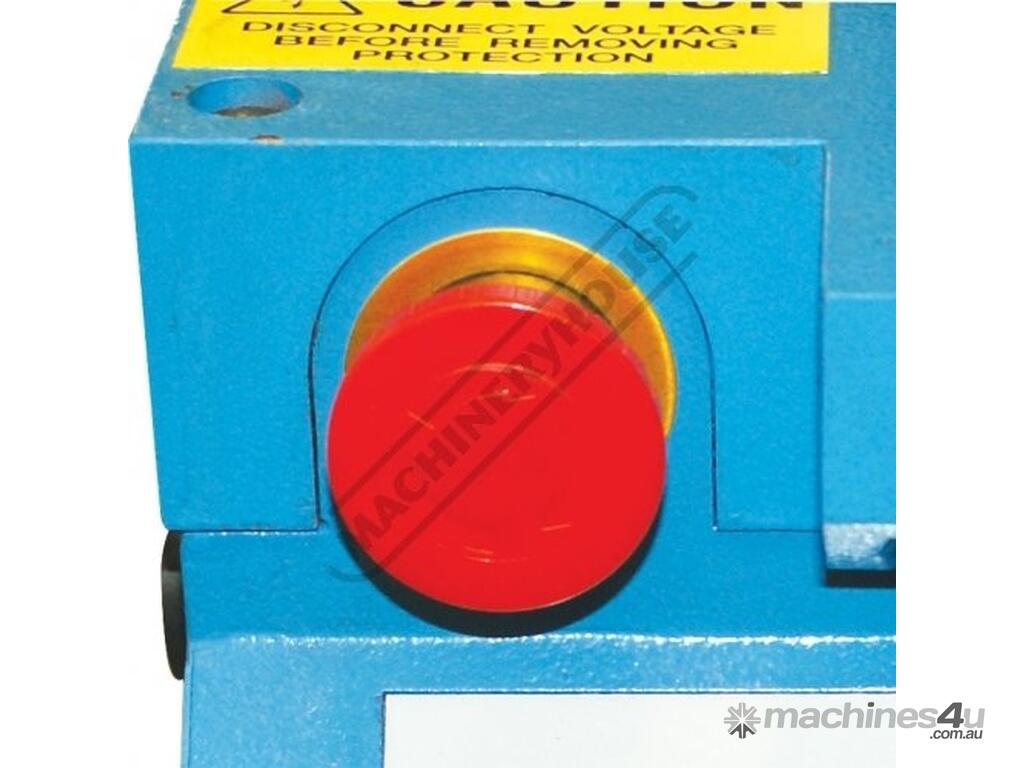

Electric brake and automatic return to stop

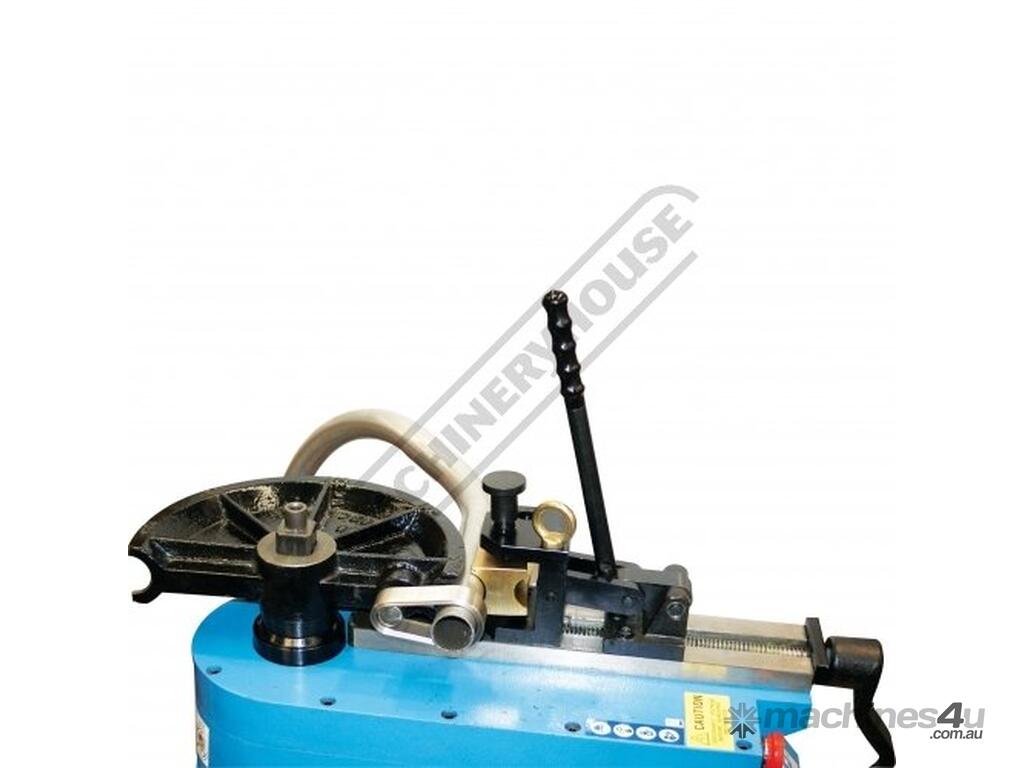

Designed to bend tube and pipe with constant bending radius without deformation

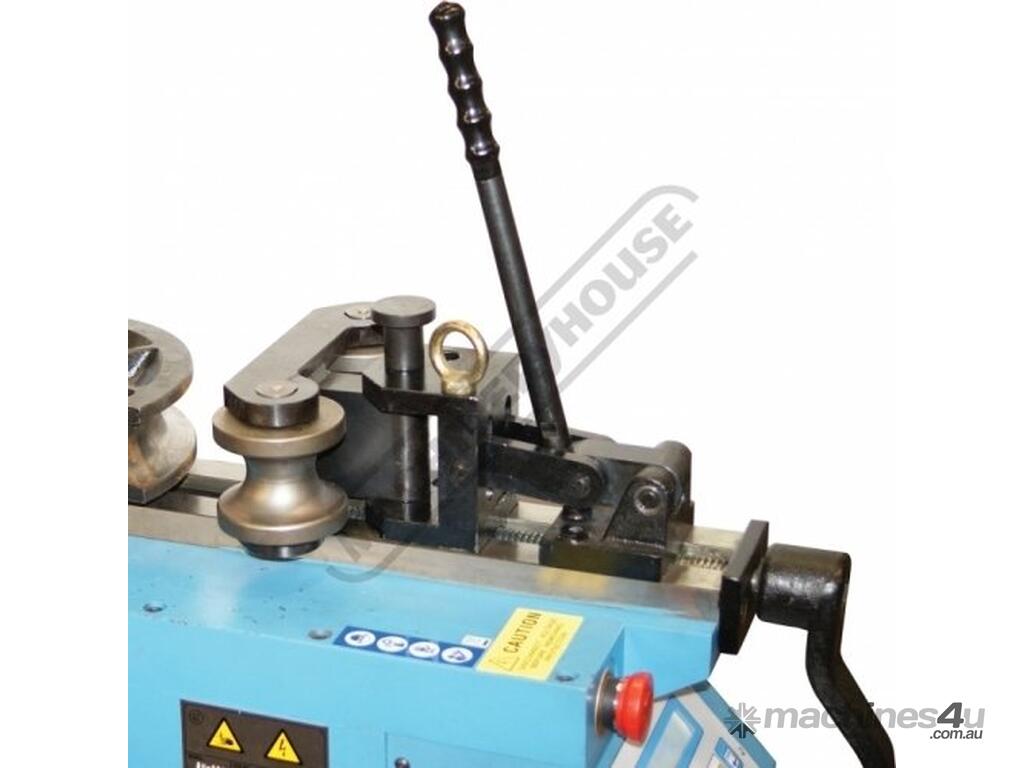

Each pipe former consists of a die former and a follow rollers to suit each size
210º maximum bending angle

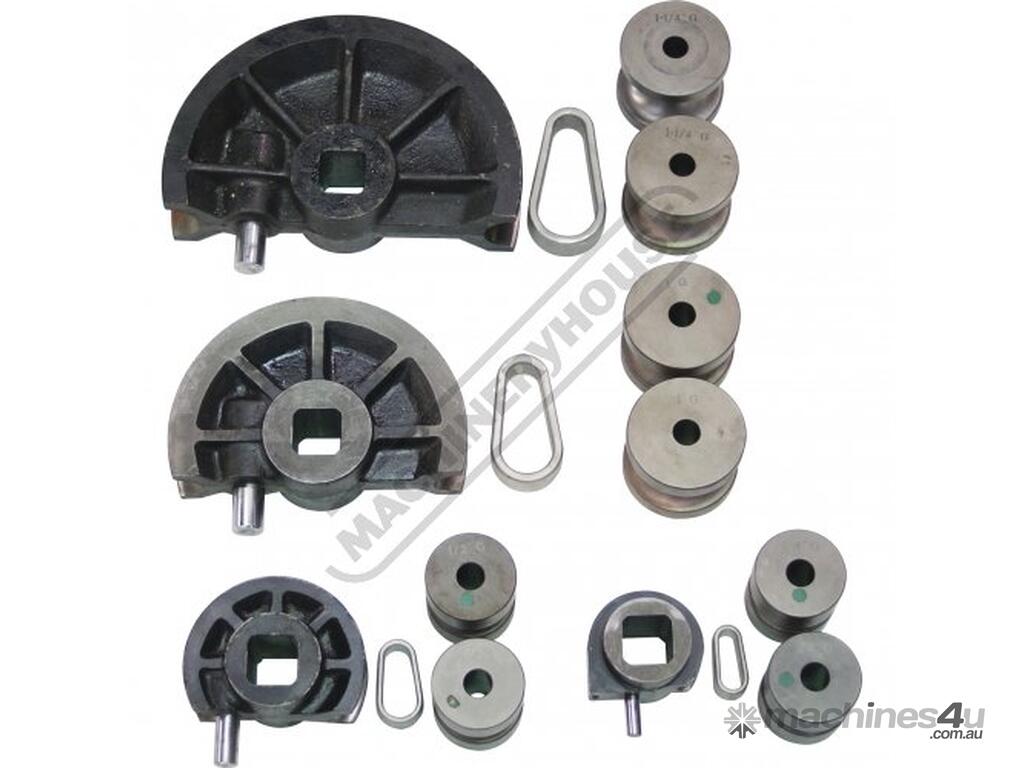

Includes pipe formers: Ø1/2" Ø3/4" Ø1" & Ø1-1/4" NB

Includes:
- Pipe Formers:
- Ø1/2" NB x 59.2mm Centreline radius
- Ø3/4" NB x 80mm Centreline radius
- Ø1" NB x 100.1mm Centreline radius
- Ø1-1/4" NB x 127.4mm Centreline radius



Specifications:
ORDER CODE: T606
MODEL: TB-60
Material (Type): Pipe & Tube
Material Section (Type): Round
Machine (Type): Electric
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø1-1/4"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø25.4 - Ø51
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø1-1/4" x 1/8"
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø51 x 2
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø51 x 3
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): Ø51 x 2
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø38 x 1.6
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 4 x Former Diameter
Centre Line Radius - Minimum (CLR) (inch / mm): 3 x Former Diameter
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2", 3/4", 1" &
Pipe Formers Included (inch / mm): 1-1/4" NB Pipe
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 210º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 140
