TB-70 Electric Pipe & Tube Bender - Digital Control, Includes Stand Ø1/2" - Ø2" NB Pipe Capacity, Ø2

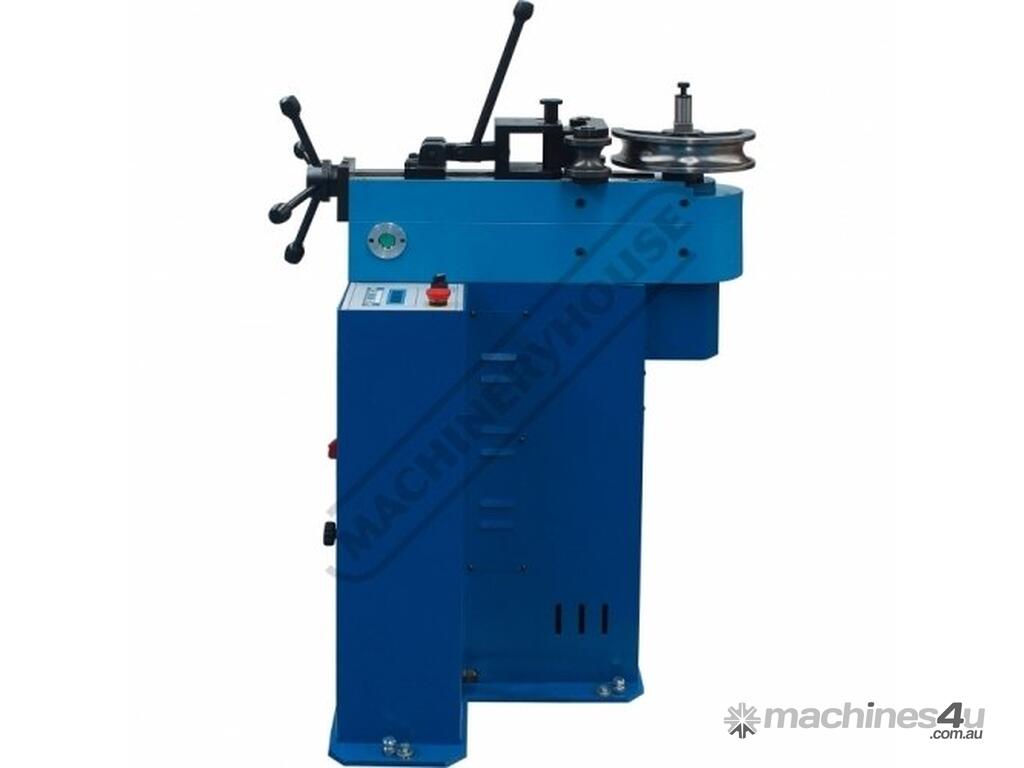

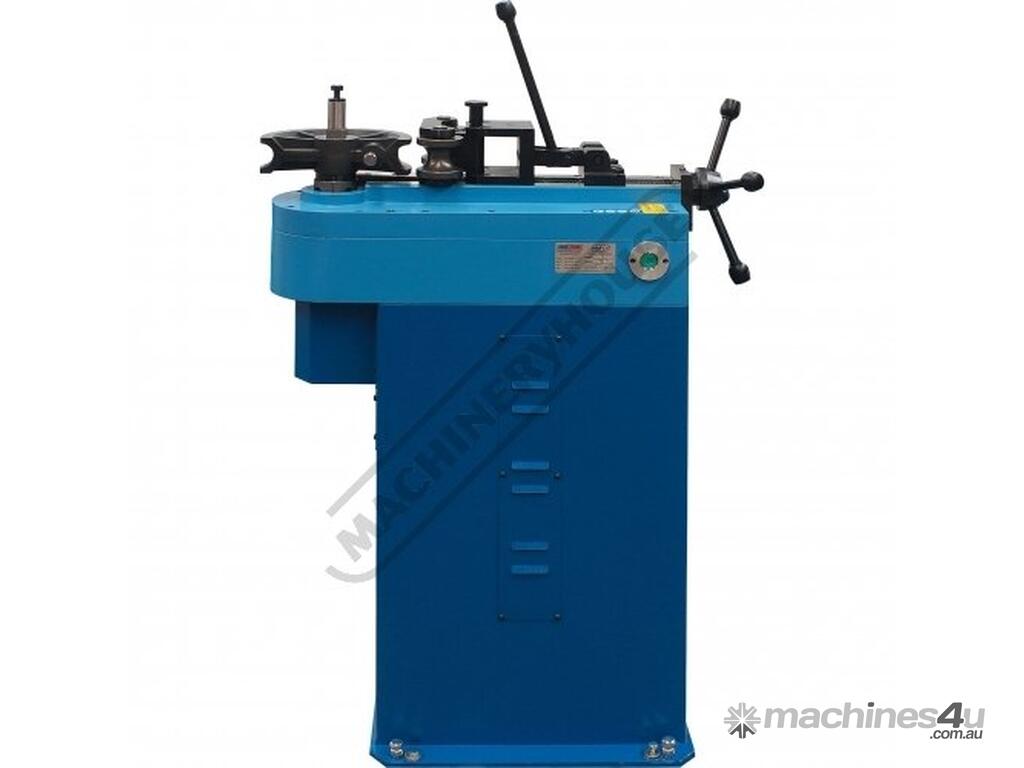

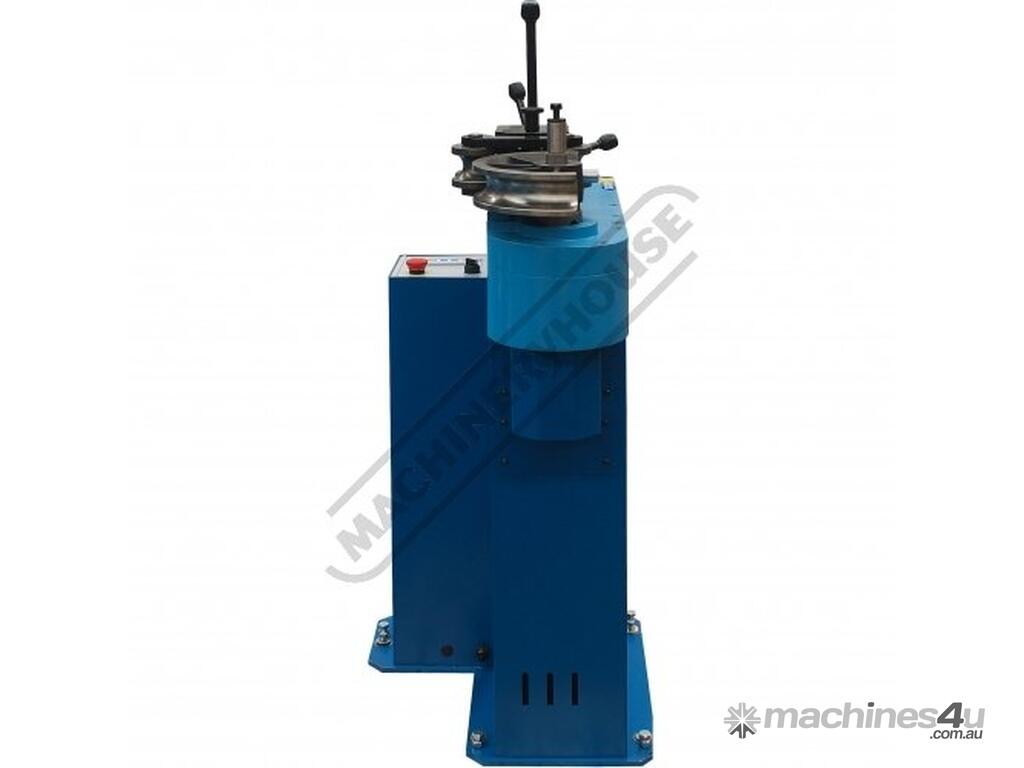

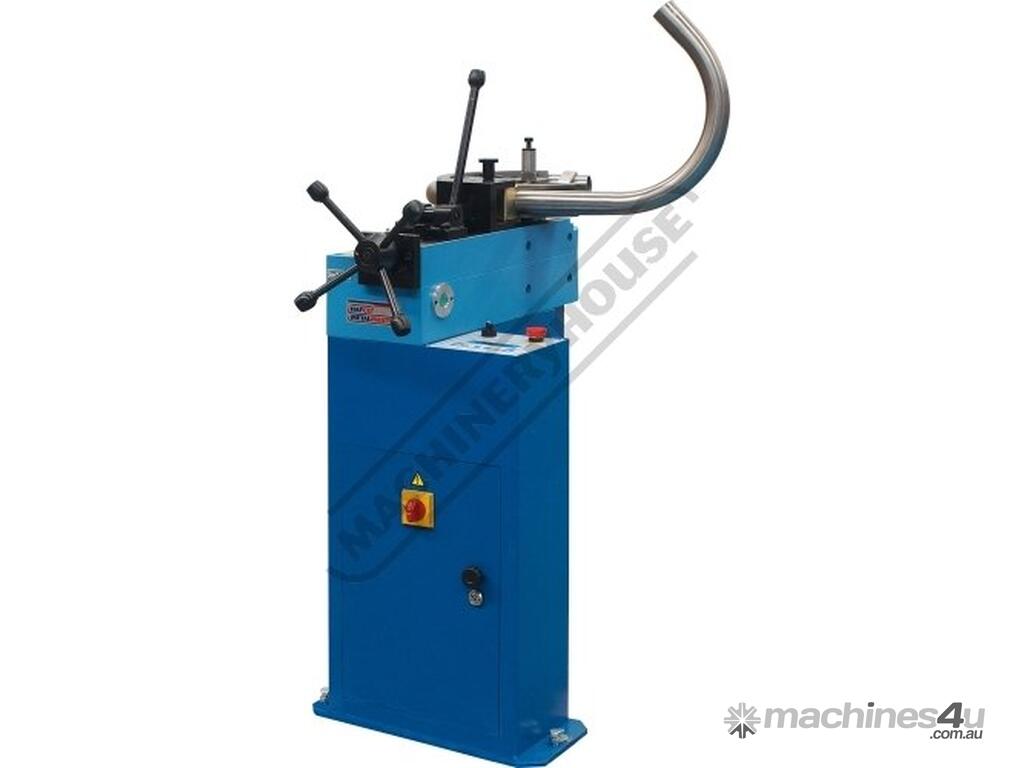

HAFCO-METALMASTER TB-70 Electric Pipe & Tube Bender - Digital Control, Includes Stand Ø1/2" - Ø2" NB Pipe Capacity, Ø25.4 - Ø51mm Round Tube Capacity Includes 1/2", 3/4", 1" & 1-1/4" NB Pipe Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T607

Manufactured in Taiwan

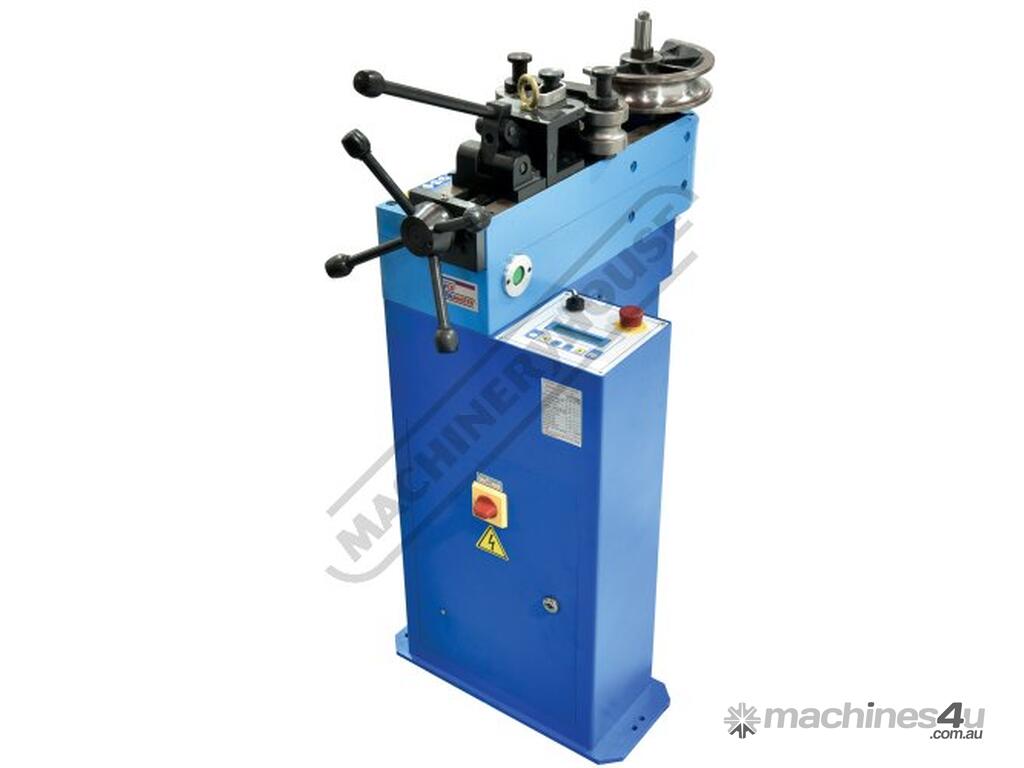

TB-70 is the bigger brother to the TB-60 and is still an accurate and powerful electric bending machine able to bend larger diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.

This compact & versatile pipe and tube bending unit represents great value for a minimal investment

Features:
Cast iron body tube bender
2.2kW 415V motor

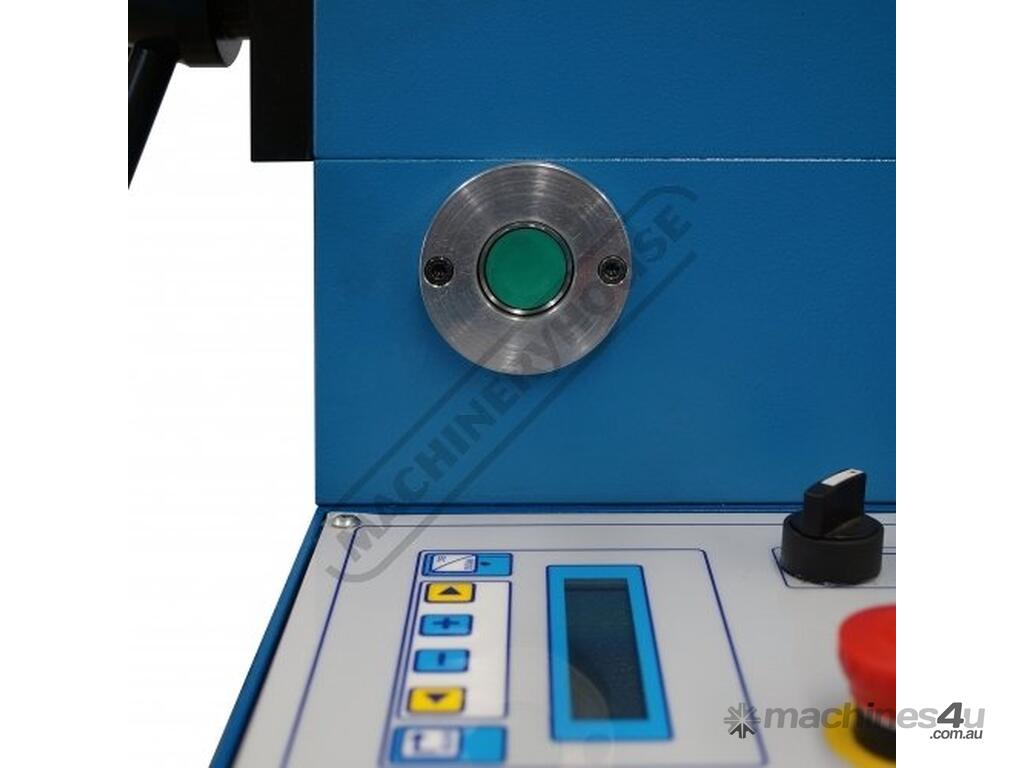

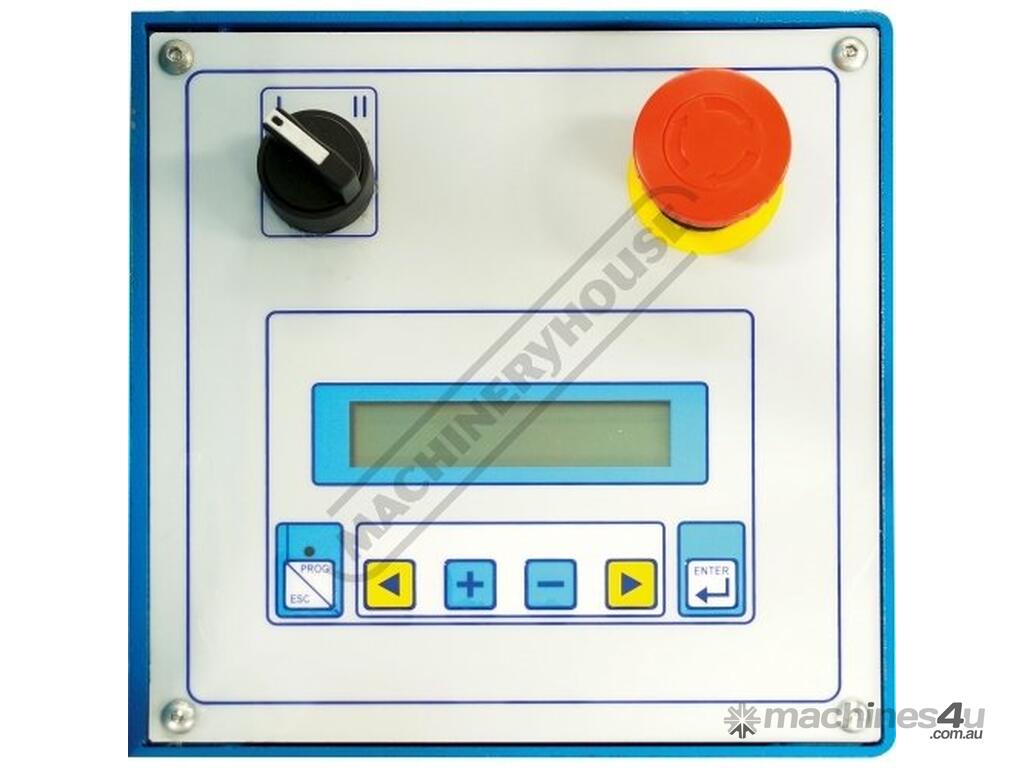

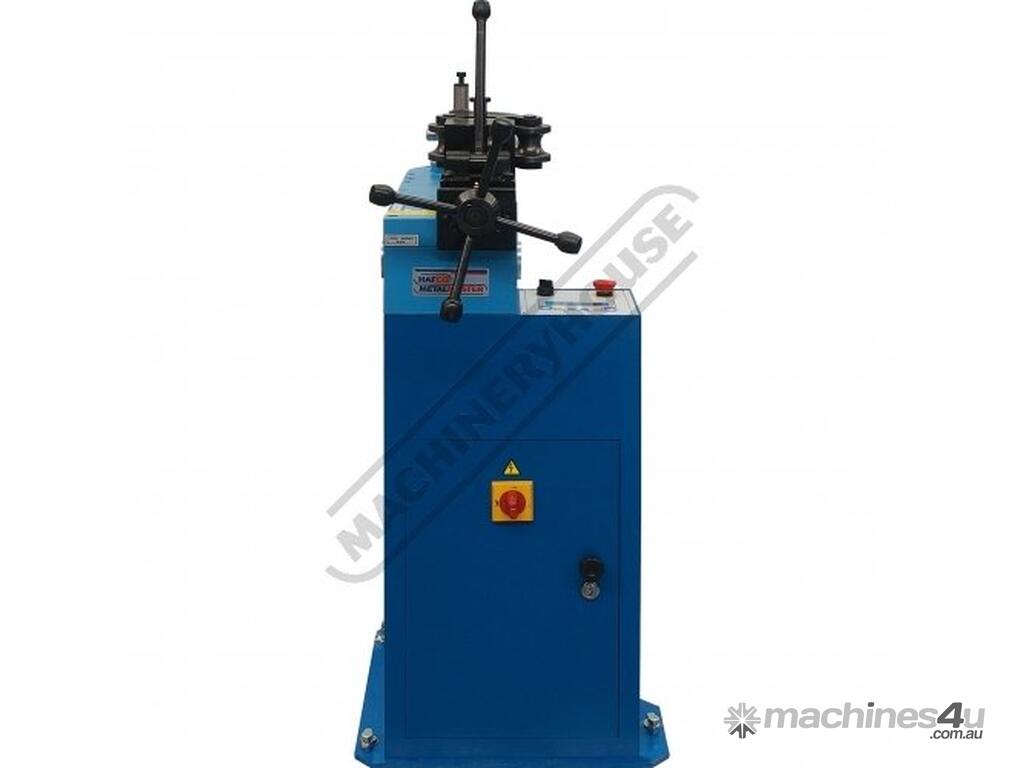

User friendly digital control panel with microprocessor allowing users to set the required bending angles.
Capable of storing 50 programs with 9 bends per program
Electric brake and automatic return to stop
Designed to bend tube and pipe with constant bending radius without deformation

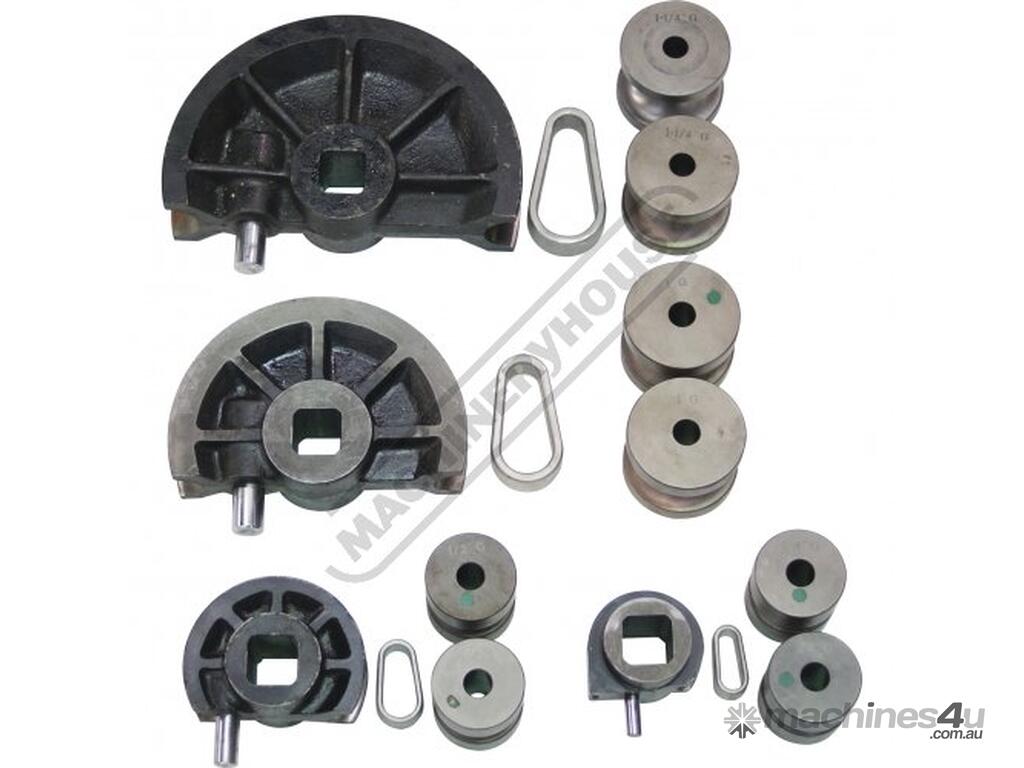

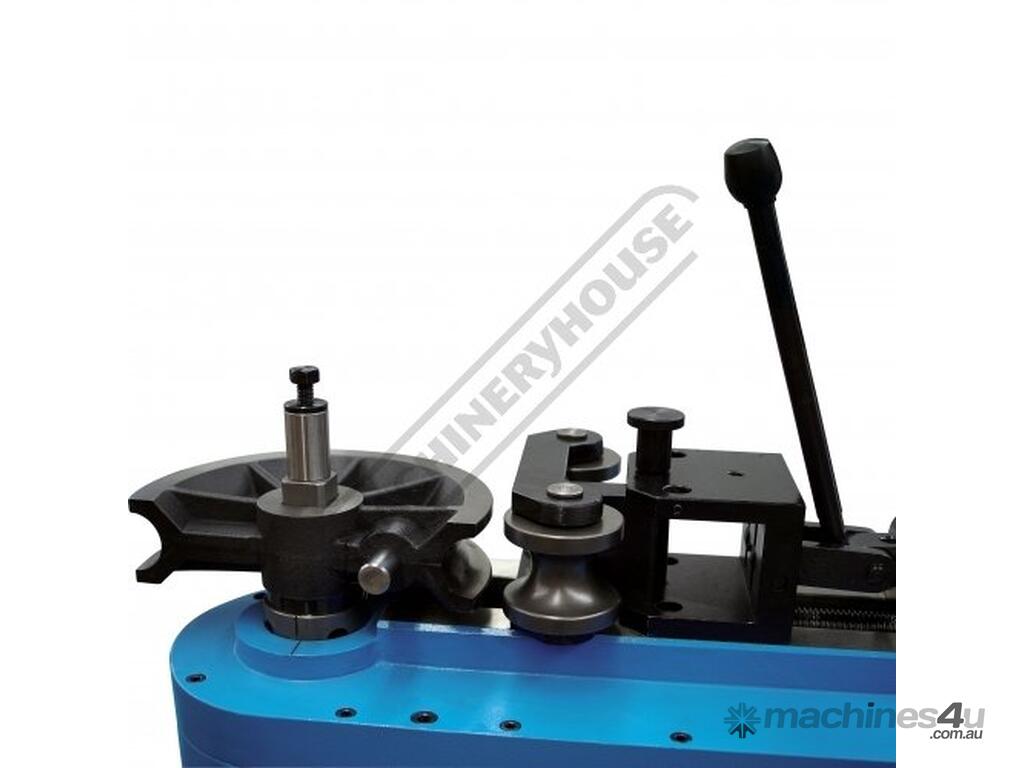

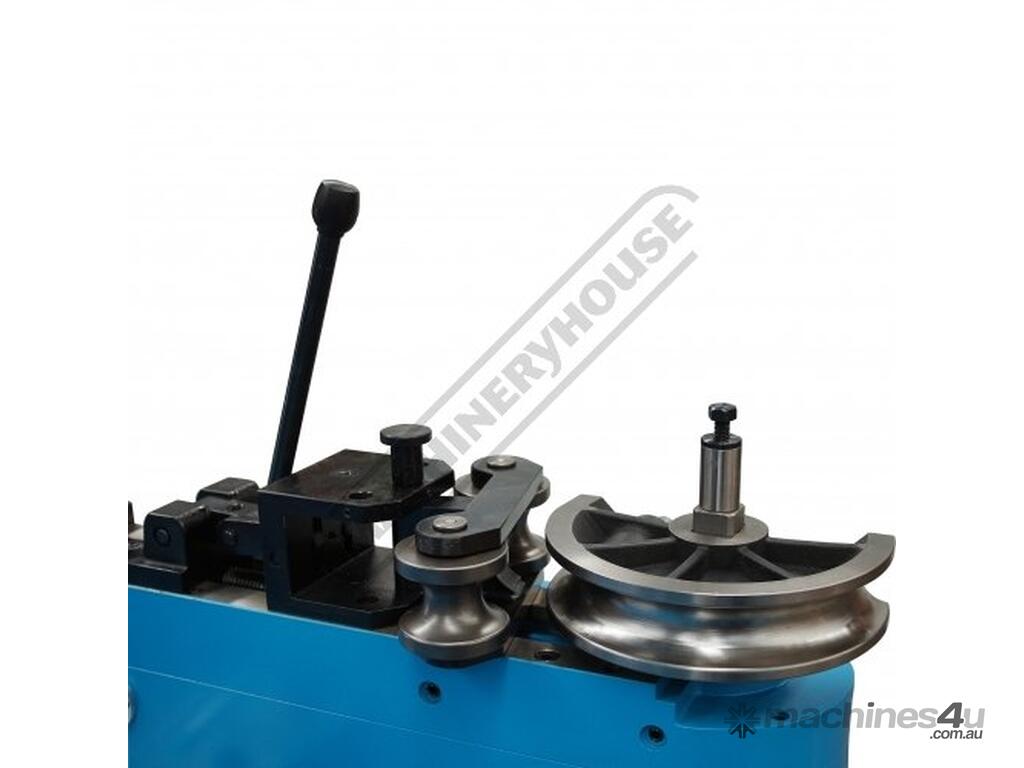

Each pipe former consists of a die former and a follow rollers to suit each size
210º maximum bending angle

Includes:
- Floor stand
- Pipe Formers:
- Ø1/2" NB x 59.2mm Centreline radius
- Ø3/4" NB x 80mm Centreline radius
- Ø1" NB x 100.1mm Centreline radius
- Ø1-1/4" NB x 127.4mm Centreline radius



Specifications:
ORDER CODE: T607
MODEL: TB-70
Material (Type): Pipe & Tube
Material Section (Type): Round
Machine (Type): Electric
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø25.4 - Ø51
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2" x 1/8"
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø51 x 3
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø51 x 5
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): Ø51 x 4
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø51 x 2
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 4 x Former Diameter
Centre Line Radius - Minimum (CLR) (inch / mm): 3 x Former Diameter
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2", 3/4", 1" &
Pipe Formers Included (inch / mm): 1-1/4" NB Pipe
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 210º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 240
