TB14J PLUS (TB460J PLUS) Engine Powered Telescopic Boom Lift

Working height
16.1m
Platform Capacity
454kg
Gradeability
40%

DIMENSIONS

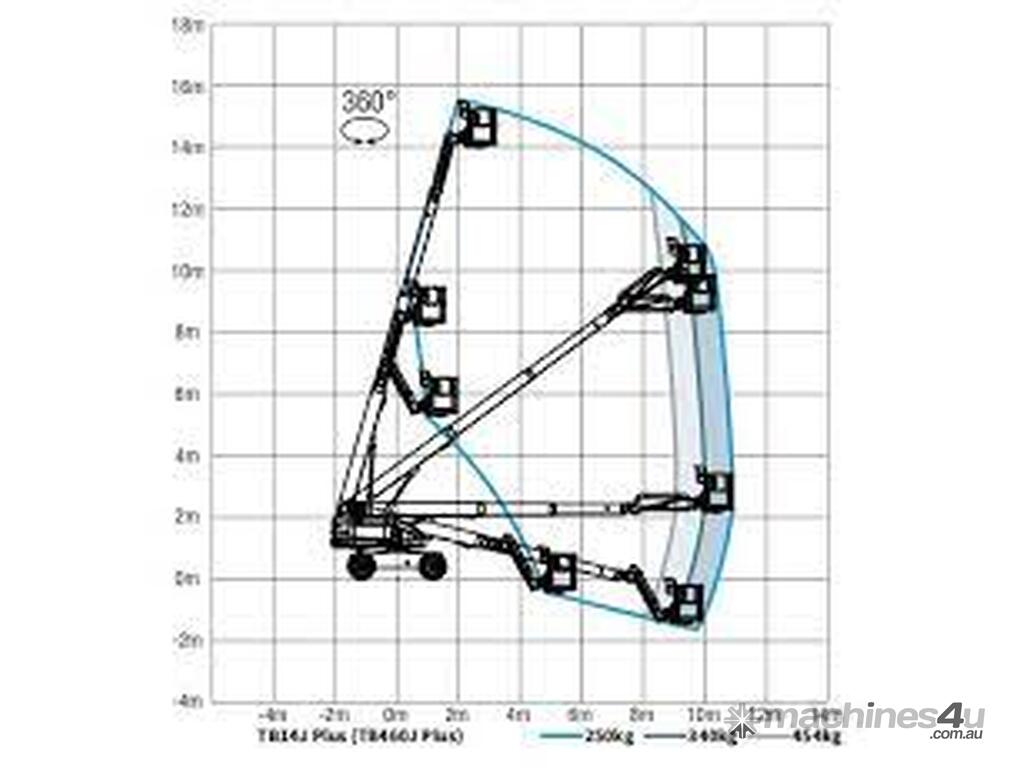

Max Platform Height
14.1 m (46'3'')
Max Working Height
16.1 m (52'10'')
Max Horizontal Extension
9.1 m / 10 m / 10.9m (29'10''/32'10''/35'9'')

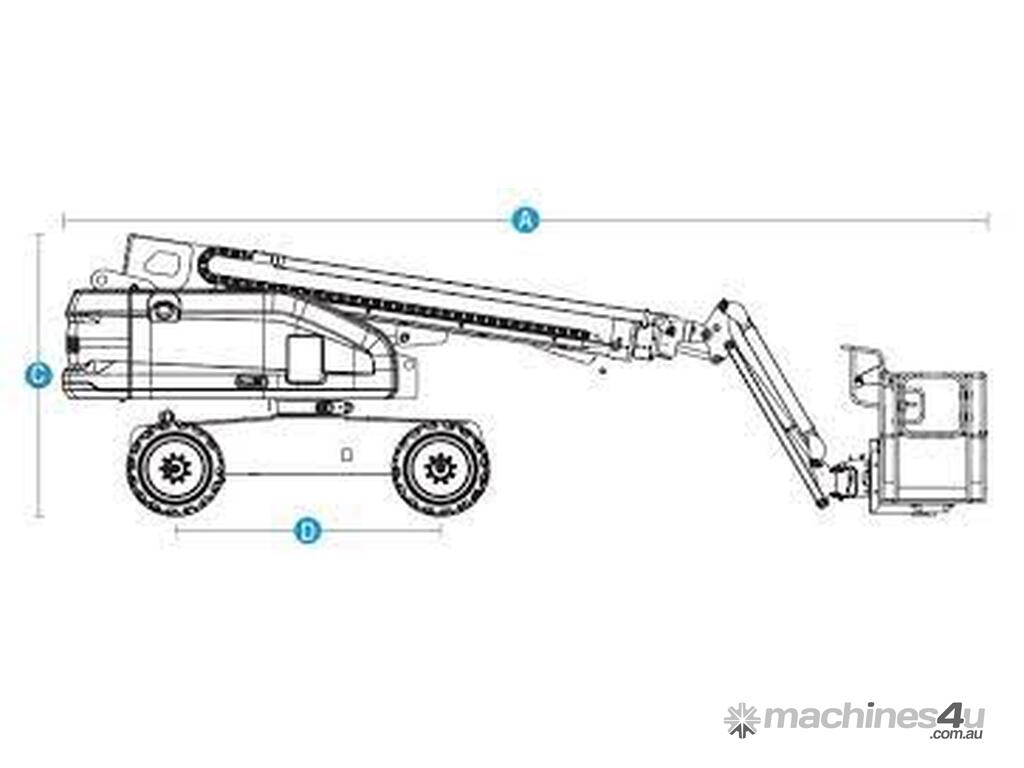

[A] Length-Stowed
7.99 m (26'3'')
[B] Width
2.3 m (7'6")
[C] Height-Stowed
2.49 m (8'2")
[D] Wheelbase
2.3 m (7'6")
Ground Clearance
0.37 m (1'3")
Platform Dimensions(L×W×H)
2.44×0.91×1.1m (8'×3'×3'7")

PERFORMANCE
Platform Capacity
(Unrestricted)
340 kg (749 lbs) / 250 kg (551 lbs)
Platform Capacity
(restricted)
454 kg (1,000 lbs)
Turntable Rotation
360° continuous
Platform Rotation
160°
Drive Speed-Stowed
0~4.8 km/h (0~3 mph)
Drive Speed-Raised
0~0.8 km/h (0~0.5 mph)
Gradeability
40%
Turning Radius-Inside
1.82 m (6')
Turning Radius-Outside
4.78 m?15'8")
Turntable Tailswing
0.98 m? 3'3")
Tilt Rating
5°
Max Operating Noise Level
Drive×Steer
4WD×2WS
Tyres-solid
33×12D610 (Foam filled)

POWER
Power Source (Optional)
18.4 kW/3000 rpm/ 3TNV80F-NXDSI /Yanmar/EU Stage V/EPA Tier 4F 18.5 kW/3000 rpm/ D1105-E4B-EU-X1/Kubota/EU Stage V/EPA Tier 4F
Auxiliary Power Unit
12V DC
Fuel Tank Capacity-Diesel
100L (22.0 gal (UK) / 26.4 gal (US))
Hydraulic Tank Capacity
120L (26.4 gal (UK) / 31.7 gal (US))

Weight
7,300 kg (16,093 lbs)
Standards Compliance
CE/ANSI/CSA/AS
