TBRS-25 Manual Tube Bender - Round & Square Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Squ

HAFCO TBRS-25 Manual Tube Bender - Round & Square Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity Includes Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm Round & 19.05 & 25.4mm Square Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T055

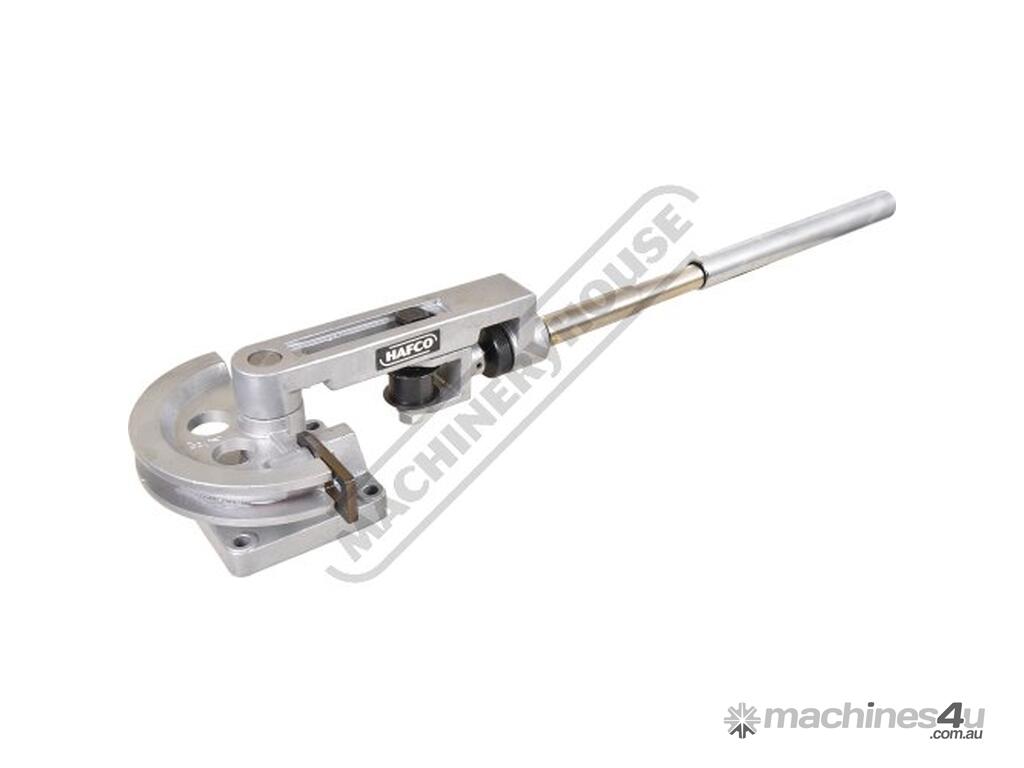

This Hafco TBRS-25 tube bending kit has everything that you need to make smooth bends in round & Square tubes up to 1.2mm maximum wall thickness. Firstly, mount the cast iron base securely onto your work bench top or clamp it into a bench vice, then you are ready to begin your bend.

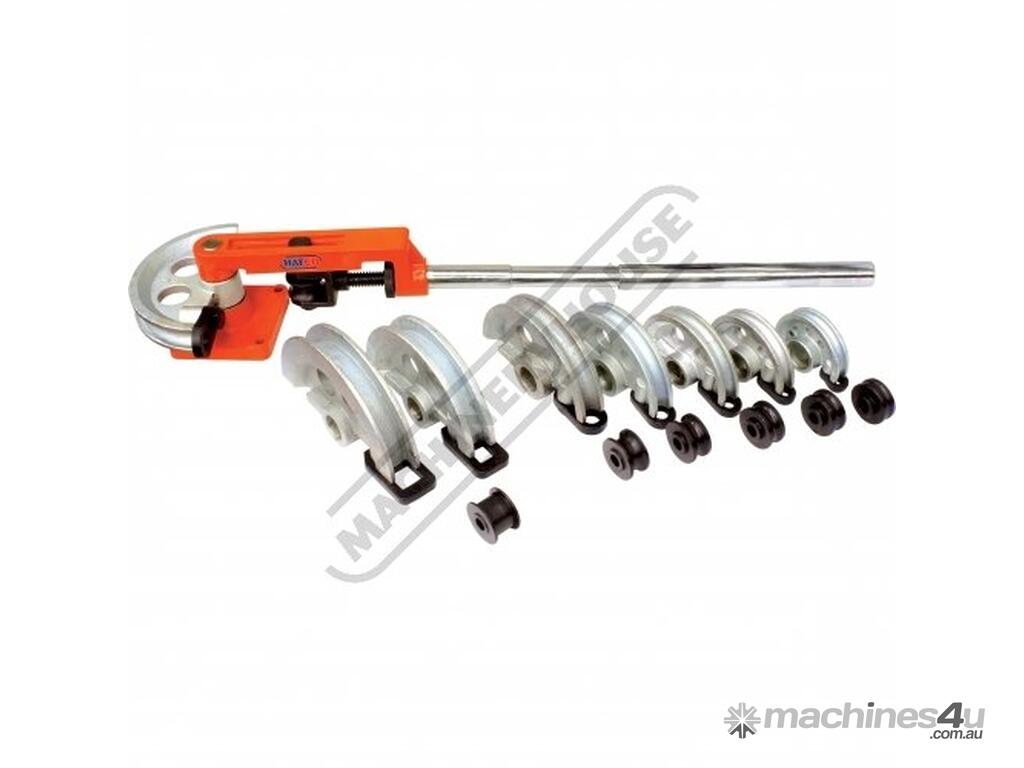

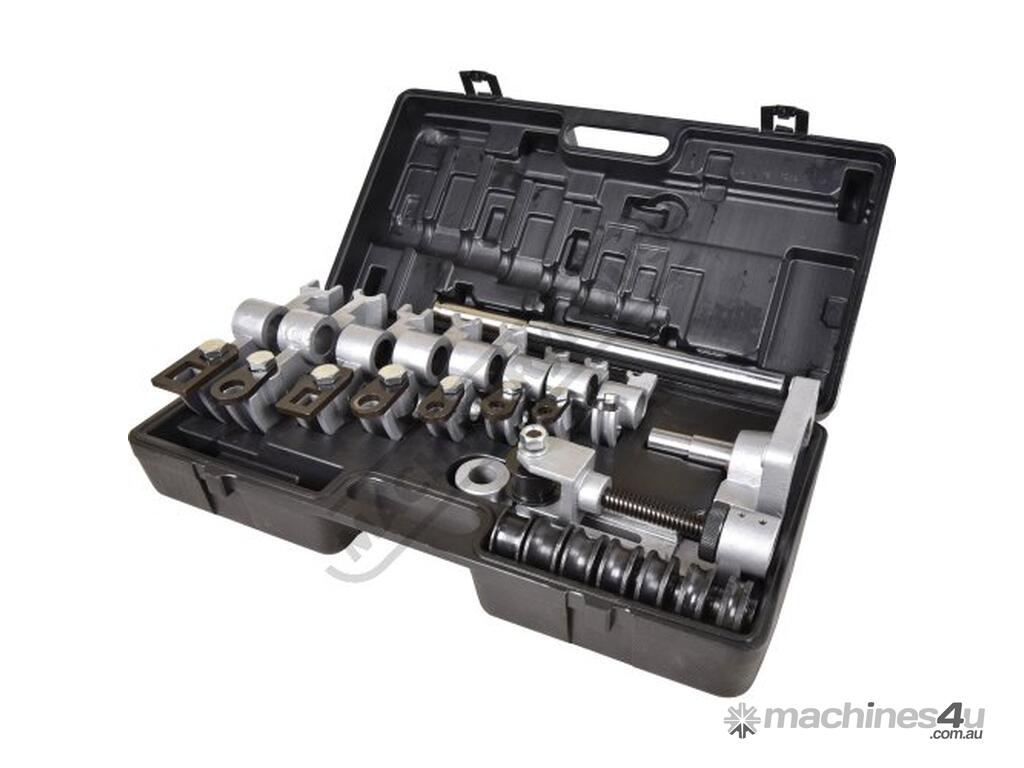

This great package is capable of bending round tubes from Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05 & Ø22.22mm, and square tube from 19.05 & 25.4mm. Everything is all neatly packed into a handy storage carry case for your convenience,

Features:
Suitable for 1.2mm wall thickness in mild steel
Cast Steel Round formers included: Ø9.52 Ø12.7 Ø14.29 Ø15.87 Ø19.05 Ø22.22mm
Cast Steel Square formers included: 19.05 & 25.4mm

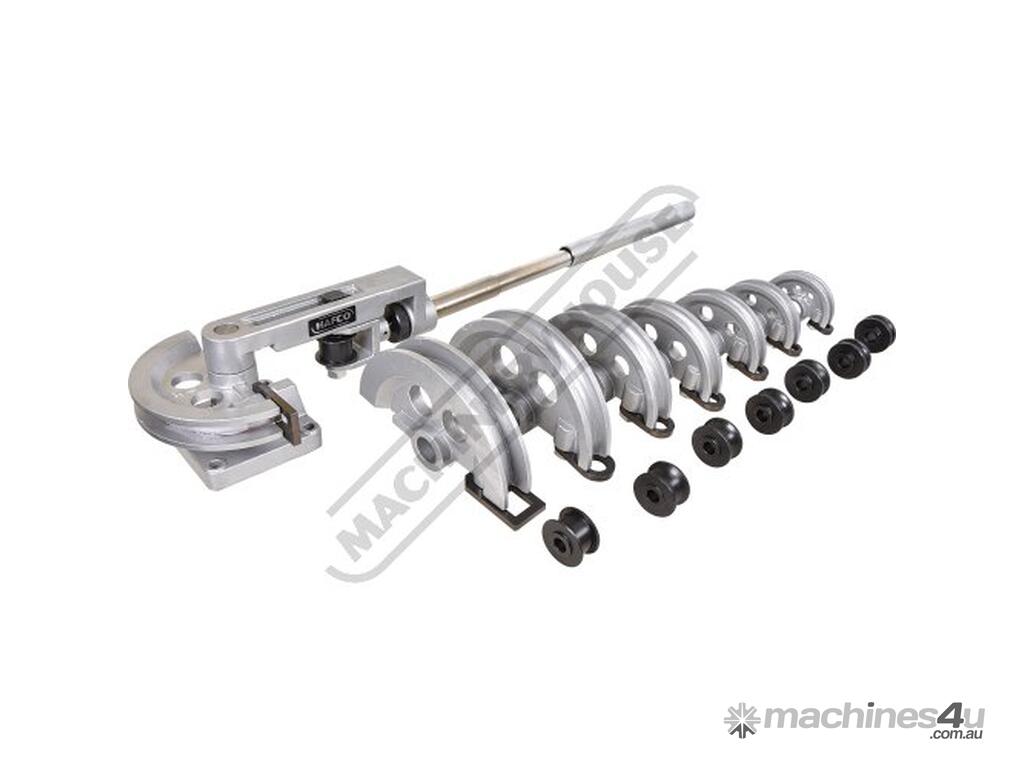

Includes:
- Cast Steel Round Tube Formers:
- D = Ø9.52mm OD - R = 47.5mm Centreline radius
- D = Ø12.7mm OD - R = 57.5mm Centreline radius
- D = Ø14.29mm OD - R = 67.5mm Centreline radius
- D = Ø15.87mm OD - R = 77.25mm Centreline radius
- D = Ø19.05mm OD - R = 88.25mm Centreline radius
- D = Ø22.22mm OD - R = 107.25mm Centreline radius
-
- Cast Steel Square Tube Formers:
- H = Ø19.05mm OD - L = 85mm Internal radius
- H = Ø25.4mm OD - L = 92.5mm Internal radius



Specifications:
ORDER CODE: T055
MODEL: TBRS-25
Material (Type): Tube
Material Section (Type): Round & Square
Machine (Type): Manual
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): Ø9.52 - Ø22.22
Square Tube Range (inch / mm): 19.05 & 25.4
Tube Wall Thickness - Mild Steel (inch / mm): 1.2
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): 9.52, 12.7, 14.29 Round
Tube Formers Included (inch / mm): 15.87, 19.05, 22.22 Round
Tube Formers Included (inch / mm): 19.05 & 25.4 Square
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 180º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 28
