TBSQ Manual Tube Bender - Square 12.7 - 25.4mm Square Tube Capacity, Ø12.7 - Ø28.57mm Round Tube Ca

BRAMLEY TBSQ Manual Tube Bender - Square 12.7 - 25.4mm Square Tube Capacity, Ø12.7 - Ø28.57mm Round Tube Capacity Includes 12.7, 15.87, 19.05, 22.22, 25.4mm Square Tube Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T050

For bending thin wall tube up to 90° in one operation.

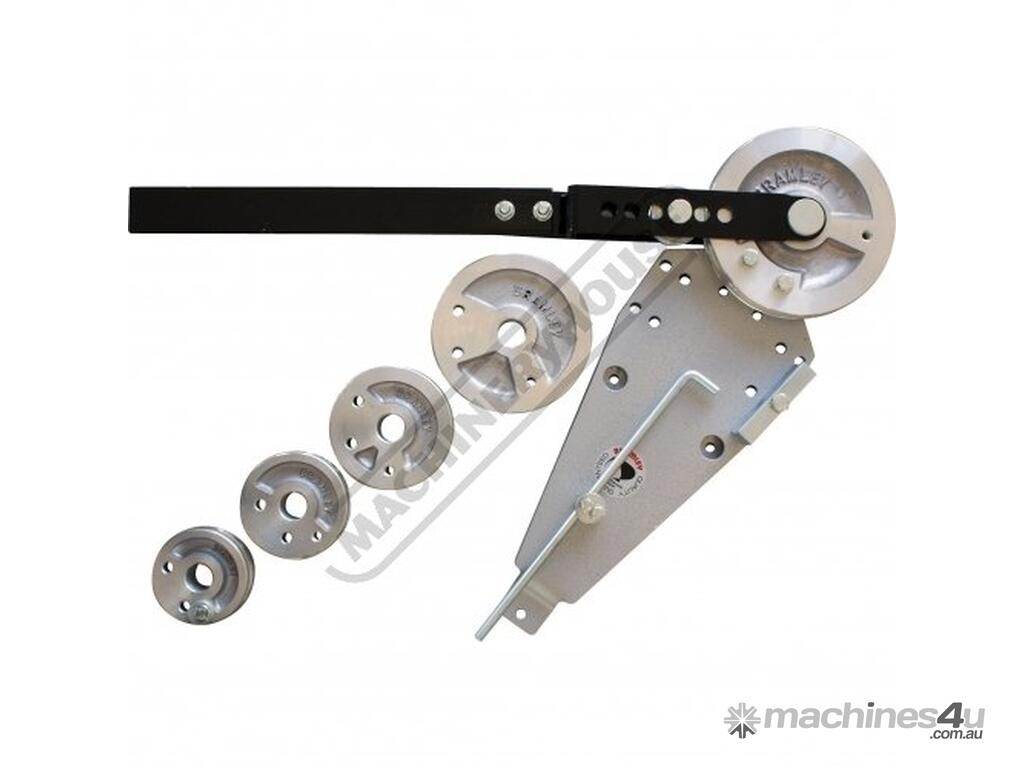

Supplied with 5 sets of Square Tube Formers & Follow Rollers ranging from 12.7 – 25.4mm

Features:
Suitable for 1.6mm wall thickness in mild steel
Now with lightweight aluminium alloy formers
Optional round formers can fit onto the square tube bender (& vice-versa)

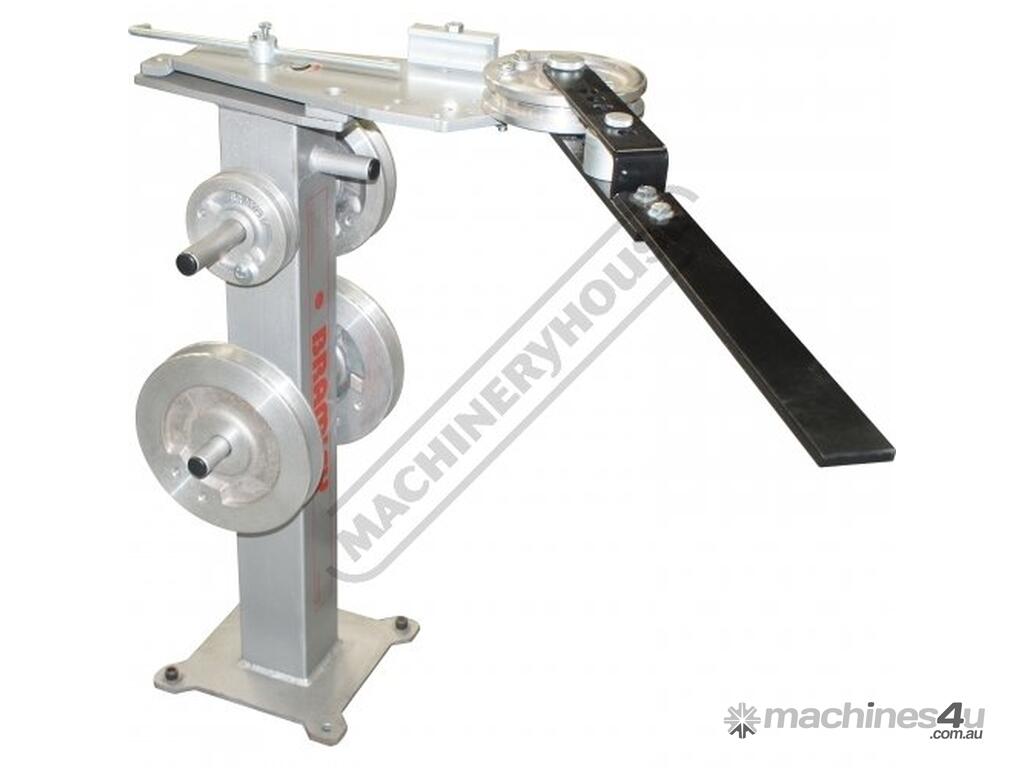

Optional stand - incorporates storage pegs for formers

Includes:
- Aluminium Square Formers:
- 12.7mm x 65mm Centreline radius
- 15.87mm x 85mm Centreline radius
- 19.05mm x 100mm Centreline radius
- 22.22mm x 115mm Centreline radius
- 25.4mm x 115mm Centreline radius
- Material length stop



Specifications:
ORDER CODE: T050
MODEL: TBSQ
Material (Type): Tube
Material Section (Type): Square
Machine (Type): Manual
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): Ø12.7 - Ø28.57
Square Tube Range (inch / mm): 12.7 - 25.4
Tube Wall Thickness - Mild Steel (inch / mm): 1.6
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): 12.7, 15.87, 19.05,
Tube Formers Included (inch / mm): 22.22, 25.4 Square
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 90º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 19
