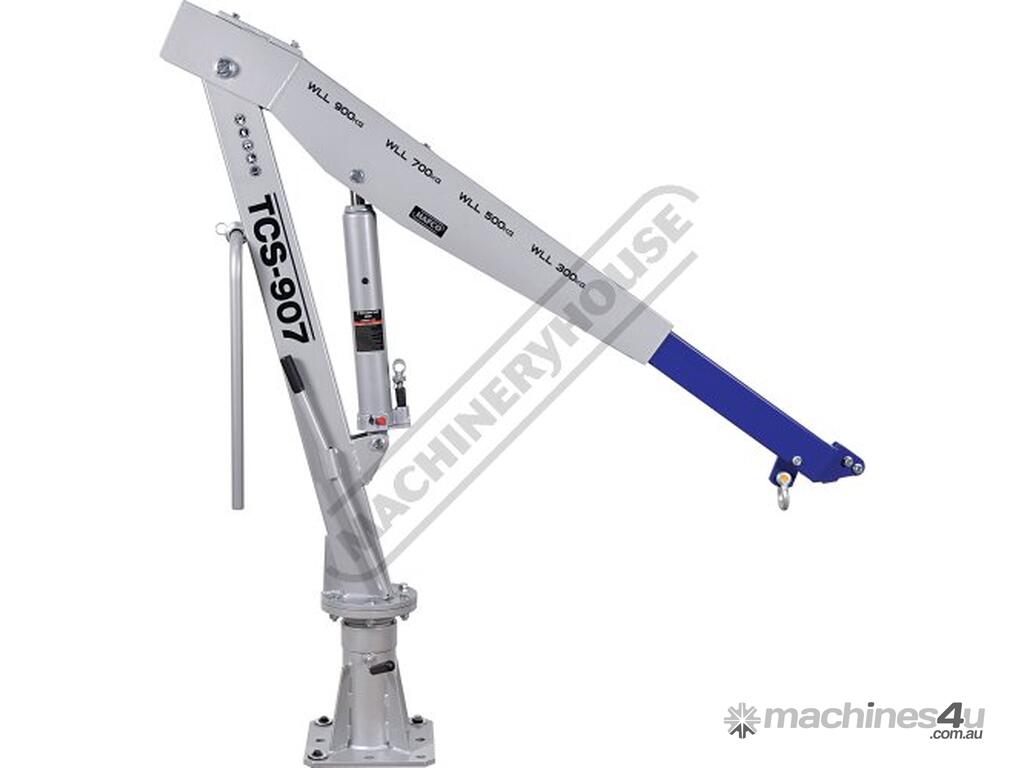

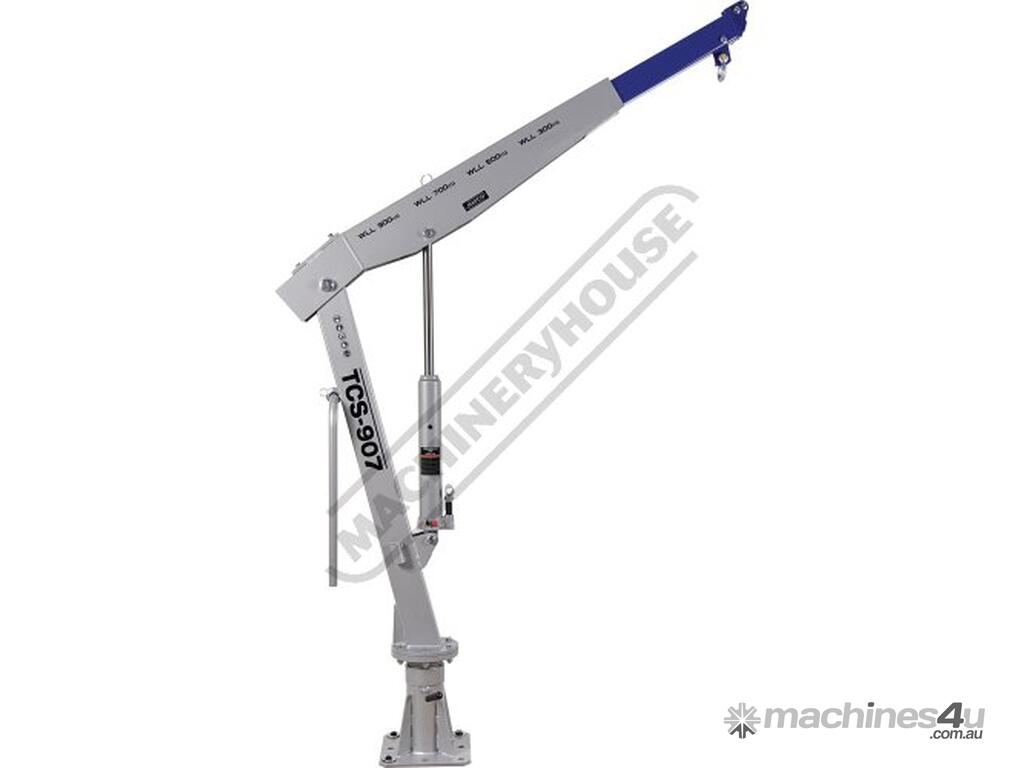

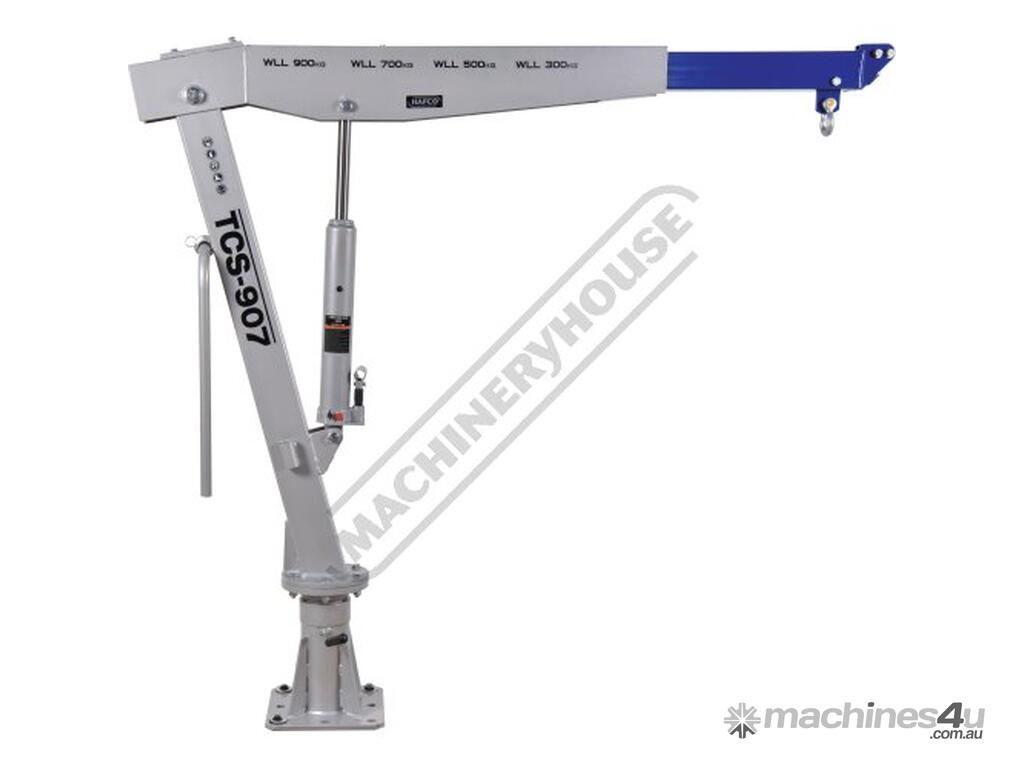

TCS-907 Swivel Crane - Truck or Ute 900kg Lifting Capacity 360° working angle

HAFCO TCS-907 Swivel Crane - Truck or Ute 900kg Lifting Capacity 360° working angle
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A354

Use it in your workshop or the back of your ute / truck. The base includes a tapered roller bearing for 360-degree swivel & the bow shackle lifting point to securely attach slings or chains.

Features:

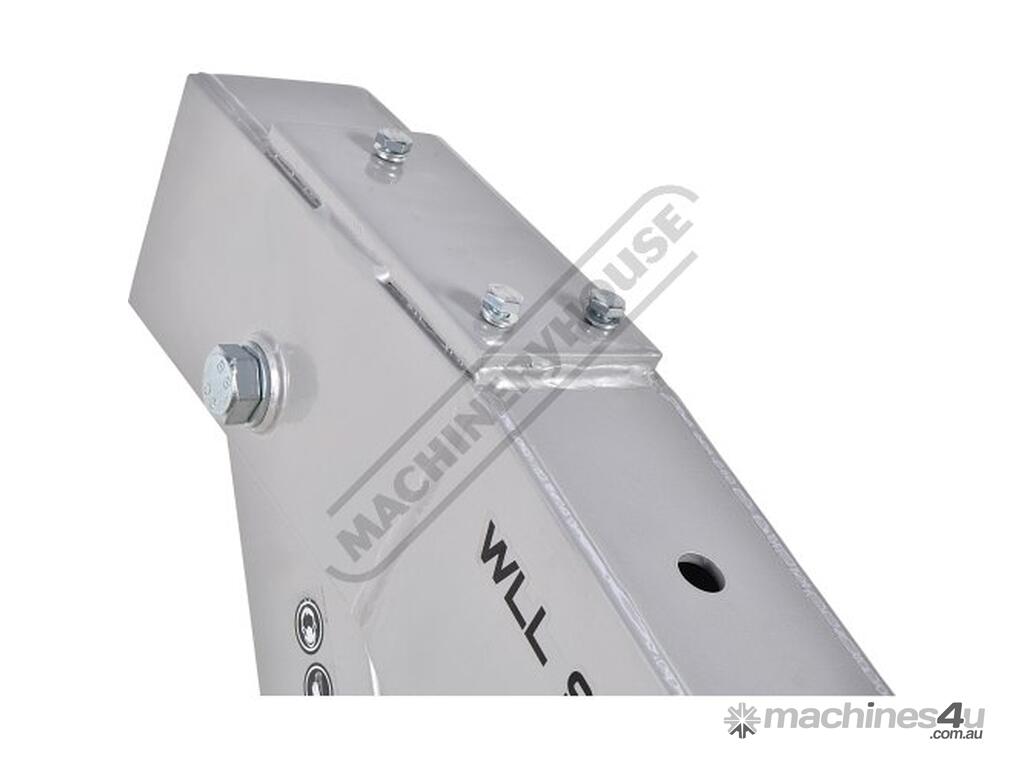

Heavy duty steel construction with robot welded components

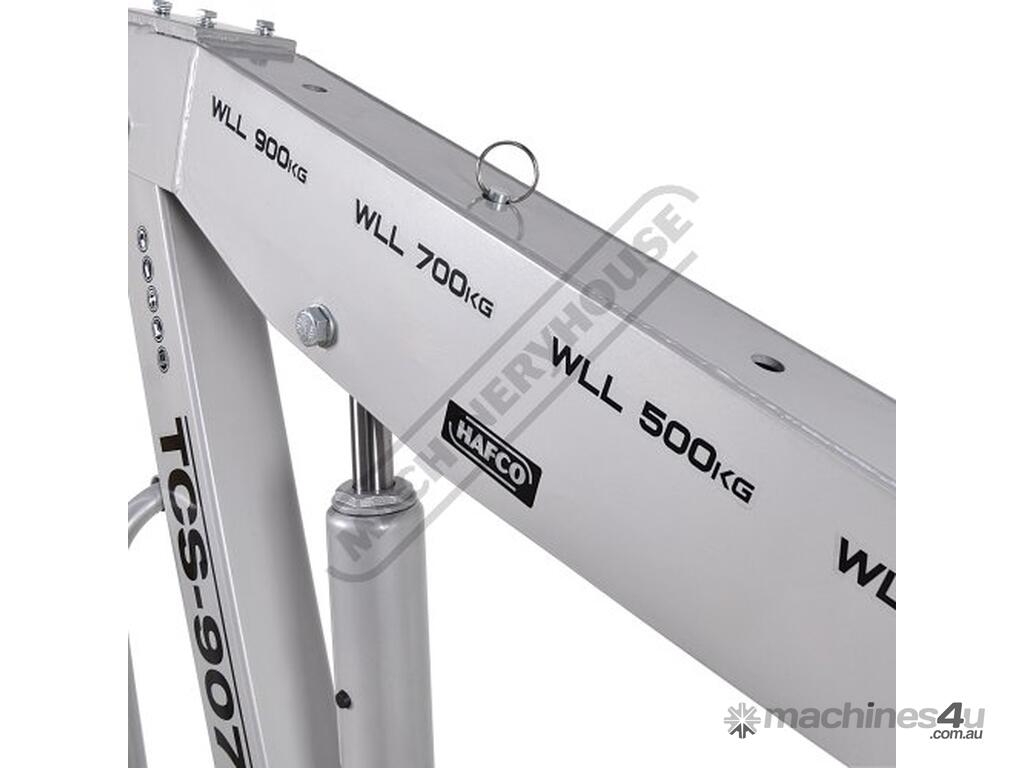

4 Lifting positions - 900kg 700kg 500kg & 300kg

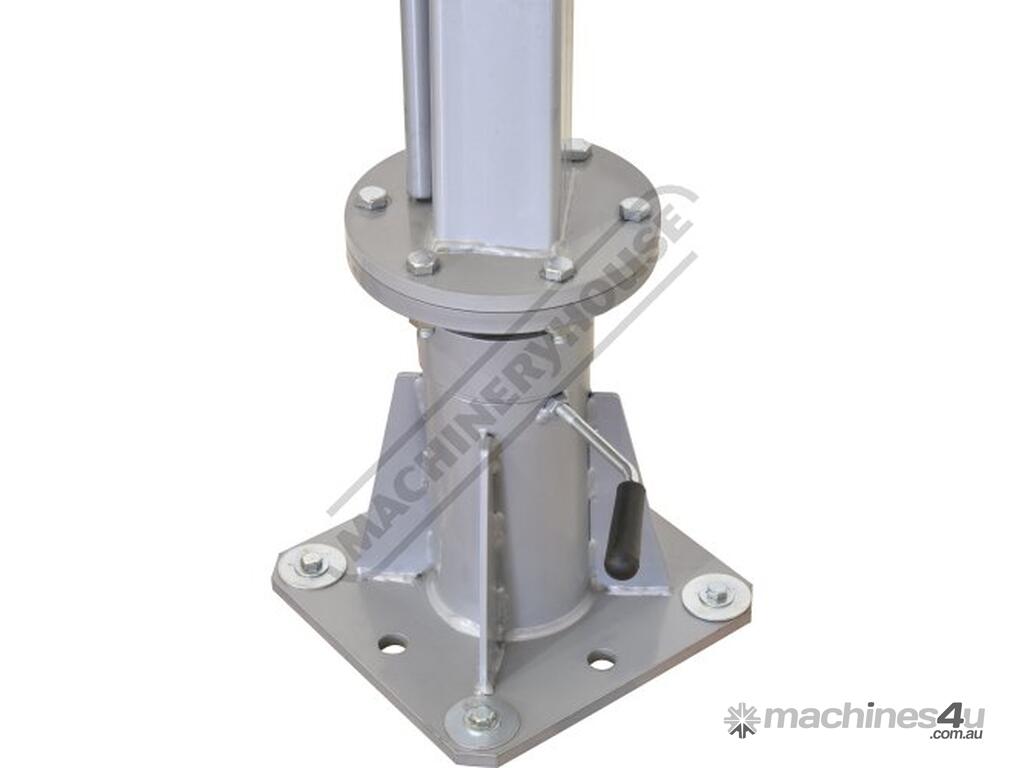

360º swiveling base with taper roller bearing

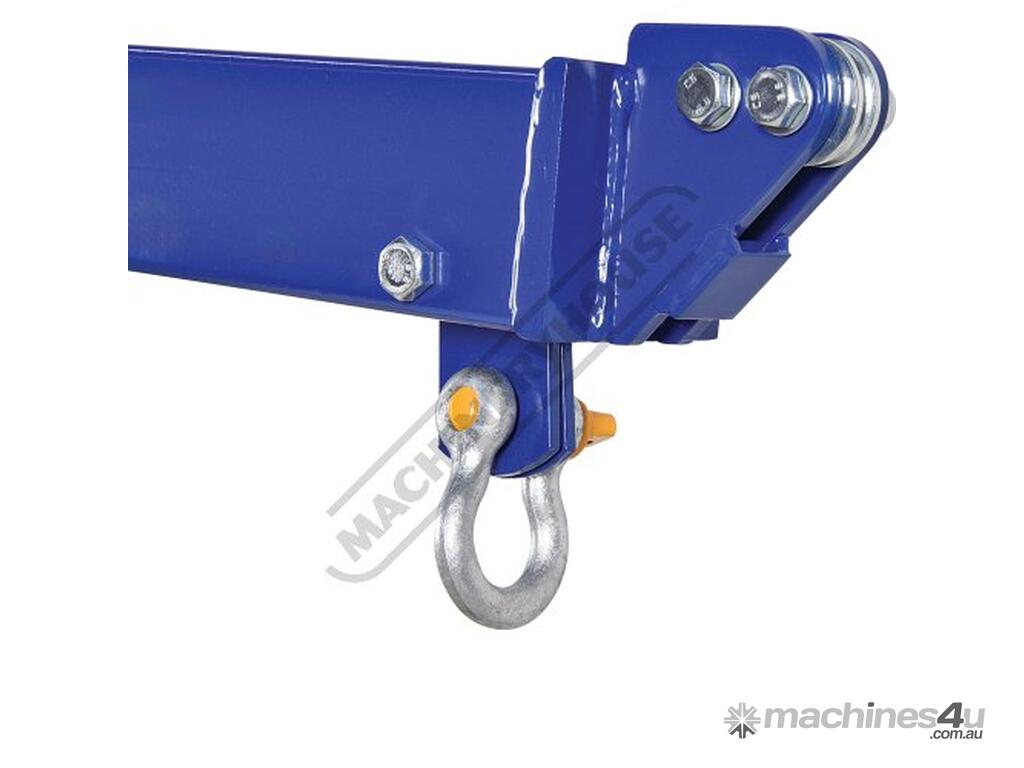

Supplied with a load rated bow shackle
Max. Lift Height at 900kg Position = 1880mm
Max. Lift Height at 300kg Position = 2150mm


Specifications:
Order Code: A354
MODEL: TCS-907
Single Line Lifting Capacity (kg): 900
Double Line Lifting Capacity (kg): ~

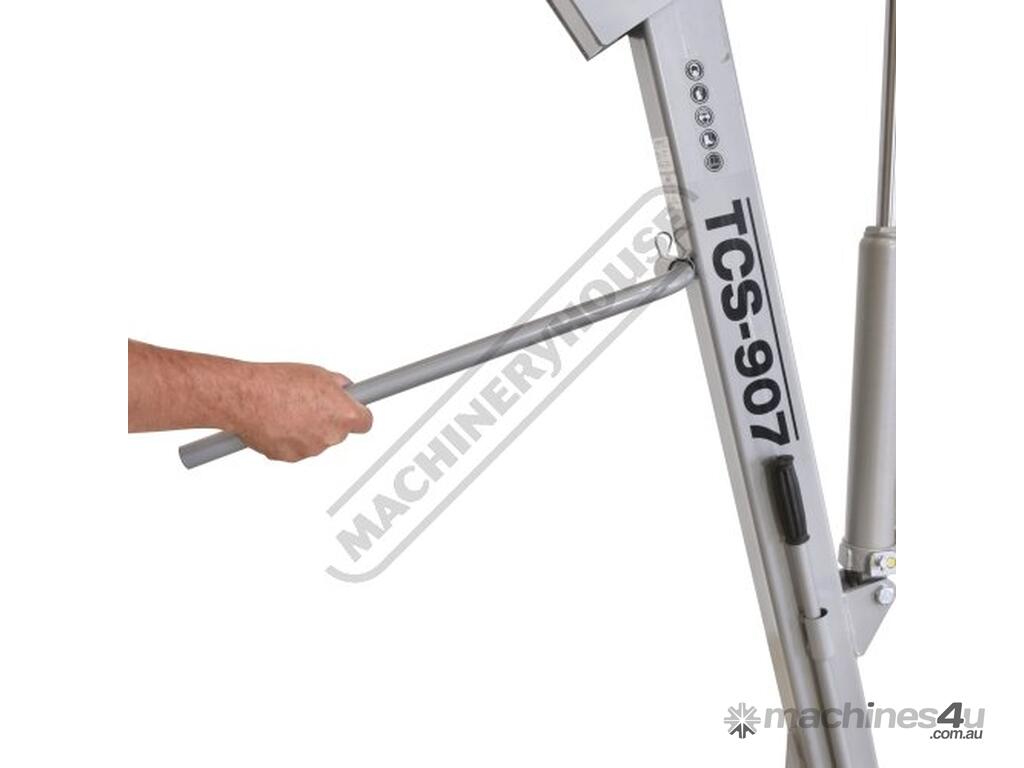

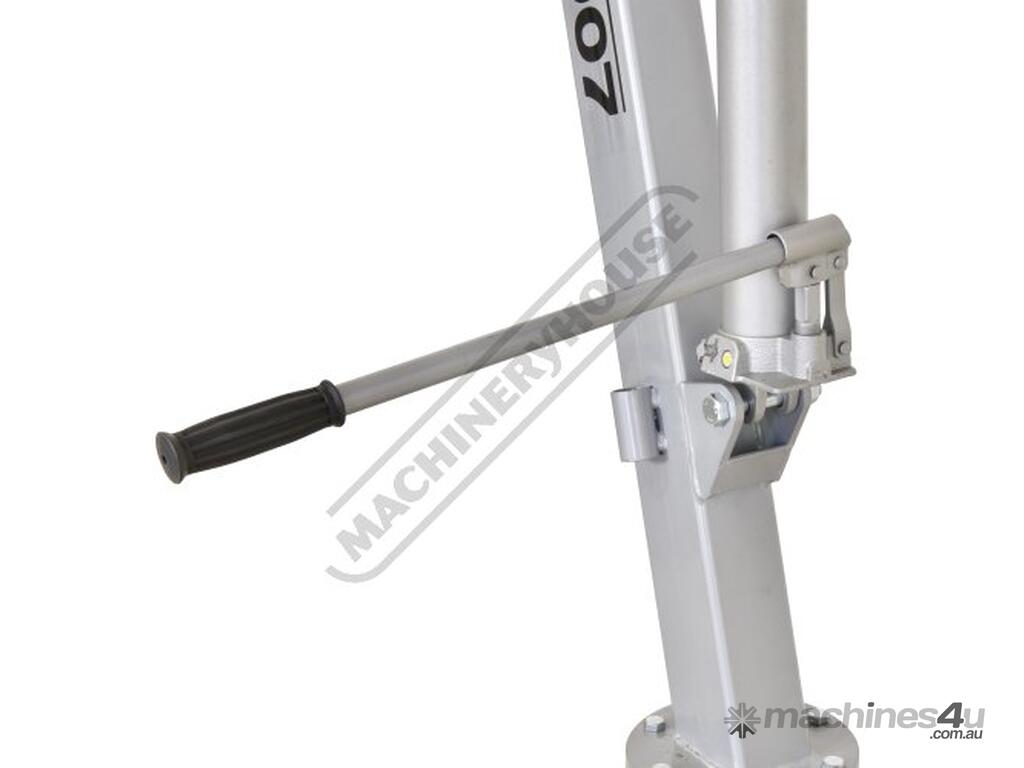

Lifting System (Type): Hydraulic - Manual
Power Supply (V): ~
Lift Capacity Pin Locations: 900, 700, 500 & 300
Vertical Support (mm): 100 x 80
Extension Arm Support (mm): 90 x 90

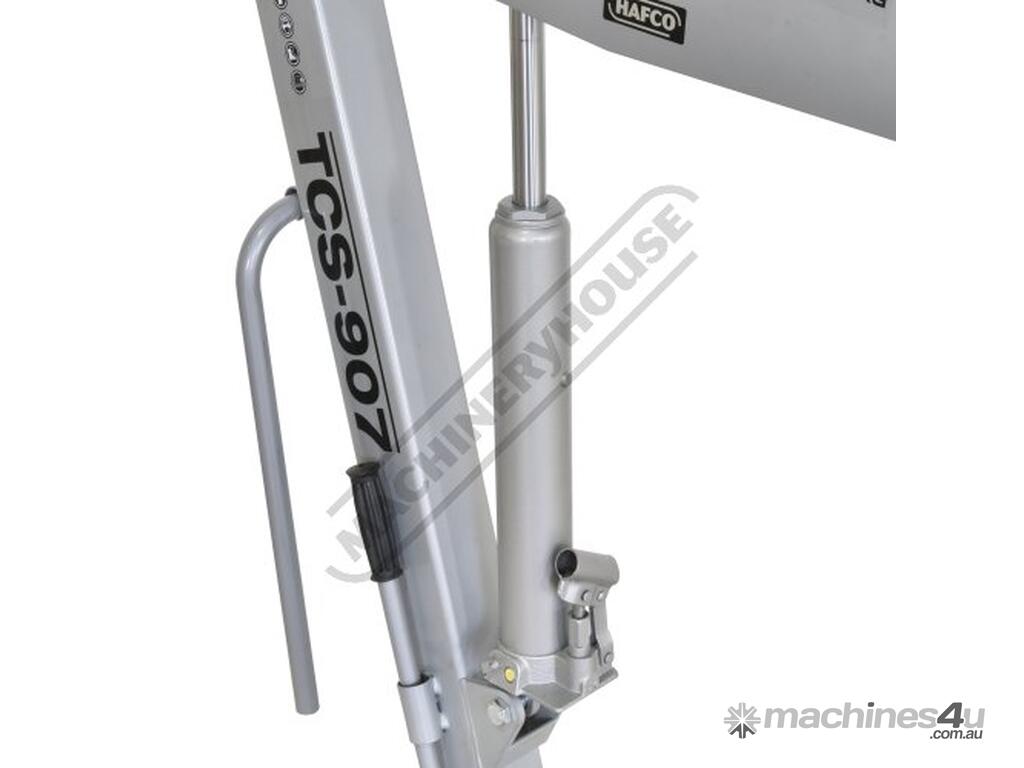

Hydraulic Ram (Tonne): 3
Overall Height - Lowest Position (mm): 1600
Nett Weight (kg): 88
