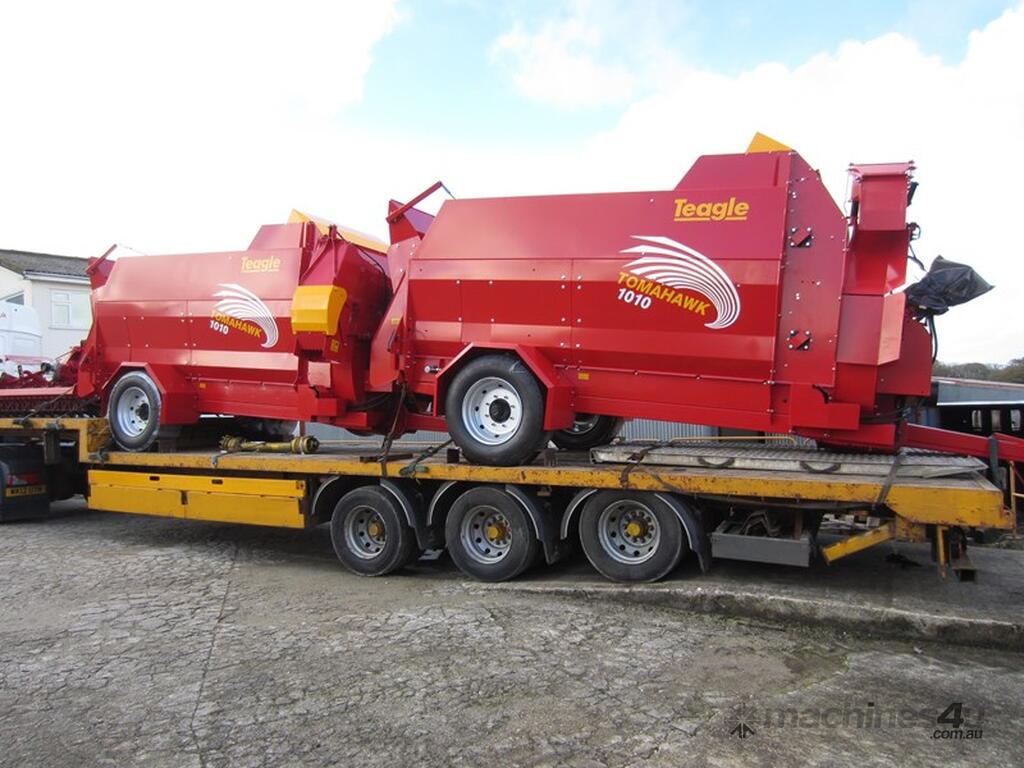

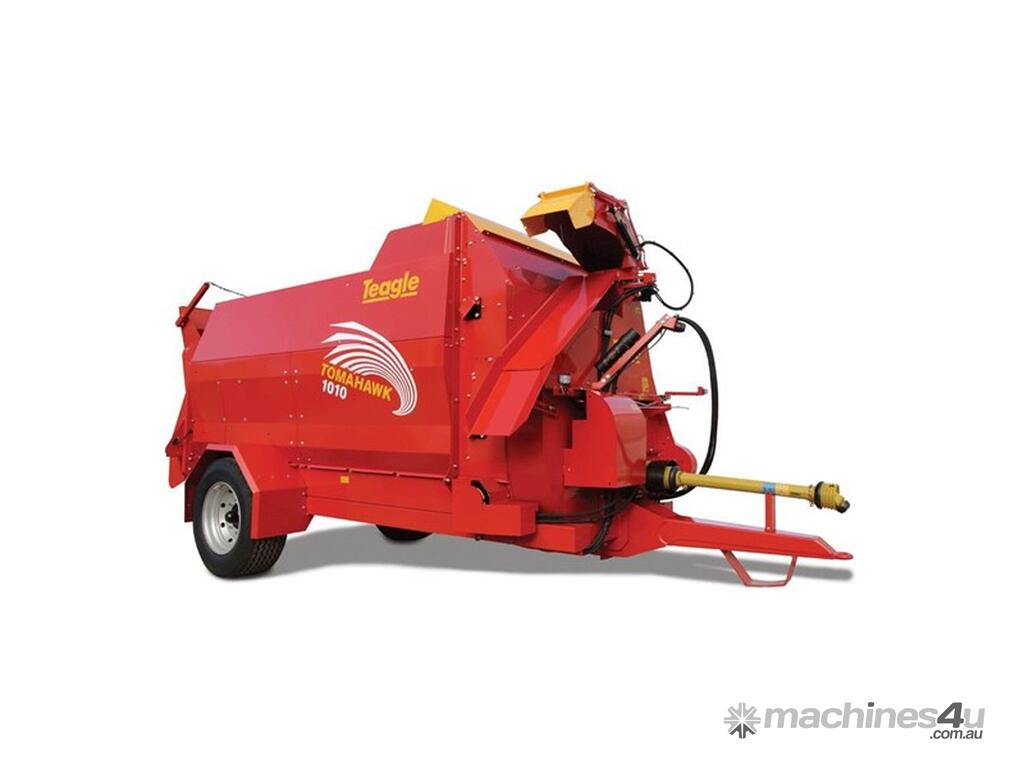

TEAGLE TOMAHAWK T1010 BALE PROCESSOR

Provide an even and absorbent bed of straw with a Tomahawk 1010.

Comfortable livestock is more productive.

Provide an even and absorbent bed of straw with a Tomahawk 1010.

Straightforward delivery of clamp silage.

Deliver with greater accuracy than ever before with our optional weigh cell package.

1010 Summary
* Widebody ensures easy loading and offers massive 10.0m³ capacity, for feeding clamp silage.
* Larger fan in a Hardox housing spreads straw up to 25m from rectangular or round bales.
* Also available with a side discharge chute.
* Outstanding 'Flow Plus' Performance to save you money

Faster, stronger, and now incorporating FlowPlus:
* Greater output
* More consistent feed rate
* Controlled delivery at low fan speeds
* Reliability
* With a simple and robust driveline and controls, the Tomahawk works harder for you 24/7 every day of the year.

British built and backed
Innovative design is put into practice with Tomahawks being manufactured to exacting standards in our modern production facility. Stringent quality control in production is matched by an efficient after-sales service to ensure your peace of mind.

To keep your Tomahawk looking like new for longer, components are shot blasted and protected with heat-cured powder coat paint.

Why own a Tomahawk?

Bedding
* Labour Saving one person can quickly and easily bed down livestock.
* Save Straw, users regularly report up to 30% savings.
* Livestock are cleaner and healthier straw is lightly shredded for improved moisture absorbance.

Feeding
* One machine, Two jobs Bed down and feed with all Tomahawk models (except Dual Chop)
* Reliability If you can bale a crop, we can process it.
* Versatility Feed clamp or baled silage, haylage, or root crops.

Straw for feed
* Pre-process straw for mixer wagons using our unique Dual Chop system.
* Improve mixer wagon efficiency by reducing processing time.
* Precision-cut straw stimulates digestion for more effective feed conversion.

Features

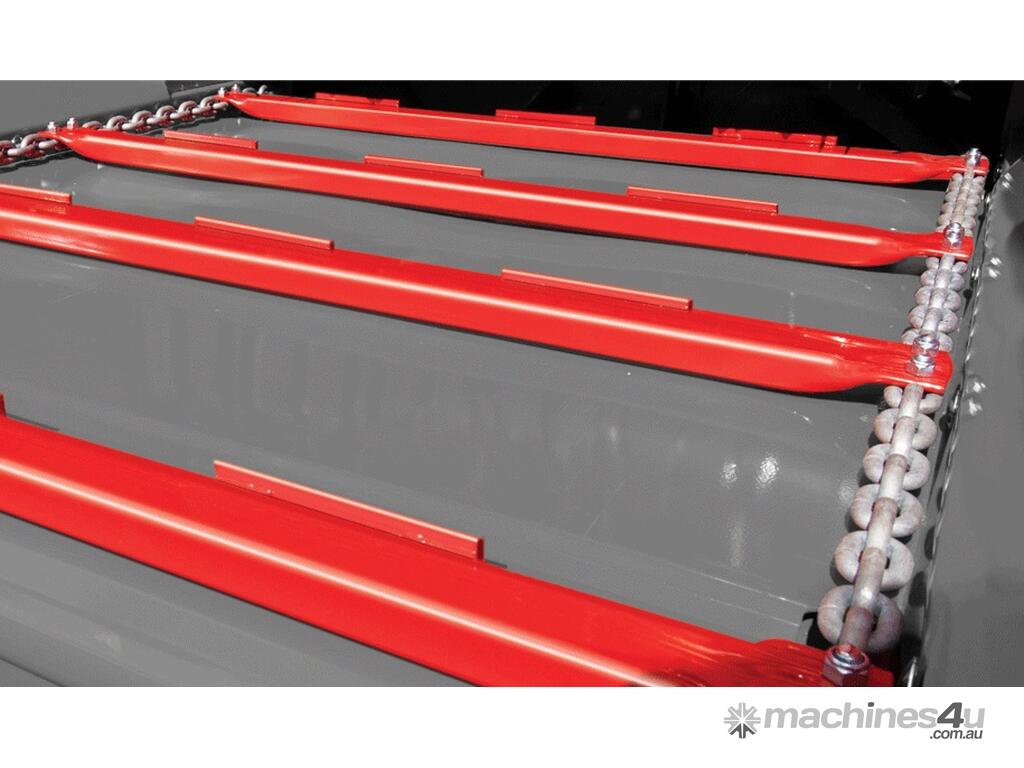

* Heavy Duty Bed Chain

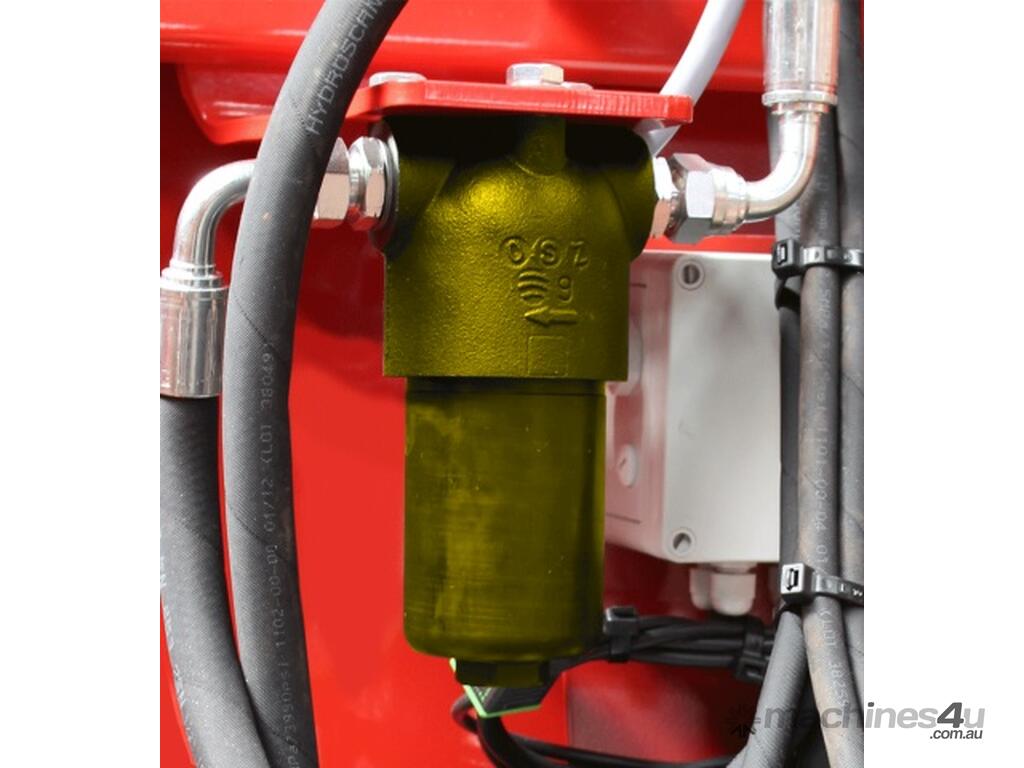

* Hydraulic Filter

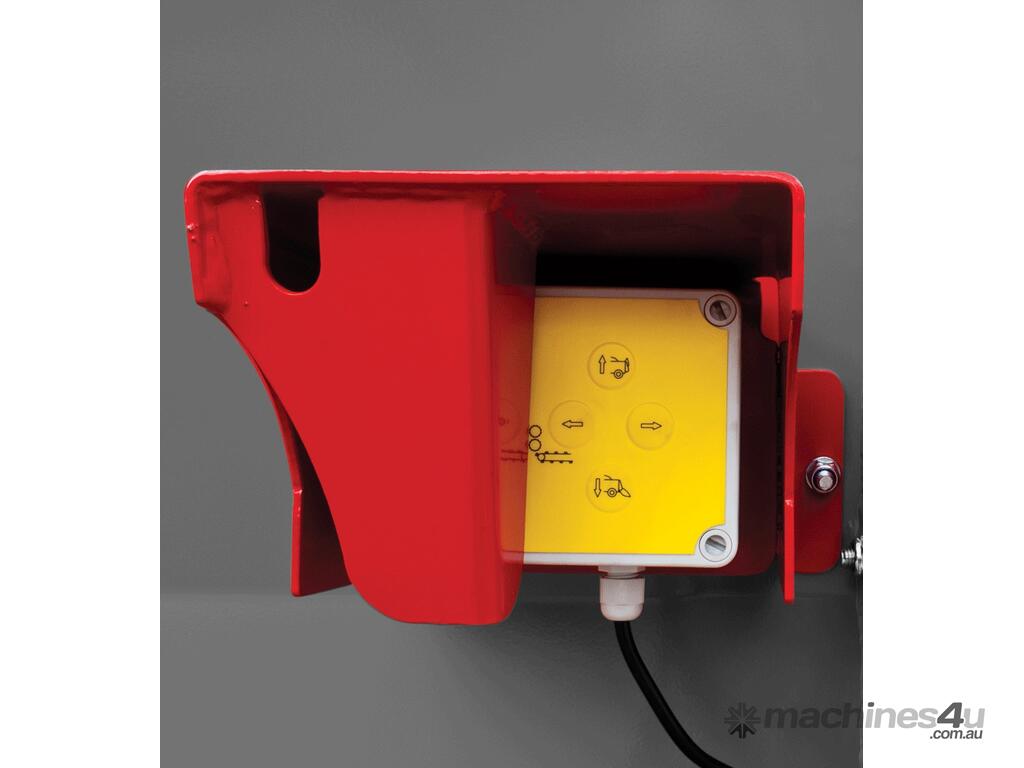

* Tailgate Switch
* Twin Crossbeaters

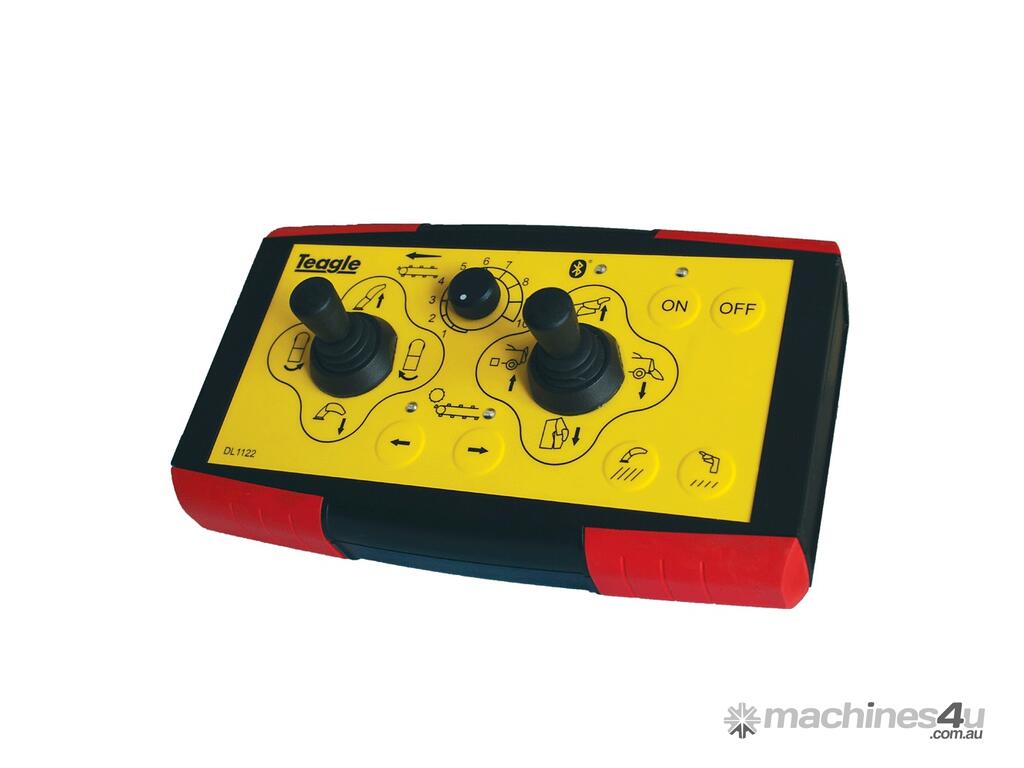

* Electric Controls

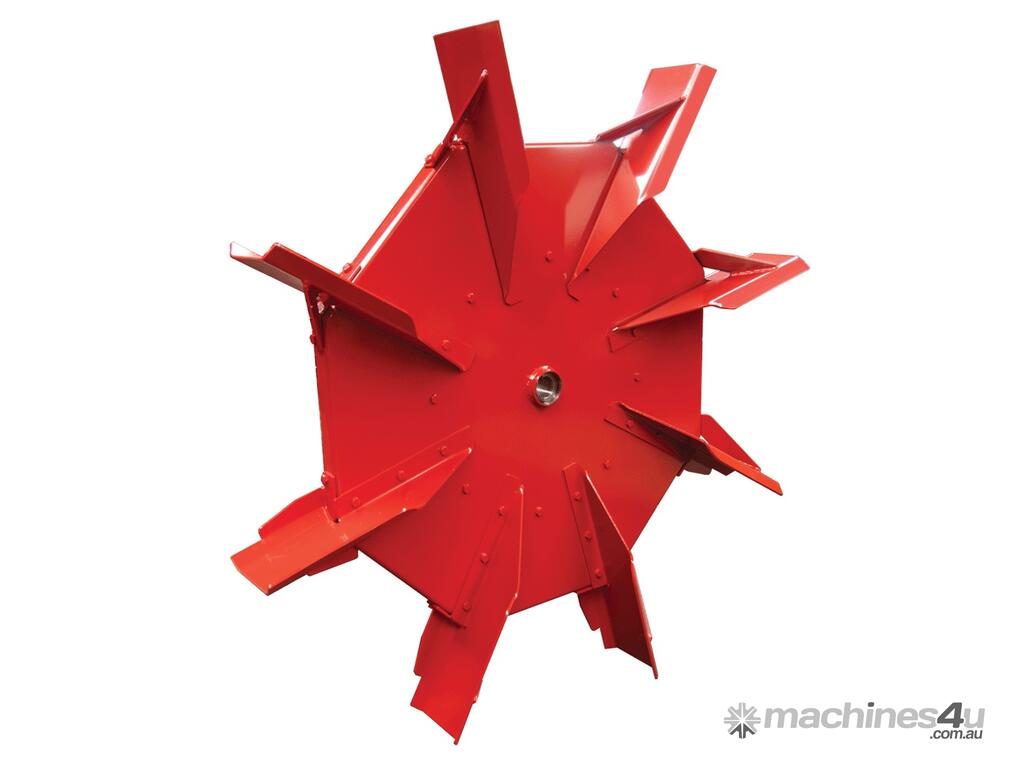

* 8 Paddle Fan

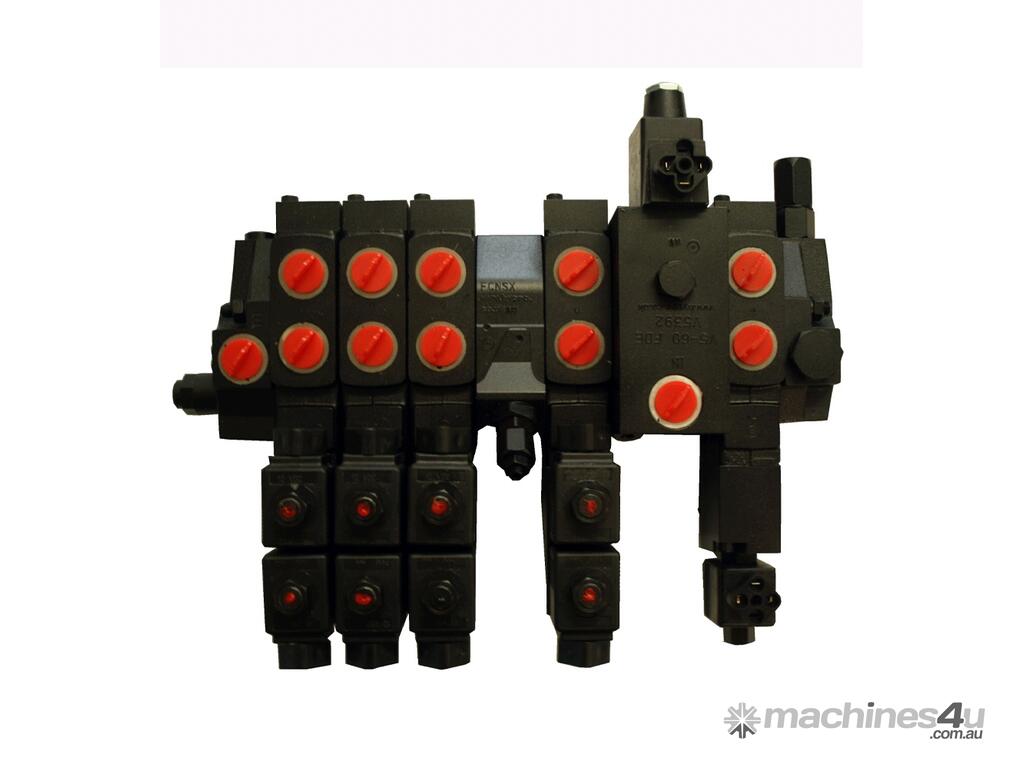

* High Performace Valve

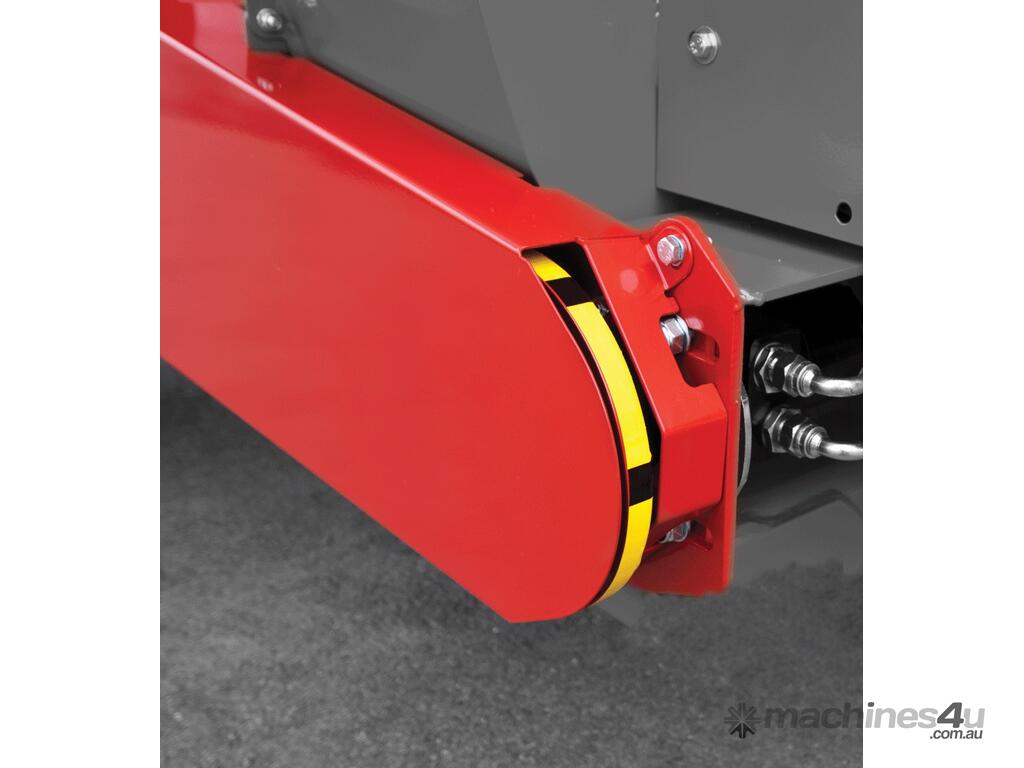

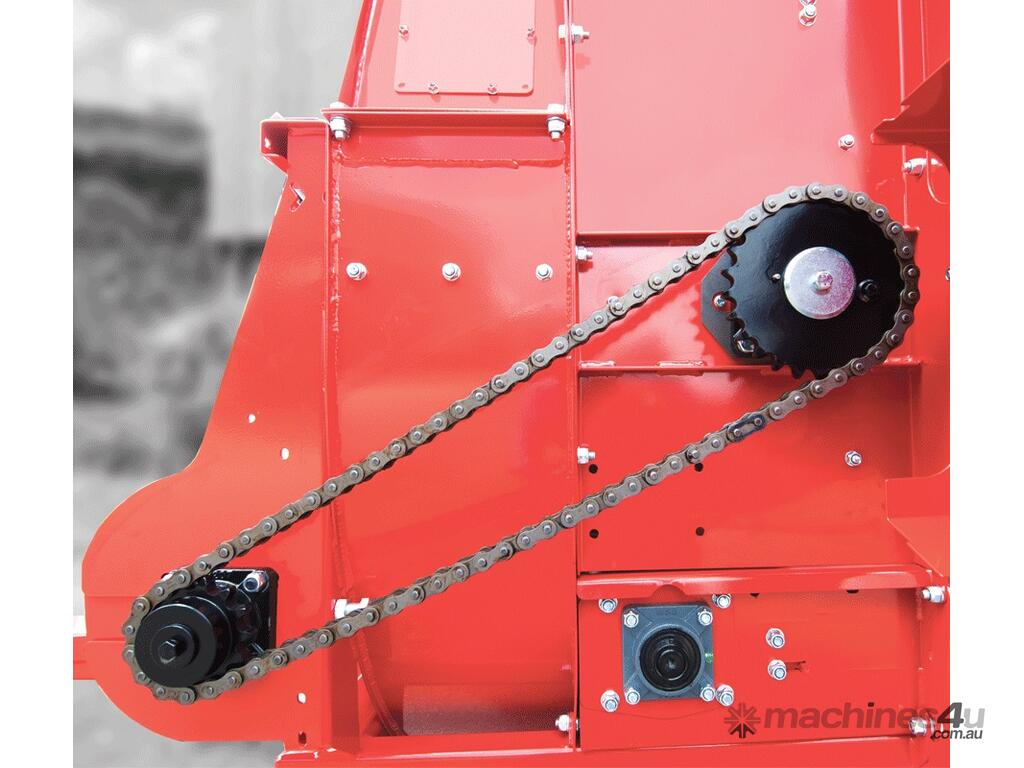

* Robust Transmission

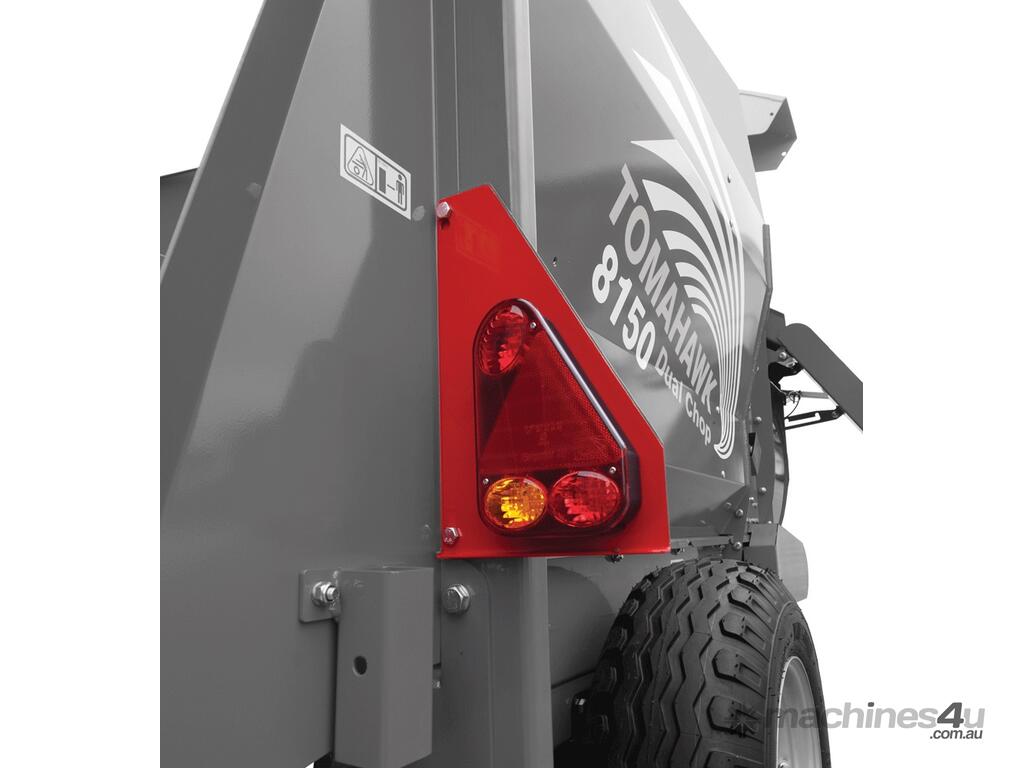

* Road Lighting Kit

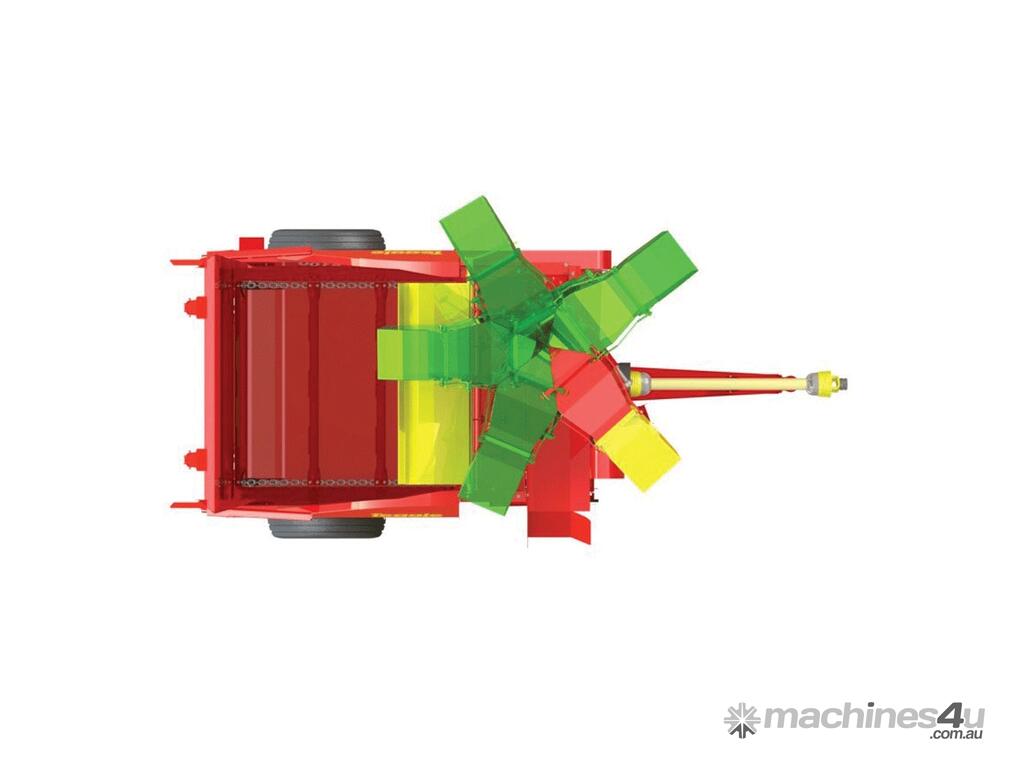

* 101SC Swivel Chute
* Visual Feedback
* Slip and overrun on PTO

Optional
* 1010 Side Discharge Chute
* Weigh Cells
* Swivel Chute Extension
* Clevis Drawbar and Jack

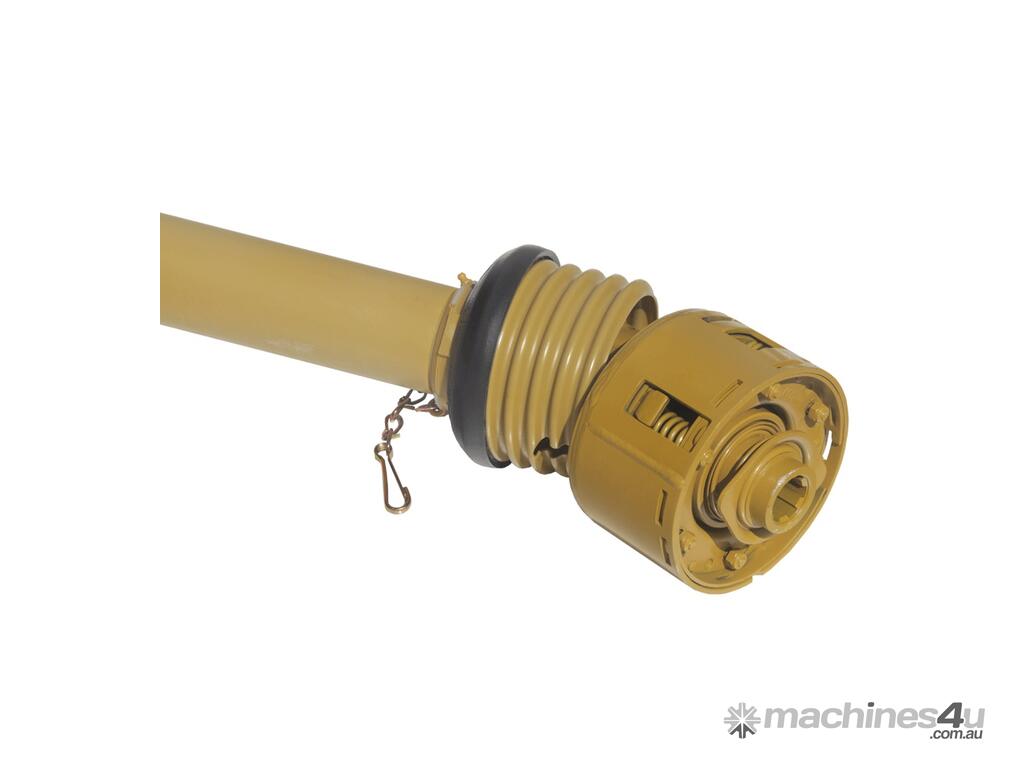

* Wide Angle Joint PTO

Specifications - Tomahawk 1010
Chute: Side
Dual Chop: No
Straw: Spread
No. of cross bearers: 2
Capacity (m³): 10.0
No. of 5' round bales: 3 - Straw Only
No. of 8' rectangular bales (4'x3' / 4'x4'): 4/2
Bale chamber (tailgate down) W x H x D: 1.70 x 1.58 x 5.70m
Blow distance (max.): 25m
Min. tractor PTO: 80HP
Overall width (chute closed): 2.42m
Overall length (tailgate up): 6.17m
Overall length (tailgate down): 7.96m
Overall height (chute closed): 2.93m
Unladen weight: 3580kg
Tyre size: 385/55 R22.5
Oil flow rate (min-max) (l/min): 35 - 60
Feed Baled Silage: No
Feed Clamp Silage: Yes
Bed Cubicles / Straw Processing: No
Bed Loose Housing: Yes

Machine/Equipment base price only, additional price for optional extras.
