TEAGLE TOMAHAWK T5050 BALE PROCESSOR

Suitable for feeding, livestock bedding & orchard mulch (via lower discharge chute) (Fits 2x 5' Round Bales Or 1x Big Square)

Comfortable livestock are more productive.

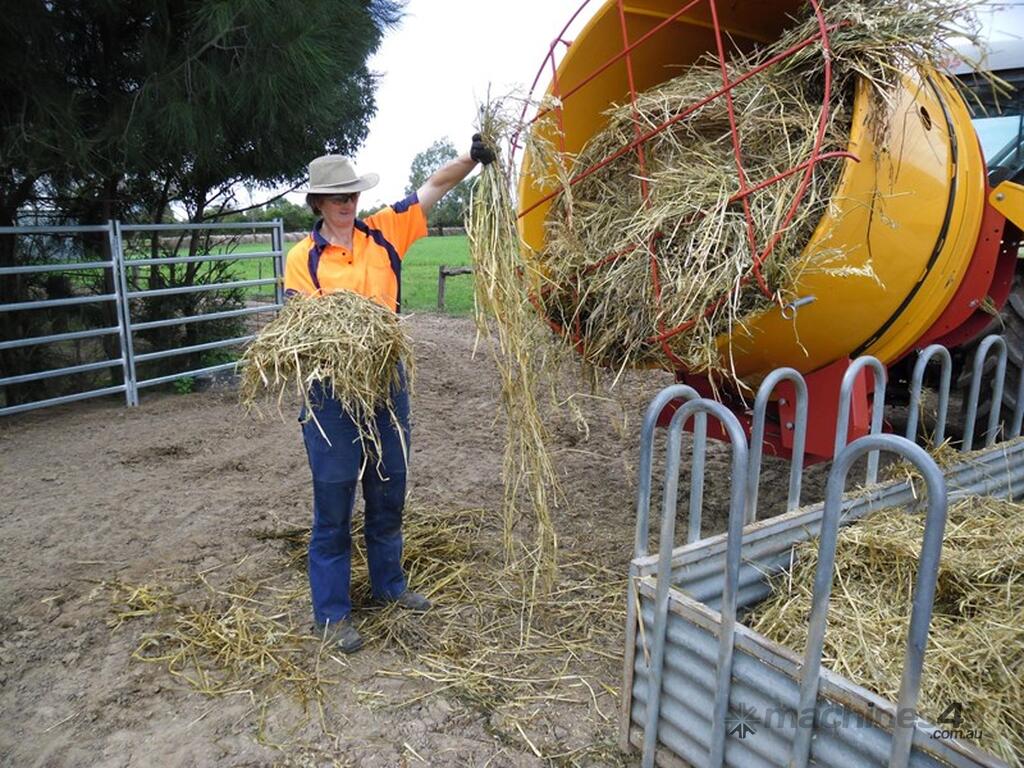

Provide an even and absorbent bed of straw.

Increase consumption and reduce waste of baled silage.

Baled silage that is lightly shredded with a Tomahawk is more palatable and easily consumed.

Operation

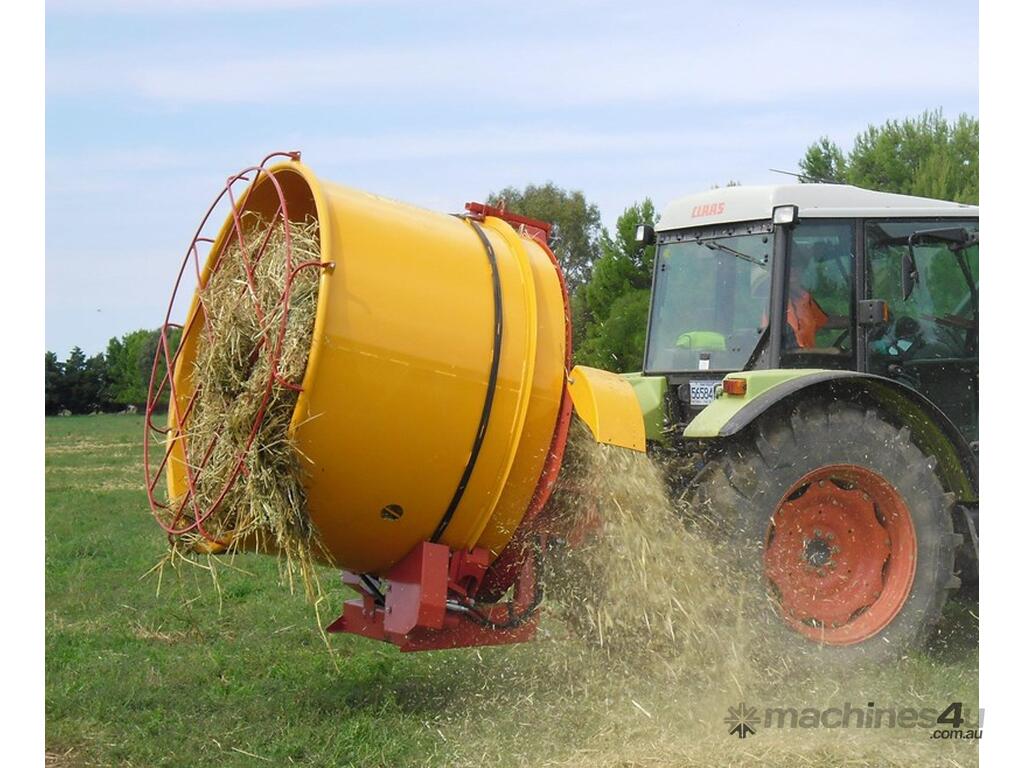

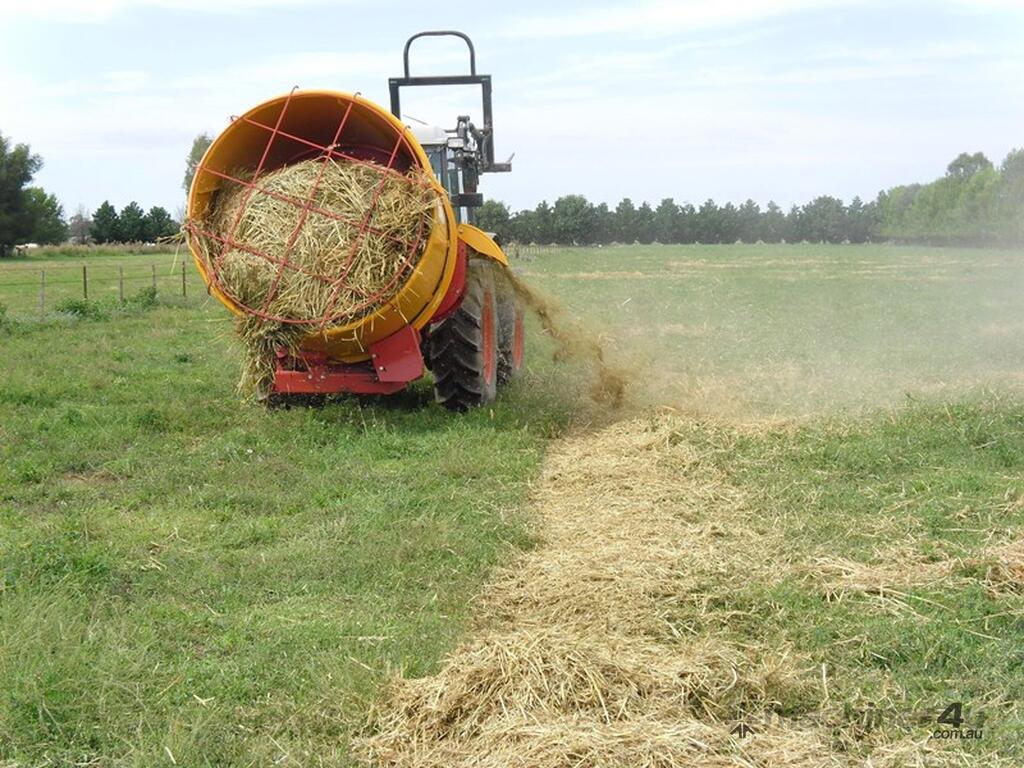

Blow straw up to 35', discharge to one or both sides of the tractor. Alternative delivery chutes are available to suit your requirements.

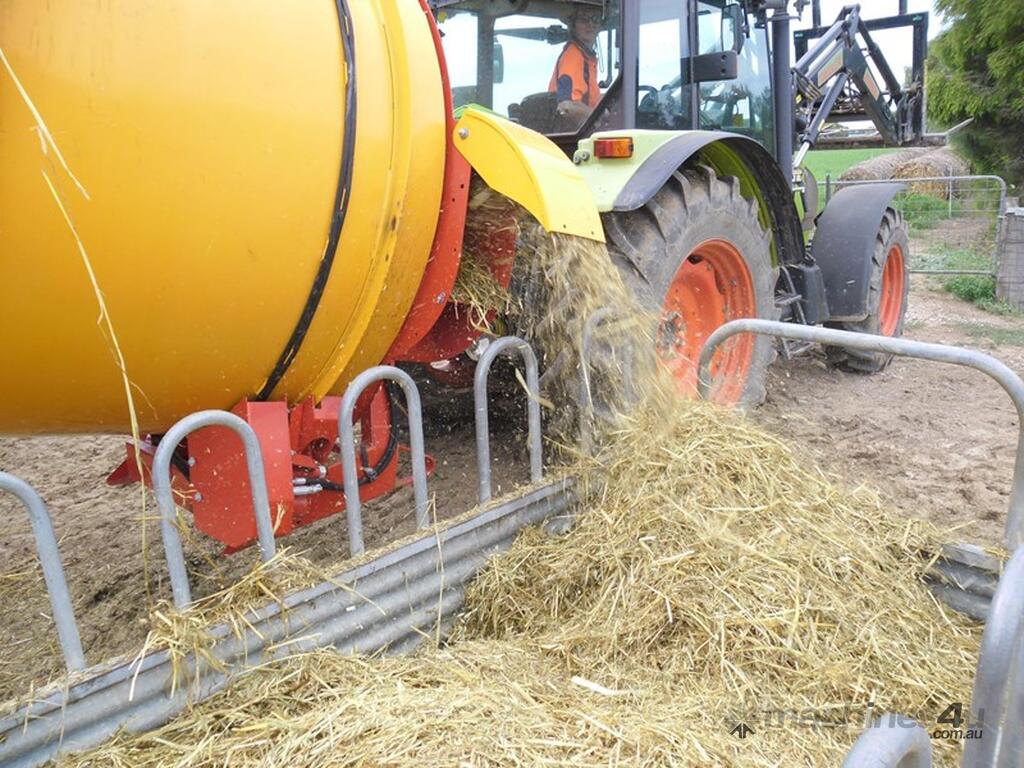

Discharge silage to the right hand side only into a ring feeder or along a feed barrier.

The Tomahawk 4040, 5050 and 5050XLM Bale Feeder models use Blades to chop dry or wet material. With very wet material the chop length may be as low as 4 cm, and dry material will be around 15cm. long.

Easy control of output by adjusting the speed of drum rotation.

Configurations

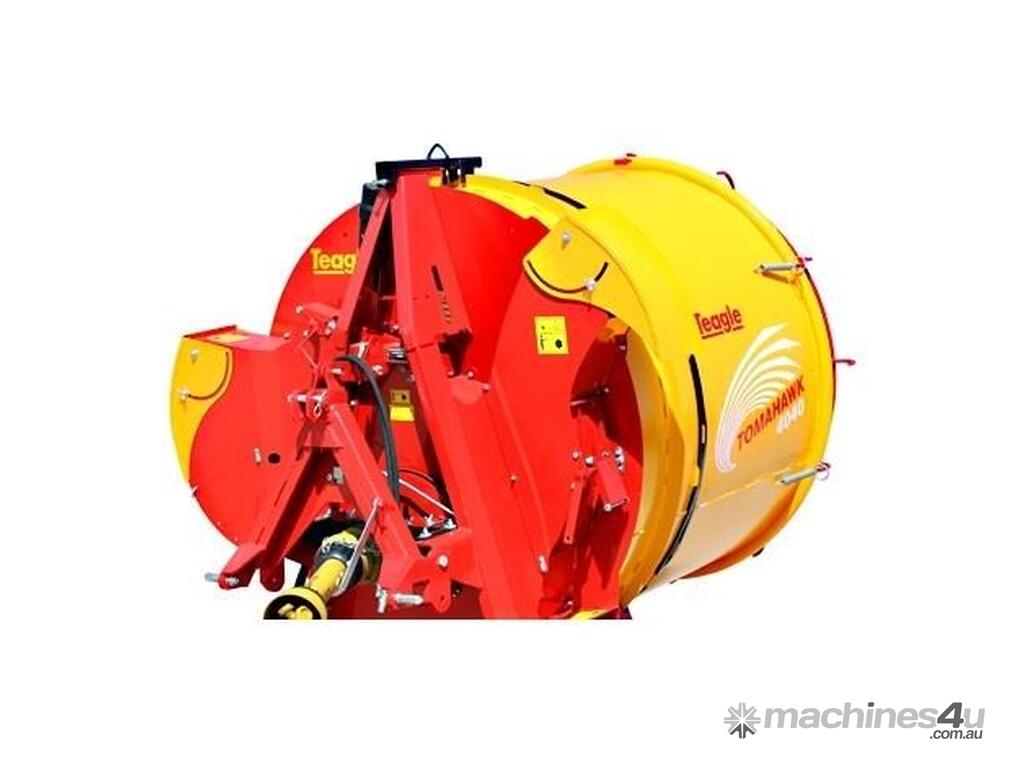

* Tomahawk 4040 - Suitable for 1.2m (4') diameter bales.
* Tomahawk 5050 - Suitable for 1.5m (5') diameter bales.

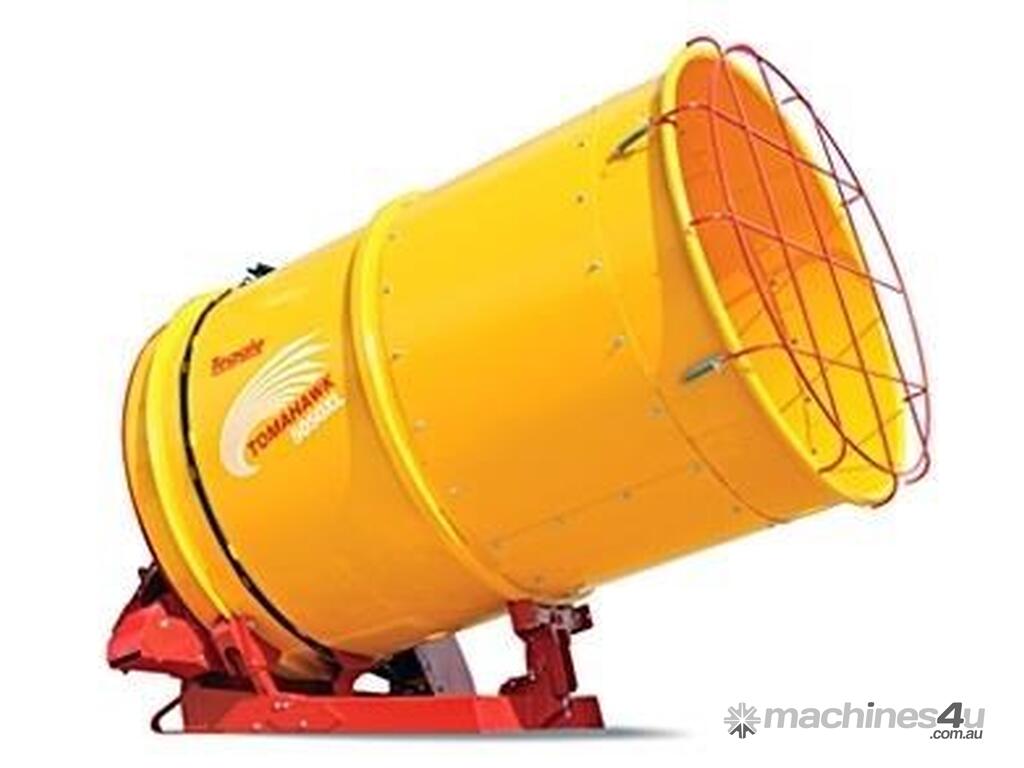

* Tomahawk 5050XL - Suitable for 1.5m (5') diameter bales and full size Hesston bales.

Various drum extensions are available for ease of operation or to accommodate larger rectangular bales.

British built and backed

For your peace of mind Tomahawks are backed by an efficient after sales service from our production facility in Cornwall, England.

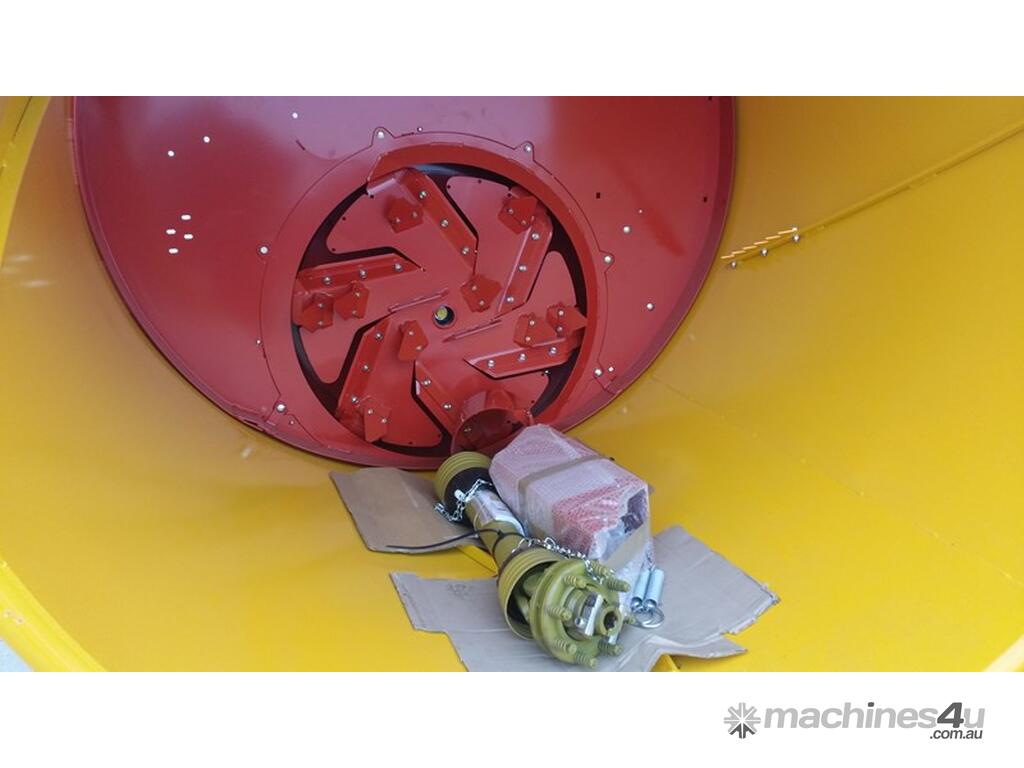

The Tomahawk Drum models are economical, simple and robust. There are no gearboxes, with the drive to the rotor being direct from the tractor, a hydraulic motor is used to rotate the drum. Due to their simplicity and strength, customers can expect a long service life from their Tomahawk.

BENEFITS

Bedding
* Save straw - users report typical savings of 30% compared to manual bedding down.
* Cleaner livestock - healthier animals and fewer disease problems.
* Save labour - one person bedding operation.
* Specify the right machine for the job - short chop for poultry & cubicles, light shredding for loose housing.

Feeding
* Will chop and feed bales of silage, alongside barriers or into Ring Feeders, allowing greater intake of silage with less wastage.

Drum Tomahawks
* Simple - drum turns clockwise, rotor turns anti-clockwise, and material is skimmed of the end of the bale.
* No gearbox - direct drive from PTO. Hydraulic drive to drum.
* Feed rate is controlled by the angle of the drum.

FEATURES
* Direct Drive
* Robust Rotor
* Easy Loading
* Chute On/Off Levers
* Slip and overrun on PTO

OPTIONS
* Hydraulic Top Link
* Lower Chute Kit
* Silage Giraffe Chute
* Straw Giraffe Chute
* Swivel Giraffe Chute
* Strawberry Chute
* Quick Hitch A-Frame
* Hydraulic Deflector
* 2.78 Long Drum - 5050XL Model
* Castor Wheel Kit
* Various Drum Lengths

Specifications - 5050
Drum Diameter: 1.83m
Maximum Round Bale Diameter: 1.5m
Maximum Rectangular Bale Size: 1.2m x 1.2m
Height Overall with machine on ground: 2.38m
Width with chutes closed: 2.05m
Lower chute discharge height: 0.4m
Upper chute discharge height: 1.09m
Length Overall: 2.10m
Drum Extensions Available: 30 & 60cm
Operating Width: 2.48m
Operating Width with Giraffe chute: 2.76m
Swivel Giraffe Chute discharge height: 2.84m
Silage Giraffe Chute discharge height: 1.8m
Weight: 725 kg
PTO power required: 60HP Straw / 80HP Silage
Feed Baled Silage: Yes
Feed Clamp Silage: Yes
Bed Cubicles / Straw Processing: No
Bed Loose Housing: No

Machine/Equipment base price only, additional price for optional extras.
