TEAGLE TOMAHAWK T505M BALE PROCESSOR

Suitable feeding, livestock bedding & poultry bedding (Fits 1x 5' Round Bale)

Comfortable livestock are more productive.

For straightforward bale processing the 404M/505M/505XLM range offers fast effective milling of straw and miscanthus to a very consistent and fine length.

Operation

Blow straw up to 30', discharge to one or both sides of the tractor. Alternative delivery chutes are available to suit your requirements.

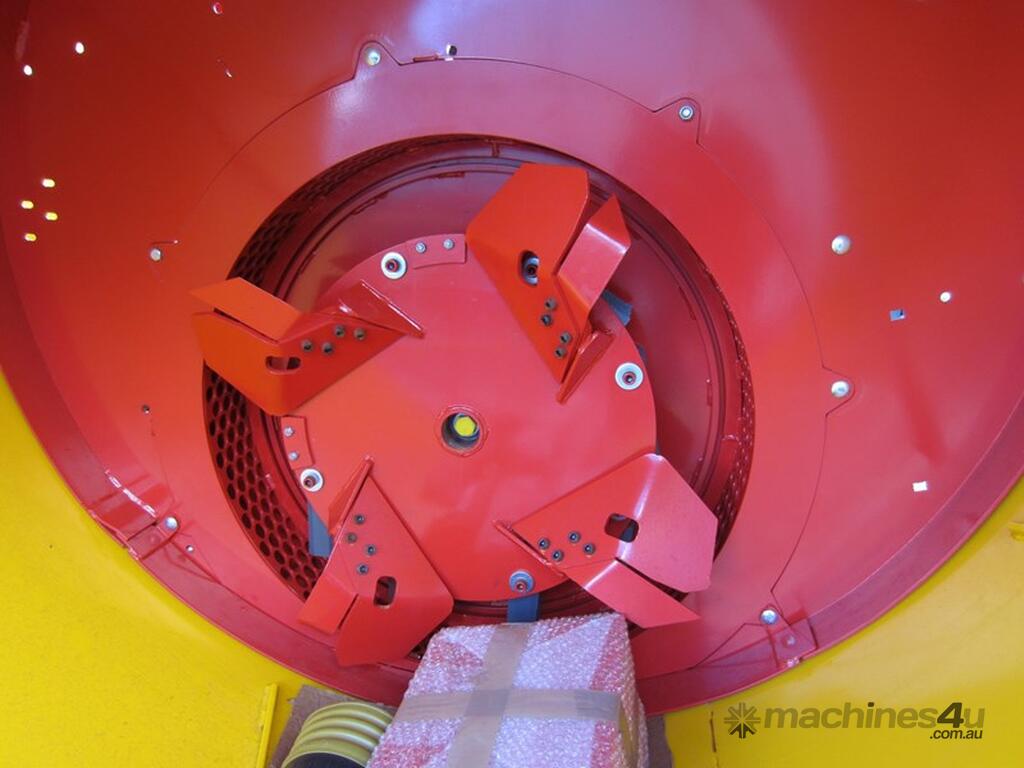

The Tomahawk 404M, 505M and 505XLM Bale Processors use Blades or Hammers to chop dry material until small enough to pass through the holes in a screen. A range of screens are available with holes from 15mm to 36mm to obtain material of a consistent chop length.

Easy control of output by adjusting the speed of drum rotation.

Configurations

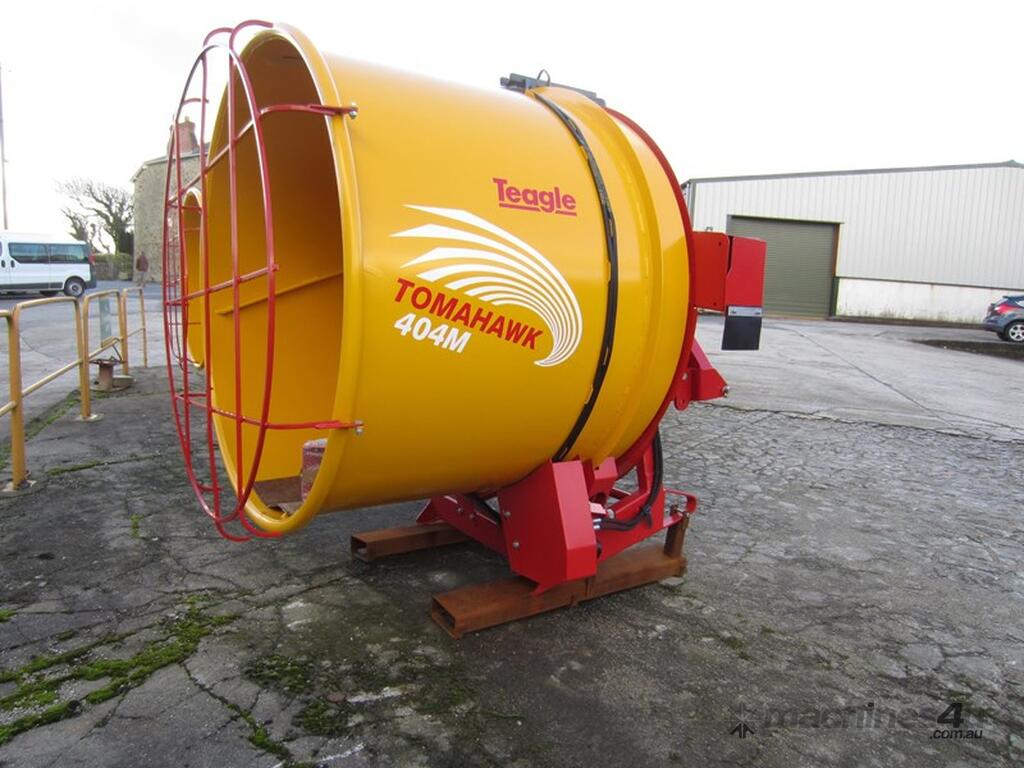

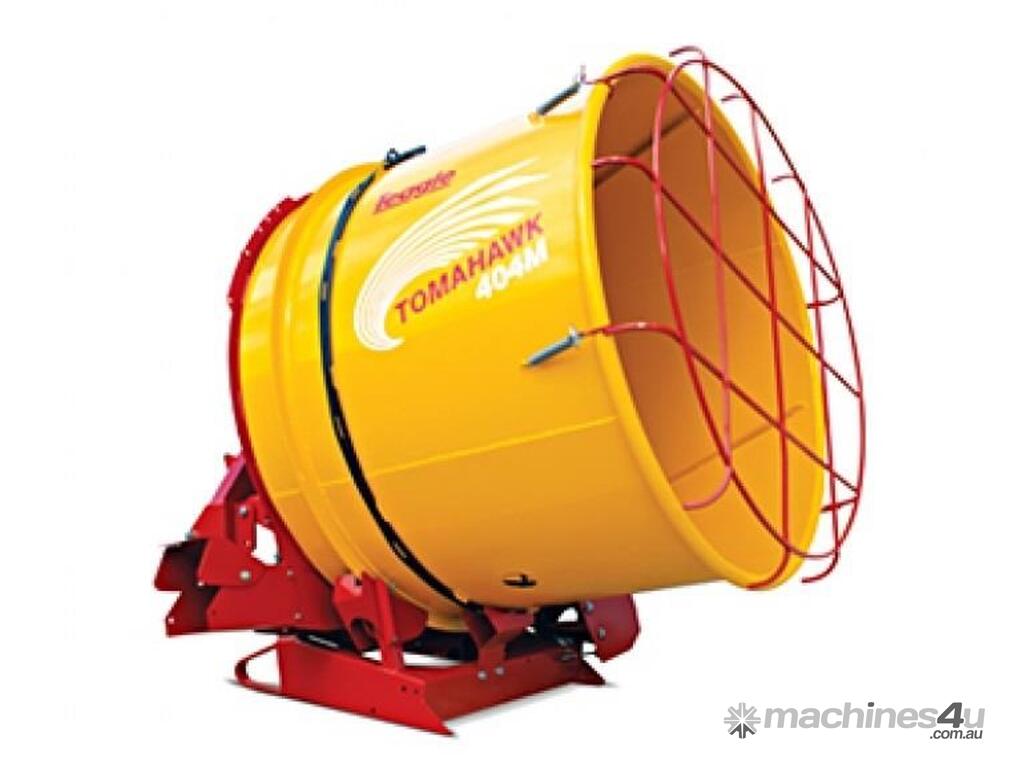

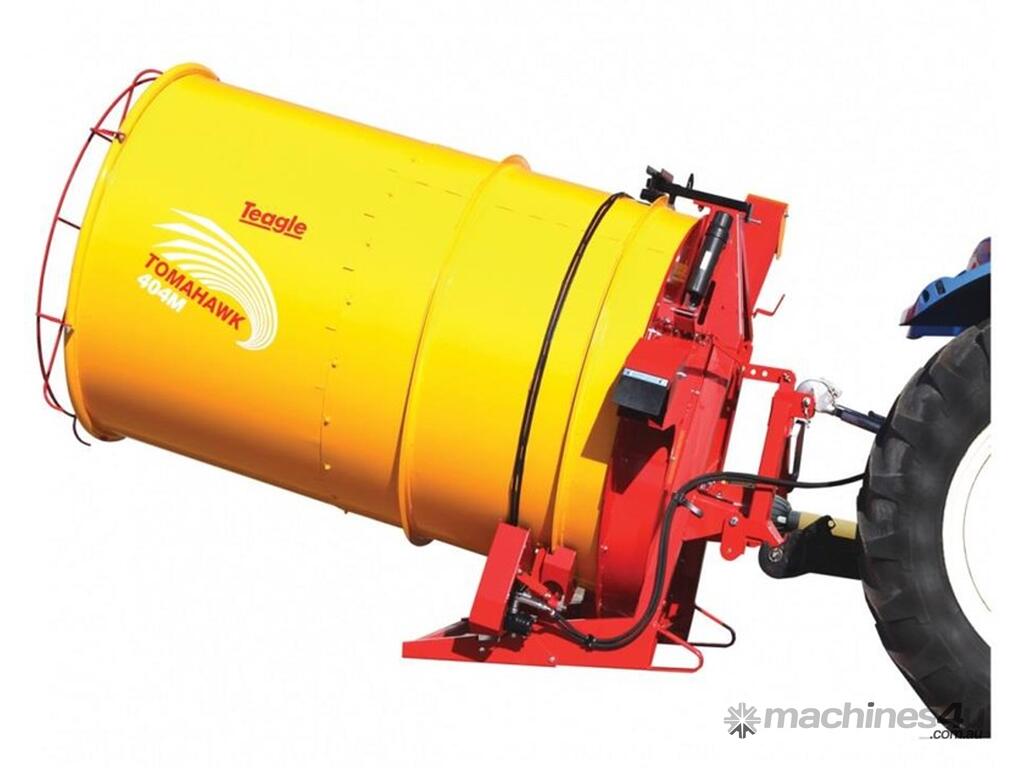

* Tomahawk 404M - Suitable for 1.2m (4') diameter bales.
* Tomahawk 505M - Suitable for 1.5m (5') diameter bales.
* Tomahawk 505XLM - Suitable for 1.5m (5') diameter bales and full size Hesston bales.

Various drum extensions are available for ease of operation or to accommodate larger rectangular bales.

The 404M/505M/505XLM range is suitable for dry material only, and will not cut silage as it will block the mill sieve.

British built and backed

For your peace of mind Tomahawks are backed by an efficient after sales service from our production facility in Cornwall, England.

The Tomahawk Drum models are economical, simple and robust. There are no gearboxes, with the drive to the rotor being direct from the tractor, a hydraulic motor is used to rotate the drum. Due to their simplicity and strength, customers can expect a long service life from their Tomahawk.

BENEFITS

Processing
* Process your own straw for TMR - no need to stockpile.
* Quicker, better TMR mixing with prechopped straw.
* Improved palatability - chopped straw improves digestion.

Bedding
* Save Straw - users report typical savings of 30% compared to manual bedding down.
* Cleaner livestock - healthier animals and fewer disease problems.
* Save labour - one person bedding operation.

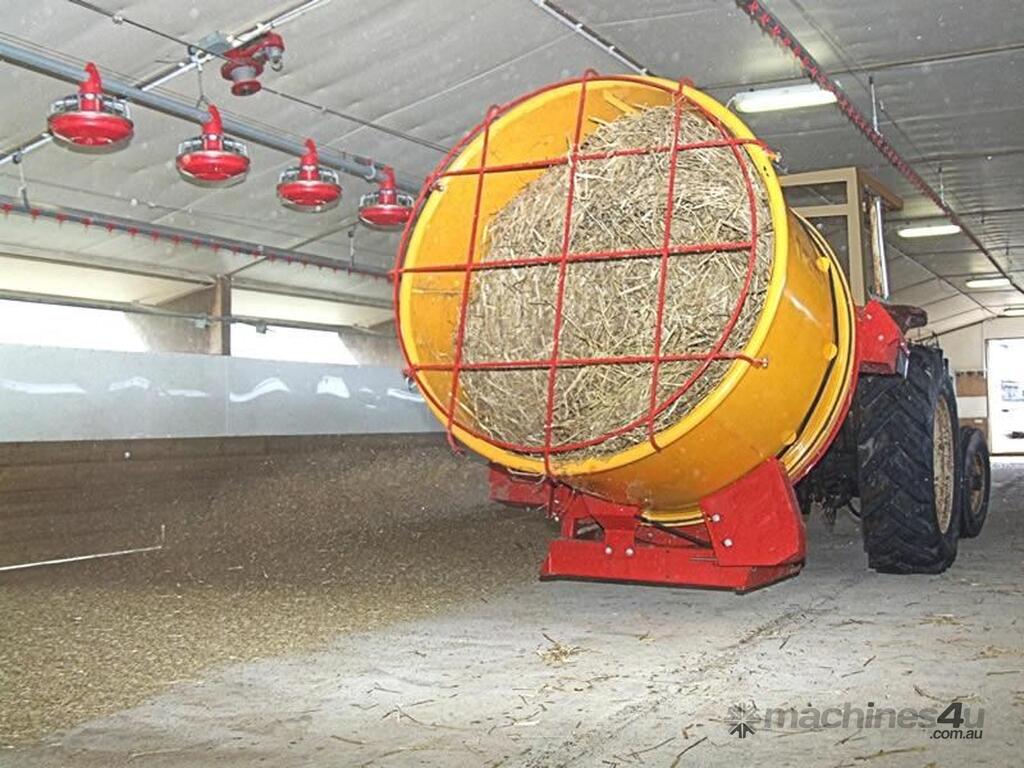

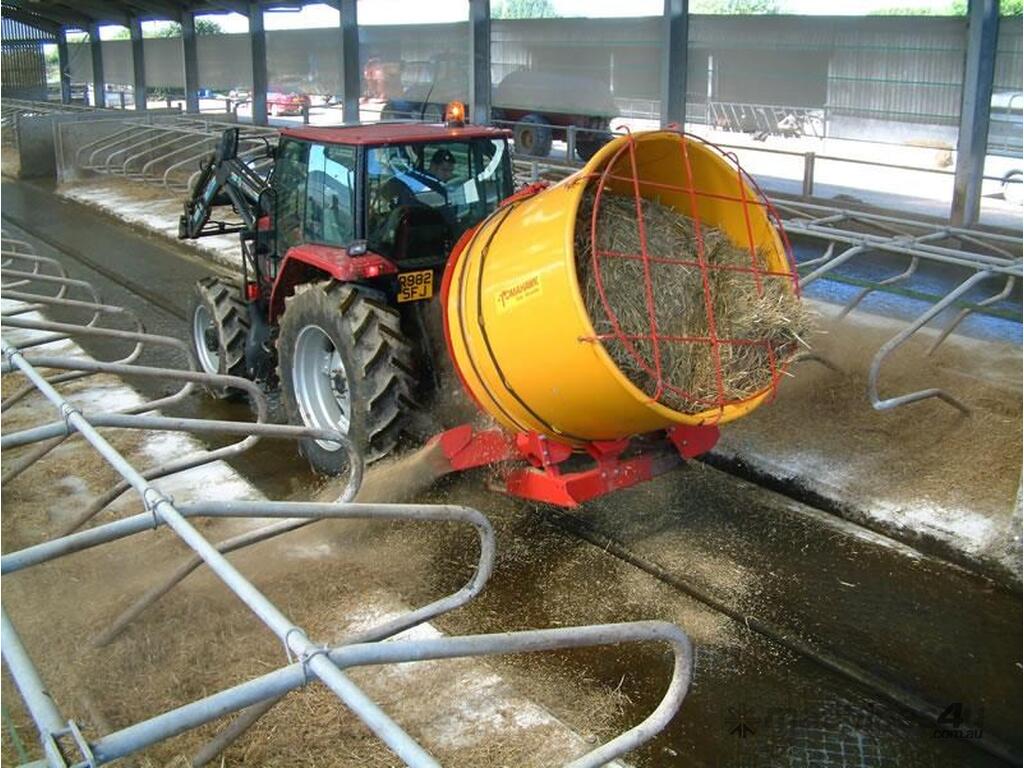

* Specify the right machine for the job - short chop for poultry & cubicles, light shredding for loose housing.

Drum Tomahawks
* Simple - drum turns clockwise, rotor turns anti-clockwise, and material is skimmed of the end of the bale.

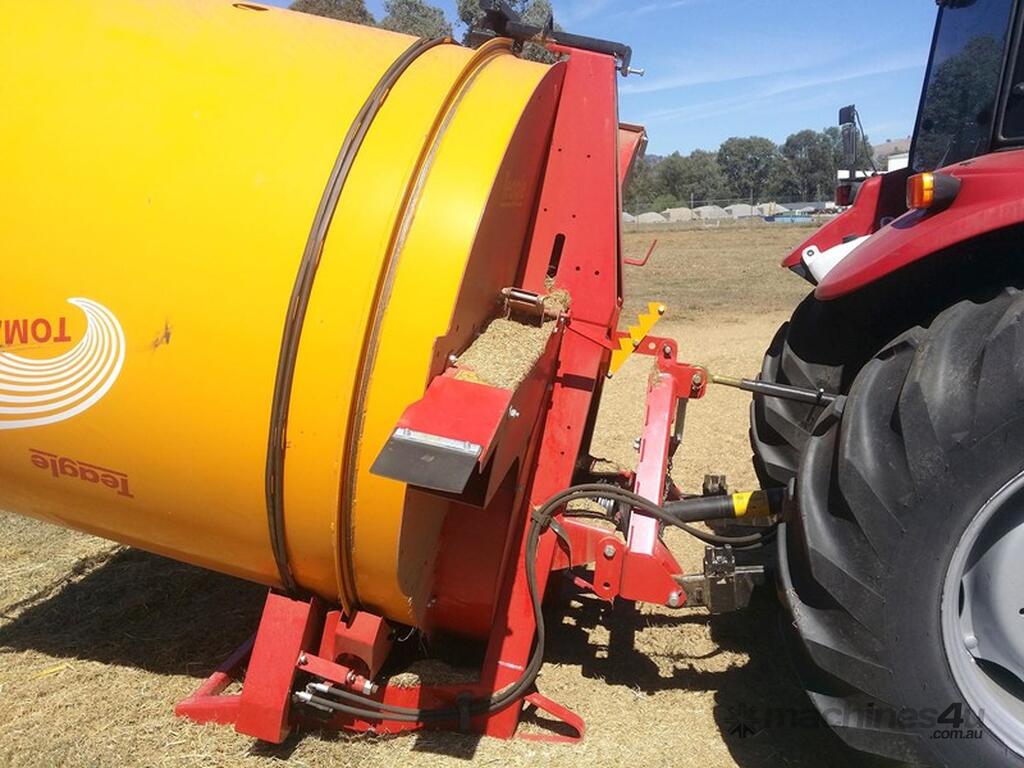

* No gearbox - direct drive from PTO. Hydraulic drive to drum.
* Feed rate is controlled by the angle of the drum.

FEATURES
* Direct Drive
* Choice Of Material Chop Length
* Knife System
* Hammer System
* Chute On/Off Levers
* Easy Loading
* Slip And Overrun on PTO

OPTIONALS
Choice of Material Chop Length
Hydraulic Top Link
Straw Giraffe Chute
Quick Hitch A-Frame
Electric Drive
Various Drum Lengths
Hydraulic Deflector
Castor Wheel Kit
2.78m Long Drum 505XLM Model
Swivel Giraffe Chute

Specifications - 505M
Drum Diameter: 1.83m
Maximum Round Bale Diameter: 1.5m
Maximum Rectangular Bale Size: 1.2m x 1.2m
Height Overall with machine on ground: 2.38m
Width with chutes closed: 2.05m
Lower chute discharge height: 0.4m
Upper chute discharge height: 1.09m
Length Overall: 2.10m
Drum Extensions Available: 30 & 60 cm.
Operating Width: 2.13m
Operating Width with Giraffe chute: 2.35m
Swivel Giraffe Chute discharge height: 2.84m
Straw Giraffe Chute discharge height: 1.9m
Weight: 737kg
PTO power required: 80HP
Straw: Short Chop
Feed Baled Silage: No
Feed Clamp Silage: No
Bed Cubicles / Straw Processing: Yes
Bed Loose Housing: No

Machine/Equipment base price only, additional price for optional extras.
