TIGER – FLAIL & SWEEPER COLLECTION MOWER

50HP – 70HP Tractor
Cutting Width 1500mm – 1960mm
Collection Capacity 2800L – 3700L

Flail Collection Mower TIGER engineered to help professional municipality and sport courses contractors to cut, verticut and collect. Supplied with large capacity collection with 235cm / 238cm” high discharge. The cutting head follows uneven grounds floating on any direction to cut and verticut independently from machine frame allowing a perfect maintenance for the most exigent Greenskeeper. The Tiger mower can be easily transformed into a sweeper in a few steps by sliding out the brush frame.

FLAILS
Self sharpening paddle flails for grass cutting and collection at the same time with 3 mm thickness and a gap to insert the scarifying blade

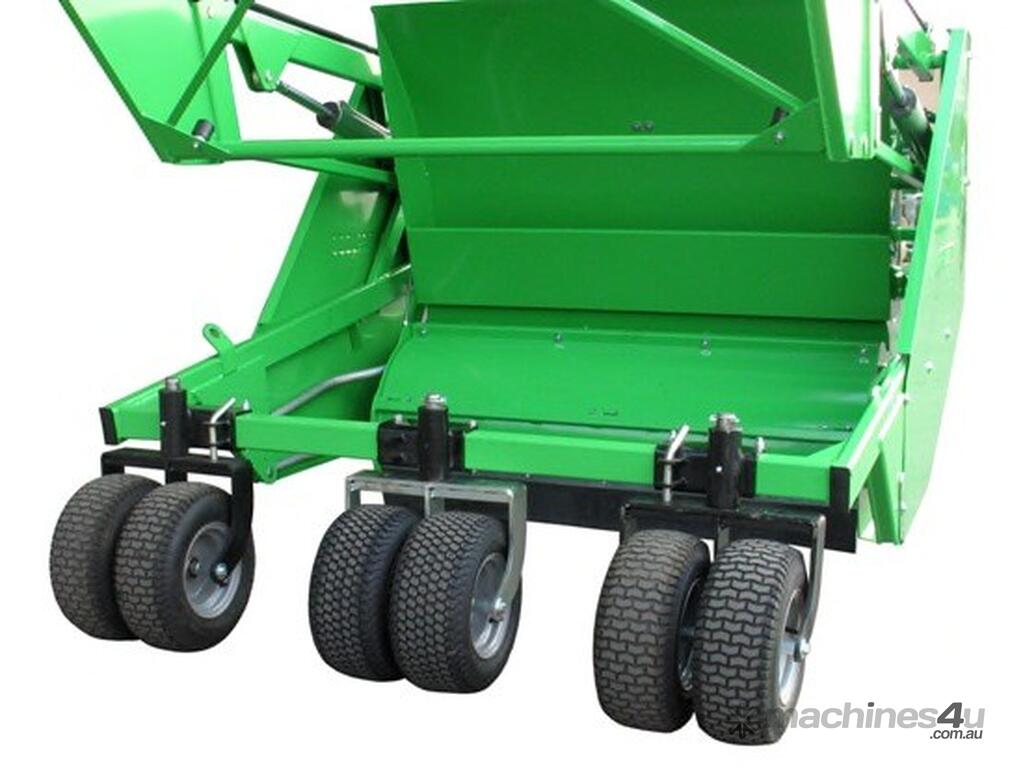

WHEELS
Front castor wheels adjustable in height.

BELT ADJUSTMENT
with easy manual adjustment

GEAR BOX
540 rpm with overrun clutch.

3 POINT LINKAGE
Cat. I and II with adjustable plates

DRAW BAR
Mechanical draw bar for better maintenance on turning operation and easy cutting around obstacles or verticut without damaging the ground on turning. (Available for upper or lower tractor towing point).

WIDE ANGLE PTO SHAFT
PTO shaft to use with draw bar for 60° turning.

LIGHT KIT
For road transport needs.

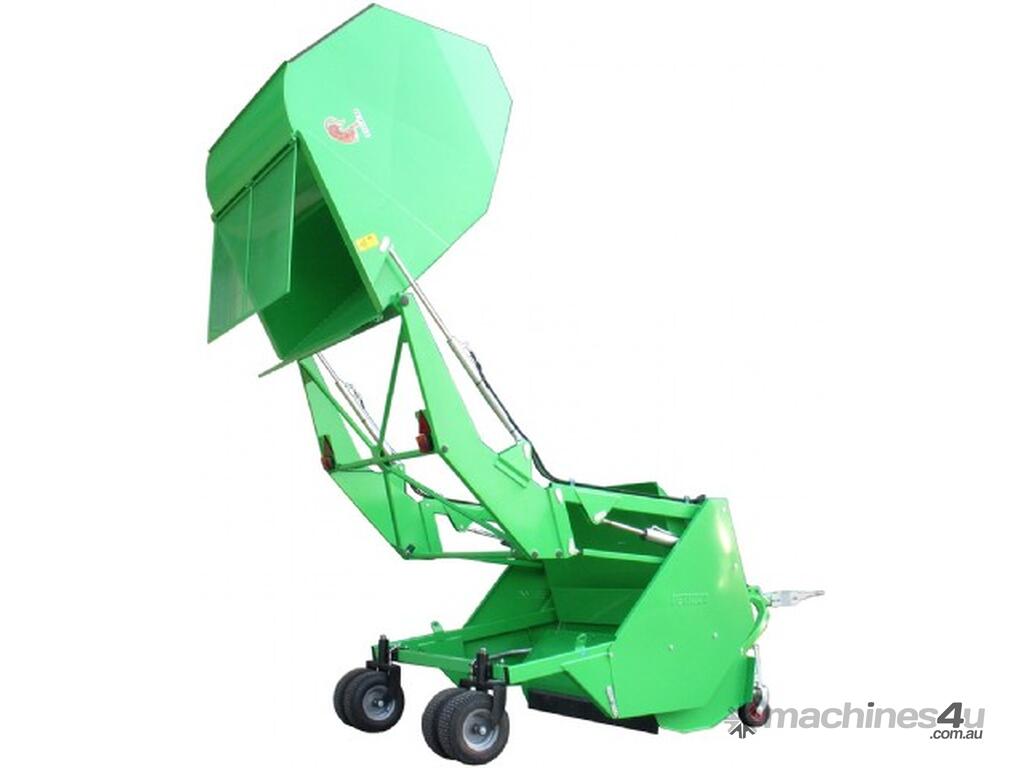

COLLECTOR LOADING CONTROL
Electric 12V system to check the container loading with switch box.


OPTIONAL ADJUSTMENTS/EXTRAS:

GEAR BOX 1000 rpm

PTO SHAFT 540/1000 rpm.

VERTICUT BLADES 3 mm thick.

DOUBLE REAR TIRES Wheels to add in case of maintenance on soft turf as golf courses.

SWEEPER DECK Sweeping system with brush.
