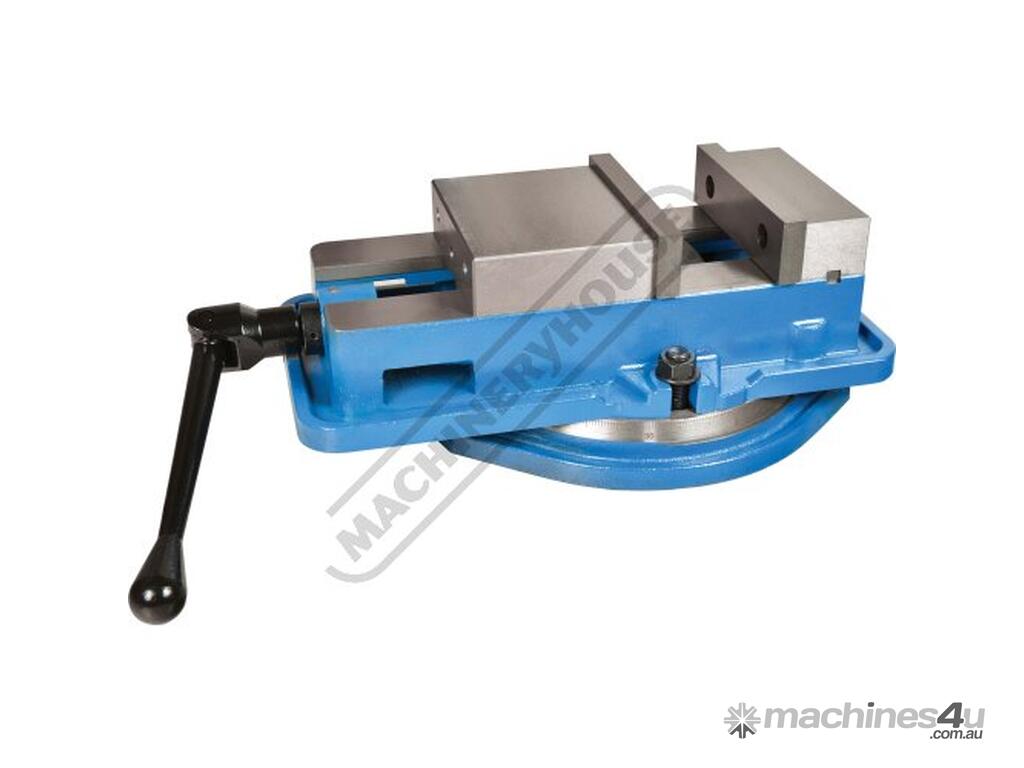

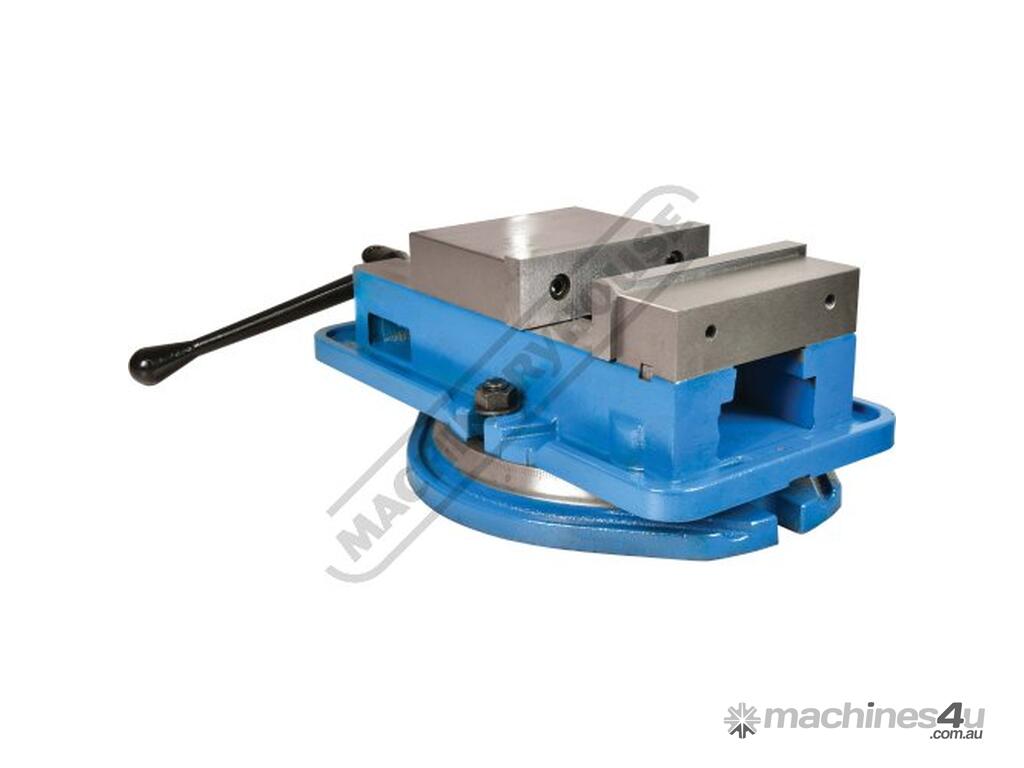

TM-160 Anglock Vice 160mm Jaw Width 170mm Jaw Opening

TOOLMASTER TM-160 Anglock Vice 160mm Jaw Width 170mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V3061

Manufactured to JIS standards, this Toolmaster vice has all the qualities of a more expensive vice.
Suited to milling machines, drilling machines where the finishing of precision parts is required

Features:
Accuracy of vice is 0.025mm/100mm for squareness and parallelism
Thrust needle bearing screw for easy use.
Special segment in the movable jaw creates down forces in the movable jaw when horizontal pressure is applied


Specifications:
ORDER CODE: V3061
MODEL: TM-160
A - Jaw Width (mm): 160
F - Jaw Opening (mm): 170
E - Jaw Depth (mm): 45
B (mm): 415
C (mm): 210
D (mm): 150
G (mm): 295
H (mm): 37
Nett Weight (kg): 45


To Purchase Online Please Visit The Machineryhouse & Search For 'V3061'
