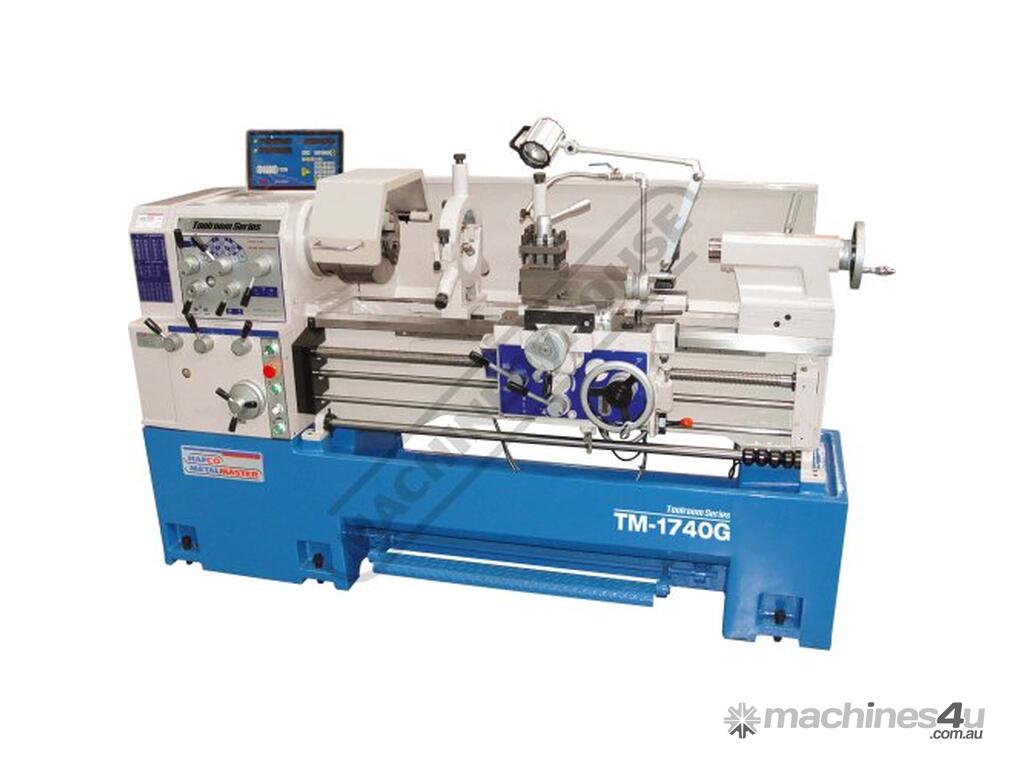

HAFCO-METALMASTER TM-1740G Centre Lathe Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L632D

The TM-1740G Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with any job or task its set out to achieve by the professional machinist, and importantly to deliver many years of valuable & reliable service.

One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-1740G is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work.

Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

This lathe package is complete with the most desirable features required to turn out quality precise parts we all require from a metal turning lathe.

Features:

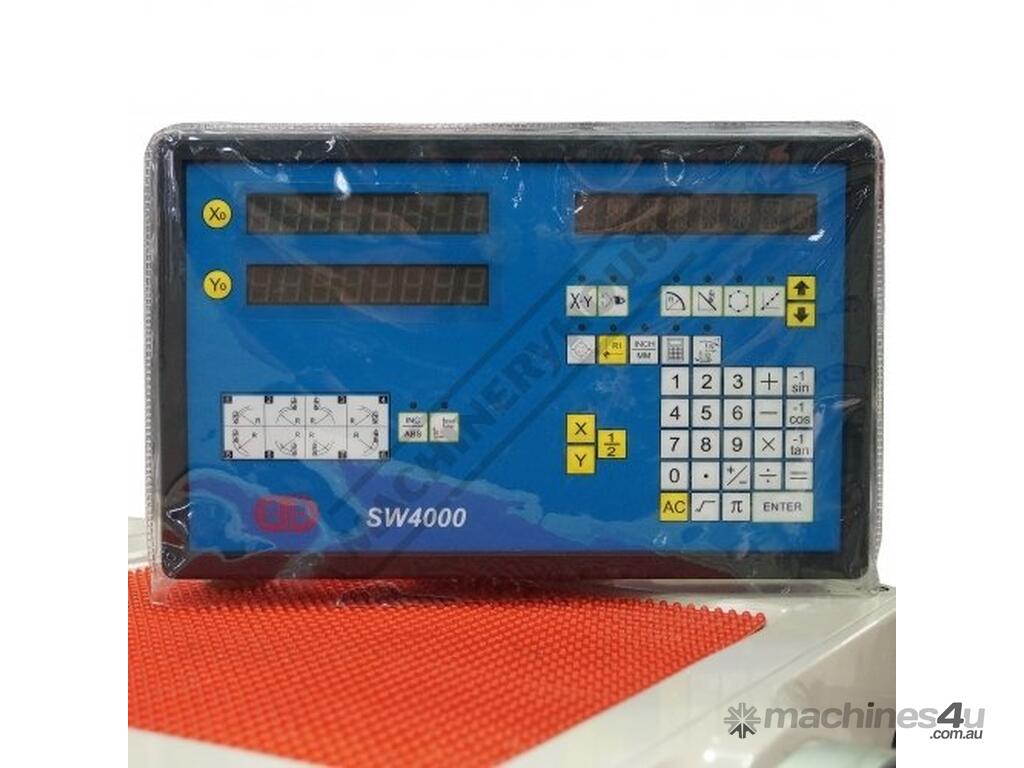

2 axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system

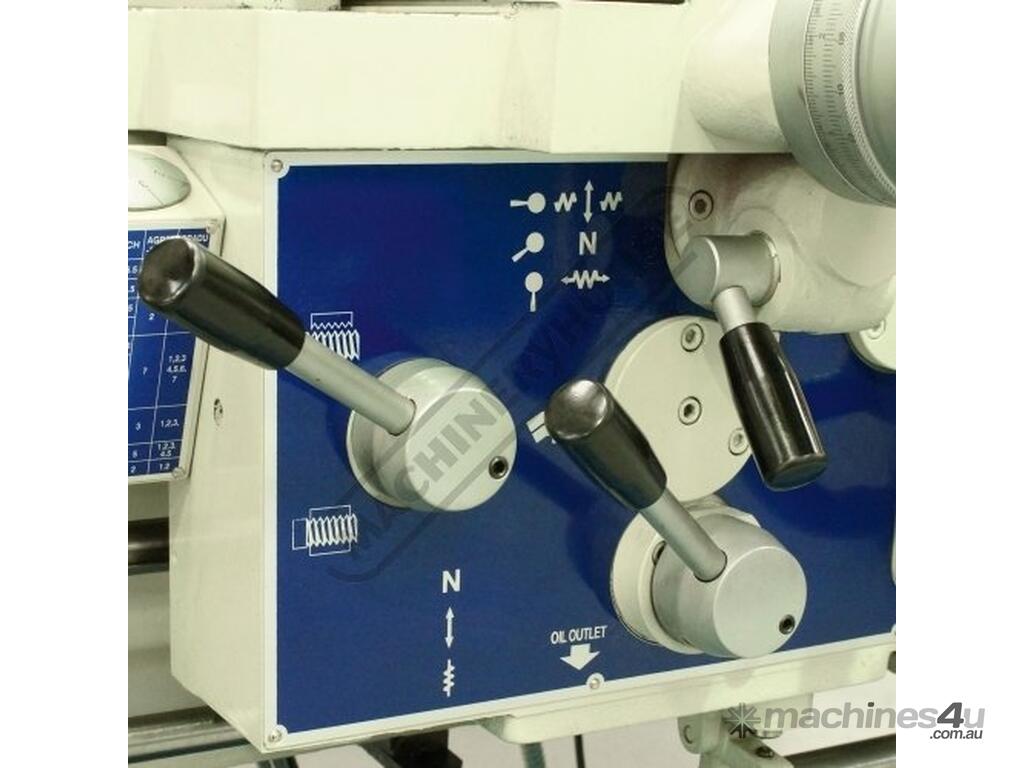

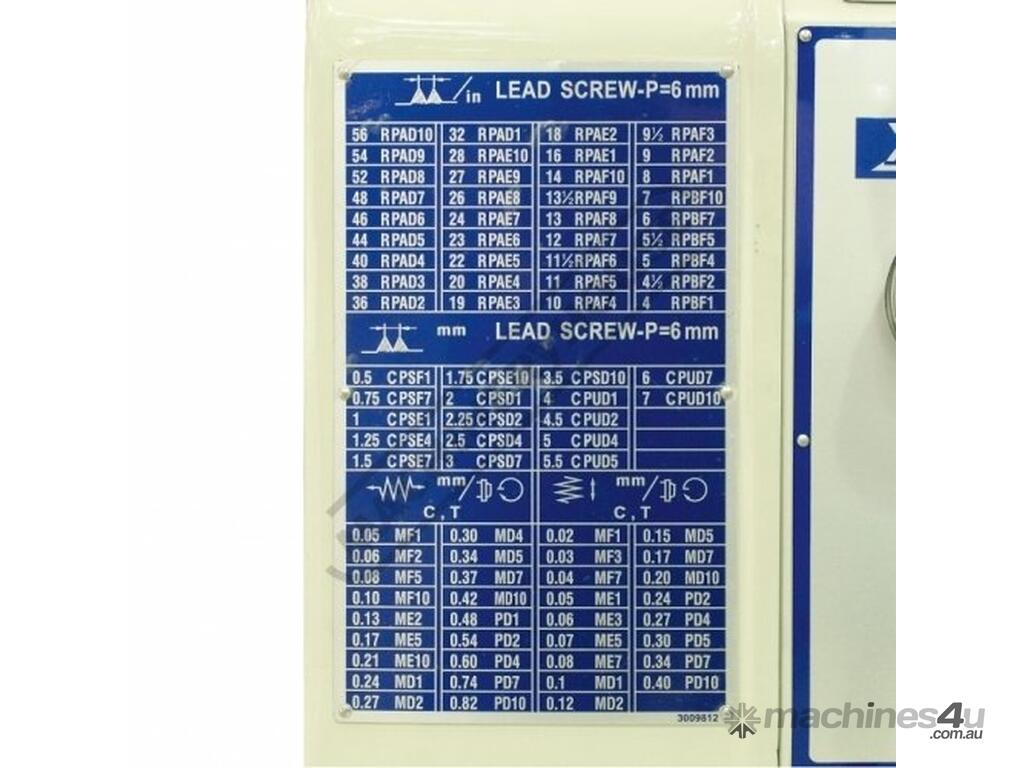

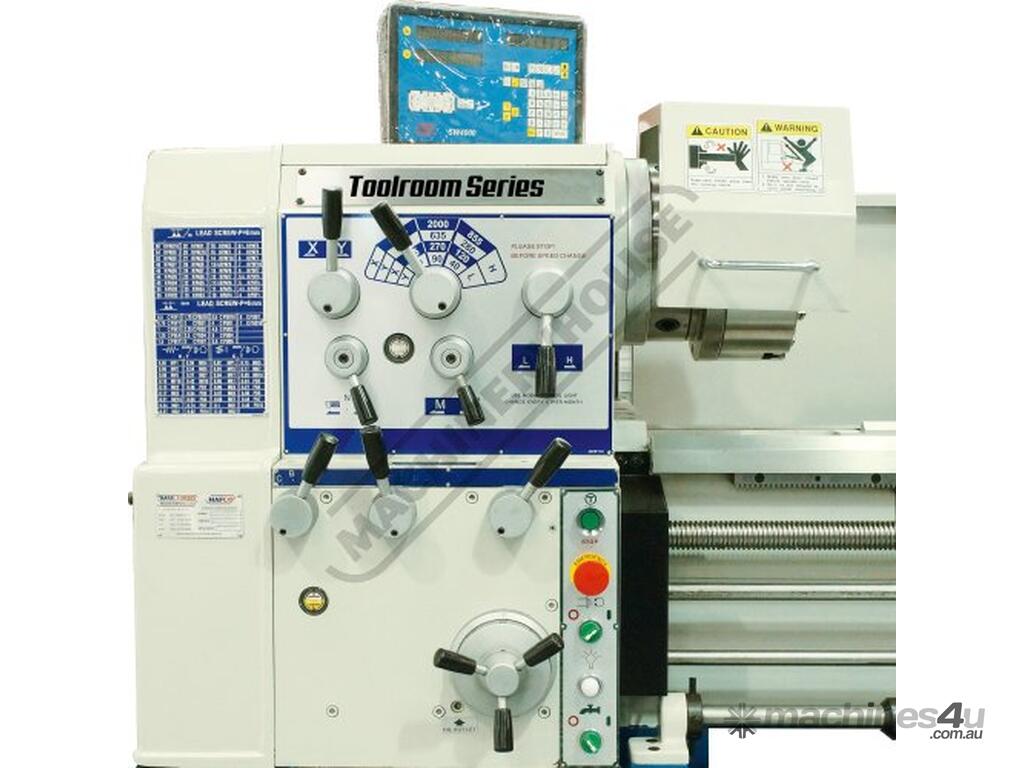

Universal enclosed gearbox incorporating metric & imperial thread capabilities

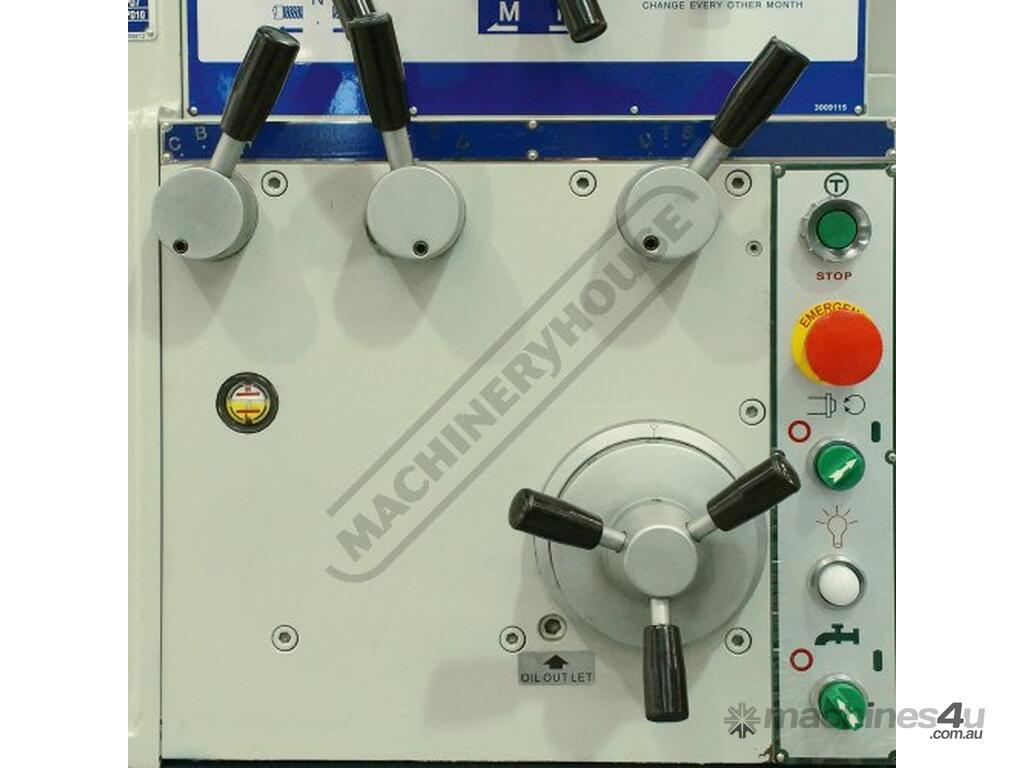

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
300mm Wide induction hardened heavy duty cast iron bed

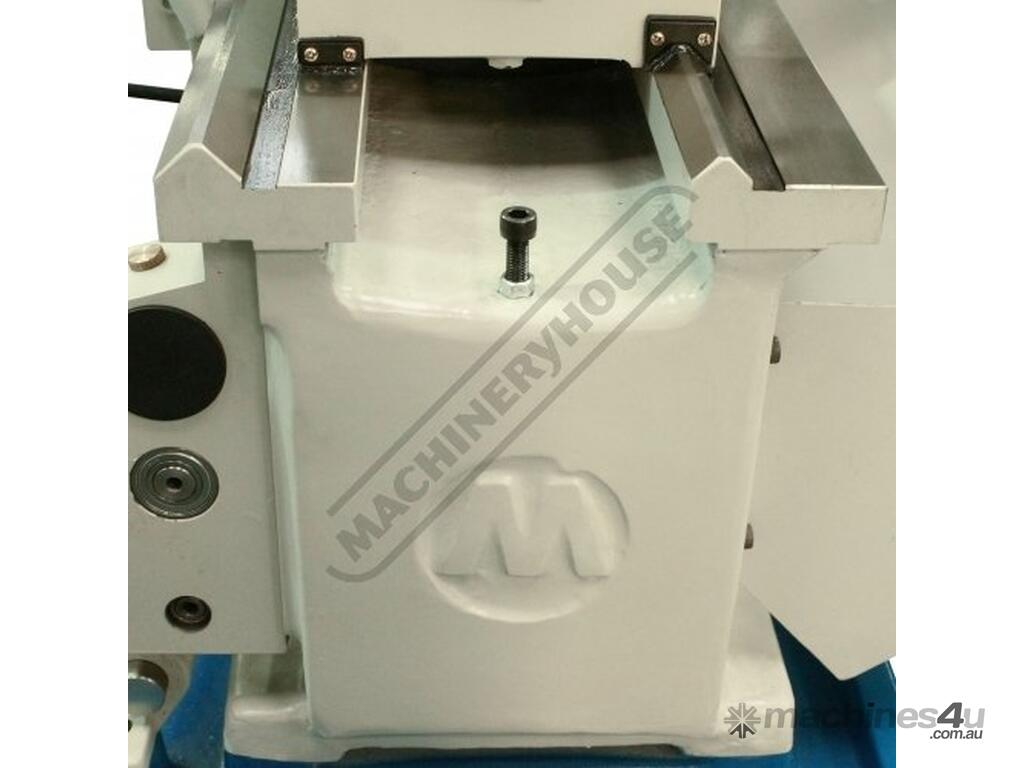

Removable gap bed allowing work piece to swing up to 650mm

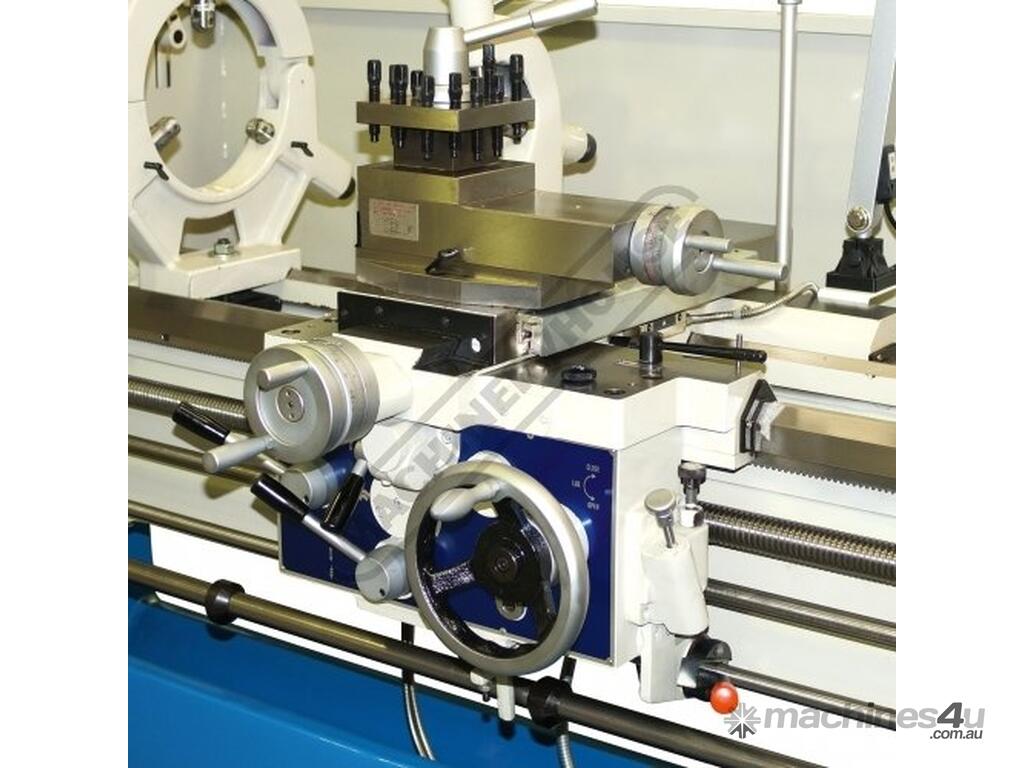

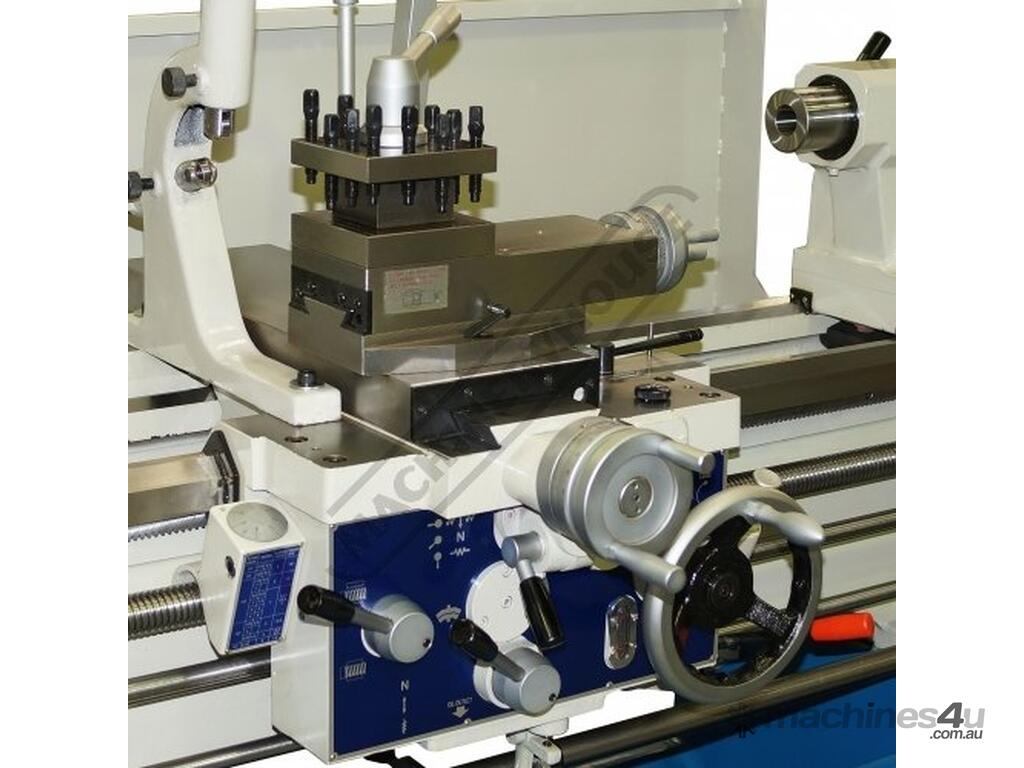

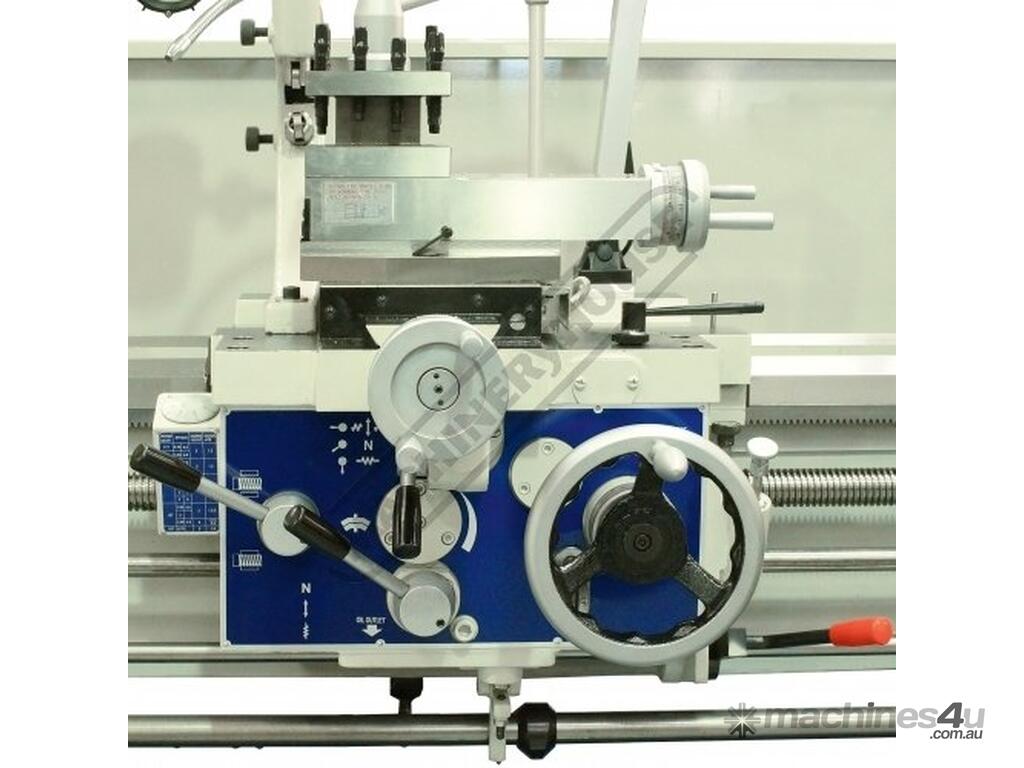

Powered longitudinal and cross feeds

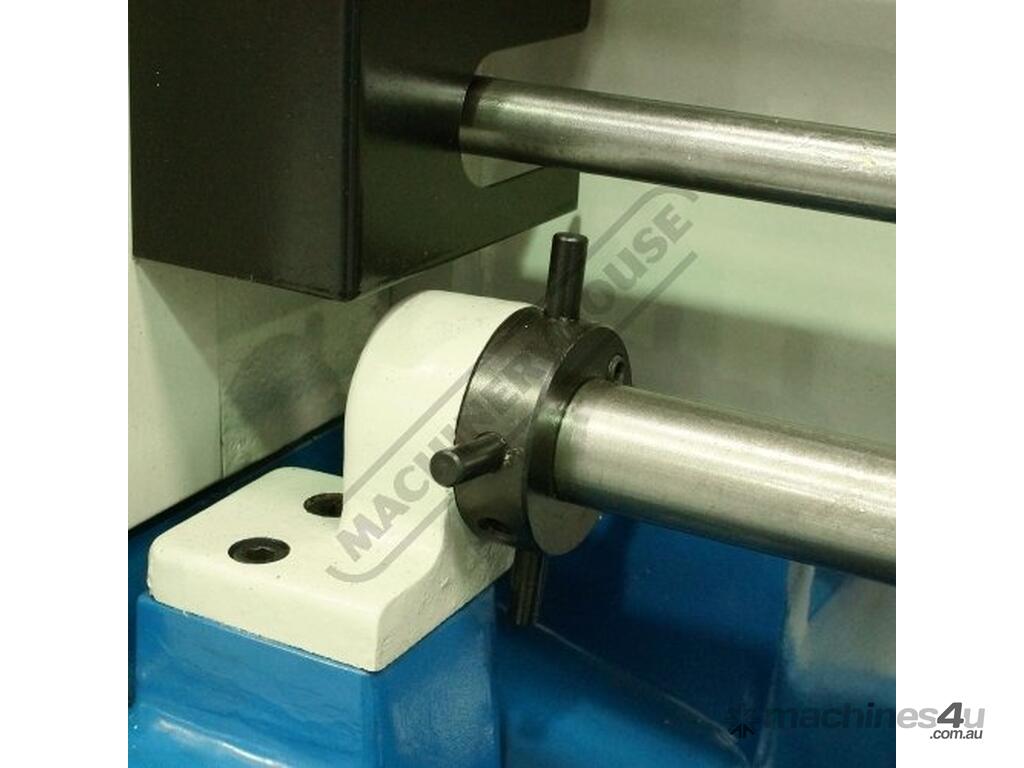

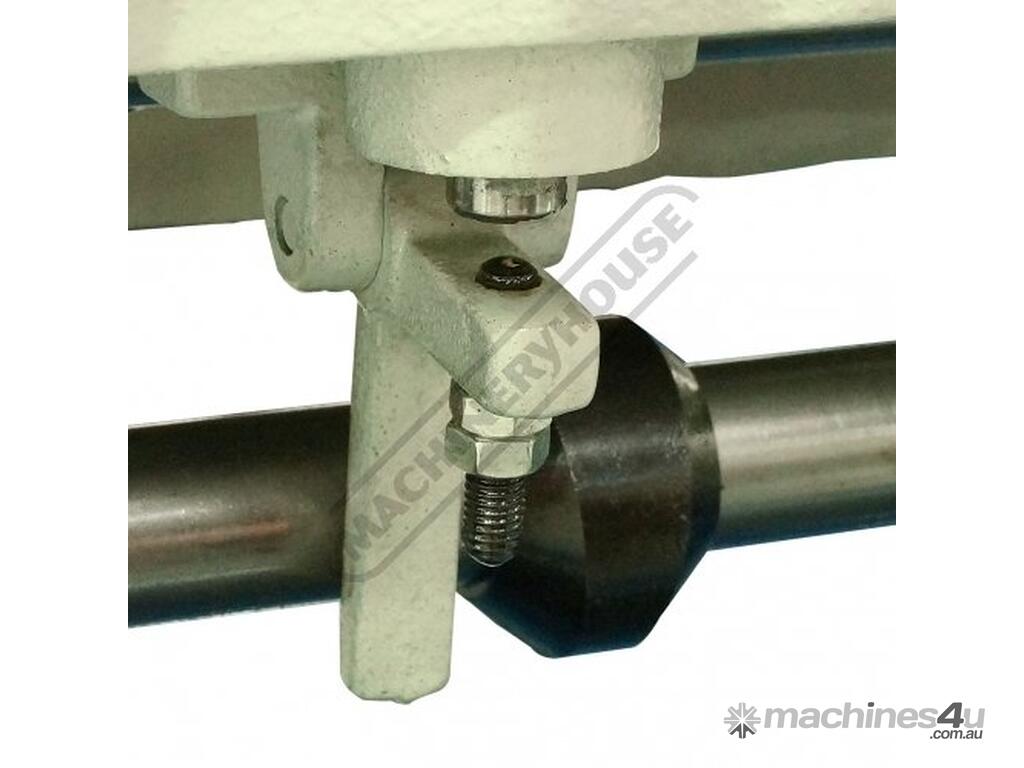

Adjustable 4 position length-stop mechanism for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock gearbox and apron
Low voltage halogen work light
Lubrication pump on saddle oiling slides
D1-8 camlock spindle for quick chuck removal

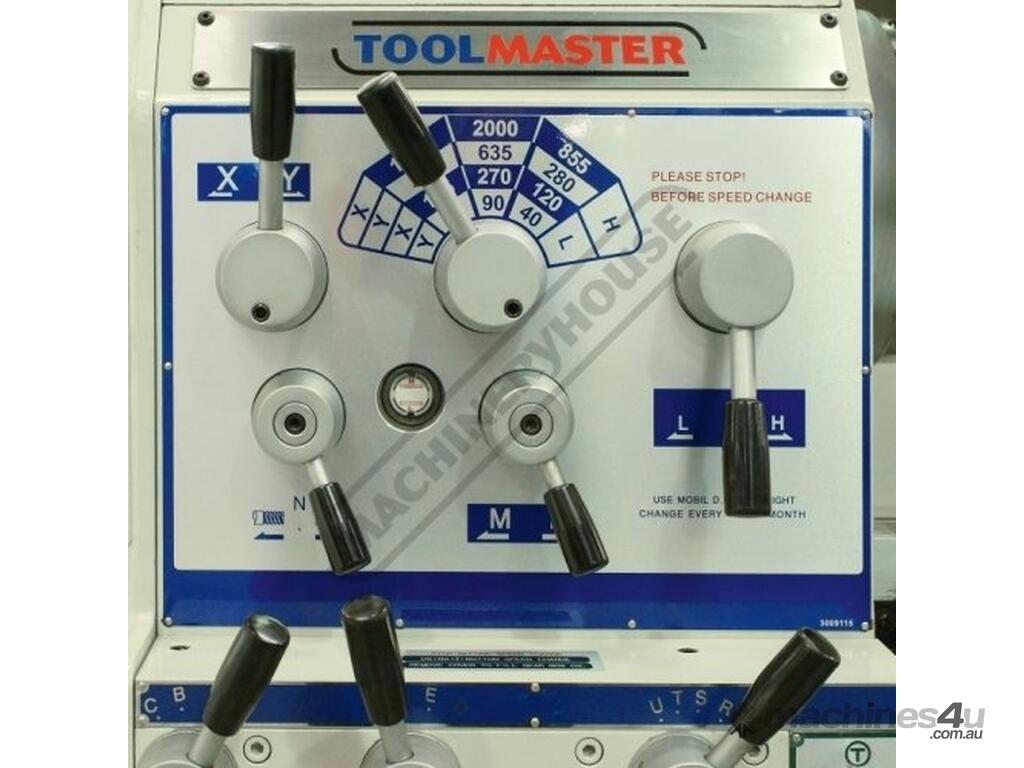

12 Spindle speeds from 40 - 2000rpm
Large 80mm spindle bore
5.5kW / 7.5HP 415V main motor

Includes:
- 2 Axis digital readout system

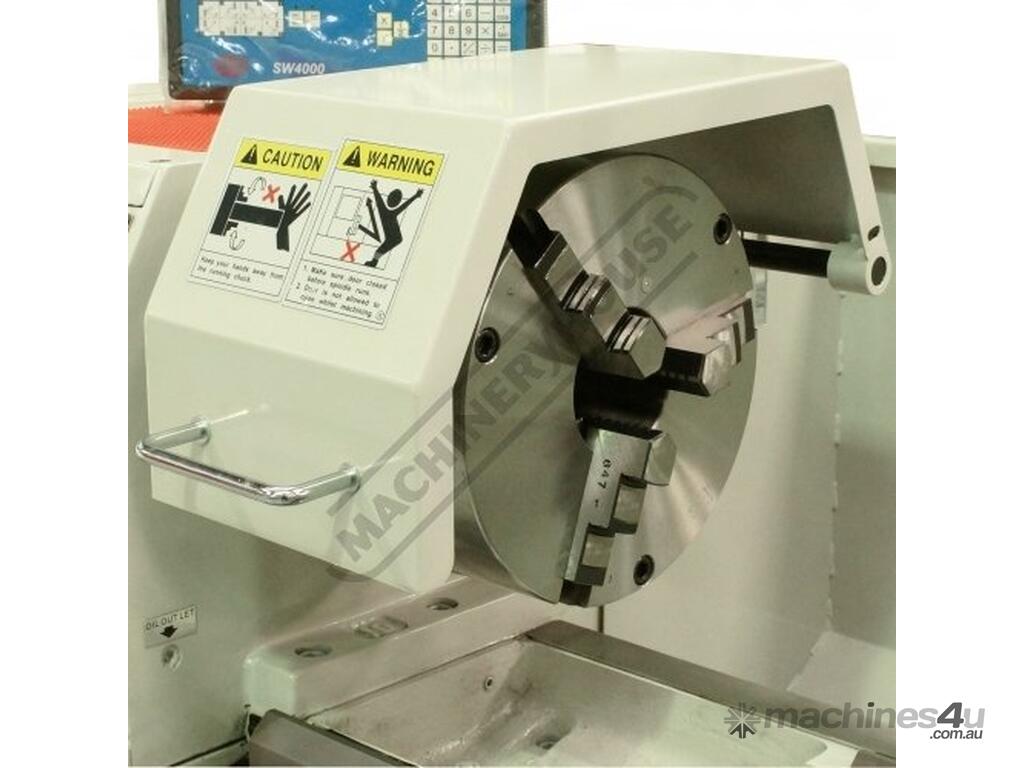

- 275mm 3-jaw chuck with reverse jaws
- 320mm 4-jaw chuck
- 356mm face plate
- Fixed Steady with roller bearings
- Travelling steady with roller bearings
- 4-position knock out feed system
- Dead centres

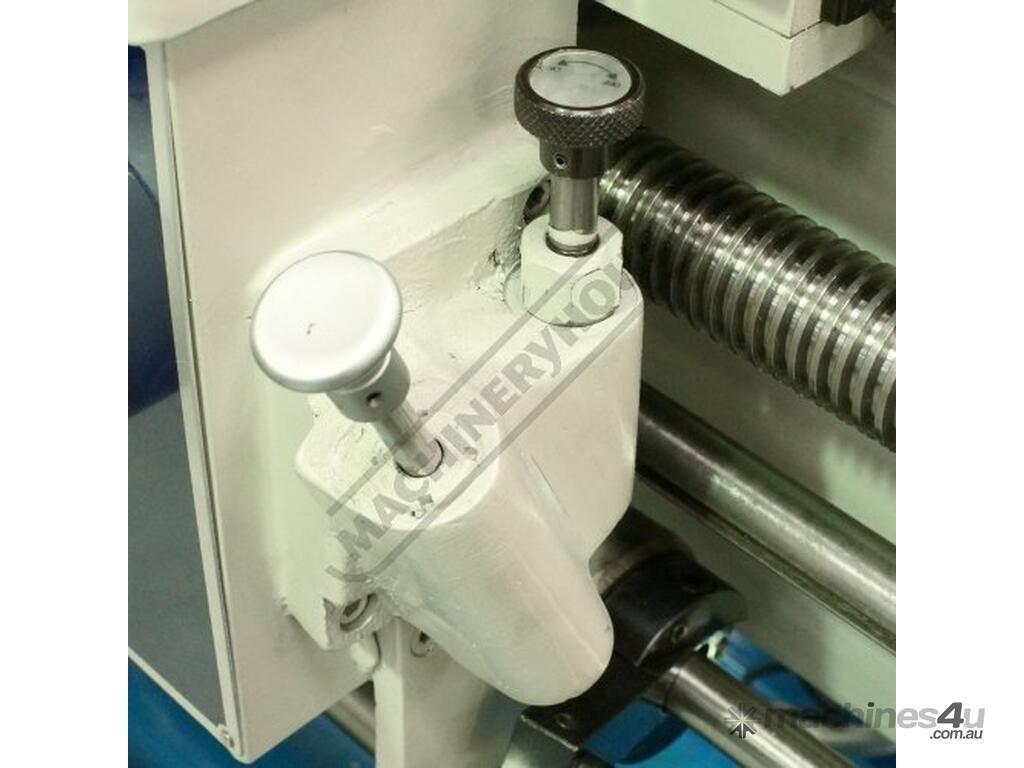

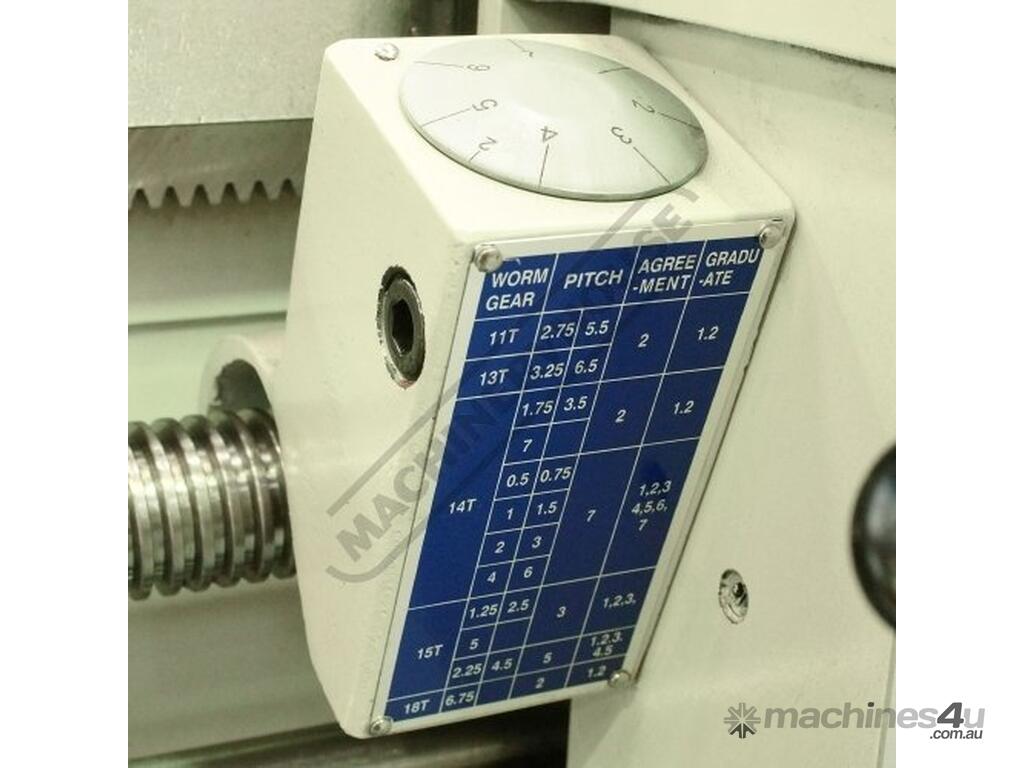

- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush
- Instruction booklet
-



Specifications:
ORDER CODE: L632D
MODEL: TM-1740G
Swing Over Bed (mm): 430
Distance Between Centres (mm): 1000
Spindle Bore (mm): 80
Swing In Gap (mm): 650
Swing Over Cross-slide (mm): 235
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 215
Spindle Nose Size or Type: D1-8 Camlock
Bed Width (mm): 300
Headstock Spindle Taper (MT): 7
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 250

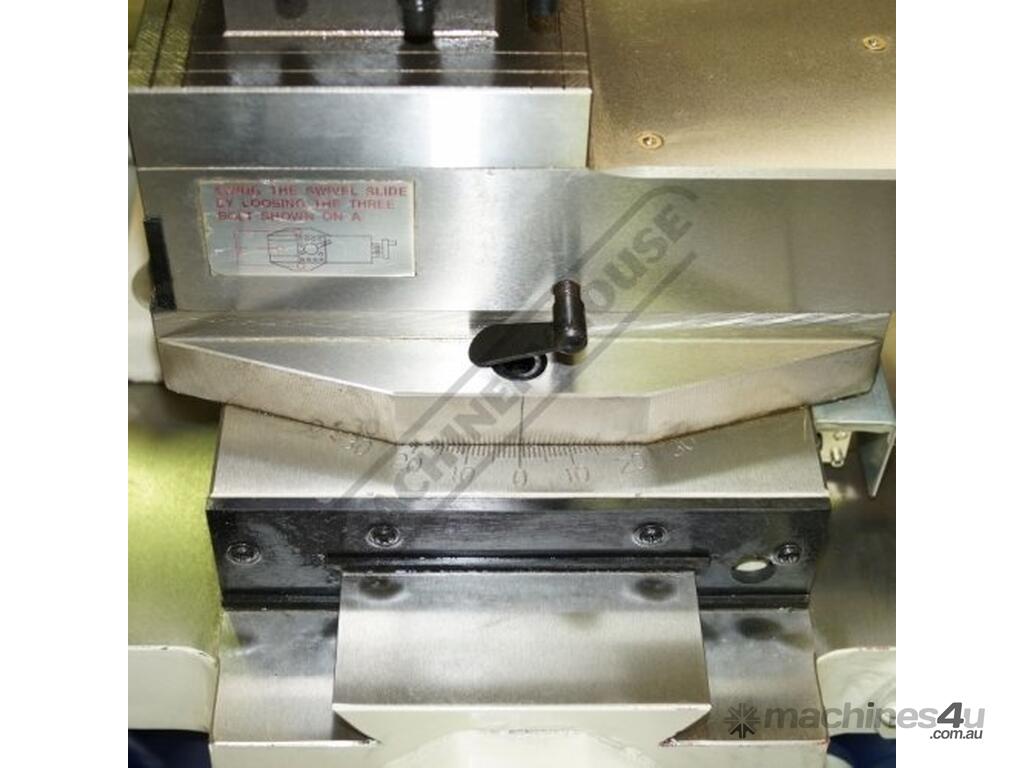

Compound Slide Travel (mm): 125
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.4
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.82
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 17 (0.5 - 7)
Imperial Thread Steps & TPI (No. / TPI): 39 (4 - 56)
3 Jaw Chuck Diameter (mm): 275
4 Jaw Chuck Diameter (mm): 320
Spindle Steps / Speeds (No. / rpm): 12 (40 - 2000)
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1910
