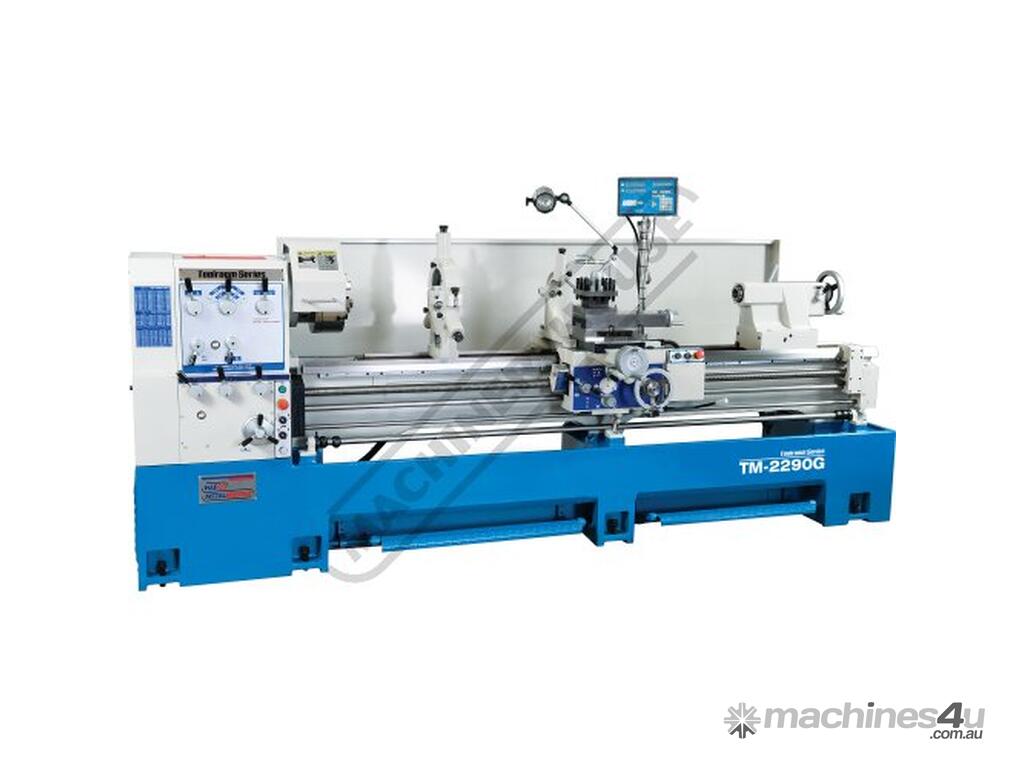

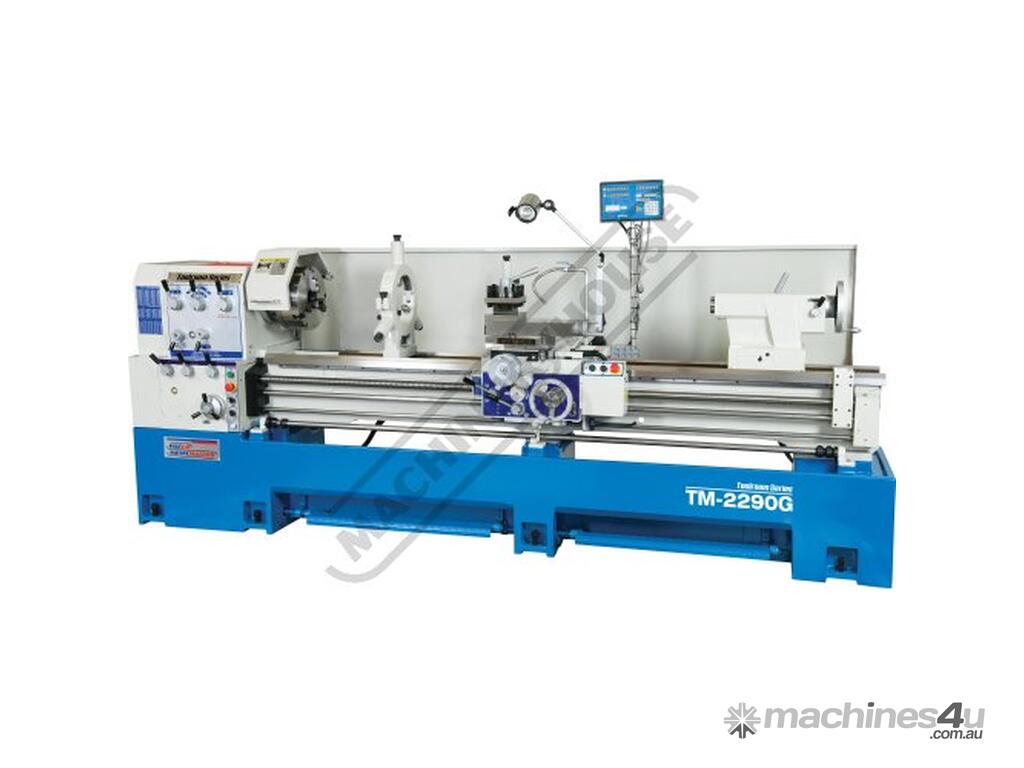

TM-2290G Centre Lathe Ø560 x 2200mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout

HAFCO-METALMASTER TM-2290G Centre Lathe Ø560 x 2200mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L638D

The TM-2290G Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with any job or task its set out to achieve by the professional machinist, and importantly to deliver many years of valuable & reliable service.

One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-2290G is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work.

Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

This lathe package is complete with the most desirable features required to turn out quality precise parts we all require from a metal turning lathe.

Features:

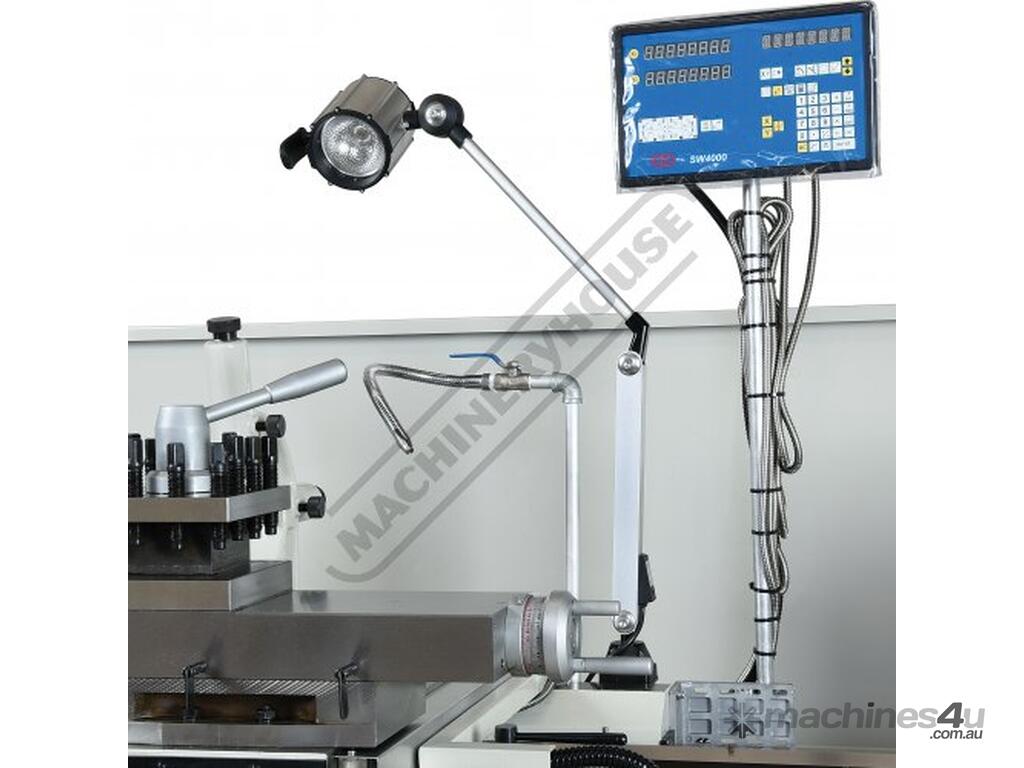

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system

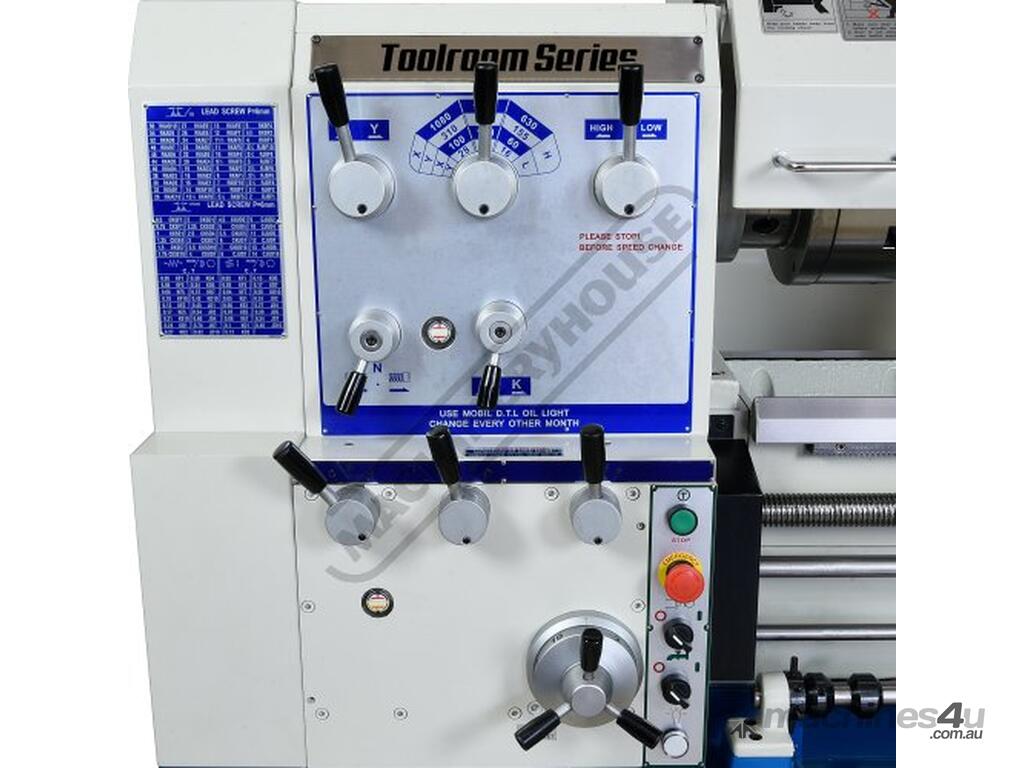

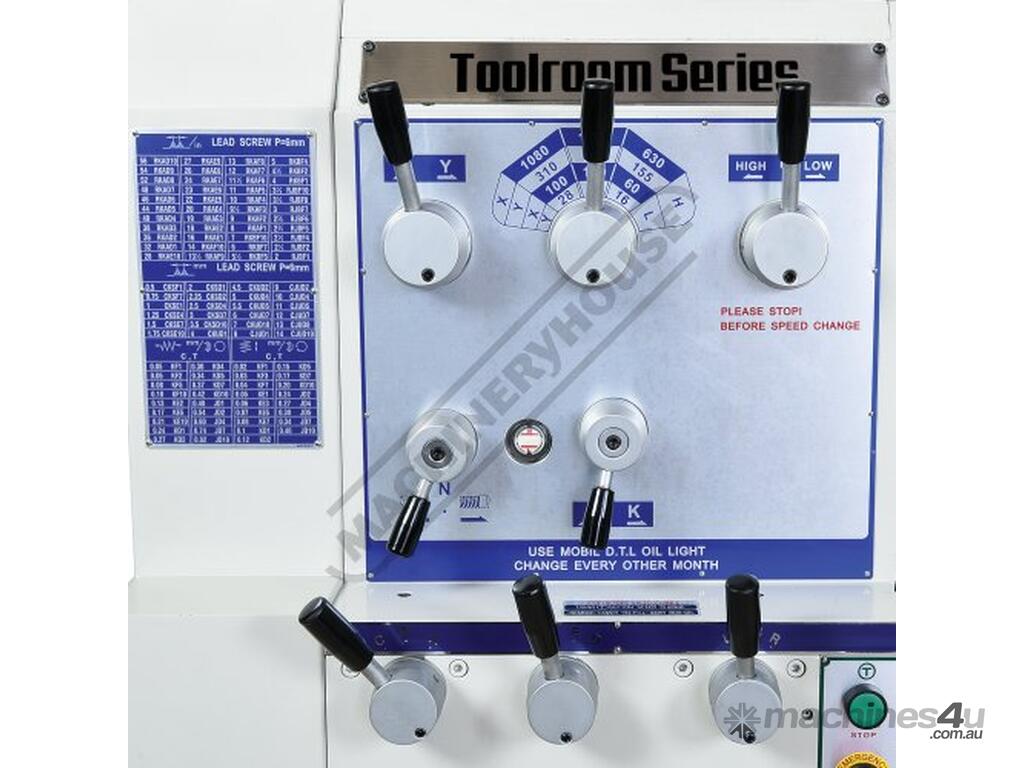

Universal enclosed gearbox incorporating metric & imperial thread capabilities

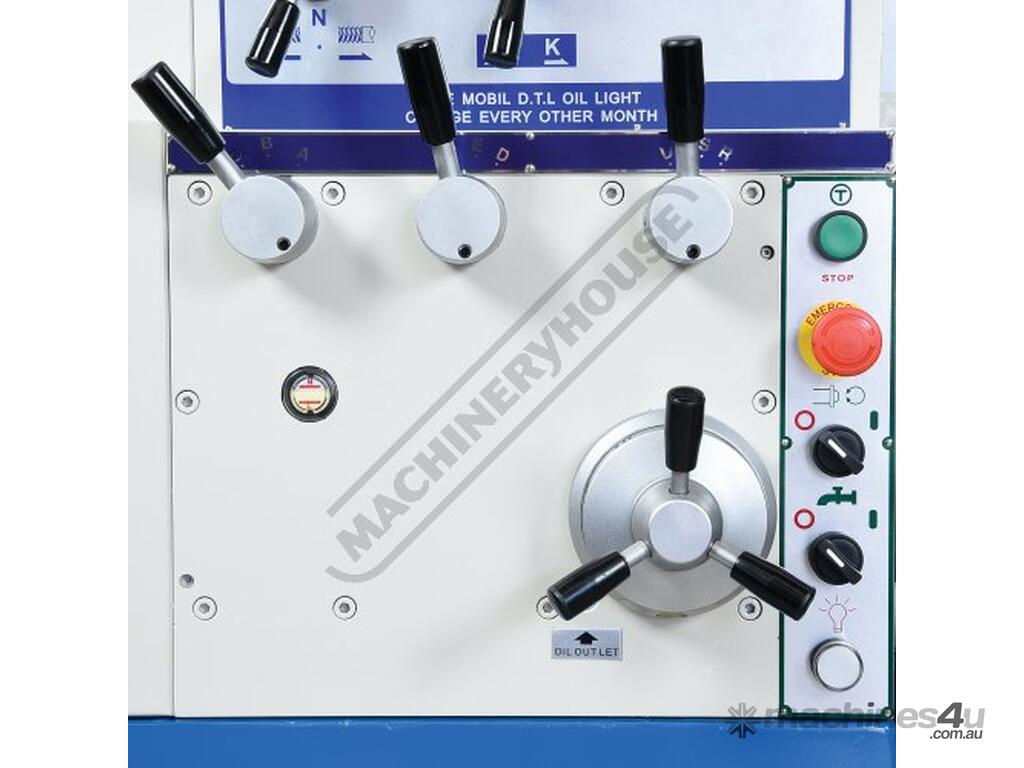

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
350mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 788mm

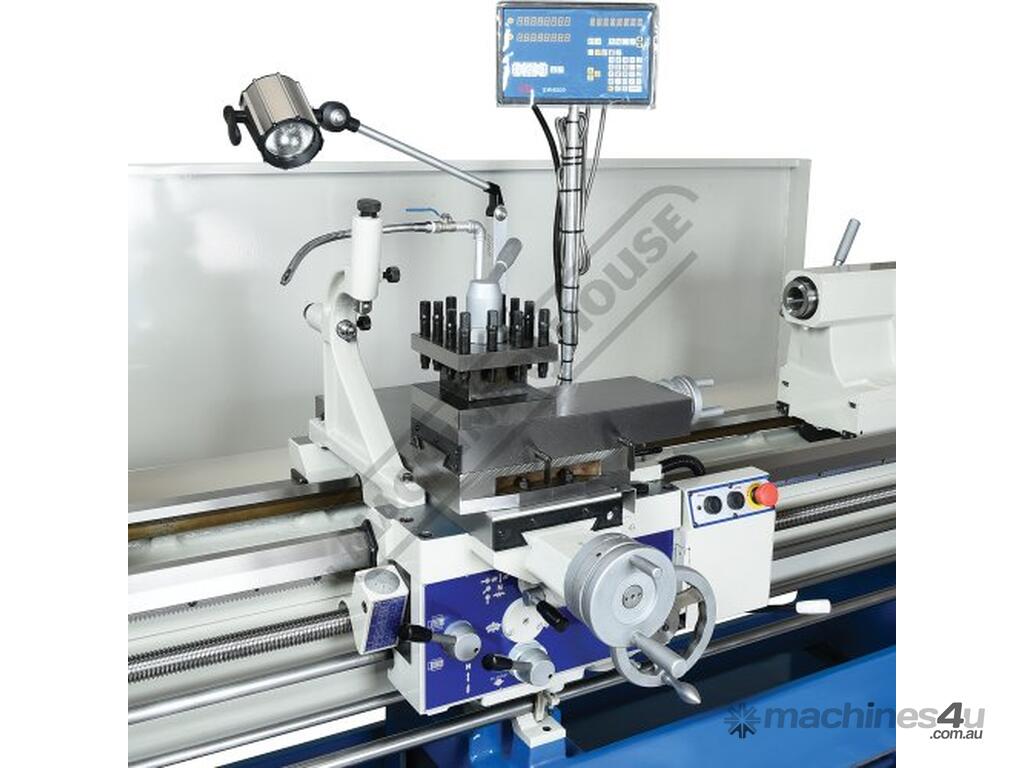

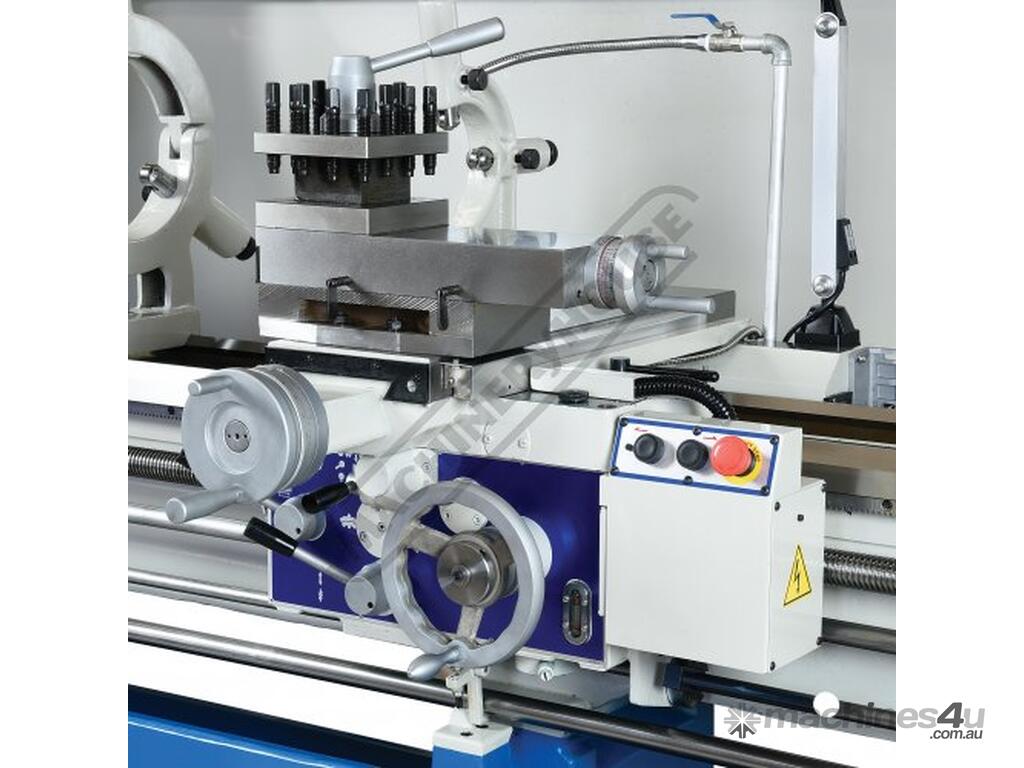

Powered longitudinal and cross feeds
Rapid traverse saddle Z axis
2 speed high/low lever on tailstock
Slide-way mechanical lubrication pump driven via the saddle hand-wheel
Adjustable 4 position length-stop mechanism for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Roller bearings inserted to assist tail stock movement
Oil sight glass for head stock gearbox and apron
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal

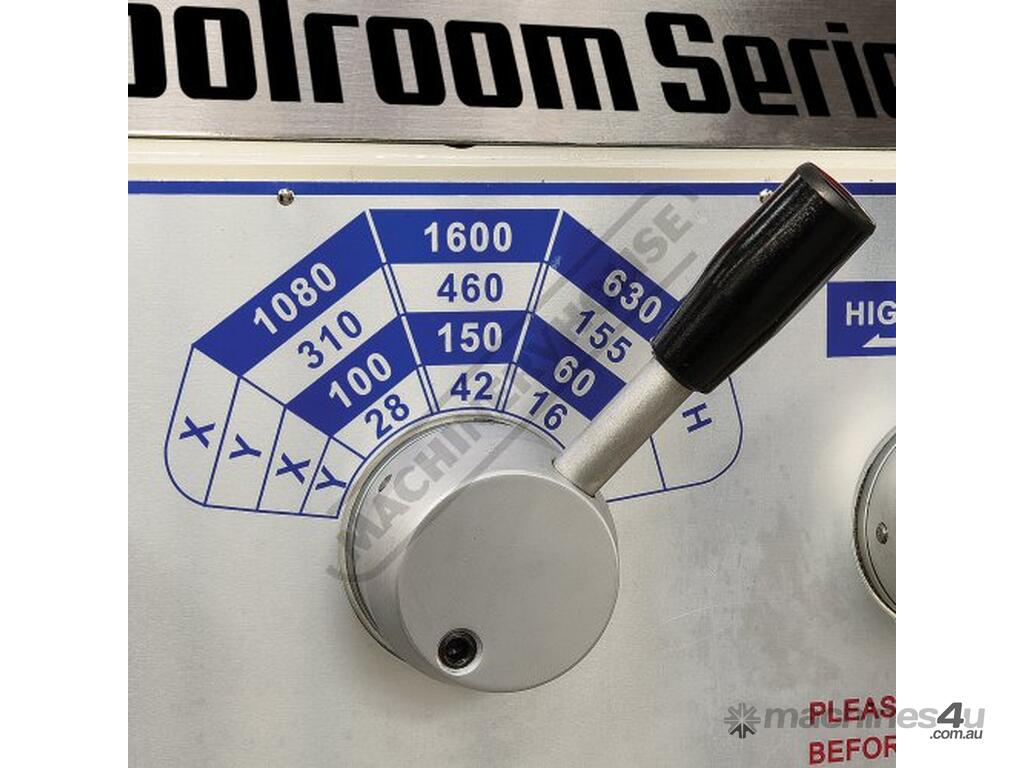

12 Spindle speeds from 16 - 1600rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Includes:

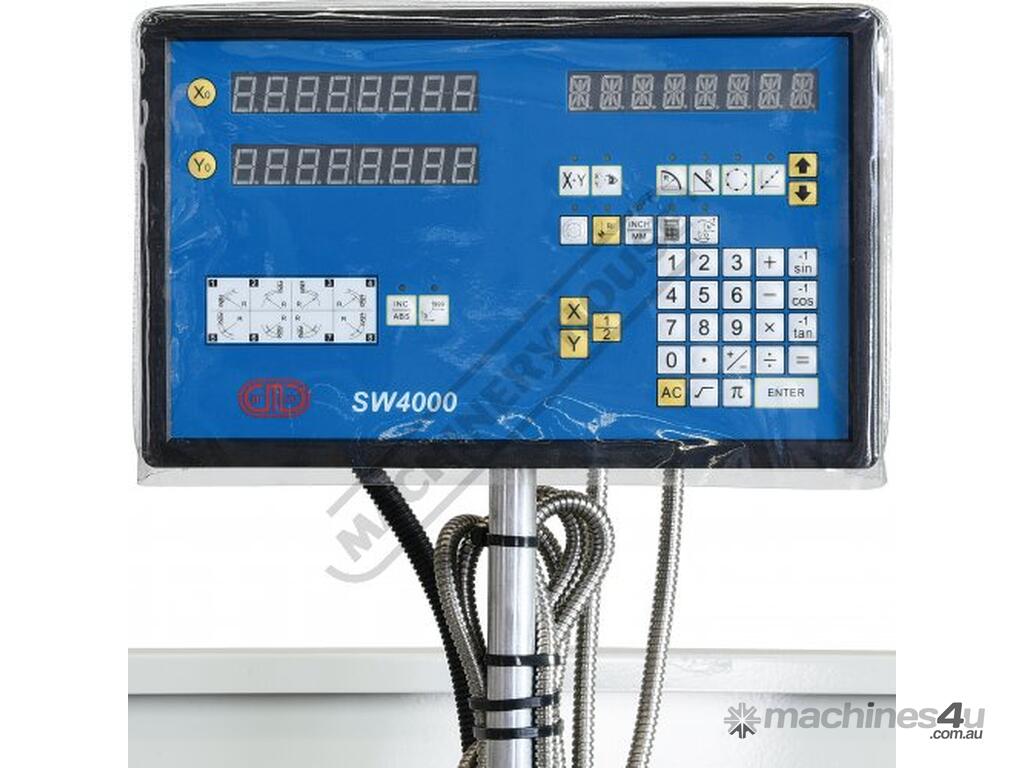

- 2 Axis digital readout system

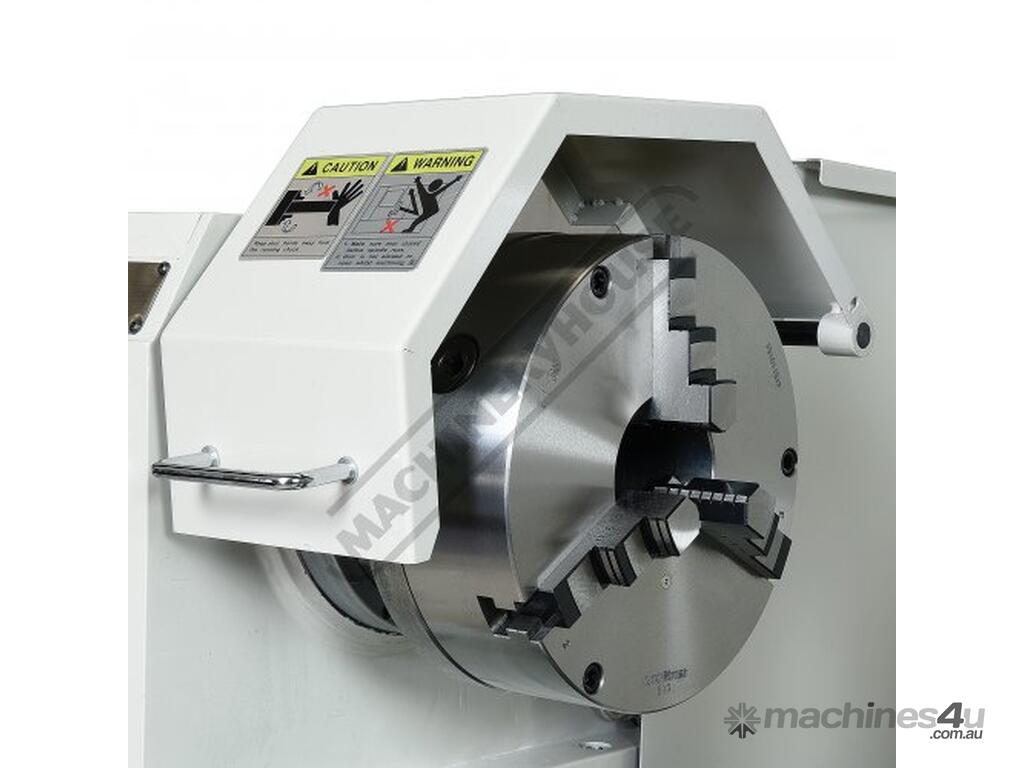

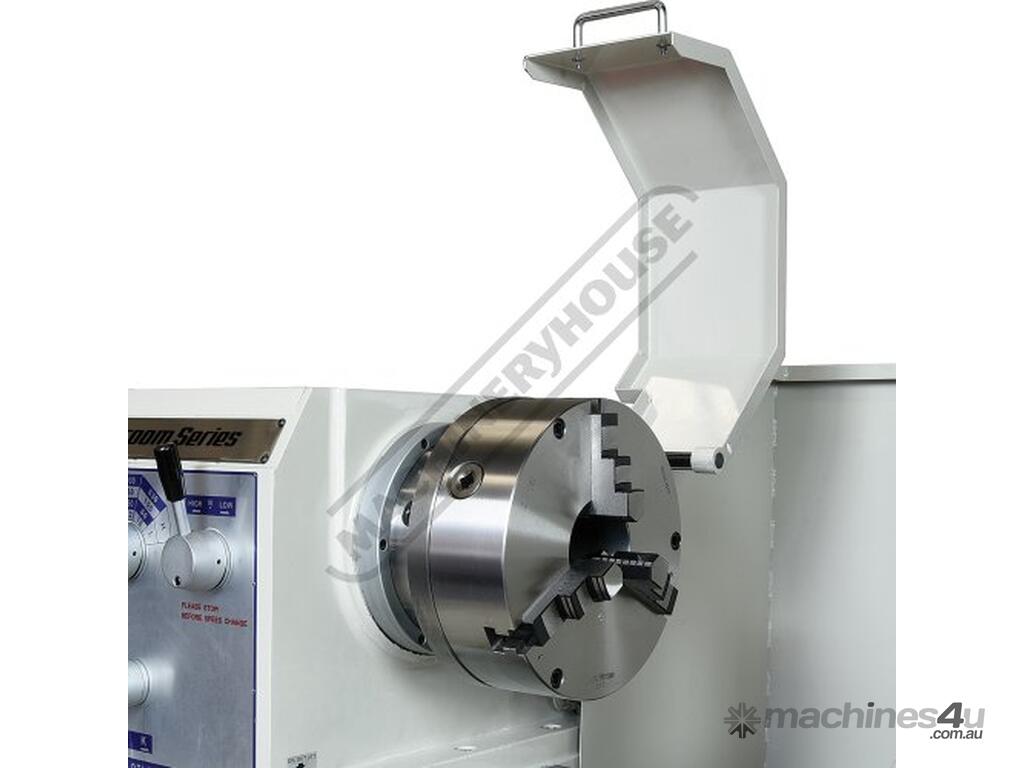

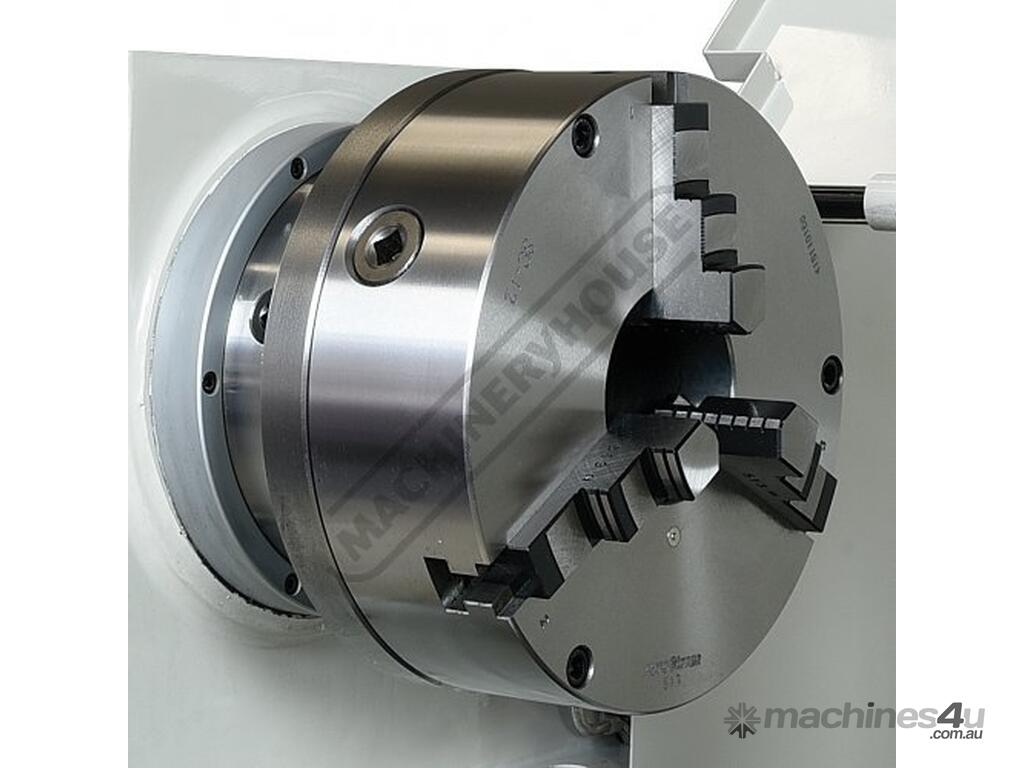

- 310mm 3-jaw chuck with reverse jaws
- 400mm 4-jaw chuck
- 355mm face plate

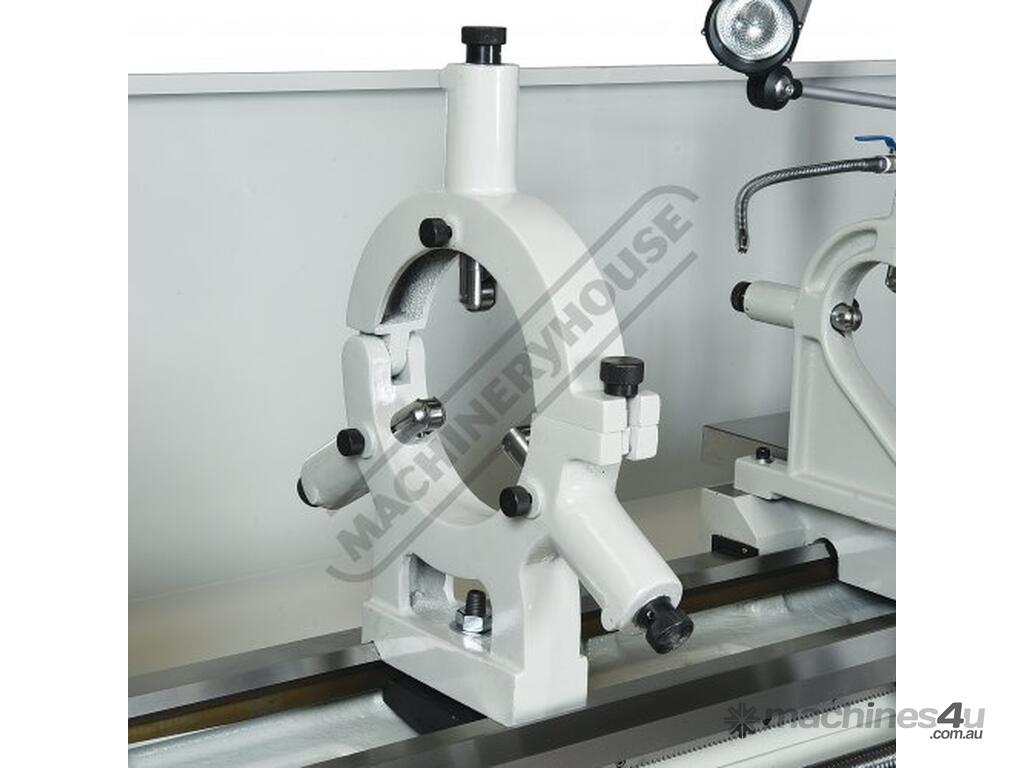

- Fixed steady with roller bearings

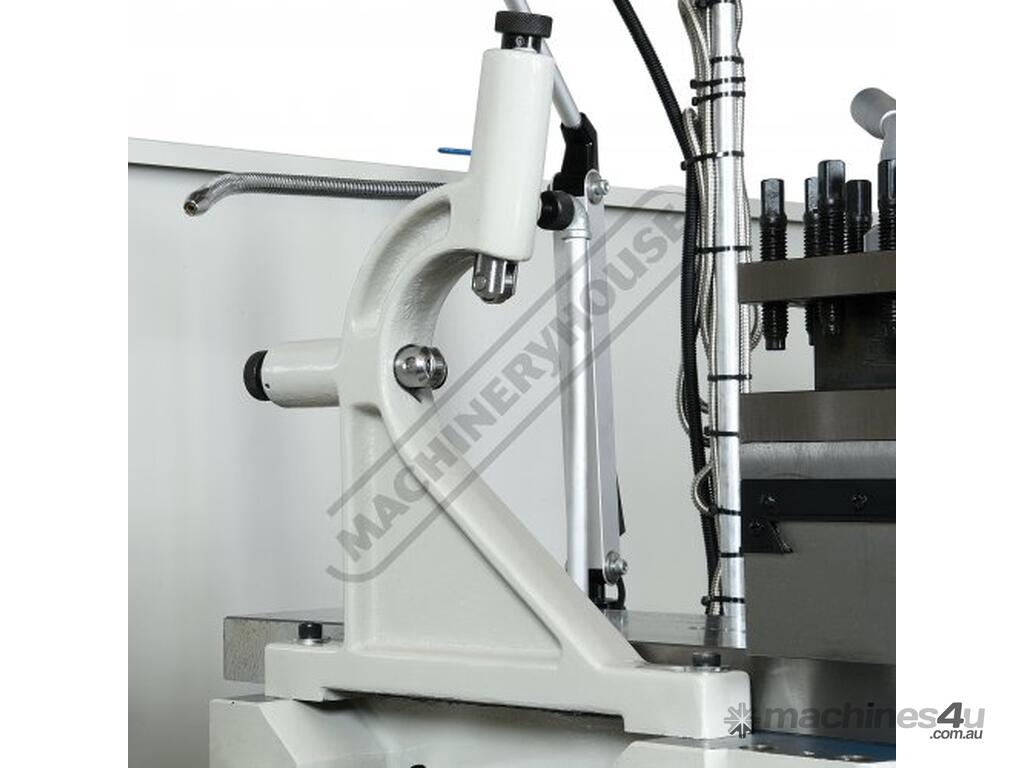

- Travelling steady with roller bearings
- 4-position knock out feed system
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush
- Instruction booklet



Specifications:
ORDER CODE: L638D
MODEL: TM-2290G
Swing Over Bed (mm): 560
Distance Between Centres (mm): 2200
Spindle Bore (mm): 105
Swing In Gap (mm): 788
Swing Over Cross-slide (mm): 340
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 280
Spindle Nose Size or Type: D1-8 Camlock
Bed Width (mm): 350
Headstock Spindle Taper (MT): 7
Tailstock Taper (MT): 5
Cross Slide Travel (mm): 300

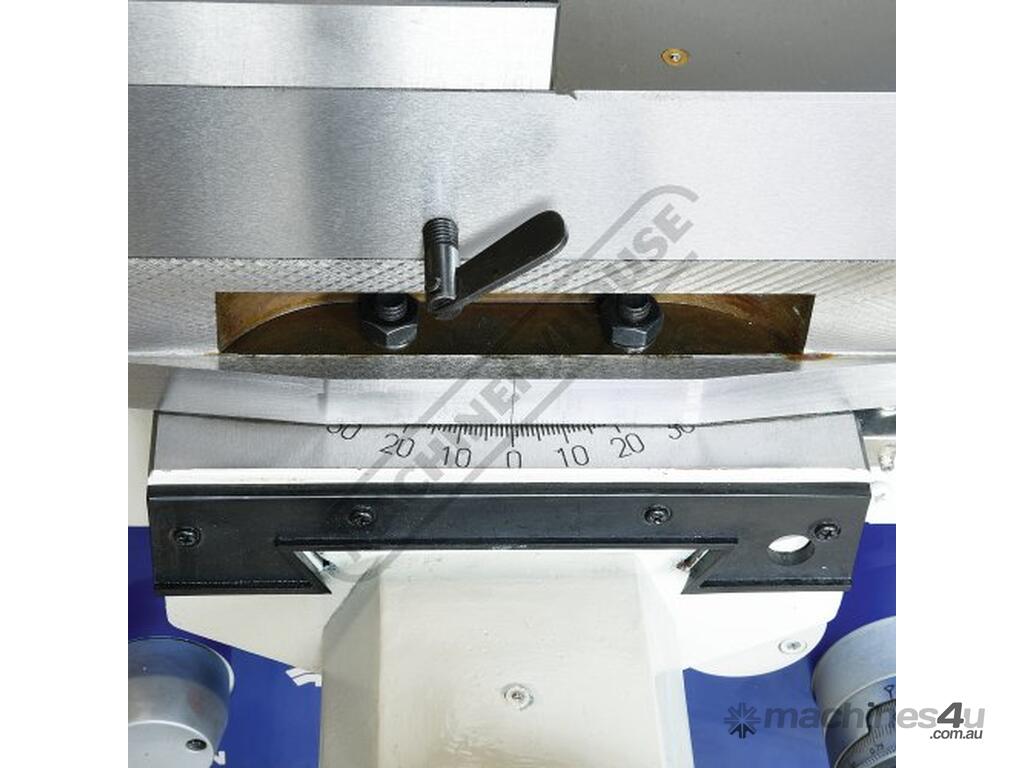

Compound Slide Travel (mm): 200
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.4
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.82
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~

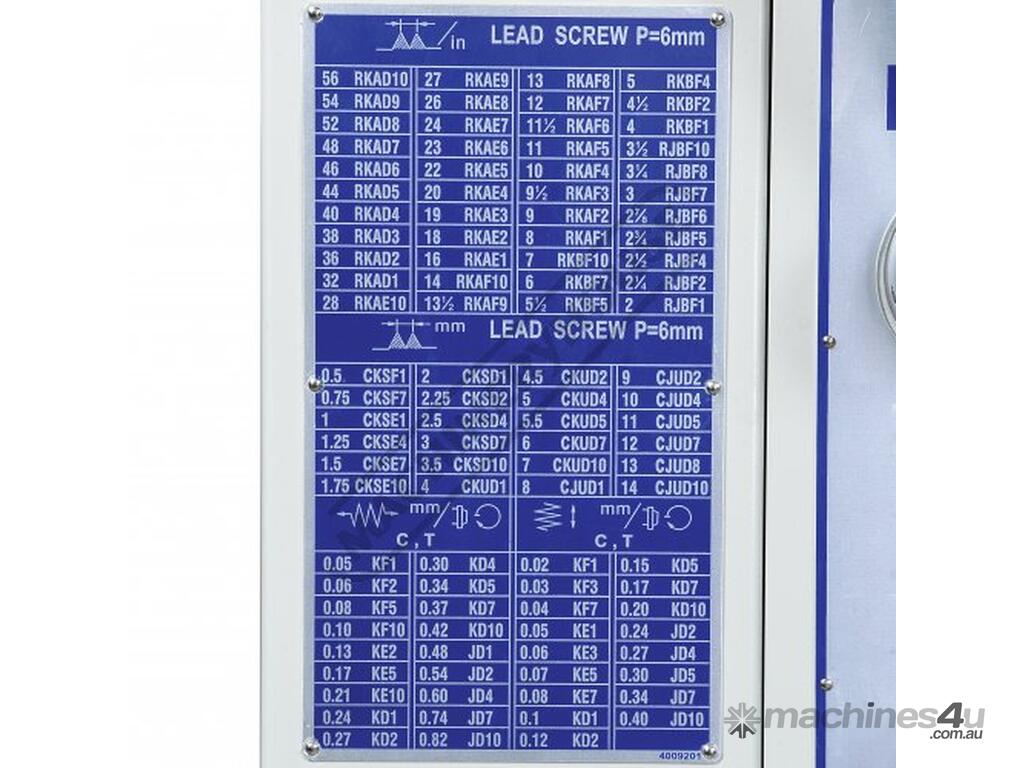

Metric Thread Steps & Pitch (No. / mm): 24 (0.5 - 14)
Imperial Thread Steps & TPI (No. / TPI): 44 (2 - 56)
3 Jaw Chuck Diameter (mm): 310
4 Jaw Chuck Diameter (mm): 400
Spindle Steps / Speeds (No. / rpm): 12 (16 - 1600)
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2900


To Purchase Online Please Visit The Machineryhouse & Search For 'L638D'
