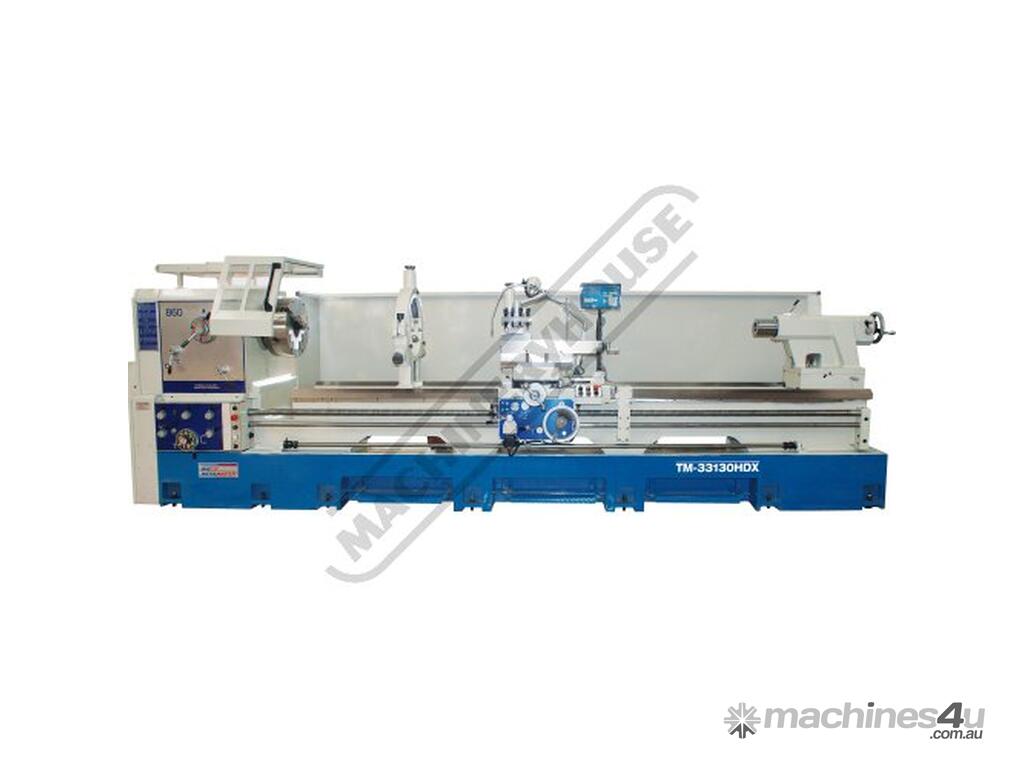

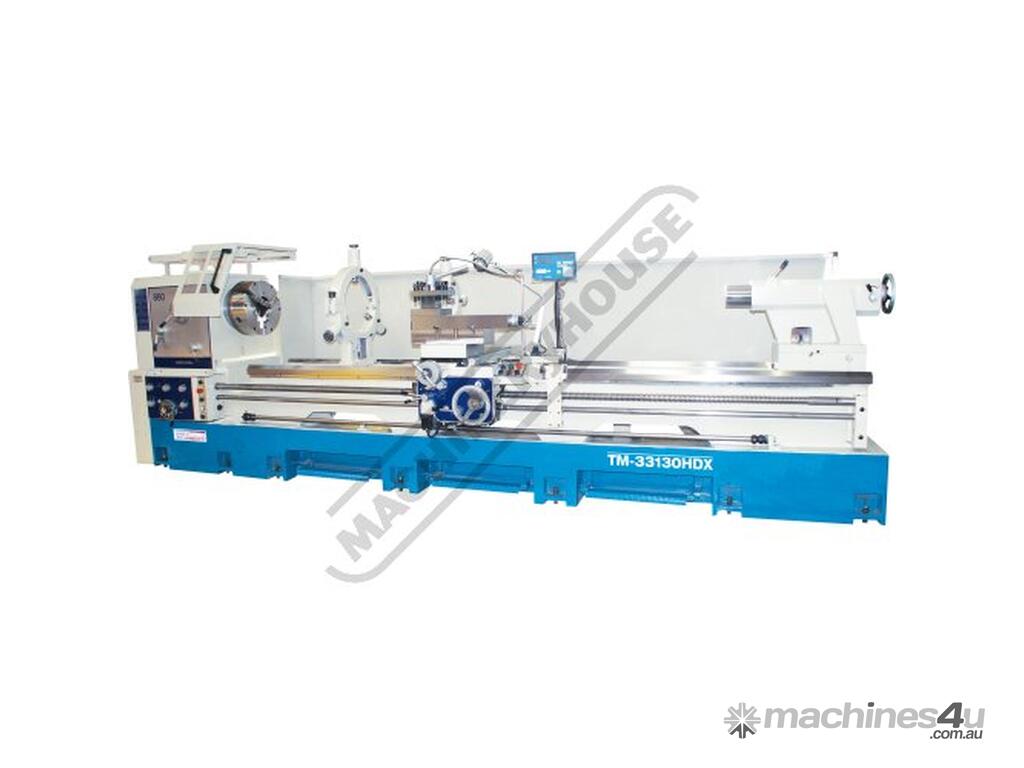

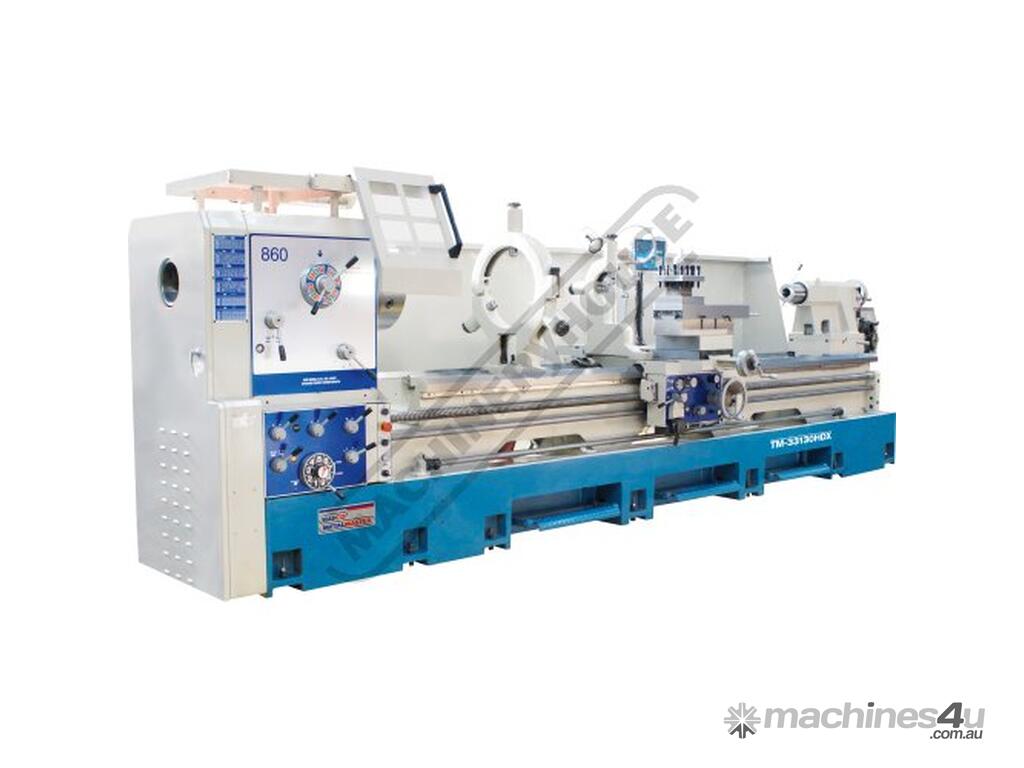

TM-33130HDX Heavy Duty Centre Lathe - BIG BORE Ø860 x 3310mm Turning Capacity - Ø158mm Spindle Bore

HAFCO-METALMASTER TM-33130HDX Heavy Duty Centre Lathe - BIG BORE Ø860 x 3310mm Turning Capacity - Ø158mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L645D

The TM-33130HDX Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with the big & heavy jobs. This lathe has a 158mm big bore, 860mm turning capacity with 1000mm in the gap, a massive 510mm wide 3V induction hardened & ground bed-way to cope with all the heavy workloads.

One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-33130HDX is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work.

Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To sum up this massive centre lathe although huge in every way possible in size & capacity, it is still built to the same high precision quality & ultra-tight tolerances as all the other TM models and importantly will deliver many years of valuable & reliable service.

Please Note:
This lathe can be special custom-built to order allowing you to select (and pay for) only the accessories you need:
Bores available 158 or 238mm
Swing available - 860, 960 & 1060mm
Centres available - 1810, 2310, 3310, 4310, 5310, 6310, 7310 & 8310mm

Features:

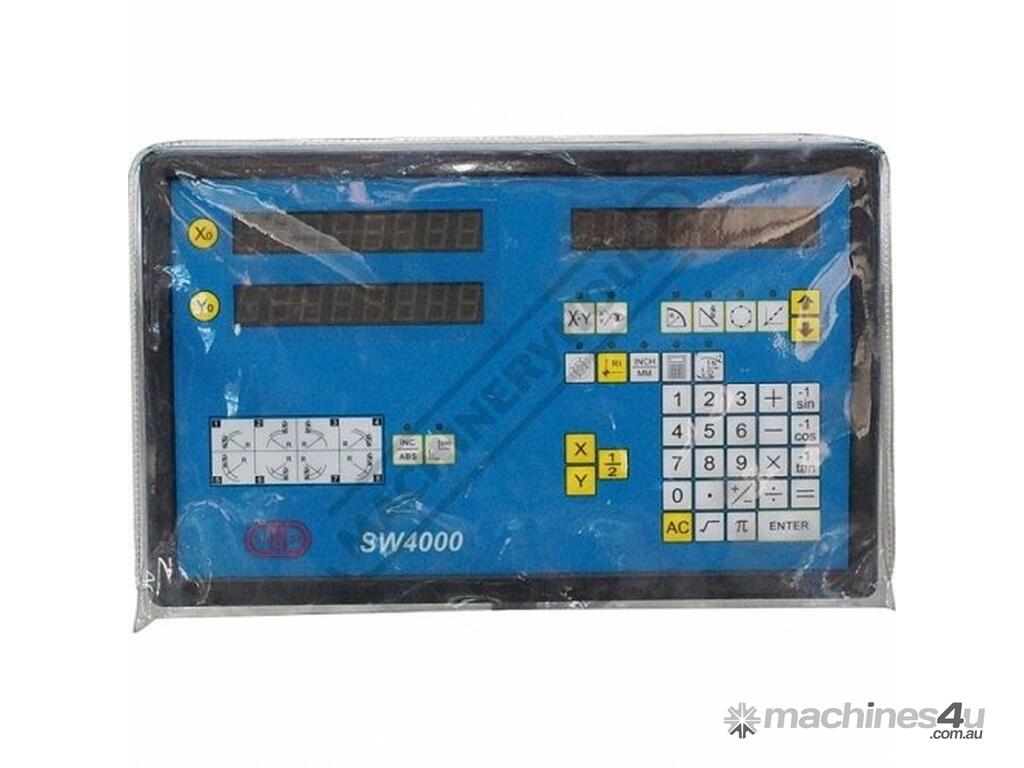

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy

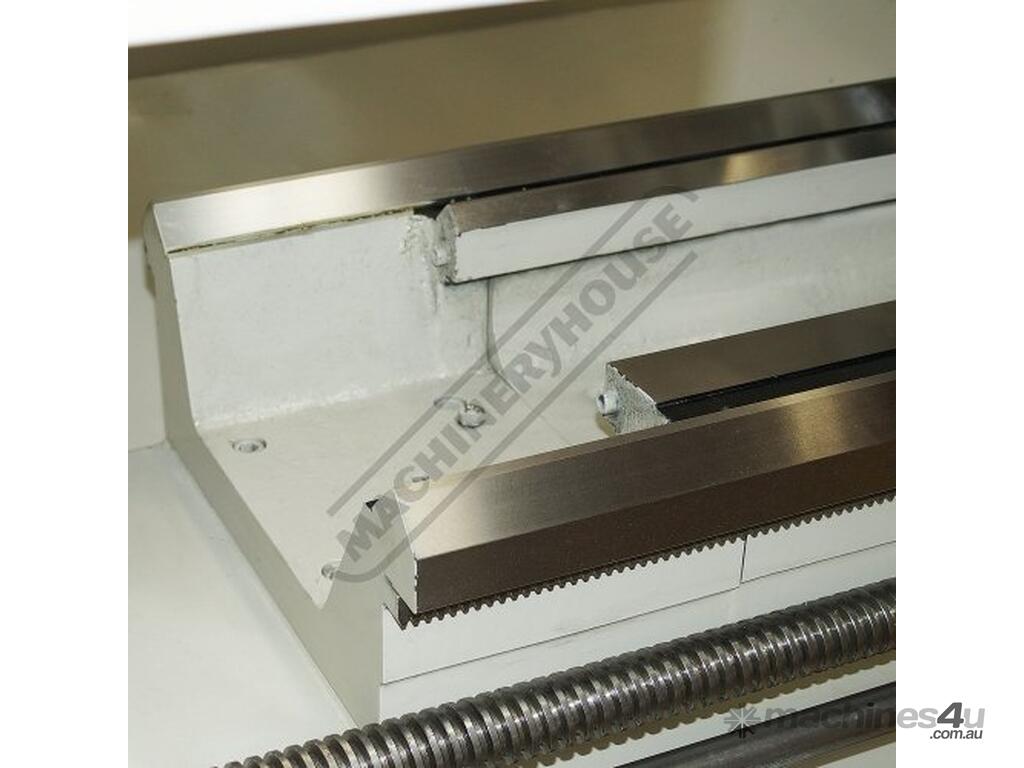

Precision '3V'-bed-way is induction hardened & ground
High quality one-piece Meehanite cast base increases rigidity
All gears and shafts made from alloy steel and are hardened & ground
Overload protection on drive motor and coolant system

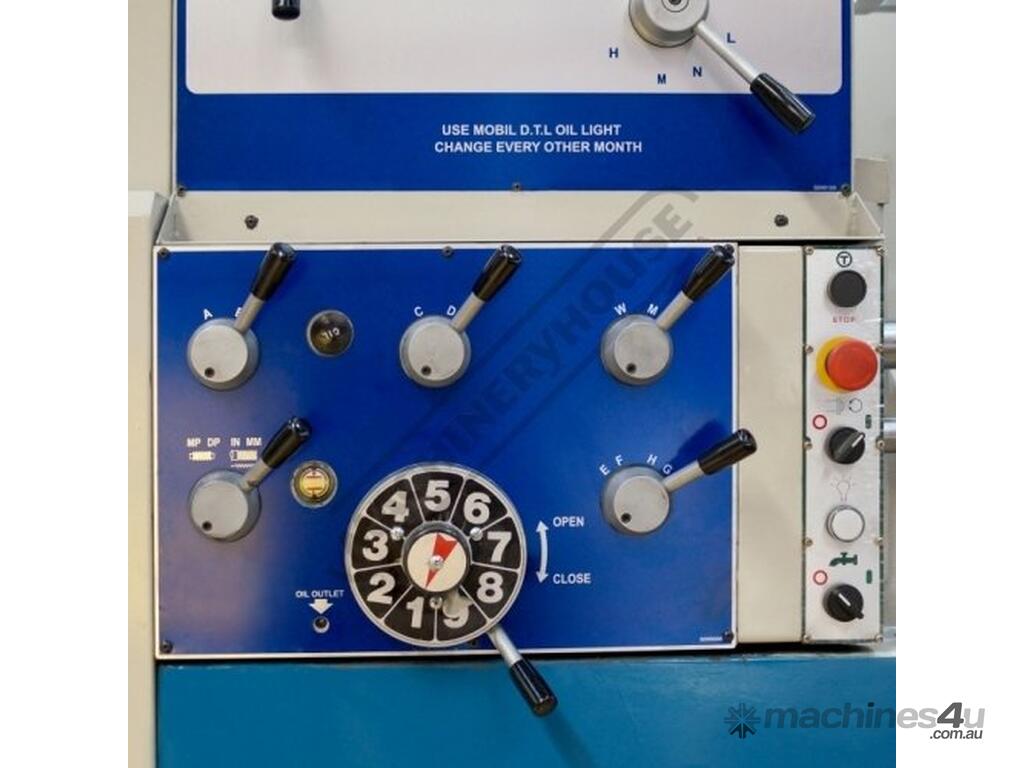

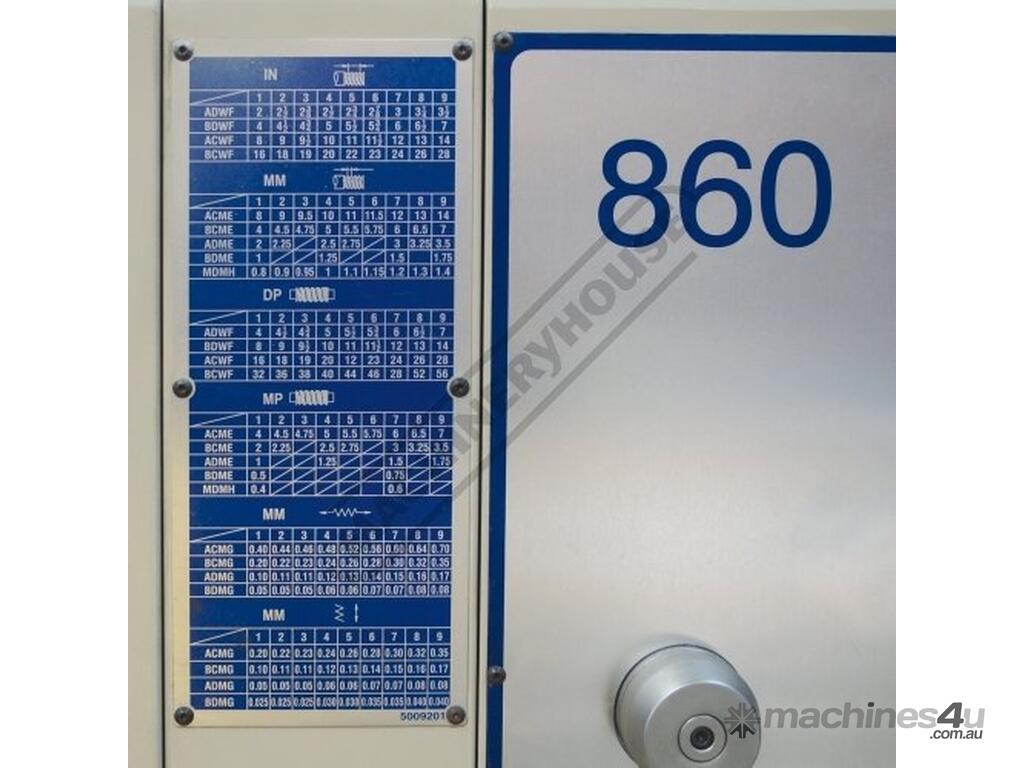

Universal enclosed gearbox incorporating metric & imperial thread capabilities

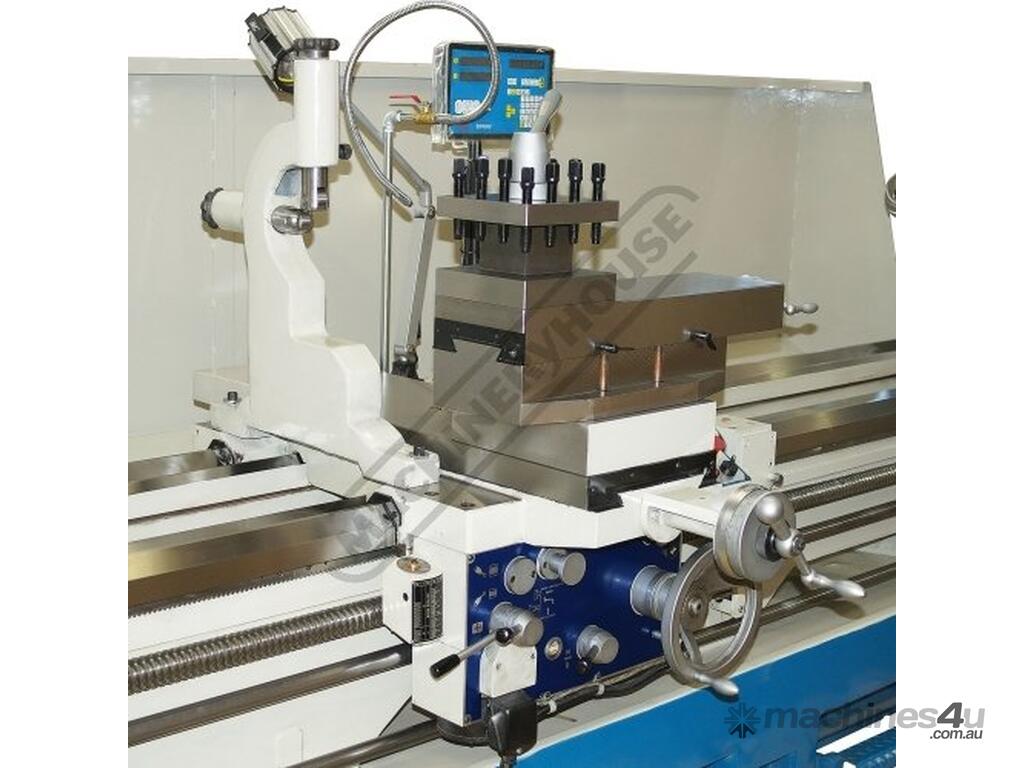

X & Z axis rapid traverse on the saddle 4.0m/min
510mm wide induction hardened heavy duty cast iron bed
Adjustable 4 position length-stop mechanism for accurate repetitive operation
Removable gap bed allowing work piece to swing up to 1000mm

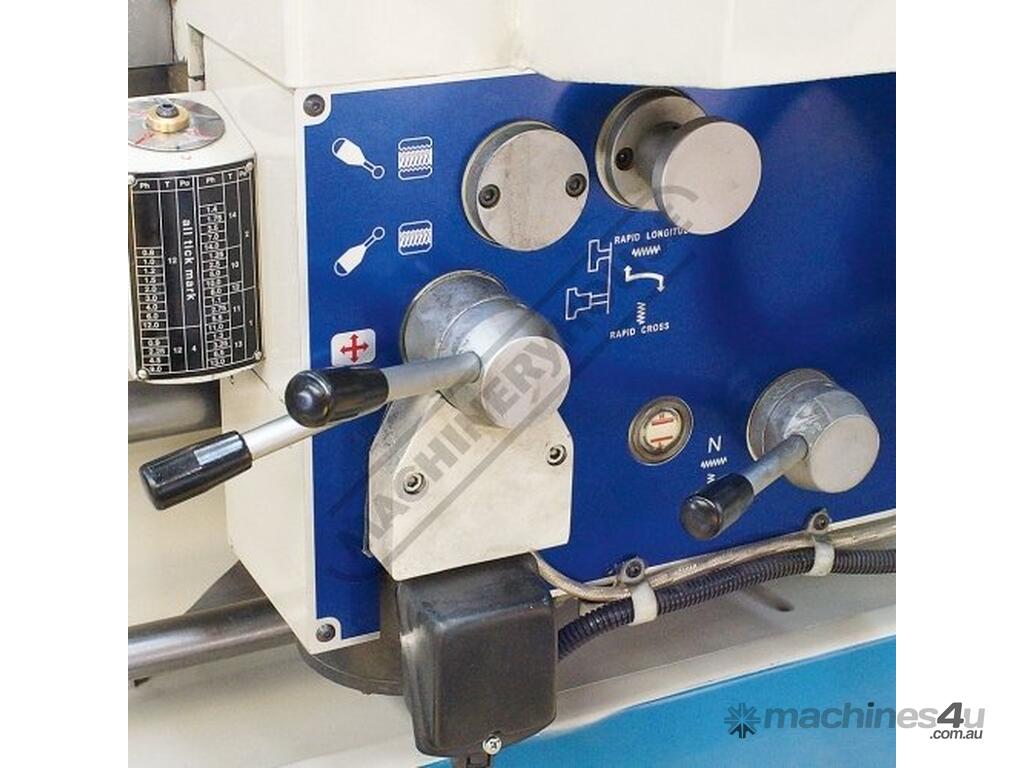

Powered longitudinal and cross feeds
One piece cast iron base increases rigidity
Metric calibrated dials
2 speed tailstock geared for large and small drilling bits
Coolant system with flexible hose enabling operator to manipulate flow direction
Lubrication pump on saddle oiling slides
Oil sight glass for head stock and gearbox & apron
Low voltage halogen work light
Ball bearing mechanism assists tail stock movement easily
A2-11 direct spindle mount

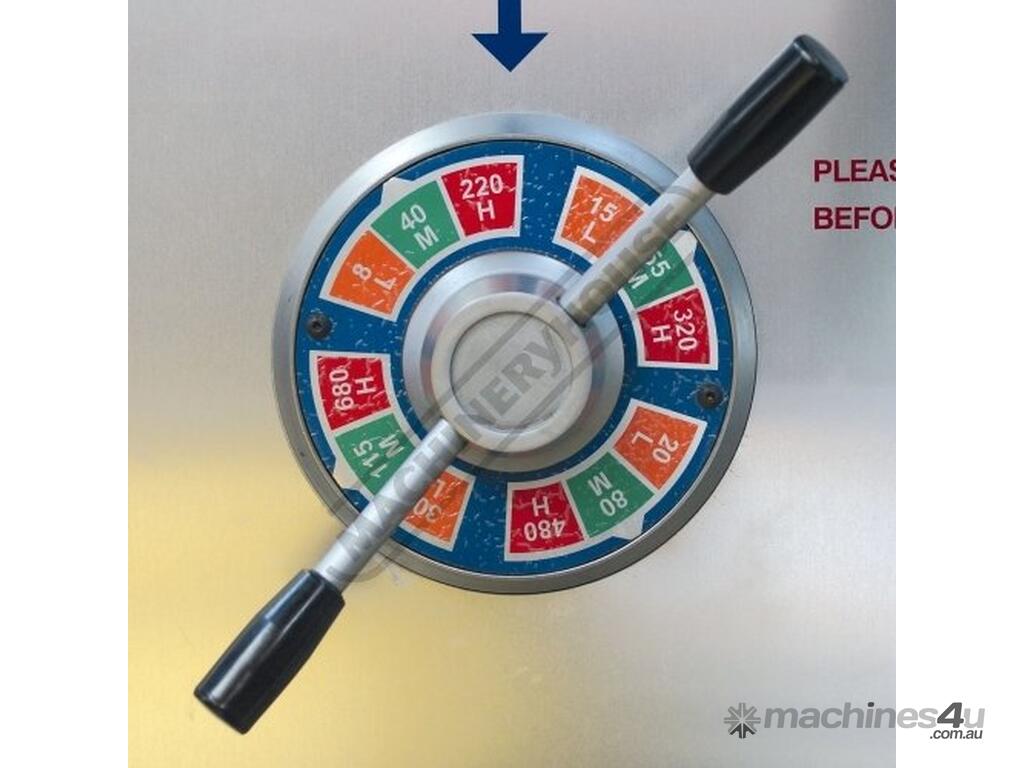

12 spindle speeds 8-680rpm
Large 158mm spindle bore (Optional 238mm)
15kW / 20HP 415V main motor

Includes:
- 2 Axis digital readout system

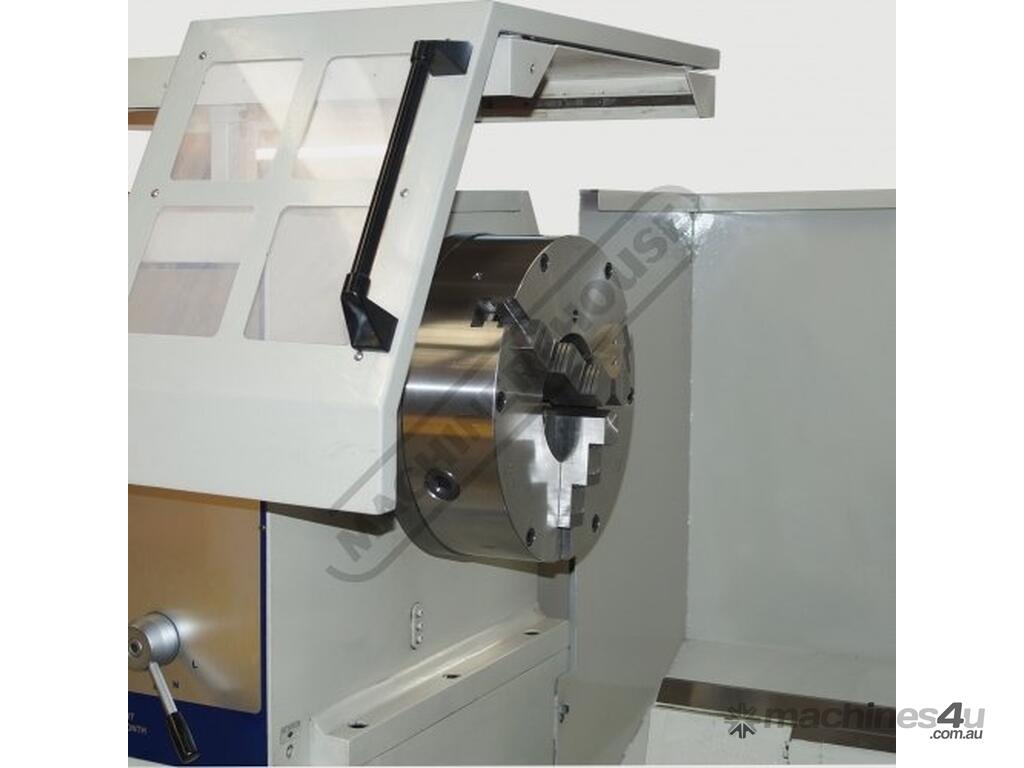

- 400mm 3-jaw chuck with reversing jaws
- 500mm 4-jaw chuck
- Faceplate

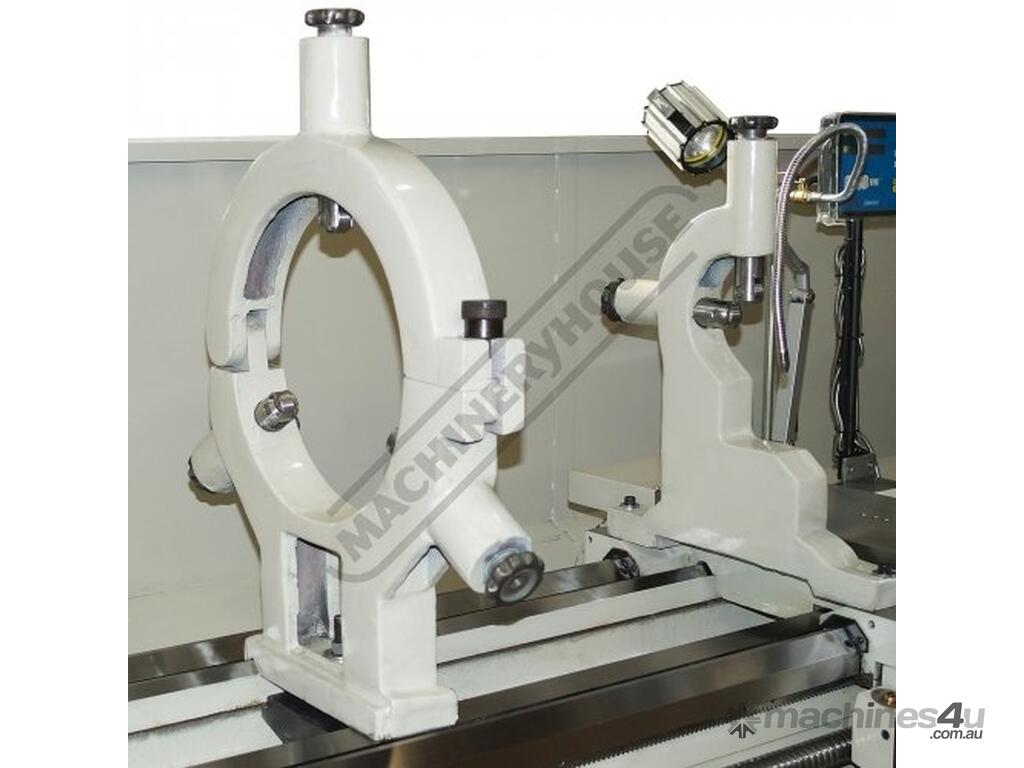

- Fixed and travelling steadies with roller fingers
- Dead centres
- Spindle reducing bush
- Full length rear splash guard
- Tailstock moving device



Specifications:
ORDER CODE: L645D
MODEL: TM-33130HDX
Swing Over Bed (mm): 860
Distance Between Centres (mm): 3310
Spindle Bore (mm): 158 (Optional 238)
Swing In Gap (mm): 1000
Swing Over Cross-slide (mm): 620
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 32
Centre Height (mm): 430
Spindle Nose Size or Type: A2-11
Bed Width (mm): 510
Headstock Spindle Taper (MT): 7
Tailstock Taper (MT): 6
Cross Slide Travel (mm): 480
Compound Slide Travel (mm): 330
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.025 - 0.35
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.7
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 37 (0.8 - 14)
Imperial Thread Steps & TPI (No. / TPI): 36 (2 - 28)
3 Jaw Chuck Diameter (mm): 400
4 Jaw Chuck Diameter (mm): 500
Spindle Steps / Speeds (No. / rpm): 12 (8 - 680)
Motor Power (kW / hp): 15 / 20
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 6800
