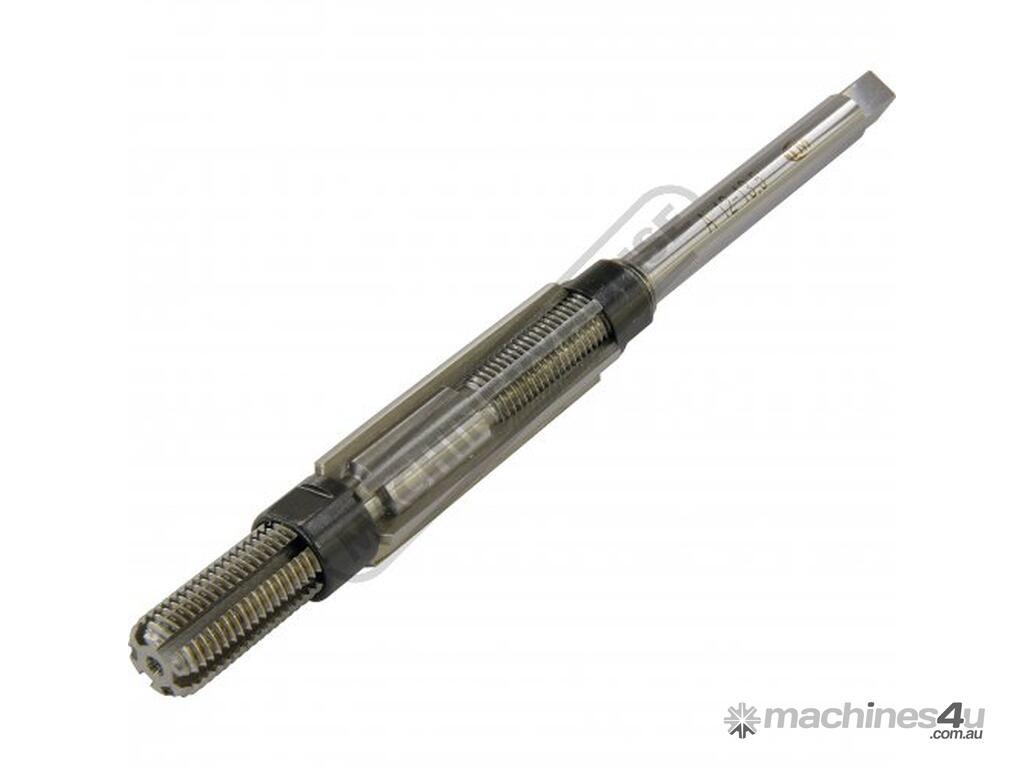

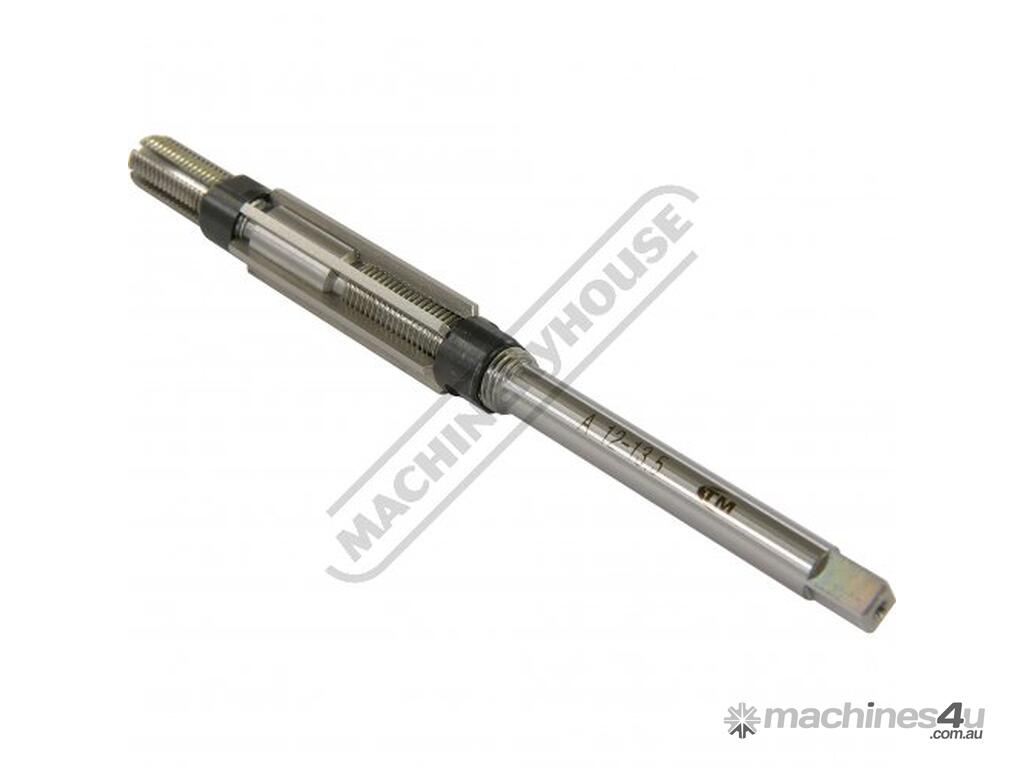

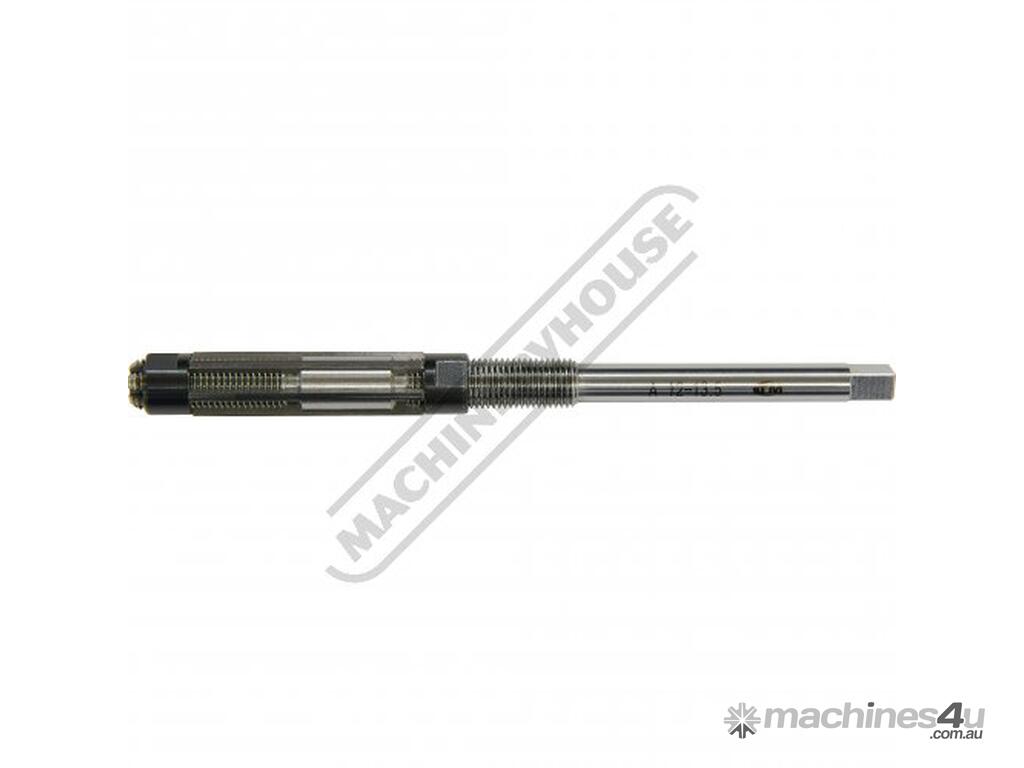

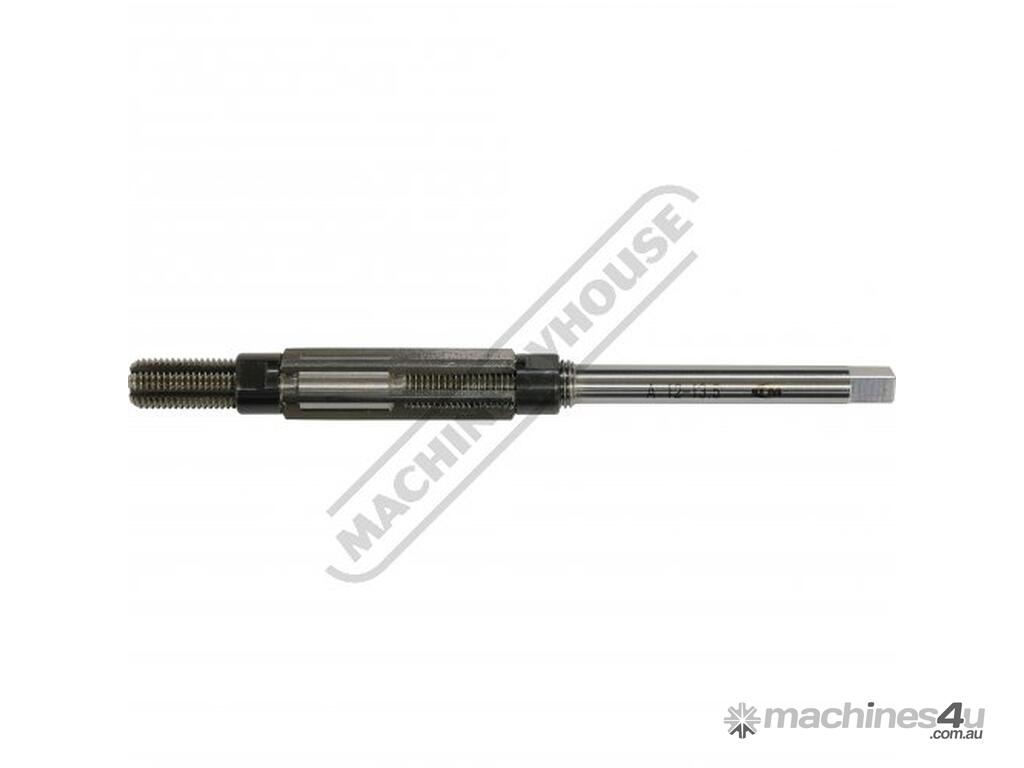

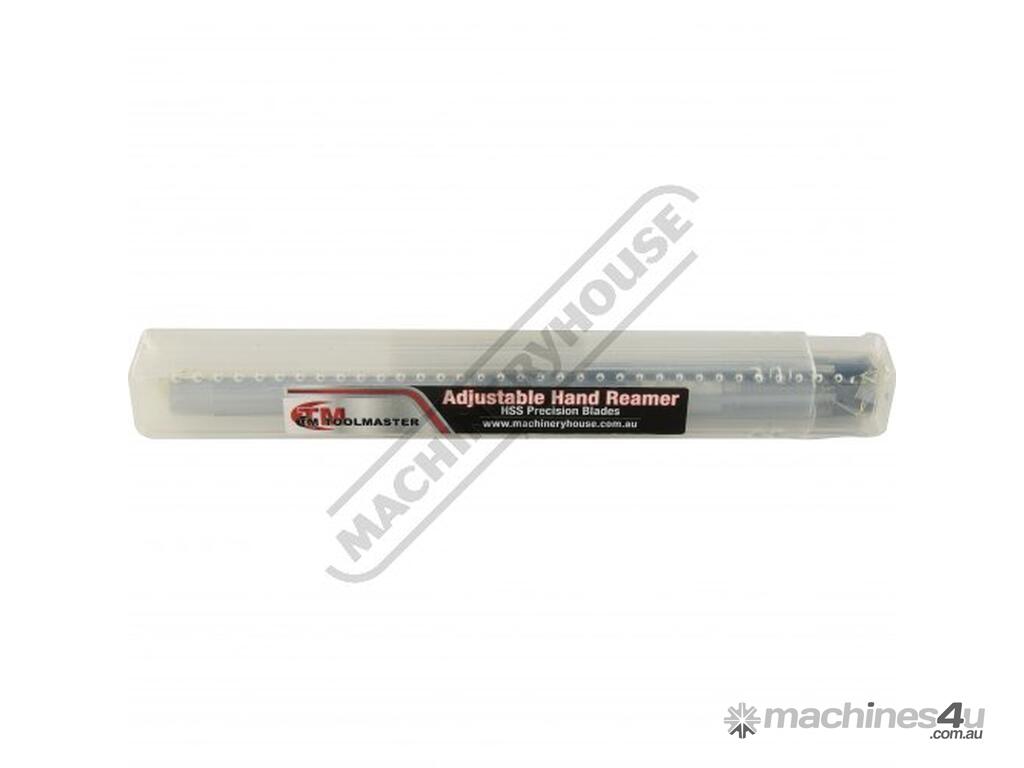

TM-A Precision HSS Adjustable Hand Reamer Ø12 - Ø13.5mm Precision High Speed Steel Blades

TOOLMASTER TM-A Precision HSS Adjustable Hand Reamer Ø12 - Ø13.5mm Precision High Speed Steel Blades
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R743

Toolmaster high speed steel adjustable hand reamers can be set to any size within the specified range of the reamer and are commonly used for odd size holes as well as when accuracy is required.

How to adjust & measure size:

To increase size: Loosen & unscrew rear locking nut closest to drive shaft while holding blades from slipping out, now screw & tighten front locking nut allowing blades to slide along the slots in the main body until blades meets rear locking nut to secure blades into position.

To reduce size: Loosen & unscrew front locking nut while holding blades from slipping out, now screw & tighten rear locking nut allowing blades to slide along the slots in the main body until blades meets front locking nut to secure blades into position.

To measure required size: It is very important that you measure diagonally across two opposing blades and on the cutting edges to get an accurate reading.

Features:
Precision high speed steel blades made from Austrian steel
Adjustable blades for accurate hole sizing
Square drive shaft for hand wrench
Universal for metric & imperial sizes
Made in Taiwan


Specifications:
ORDER CODE: R743
Model: TM-A
Type: 1 Piece Precision
Metric Range (mm): Ø12 - Ø13.5
Number of Blades: 6
Cutting Blade Length (mm): 42
Shank Diameter (mm): Ø7.3
Overall Length (mm): 141


To Purchase Online Please Visit The Machineryhouse & Search For 'R743'
