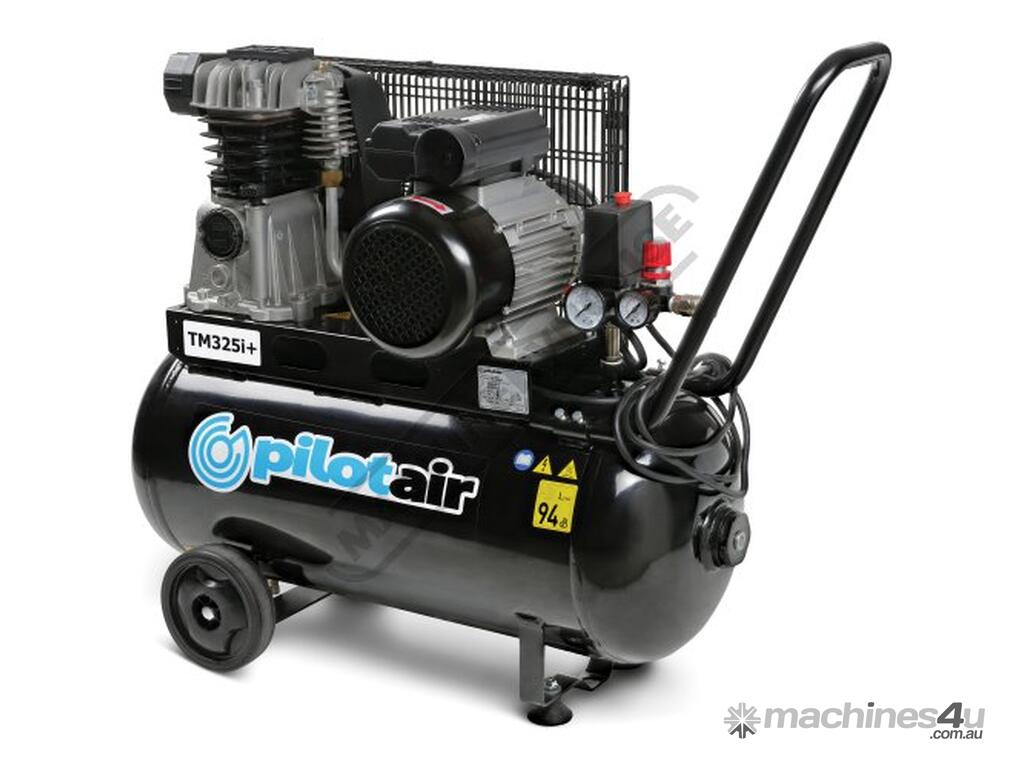

PILOT AIR COMPRESSORS TM325i+ Pilot Air Compressor 50 Litre Tank / 2.5hp 11.2cfm / 318lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C5031
The Pilot Air TM+ Series. Built tough for trade and D.I.Y. use.
High standards to ensure reliability and service life.
Rated in accordance with A.C.A.C.A Protocol 2000.
Built with heavy duty components to give the air compressor longer, trouble-free life with less wear & tear. Heavy duty twin cast iron cylinder compressor pump.
Features include high pressure, high temperature resistant flexible discharge hoses, heavy duty wheels, heavy duty lifting handles and electric motor overload protection in a compact design.
Features:
High performance heavy duty componentry ensures reliability and longevity
Oversize twin cylinder pump de-rated for ultra long life & reliability
Twin cast iron cylinder compressor pump
Air receivers to Australian Standards – suitable for workplace use
Pressure regulator fitted as standard
Industrial grade hammer-tone enamel finish
Electric motor overload
Warranty: 3 Years on pump 1 Year on all other components
Specifications:
ORDER CODE: C5031
MODEL: TM325i+
Drive Type: V-Belt
Piston Displacement (CFM / LPM): 11.2 / 318
Free Air Delivery (CFM / LPM): 6.9 / 196
Cylinders (Type): Twin
Max. Pressure (kPa): 1000
Max. Pressure (PSI): 145
Air Receiver Tank Size (Litre): 50
Motor Speed (rpm): 2800
Motor Power (kW / hp): 1.8 / 2.5
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 52
