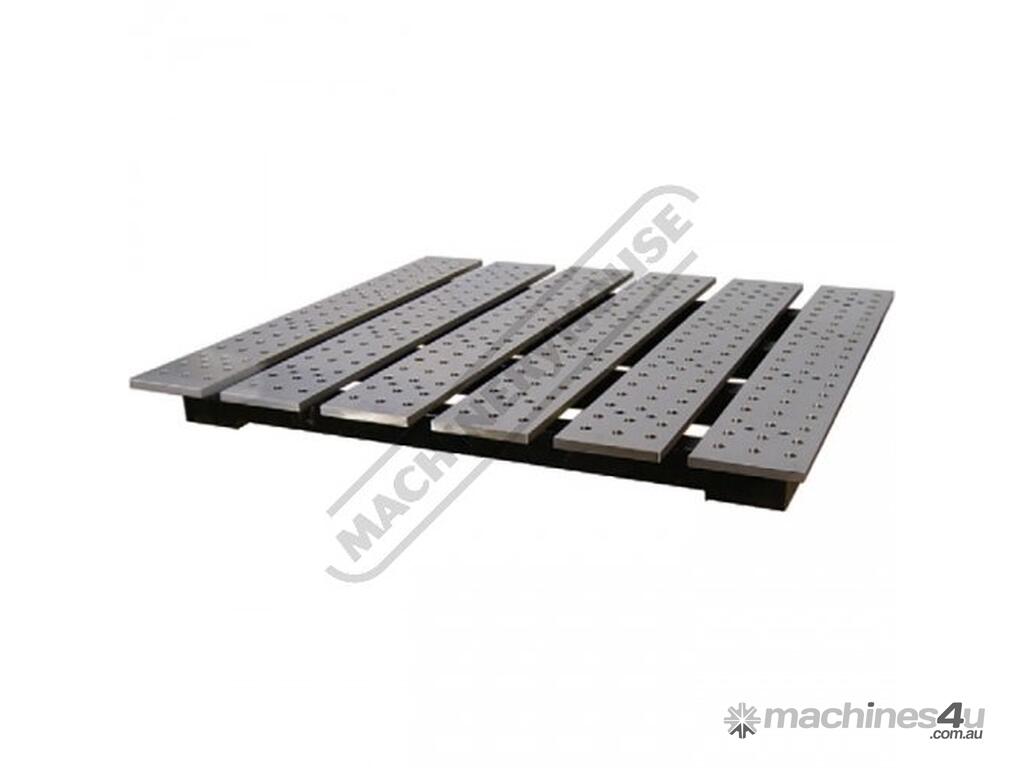

TM61210 BuildPro Modular Welding Table Top - Standard Finish Reversible Table Plates 1160 x 1000mm

BUILDPRO TM61210 BuildPro Modular Welding Table Top - Standard Finish Reversible Table Plates 1160 x 1000mm Table Top (LxW)
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W07712

BuildPro® Models

The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

In this economy, we know you need to be flexible and responsive to new business opportunities by reducing set-up time, improving consistency and work quality and remaining competitive in both pricing and delivery in a wide variety of jobs; short runs, volume production, prototypes, and multiple jobs in fabrication, repairs, and maintenance.

Accuracy:
Table flatness : 0.30mm / 914.4mm
Hole diameter : 16mm + 0.05mm
Hole spacing : 50mm ± 0.038mm
Plate thickness : 16mm ± 0.10mm

All BuildPro® Tabletops below have 16mm thick steel plate, with Ø16mm holes in a 50mm grid pattern and 43mm slots between plates.

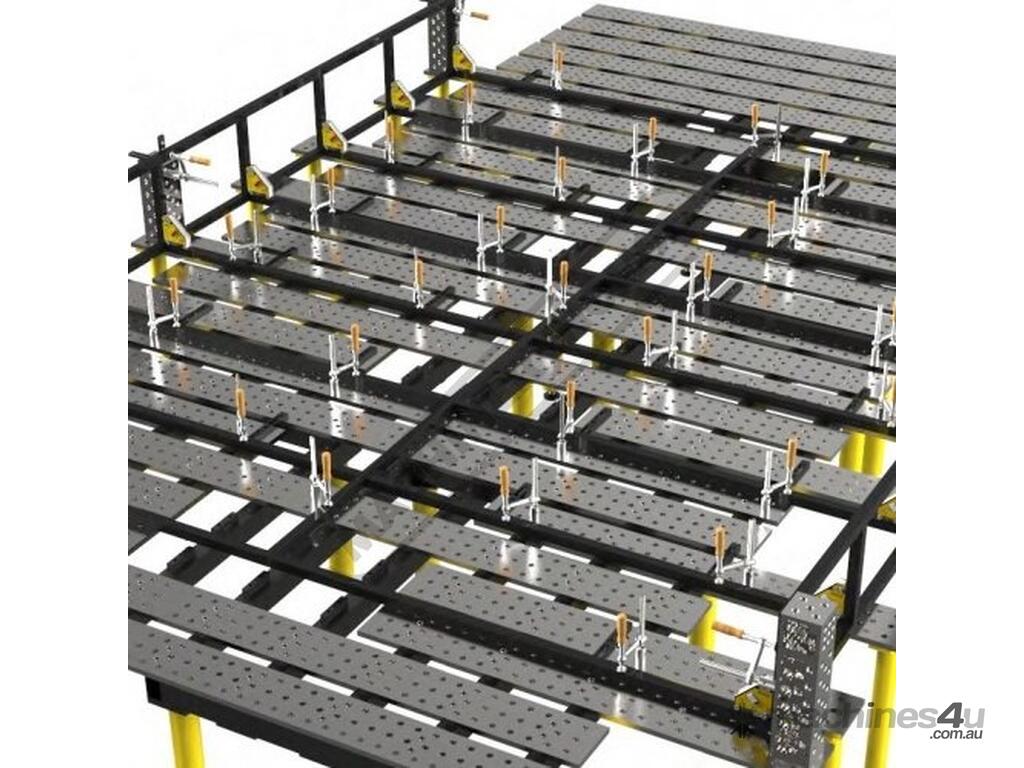

We also provide same robust BuildPro® frame, with half the plates of the 1000mm table (3 plates) for space-saving, heavy duty work platform that suits your work space. It is especially suited for robot weld stations for small parts. The compact and light tops make shuttle table mounting easier.

Add Leveling Pad Feet to your BuildPro® Tabletop to create a low height table.

Features:
Standard table material finish
Ø16mm holes
16mm thick plate
50 x 50mm grid pattern


Specifications:
ORDER CODE: W07712
MODEL: TM61210
Type: BuildPro Table Top Only
Finish: Standard
Table Top Size (mm): 1160 x 1000
Table Side Height (mm): ~
Top Plate Thickness (mm): 16
Grid Pattern (mm): 50 x 50
Table Hole Diameter (mm): Ø16
Table Slot Size (mm): 40
Table Load Capacity (kg): 2200
Nett Weight (kg): 167
