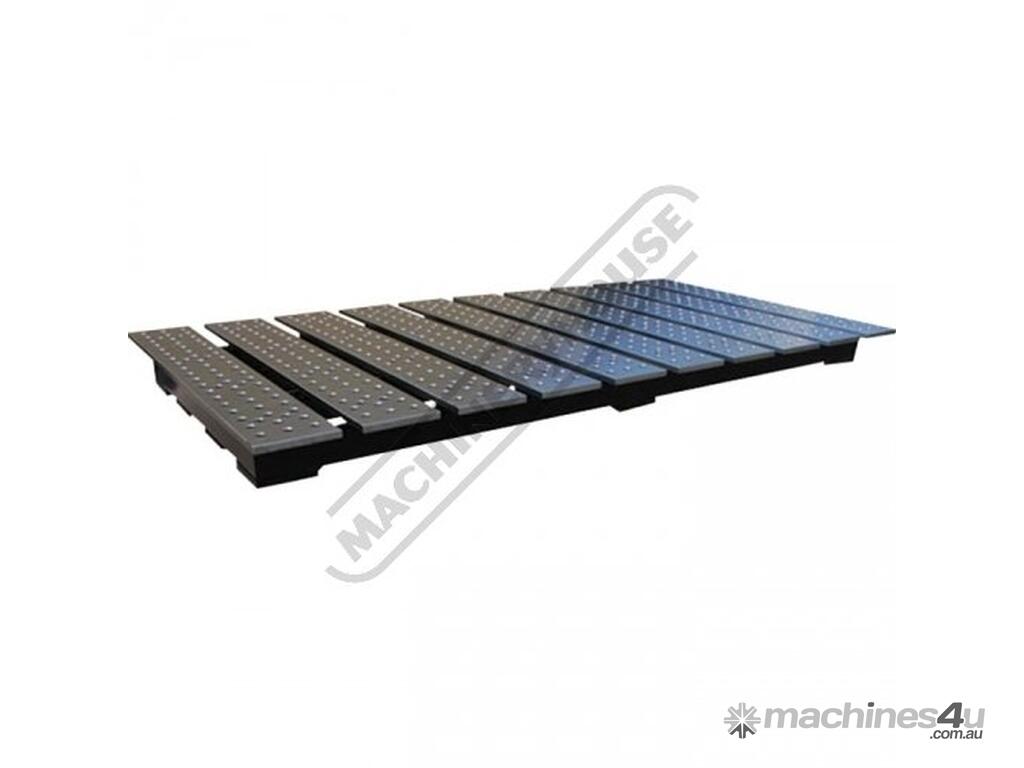

TMQ625125 BuildPro Modular Welding Table Top - Nitrided Finish Reversible Table Plates 2560 x 1250mm

BUILDPRO TMQ625125 BuildPro Modular Welding Table Top - Nitrided Finish Reversible Table Plates 2560 x 1250mm Table Top (LxW)
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W07721

BuildPro® Models

NEW REVERSIBLE SELF-LOCATING TABLE PLATES!

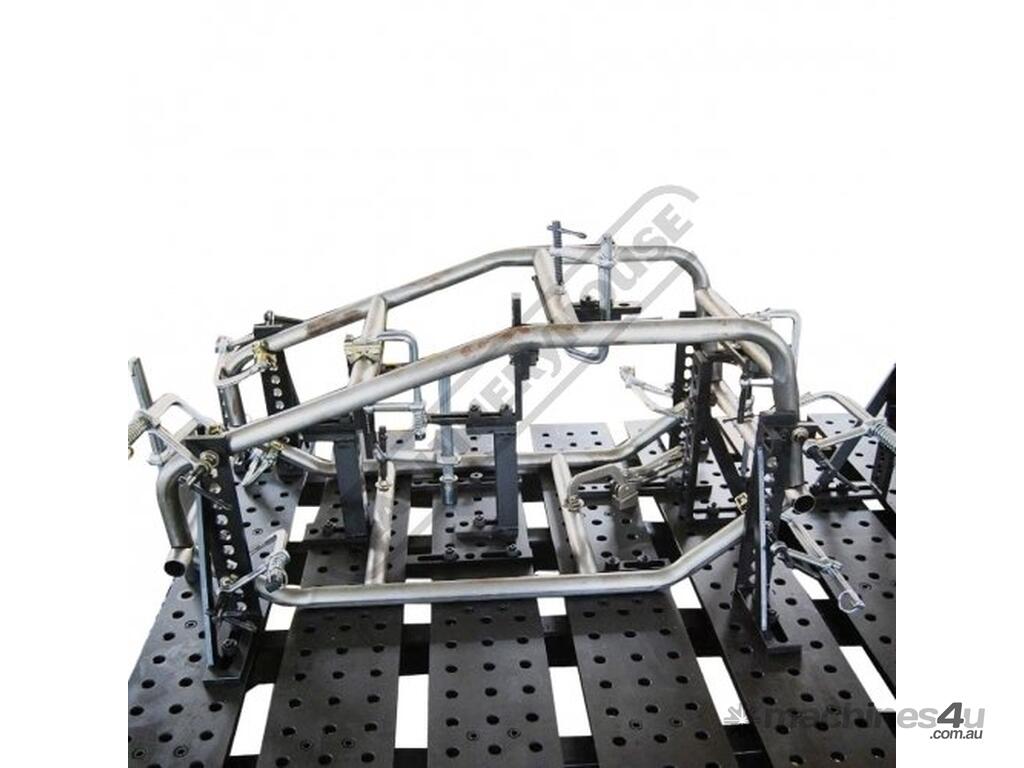

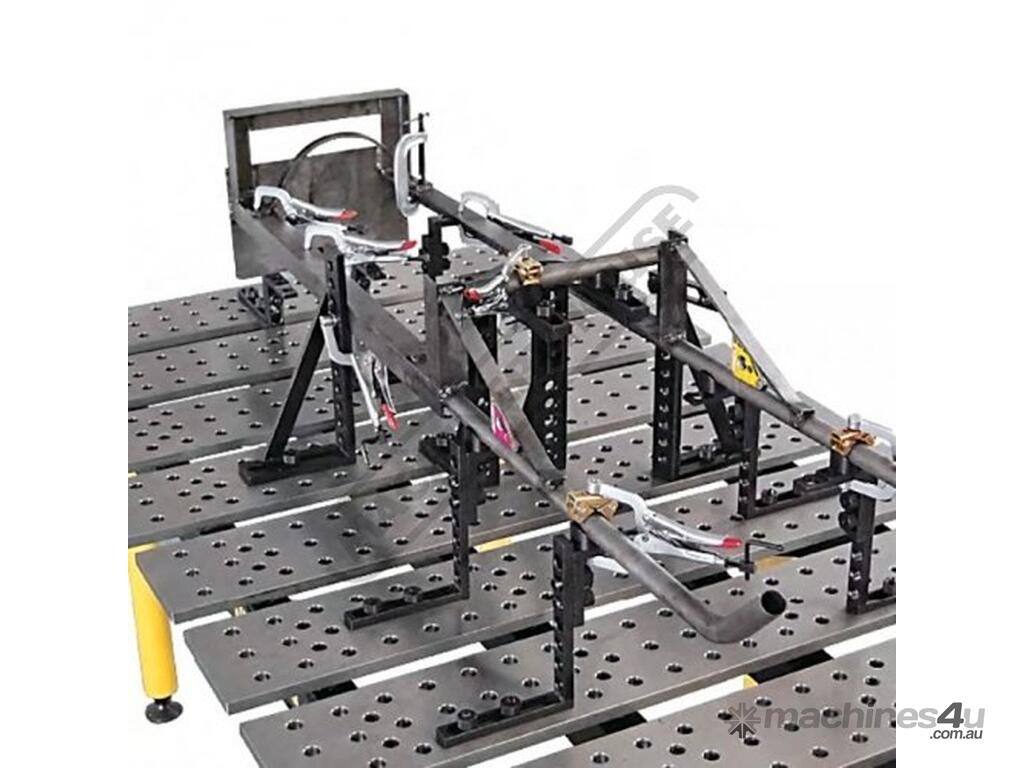

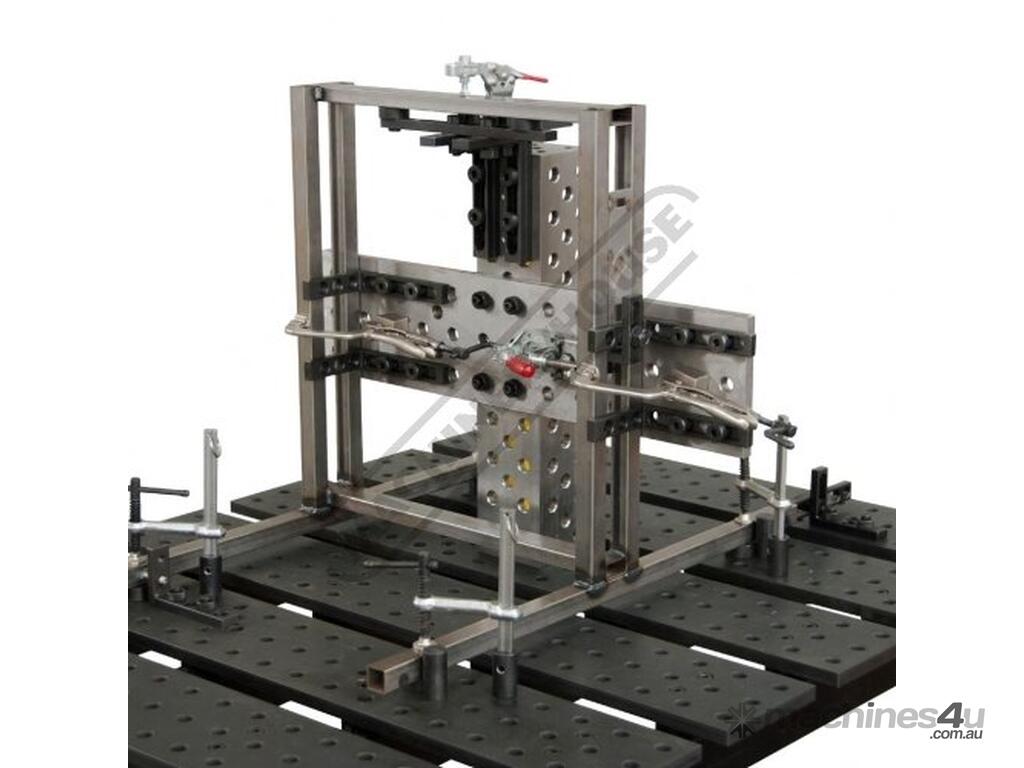

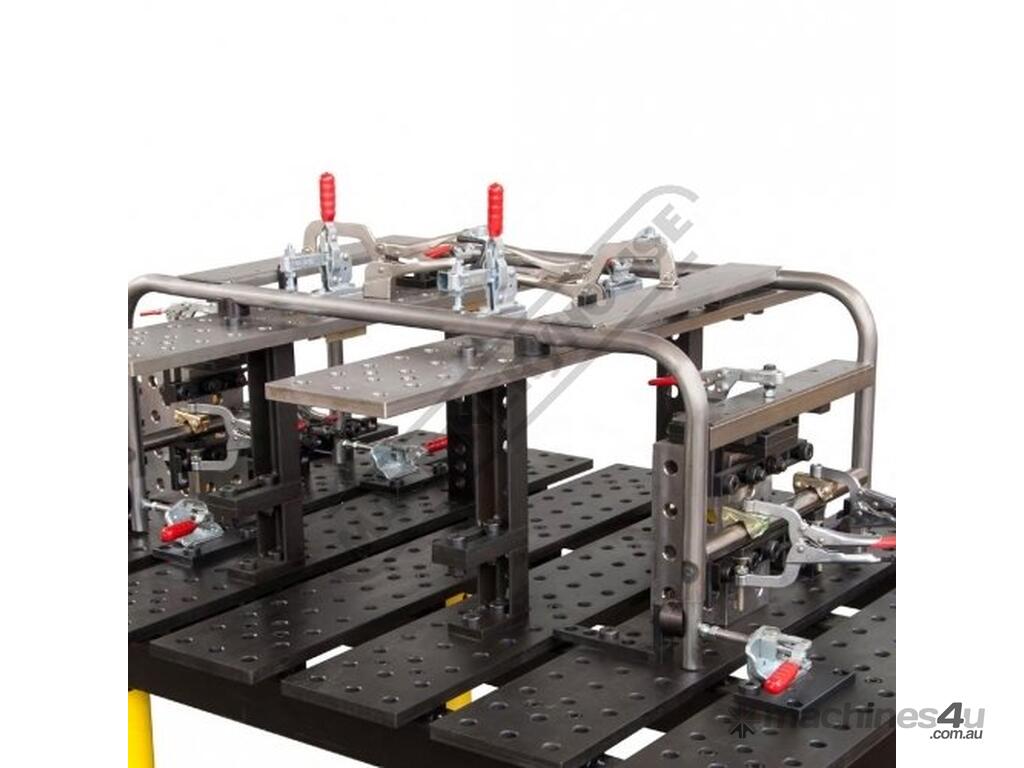

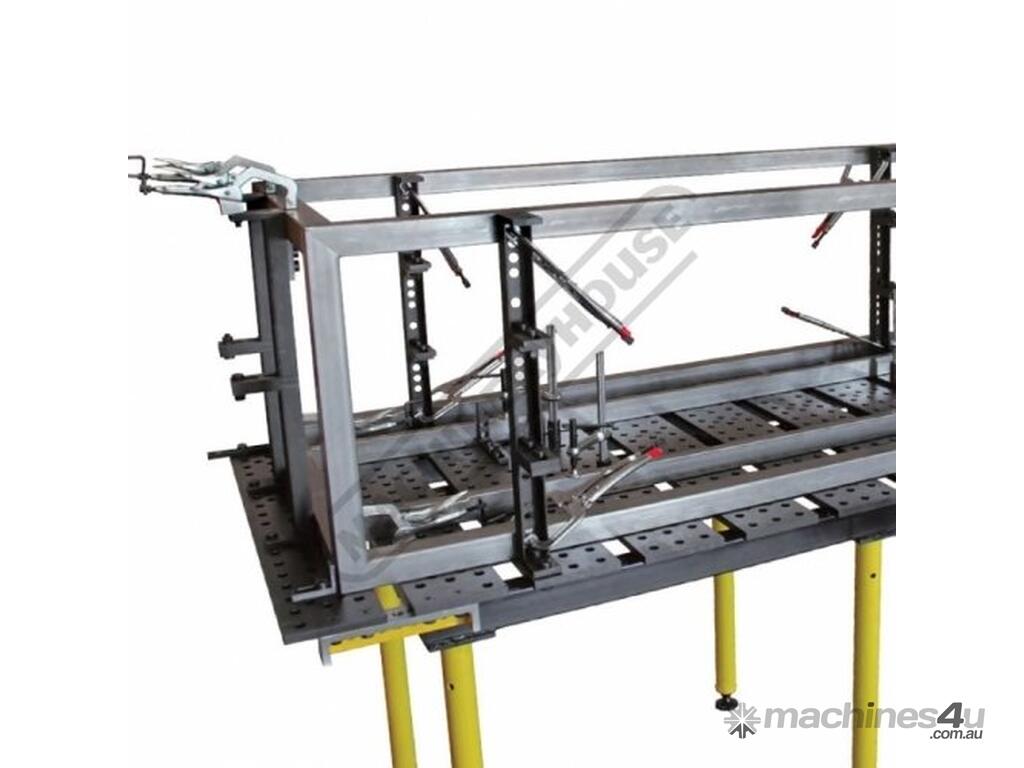

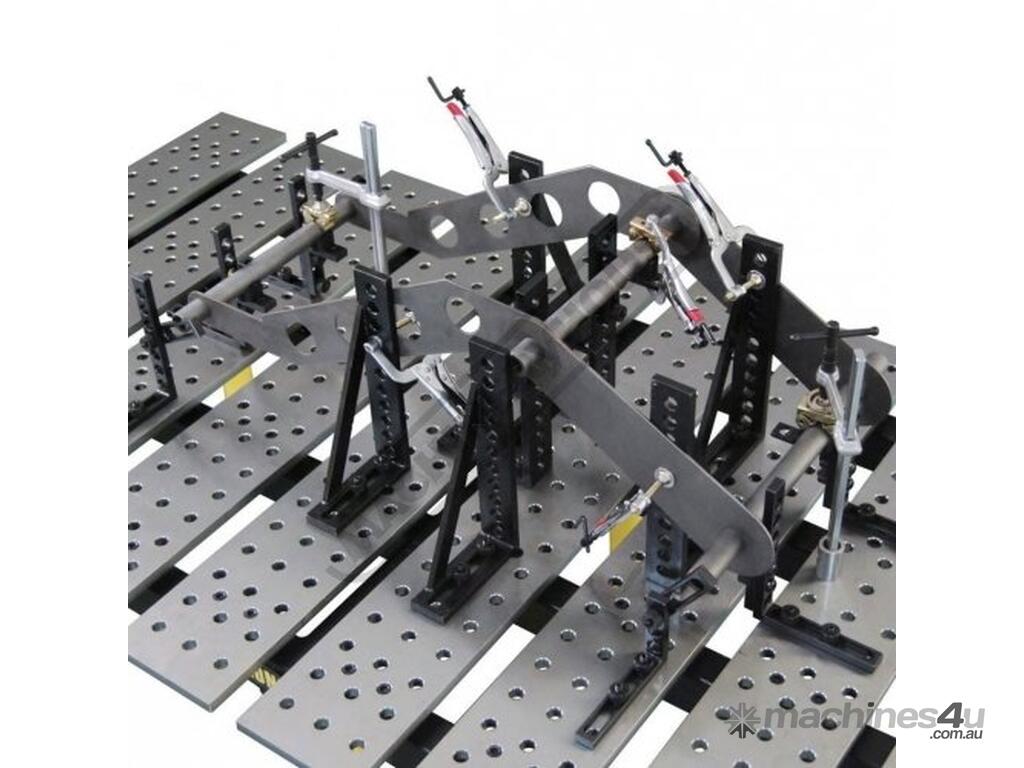

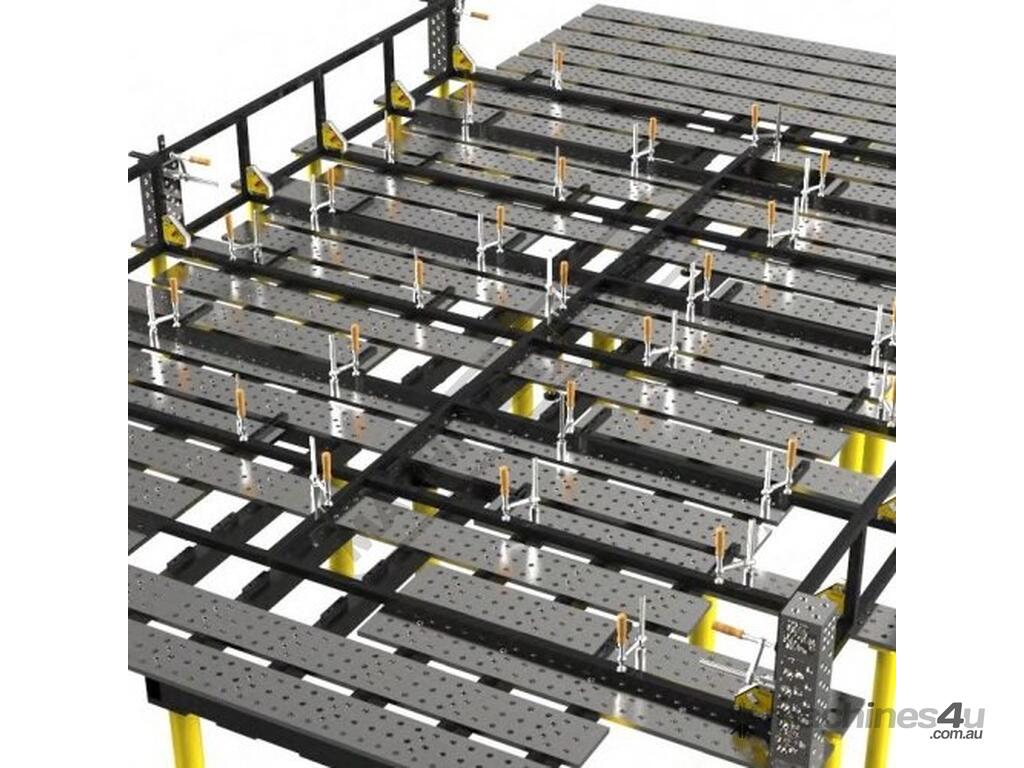

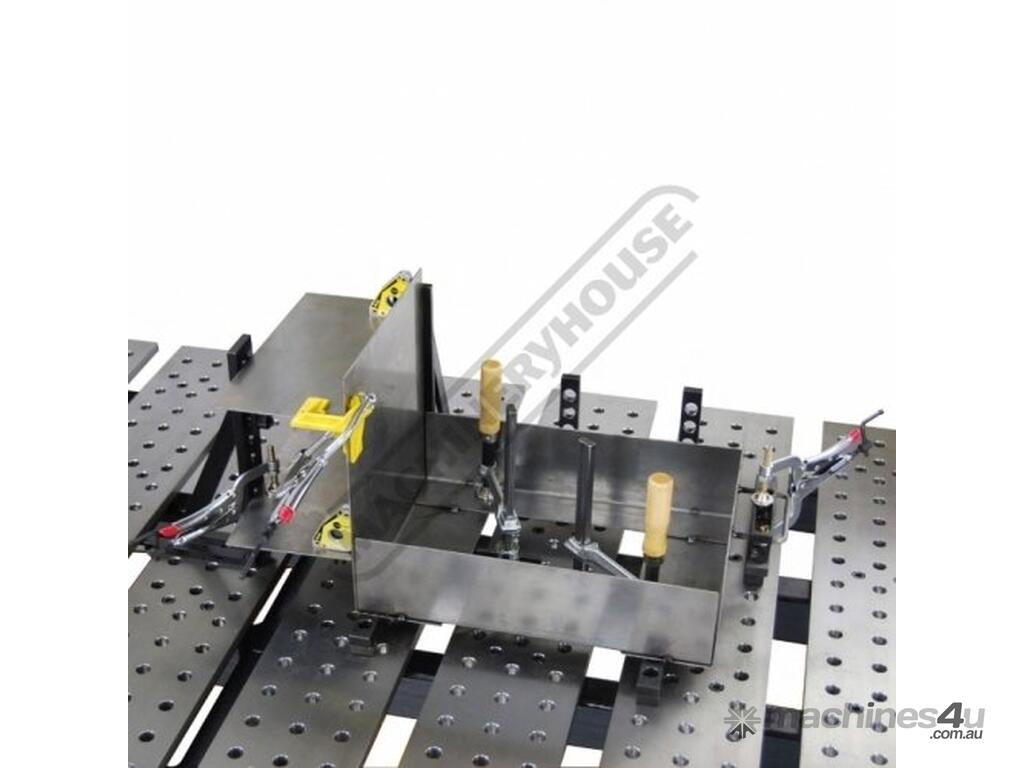

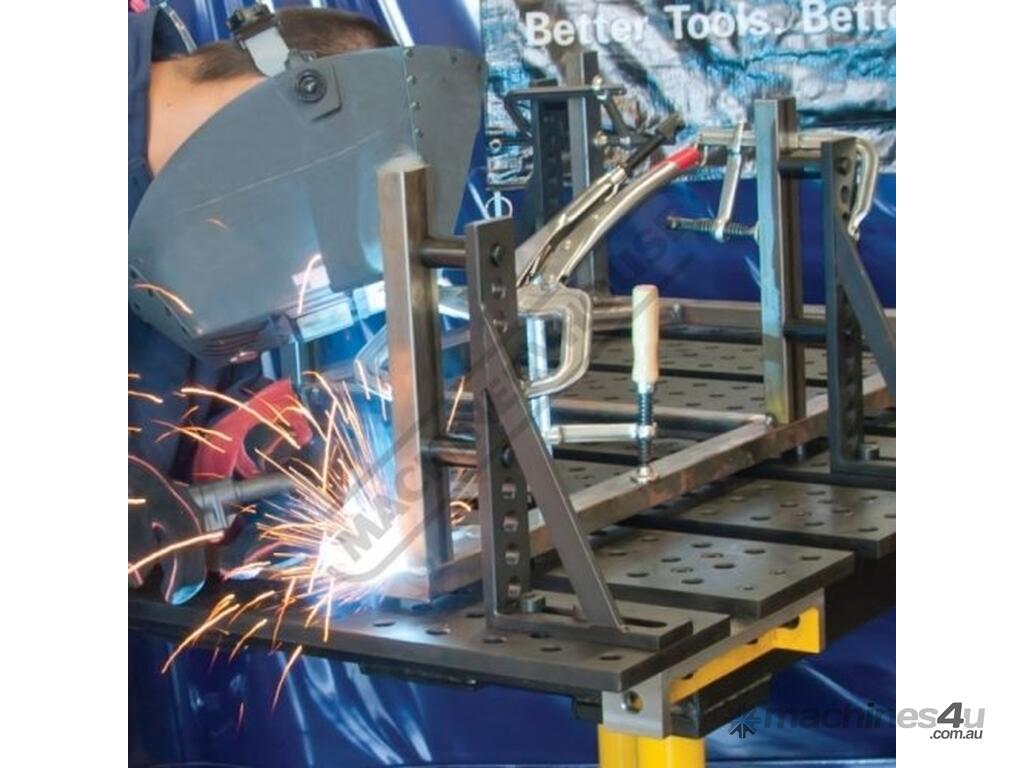

The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

In this economy, we know you need to be flexible and responsive to new business opportunities by reducing set-up time, improving consistency and work quality and remaining competitive in both pricing and delivery in a wide variety of jobs; short runs, volume production, prototypes, and multiple jobs in fabrication, repairs, and maintenance.

Accuracy:
Table flatness : 0.30mm / 914.4mm
Hole diameter : 16mm + 0.05mm
Hole spacing : 50mm ± 0.038mm
Plate thickness : 16mm ± 0.10mm

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Features:
The nitriding (heat-treating) process is a mechanical polish and post salt bath oxidative treatment. The benefits of this process included: Anti-Spatter Corrosion Protection and Resistance to wear lubricity and fatigue strength
Ø16mm holes
16mm thick plate
50 x 50mm grid pattern


Specifications:
ORDER CODE: W07721
MODEL: TMQ625125
Type: BuildPro Table Top Only
Finish: Nitrided
Table Top Size (mm): 2560 x 1250
Table Side Height (mm): ~
Top Plate Thickness (mm): 16
Grid Pattern (mm): 50 x 50
Table Hole Diameter (mm): Ø16
Table Slot Size (mm): 40
Table Load Capacity (kg): 2500
Nett Weight (kg): 449
