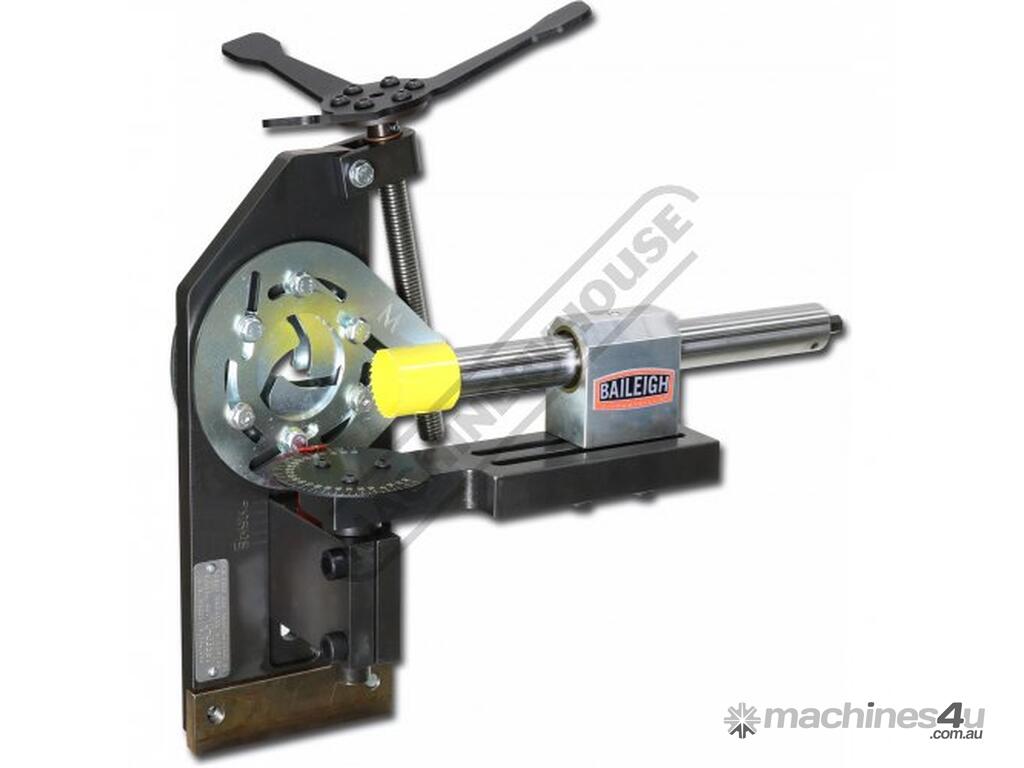

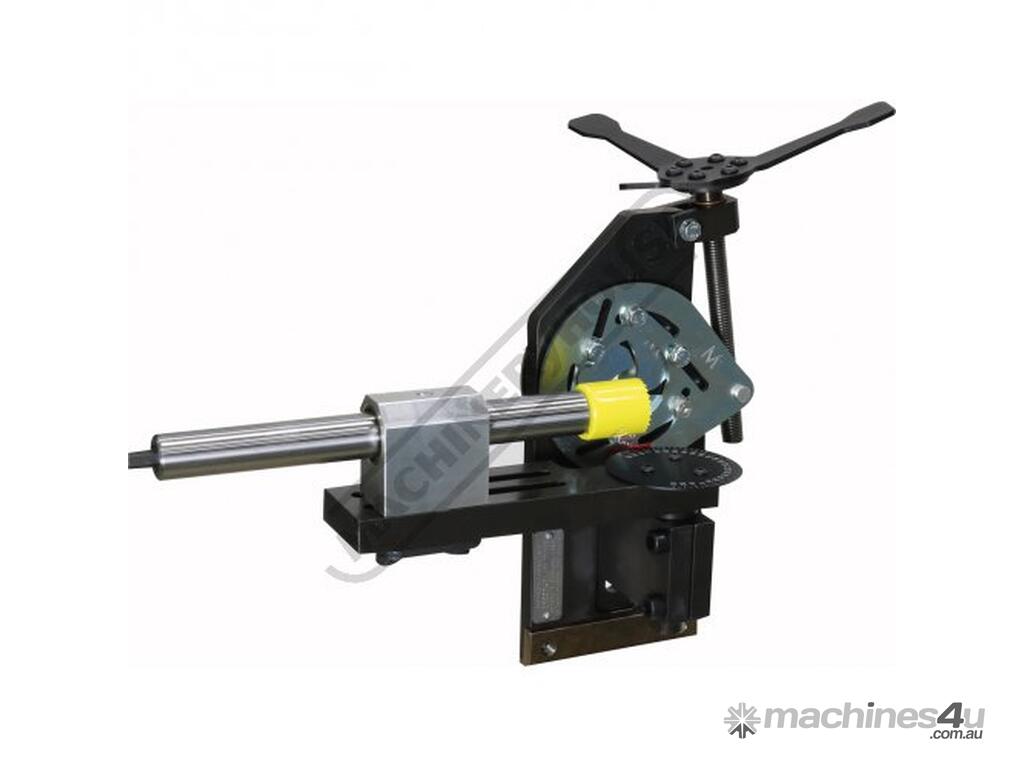

TN-250 Pipe & Tube Notcher Ø19.05 - Ø63.5mm OD Tube Capacity & 2" NB Pipe Capacity

BAILEIGH TN-250 Pipe & Tube Notcher Ø19.05 - Ø63.5mm OD Tube Capacity & 2" NB Pipe Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8500

The best hole saw notcher in the world: a big claim, but customers say the TN-250 lives up to it. It’s the only hole saw tubing notcher on the market that’s always centered.

Patent #8,734,066

Features:
Notches up to Ø63.5mm OD

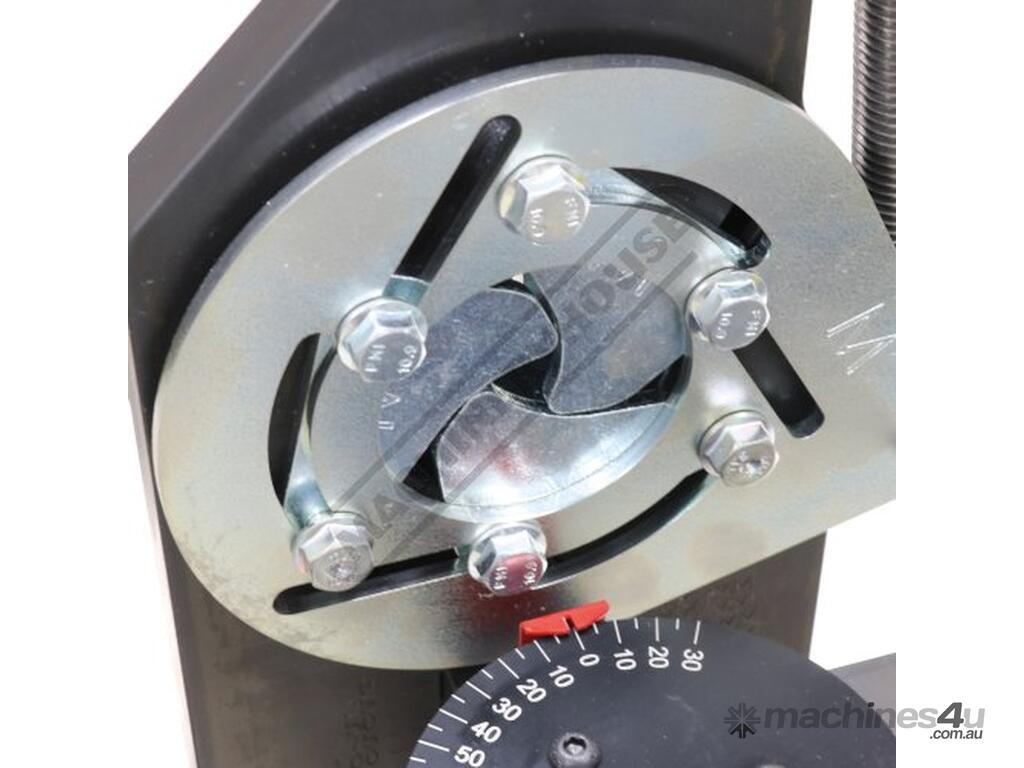

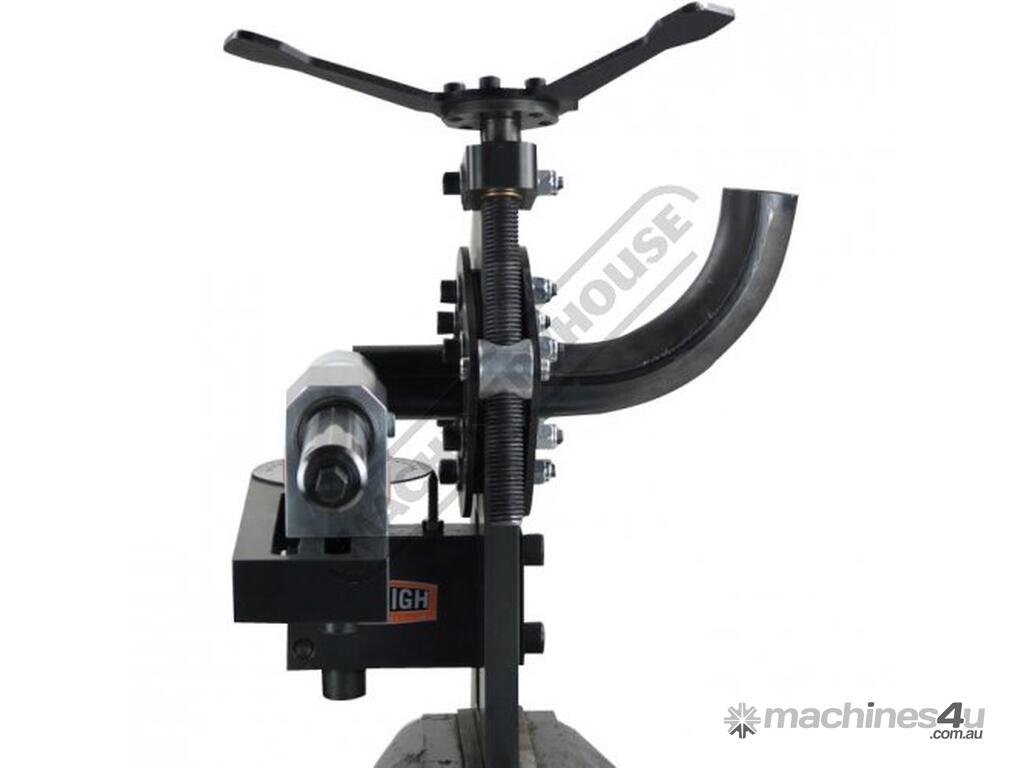

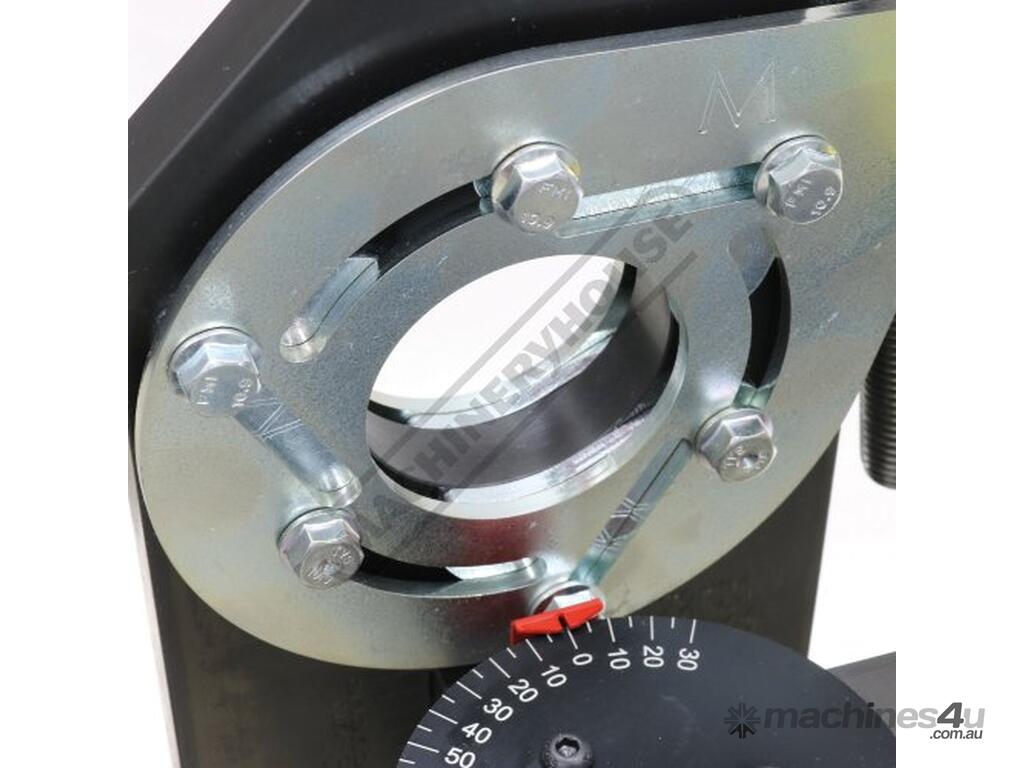

Our patented self-centering vice can clamp down anywhere on tube including the middle of bends
Fully-adjustable axis accommodates almost any notch combination
Carriage pivots up to 240° left to right so you can come from the “back side” of the notch
2 slotted mounting rails move up and down with scales for offset notches up to 25.4mm and allow for almost any position of the bearing block

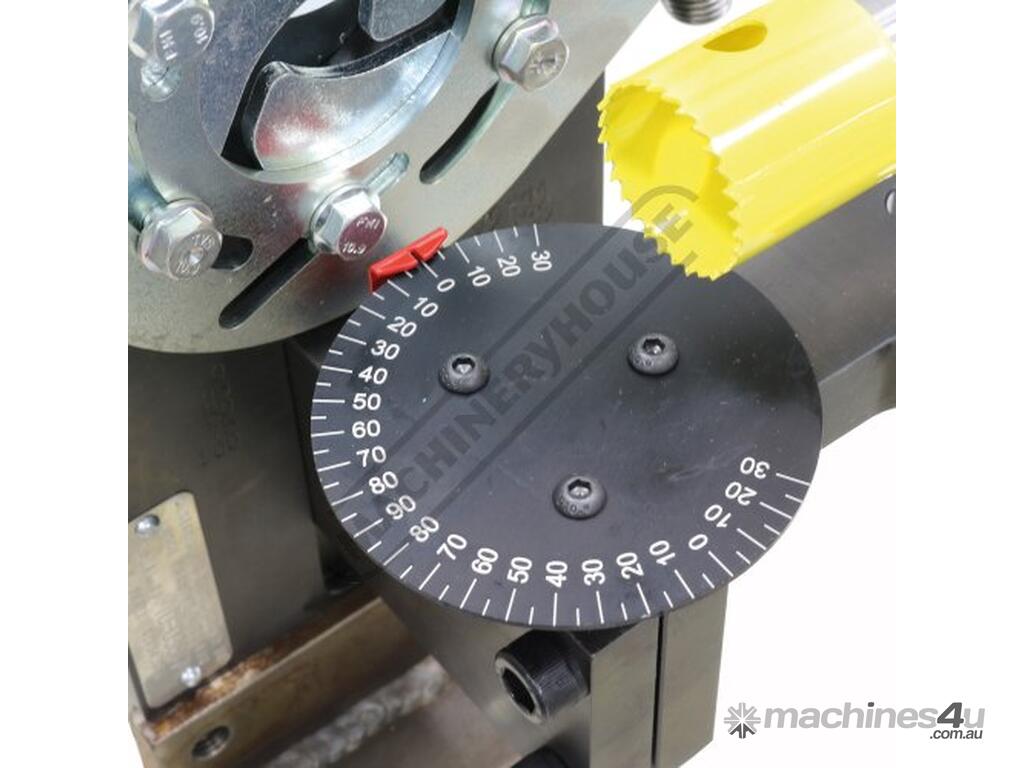

Large engraved degree dial (or angle-finder) helps you get those back-side notches lined up

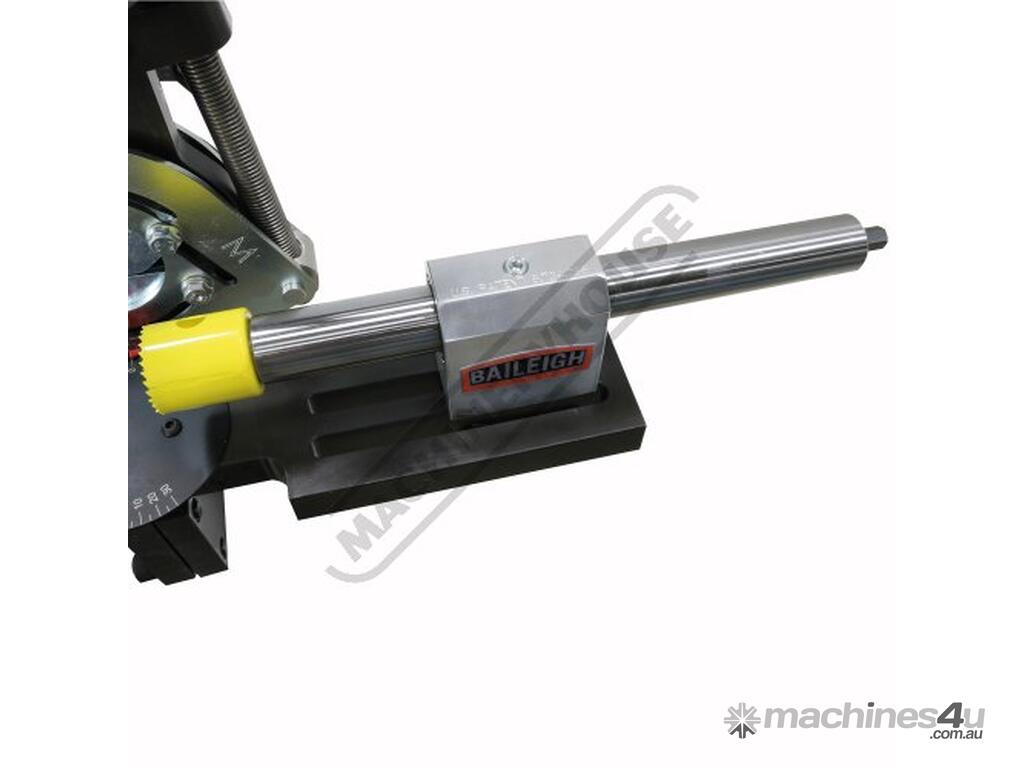

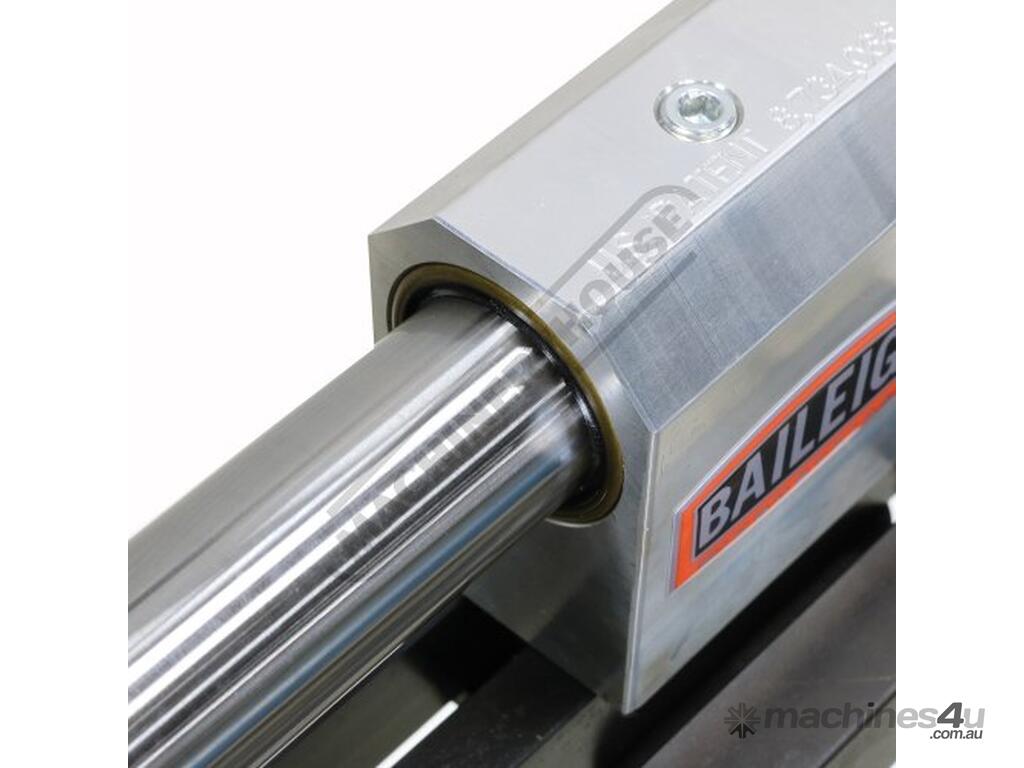

31.75mm Thompson® shaft rides in sealed and oiled needle bearings for smooth performance
Both ends of the shaft are completely replaceable to save you time and money
Heavy-duty 19.05mm steel plate backbone and all-interlocking components create a rigid platform that reduces vibration and prolongs the life of the hole saws
All slots include caps to last longer
Requires a 12.7mm hand drill

Note: Hole saw cutters sold separately


Specifications:
ORDER CODE: B8500
MODEL: TN-250
Machine (Type): Pipe & Tube Notcher
Machine (Type): Attachment
Notching Cutter (Type): Hole Saw (Optional)
Tube Capacity (OD) - Mild Steel (mm): Ø19.05 - Ø63.5
Pipe Capacity (NB) - Mild Steel (inch / mm): Ø2"
Angle Adjustment (Degree): 0 - 75°
End Mill Size (inch / mm): ~
Belt Size (mm): ~
Belt Speed: ~
Cutting Speed (rpm): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Dimensions ((mm)): 610 x 305 x 305
Nett Weight (kg): 23
