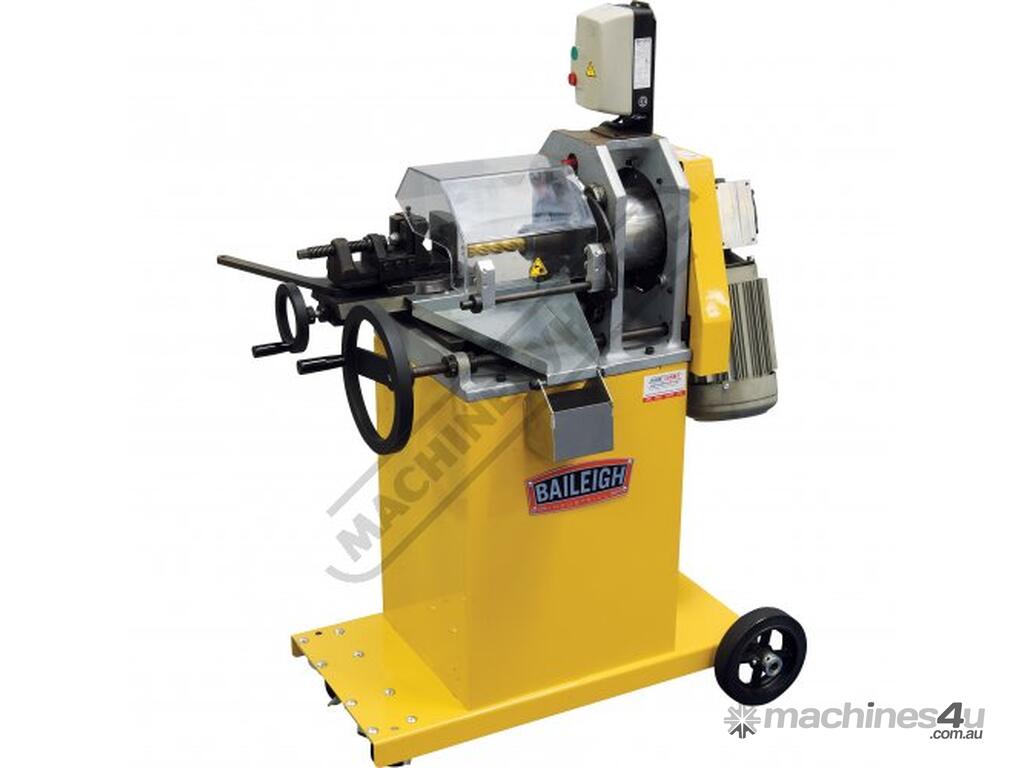

TN-800-CE Pipe & Tube Notcher Ø25.4 - Ø76.2mm OD Tube Capacity & 3/4" - 2-1/2" NB Pipe Capacity

BAILEIGH TN-800-CE Pipe & Tube Notcher Ø25.4 - Ø76.2mm OD Tube Capacity & 3/4" - 2-1/2" NB Pipe Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8550

The TN-800-CE Tube and Pipe Notcher does what no other tubing notcher on the market can do: notch tube from Ø25.4 - 76.2mm OD without any change in tooling, hole saws, or mandrels.

Recommended for: Structural work, racing and off-road chassis, steam pipe, and many more applications.


Why choose the TN-800-CE over similar machines?

Baileigh’s patented design (Patent No: 6,435,783) can save you thousands of dollars every year in tooling costs. No competing end mill notcher can cope from Ø25.4 - 76.2mm OD tube or pipe without a switch.
Decimal angle-finder enables you to work your way up to the right notch angle to produce a tighter fit and a better weld without wasting material on trial and error.
Made in the USA and built to last, the TN-800-CE draws strength from its rugged cast iron construction, something you won’t find on many competing models.
You can depend on unlimited remote assistance from Baileigh’s team of friendly and experienced reps. Call us anytime for application advice and problem solving.

Features:
Made in the USA

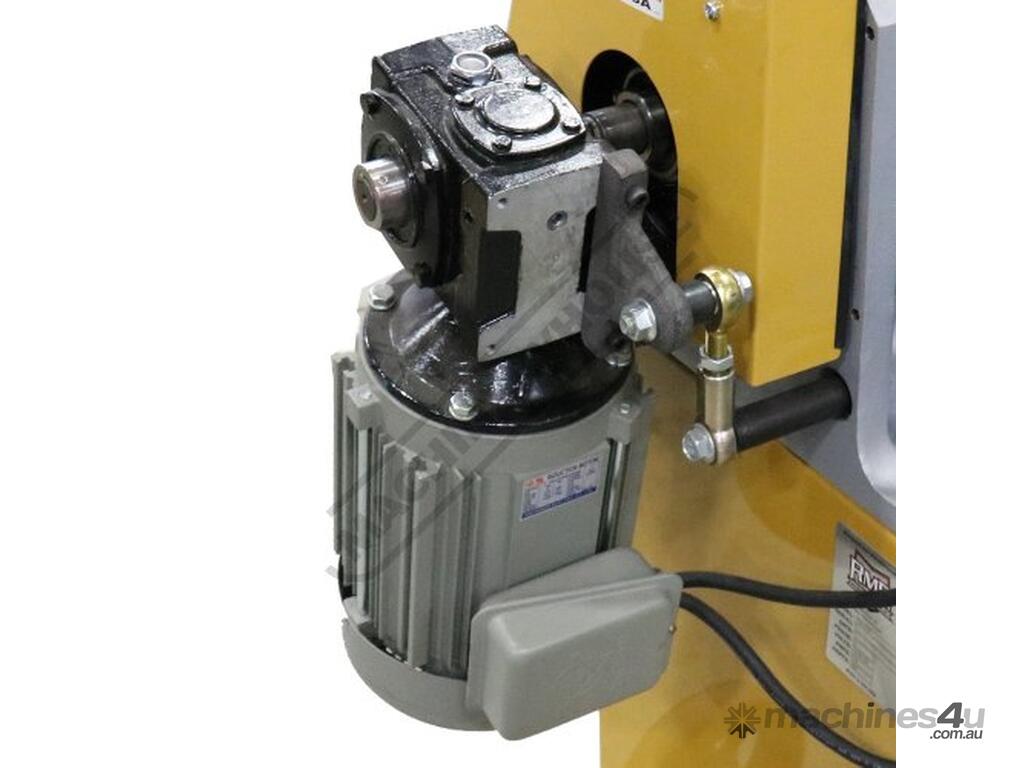

1hp motor runs on 240-volt power. You can operate it almost anywhere including in the field
Notches up to 60°
Carefully-chosen milling speed of 300rpm balances cutting power with long machine life and low wear and tear

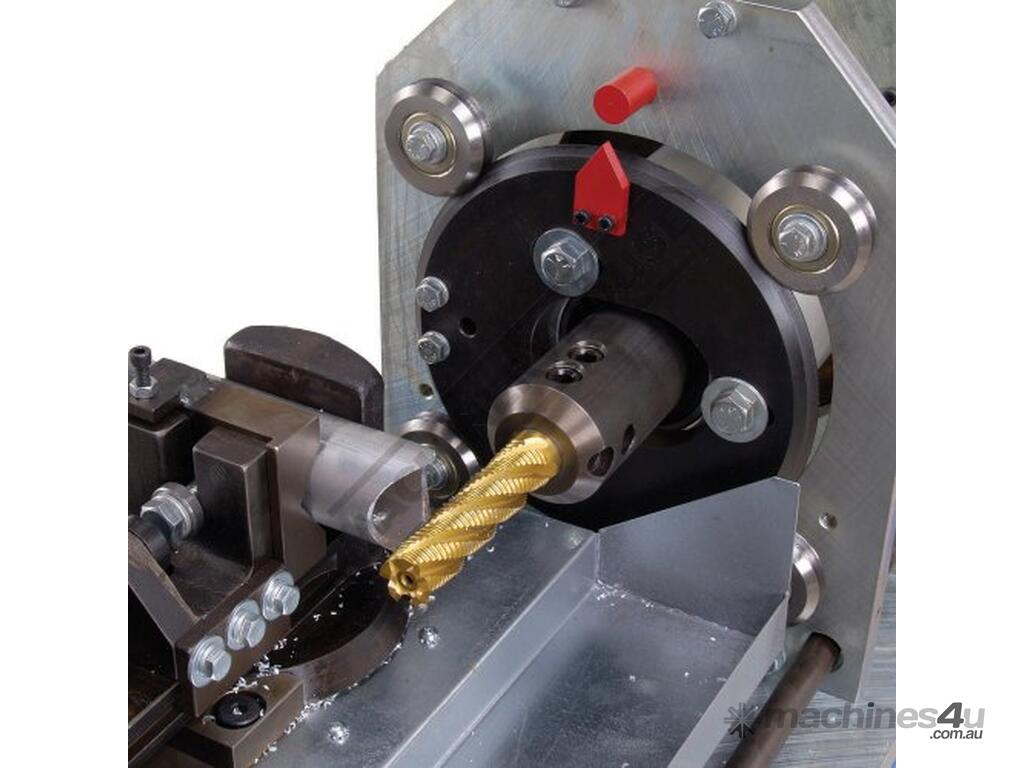

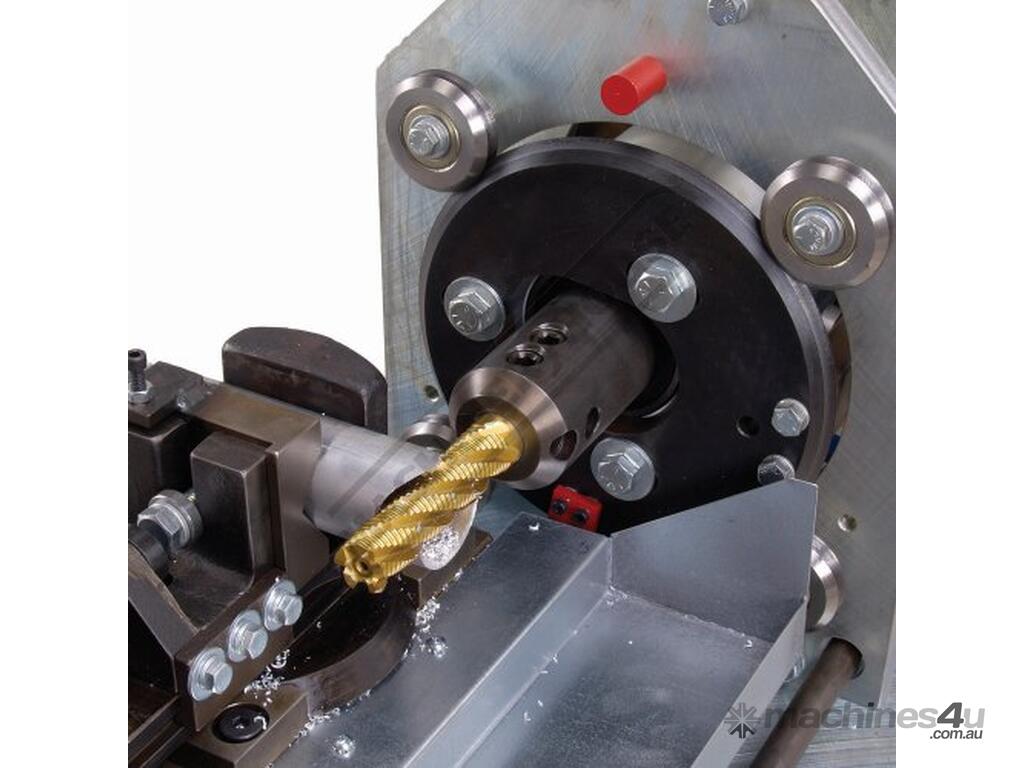

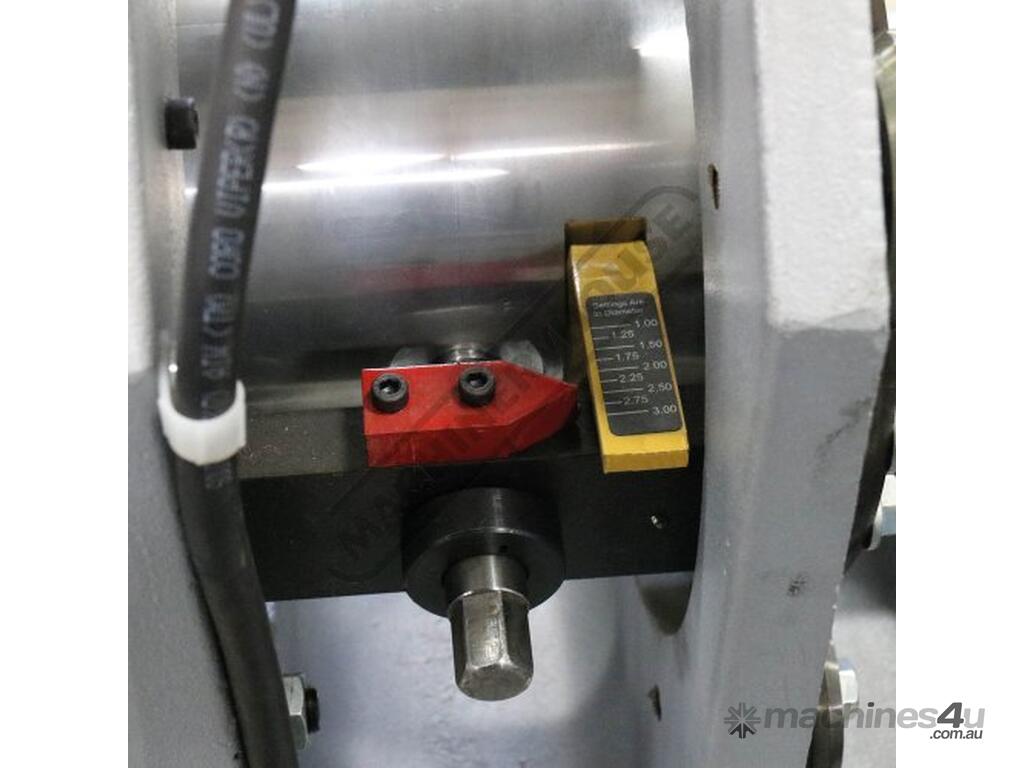

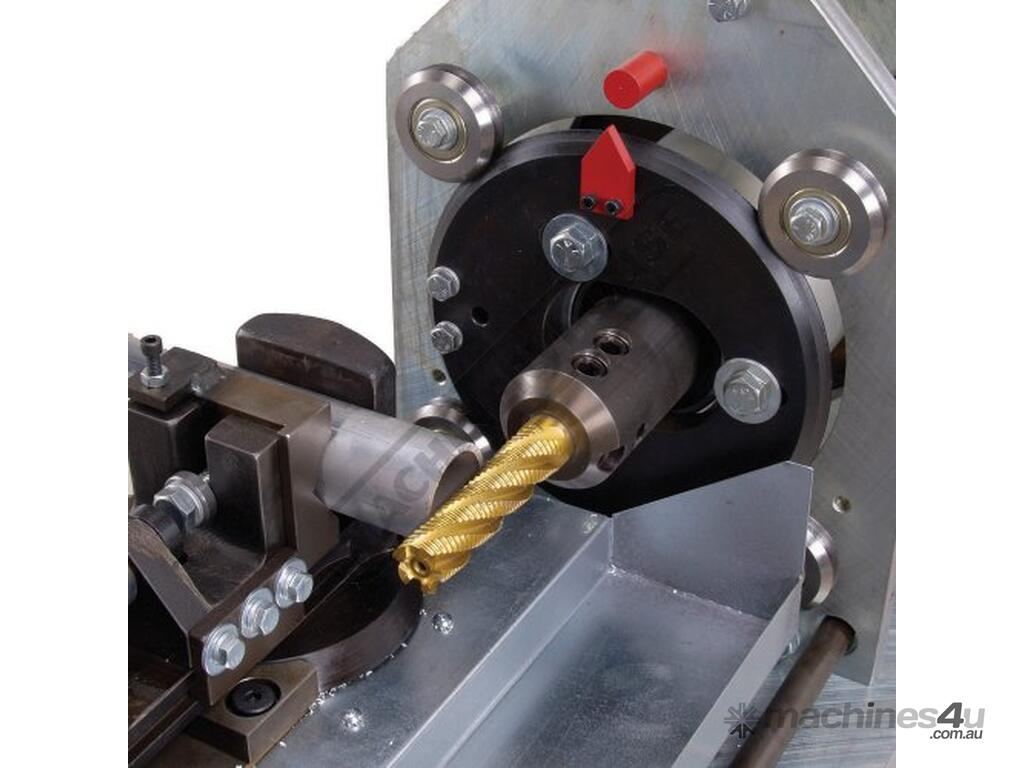

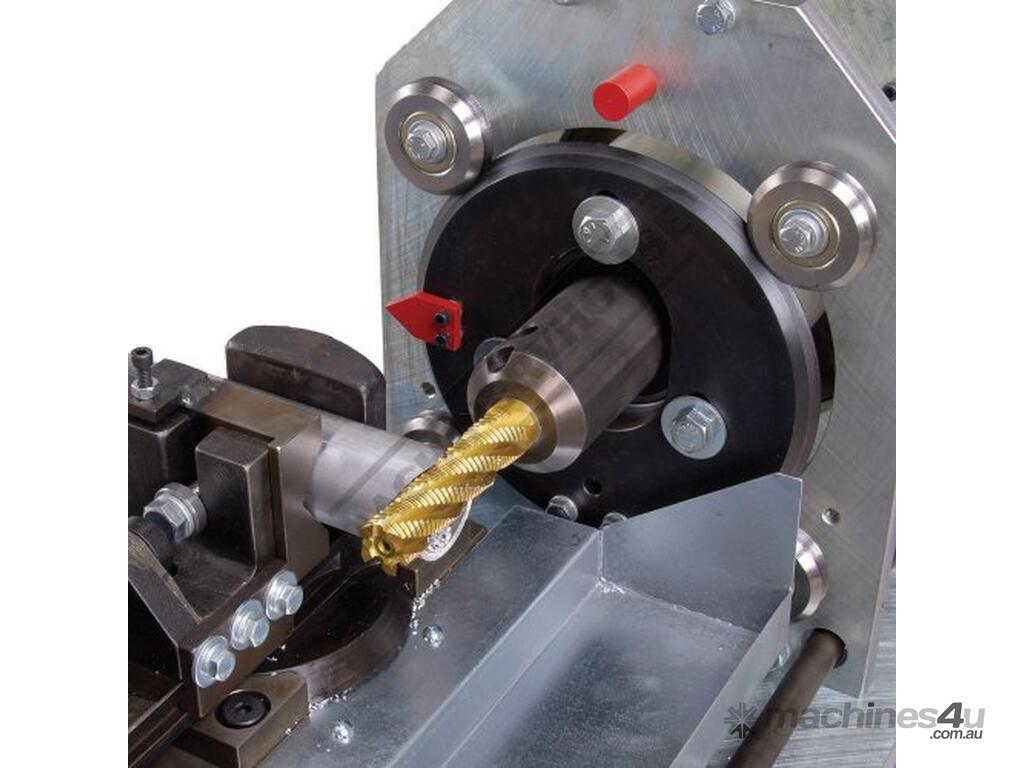

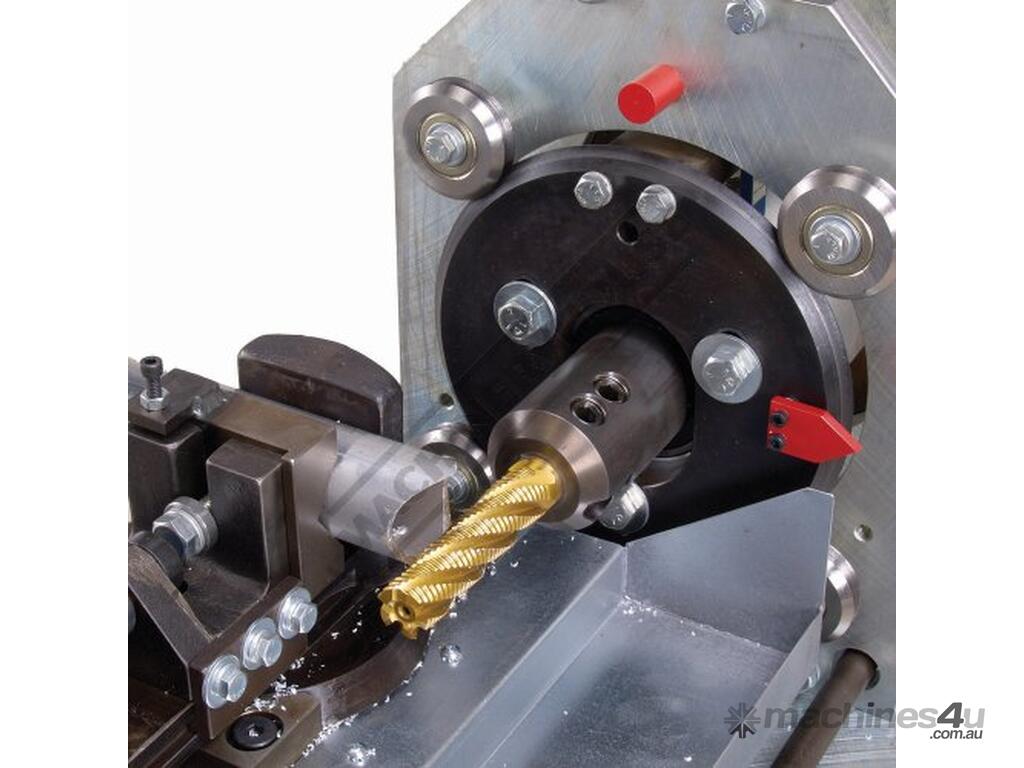

Our tooling-free design lets you simply dial in the OD that you want to notch—and the tube notcher will change its eccentric path and produce a perfect notch

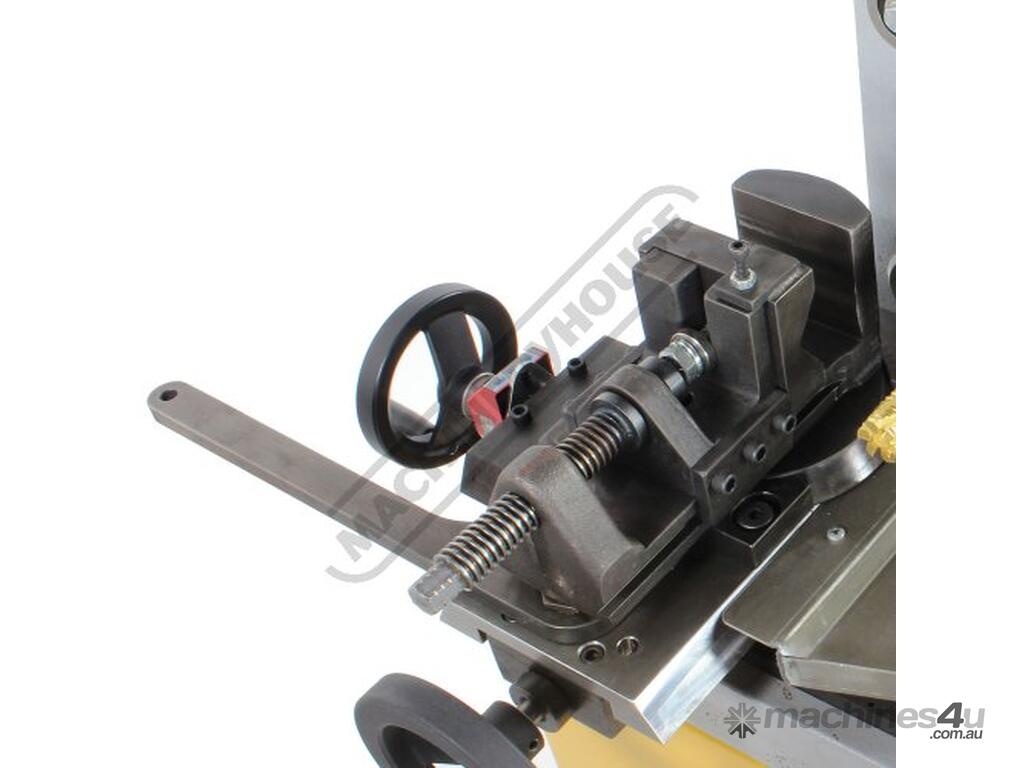

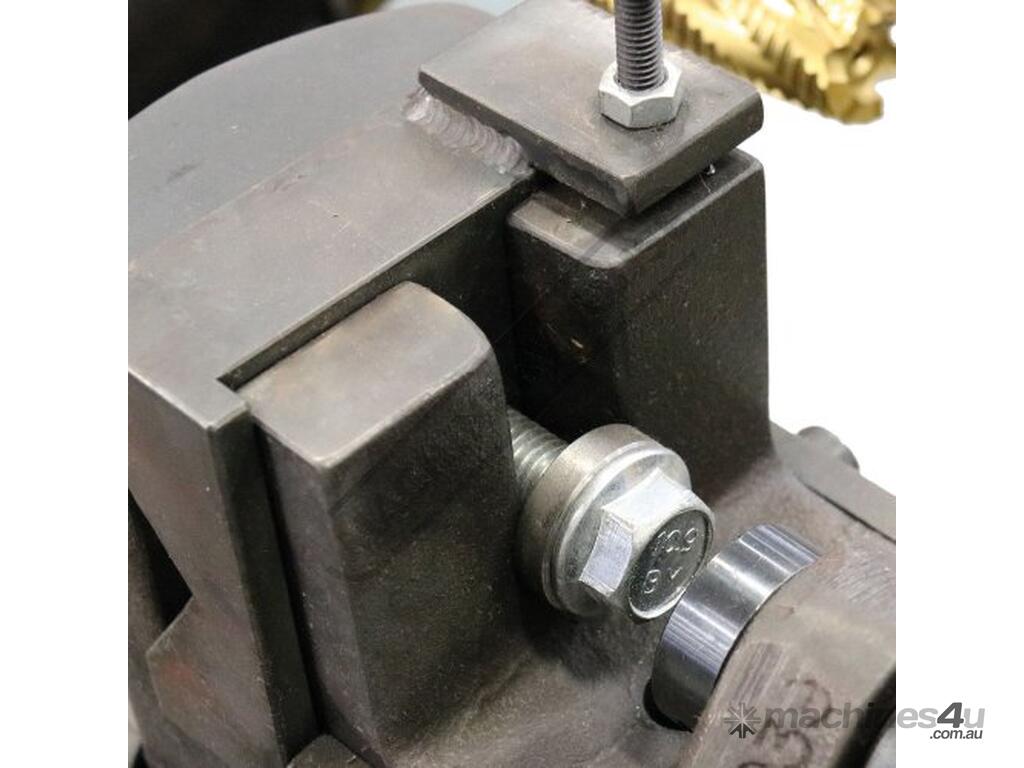

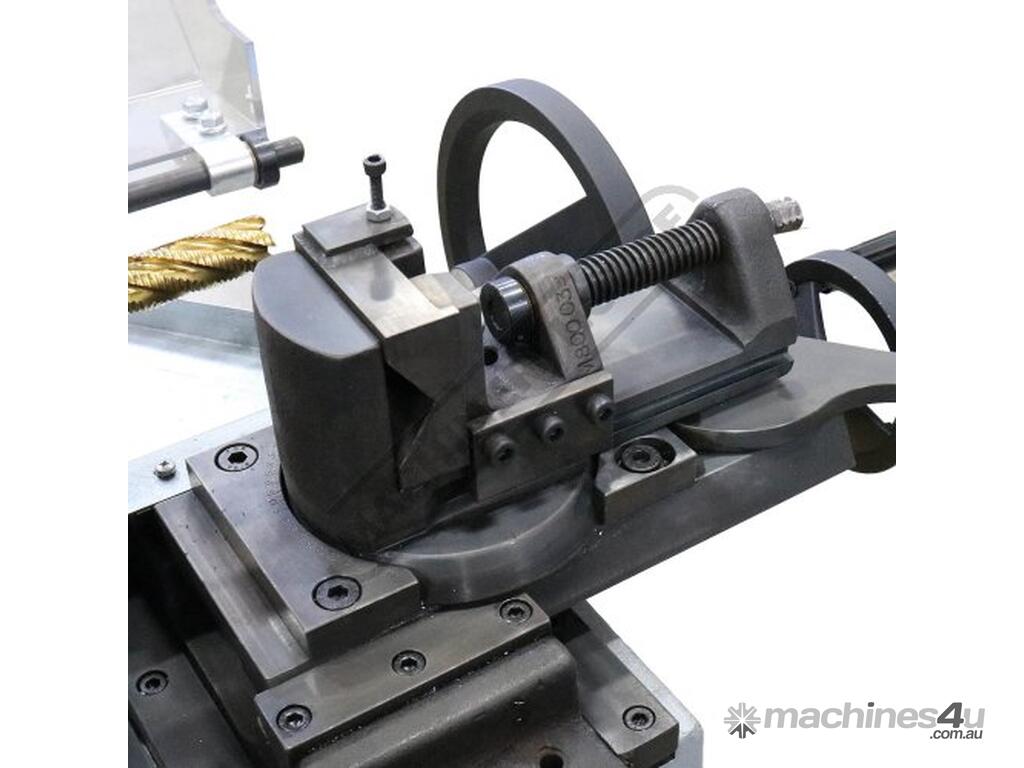

Vice adjusts in just about every way possible featuring X and Y-axis control to ensure a good cutting position

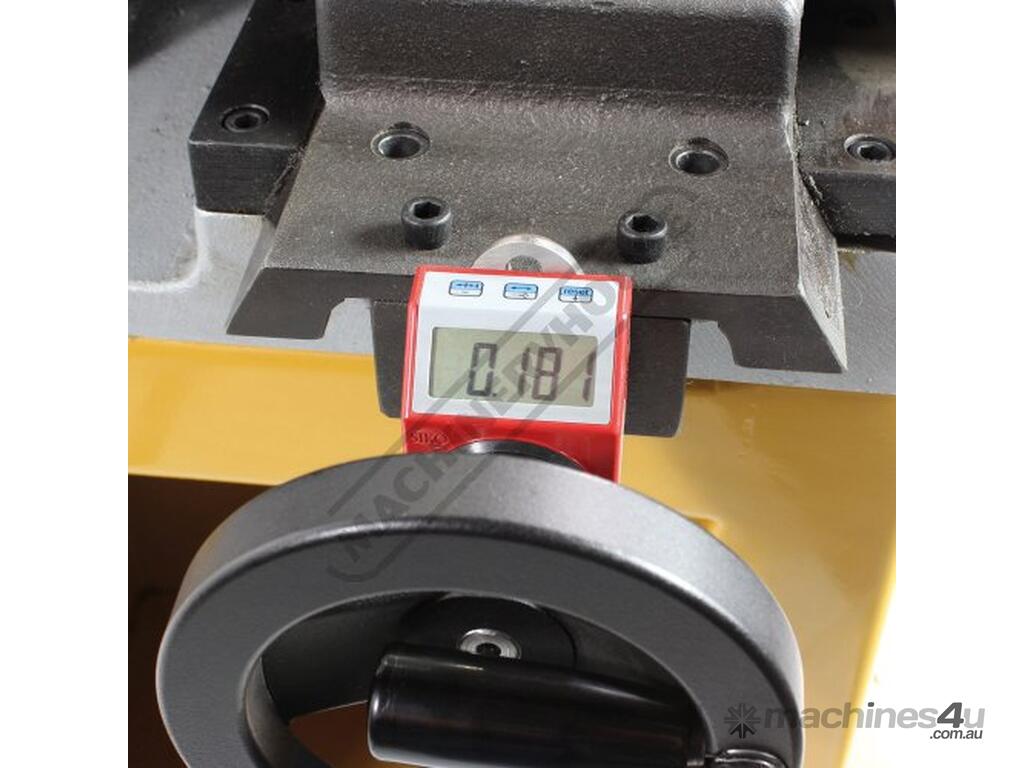

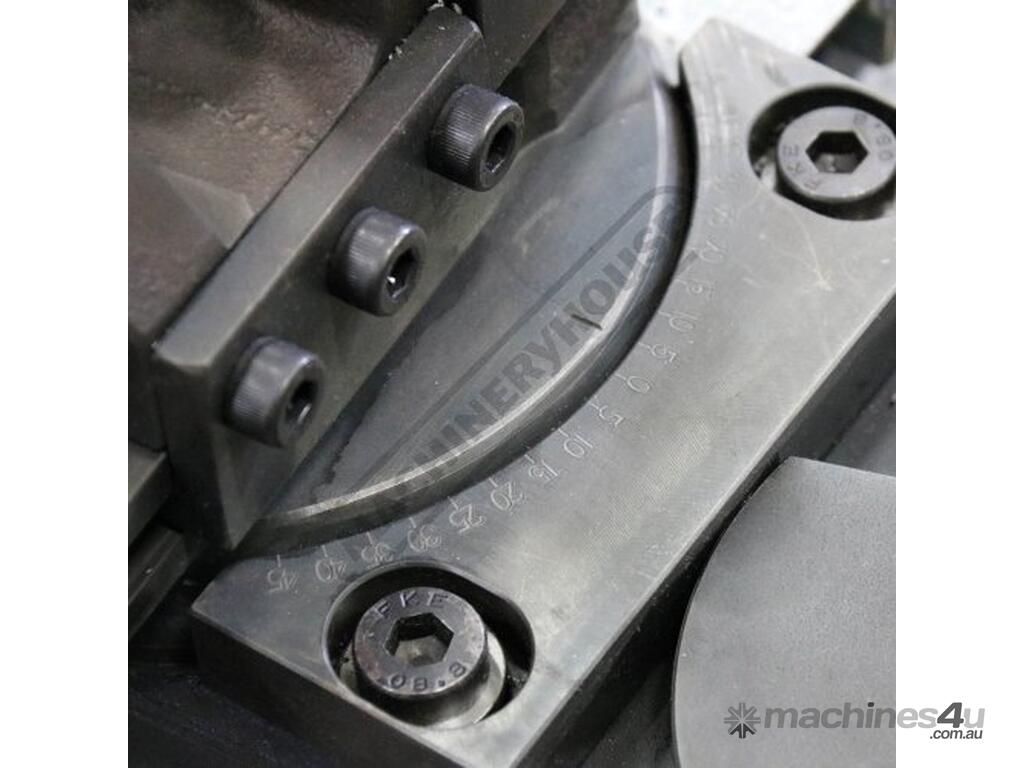

Degree or angle-finder makes it simple to check the angle and ensure repeatability
If you want a more traditional notch the cam lock enables you to set your degrees; just move it in either direction to angle the notch
Heavy-duty cast iron framework reduces vibration prolongs machine life and delivers more accurate results

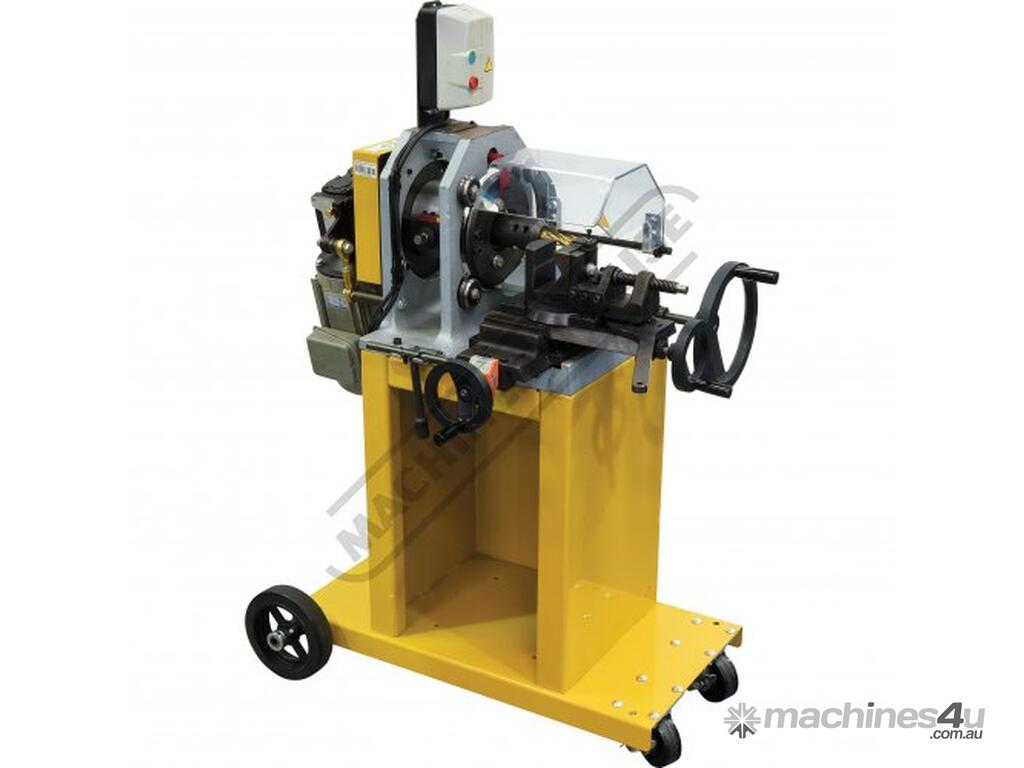

Includes portable cart with wheels so that when you’re not using the TN-800-CE you can roll it out of the way

Includes:

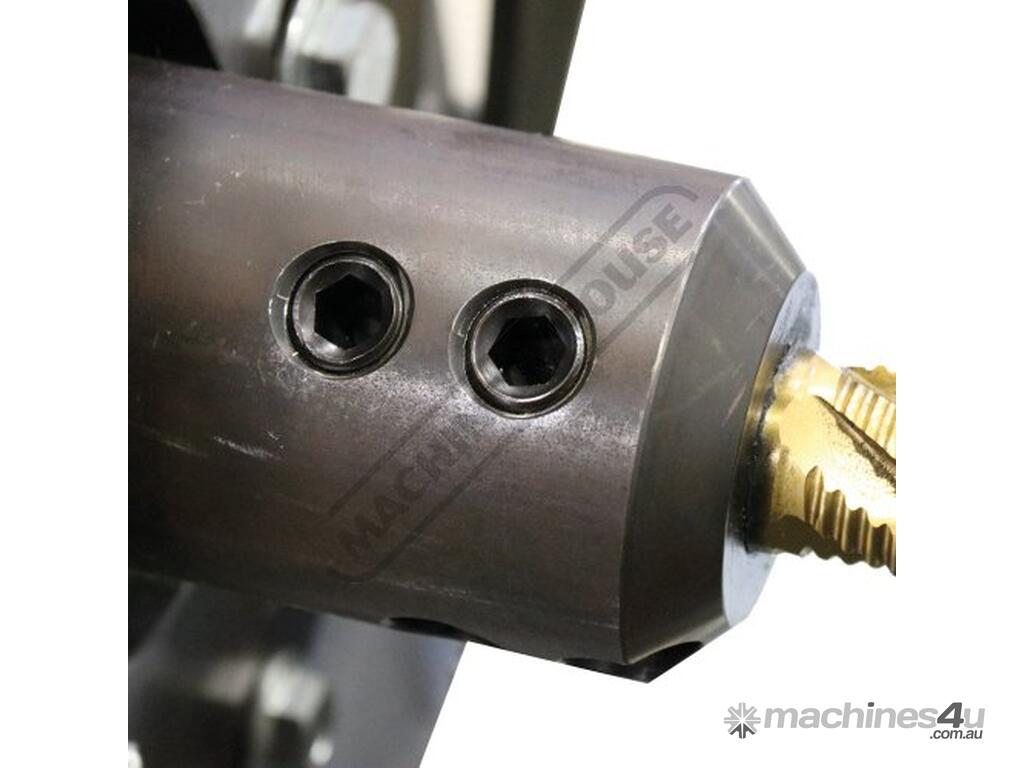

- 25.4mm End Mill



Specifications:
ORDER CODE: B8550
MODEL: TN-800-CE
Machine (Type): Pipe & Tube Notcher
Machine (Type): Stand with Wheels
Notching Cutter (Type): End Mill
Tube Capacity (OD) - Mild Steel (mm): Ø25.4 - Ø76.2
Pipe Capacity (NB) - Mild Steel (inch / mm): Ø3/4" - Ø2-1/2"
Angle Adjustment (Degree): 0 - 60°
End Mill Size (inch / mm): 25.4
Belt Size (mm): ~
Belt Speed: ~
Cutting Speed (rpm): 300
Motor Power (kW / hp): 0.75 / 1
Voltage (V): 240V
Dimensions ((mm)): 1676 x 1118 x 1524
Nett Weight (kg): 278
